Lunatics those who search for lunar ticks

Developments in Nanosecond Pulse Detection Methods & TechnologyUHE Neutrino Detection using the Lunar Cherenkov Technique

Lunatics - those who search for lunar ticks

Prof Ron EkersDr Paul RobertsDr Chris Phillips

Rebecca McFadden(PHD)

Prof Ray PrthoeroeClancy James (PhD)

A/Prof Steven TingayDr Ramesh Bhat


Outline

Outline

  • Lunar Cherenkov Technique

  • Characterisitics of Cherenkov Radio Pulse

  • Current ATCA Experiment

  • ATCA Upgrade

  • Future Experiments - SKA


Uhe neutrino detection using the lunar cherenkov technique

UHE Neutrino Detection using the Lunar Cherenkov Technique

neutrino

photon

shower

Technique first proposed by

Dagkesamanskii & Zhelezynkh (1989)and first applied by Hankins, Ekers and O'Sullivan (1996)

using the Parkes radio telescope

Image courtesy of R Ekers


Characteristics of radio pulse and experimental requirements

Characteristics of Radio Pulse and Experimental Requirements

  • 100% linearly polarised

  • Broadband (0-3+GHz), continuous emission

    (See #0341 Clancy James for more details)

  • Very narrow unmodulated pulse (1-2ns)

  • Dispersed by ionosphere

  • Blurred by instrumental effects

Require:

Broad receiver bandwidth for ns time resolution

High speed sampling

Real time trigger to avoid excessive storage requirements

Real time dedispersion to maximise SNR for trigeer


Advantages of using an array of small radio telescopes

Advantages of using an Array of Small Radio Telescopes

A rray geometry allows RFI discrimination based on the signal direction of arrival.

The system temperature is dominated by thermal emission from the moon so there is little improvement in signal to noise ratio to be gained by larger apertures.With many small dishes, their spatial separation can be used to ensure that thermal emission from the moon is incoherent between elements thus increasing the signal to noise ratio.

At frequencies in the 1-2GHz range, the primary beam produced by a 22m aperture (such as the Compact Array) can see the entire moon. Beamwidth is inversely proportional to aperture size, therefore a larger dish will see less than the entire moon and any minimal improvement in sensitivity from the larger aperture will be offset by decreased coverage of the moon.


Current atca experiment using fpga based sampler board

Current ATCA Experiment using FPGA based Sampler Board

  • 3 Antennas fitted with custom built hardware

  • 1.2 GHz-1.8 GHz (600MHz) RF signal taken directly from antenna

  • Dedispersion on fixed analogue dedispersion filter

  • Real time trigger in FPGA

  • Ethernet connection to control room

  • Baseband recording for offline processing


Overall system design for may 2007 observing term

Overall System Design for May 2007 Observing Term

Baseband

Buffer

Offline Processing

1 Gbit Ethernet Link

(TCP/IP)


System detail at each antenna

1.2 – 2.5 Ghz Horn

Polarisation and Band

Splitter

LNA

1.5 Ghz

LNA

1.5 GHz

LNA

2.3 Ghz

LNA

2.3 Ghz

Pol A

Pol B

Pol B

Pol A

L-Band RF Splitter

Module (F10)

S-Band RF Splitter

Module (F11)

L-Band Splitter

(C22)

S-Band Splitter

(C23)

2.048 Gs/s

4096 samples, 2μs

5.1 σ

8 bit

ADC

Coincidence Test and Threshold Detect

Buffer

Ethernet Connection

8 bit

ADC

System Detail at Each Antenna

Standard ATCA Receiving Path

Customised Hardware

Analog Dedispersion Filters

3 – 8 ns (night – day)

ATNF BCC Interface 100Mb/s

CABB Sampler Board


Differential delay statistics

Differential Delay Statistics

Histogram of VTEC for May 2006

Signal dedispersion is performed in analog microwave filters with a fixed dispersion characteristic.

These filters were designed using a new method of planar microwave filter design based on inverse scattering .

This results in a filter with a continuously changing profile, in this case a microstrip line with continuously varying width.

The width modulations on the microstrip line produce cascades of reflections which sum to produce the desired frequency response.

TEC data from NASA’s Crustal Dynamics Data Information System

Δt = 0.00134 TEC (1/flo2 – 1/fhi2 )

Restricting data set to night-time hours (8pm-6am):Average TEC of 7.06 VTECU (May 2006) and 7.01 VTECU (May 2007)Over the 600MHz bandwidth (1.2-1.8 Ghz) this corresponds to an average differential delay of 5ns (May 2006) and 4.39ns (May 2007)

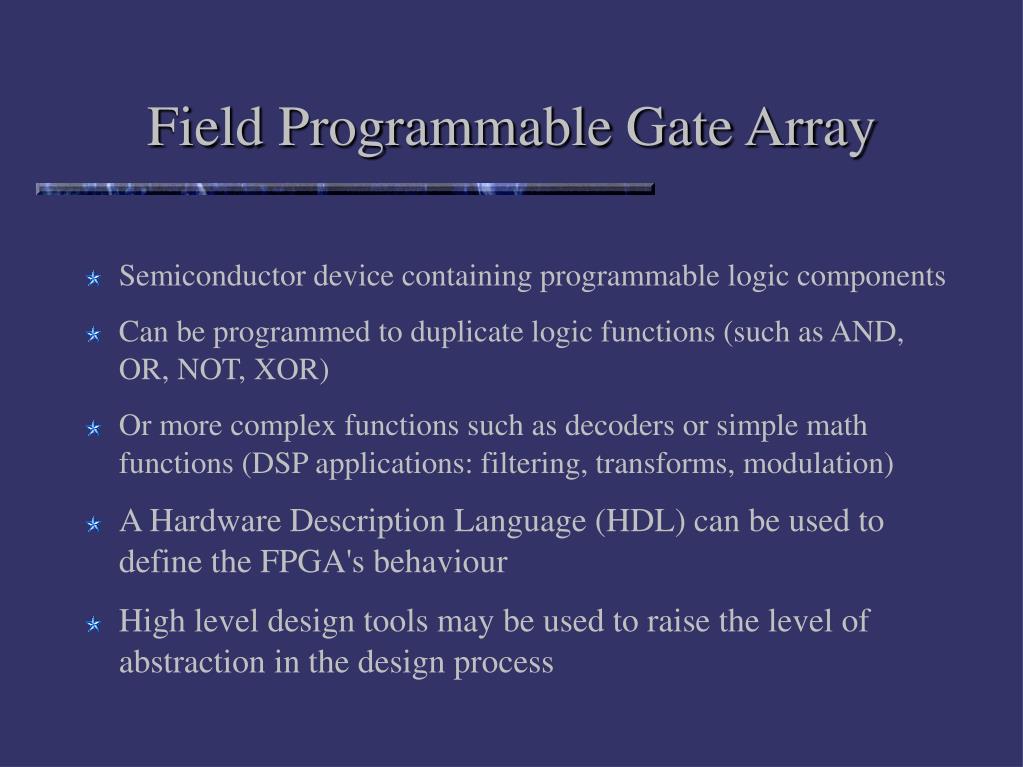

Field programmable gate array

Field Programmable Gate Array

  • Semiconductor device containing programmable logic components

  • Can be programmed to duplicate logic functions (such as AND, OR, NOT, XOR)

  • Or more complex functions such as decoders or simple math functions (DSP applications: filtering, transforms, modulation)

  • A Hardware Description Language (HDL) can be used to define the FPGA's behaviour

  • High level design tools may be used to raise the level of abstraction in the design process


Introduction to atca upgrade

Introduction to ATCA Upgrade

  • Upgrade planned to increase current 600MHz bandwidth to 2 GHz – Compact Array Broad Band Upgrade (CABB)

  • Due to bandwidth and data storage limitations, the only way to exploit this new bandwidth is by implementing real time detection algorithms

  • These algorithms can be programmed into more complex FPGA boards currently being built by the ATNF for the CABB Upgrade

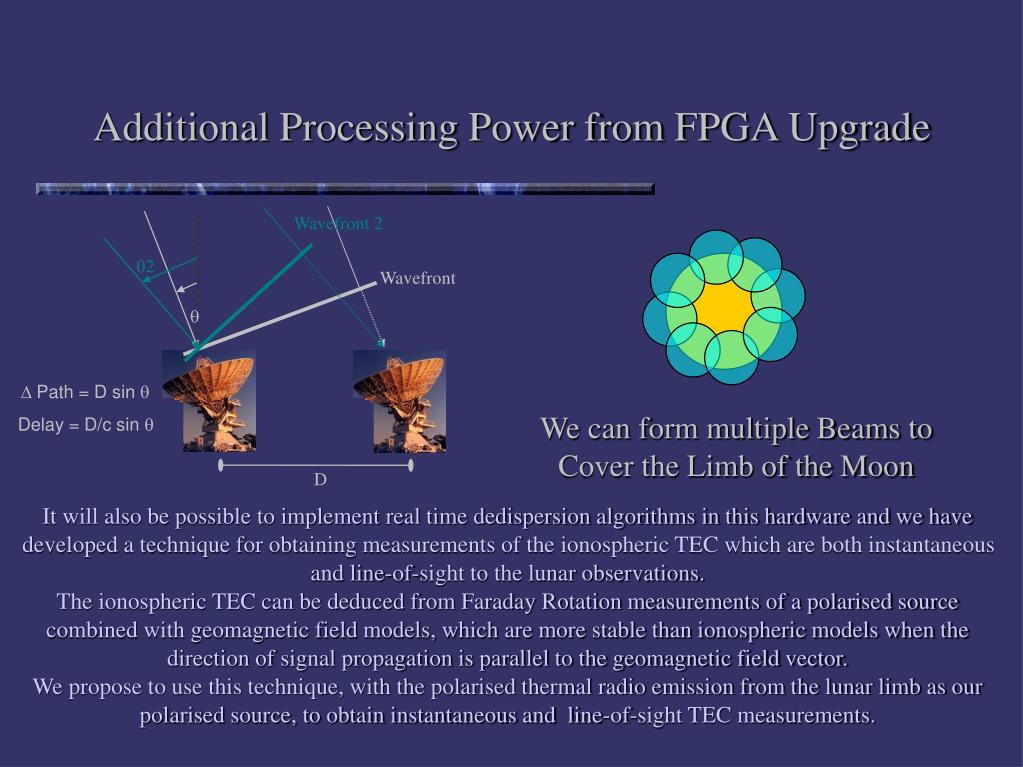

Additional processing power from fpga upgrade

Wavefront 2

q2

Wavefront

q

D Path = D sin q

Delay = D/c sin q

D

Additional Processing Power from FPGA Upgrade

We can form multiple Beams to Cover the Limb of the Moon

It will also be possible to implement real time dedispersion algorithms in this hardware and we have developed a technique for obtaining measurements of the ionospheric TEC which are both instantaneous and line-of-sight to the lunar observations. The ionospheric TEC can be deduced from Faraday Rotation measurements of a polarised source combined with geomagnetic field models, which are more stable than ionospheric models when the direction of signal propagation is parallel to the geomagnetic field vector.We propose to use this technique, with the polarised thermal radio emission from the lunar limb as our polarised source, to obtain instantaneous and line-of-sight TEC measurements.
