Ventilatory failure hypoxia

Applied Sciences Lecture Course

Ventilatory Failure & Hypoxia

Mahesh Nirmalan MD, FRCA, PhD

Consultant, Critical Care Medicine

Manchester Royal Infirmary

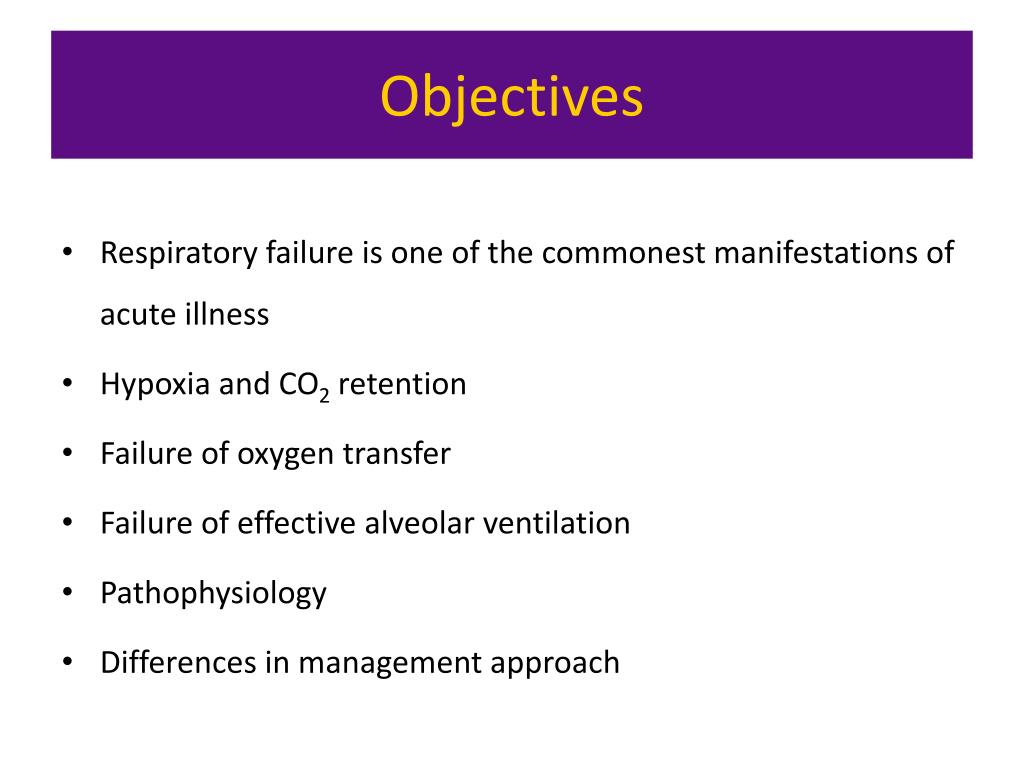

  • Respiratory failure is one of the commonest manifestations of acute illness

  • Hypoxia and CO2 retention

  • Failure of oxygen transfer

  • Failure of effective alveolar ventilation

  • Pathophysiology

  • Differences in management approach

Respiration or breathing


Moving an adequate volume of air

Minute ventilation

Alveolar ventilation


Transfer of O2 across the alveoli

Dusky colour


Low SpO2

Low arterial PaO2

Respiratory rate

Tidal volume or chest expansion

Arterial PaCO2

Respiration or Breathing

Respiratory failure

Type 2

Type 1

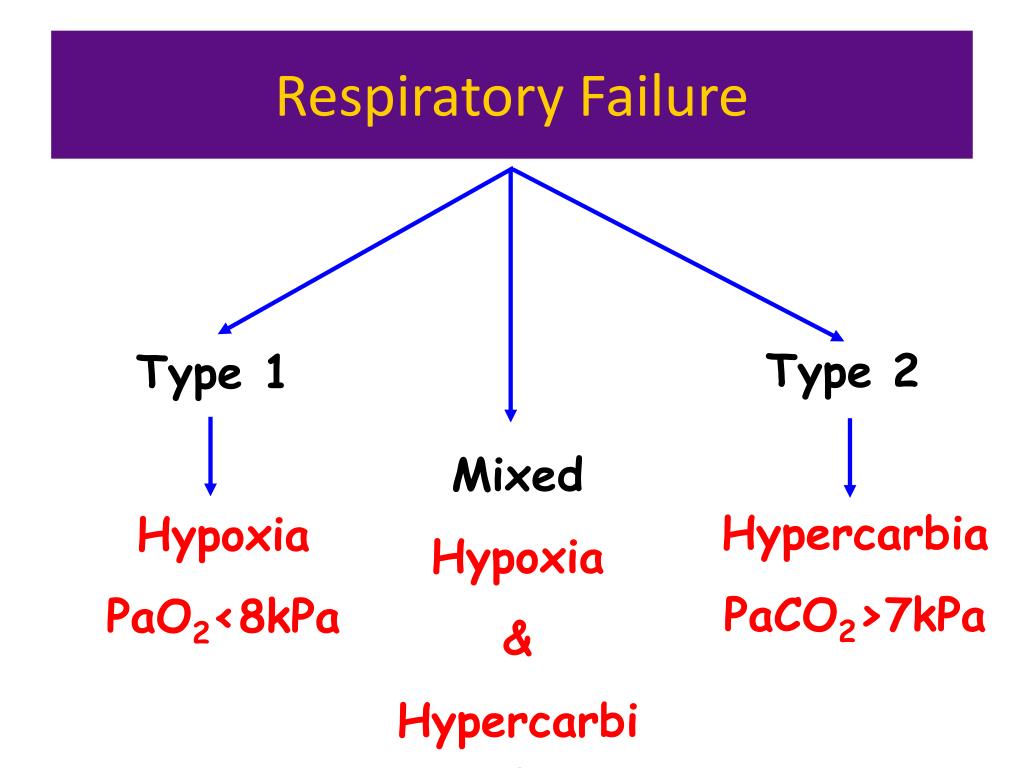

Respiratory Failure

Treatment of respiratory failure

Treatment of Respiratory failure

  • Type 1

    • Cause

    • O2 supplementation

    • PEEP

  • Type 2

    • Cause

    • Ventilatory assistance

      • Pharmacological

      • Mechanical: IPPV

  • Mixed

Ventilatory failure hypoxia


Lung volumes

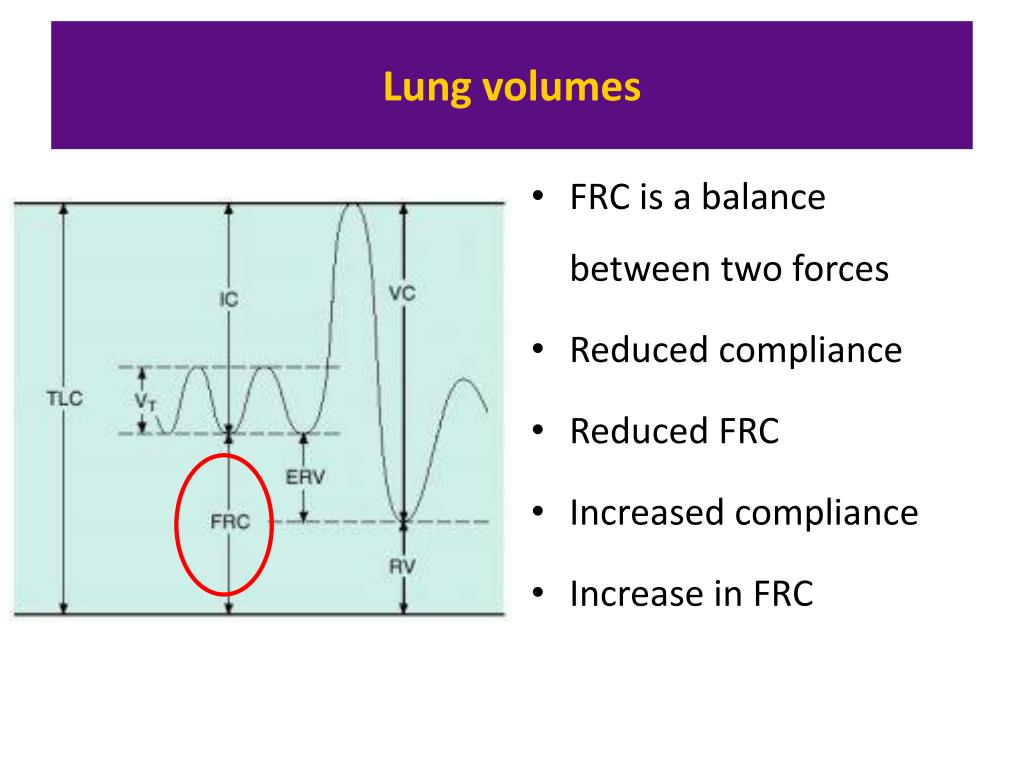

Lung volumes

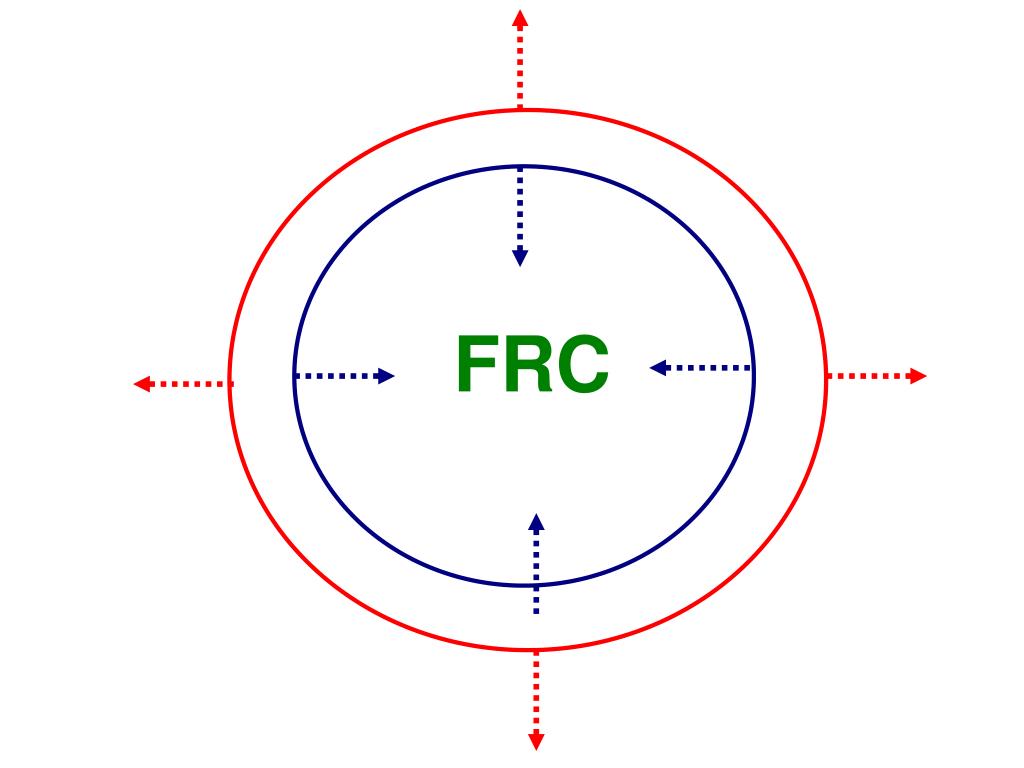

FRC is a balance between two forces

Reduced compliance

Reduced FRC

Increased compliance

Increase in FRC

Low compliance and low frc

Inflammation and oedema within the lung parenchyma

Low compliance and low FRC

Ventilatory failure hypoxia


Fibrinous exudate


Histological changes reduced lung compliance


Normal lung

Interstitial oedema

Organising oedema

Alveolar oedema


Neutrophil infiltartion

Histological changes: reduced lung compliance

Reduced compliance

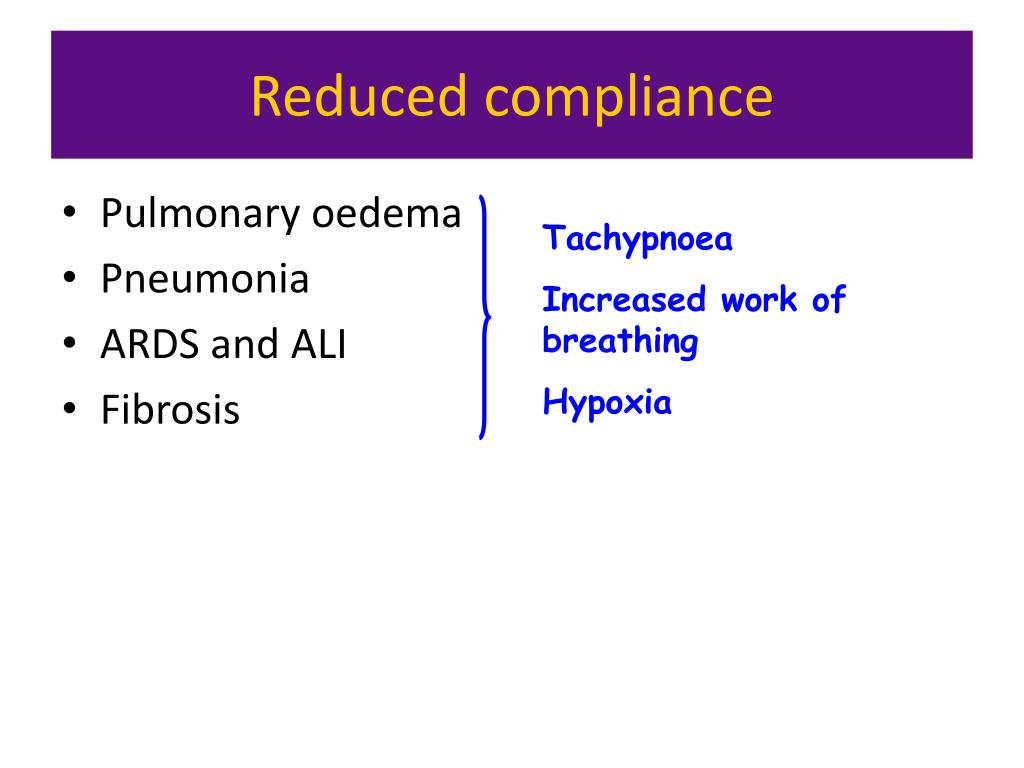

Reduced compliance

  • Pulmonary oedema

  • Pneumonia

  • ARDS and ALI

  • Fibrosis


Increased work of breathing


Extensive pneumonia reduced lung compliance frc

Extensive pneumonia: Reduced lung compliance→↓FRC

Pneumonia lung compliance

Pneumonia: ↓lung compliance

Decreased lung compliance

Decreased lung compliance

  • Early stages: Interstitial oed

  • Tendency for the alveoli to collapse

  • May involve large parts of the lung

  • Reduction in FRC is an important factor

  • Alveolar oedema & consolidation

  • Increased work of breathing

  • Common cause for failure in oxygenation

  • Type 1 respiratory failure

Increased lung compliance

Loss of elastic tissue within the lung parenchyma

Increased lung compliance

Copd increase in compliance frc

COPD: Increase in compliance→↑FRC

Increased lung compliance increased frc

Increased lung compliance: Increased FRC


Low set diaphram

Reduced lung markings

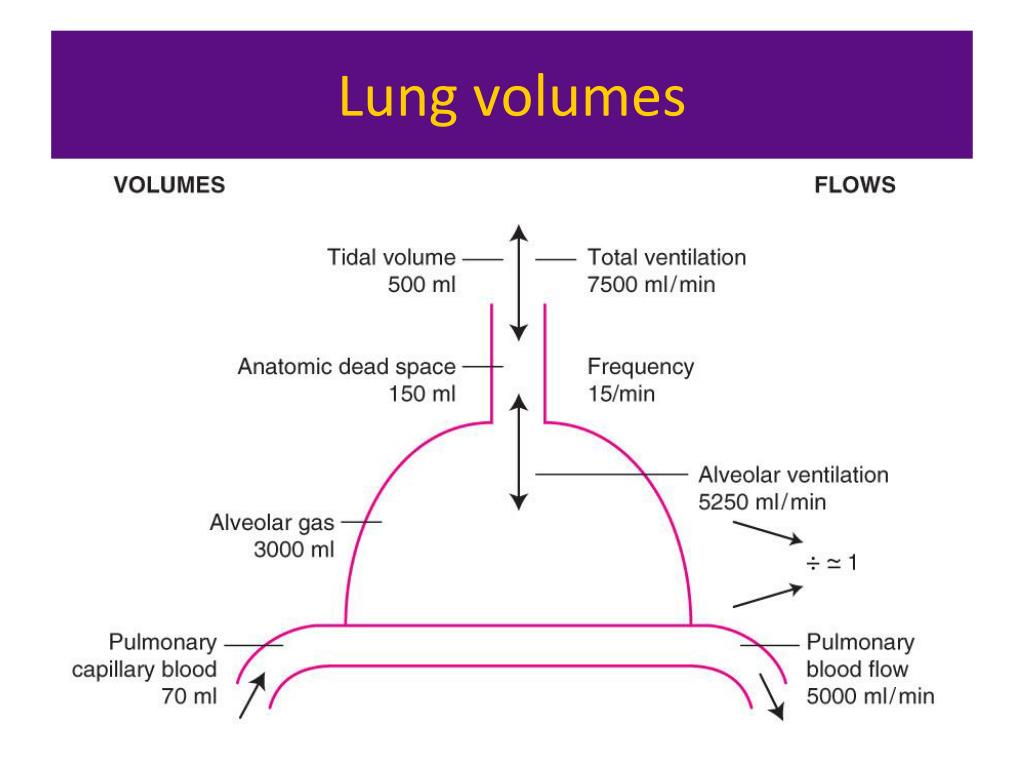

Lung volumes1

Lung volumes

Hypoxia failure in oxygenation

Hypoxia: Failure in oxygenation

Hypoxia failure of tissue oxygenation

Hypoxia: failure of tissue oxygenation

  • Hypoxic hypoxia: Pulmonary oxygen transfer

  • Stagnant hypoxia: Poor blood flow

  • Anaemic hypoxia: poor oxygen carriage

  • Histotoxic hypoxia: Sepsis, Cyanide

Oxygen cascade in an ideal lung

Oxygen cascade in an ideal lung

Diffusion, shunt, ventilation perfusion mismatch

High Altitude


Pathophysiology of hypoxia

Pathophysiology of hypoxia

Venous blood

Oxygenated blood

Pathophysiology of hypoxia1

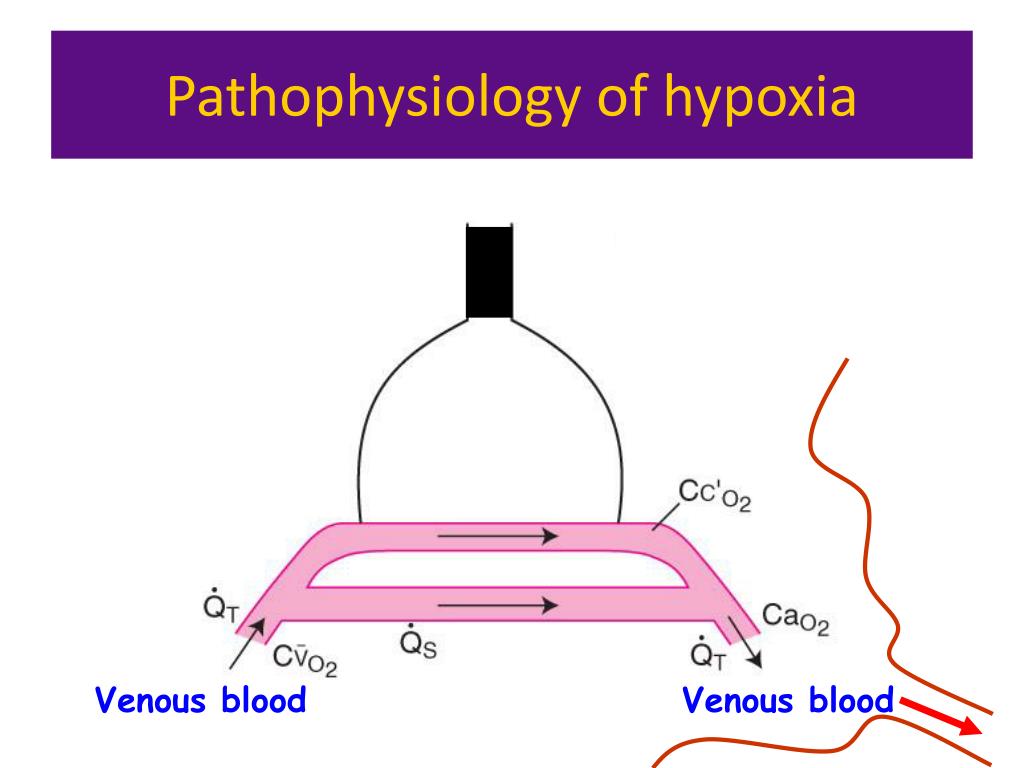

Pathophysiology of hypoxia

Venous blood

Venous blood

Ventilation perfusion or v q mismatch

Ventilation/perfusion or V/Q mismatch

Partially oxygenated


Venous blood

Shunt and v q mismatch

Shunt and V/Q mismatch

Alveolar oedema

Shunt: blood that goes through unventilated lung units

V/Q mismatch: Blood going through poorly ventilated units

Causes of hypoxia

Causes of Hypoxia

Clinically how does one distinguish between shunt and V/Q mismatch?

Effect of increasing FiO2


Diffusion defects

Ventilation-perfusion mismatch


45 years old male breathless pyrexial unwell breathing 50 o 2 pulse oximetry 90 saturation

45 years old male: Breathless, pyrexial, unwell, (breathing 50% O2)Pulse oximetry: 90% saturation

  • pH=:7.15

  • PCO2: 3.3 kPa

  • PO2: 13.47kPa

  • HCO3-: 17 mmol.l-1

  • Hb: 10.8 g.dl-1

  • Glucose: 12.8mmol.l-1

  • Lactate: 0.9mmol.l-1

Shunt and V/Q mismatch

Ventilatory failure co 2 retention

Ventilatory failure: CO2 retention

Physiological dead space

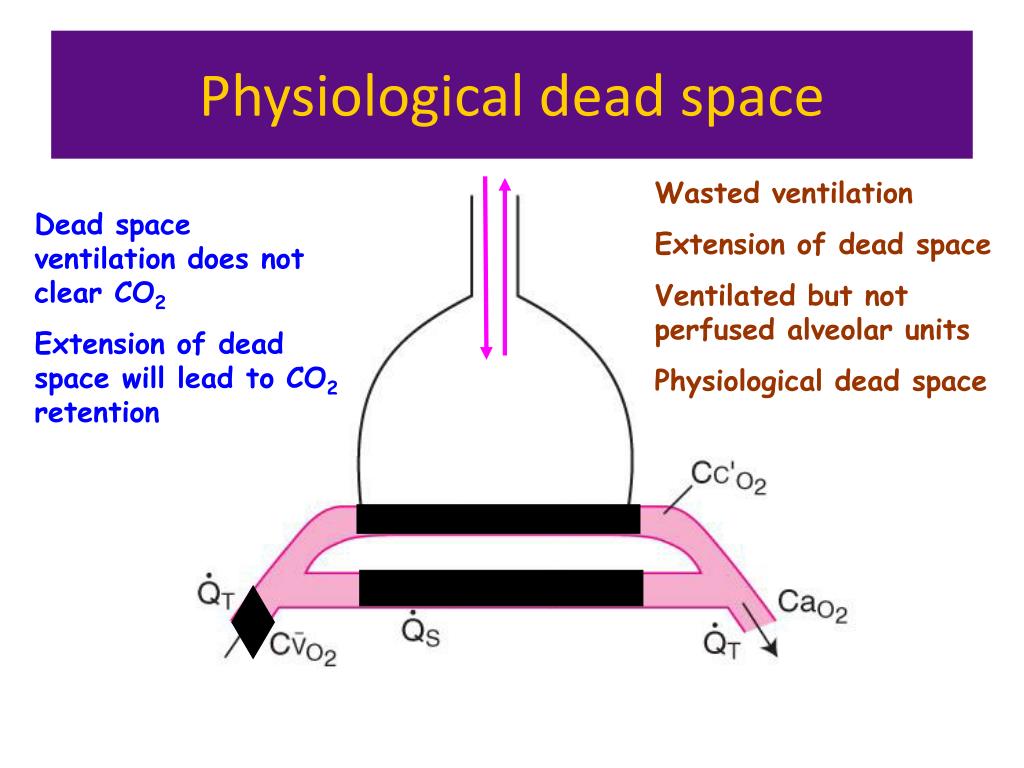

Physiological dead space

Wasted ventilation

Extension of dead space

Ventilated but not perfused alveolar units

Physiological dead space

Dead space ventilation does not clear CO2

Extension of dead space will lead to CO2 retention

Copd increase in compliance frc1

COPD: Increase in compliance→↑FRC

Pulmonary embolism

Pulmonary embolism:

Typically increase in Physiological dead space

When large also causes significant V/Q mismatch

Hypoxia and CO2 retention

Ventilatory failure hypoxia

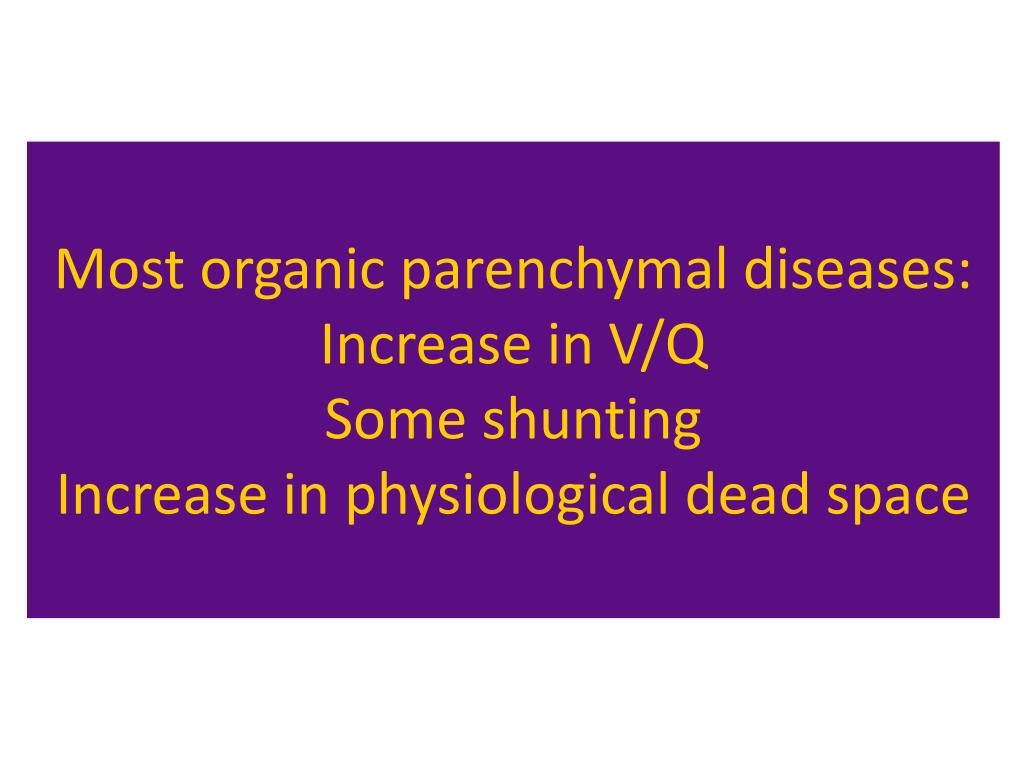

Most organic parenchymal diseases:Increase in V/QSome shuntingIncrease in physiological dead space

Ventilatory failure

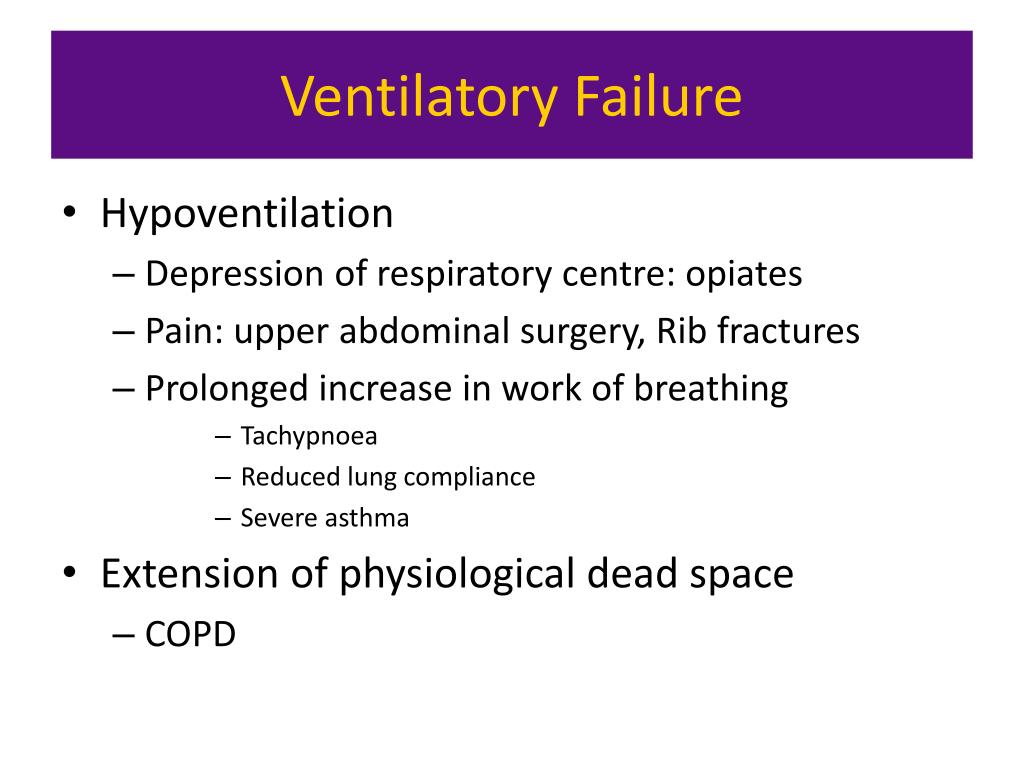

Ventilatory Failure

  • Hypoventilation

    • Depression of respiratory centre: opiates

    • Pain: upper abdominal surgery, Rib fractures

    • Prolonged increase in work of breathing

      • Tachypnoea

      • Reduced lung compliance

      • Severe asthma

  • Extension of physiological dead space

    • COPD

  • Copd 25 o 2

    COPD: 25% O2


    PCO2: 12.3 kPa

    PO2: 13.47 kPa

    HCO3-: 32mmol.l-1

    Hb: 18.8 g.dl-1

    Glucose: 9.8mmol.l-1

    Lactate: 0.9mmol.l-1

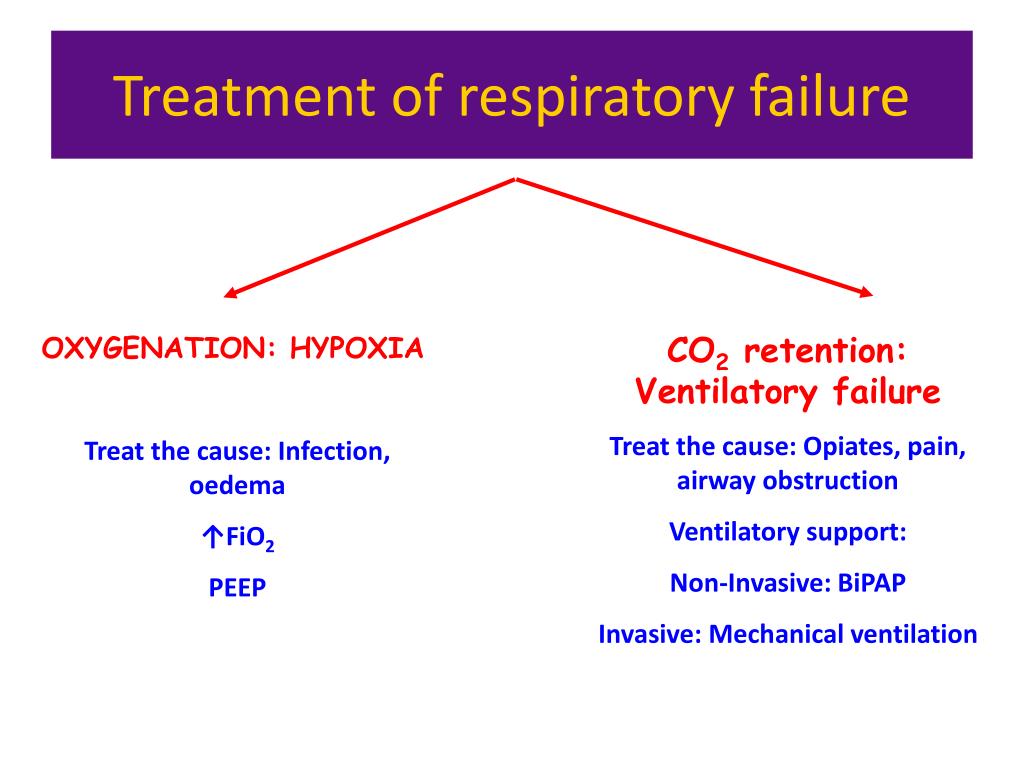

    Treatment of respiratory failure1

    CO2 retention: Ventilatory failure

    Treat the cause: Opiates, pain, airway obstruction

    Ventilatory support:

    Non-Invasive: BiPAP

    Invasive: Mechanical ventilation


    Treat the cause: Infection, oedema



    Treatment of respiratory failure



    Failure of oxygenation

    • Hypoventilation

    • Diffusion

    • Shunt and V/Q mismatch

  • Treat the cause

  • Supplemental oxygenation & PEEP

    Failure of ventilation

    • Respiratory depression

    • Increase in physiological dead space

  • Treat the cause

  • Ventilatory assistance
