Presentation Transcript


Oracle 11g taking high availability to the next level l.jpg

Oracle 11g – taking High Availability to the next level

Gavin Soorma

Senior Oracle DBA,

HBOS Australia


An ha wish list l.jpg

An HA Wish List ….

  • Recover Faster from media failure – reduce unplanned downtime

  • Reduce the cost of inevitable human error

  • Reduce storage and network bandwidth associated with backups

  • Reduce the risk and cost associated with change

  • Perform as many tasks as possible online without planned outages

  • Ensure application stability for end users

  • And ….save $$$$ for the business


What can oracle 11g deliver l.jpg

What can Oracle 11g deliver?

  • Reduced backup durations – compressed backups, incremental backups from Standby database

  • Reduced recovery durations – Data Recovery Advisor

  • Proactive automatic database health monitoring

  • Increased application availability through efficient SQL plan stability and optimizer plan management

  • Real time testing with production data – reduced cost as well as risk of deploying change

  • Enhanced online application maintenance

  • Flashback Transaction enhancements

    … and more …..


Snapshot standby l.jpg

Snapshot Standby

  • Updateable standby database created from Physical Standby

  • Physical Standby >> Snapshot Standby >> Test >>Physical Standby

  • Snapshot Standby is open in read-write mode

  • Redo received from Primary but not applied

  • After converting back to Physical Standby, resynchronized with Primary by applying accumulated redo data

  • Testing with real time production data on a ready made real time environment

  • No need to perform production clones


Snapshot standby5 l.jpg

Snapshot Standby

DGMGRL> show configuration

Configuration

Name: gavin

Enabled: YES

Protection Mode: MaxAvailability

Databases:

apex - Primary database

apexdg - Physical standby database

Fast-Start Failover: DISABLED

Current status for "gavin":

SUCCESS

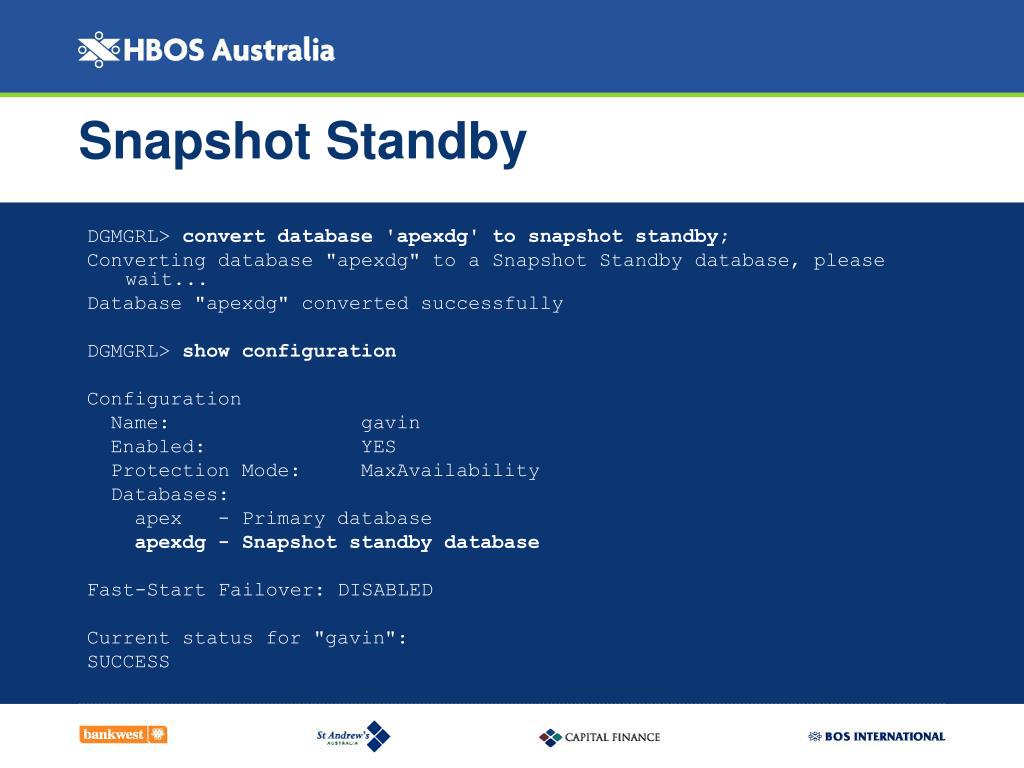

Snapshot standby6 l.jpg

Snapshot Standby

DGMGRL> convert database 'apexdg' to snapshot standby;

Converting database "apexdg" to a Snapshot Standby database, please wait...

Database "apexdg" converted successfully

DGMGRL> show configuration

Configuration

Name: gavin

Enabled: YES

Protection Mode: MaxAvailability

Databases:

apex - Primary database

apexdg - Snapshot standby database

Fast-Start Failover: DISABLED

Current status for "gavin":

SUCCESS


Snapshot standby7 l.jpg

Snapshot Standby

apexdg:/u01/oracle/scripts> export ORACLE_SID=apex

apex:/u01/oracle/scripts> sqlplus sh/SH

SQL*Plus: Release 11.1.0.6.0 - Production on Fri Sep 19 09:40:55 2008

Copyright (c) 1982, 2007, Oracle. All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.1.0.6.0 - 64bit Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> create table test_redo_apply

2 as select * from all_objects;

Table created.

SQL> select count(*) from test_redo_apply;

COUNT(*)

----------

56467


Snapshot standby8 l.jpg

Snapshot Standby

apex:/u01/oracle/scripts> export ORACLE_SID=apexdg

apexdg:/u01/oracle/scripts> sqlplus sh/SH

SQL*Plus: Release 11.1.0.6.0 - Production on Fri Sep 19 09:33:29 2008

Copyright (c) 1982, 2007, Oracle. All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.1.0.6.0 - 64bit Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> create table test_snapshot

2 as select * from all_objects;

Table created.

SQL> select count(*) from test_snapshot;

COUNT(*)

----------

56467


Snapshot standby9 l.jpg

Snapshot Standby

DGMGRL> convert database 'apexdg' to physical standby;

Converting database "apexdg" to a Physical Standby database, please wait...

Operation requires shutdown of instance "apexdg" on database "apexdg"

Shutting down instance "apexdg"...

Database closed.

Database dismounted.

ORACLE instance shut down.

Operation requires startup of instance "apexdg" on database "apexdg"

Starting instance "apexdg"...

ORACLE instance started.

Database mounted.

Continuing to convert database "apexdg" ...

Operation requires shutdown of instance "apexdg" on database "apexdg"

Shutting down instance "apexdg"...

ORA-01109: database not open

Database dismounted.

ORACLE instance shut down.

Operation requires startup of instance "apexdg" on database "apexdg"

Starting instance "apexdg"...

ORACLE instance started.

Database mounted.

Database "apexdg" converted successfully

DGMGRL>

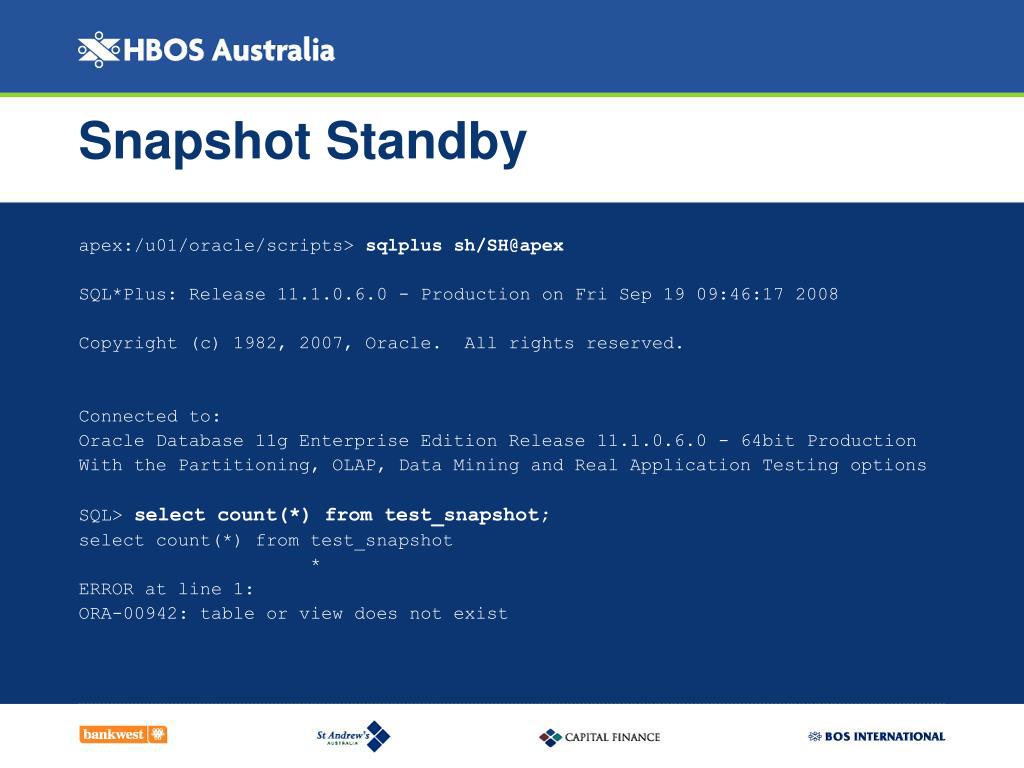

Snapshot standby10 l.jpg

Snapshot Standby

apex:/u01/oracle/scripts> sqlplus [email protected]

SQL*Plus: Release 11.1.0.6.0 - Production on Fri Sep 19 09:46:17 2008

Copyright (c) 1982, 2007, Oracle. All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.1.0.6.0 - 64bit Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> select count(*) from test_snapshot;

select count(*) from test_snapshot

*

ERROR at line 1:

ORA-00942: table or view does not exist

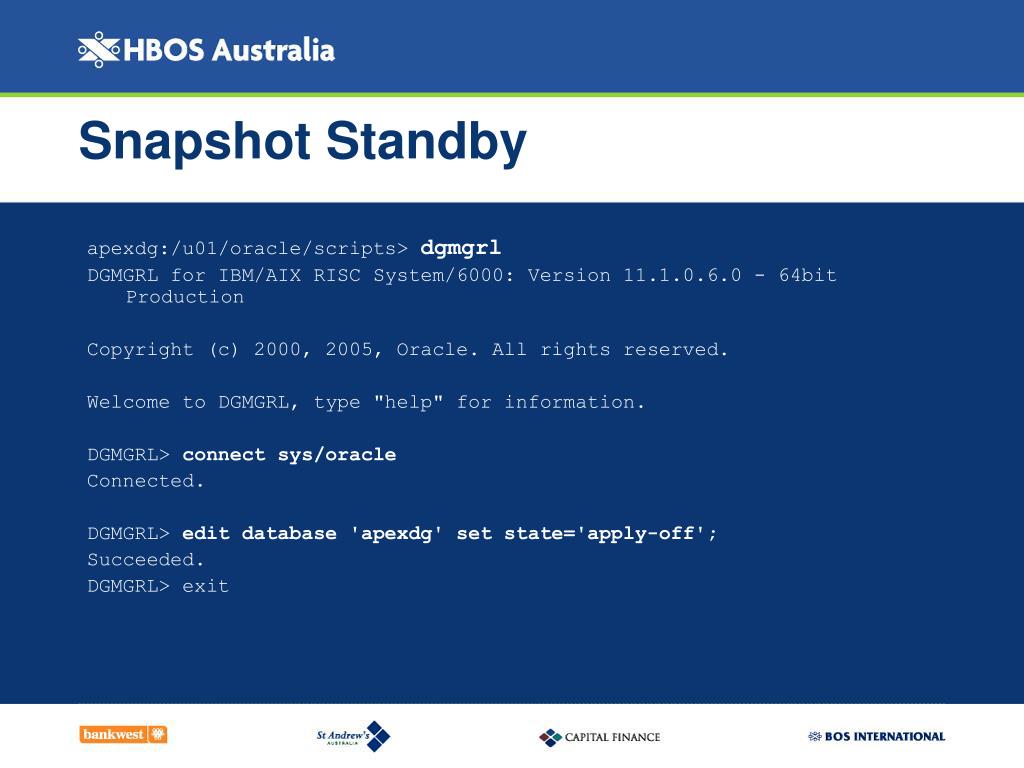

Snapshot standby11 l.jpg

Snapshot Standby

apexdg:/u01/oracle/scripts> dgmgrl

DGMGRL for IBM/AIX RISC System/6000: Version 11.1.0.6.0 - 64bit Production

Copyright (c) 2000, 2005, Oracle. All rights reserved.

Welcome to DGMGRL, type "help" for information.

DGMGRL> connect sys/oracle

Connected.

DGMGRL> edit database 'apexdg' set state='apply-off';

Succeeded.

DGMGRL> exit


Snapshot standby12 l.jpg

Snapshot Standby

apexdg:/u01/oracle/scripts> sqlplus / as sysdba

SQL*Plus: Release 11.1.0.6.0 - Production on Fri Sep 19 09:48:38 2008

Copyright (c) 1982, 2007, Oracle. All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.1.0.6.0 - 64bit Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> alter database open read only;

Database altered.

SQL> conn [email protected]

Connected.

SQL> select count(*) from test_redo_apply;

COUNT(*)

----------

56467


Data recovery advisor l.jpg

Data Recovery Advisor

  • Decreases the amount of time required to recover from failure

  • Automatically diagnoses data failures and provides alerts

  • Automatically assesses the extent and impact of the failure

  • Automatically suggests multiple repair options based on the environment and the extent of the assessed damage.

  • Automates the repair process and verifies if the repair was successful.

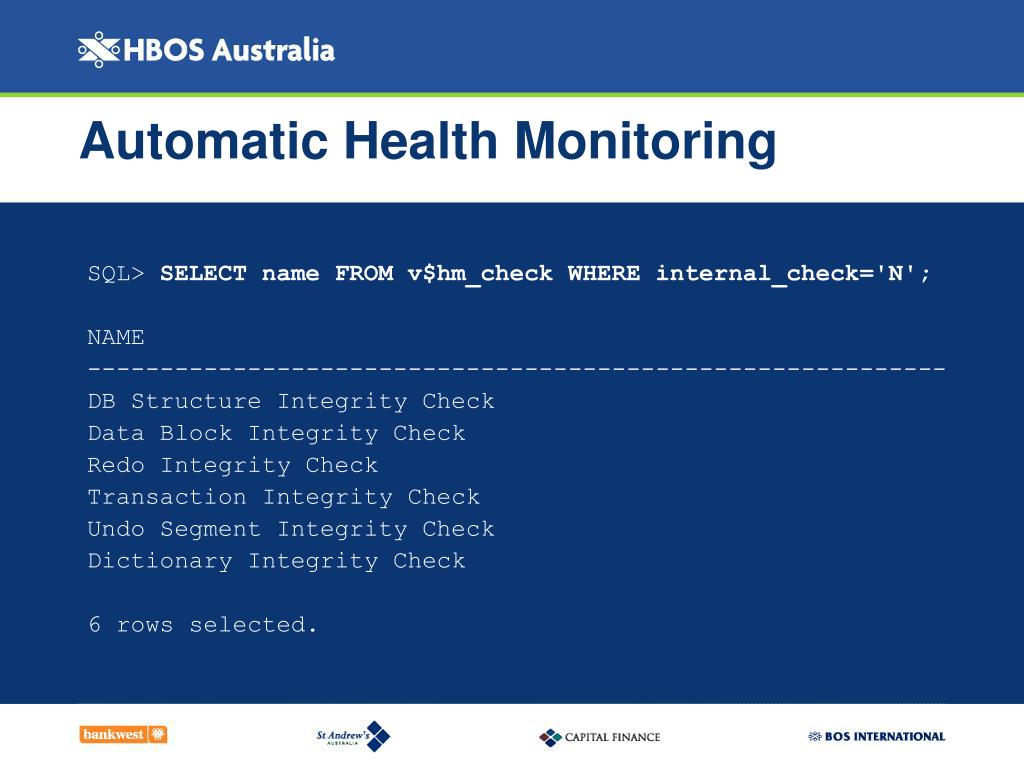

Automatic health monitoring l.jpg

Automatic Health Monitoring

  • Automatic Health Monitoring proactively detects problems early in their life-cycle and notifies the DBA of the user impact and recommended action to take

  • Proactively checks the health of the database and identifies any issues before it impacts end users

    Data Structure Integrity Check

    Data Block Integrity Check

    Redo Integrity Check

    Undo Segment Integrity Check

    Dictionary Integrity Check

  • Part of the 11g Support Workbench and can be run in reactive as well as manual mode


Data recovery advisor15 l.jpg

Data Recovery Advisor

apex:/u01/oracle/scripts> cd /u02/oradata/apex/

apex:/u02/oradata/apex> rm example01.dbf

apex:/u02/oradata/apex> sqlplus [email protected]

SQL*Plus: Release 11.1.0.6.0 - Production on Fri Sep 19 10:03:34 2008

Copyright (c) 1982, 2007, Oracle. All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.1.0.6.0 - 64bit Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> select count(*) from test_redo_apply;

select count(*) from test_redo_apply

*

ERROR at line 1:

ORA-01116: error in opening database file 6

ORA-01110: data file 6: '/u02/oradata/apex/example01.dbf'

ORA-27041: unable to open file

IBM AIX RISC System/6000 Error: 2: No such file or directory

Additional information: 3


Data recovery advisor16 l.jpg

Data Recovery Advisor

apex:/u02/oradata/apex> rman target /

Recovery Manager: Release 11.1.0.6.0 - Production on Fri Sep 19 10:04:44 2008

Copyright (c) 1982, 2007, Oracle. All rights reserved.

connected to target database: APEX (DBID=1312143933)

RMAN> LIST FAILURE;

using target database control file instead of recovery catalog

List of Database Failures

=========================

Failure ID Priority Status Time Detected Summary

---------- -------- --------- ------------- -------

162 HIGH OPEN 19-SEP-08 One or more non-system datafiles are missing


Data recovery advisor17 l.jpg

Data Recovery Advisor

RMAN> ADVISE FAILURE;

List of Database Failures

=========================

Failure ID Priority Status Time Detected Summary

---------- -------- --------- ------------- -------

162 HIGH OPEN 19-SEP-08 One or more non-system datafiles are missing

analyzing automatic repair options; this may take some time

allocated channel: ORA_SBT_TAPE_1

channel ORA_SBT_TAPE_1: SID=107 device type=SBT_TAPE

Mandatory Manual Actions

========================

no manual actions available

Optional Manual Actions

=======================

1. If file /u02/oradata/apex/example01.dbf was unintentionally renamed or moved, restore it

Automated Repair Options

========================

Option Repair Description

------ ------------------

1 Restore and recover datafile 6

Strategy: The repair includes complete media recovery with no data loss

Repair script: /u01/oracle/diag/rdbms/apex/apex/hm/reco_1541621723.hm


Data recovery advisor18 l.jpg

Data Recovery Advisor

RMAN> REPAIR FAILURE PREVIEW;

Strategy: The repair includes complete media recovery with no data loss

Repair script: /u01/oracle/diag/rdbms/apex/apex/hm/reco_1541621723.hm

contents of repair script:

# restore and recover datafile

sql 'alter database datafile 6 offline';

restore datafile 6;

recover datafile 6;

sql 'alter database datafile 6 online

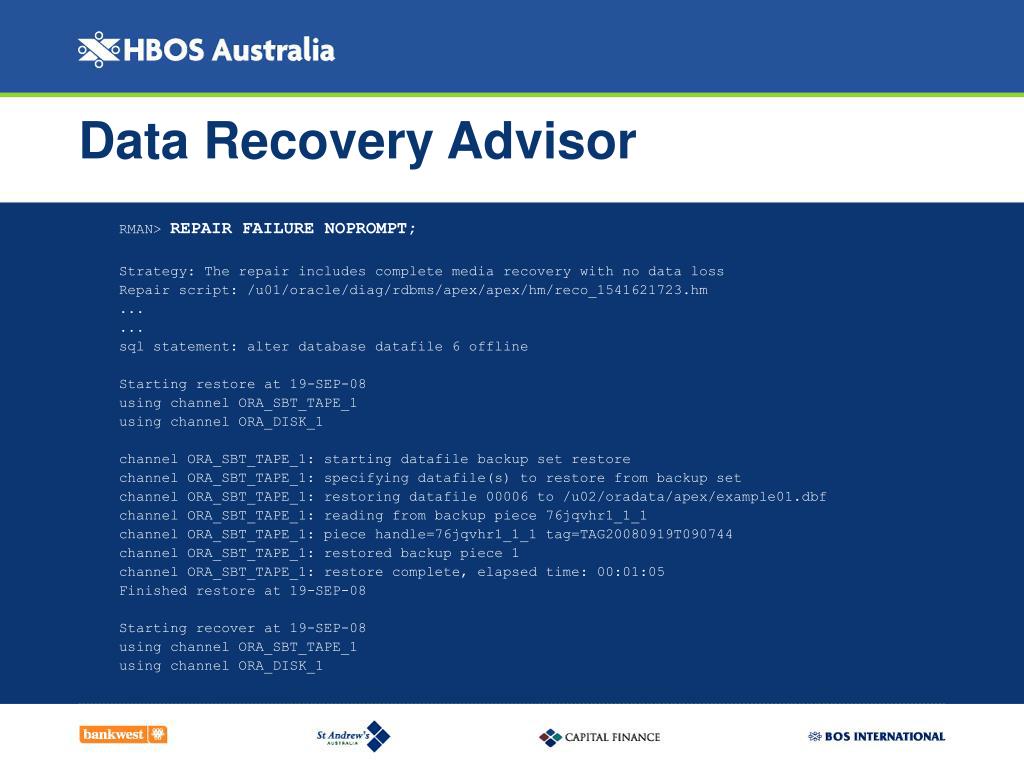

Data recovery advisor19 l.jpg

Data Recovery Advisor

RMAN> REPAIR FAILURE NOPROMPT;

Strategy: The repair includes complete media recovery with no data loss

Repair script: /u01/oracle/diag/rdbms/apex/apex/hm/reco_1541621723.hm

...

...

sql statement: alter database datafile 6 offline

Starting restore at 19-SEP-08

using channel ORA_SBT_TAPE_1

using channel ORA_DISK_1

channel ORA_SBT_TAPE_1: starting datafile backup set restore

channel ORA_SBT_TAPE_1: specifying datafile(s) to restore from backup set

channel ORA_SBT_TAPE_1: restoring datafile 00006 to /u02/oradata/apex/example01.dbf

channel ORA_SBT_TAPE_1: reading from backup piece 76jqvhr1_1_1

channel ORA_SBT_TAPE_1: piece handle=76jqvhr1_1_1 tag=TAG20080919T090744

channel ORA_SBT_TAPE_1: restored backup piece 1

channel ORA_SBT_TAPE_1: restore complete, elapsed time: 00:01:05

Finished restore at 19-SEP-08

Starting recover at 19-SEP-08

using channel ORA_SBT_TAPE_1

using channel ORA_DISK_1


Data recovery advisor20 l.jpg

Data Recovery Advisor

starting media recovery

channel ORA_SBT_TAPE_1: starting archived log restore to default destination

channel ORA_SBT_TAPE_1: restoring archived log

archived log thread=1 sequence=59

channel ORA_SBT_TAPE_1: reading from backup piece 77jqvi1r_1_1

channel ORA_SBT_TAPE_1: piece handle=77jqvi1r_1_1 tag=TAG20080919T091123

channel ORA_SBT_TAPE_1: restored backup piece 1

channel ORA_SBT_TAPE_1: restore complete, elapsed time: 00:00:07

archived log file name=/u03/oradata/apex/arch/arch.1_59_664991234.log thread=1 sequence=59

archived log file name=/u03/oradata/apex/arch/arch.1_60_664991234.log thread=1 sequence=60

archived log file name=/u03/oradata/apex/arch/arch.1_61_664991234.log thread=1 sequence=61

...

...

archived log file name=/u03/oradata/apex/arch/arch.1_70_664991234.log thread=1 sequence=70

archived log file name=/u03/oradata/apex/arch/arch.1_71_664991234.log thread=1 sequence=71

archived log file name=/u03/oradata/apex/arch/arch.1_72_664991234.log thread=1 sequence=72

archived log file name=/u03/oradata/apex/arch/arch.1_73_664991234.log thread=1 sequence=73

archived log file name=/u03/oradata/apex/arch/arch.1_74_664991234.log thread=1 sequence=74

media recovery complete, elapsed time: 00:00:07

Finished recover at 19-SEP-08

sql statement: alter database datafile 6 online

repair failure complete

RMAN>


Automatic health monitoring21 l.jpg

Automatic Health Monitoring

SQL> SELECT name FROM v$hm_check WHERE internal_check='N';

NAME

-----------------------------------------------------------

DB Structure Integrity Check

Data Block Integrity Check

Redo Integrity Check

Transaction Integrity Check

Undo Segment Integrity Check

Dictionary Integrity Check

6 rows selected.


Automatic health monitoring22 l.jpg

Automatic Health Monitoring

SQL> select run_id from V$HM_FINDING where TIME_DETECTED like '19-SEP%';

RUN_ID

----------

5988

SQL> select name from v$hm_run where run_id=5988;

NAME

--------------------------------

HM_RUN_5988

SQL> select name,time_detected,description,damage_description from V$HM_FINDING

2 where run_id=5988;

NAME

--------------------------------

TIME_DETECTED

---------------------------------------------------------------------------

DESCRIPTION

--------------------------------------------------------------------------------

DAMAGE_DESCRIPTION

--------------------------------------------------------------------------------

Missing datafile

19-SEP-08 10.10.14.474095 AM

Datafile 6: '/u02/oradata/apex/example01.dbf' is missing

Some objects in tablespace EXAMPLE might be unavailable


Rman enhancements l.jpg

RMAN Enhancements

  • Network-enabled Database Duplication

    A clone database on a remote site can now be easily created directly over the network with the enhanced DUPLICATE command without existing backups.

    Reduces DBA time and effort and eliminates the storage capacity required at the remote site for the copy.

  • Optimized Undo backup

    Reduced overall backup time and storage by not backing up undo that applies to

    transactions that have already been committed.

  • Fast Incremental Backups on Physical Standby Database

    RMAN can use the block change tracking file on Physical Standby database for incremental

    backups – backups can be easily offloaded to standby sites to conserve primary host

    resources


Network enabled database duplication l.jpg

Network-enabled Database Duplication

DUPLICATE TARGET DATABASE TO dupdb

FROM ACTIVE DATABASE

DB_FILE_NAME_CONVERT '/oracle/oradata/prod/','/scratch/oracle/oradata/dupdb/'

SPFILE

PARAMETER_VALUE_CONVERT

'/oracle/oradata/prod/', '/scratch/oracle/oradata/dupdb/'

SET SGA_MAX_SIZE '300M'

SET SGA_TARGET '250M'

SET LOG_FILE_NAME_CONVERT

'/oracle/oradata/prod/redo/', '/scratch/oracle/oradata/dupdb/redo/';


Rman enhancements25 l.jpg

RMAN Enhancements

  • Creation and Recovery of Long-Term Backups Improved

    Long-term backups created with the KEEP option only back up the archive logs needed to make the backup consistent. No further archive log backups are retained.

  • Multisection Backups - Parallel Backup and Restore for Very Large Files

    Improves the performance of backups and restores of very large data files by parallelizing the workload for each file by dividing the data file into sub sections.

  • Fast Backup Compression

    In addition to the Oracle Database 10g backup compression algorithm (BZIP2), RMAN now supports the ZLIB algorithm, which offers 40% better performance, with a trade-off of no more than 20% lower compression ratio, versus BZIP2.


Online application maintenance l.jpg

Online Application Maintenance

  • DDL with the WAIT Option

  • DDL commands require exclusive locks on internal structures.

  • Set via the WAIT option in the DDL_LOCK_TIMEOUT initialization parameter.

  • WAIT option gives you more flexibility to define grace periods for such commands to succeed instead of raising an error right away

  • Enhanced ADD COLUMN Functionality

  • Default values of columns are maintained in the data dictionary for columns specified as NOT NULL.

  • Adding new columns with DEFAULT values and NOT NULL constraint no longer requires the default value to be stored in all existing records.

  • Enables a schema modification in sub-seconds and independent of the existing data volume, it also consumes no space

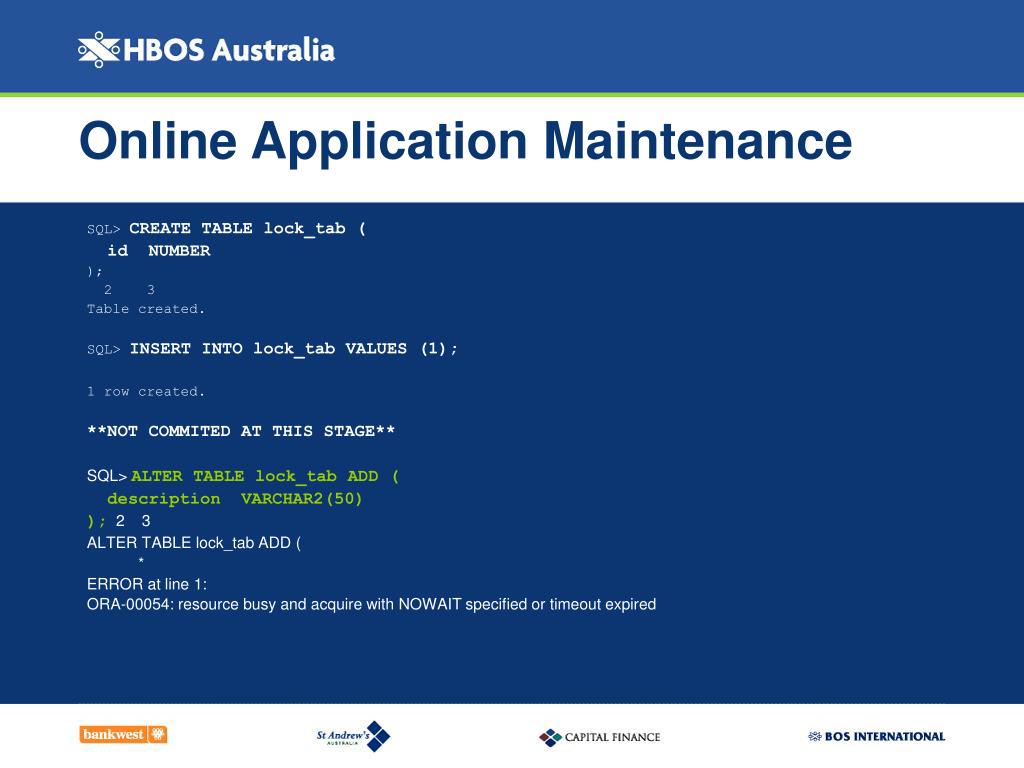

Online application maintenance28 l.jpg

Online Application Maintenance

SQL> CREATE TABLE lock_tab (

id NUMBER

);

2 3

Table created.

SQL> INSERT INTO lock_tab VALUES (1);

1 row created.

**NOT COMMITED AT THIS STAGE**

SQL> ALTER TABLE lock_tab ADD (

description VARCHAR2(50)

); 2 3

ALTER TABLE lock_tab ADD (

*

ERROR at line 1:

ORA-00054: resource busy and acquire with NOWAIT specified or timeout expired


Online application maintenance29 l.jpg

Online Application Maintenance

SQL> ALTER SESSION SET ddl_lock_timeout=30;

Session altered.

SQL> ALTER TABLE lock_tab ADD (

2 description VARCHAR2(50) );

**NO ERROR THIS TIME– SESSION WILL WAIT ...**

SQL> commit;

Commit complete.

SQL> ALTER TABLE lock_tab ADD (

2 description VARCHAR2(50)

3 );

Table altered.


Online application maintenance30 l.jpg

Online Application Maintenance

crashdb:/u01/oracle> sql

SQL*Plus: Release 10.2.0.3.0 - Production on Thu Oct 2 10:06:53 2008

Copyright (c) 1982, 2006, Oracle. All Rights Reserved.

Connected to:

Oracle Database 10g Enterprise Edition Release 10.2.0.3.0 - 64bit Production

With the Partitioning and Data Mining options

SQL> create table myobjects

2 as select * from dba_objects;

Table created.

SQL> select count(*) from myobjects;

COUNT(*)

----------

101580

SQL> set timing on

SQL> alter table myobjects

2 add (new_column varchar2(3) default 'YES' not null);

Table altered.

Elapsed: 00:00:31.68

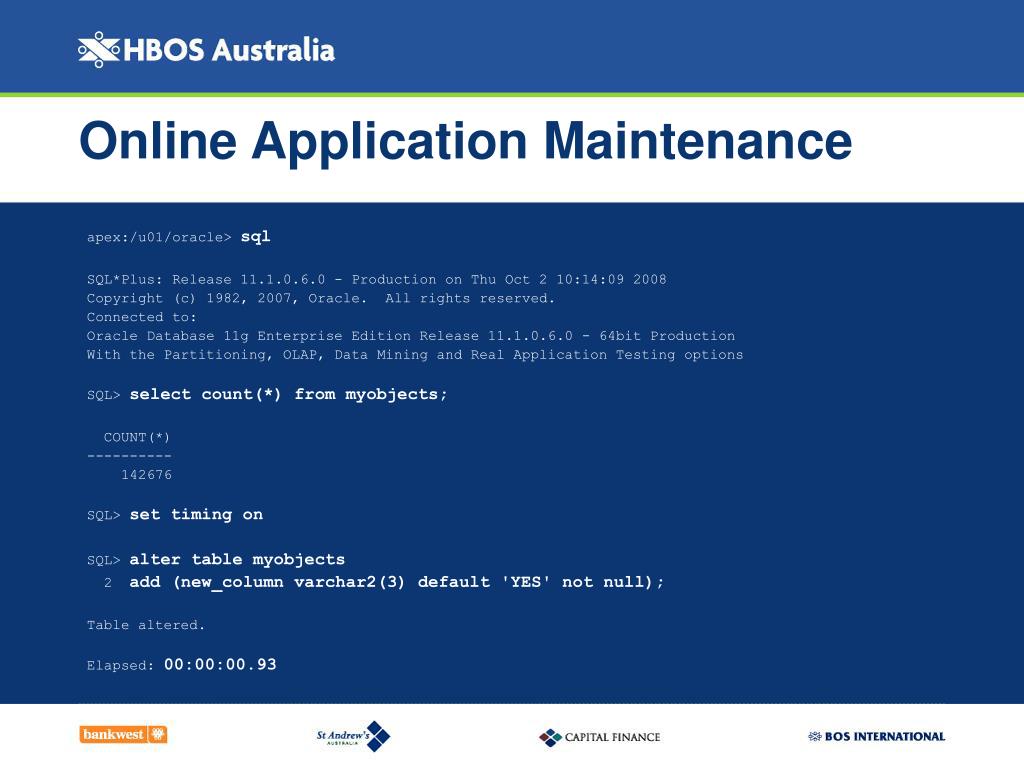

Online application maintenance31 l.jpg

Online Application Maintenance

apex:/u01/oracle> sql

SQL*Plus: Release 11.1.0.6.0 - Production on Thu Oct 2 10:14:09 2008

Copyright (c) 1982, 2007, Oracle. All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.1.0.6.0 - 64bit Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> select count(*) from myobjects;

COUNT(*)

----------

142676

SQL> set timing on

SQL> alter table myobjects

2 add (new_column varchar2(3) default 'YES' not null);

Table altered.

Elapsed: 00:00:00.93


Fine grained dependency management l.jpg

Fine Grained Dependency Management

  • Finer Grained Dependencies

  • Pre11g, metadata recorded mutual dependencies between objects with the granularity of the whole object

  • This means that dependent objects were sometimes invalidated when there was no logical requirement to do so.

  • View V1 depends on Table T1 – Columns C1 and C2. if Column c3 is added, V1 will get invalidated.

  • Oracle Database 11g records dependency metatdata at a finer level of granularity reducing the consequential invalidation of dependent objects in response to changes in the objects they depend upon

  • Results in increased application availability


Fine grained dependency management33 l.jpg

Fine Grained Dependency Management

crashdb:/u01/oracle> sql

SQL*Plus: Release 10.2.0.3.0 - Production on Thu Oct 2 12:15:09 2008

Copyright (c) 1982, 2006, Oracle. All Rights Reserved.

Connected to:

Oracle Database 10g Enterprise Edition Release 10.2.0.3.0 - 64bit Production

With the Partitioning and Data Mining options

SQL> create table test_dependency

2 (col_a varchar2(10), col_b varchar2(10));

Table created.

SQL> create view test_dependency_vw

2 as select col_a from test_dependency;

View created.

SQL> alter table test_dependency add (col_c varchar2(10));

Table altered.

SQL> select status from user_objects where object_name='TEST_DEPENDENCY_VW';

STATUS

-------

INVALID


Fine grained dependency management34 l.jpg

Fine Grained Dependency Management

apex:/u01/oracle/scripts> sql

SQL*Plus: Release 11.1.0.6.0 - Production on Thu Oct 2 12:22:19 2008

Copyright (c) 1982, 2007, Oracle. All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.1.0.6.0 - 64bit Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> create table test_dependency

2 (col_a varchar2(10), col_b varchar2(10));

Table created.

SQL> create view test_dependency_vw

2 as select col_a from test_dependency;

View created.

SQL> alter table test_dependency add (col_c varchar2(10));

Table altered.

SQL> select status from user_objects where object_name='TEST_DEPENDENCY_VW';

STATUS

-------

VALID


Flashback enhancements l.jpg

Flashback Enhancements

  • Block Recovery can now be performed from the Flashback Logs on disk.

  • Reduces recovery time by potentially eliminating time consuming restores from tape to repair a few corrupt blocks.

  • Information Life Cycle management using Flashback Data Archives

  • Guaranteed retention of historical and archived data

  • No need to rely on UNDO tablespace data retention policies

  • Flashback Data archive stored in a tablespace and contains transactional changes to every record in a table

  • Flashback Transaction can easily back out a transaction and its dependent transactions.

  • DBMS_FLASHBACK.TRANSACTION_BACKOUT() procedure rolls back a transaction and its dependent transactions while the database remains online.


Flashback transaction backout l.jpg

Flashback Transaction - Backout

SQL> INSERT INTO hr.regions VALUES (10,'Pole');

1 row created.

SQL> INSERT INTO hr.regions VALUES (20,'Moon');

1 row created.

SQL> commit;

Commit complete.

SQL> UPDATE hr.regions SET region_name='Two Poles' WHERE region_id = 10;

1 row updated.

SQL> UPDATE hr.regions SET region_name='Two Moons' WHERE region_id=20;

1 row updated.

SQL> commit;

Commit complete.


Flashback transaction backout37 l.jpg

Flashback Transaction - Backout

SQL> UPDATE hr.regions SET region_name='Three Poles' WHERE region_id = 10;

1 row updated.

SQL> UPDATE hr.regions SET region_name='Three Moons' WHERE region_id=20;

1 row updated.

SQL> commit;

Commit complete.

SQL> select * from regions;

REGION_ID REGION_NAME

---------- -------------------------

1 Europe

2 Americas

3 Asia

4 Middle East and Africa

10 Three Poles

20 Three Moons

6 rows selected.


Flashback transaction backout38 l.jpg

Flashback Transaction - Backout

SQL> select xid,operation from flashback_transaction_query

2 where table_name='REGIONS'

3 and trunc(start_timestamp)='02-OCT-2008';

XID OPERATION

---------------- --------------------------------

0009001B000024EE INSERT

000A000200001C9F UPDATE

000A000200001C9F UPDATE

SQL> BEGIN

DBMS_FLASHBACK.transaction_backout (numtxns => 1,

xids => xid_array('0009001B000024EE'),

options => DBMS_FLASHBACK.nocascade);

END;

/ 2 3 4 5 6

BEGIN

*

ERROR at line 1:

ORA-55504: Transaction conflicts in NOCASCADE mode

ORA-06512: at "SYS.DBMS_FLASHBACK", line 37

ORA-06512: at "SYS.DBMS_FLASHBACK", line 70

ORA-06512: at line 2


Flashback transaction backout39 l.jpg

Flashback Transaction - Backout

SQL> BEGIN

DBMS_FLASHBACK.transaction_backout (numtxns => 1,

xids => xid_array('0009001B000024EE'),

options => DBMS_FLASHBACK.cascade);

end;

/

PL/SQL procedure successfully completed.

SQL> select COMPENSATING_XID,DEPENDENT_XID,BACKOUT_MODE

2 FROM dba_flashback_txn_state

3 WHERE xid = '0009001B000024EE';

COMPENSATING_XID DEPENDENT_XID BACKOUT_MODE

---------------- ---------------- ----------------

000A000200001CA2 0004001D00001D21 CASCADE

SQL> select * from hr.regions;

REGION_ID REGION_NAME

---------- -------------------------

1 Europe

2 Americas

3 Asia

4 Middle East and Africa


Flashback data archive total recall l.jpg

Flashback Data Archive – Total Recall

SQL> create tablespace archive_data

2 datafile '/u02/oradata/apex/archive_data01.dbf' size 1024m;

Tablespace created.

SQL> create flashback archive year1 tablespace archive_data

2 quota 500m retention 1 year;

Flashback archive created.

SQL> grant flashback archive on year1 to HR;

Grant succeeded.

SQL> conn HR/HR

Connected.

SQL> alter table regions flashback archive year1;

Table altered.

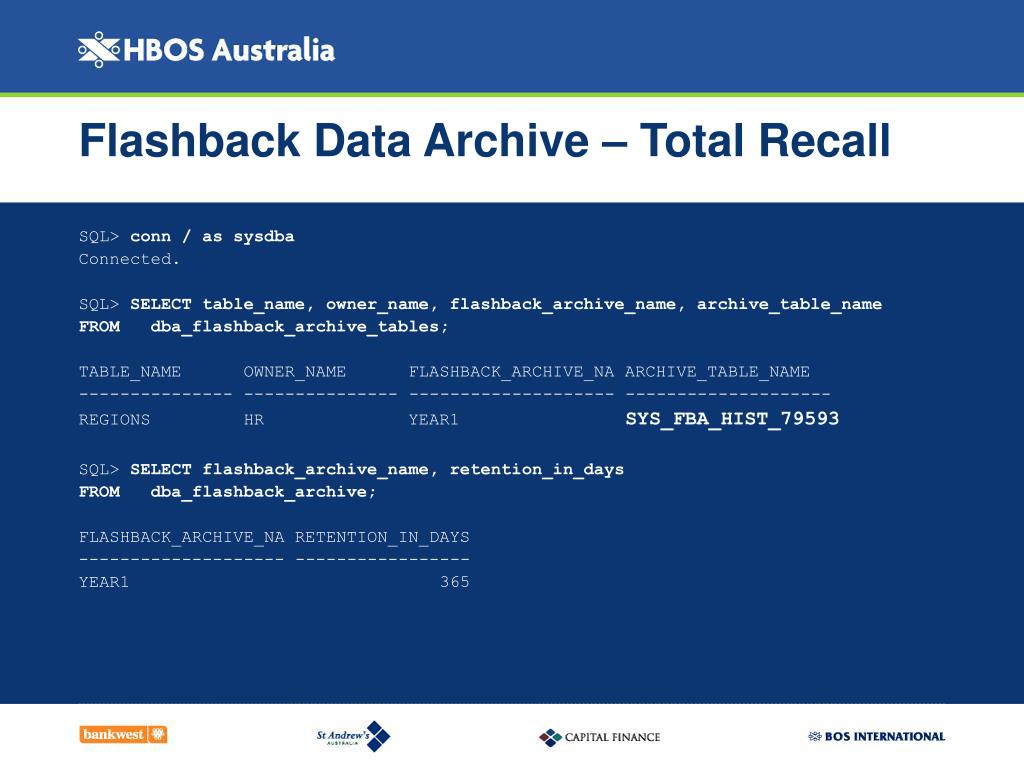

Flashback data archive total recall41 l.jpg

Flashback Data Archive – Total Recall

SQL> conn / as sysdba

Connected.

SQL> SELECT table_name, owner_name, flashback_archive_name, archive_table_name

FROM dba_flashback_archive_tables;

TABLE_NAME OWNER_NAME FLASHBACK_ARCHIVE_NA ARCHIVE_TABLE_NAME

--------------- --------------- -------------------- --------------------

REGIONS HR YEAR1 SYS_FBA_HIST_79593

SQL> SELECT flashback_archive_name, retention_in_days

FROM dba_flashback_archive;

FLASHBACK_ARCHIVE_NA RETENTION_IN_DAYS

-------------------- -----------------

YEAR1 365


Sql plan management l.jpg

SQL Plan Management

  • Overcomes limitations with Stored Outlines (8i) and SQL Profiles (10g)

  • Guarantees plan stability by ensuring only accepted execution plans are ever used by the CBO

  • Once plans are accepted and evolved, all subsequent executions of the same SQL statement will always use that plan unless a new plan with a lower cost is made available by the CBO

  • SMB – SQL Management Base – stores SQL text, its outline, bind variables in SYSAUX tablespace.

    OPTIMIZER_CAPTURE_SQL_PLAN_BASELINES

    OPTIMIZER_USE_SQL_PLAN_BASELINES


Gathering and publishing statistics l.jpg

Gathering and Publishing Statistics

  • Pre 11g,the statistics were automatically published once the gather was completed.

  • New statistics can invalidate plans and can result in new (inefficient) execution paths.

  • In 11g test the statistics before publishing them and ensure only acceptable plans are used by the Optimizer

  • Gather Statistics >> Pending Statistics >> Published Statistics

  • Ensure plan stability and increased application availability

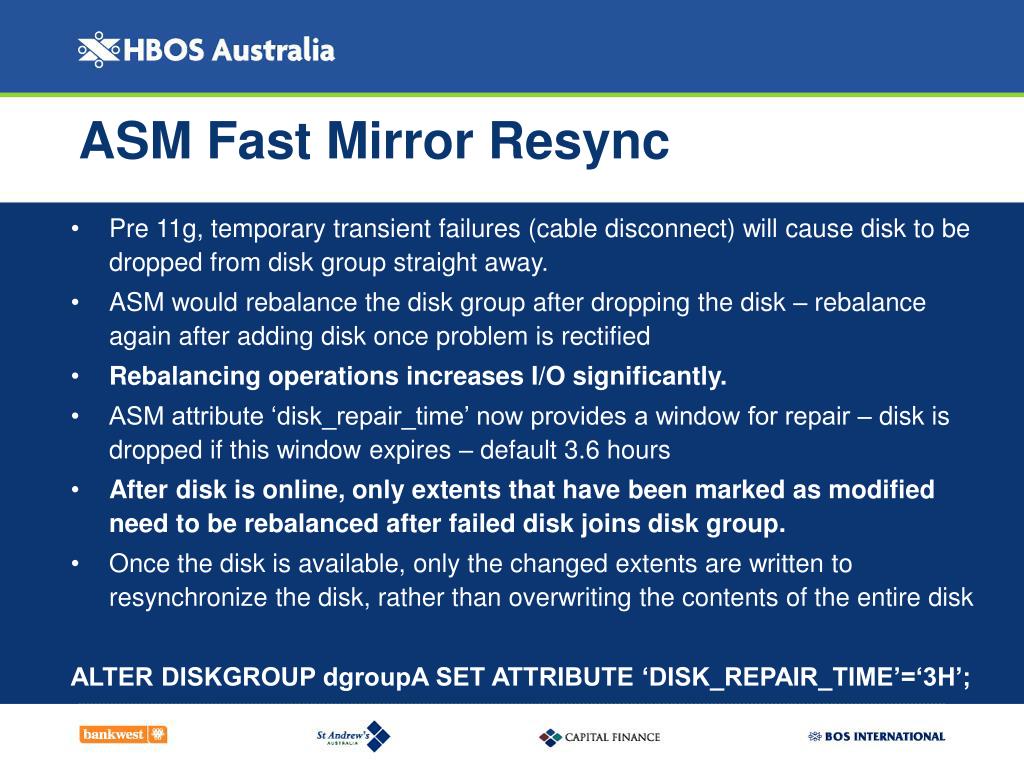

Asm fast mirror resync l.jpg

ASM Fast Mirror Resync

  • Pre 11g, temporary transient failures (cable disconnect) will cause disk to be dropped from disk group straight away.

  • ASM would rebalance the disk group after dropping the disk – rebalance again after adding disk once problem is rectified

  • Rebalancing operations increases I/O significantly.

  • ASM attribute ‘disk_repair_time’ now provides a window for repair – disk is dropped if this window expires – default 3.6 hours

  • After disk is online, only extents that have been marked as modified need to be rebalanced after failed disk joins disk group.

  • Once the disk is available, only the changed extents are written to resynchronize the disk, rather than overwriting the contents of the entire disk

    ALTER DISKGROUP dgroupA SET ATTRIBUTE ‘DISK_REPAIR_TIME’=‘3H’;


Asm metadata backup and restore l.jpg

ASM Metadata Backup and Restore

  • Pre Oracle 11g no backup of ASM meta data

  • If disk group is lost, restore lost files via RMAN, but manually recreate ASM disk group as well as user directories/templates

  • 11g ASMCMD includes ASM metadata backup and restore

  • Parses ASM fixed tables and views to get information on disk and failure group configuration, templates and alias directory structure

    ASMCMD> md_backup –b asm_metadata –g data

    ASMCMD> md_restore –b asm_metadata –t full –g data


Miscellaneous l.jpg

Miscellaneous

  • Online Patching

  • ASM Rolling Upgrade from 10g R2 to 11g

  • Online redefinition of tables with MV’s and MV Logs

  • ADRCI and Incident Packaging Service

  • Rebuild indexes online without any exclusive lock at the beginning and end of the operation

  • SQL Repair Advisor – repair SQL statements causing ORA-600’s by providing a customised SQL patch after recompiling and re-executing SQL statement


Thanks for attending l.jpg

Q

&

Q U E S T I O N S

A N S W E R S

Thanks for attending!!

GAVIN SOORMA

Senior Oracle DBA Specialist

HBOS Australia

Contact me at : 0417713124

or

[email protected]

A


  • Login
