Presentation Transcript


Chapter 6 basic methods results of statistical mechanics

Chapter 6Basic Methods & Results of Statistical Mechanics


Historical introduction

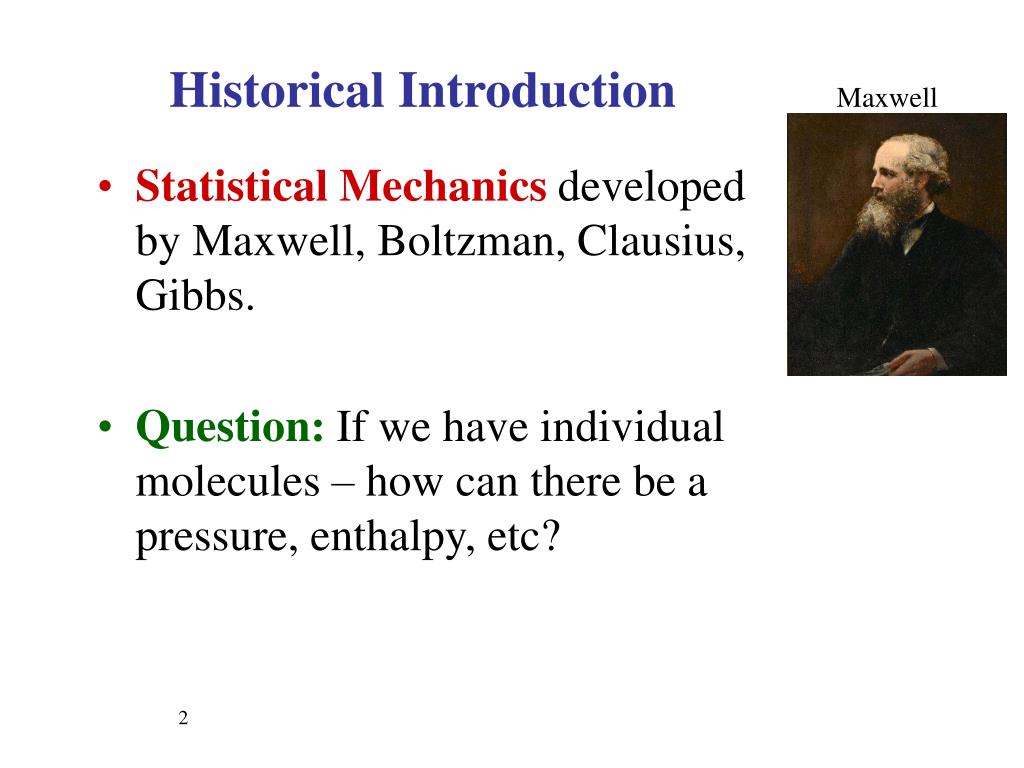

Historical Introduction

Maxwell

Statistical Mechanics developed by Maxwell, Boltzman, Clausius, Gibbs.

Question: If we have individual molecules – how can there be a pressure, enthalpy, etc?

2


Key concept in statistical mechanics

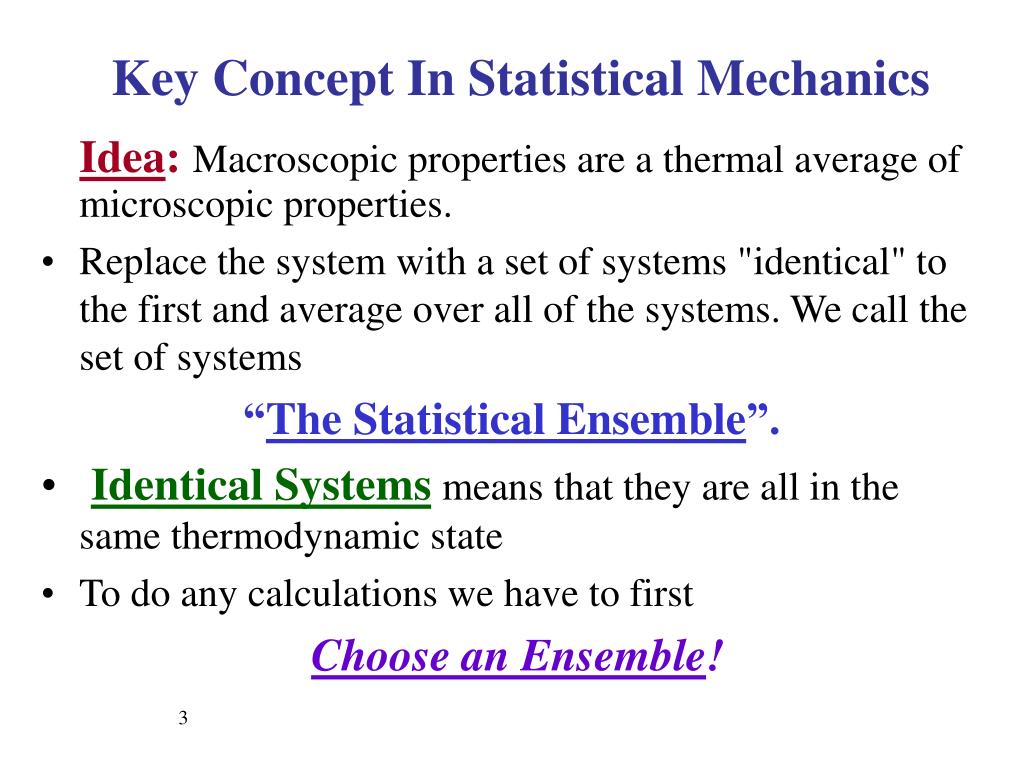

Key Concept In Statistical Mechanics

Idea:Macroscopic properties are a thermal average of microscopic properties.

  • Replace the system with a set of systems "identical" to the first and average over all of the systems. We call the set of systems

    “The Statistical Ensemble”.

  • Identical Systemsmeans that they are all in the same thermodynamic state

  • To do any calculations we have to first

    Choose an Ensemble!

3


Common statistical ensembles

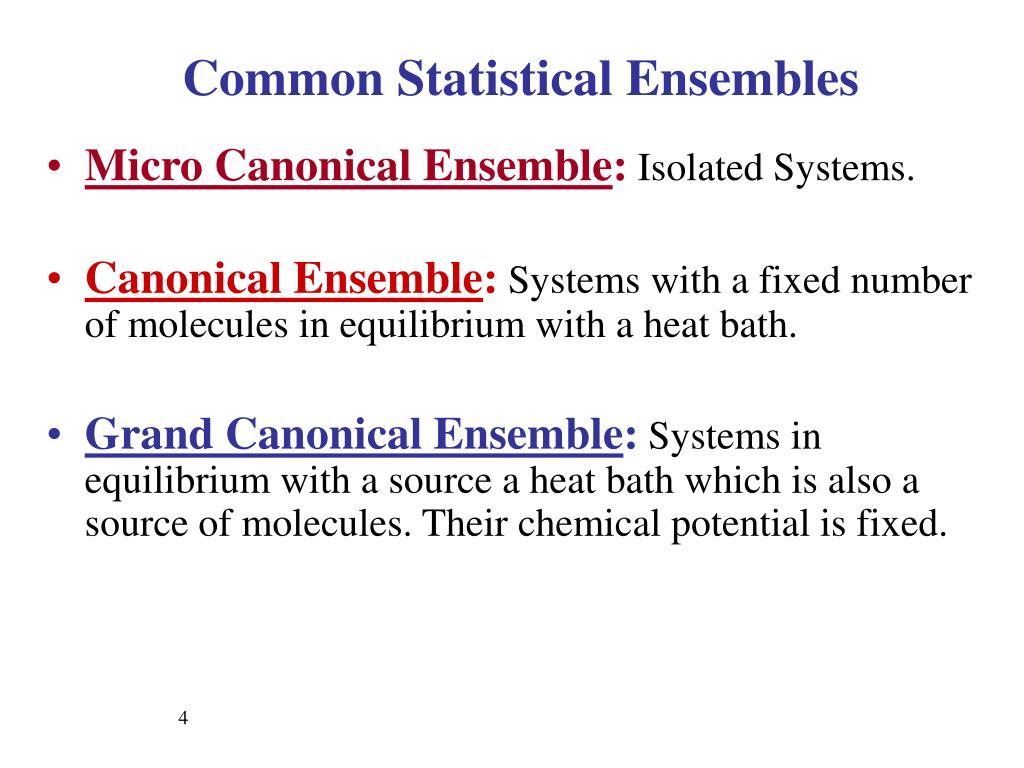

Common Statistical Ensembles

  • Micro Canonical Ensemble: Isolated Systems.

  • Canonical Ensemble: Systems with a fixed number of molecules in equilibrium with a heat bath.

  • Grand Canonical Ensemble: Systems in equilibrium with a source a heat bath which is also a source of molecules. Their chemical potential is fixed.

4


All thermodynamic properties can be calculated with any ensemble

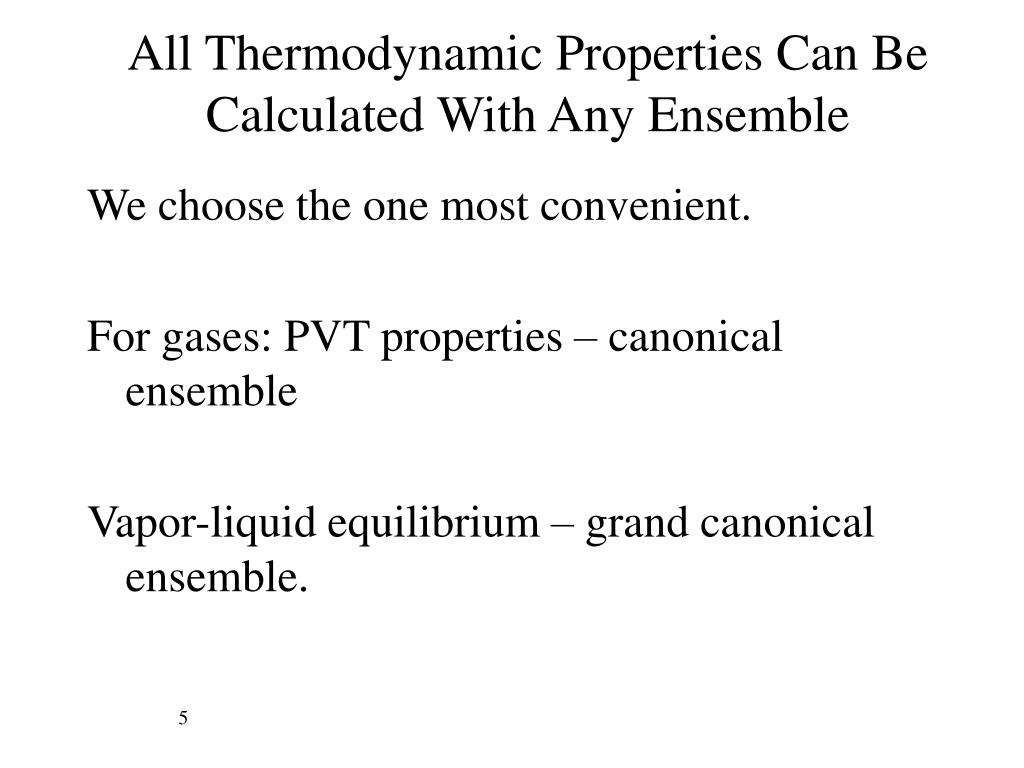

All Thermodynamic Properties Can Be Calculated With Any Ensemble

We choose the one most convenient.

For gases: PVT properties – canonical ensemble

Vapor-liquid equilibrium – grand canonical ensemble.

5


Properties of the canonical and the grand canonical ensemble

Properties Of The Canonical and the Grand Canonical Ensemble

6


Properties of the canonical ensemble

Properties of the Canonical Ensemble:

(6.11)

7


The grand canonical ensemble

The Grand Canonical Ensemble:

(6.12)

with:

(6.13)

8


Partition functions

Partition Functions

(6.15)

(6.16)

9


Partition functions1

Partition Functions

If you know the volume, temperature, and the energy levels of the system you can calculate the partition function.

If you know T and the partition function you can calculate all other thermodynamic properties.

Thus, stat mech provides a link between quantum and thermo. If you know the energy levels you can calculate partition functions and then calculate thermodynamic properties.

10


Chapter 6 basic methods results of statistical mechanics

Partition functions easily calculate from the properties of the molecules in the system (i.e. energy levels, atomic masses etc).

Convenient thermodynamic variables. If you know the properties of all of the molecules, you can calculate the partition functions.

Can then calculate any thermodynamic property of the system.

11


Thermal averages with partition functions

Thermal Averages with Partition Functions

(6.40)

(6.59)

(6.60)

12

(6.61)


Chapter 6 basic methods results of statistical mechanics

(6.62)

(6.65)

(6.63)

(6.64)

13


Canonical ensemble partition function z

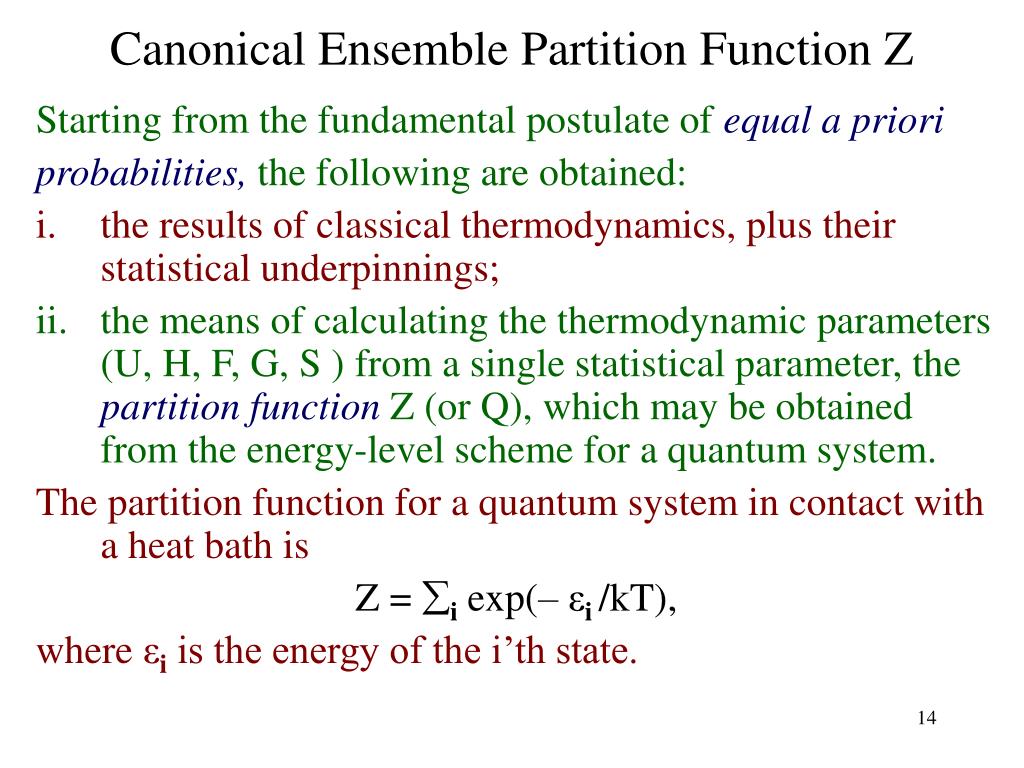

Canonical Ensemble Partition Function Z

Starting from the fundamental postulate ofequal a priori

probabilities, the following are obtained:

the results of classical thermodynamics, plus their statistical underpinnings;

the means of calculating the thermodynamic parameters (U, H, F, G, S ) from a single statistical parameter, the partition functionZ (or Q), which may be obtained from the energy-level scheme for a quantum system.

The partition function for a quantum system in contact with a heat bath is

Z = i exp(– εi/kT),

where εi is the energy of the i’th state.

14


Chapter 6 basic methods results of statistical mechanics

The partition function for a quantum system in contact with a heat bath is Z = i exp(– εi/kT), where εi is the energy of the i’th state.

The connection to the macroscopic thermodynamic

function S is through the microscopic parameter Ω (or ω), which is known as thermodynamic degeneracy or statistical weight, and gives the number of microstates in a given macrostate.

The connection between them, known as Boltzmann’s principle, is S = k lnω.

(S = k lnΩis carved on Boltzmann’s tombstone).

15


Relation of z to macroscopic parameters

Relation of Z to Macroscopic Parameters

Summary of results to be obtained in this section

<U> = – ∂(lnZ)/∂β = – (1/Z)(∂Z/∂β),

CV = <(ΔU)2>/kT2,

where β = 1/kT, with k = Boltzmann’s constant.

S = kβ<U> + k lnZ ,

where <U> = U for a very large system.

F = U – TS = – kT lnZ,

From dF = S dT – PdV, we obtain

S = – (∂F/∂T)Vand P = – (∂F/∂V)T .

Also, G = F + PV = PV – kT lnZ.

H = U + PV = PV – ∂(lnZ)/∂β.

16


Systems of n particles of the same species

Systems of N Particles of the Same Species

Z = zNfor distinguishable particles (e.g. solids);

Z = zN/Nfor indistinguishable particles (e.g.fluids).

<u> = – ∂(lnz)/∂β = – (1/z)(∂z/∂β), U = N<u>.

cV = <(Δu)2>/kT2, CV =NcV, CP =NcP.

Distinguishable particles: F = Nf = – kT ln zN = – NkT lnz.

Since F = U – TS, so that S = (U – F)/T or S = – (∂F/∂T)V.

Indistinguishable particles: F = – kT ln(zN/N)

= – kT [ln(zN)– ln N] = – NkT [ln(z/N)– 1],

Since for very large N, Stirling’s theorem gives ln N! = N lnN – N.

Also, S = – (∂F/∂T)Vand P = (∂F/∂V)Tas before.

17


Mean energies and heat capacities

Mean Energies and Heat Capacities

Equations obtained from Z = rexp (– Er), where  = 1/kT.

U = rprEr/rpr= – (ln Z)/ = – (1/Z) Z/ .

U2 = rprEr2/rpr = (1/Z) 2Z/2.

Un = rprErn/rpr= (–1)n(1/Z) nZ/n.

(ΔU)2 = U2 – (U)2 = 2lnZ/2 or –  U/ .

CV =  U/T =  U/ . d/dT = – k2.  U/,

or CV = k2 (ΔU)2 = (ΔU)2/kT2;

i.e. (ΔU)2 = kT2CV.

Notes

Since (ΔU)2 ≥ 0, (i) CV≥ 0, (ii)  U/T ≥ 0.

18


Entropy and probability

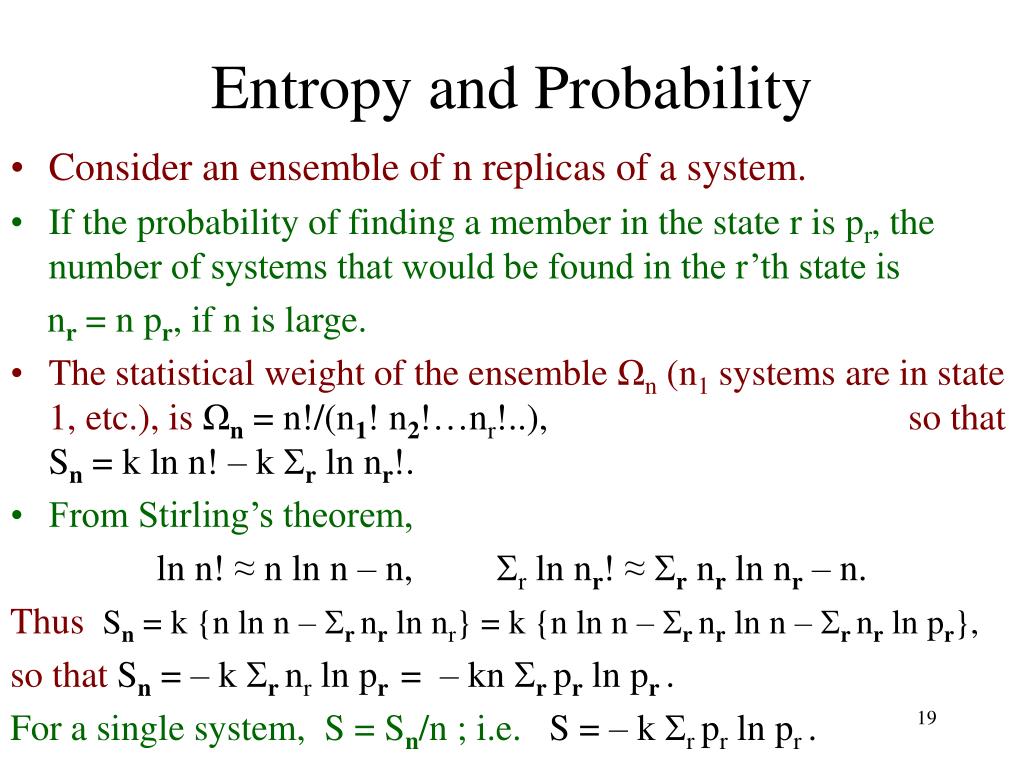

Entropy and Probability

Consider an ensemble of n replicas of a system.

If the probability of finding a member in the state r is pr, the number of systems that would be found in the r’th state is

nr= n pr, if n is large.

The statistical weight of the ensemble Ωn(n1 systems are in state 1, etc.), is Ωn= n/(n1 n2…nr..), so thatSn= k ln n – k r ln nr.‍

From Stirling’s theorem,

ln n ≈ n ln n – n, r ln nr ≈ rnr ln nr – n.

Thus Sn= k {n ln n – rnr ln nr} =‍ k {n ln n – rnr ln n – r nr ln pr},

so thatSn= – k r nr ln pr= – kn rpr ln pr.

For a single system, S = Sn/n ; i.e. S = – k r pr ln pr .

19


Ensembles 1

Ensembles 1

A microcanonical ensembleis a large number of identical

isolated systems.

The thermodynamic degeneracy may be written asω(U, V, N).

From the fundamental postulate, the probability of finding the

system in the state r ispr = 1/ω.

Thus, S = – k rpr ln pr = k r(1/ω) ln ω

= (k/ω) ln ωr1 = k ln ω.

Statistical parameter: ω(U, V, N).

Thermodynamic parameter: S(U, V, N) [T dS = dU – PdV + μdN].

Connection: S = k ln ω.

Equilibrium condition: S Smax.

20


Ensembles 2

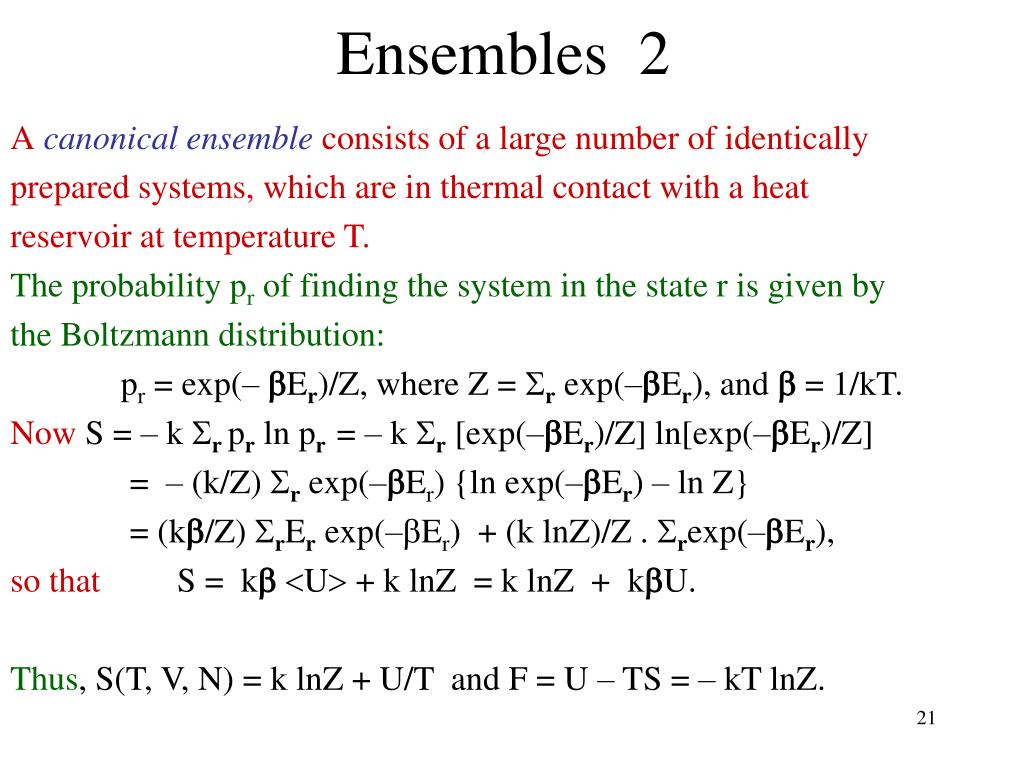

Ensembles 2

Acanonical ensembleconsists of a large number of identically

prepared systems, which are in thermal contact with a heat

reservoir at temperature T.

The probability pr of finding the system in the state r is given by

the Boltzmann distribution:

pr = exp(– Er)/Z, where Z = rexp(–Er), and  = 1/kT.

Now S = – k rpr ln pr =– k r [exp(–Er)/Z] ln[exp(–Er)/Z]

= – (k/Z) rexp(–Er) {ln exp(–Er) – ln Z}

= (k/Z) rErexp(–Er) + (k lnZ)/Z . rexp(–Er),

so that S = k U + k lnZ = k lnZ + kU.

Thus, S(T, V, N) = k lnZ + U/T and F = U – TS = – kT lnZ.

21


Ensembles 3

Ensembles 3

S(T, V, N) = k lnZ + U/T , F = U – TS = – kT lnZ.

Statistical parameter: Z(T, V, N).

Thermodynamic parameter: F(T, V, N).

Connection: F = – kT ln Z.

Equilibrium condition: F Fmin.

A grand canonical ensembleis a large number of identical

systems, which interact diffusively with a particle reservoir.

Each system is described by agrand partition function,

G(T, V, μ) = N{r(μN – EN,r)},

where N refers to the number of particles and r to the set of states

associated with a given value of N.

22


Statistical ensembles

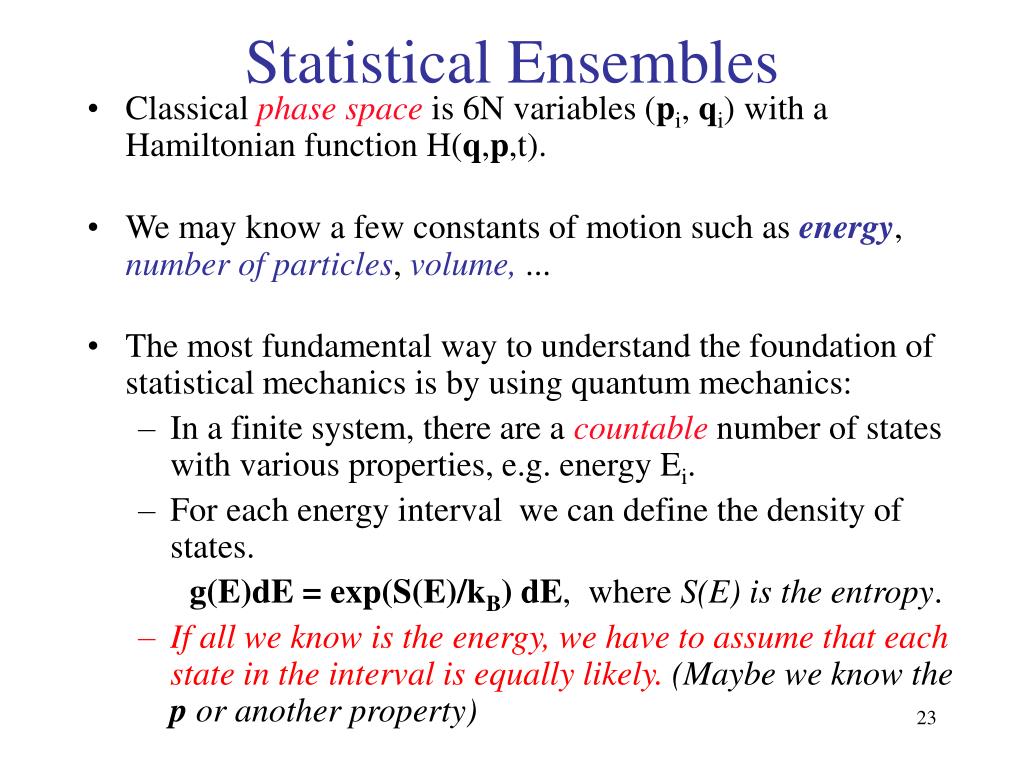

Statistical Ensembles

Classical phase space is 6N variables (pi, qi) with a Hamiltonian function H(q,p,t).

We may know a few constants of motion such as energy, number of particles, volume, ...

The most fundamental way to understand the foundation of statistical mechanics is by using quantum mechanics:

In a finite system, there are a countable number of states with various properties, e.g. energy Ei.

For each energy interval we can define the density of states.

g(E)dE = exp(S(E)/kB) dE, where S(E) is the entropy.

If all we know is the energy, we have to assume that each state in the interval is equally likely.(Maybe we know the p or another property)

23


Environment

Environment

Perhaps the system is isolated. No contact with outside world. This is appropriate to describe a cluster in vacuum.

Or we have a heat bath: replace surrounding system with heat bath. All the heat bath does is occasionally shuffle the system by exchanging energy, particles, momentum,…..

The only distribution consistent with a heat bath is a canonical distribution:

See online notes/PDF derivation

24


Statistical ensembles1

Statistical ensembles

(E, V, N) microcanonical, constant volume

(T, V, N) canonical, constant volume

(T, P N) canonical, constant pressure

(T, V , μ) grand canonical (variable particle number)

Which is best? It depends on:

the question you are asking

the simulation method: MC or MD (MC better for phase transitions)

your code.

Lots of work in recent years on various ensembles (later).

25


Maxwell boltzmann distribution

Maxwell-Boltzmann Distribution

Z=partition function. Defined so that probability is normalized.

Quantum expression

Also Z= exp(-β F), F=free energy (more convenient since F is extensive)

Classically: H(q,p) = V(q)+ Σi p2i /2mi

Then the momentum integrals can be performed. One has simply an uncorrelated Gaussian (Maxwell) distribution of momentum.

26


Chapter 6 basic methods results of statistical mechanics

Microcanonical ensemble

E, V and N fixed

S = kB lnW(E,V,N)

Canonical ensemble

T, V and N fixed

F = -kBT lnZ(T,V,N)

Grand canonical ensemble

T, V and m fixed

F = -kBT ln (T,V,m)
