Univerzita Pardubice, fakulta chemicko-technologická University of Pardubice, Faculty of Chemical Technology Katedra dřeva, celulózy a papíru Department of Wood, Pulp and PaperDegradation and destruction of cellulose– a principal reason of aging of cellulosic materials NEW KNOWLEDGE OF CELLULOSE AGING DETERMINATIONS BY HELP OF METHOD UV-VIS SPECTROSCOPY IN CADOXEN SOLUTIONS

Milichovská Svatava, Milichovský Miloslav

VII. International Symposium Selected Processes at the Wood Processing, Banská Štiavnice, 12th – 14th September 2007

Cellulose aging is evoked by

Cellulose aging is evoked by

  • Acidific and enzymatic hydrolysis

    – well known

  • Chemical and photochemical oxidation

    – a little information

  • Combination of both reactions

    As typical,due to these reactions cellulose and cellulosic materials are getting more fragile and yellow.

Www upce cz

Nitroxide-mediated oxidation, in which dimeric nitroxide is applied in acidific aqueous media, is well known method to oxidise cellulose to get PAGA (1 4)-linked β-D-glucuronan (C-6-oxycellulose).

Www upce cz

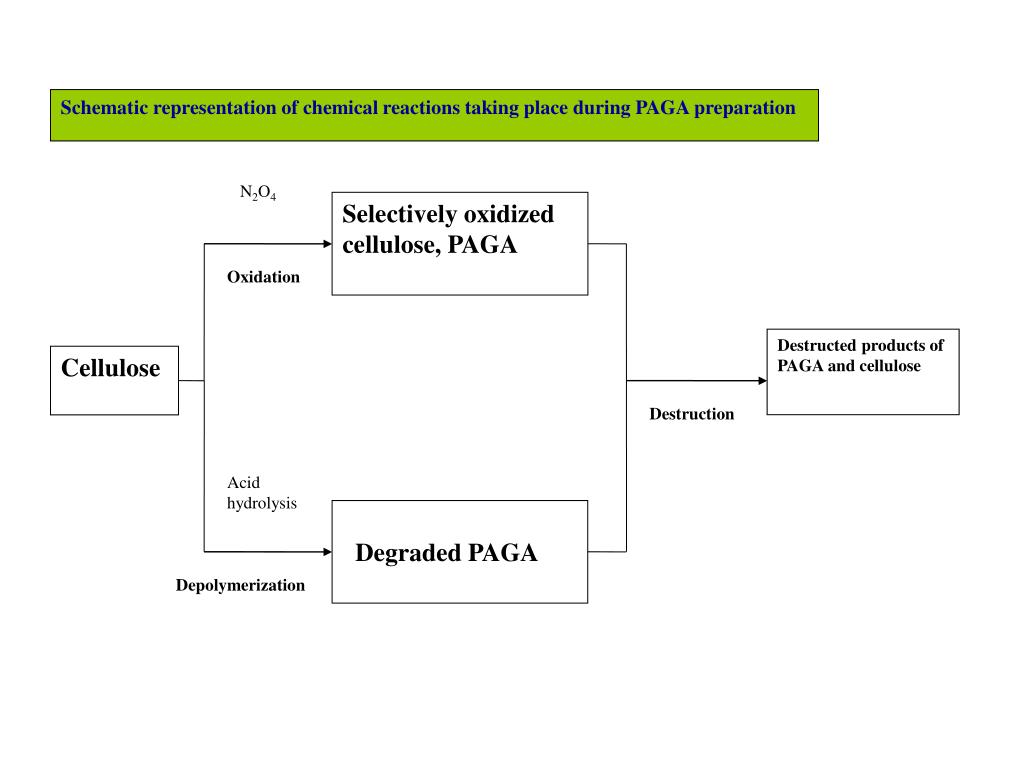

Schematic representation of chemical reactions taking place during PAGA preparation


Selectively oxidized cellulose, PAGA


Destructed products of PAGA and cellulose



Acid hydrolysis

Degraded PAGA


Www upce cz

We found (Milichovsky M., Sopuch T., Richter J.:Depolymerization during nitroxide-mediated oxidation of native cellulose. JAPS, Aug.30,2007, Published Online by A Wiley Company, DOI 10.1002/app.24540) that the depolymerization of cellulose during its nitroxide-mediated oxidation can be described very well by model

  • called as general DP-peeling modelin mathematical form,


  • DP = 1/ (a + b.t)

    whereas an oxidation by simple model for first order kinetics.

    d[CelOH] d[CelOOH]

  • _ ------------ = -------------- = kCOOH . [CelOH] ,


Www upce cz

Oriented domain    of cellulose

Repulsive hydration forces


Chain of cellulose

Attractive hydration forces

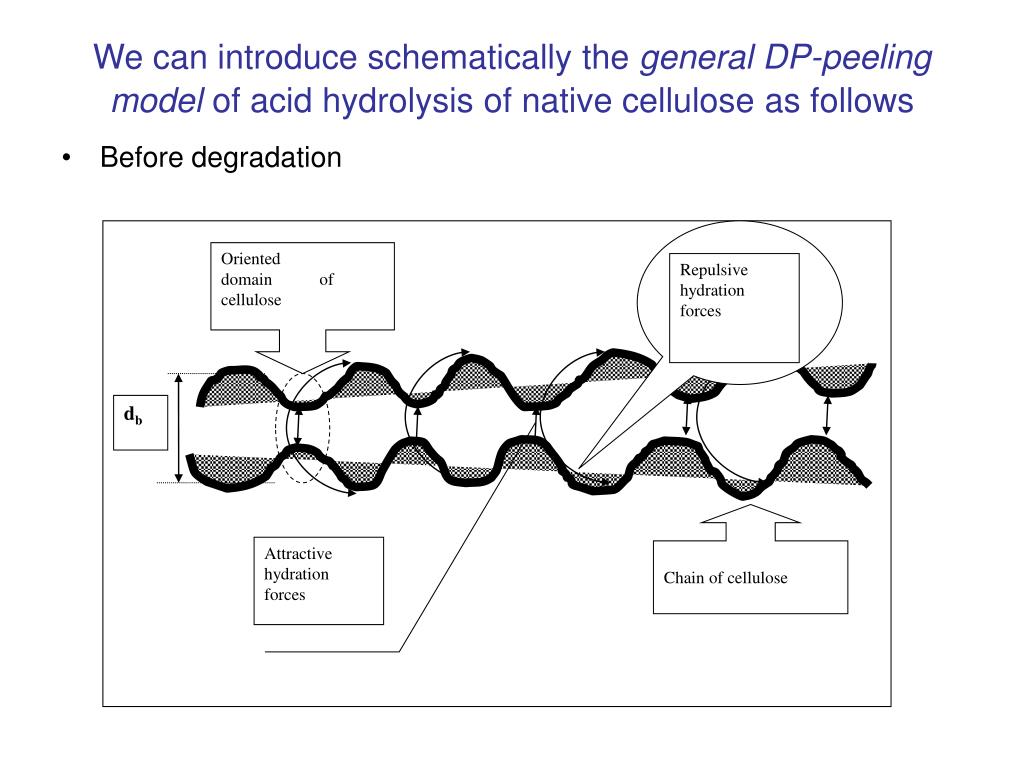

We can introduce schematically the general DP-peeling model of acid hydrolysis of native cellulose as follows

  • Before degradation

Acid hydrolysis of native cellulose

Oriented fragment of           cellulose


Degraded chain of cellulose

da < db

Acid hydrolysis of native cellulose

  • After degradation a cellulosic fibre is more rigid because increased concentration of oriented crystalline fragments of cellulose

Www upce cz

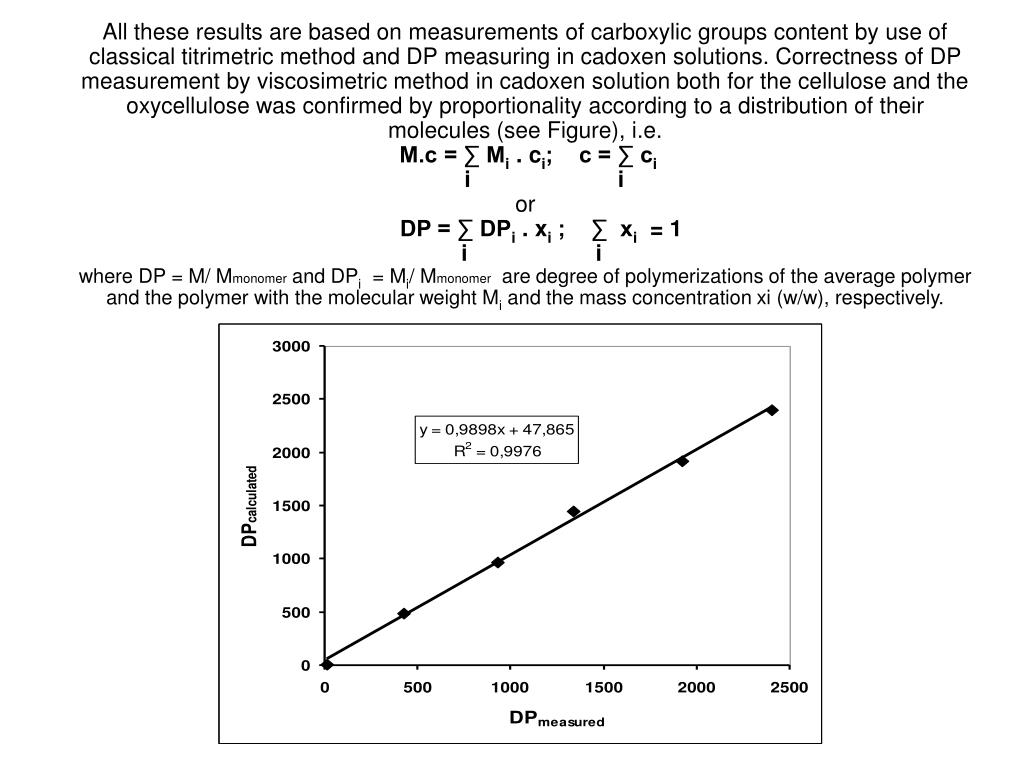

All these results are based on measurements of carboxylic groups content by use of classical titrimetric method and DPmeasuring in cadoxen solutions. Correctness of DP measurement by viscosimetric method in cadoxen solution both for the cellulose and the oxycellulose was confirmed by proportionality according to a distribution of their molecules (see Figure), i.e.M.c = ∑ Mi . ci; c = ∑ ci i ior DP = ∑ DPi . xi ; ∑ xi = 1 i iwhere DP = M/ Mmonomer and DPi = Mi/ Mmonomer are degree of polymerizations of the average polymer and the polymer with the molecular weight Mi and the mass concentration xi (w/w), respectively.

Www upce cz

However, OC prepared by oxidation of naturally cellulose is a mixture of PAGA (poly 1,4 β-D- anhydroglucuronic acid) and other products initiating destruction of PAGA having a different supramolecular structure in oriented and amorphous part of cell-wall.

  • Recently investigations have demonstrated (Evtuguin,D.V.; Daniel A.I.D.; Neto P. Determination of Hexenuronic Acid and Residual Lignin in Pulps by UV Spectroscopy in Cadoxen Solutions. Journal of Pulp and Paper Science 2002; 28: 189-192.)that UV-VIS spectroscopy of cadoxen solutions are a potentially useful method, especially in the range of wavelength 210-350 nm.

  • Moreover, other substances appearing during of PAGA aging and indicating the PAGA destruction it is possible to observe by UV-VIS spectroscopy of cadoxen solution at wavelength band 350-450 nm.

  • By connection all of these measurements, i.e. COOH groups content and viscosimetric measurements with UV-VIS spectroscopy of cadoxen solution, we have received a new method for analysing OC giving the new and more detailed characteristics of OC (Milichovsky M., Milichovska Sv.: Characterization of Oxidized Cellulose by using UV-VIS Spectroscopy. JAPS, prepared for publication) .

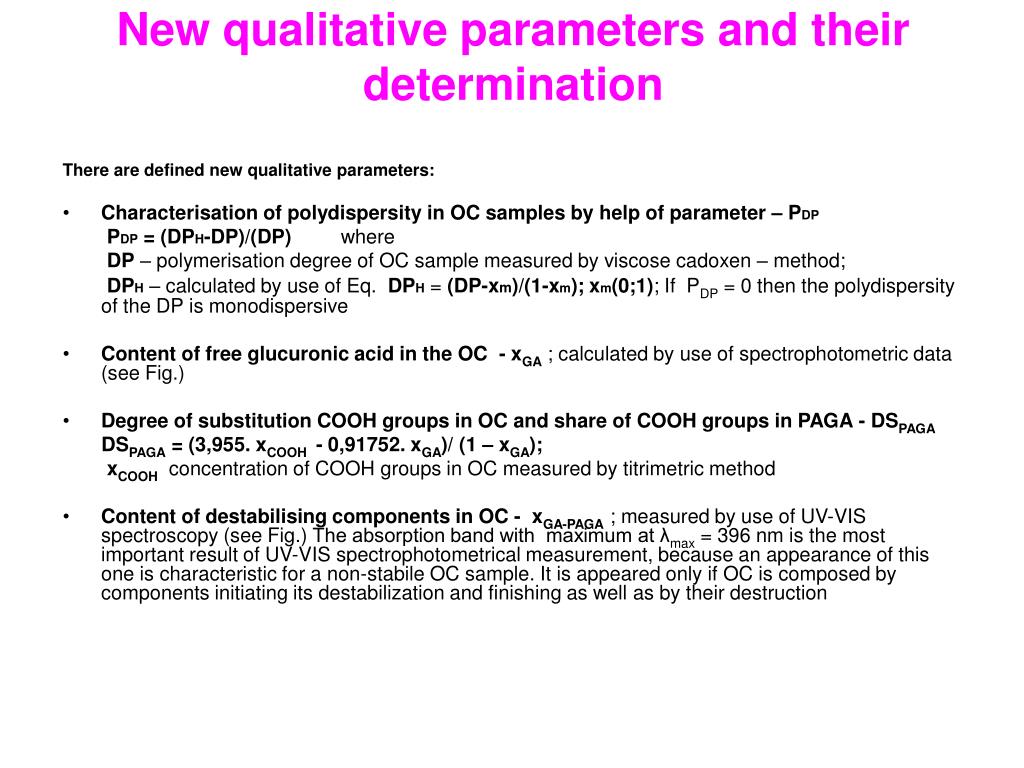

New qualitative parameters and their determination

New qualitative parameters and their determination

There are defined new qualitative parameters:

  • Characterisation of polydispersity in OC samples by help of parameter – PDP

    PDP = (DPH-DP)/(DP) where

    DP – polymerisation degree of OC sample measured by viscose cadoxen – method;

    DPH – calculated by use of Eq. DPH = (DP-xm)/(1-xm); xm(0;1);IfPDP = 0 then the polydispersity of the DPis monodispersive

  • Content of free glucuronic acid in the OC - xGA ; calculated by use of spectrophotometric data (see Fig.)

  • Degree of substitution COOH groups in OC and share of COOH groups in PAGA - DSPAGA

    DSPAGA = (3,955. xCOOH - 0,91752. xGA)/ (1 – xGA);

    xCOOH concentration of COOH groups in OC measured by titrimetric method

  • Content of destabilising components in OC - xGA-PAGA ; measured by use of UV-VIS spectroscopy (see Fig.) The absorption band with maximum at λmax = 396 nm is the most important result of UV-VIS spectrophotometrical measurement, because an appearance of this one is characteristic for a non-stabile OC sample. It is appeared only if OC is composed by components initiating its destabilization and finishing as well as by their destruction

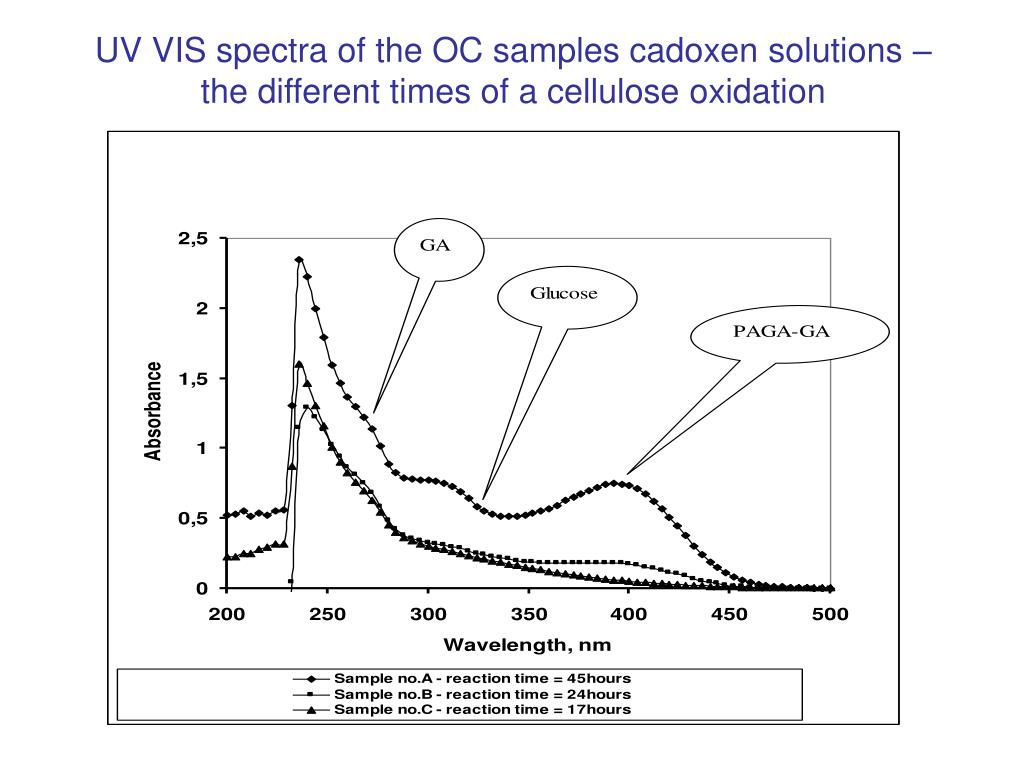

Uv vis spectra of the oc samples cadoxen solutions the different times of a cellulose oxidation

UVVIS spectra of the OC samples cadoxen solutions – the different times of a cellulose oxidation

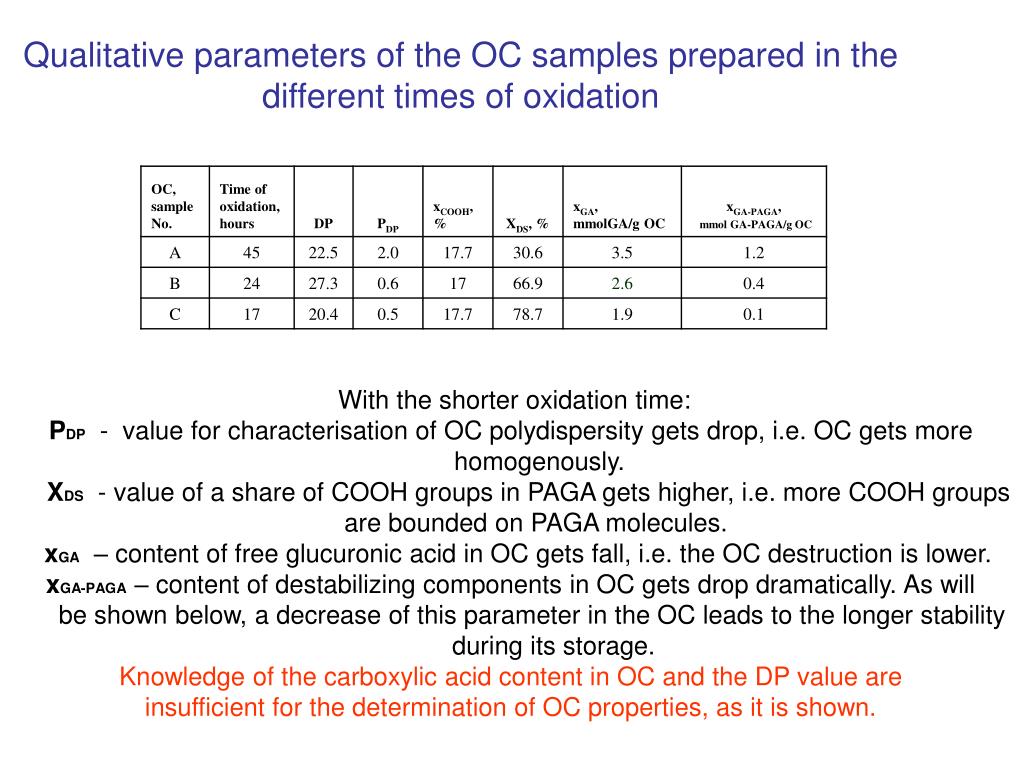

Qualitative parameters of the oc samples prepared in the different times of oxidation

Qualitative parameters of the OC samples prepared in the different times of oxidation

With the shorter oxidation time:

PDP - value for characterisation of OC polydispersity gets drop, i.e. OC gets more


XDS - value of a share of COOH groups in PAGA gets higher, i.e. more COOH groups

      are bounded on PAGA molecules.

xGA – content of free glucuronic acid in OC gets fall, i.e. the OC destruction is lower.

xGA-PAGA – content of destabilizing components in OC gets drop dramatically. As will

be shown below, a decrease of this parameter in the OC leads to the longer stability

   during its storage.

Knowledge of the carboxylic acid content in OC and the DP value are

insufficient for the determination of OC properties, as it is shown.

Aging of oxidised cellulose during its storage at 40 o c

Aging of oxidised cellulose during its storage at 40oC

Comment of results:

OC sample No. A, having the highest content of destabilising components (1, 2 mmolGA-

PAGA/g OC) on the start watching (after preparation), shows very low stability. After storage 2 months at 40 oC, appearance of sample changed from the white elastic gauze to the yellow

fragile material giving yellow powder during its manipulation. The content of destabilising

components and the content of free glucuronic acid grew rapidly.

Non stabile substances ga paga starting the paga destruction

Non-stabile substances GA-PAGA (starting the PAGA destruction)

are formed by reaction between PAGA and free GA contained in the OC sample (see Figures). It was proved that this

reaction is equimolecular.

Non stabile substances ga paga starting the paga destruction c omment of received results

Non-stabile substances GA-PAGA (starting the PAGA destruction) - comment of received results

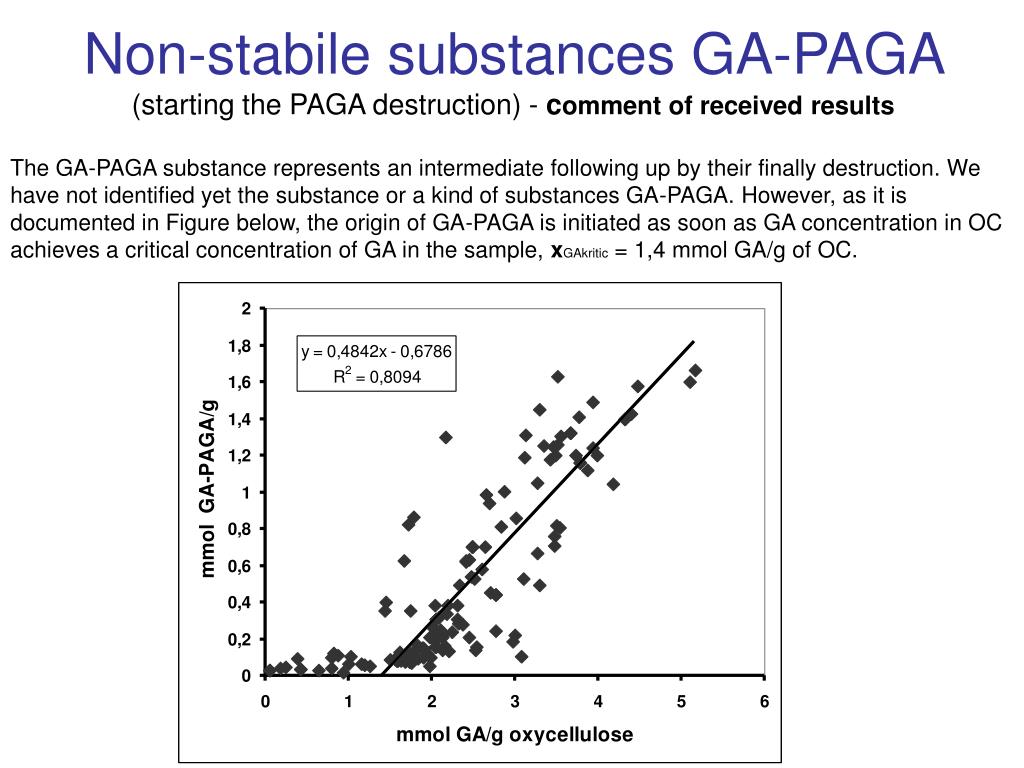

The GA-PAGA substance represents an intermediate following up by their finally destruction. We have not identified yet the substance or a kind of substances GA-PAGA. However, as it is documented in Figure below, the origin of GA-PAGA is initiated as soon as GA concentration in OC achieves a critical concentration of GA in the sample, xGAkritic = 1,4 mmol GA/g of OC.

Hypothetical mechanism of degradation and destruction of paga

Hypothetical mechanism of degradation and destruction of PAGA



  • Cellulose is easy oxidized in water medium with nitrogendioxide on OC predominantly PAGA followed up by its degradation and destruction

  • During PAGA degradation, the GA is formulated firstly followed by further acceleration of this process due to strong acidific behaviour of GA

  • Firstly, the cellulose in non-oriented amorphous part of cellulose matter are reacted followed up step by step by reaction in more and more deeply part of oriented crystallised part of cellulose matter

  • At suitable reaction condition, the GA initiates an origin of GA-PAGA intermediate as predecessor of totally PAGA destruction

  • Suitable reaction conditions are represented by formation of glucuronic end groups of PAGA reacting further with free GA to form a substance GA-PAGA

  • GA-PAGA is formulated by two forms, i.e. by formation of glycosidic and ester O-bonds in heptacyclic and di-ester O-bonds in decacyclic end- structures of PAGA-GA

  • Heptacyclic end-structures of PAGA-GA are split off into heptacyclic glucuronic ester structure (HCGE ) and shorter PAGA molecule in the first step followed by destruction of HCGE into low molecular organic compounds at the second step of the destruction reaction

  • As typical for all of these cellulose harmful reaction, a dehydration is taking place

Www upce cz

Formation of nitrogen oxides in atmosphere (Tropospheric oxidants)(Becker K.H.: Atmospheric Pollution by Photooxidants over Europe. 5-th CEC-European Symposium Proceedings, 1993)

It is well known that

irradiation of air + VOC + NOx → O3

However, at constant VOC with increasing NOx the irradiation leads to O3 maximum and above a NOx –limit concentration suddenly decreases.


NO2 + hν → NO + O. at wavelengths below 410 nm

O + O2 → O3

Reverse reaction in excess of O3

NO + O3 → NO2 + O2

Formation of “excess ozone”

by transport from areas of high O3 concentration

by efficient VOC oxidation via an OH. radical chain in presence of NO2 where NO is oxidized to NO2 by RO2. or HO2. radicals and not by ozone.

RO2. + NO → RO. + NO2

HO2. + NO → OH. + NO2

Termination competing reaction (important is peroxyacetyl radical)

RO2. + NO2 → RO2NO2 - formation of peroxynitrates

RO2. + RO2. → ROOR + O2- formation of peroxycompounds

RO2NO2→ NO2 + RO2. - formation of hydroperoxydes and organic

RO2. + H2O → ROOH + OH.acids athigh humidity, particuraly in forest areas

Decrease of NO2 by competing reactions

NO2 + OH. → HNO3

NO2 + NO2 → N2O4- selective oxidation agents of cellulose to PAGA
