Earth Structure & The Theory of Plate Tectonics

Earth Structure & The Theory of Plate Tectonics. This is the study of plates (which make up the lithosphere) and their resultant landforms. The Geological Timescale. The earth is 4600 million year Only the last 570 million years are well documented as this is when life became abundant.

spiro
Download Presentation

Earth Structure & The Theory of Plate Tectonics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Earth Structure & The Theory of Plate Tectonics This is the study of plates (which make up the lithosphere) and their resultant landforms.

  2. The Geological Timescale • The earth is 4600 million year • Only the last 570 million years are well documented as this is when life became abundant

  3. Plate TectonicsJigsaw like fit: - 1596 Abraham Ortelius - 1620 Francis Bacon1912 Alfred Wegener – Continental DriftSupported by Alexander Du Toit

  4. EVIDENCE:- glacial deposits in S.Africa, Brazil, India

  5. Evidence:- Mesosaurus (reptile)- S.Africa & Brazil- Glossopteris (fossil fern)- grew under trop conditions but now found in polar regions e.g. Antarctica

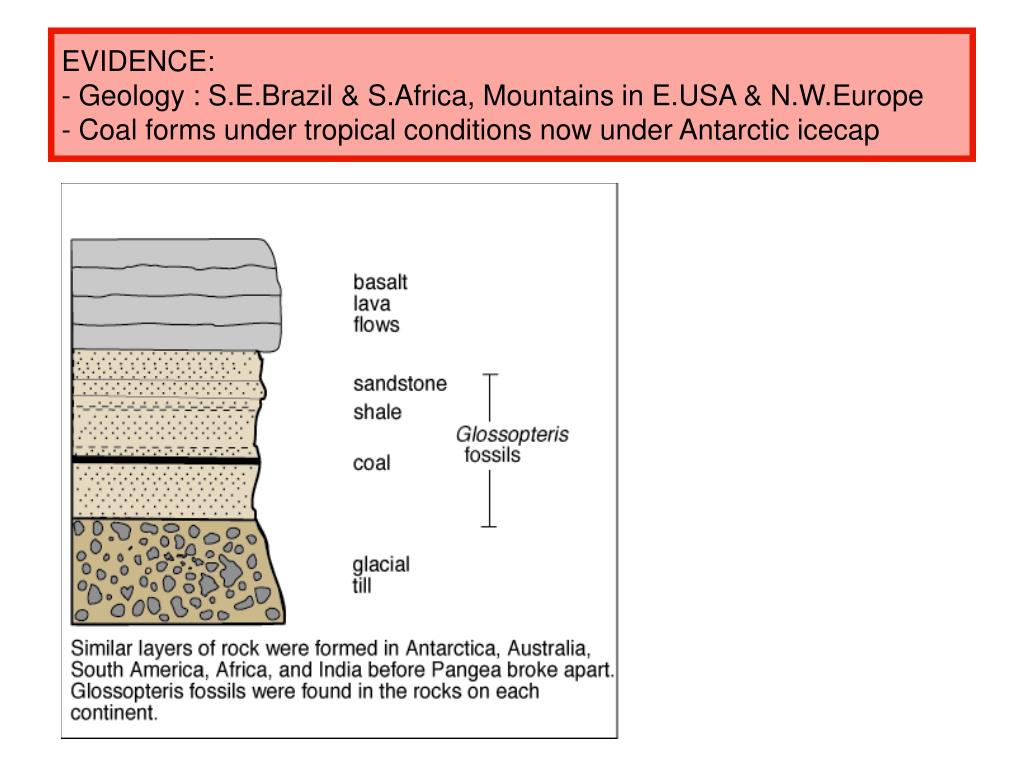

  6. EVIDENCE:- Geology : S.E.Brazil & S.Africa, Mountains in E.USA & N.W.Europe- Coal forms under tropical conditions now under Antarctic icecap

  7. His ideas were rejected because:- he could not suggest how solid continents had changed position- unable to suggest a mechanism for drift

  8. Development in 1950s rekindled interest in Wegener’s theory • 1. Mid Atlantic ridge discovered in 1948 by Maurice Ewing (rocks volcanic & young)

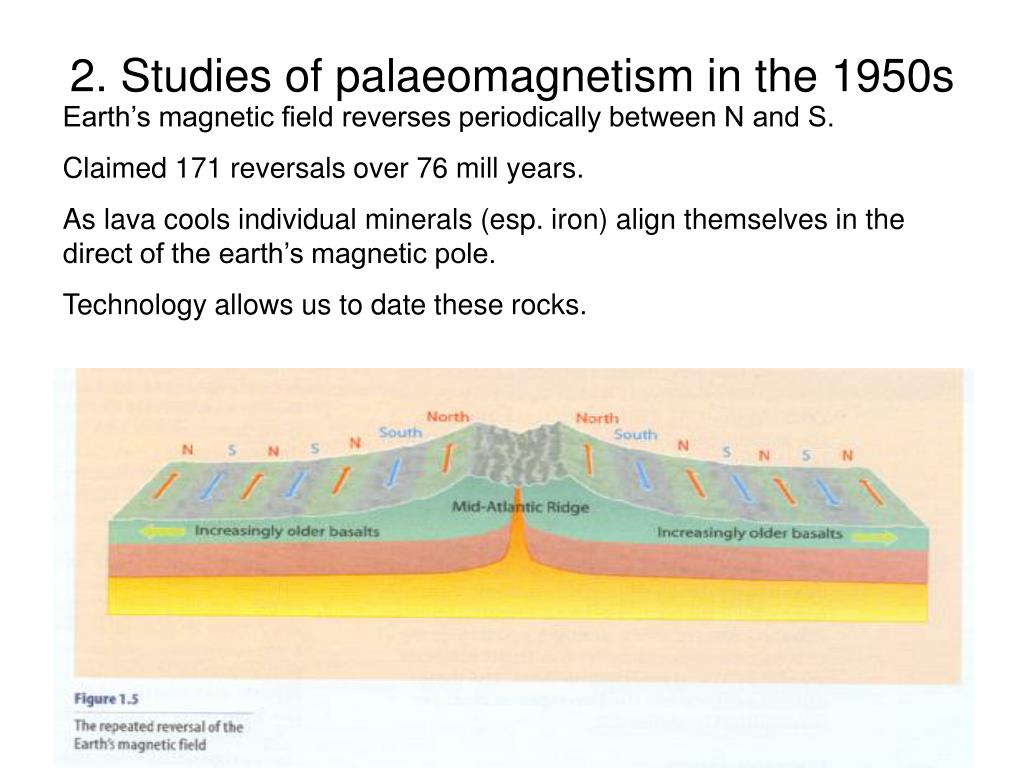

  9. 2. Studies of palaeomagnetism in the 1950s Earth’s magnetic field reverses periodically between N and S. Claimed 171 reversals over 76 mill years. As lava cools individual minerals (esp. iron) align themselves in the direct of the earth’s magnetic pole. Technology allows us to date these rocks.

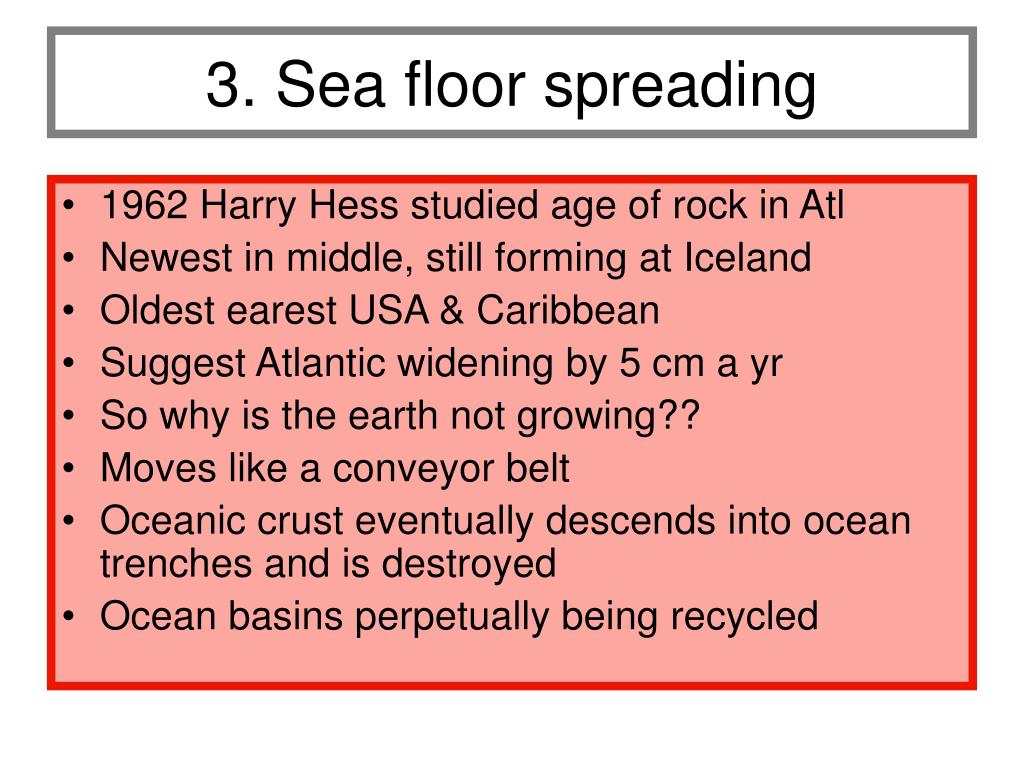

  10. 3. Sea floor spreading • 1962 Harry Hess studied age of rock in Atl • Newest in middle, still forming at Iceland • Oldest earest USA & Caribbean • Suggest Atlantic widening by 5 cm a yr • So why is the earth not growing?? • Moves like a conveyor belt • Oceanic crust eventually descends into ocean trenches and is destroyed • Ocean basins perpetually being recycled

  11. Use with worksheet on ‘Physical Features & Earth Structure’

  12. 4. Fact that world’s earthquake & volcanic activity is concentrated along ocean trenches and submarine mountain ranges

  13. These discoveries lead to the theory of PLATE TECTONICS which is now virtually universally accepted.It may still be modified following further investigation and study.

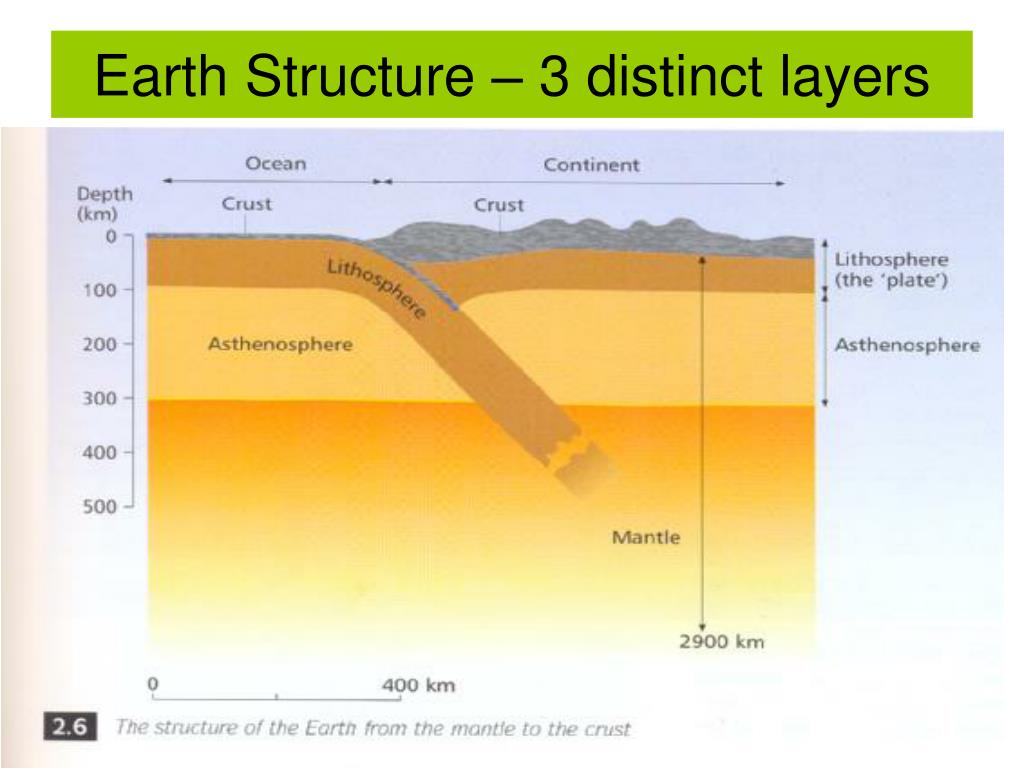

  14. Earth Structure – 3 distinct layers

  15. Earth Structure

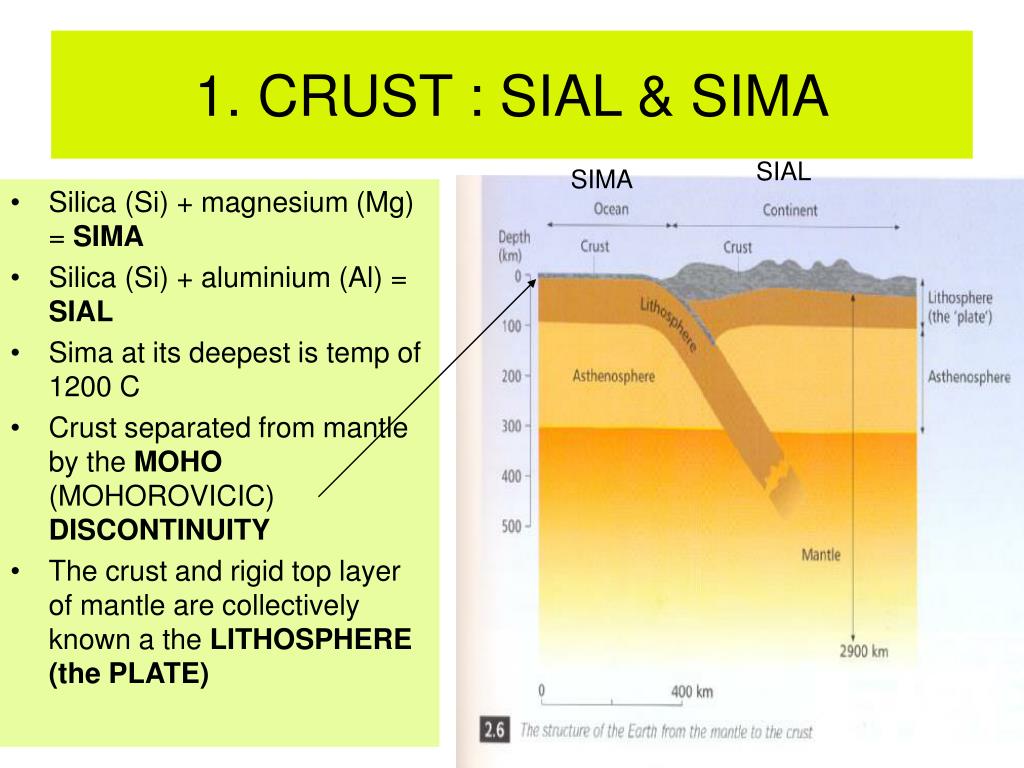

  16. 1. CRUST : SIAL & SIMA SIAL SIMA • Silica (Si) + magnesium (Mg) = SIMA • Silica (Si) + aluminium (Al) = SIAL • Sima at its deepest is temp of 1200 C • Crust separated from mantle by the MOHO (MOHOROVICIC) DISCONTINUITY • The crust and rigid top layer of mantle are collectively known a the LITHOSPHERE (the PLATE)

  17. Differences in crust types

  18. The crust is made up of 3 types of rock:

  19. 2. MANTLE • Silicate rocks rich in iron and magnesium • Rigid top layer • Remainder of mantle in semi-molten state, plastic like in upper portions, allows plates to move on it, known as ASTHENOSPHERE • Dense material • Aver plate movt 50mm a yr (fingernail growth) • Mantle depth 2900km where temp may reach 5000 C • High temps generate convection currents • CC are probably generated from the core/mantle boundary, but some scientists believe they are only in asthenosphere (300km deep)

  20. CC originate from core/mantle boundary Notice what happens where the CC converge and diverge Some believe CC just in upper layer of mantle, the asthenosphere mantle

  21. 3. Core • Consists of iron & nickle and is the size of Mars • OUTER CORE is in semi-molten state • 2200 km thick • As the earth rotates the liquid outer core spins creating the earth’s magnetic field • INNER CORE is solid • 1250 km thick • Temp at centre 6371 km below surface is 6200 C (hotter than sun)
