Physical Security

[email protected]


Overview
Overview

  • Smart cards

  • RFIDs

  • Attacks

  • (Semi)-Natural tags

  • Conclusions

IIS



Smart cards1

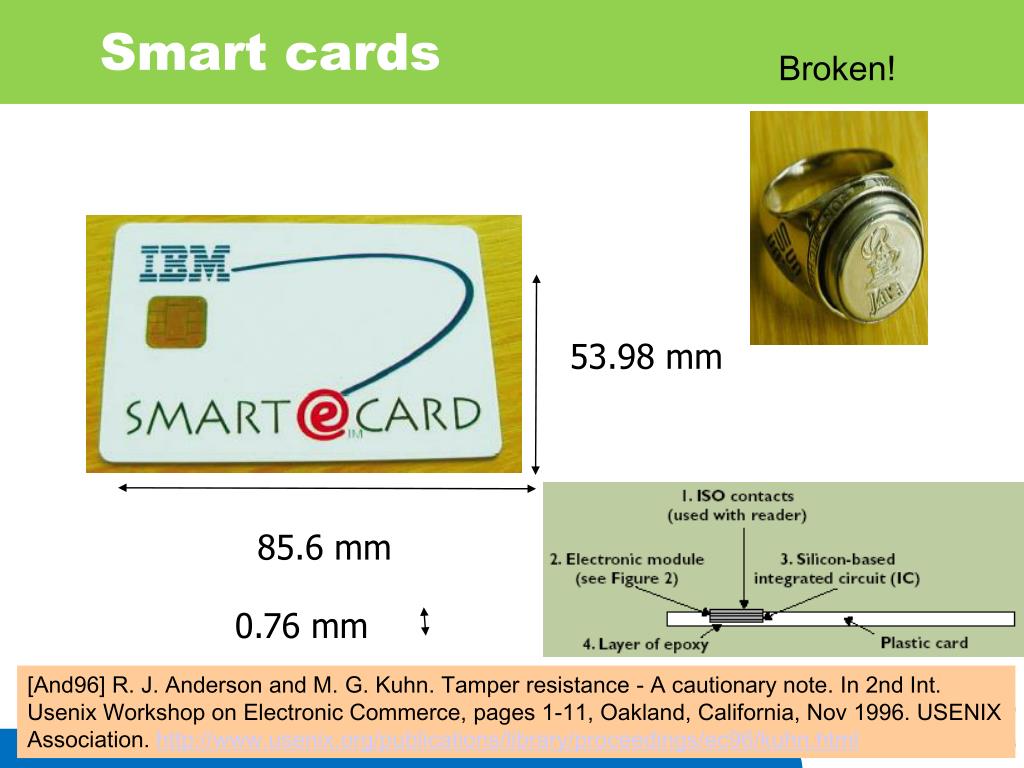

Smart cards

Broken!

53.98 mm

85.6 mm

0.76 mm

[And96] R. J. Anderson and M. G. Kuhn. Tamper resistance - A cautionary note. In 2nd Int. Usenix Workshop on Electronic Commerce, pages 1-11, Oakland, California, Nov 1996. USENIX Association. http://www.usenix.org/publications/library/proceedings/ec96/kuhn.html

IIS


What makes the card smart
What makes the card smart?

  • CPU (8, 16, 32 bit)

  • Memory (RAM, ROM, EEPROM, Flash)

  • I/O channel (Contact/Contact less)

  • Cryptographic co-processor

  • On card devices (Fingerprint, display)

  • Standards (ISO 7816, GSM, EMV, VOP)

IIS


Main security features
Main security features

  • Symmetric crypto

  • Asymmetric crypto relatively slow

  • Hardware random number generator

  • Hardware tamper resistance

  • X-tal clock vulnerable

  • Life cycle management

IIS


Communication
Communication

  • ISO 7816-4:

    9600 bps : slow

  • USB : bulky

  • Bluetooth: power

  • Biometrics: slow

www.fingerchip.com

IIS


Displays
Displays

  • Plastic, glass

  • Emissive, non-emissive

  • Refresh, bi-stable

  • Segment, dot-matrix

  • Problems: connections, yield, power, thickness, price!

[Pra01] D. Praca and C. Barral. From smart cards to smart objects: the road to new smart technologies. Computer Networks, 36(4):381-389, Jul 2001. http://dx.doi.org/10.1016/S1389-1286(01)00161-X

IIS


Clock power
Clock & Power

  • Clock

    • Xtal 0.6 mm

    • MEMS (0.002% acc.)

  • Battery

    • Thickness

    • power density

    • when to recharge

IIS


Integration is hard
Integration is hard

  • Display

  • Button

  • 32-bit CPU

  • Large memory

  • Battery

  • Comms

  • >> 25mm2

Photo: Philips Semiconductors

IIS



What is an rfid tag
What is an RFID tag?

  • Antenna + small chip in ambient field

  • Passive, replies to queries only

  • Can be used for almost anything

    • Supply Chain Management & Checkout (Wallmart, Benetton)

    • Homeland security

    • User convenience

    • Access to buildings

Nokia 6131 NFC

IIS



Privacy issues
Privacy issues

  • Sniffing

    • Data collection in proximity (skimming)

    • Correlate data from different tags

  • Counter measures

    • Shield antenna in passport with tinfoil

    • Encrypt the template with MRZ data

    • Reduce transmit range

    • Light controlled on/off switch

    • Long and short range interface

    • Time delayed transmit of sensitive info

Watch this video

[Bir07] N. Bird, C. Conrado, J. Guajardo, S. Maubach, G. Jan Schrijen, B. Skorić, A. M. H. Tombeur, P. Thueringer, and P. Tuyls. ALGSICS - combining physics and cryptography to enhance security and privacy in RFID systems. In F. Stajano, C. Meadows, S. Capkun, and T. Moore, editors, 4th European Workshop on Security and Privacy in Ad-hoc and Sensor Networks (ESAS), volume LNCS 4572, pages 187-202, Cambridge, UK, Jul 2007. Springer. http://dx.doi.org/10.1007/978-3-540-73275-4_14

IIS


Attacks

Attacks

[Wit02] M. Witteman. Advances in smartcard security. Information Security Bulletin, pages 11-22, Jul 2002. http://www.riscure.com/fileadmin/images/Docs/ISB0707MW.pdf


Attacks1
Attacks

  • Operational

    • Blackmail

    • Burglary

    • Bribery

  • Technical

    • Logical

    • Physical

    • Side channel

  • Attackers

    • I: Clever outsiders

    • II: Knowledgeable insiders

    • III: Funded Organisations

IIS


Logical attacks
Logical attacks

  • The code is too complex

    • Hidden commands

    • Parameter poisoning & Buffer overflow

    • Malicious or buggy applets

    • Protocol problems (e.g. retransmit)

    • Proprietary crypto

  • Counter measures

    • Structured design & code inspection

    • Formal methods

    • Testing

IIS


Example rfid virus
Example: RFID virus

  • There is a large amount of code

  • Generic protocols and facilities

  • Back end data bases

  • So the usual attacks:

    • Buffer overflow

    • SQL injection “;shutdown--”

  • Don’t trust data from RFID tag…

Best paper

award

[Rie06] M. R. Rieback, B. Crispo, and A. S. Tanenbaum. Is your cat infected with a computer virus? In 4th Annual IEEE Int. Conf. on Pervasive Computing and Communications (PerCom), pages 169-179, Pisa, Italy, Mar 2006. IEEE Computer Society. http://dx.doi.org/10.1109/PERCOM.2006.32

IIS


Physical attacks

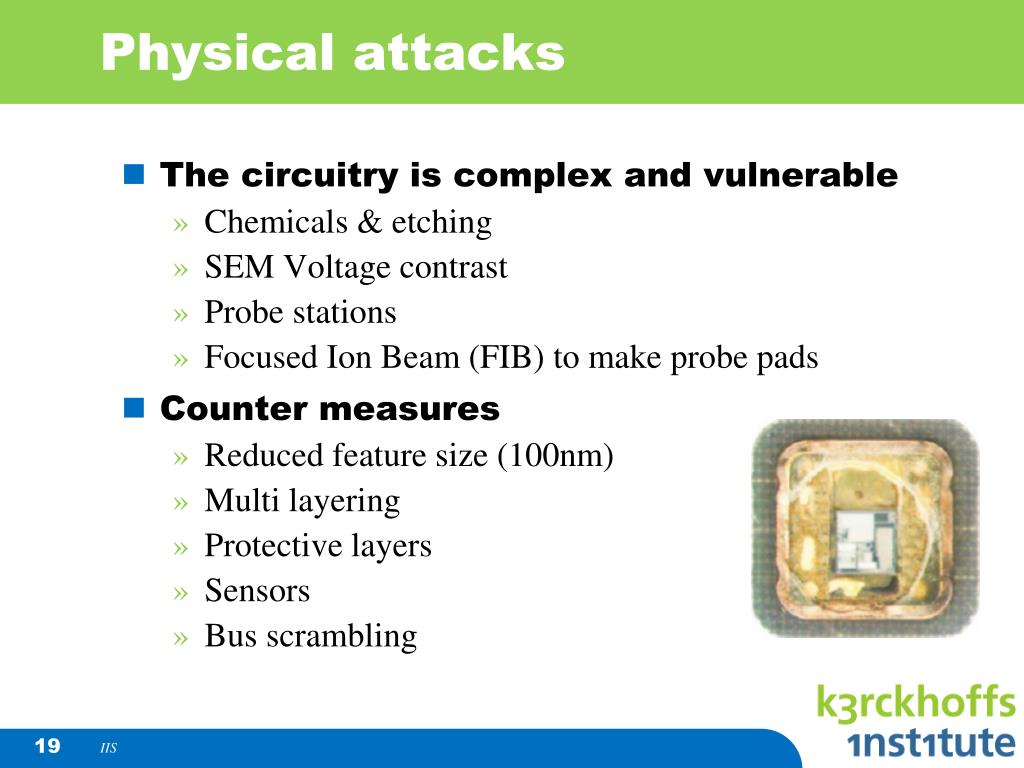

Physical attacks

  • The circuitry is complex and vulnerable

    • Chemicals & etching

    • SEM Voltage contrast

    • Probe stations

    • Focused Ion Beam (FIB) to make probe pads

  • Counter measures

    • Reduced feature size (100nm)

    • Multi layering

    • Protective layers

    • Sensors

    • Bus scrambling

IIS


Low cost physical attacks
Low cost physical attacks

  • Block EEPROM writes by isolating Vpp

  • Rent focused Ion beam

[And97d] R. J. Anderson and M. Kuhn. Low cost attacks on tamper resistant devices. In 5th Int. Workshop on Security Protocols, volume LNCS 1361, pages 125-136, Paris, France, Apr 1997. http://dx.doi.org/10.1007/BFb0028165

IIS


Side channel attacks
Side channel attacks

  • Physical phenomena can be measured

    • Power

    • EM radiation (X-ray, light, sound)

    • Time

  • and changed

    • Voltage (example later)

    • Frequency (example later)

Watch this video

[Vua09] M. Vuagnoux and S. Pasini. Compromising electromagnetic emanations of wired andWireless keyboards. In 18th USENIX Security Symp., pages 1-16, Montreal, Canada, Aug 2009. USENIX Assoc. http://www.usenix.org/events/sec09/tech/full_papers/vuagnoux.pdf

IIS


Timing attack
Timing attack

  • Exponentiation by square and multiply

    • for i = n − 2 downto 0

    • X = X2

    • if (d[i] == 1) then

    • X = X*M

  • Power trace shows bits 1 in the key

IIS


Simple power analysis
Simple power analysis

  • 16 rounds DES

  • Rounds 2 & 3

[Koc99] P. C. Kocher, J. Jaffe, and B. Jun. Differential power analysis. In M. J. Wiener, editor, 19th Int. Conf. on Advances in Cryptology (CRYPTO), volume 1666 of LNCS, pages 388-397, Santa Barbara, California, Aug 1999. Springer. http://www.cryptography.com/resources/whitepapers/DPA.pdf

IIS


Differential power attacks
Differential power attacks

  • Difference in the third cycle due to difference in input value for encryption

IIS


Active attacks power dip
Active attacks : Power Dip

A power Dip at the

Moment of reading

a memory cell

vcc

  • read a 0 as a 1

  • Protection measure

    • Check VCC & raise an alarm if it drops

    • Problem: Fast transients during start-up may raise false alarms

Reading

threshold

Stored value

of logical zero

gnd

IIS


Active attacks clock glitch
Active attacks : Clock Glitch

  • Dump all of the memory

  • Replace 5MHz pulse by 4 pulses of 20MHz:

    • b = answer_address

    • a = answer_length

    • If (a == 0) goto 8

    • transmit(*b)

    • b=b+1

    • a=a-1

    • goto 3

Glitch here

[And97d] R. J. Anderson and M. Kuhn. Low cost attacks on tamper resistant devices. In 5th Int. Workshop on Security Protocols, volume LNCS 1361, pages 125-136, Paris, France, Apr 1997. http://dx.doi.org/10.1007/BFb0028165

IIS


Countermeasures
Countermeasures

  • Hardware

    • Lower power signals

    • Increase noise levels

    • Introduce timing noise

  • Software

    • Parallelism

    • Introduce random delays

    • Constant time execution

    • Blinding intermediate values

IIS


Countermeasures1
Countermeasures

  • Make attacks harder but not impossible

  • Hard to get right

  • Expensive to implement

IIS


Out of the box thinking
Out of the box thinking

  • The humble Capacitor

    • Emanates acoustic signals

    • Sensitive to shocks and vibration

    • C  A / d

IIS


Listen to a pc multiplying
Listen to a PC multiplying

Freeze 1500 μF

capacitor

http://people.csail.mit.edu/tromer/acoustic/

IIS




Design guidelines
Design guidelines

  • Define the level of security needed

  • Perform a risk analysis

  • Consider the attackers business case

  • Use the right technologies

  • Build in fraud management

  • Design recovery and fall-back

  • Consider the overall system

IIS


Ibm 4758 crypto coprocessor

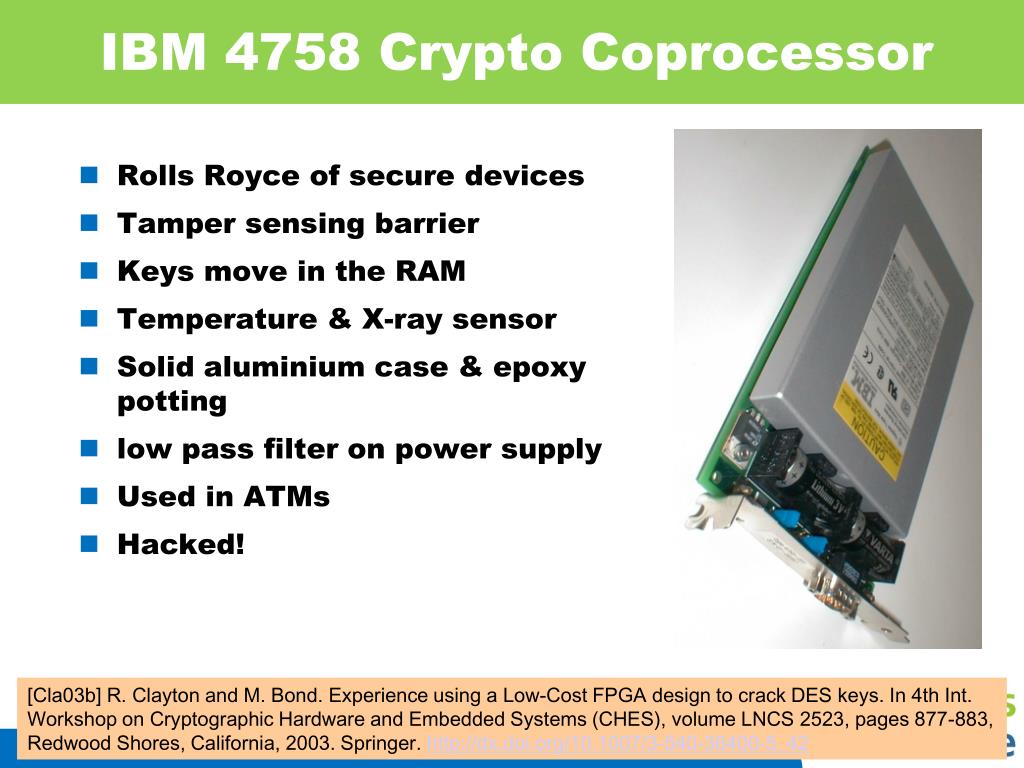

IBM 4758 Crypto Coprocessor

  • Rolls Royce of secure devices

  • Tamper sensing barrier

  • Keys move in the RAM

  • Temperature & X-ray sensor

  • Solid aluminium case & epoxy potting

  • low pass filter on power supply

  • Used in ATMs

  • Hacked!

[Cla03b] R. Clayton and M. Bond. Experience using a Low-Cost FPGA design to crack DES keys. In 4th Int. Workshop on Cryptographic Hardware and Embedded Systems (CHES), volume LNCS 2523, pages 877-883, Redwood Shores, California, 2003. Springer. http://dx.doi.org/10.1007/3-540-36400-5_42

IIS



Finger printing
Finger printing

[Buc05] J. D. R. Buchanan, R. P. Cowburn, A.-V. Jausovec, D. Petit, P. Seem, G. Xiong, D. Atkinson, K. Fenton, D. A. Allwood, and M. T. Bryan. Forgery: 'fingerprinting' documents and packaging. Nature, 436(7050):475, Jul 2005. http://dx.doi.org/10.1038/436475a

IIS


Philips coating puf
Philips Coating PUF

[Sko08] B. Škorić, G.-J. Schrijen, W. Ophey, R. Wolters, N. Verhaegh, and J. van Geloven. Experimental hardware for coating PUFs and optical PUFs. In P. Tuyls, B. Škorić, and T. Kevenaar, editors, Security with Noisy Data - On Private Biometrics, Secure Key Storage and Anti-Counterfeiting, pages 255-268. Springer London, 2008. http://dx.doi.org/10.1007/978-1-84628-984-2_15

IIS


Mems particles
MEMS particles

  • 1x1x12 m particles, shapes

  • Church and school roof, power line grease/gel

  • Jewellery fluid

  • Spray vandals/thiefs

  • Smart water

Watch this video

[Kay92] P. H. Kaye, F. Micheli, M. Tracey, E. Hirst, and A. M. Gundlach. The production of precision silicon micromachined non-spherical particles for aerosol studies. Journal of Aerosol Science, 23(Suppl 1):201-204, 1992. http://dx.doi.org/10.1016/0021-8502(92)90384-8

http://www.redwebsecurity.com/

IIS


Conclusions
Conclusions

  • Affordable tamper resistance technology exists

  • Getting it right is difficult

  • Out of the box thinking required

IIS
