More Digital circuits

More Digital circuits. Ripple Counter. The most common counter The problem is that, because more than one output is changing at once, the signal is glichy To avoid this problem, use Gray or Johnson code. Johnson Counter. The Johnson counter is type of shift counter

spike
Download Presentation

More Digital circuits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. More Digital circuits

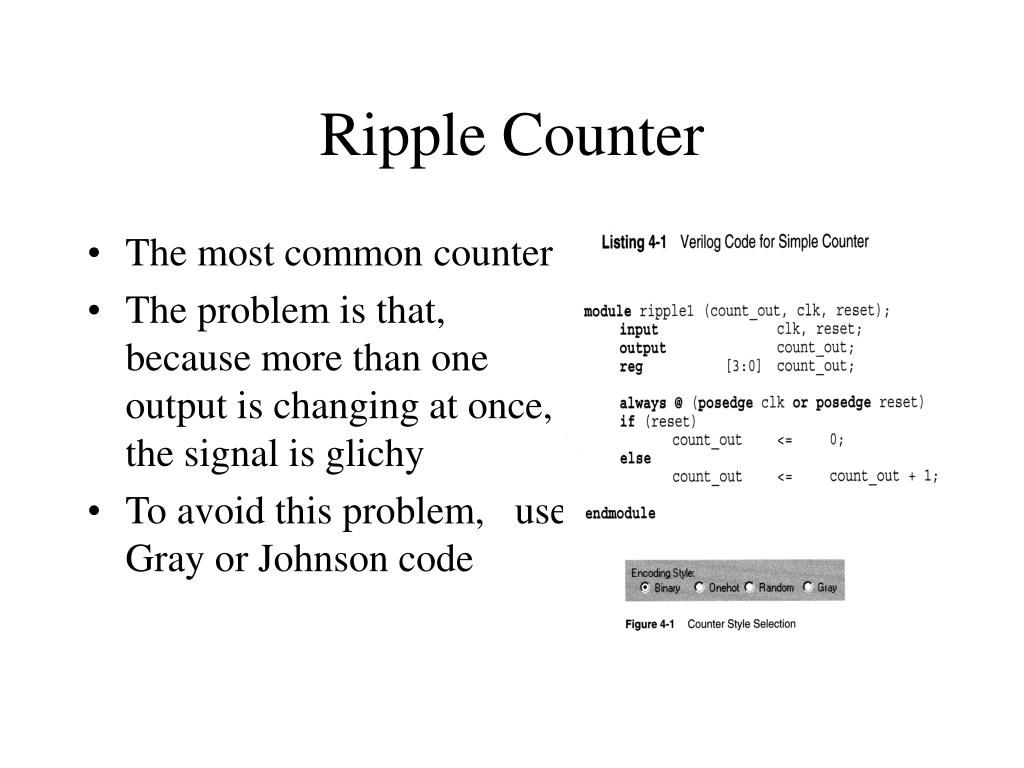

  2. Ripple Counter • The most common counter • The problem is that, because more than one output is changing at once, the signal is glichy • To avoid this problem, use Gray or Johnson code

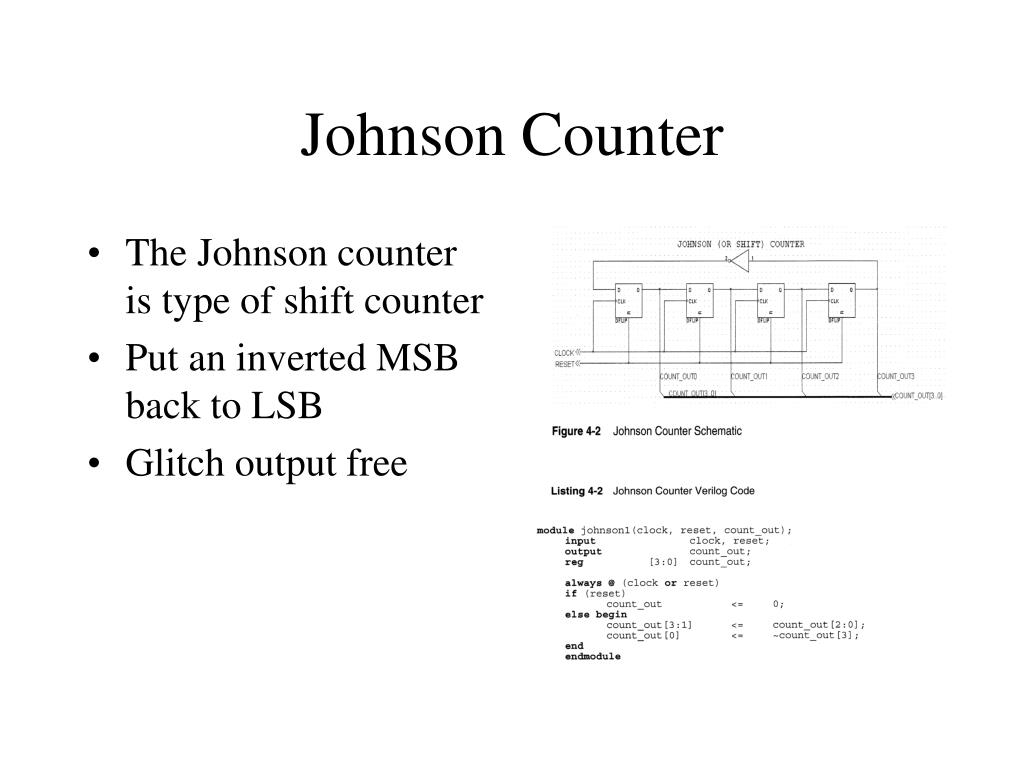

  3. Johnson Counter • The Johnson counter is type of shift counter • Put an inverted MSB back to LSB • Glitch output free

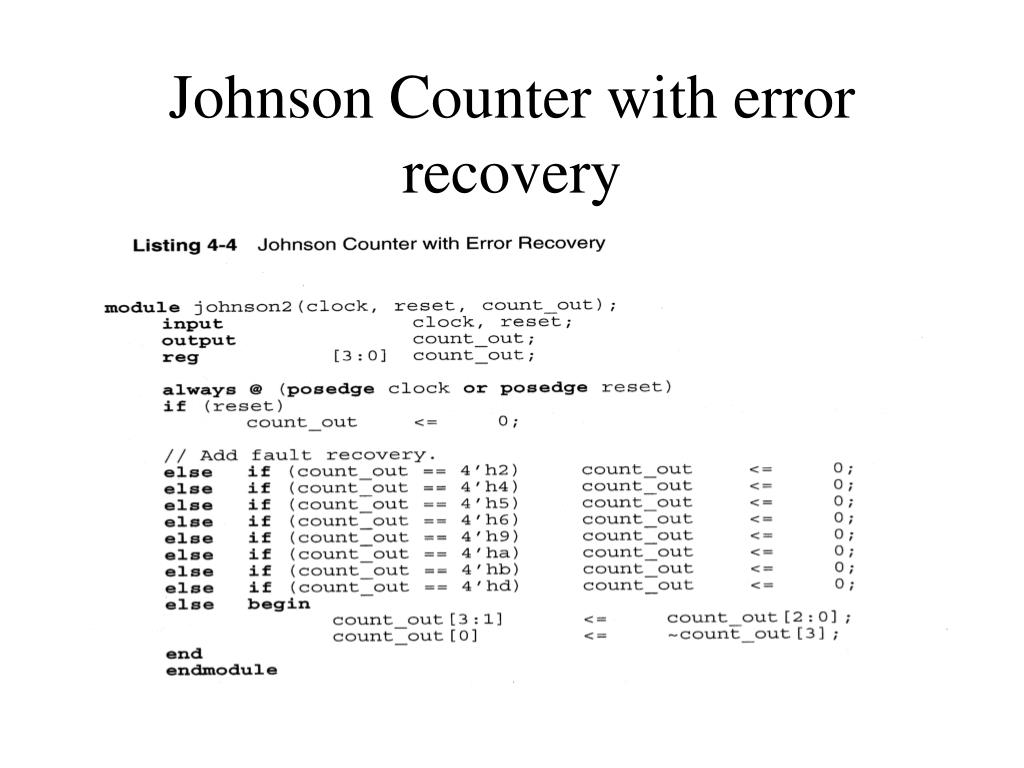

  4. Johnson Counter with error recovery

  5. Linear Feedback Shift Registers • A small number of taps are recycled • An LFSR can operate at high speed compared to a binary counter because the feedback logic is very simple • Reduce clock noise

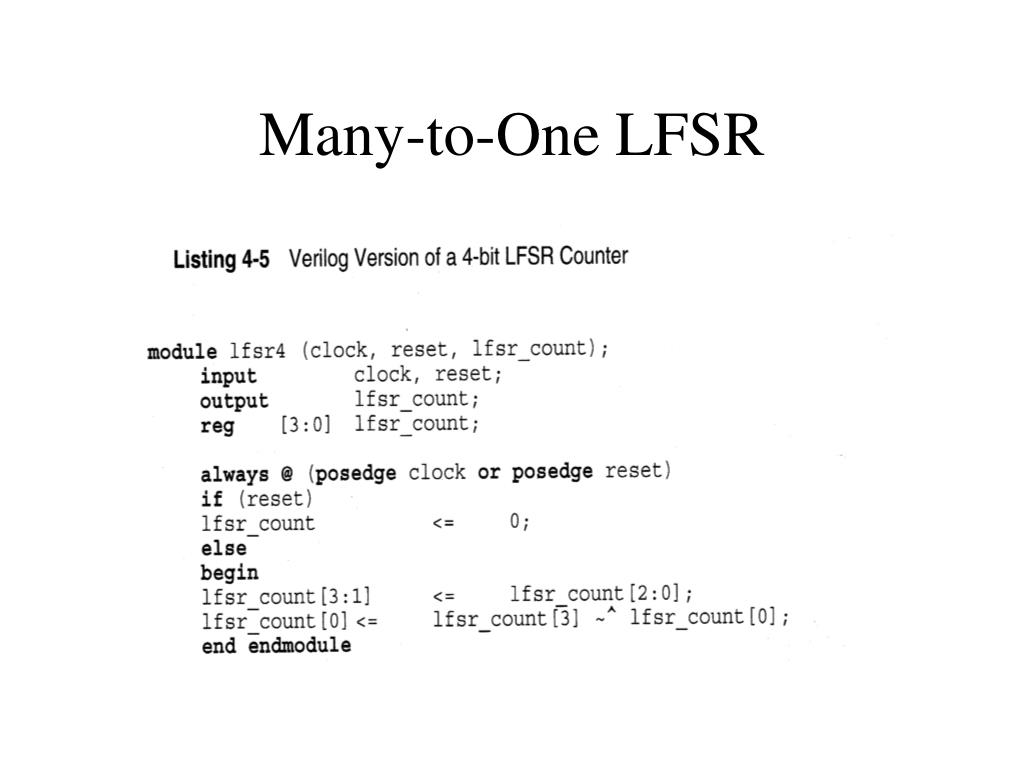

  6. Many-to-One LFSR

  7. Many-to-One LFSR

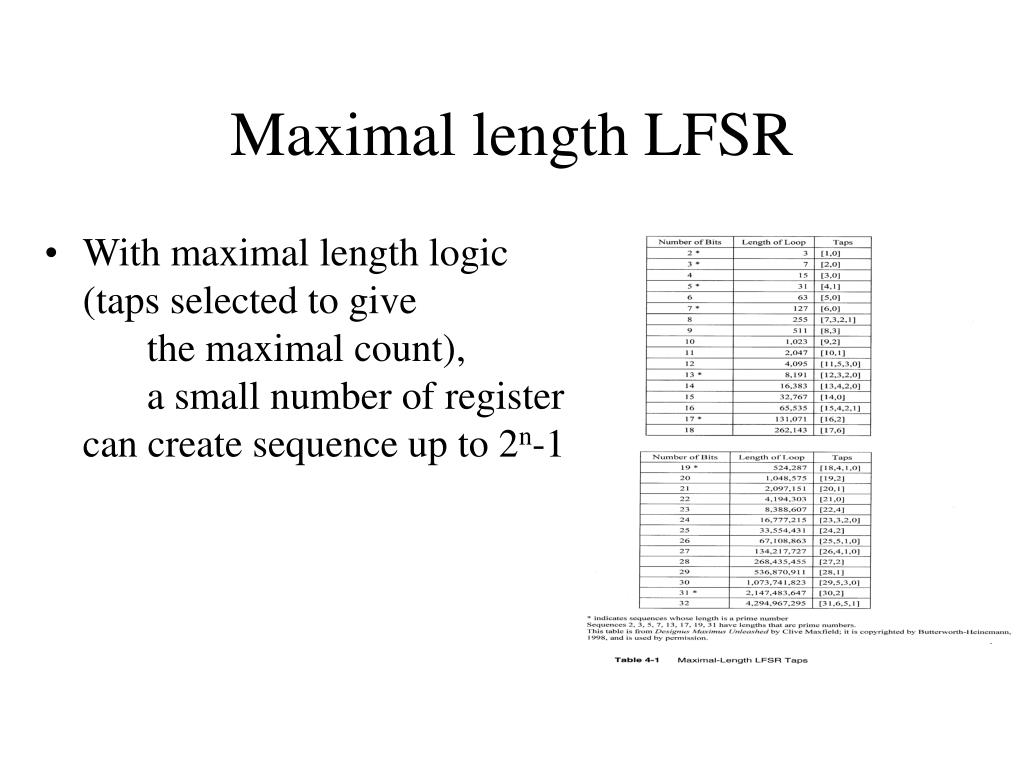

  8. Maximal length LFSR • With maximal length logic (taps selected to give the maximal count), a small number of register can create sequence up to 2n-1

  9. Divide by N LFSR Counter • An example of the use of a LFSR • A terminal count is provided as an input to be compared to

  10. Divide by N LFSR Counter • Test fixture

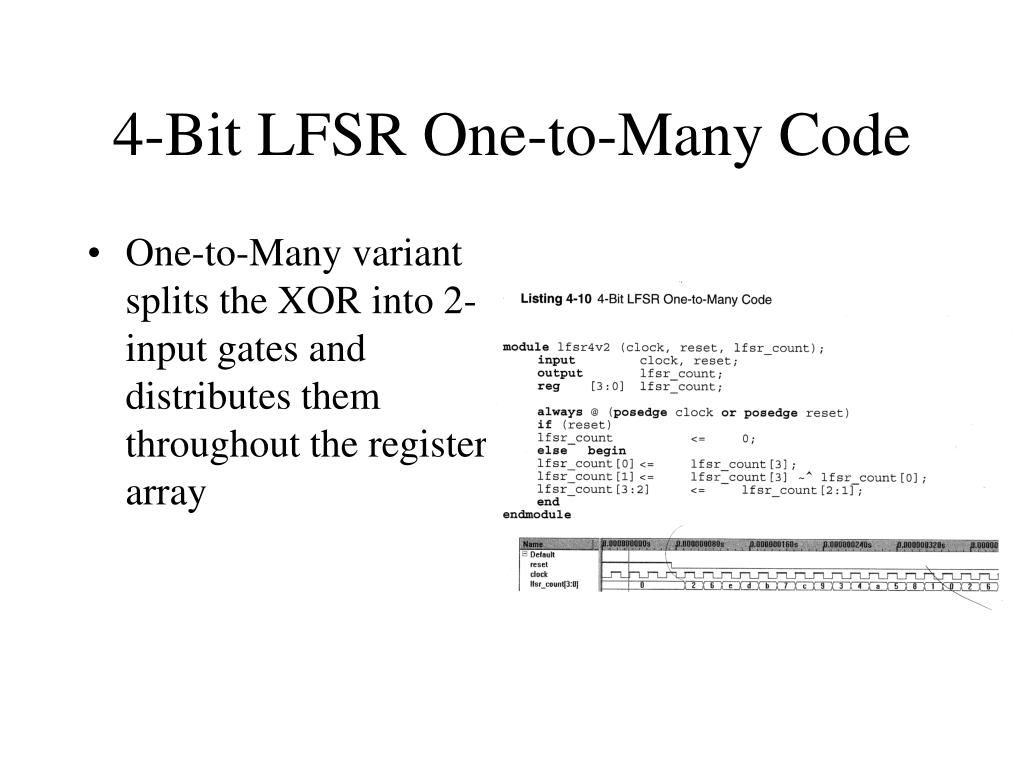

  11. 4-Bit LFSR One-to-Many Code • One-to-Many variant splits the XOR into 2-input gates and distributes them throughout the register array

  12. Cyclic Redundancy Checksums • Error detection • The data packet is looked at as a huge binary number • A polynomial divide this number in GF • Reminder is checksum

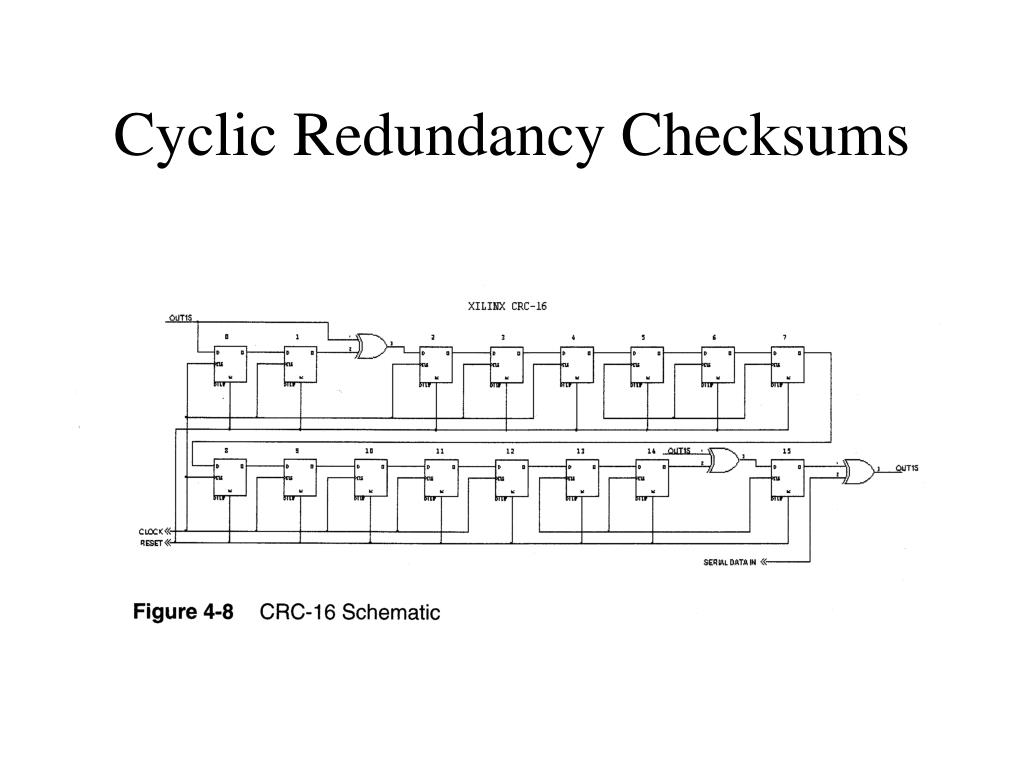

  13. Cyclic Redundancy Checksums

  14. ROM • ROM stands for Read-Only Memory • This memory is initialized when the FPGA is configured and cannot be changed after configuration

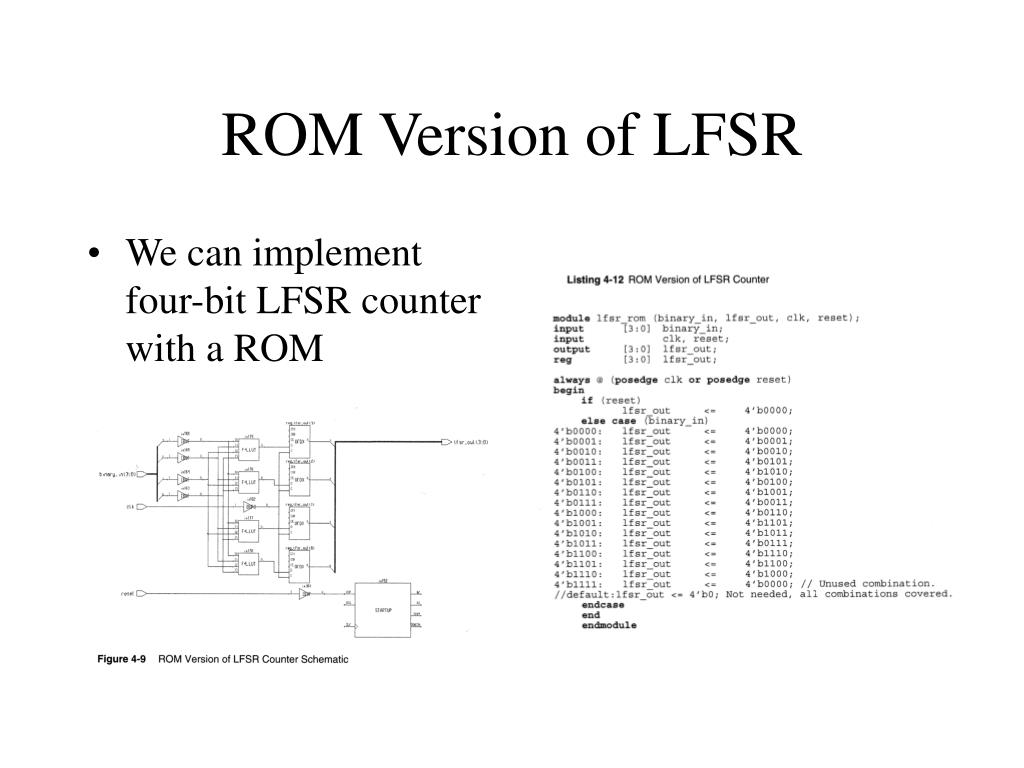

  15. ROM Version of LFSR • We can implement four-bit LFSR counter with a ROM

  16. RAM • RAM stands for Random Access Memory • A RAM is an array of cells, addressable in groups N element wide and M elements deep

  17. RAM

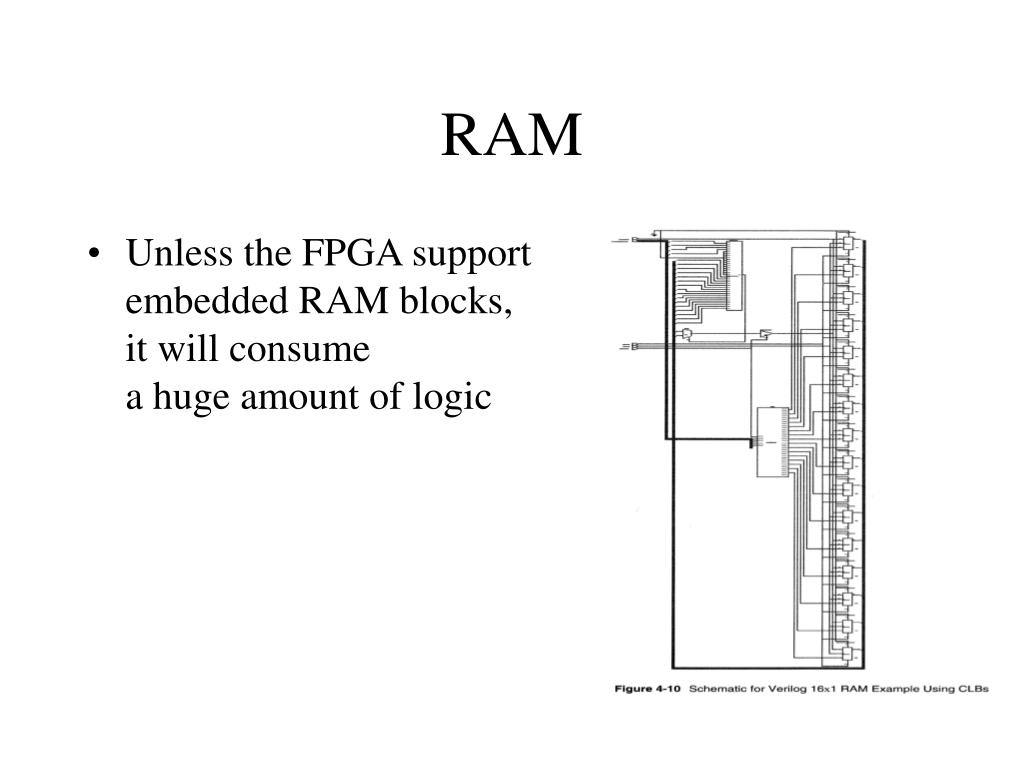

  18. RAM • Unless the FPGA support embedded RAM blocks, it will consume a huge amount of logic

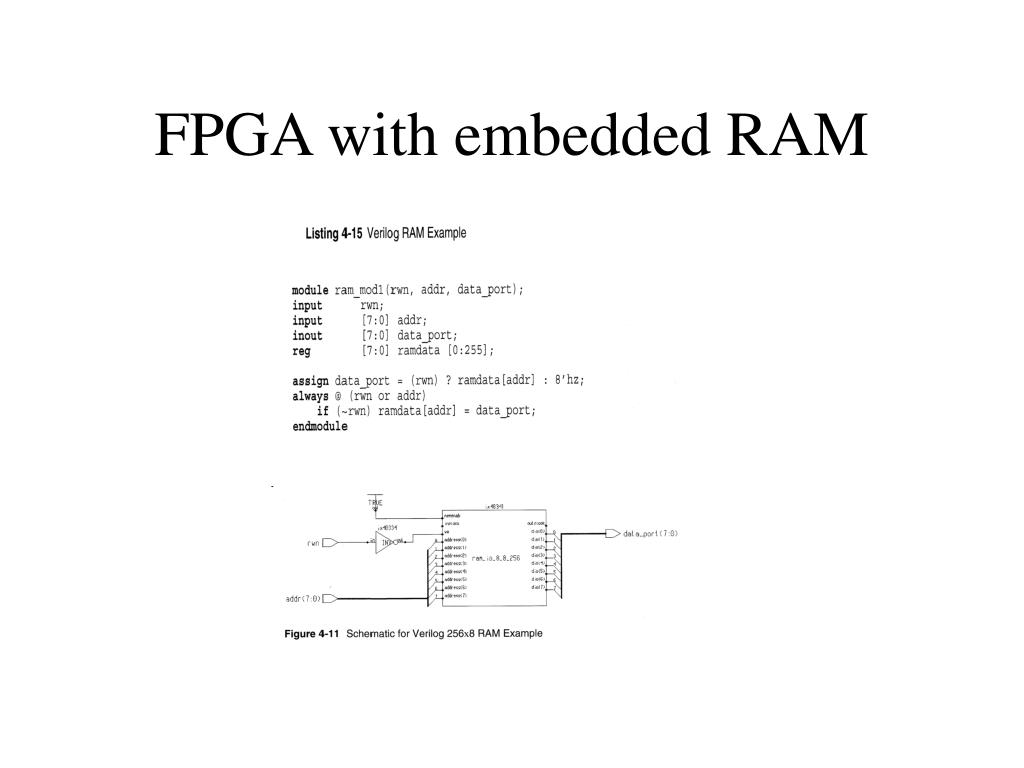

  19. FPGA with embedded RAM

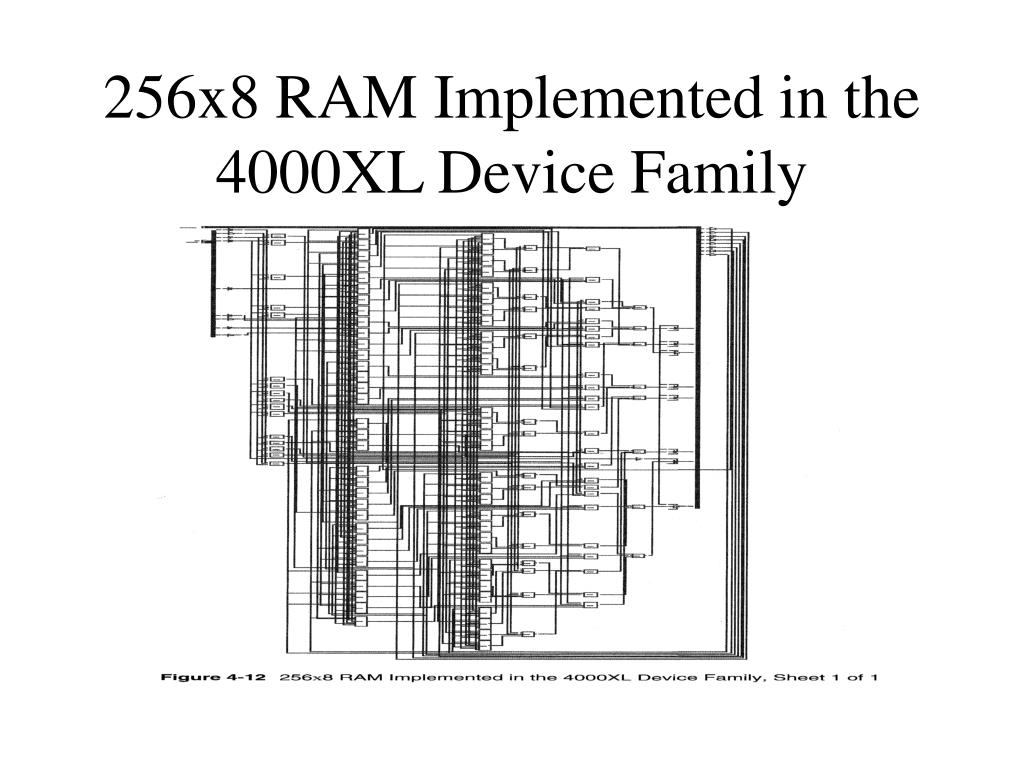

  20. 256x8 RAM Implemented in the 4000XL Device Family

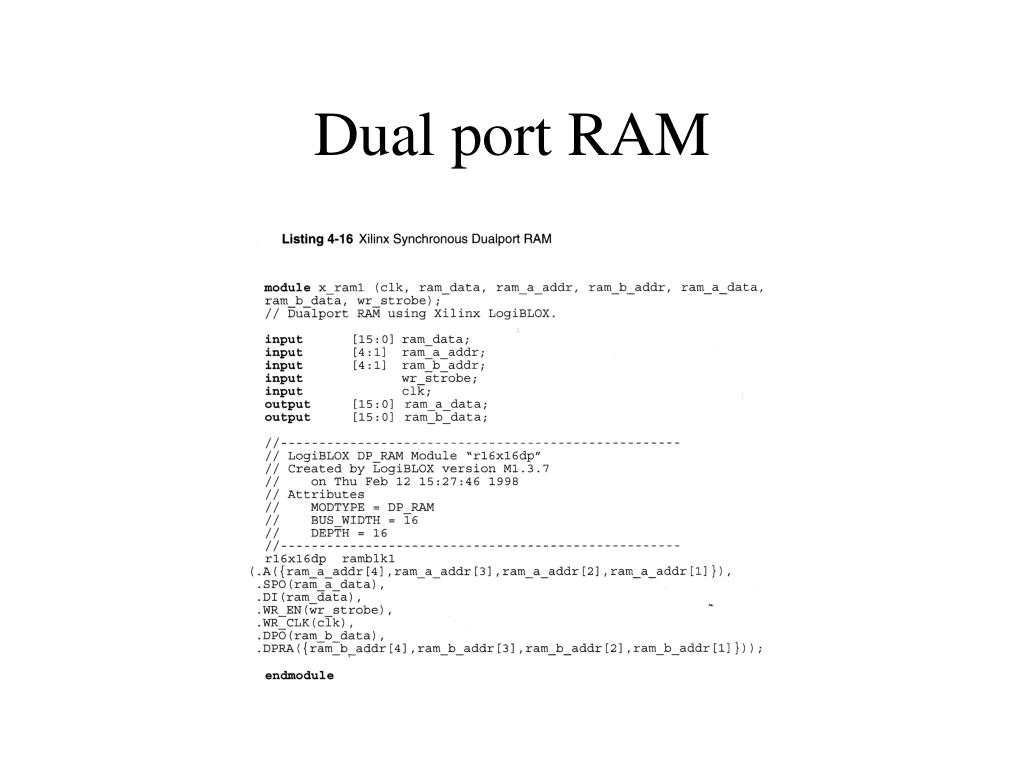

  21. Dual port RAM

  22. Jovan Popovic jocapc@panet.co.yu • Milos Milovanovic miloshm@yahoo.com • Veljko Milutinovic vm@galeb.etf.bg.ac.yu • Nobelovac?
