Compartments, the Stryker, & You

Consensus is P compartment > 30 mm Hg likely requires intervention Δ P = (DBP – P compartment ) measure of P perfusion Pts w/ P compartment < 40 mm Hg can develop CS if Δ P elevated (i.e. > 30) Keeping extremity level w/ heart decreases limb MAP w/o increasing P compartment

spence
Download Presentation

Compartments, the Stryker, & You

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

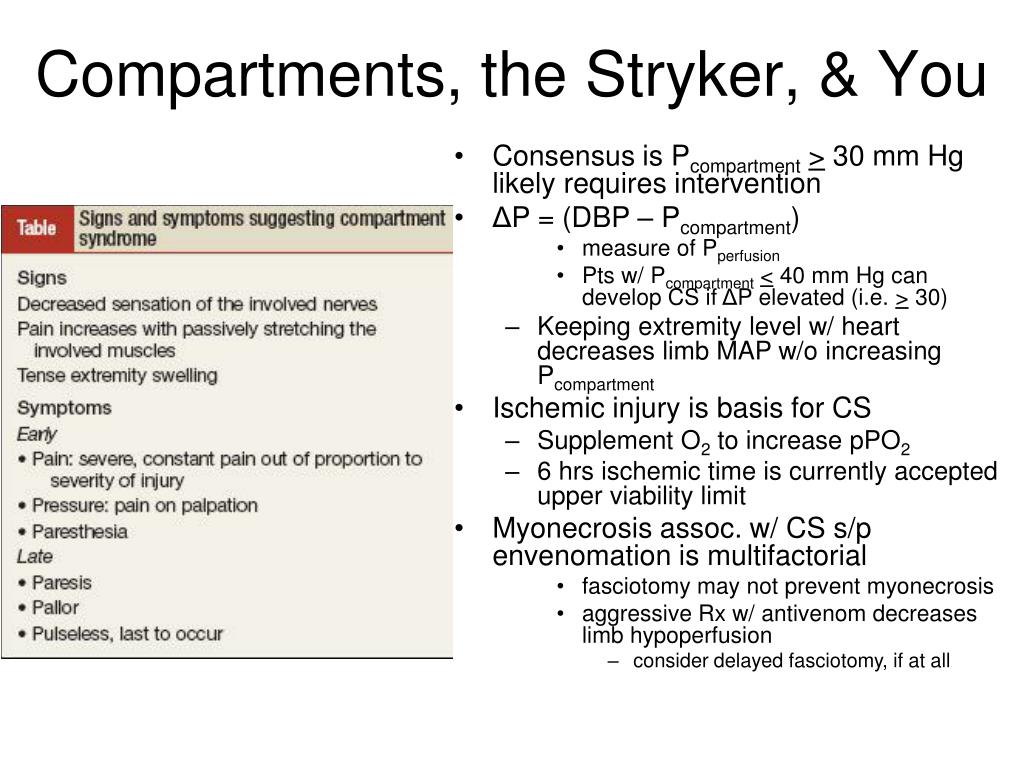

  1. Consensus is Pcompartment> 30 mm Hg likely requires intervention • ΔP = (DBP – Pcompartment) • measure of Pperfusion • Pts w/ Pcompartment< 40 mm Hg can develop CS if ΔP elevated (i.e. > 30) • Keeping extremity level w/ heart decreases limb MAP w/o increasing Pcompartment • Ischemic injury is basis for CS • Supplement O2 to increase pPO2 • 6 hrs ischemic time is currently accepted upper viability limit • Myonecrosis assoc. w/ CS s/p envenomation is multifactorial • fasciotomy may not prevent myonecrosis • aggressive Rx w/ antivenom decreases limb hypoperfusion • consider delayed fasciotomy, if at all Compartments, the Stryker, & You

  2. Possible Etiologies • Decreased volume • Hematoma • Trauma • crush injury & entrapment • compression during sleep/intoxication • Iatrogenic • prolonged lithotomy • MAST, casts, splints, dressings • excessive traction in line • tight closure of fascial defect • IV infiltration • Increased contents • Hematoma • Trauma • fracture • envenomation • burns • Increased use • exercise • tetany • seizure • eclampsia • Edema • nephrotic syndrome • ischemia-reperfusion injury • Iatrogenic • Orthopedic surgery • Intraarterial drug injection

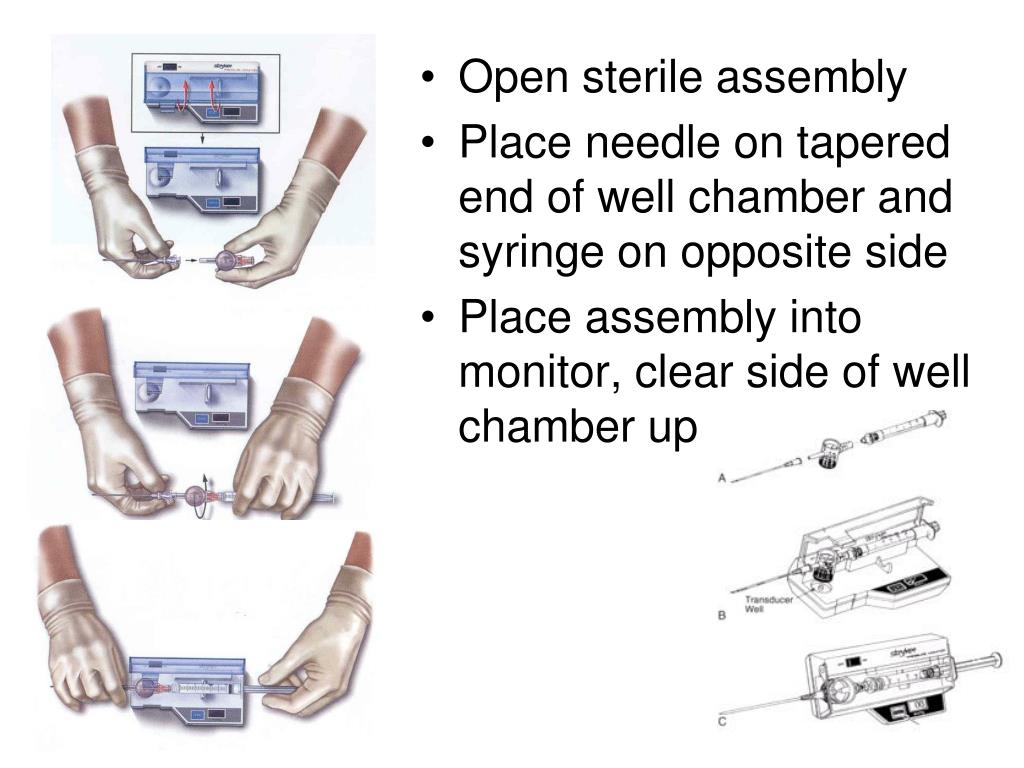

  3. Open sterile assembly • Place needle on tapered end of well chamber and syringe on opposite side • Place assembly into monitor, clear side of well chamber up

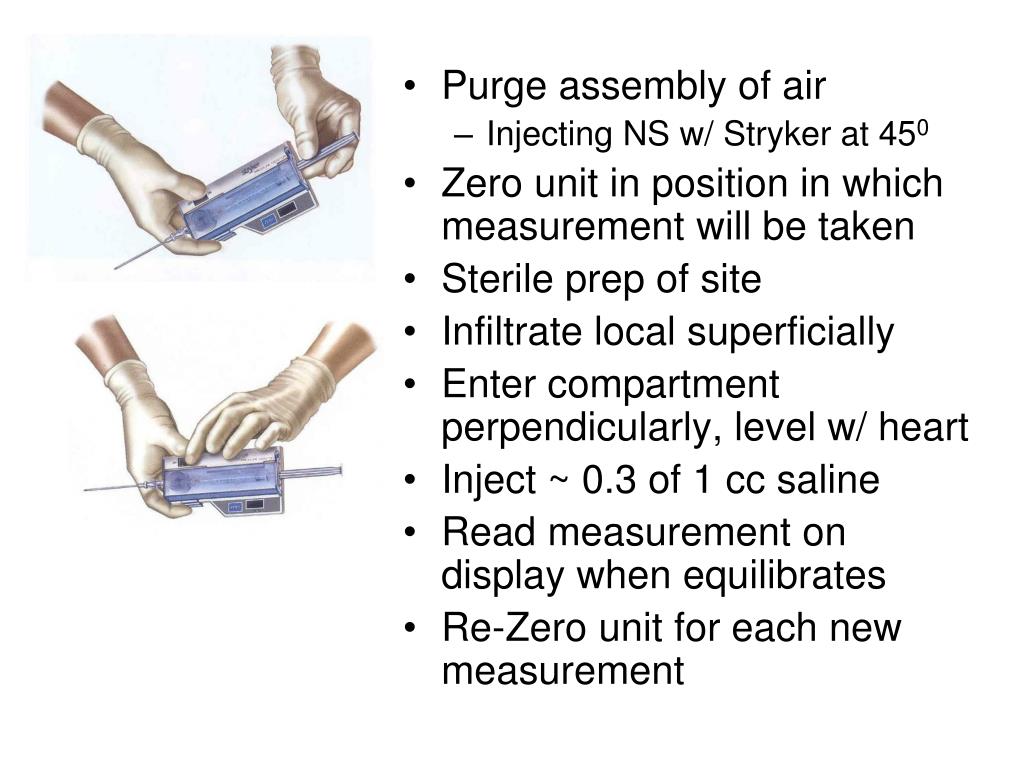

  4. Purge assembly of air • Injecting NS w/ Stryker at 450 • Zero unit in position in which measurement will be taken • Sterile prep of site • Infiltrate local superficially • Enter compartment perpendicularly, level w/ heart • Inject ~ 0.3 of 1 cc saline • Read measurement on display when equilibrates • Re-Zero unit for each new measurement

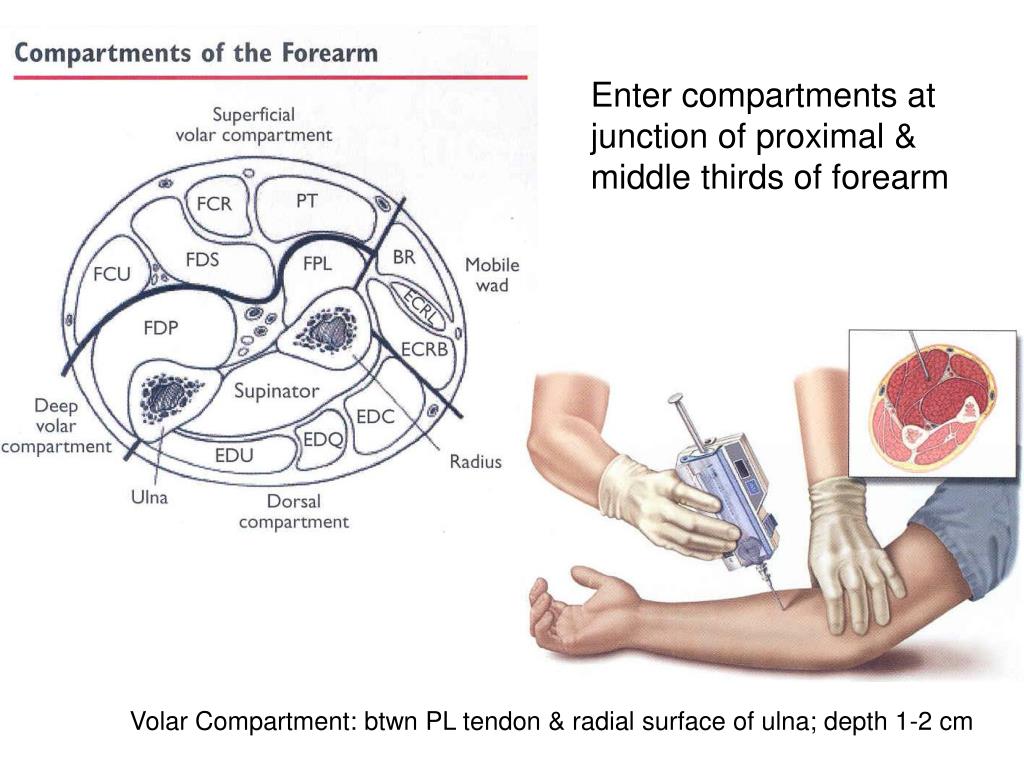

  5. Enter compartments at junction of proximal & middle thirds of forearm Volar Compartment: btwn PL tendon & radial surface of ulna; depth 1-2 cm

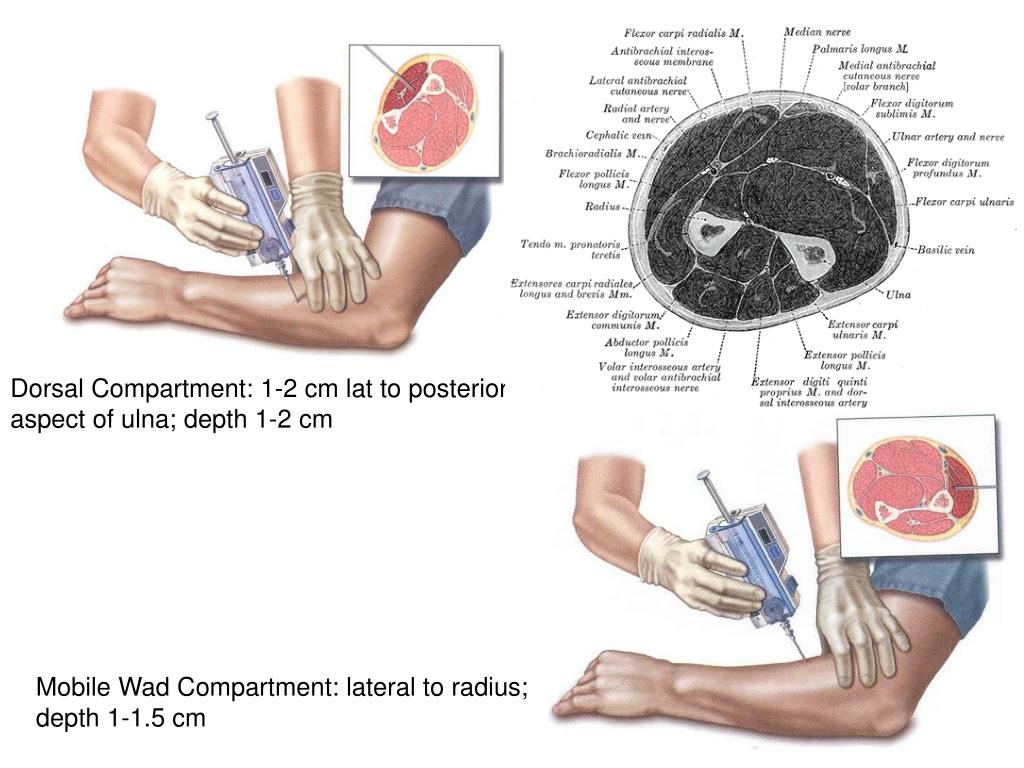

  6. Dorsal Compartment: 1-2 cm lat to posterior aspect of ulna; depth 1-2 cm Mobile Wad Compartment: lateral to radius; depth 1-1.5 cm

  7. Enter compartments at junction of proximal & middle thirds of lower leg Lateral compartment: posterior border of fibula; depth 1-1.5 cm

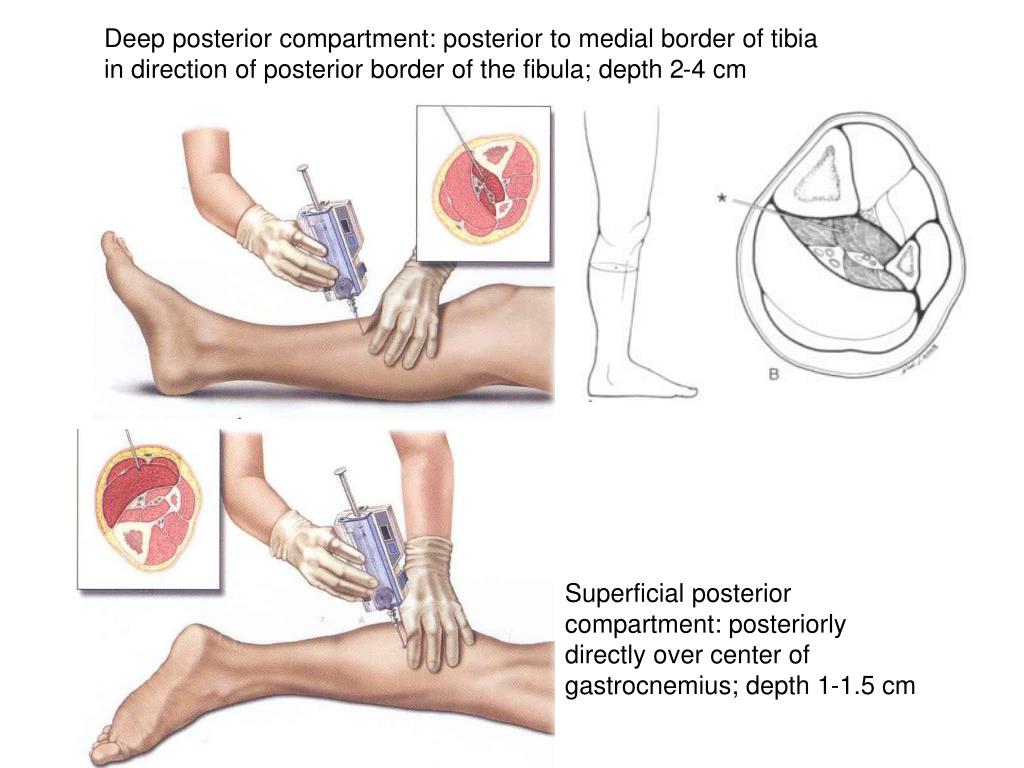

  8. Deep posterior compartment: posterior to medial border of tibia in direction of posterior border of the fibula; depth 2-4 cm Superficial posterior compartment: posteriorly directly over center of gastrocnemius; depth 1-1.5 cm

  9. Anterior compartment: 1 cm lateral to anterior tibial border; depth 1-3 cm

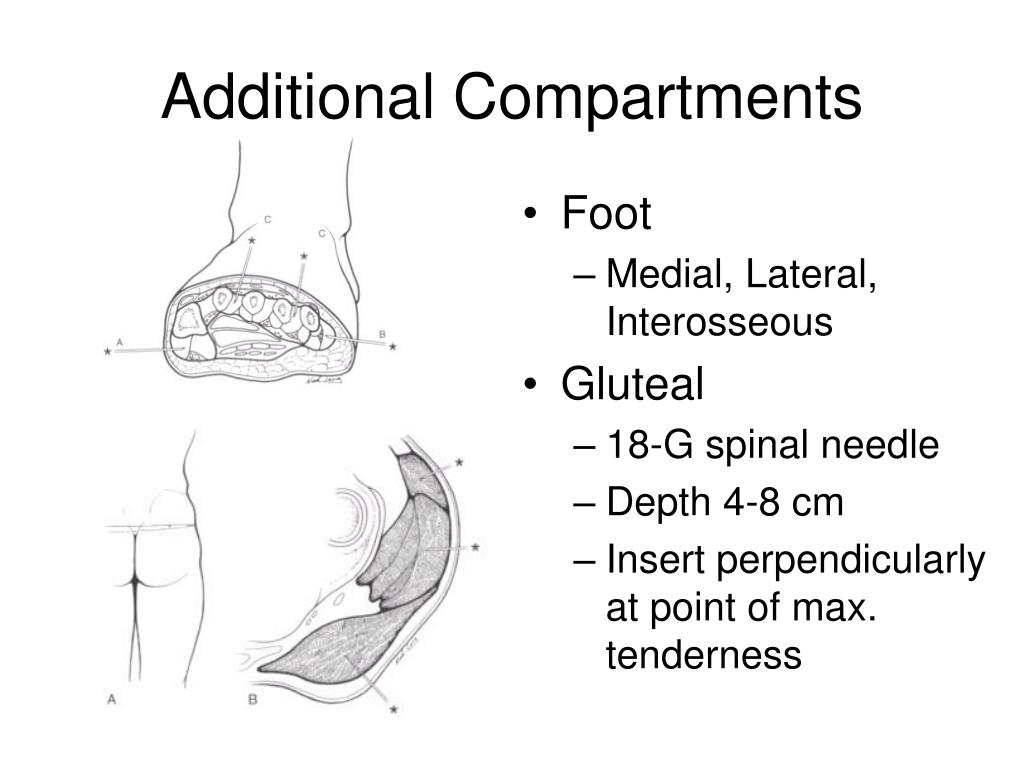

  10. Additional Compartments • Foot • Medial, Lateral, Interosseous • Gluteal • 18-G spinal needle • Depth 4-8 cm • Insert perpendicularly at point of max. tenderness

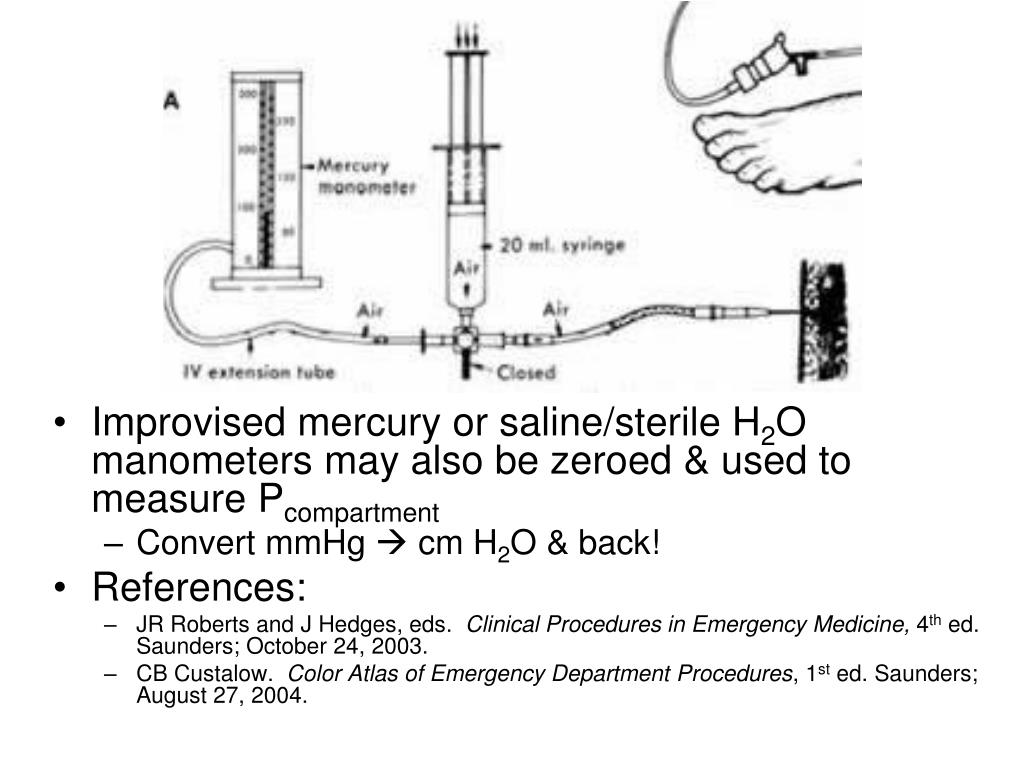

  11. Improvised mercury or saline/sterile H2O manometers may also be zeroed & used to measure Pcompartment Convert mmHg  cm H2O & back! References: JR Roberts and J Hedges, eds. Clinical Procedures in Emergency Medicine, 4th ed. Saunders; October 24, 2003. CB Custalow. Color Atlas of Emergency Department Procedures, 1st ed. Saunders; August 27, 2004.
