Heanet s major network evolution

HEAnet's Major Network Evolution

Andrew Mackarel

David Wilson

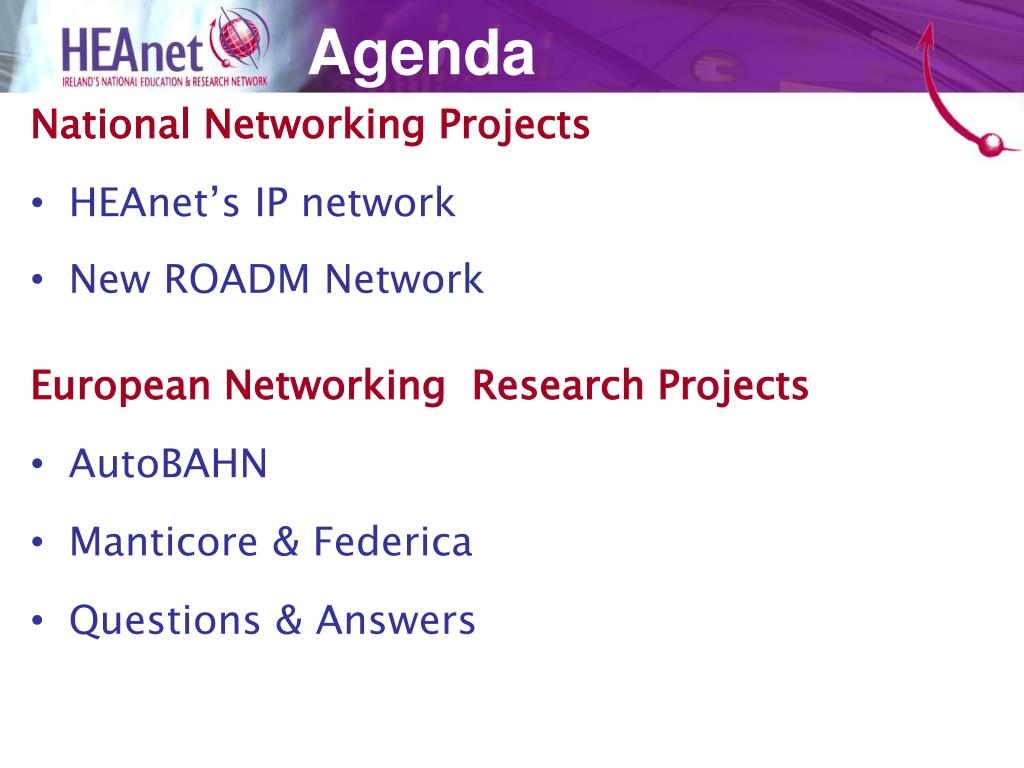

Agenda

National Networking Projects

  • HEAnet’s IP network

  • New ROADM Network

    European Networking Research Projects

  • AutoBAHN

  • Manticore & Federica

  • Questions & Answers


HEAnet’sIP network

Current Network Map on the Website


Today

Effective limit of old equipment

Effective limit of new equipment

5 years

Bandwidth Demand

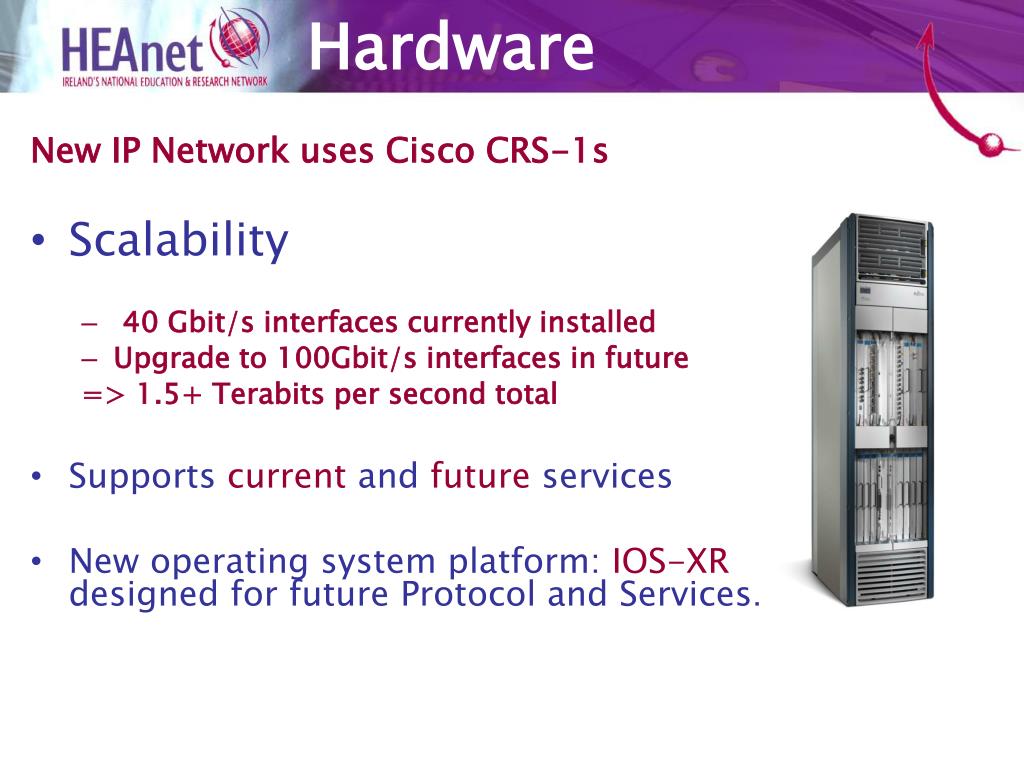

Hardware

New IP Network uses Cisco CRS-1s

  • Scalability

    • 40 Gbit/s interfaces currently installed

    • Upgrade to 100Gbit/s interfaces in future

      => 1.5+ Terabits per second total

  • Supports current and future services

  • New operating system platform: IOS-XR designed for future Protocol and Services.


New Features

  • Top Class solution which allows for future growth

    • 10Gbit/s connections available now

    • Scale to 100Gbit/s peer, multi-10Gbit/s per client when required in future

  • Support for critical new features

    • High Availability online IOS-XR updates etc

    • IPv6 multicast

    • 4 byte ASN

    • Secure Domain Routing (Virtual Routing)


Collapsed backbone

  • Best Current Practice:

  • Model now being followed by many NRENs SURFNET , SUNET

    Concentrate, then duplicate

    • Concentrating =>

      • Less hardware,

      • Less to go wrong,

      • Easier to scale

    • Duplicating =>

      • Resilience

      • Network Consistency

    • Two routers

      • One in Citywest, one in Kilcarbery Park


Project Implementation

  • Late Nov - Acceptance tests

  • End Nov - HEAnet services transferred

  • Dec - First clients and peers

  • Jan-Feb - Next 10 clients

  • Feb-April - Next 20 Clients

  • May-Aug - Remaining 25 clients

    • Technology conversions / connection upgrades


Current Client Status

  • All Clients transitioned onto New Network

  • Ethernet Connectivity

    • allows clients burst up to 10Gbit/s per interface

    • Provision for Future 10Gbit/s client connections

  • BGP Peerings

    • client gets connectivity via NBE to both routers

      • Primary/backup connections

      • Resilience now a function of the underlying NBE

      • BGP changes in previous years paid off –

        Thanks!!


Current Peering Status

2007

2008

Tiscali

Telia


Multi-pop backbone

  • Overlaid on National Backbone

  • Dark fibre network provides Ethernet point-to-point capability

    • Brings networkto the client

    • Reduces cost

    • Increases flexibility

    • Adds resilience

  • now expanded by NBE Project


Heanets roadm network
HEAnets ROADM Network

HEAnets ROADM Network

Uses Adva FSP 3000 ROADMs Rev 7 CfT 2008

Fully Compatible with CWDM Network


Why are roadms needed

Why ROADMS in HEAnets network?

Why are ROADMS needed ?

  • More Capacity is needed in Fibre Core Network now

    • By 2009/2010, UCD, DCU and TCD will all require 10Gbit/s IP links

    • The aggregate bandwidth (considering p2p and IP links) inside the Dublin Metro Ring will be soon be larger then 10 Gbit/s.

    • Other Regions are following the same pattern

  • Other Projects expected to aggravate this Bandwidth problem

    • e-INIS Project

    • HPC: ICHEC & other grid clusters or supercomputers

  • Researchers may also require Point to Point Connections to CERN’s Large Hadron Collider and other projects. Normally 10Gbit/s links.


What is a roadm
What is a ROADM?

Reconfigurable Optical Add Drop multiplexer

  • Software configurable DWDM Multiplexer

  • Flexibility to add/drop/continue wavelengths

  • Ability to provide 10Gbit/s circuits “on demand”

  • Uses Combination of new technologies.

    • Tunable lasers

    • GMPLS control plane

  • Fast Evolving Technology

    Performance and cost reductions continuously

    => implement only in network where required


ROADM advantages

  • Network Layout planning is flexible and can be modified quickly.

  • Allows Backbone capacity expansion without need for additional Fibres

  • ROADM allows for remote configuration and reconfiguration.

    • ROADMs allow for automatic power balancing

  • In a DWDM network , making changes is more complex requires more pre design , provision and power balancing .

    DWDM Networks => Static Designs

    ROADMs give more flexibility


HEAnets wavelength service ?

  • Point to point circuit connectivity

  • Ethernet Frame format

  • Offers

    • No contention

    • Protection or No Protection

  • Dublin Metro Ring

    Dynamic connections Immediately availability with ROADMs

  • National/International

    Static Immediately with DWDM

    Dynamicconnections 2010 availabilitywith ROADMS

    Contact HEAnet NOC for further Details

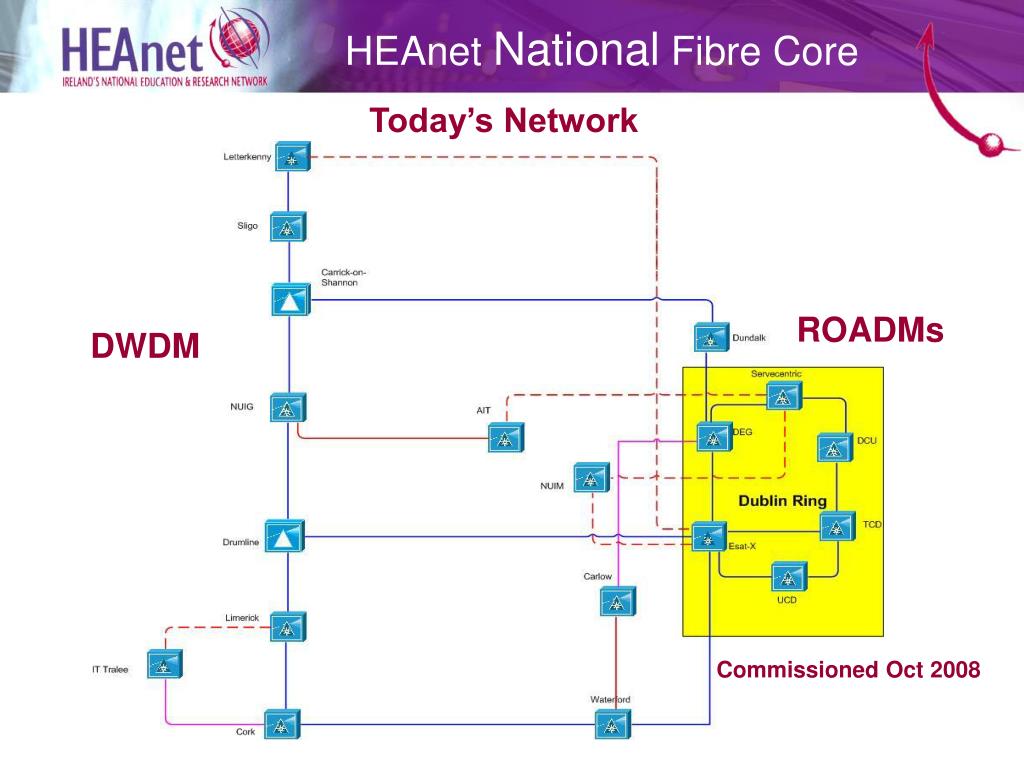

HEAnet National Fibre Core

Today’s Network

ROADMs

DWDM

Commissioned Oct 2008


Future Network Integration

  • Development of an API/Web service for access to the GMPLS interface for

    E-INIS , AutoBAHN projects and others

  • Implement as a GMPLS Network

    This will allow

    • Wavelength based network discovery

    • Wavelength based end-to-end circuit/path provisioning

    • Optical Restoration


Autobahn bandwidth on demand

AutoBAHNBandwidth on Demand


AutoBAHN

  • a Research activity for engineering, automating and streamlining the inter-domain setup of guaranteed capacity (Gbps) end-to-end paths

    • Bandwidth on Demand

      … a Joint Research Activity of the GN2 project

    • GN2 is an European Commission-funded project, with all the European Research and Education networks (NRENs) as partners


Sc 08 demo
SC 08 Demo

4 Sites simulating Radio Telescopes, 3 in Europe and 1 in the US

Data transferred on 4 by 1 Gb BoD links to Software Correlator in Amsterdam


Point to Point path issues

  • Multiple administrative domains

  • Multiple data plane technologies

  • Security

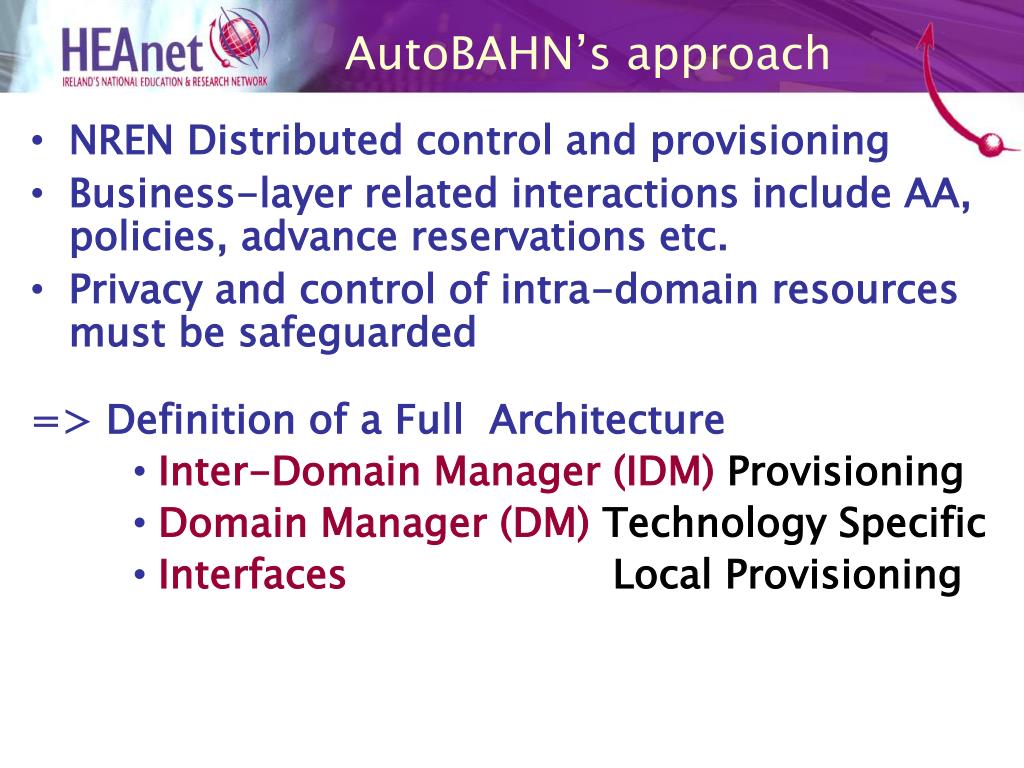

Autobahn s approach
AutoBAHN’s approach

  • NREN Distributed control and provisioning

  • Business-layer related interactions include AA, policies, advance reservations etc.

  • Privacy and control of intra-domain resources must be safeguarded

    => Definition of a Full Architecture

    • Inter-Domain Manager (IDM) Provisioning

    • Domain Manager (DM) Technology Specific

    • Interfaces Local Provisioning

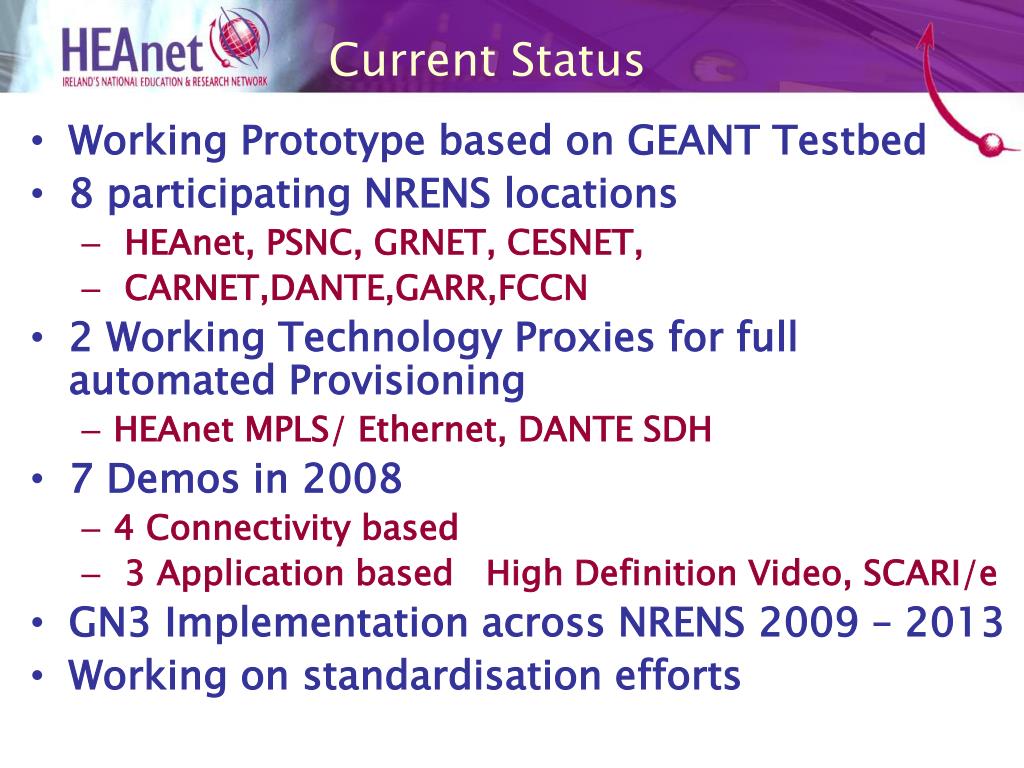

Current status
Current Status

  • Working Prototype based on GEANT Testbed

  • 8 participating NRENS locations

    • HEAnet, PSNC, GRNET, CESNET,

    • CARNET,DANTE,GARR,FCCN

  • 2 Working Technology Proxies for full automated Provisioning

    • HEAnet MPLS/ Ethernet, DANTE SDH

  • 7 Demos in 2008

    • 4 Connectivity based

    • 3 Application based High Definition Video, SCARI/e

  • GN3 Implementation across NRENS 2009 – 2013

  • Working on standardisation efforts

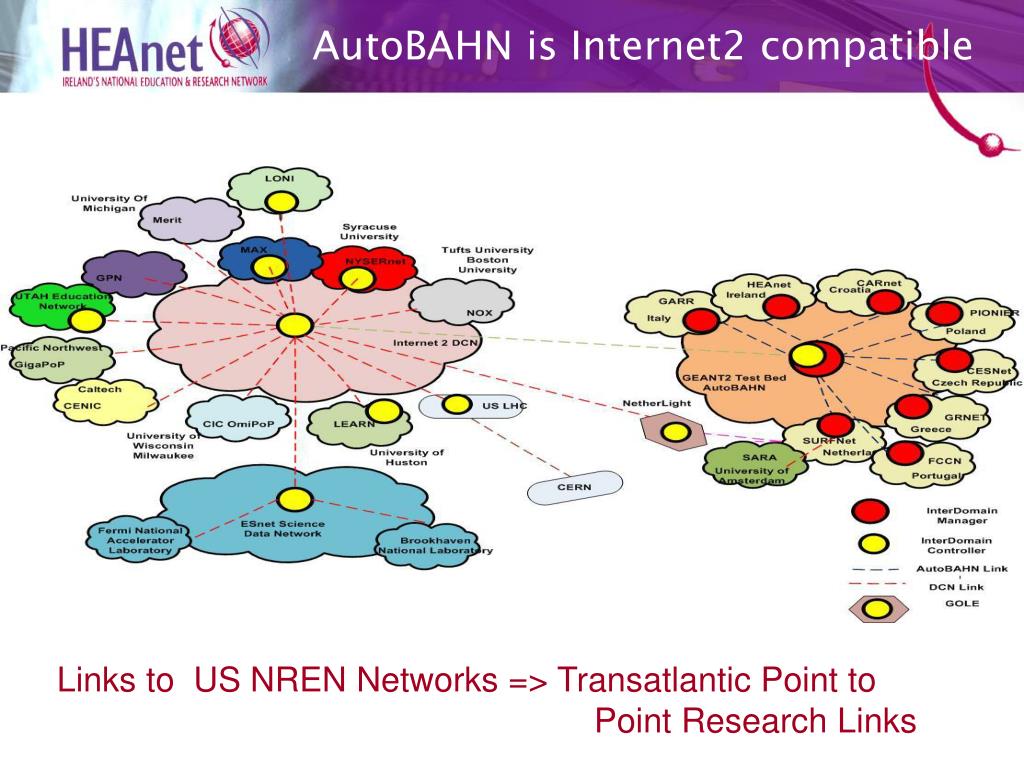

Autobahn is internet2 compatible
AutoBAHN is Internet2 compatible

Links to US NREN Networks => Transatlantic Point to

PointResearch Links



  • The MANTICORE Project Vision

  • MANTICORE Implementation

  • The IaaS Framework (UCLP Evolution)‏

  • User Roles

  • Software Architecture

  • How does it work: GUI preview

  • FEDERICA

  • Future work: MANTICORE II

2

27


27

28


The manticore vision

Other user’s IP

Network or the

Internet

The MANTICORE vision

Physical Router

Each user’s IP network is represented by a different color

Logical Router

Physical Link

Logical Link

User Site

29

3


Manticore project
MANTICORE project

End users

NOC

4

30

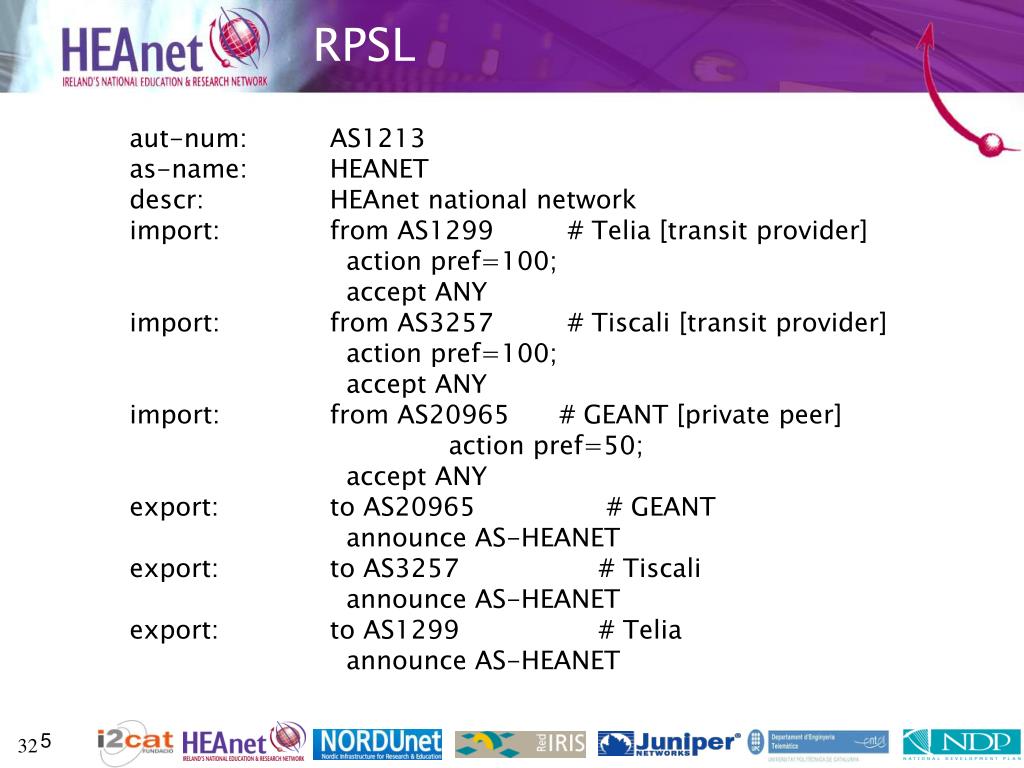

RPSL

aut-num: AS1213

as-name: HEANET

descr: HEAnet national network

import: from AS1299 # Telia [transit provider]

action pref=100;

accept ANY

import: from AS3257 # Tiscali [transit provider] action pref=100;

accept ANY

import: from AS20965 # GEANT [private peer] action pref=50;

accept ANY

export: to AS20965 # GEANT

announce AS-HEANET

export: to AS3257 # Tiscali

announce AS-HEANET

export: to AS1299 # Telia

announce AS-HEANET

5

32

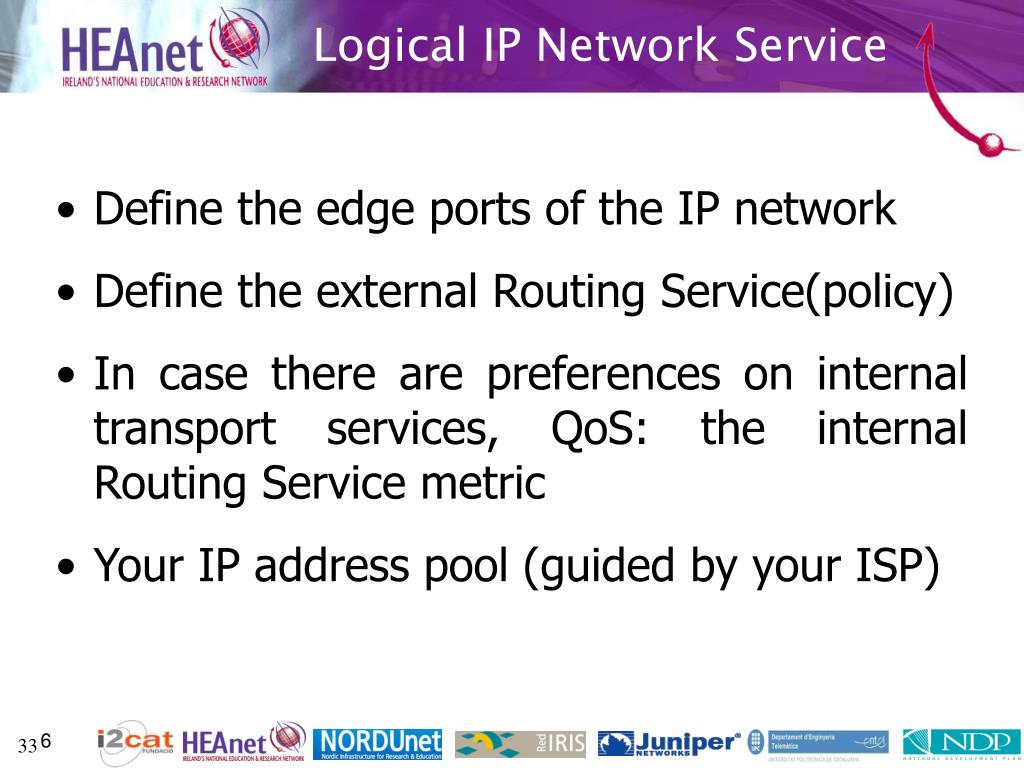

Logical ip network service
Logical IP Network Service

  • Define the edge ports of the IP network

  • Define the external Routing Service(policy)

  • In case there are preferences on internal transport services, QoS: the internal Routing Service metric

  • Your IP address pool (guided by your ISP)

6

33


Benefits
Benefits

  • On-demand network

  • Share virtual routers, not buying your own

  • No self-assembly required

6

34


Agenda

  • The MANTICORE Project Vision

  • MANTICORE Implementation

  • The IaaS Framework (UCLP Evolution)‏

  • User Roles

  • Software Architecture

  • How does it work: GUI preview

  • FEDERICA

  • Future work: MANTICORE II

7

35


Infrastructure as a service iaas and virtualization
Infrastructure as a ServiceIaaS and Virtualization

  • Virtualization

  • Infrastructure as a Service

8

36


Uclp argia and iaas framework

RMC

ETHER

MANTICORE

GRIM

CHRONOS

UCLP, Argia and IaaS Framework

  • Argia -> Product for Optical Networks

  • Ether -> R&D for Ethernet and MPLS Networks

  • MANTICORE -> R&D for physical/logical IP Networks

  • GRIM -> R&D for Instruments and Sensors

37

9

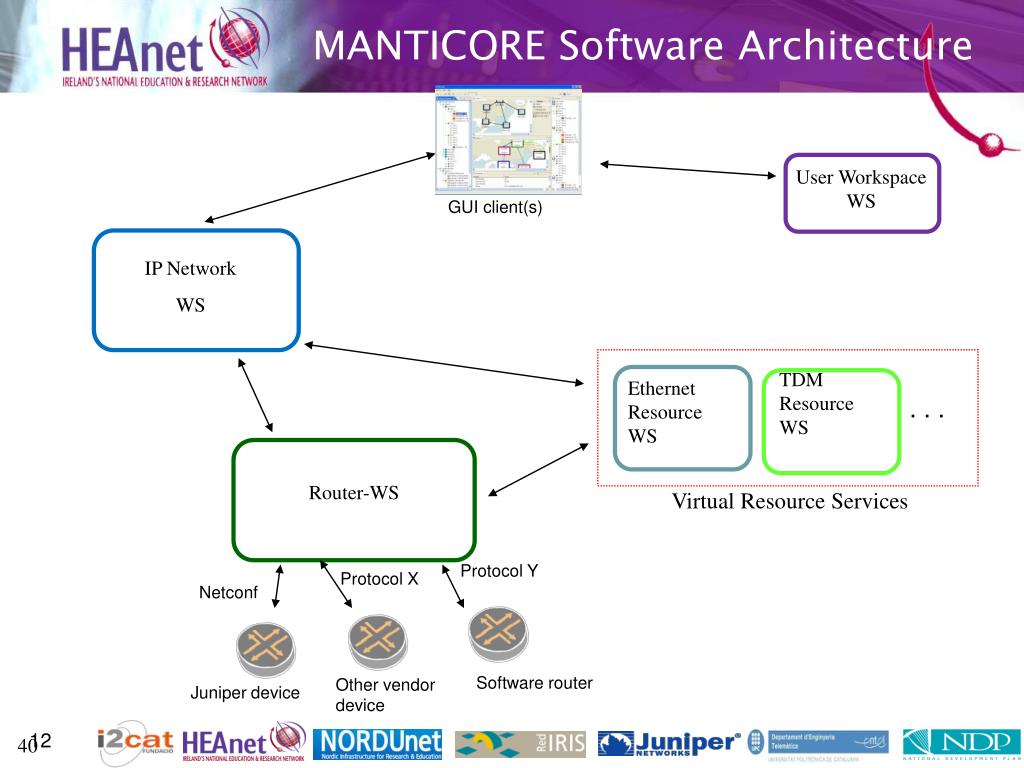

Manticore software architecture

TDM Resource WS

Ethernet Resource WS

User Workspace

WS

IP Network

WS

. . .

Router-WS

GUI client(s)‏

Virtual Resource Services

Protocol Y

Protocol X

Netconf

Software router

Other vendor device

Juniper device

MANTICORE Software Architecture

12

40


  • The MANTICORE Project Vision

  • MANTICORE Implementation

  • The IaaS Framework (UCLP Evolution)‏

  • User Roles

  • Software Architecture

  • How does it work: GUI preview

  • FEDERICA

  • Future work: MANTICORE II

14

42

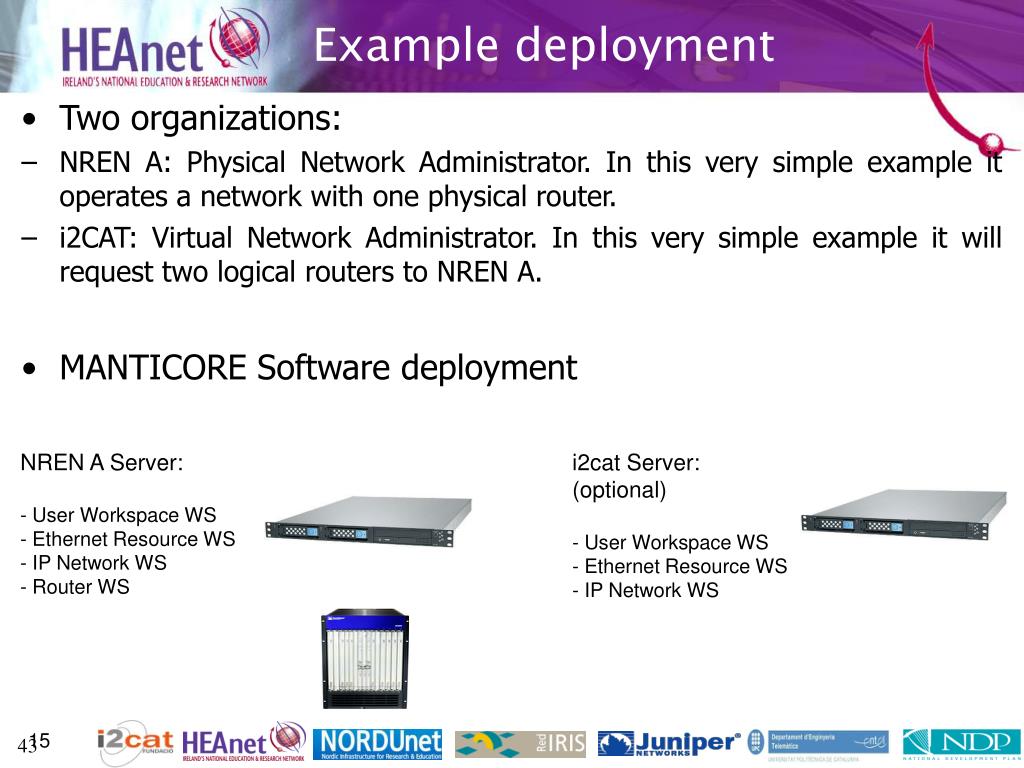

Example deployment
Example deployment

  • Two organizations:

  • NREN A: Physical Network Administrator. In this very simple example it operates a network with one physical router.

  • i2CAT: Virtual Network Administrator. In this very simple example it will request two logical routers to NREN A.

  • MANTICORE Software deployment

  • NREN A Server:

  • User Workspace WS

  • Ethernet Resource WS

  • IP Network WS

  • Router WS

  • i2cat Server:

  • (optional)‏

  • User Workspace WS

  • Ethernet Resource WS

  • IP Network WS

43

15


44

16


45 new physical network and add all the routers they want to manage to it


  • Create logical interfaces new physical network and add all the routers they want to manage to it

  • Create logical routers

  • Assign i/fs to routers

  • Create tunnel between the logical routers

46

18


47 new physical network and add all the routers they want to manage to it


48

20


OSPF configuration new physical network and add all the routers they want to manage to it

BGP configuration

  • i2cat logical admin creates a new IP Network and adds the resources of the resource list to it.

  • Now he can configure the IP parameters of the interfaces, configure IGPs, configure the peering, ...

50

22


  • The MANTICORE Project Vision new physical network and add all the routers they want to manage to it

  • MANTICORE Implementation

  • The IaaS Framework (UCLP Evolution)‏

  • User Roles

  • Software Architecture

  • How does it work: GUI preview

  • FEDERICA

  • Future work: MANTICORE and RPSL

23

51


Federica
FEDERICA new physical network and add all the routers they want to manage to it

  • Not just links... not just routers...

  • Virtual hosts as well!

  • FP7 project using existing NREN and GÉANT infrastructure

  • Fully virtualise networks - all facilities available in a “slice”

  • User gets control of own “slice”

  • Begun mid-2008, infrastructure now being built out

24

52


  • The MANTICORE Project Vision new physical network and add all the routers they want to manage to it

  • MANTICORE Implementation

  • The IaaS Framework (UCLP Evolution)‏

  • User Roles

  • Software Architecture

  • How does it work: GUI preview

  • FEDERICA

  • Future work: MANTICORE II

25

53


Manticore ii new features i
MANTICORE II new features (I) new physical network and add all the routers they want to manage to it‏

  • Detect manual configuration overrides(or automatic ones)

  • Performance improvements

  • Support for other manufacturers(i.e. Cisco)‏

  • Integration of the enhancements made as part of FP7 FEDERICA project’s activities

26

54


Manticore ii new features ii
MANTICORE II new features (II) new physical network and add all the routers they want to manage to it‏

  • Add more features to the IP Network WS

  • Ability to set up VPNs

  • Ability to set up bandwidth guaranteed paths in the IP Network

  • RPSL Implementation

  • Abstract out the routing policy

  • Integration with other IaaS Framework based solutions

  • With Argia (optical networks: TDM, WDM, Fibre)‏

  • With Ether (Ethernet and MPLS Networks, under development)‏

  • Other? To Be Defined

27

55


Old way... new physical network and add all the routers they want to manage to it

...new way!

Same functionality

Same control

Far less hardware

27

56


Thank you
Thank you! new physical network and add all the routers they want to manage to it

Questions?


ad
