Lecture 8

Lecture 8

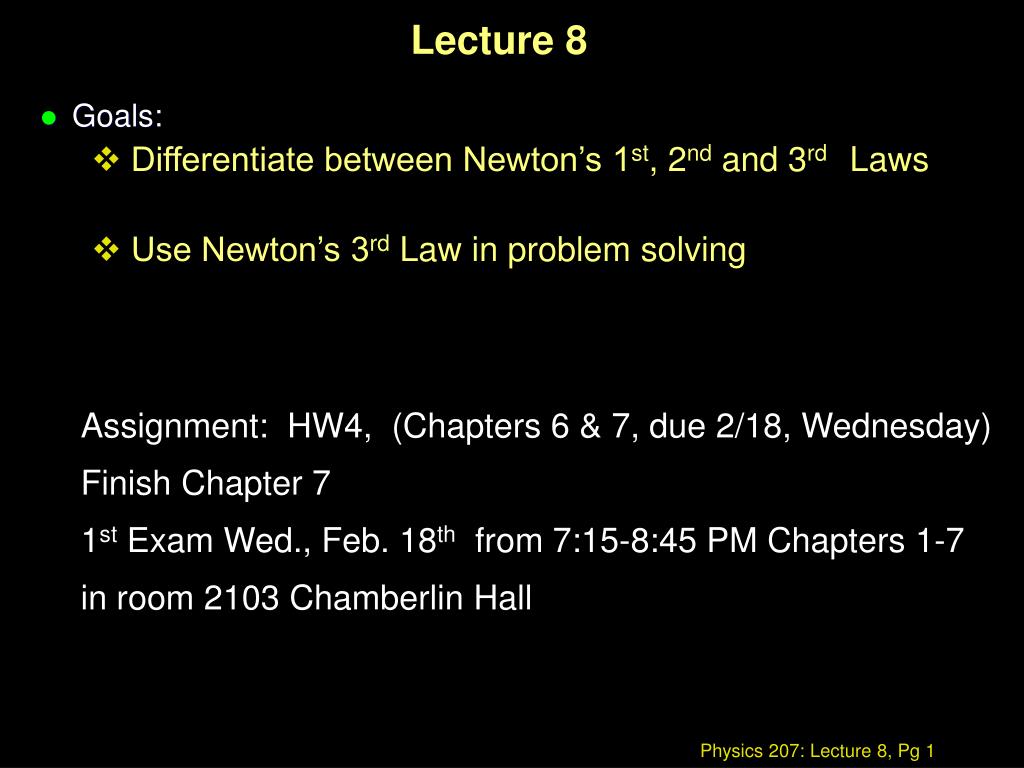

  • Goals:

    • Differentiate between Newton’s 1st, 2nd and 3rd Laws

    • Use Newton’s 3rd Law in problem solving

Assignment: HW4, (Chapters 6 & 7, due 2/18, Wednesday)

Finish Chapter 7

1st Exam Wed., Feb. 18th from 7:15-8:45 PM Chapters 1-7

in room 2103 Chamberlin Hall

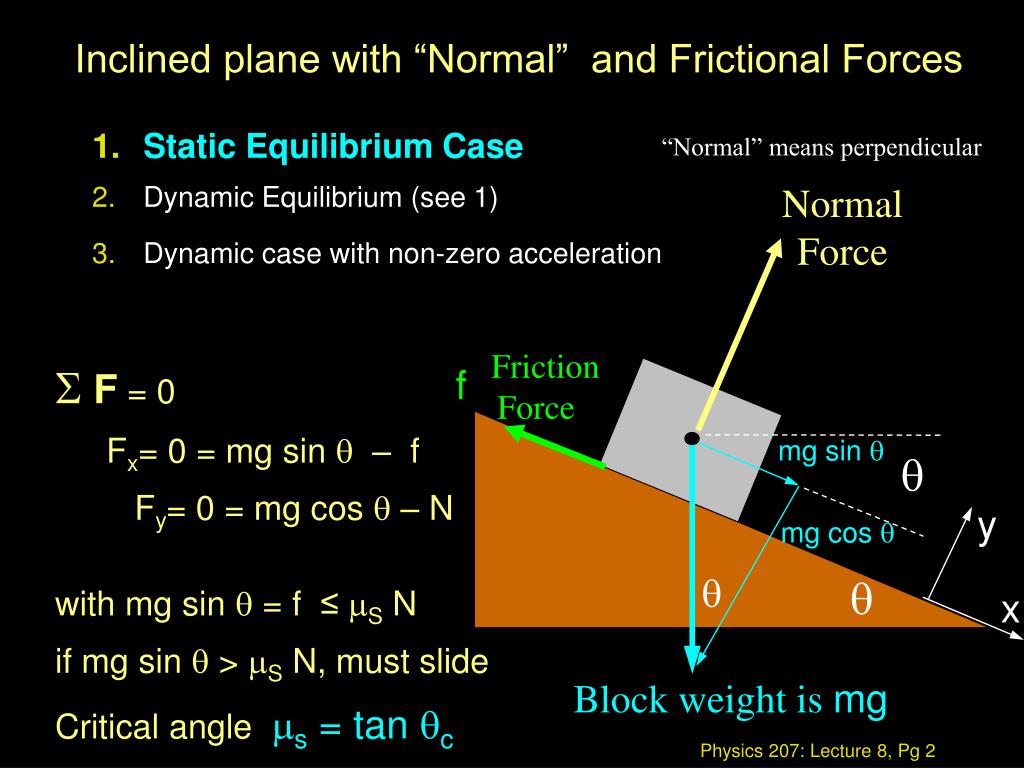

Inclined plane with normal and frictional forces

Inclined plane with “Normal” and Frictional Forces

Static Equilibrium Case

Dynamic Equilibrium (see 1)

Dynamic case with non-zero acceleration

“Normal” means perpendicular

Normal

Force

Friction Force

f

S F = 0

Fx= 0 = mg sin q – f

Fy= 0 = mg cos q – N

with mg sin q = f ≤ mS N

if mg sin q> mS N, must slide

Critical angle ms = tan qc

mg sin q

q

y

mg cos q

q

q

x

Block weight is mg

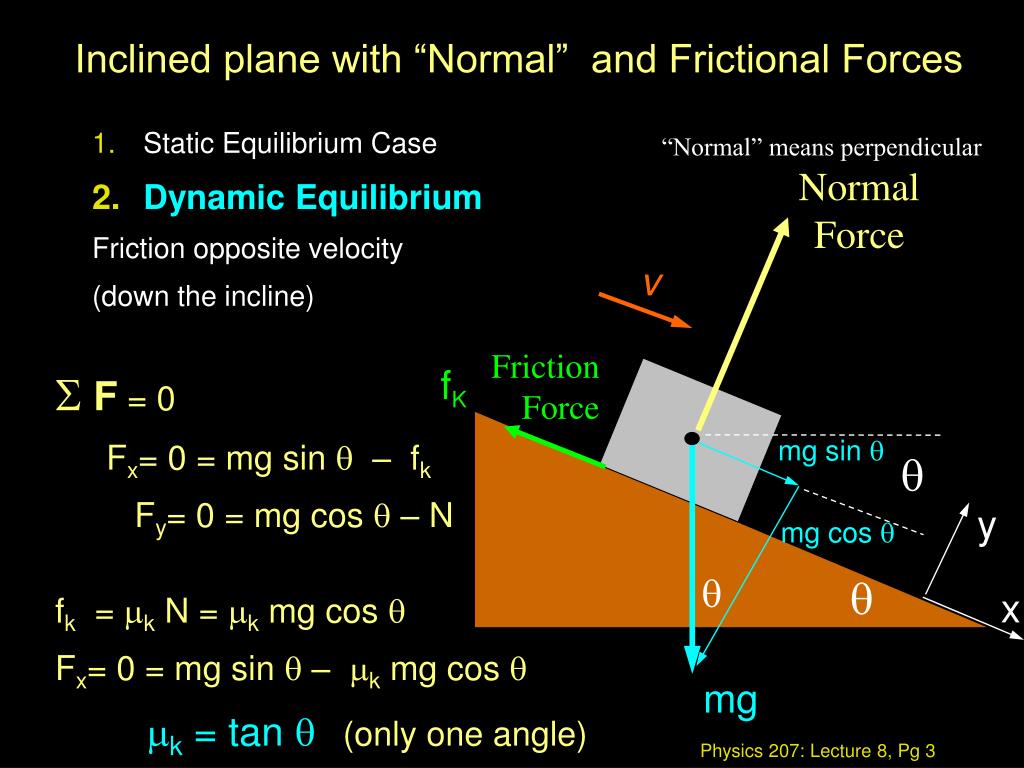

Inclined plane with normal and frictional forces1

Inclined plane with “Normal” and Frictional Forces

Static Equilibrium Case

Dynamic Equilibrium

Friction opposite velocity

(down the incline)

“Normal” means perpendicular

Normal

Force

v

Friction Force

fK

S F = 0

Fx= 0 = mg sin q – fk

Fy= 0 = mg cos q – N

fk= mk N = mk mg cos q

Fx= 0 = mg sin q – mk mg cos q

mk = tan q(only one angle)

mg sin q

q

y

mg cos q

q

q

x

mg


Inclined plane with normal and frictional forces2

Inclined plane with “Normal” and Frictional Forces

Normal

Force

Friction Force

Sliding Down

v

mg sin q

fk

Sliding

Up

q

q

Weight of block ismg

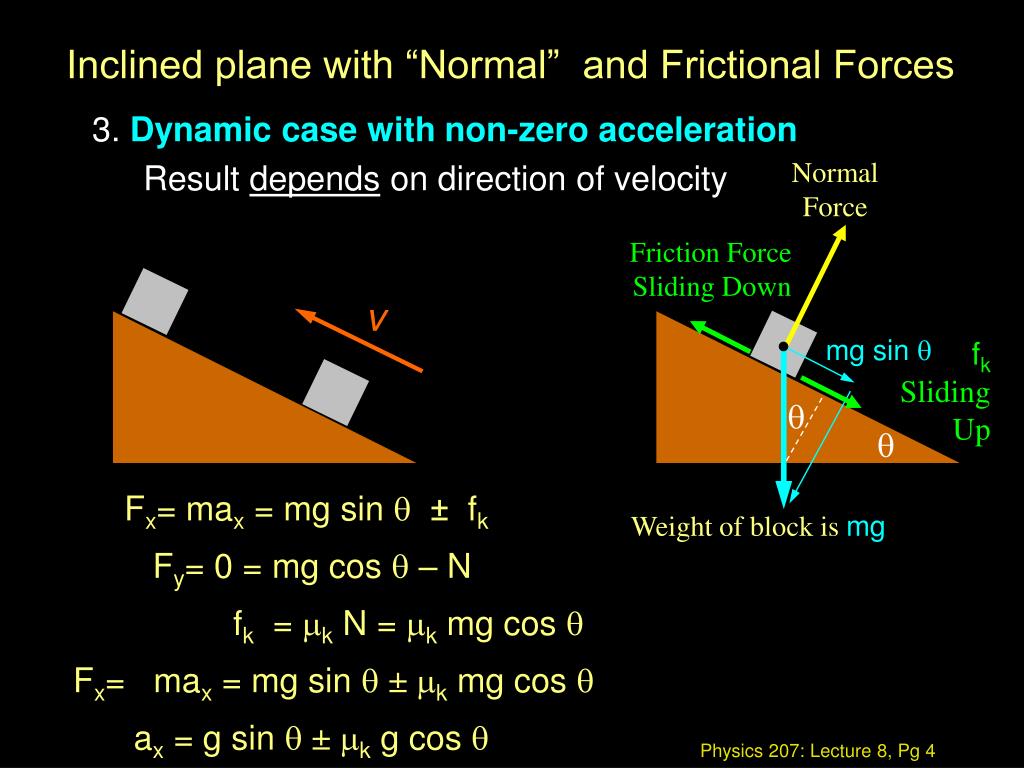

3. Dynamic case with non-zero acceleration

Result depends on direction of velocity

Fx= max = mg sin q± fk

Fy= 0 = mg cos q – N

fk= mk N = mk mg cos q

Fx= max = mg sin q±mk mg cos q

ax = g sin q±mk g cos q

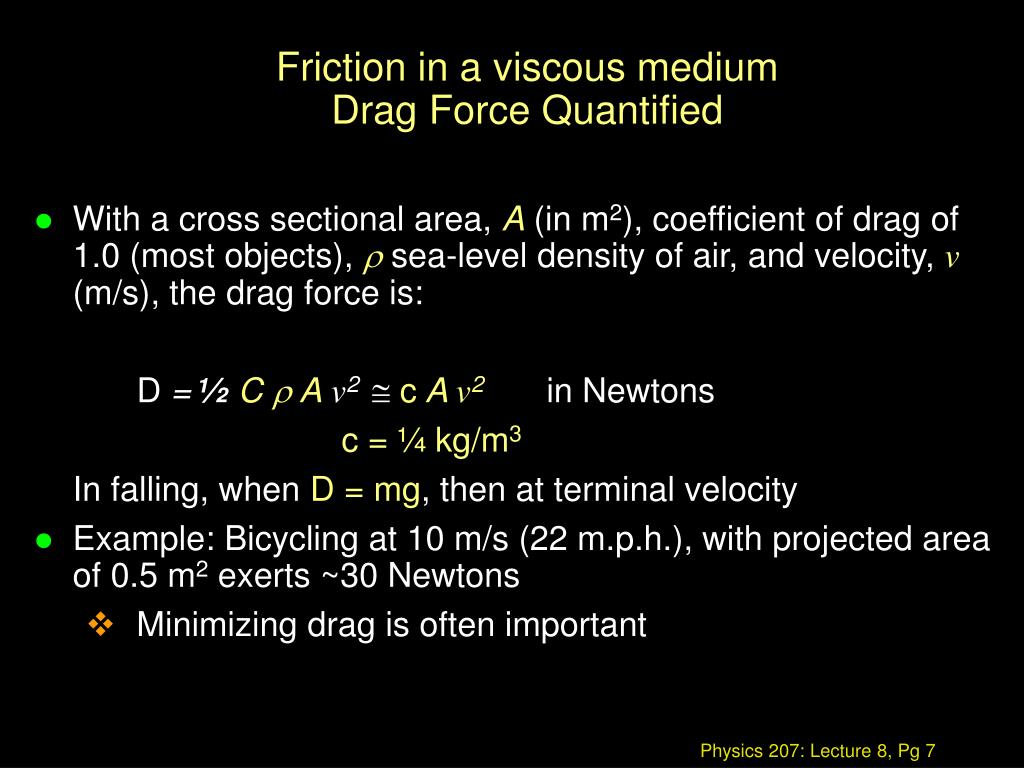

Friction in a viscous medium drag force quantified

Friction in a viscous mediumDrag Force Quantified

  • With a cross sectional area, A (in m2), coefficient of drag of 1.0 (most objects),  sea-level density of air, and velocity, v(m/s), the drag force is:

    D = ½ C  Av2 c A v2in Newtons

    c = ¼ kg/m3

    In falling, when D = mg, then at terminal velocity

  • Example: Bicycling at 10 m/s (22 m.p.h.), with projected area of 0.5 m2 exerts ~30 Newtons

    • Minimizing drag is often important


Free fall

“Free” Fall

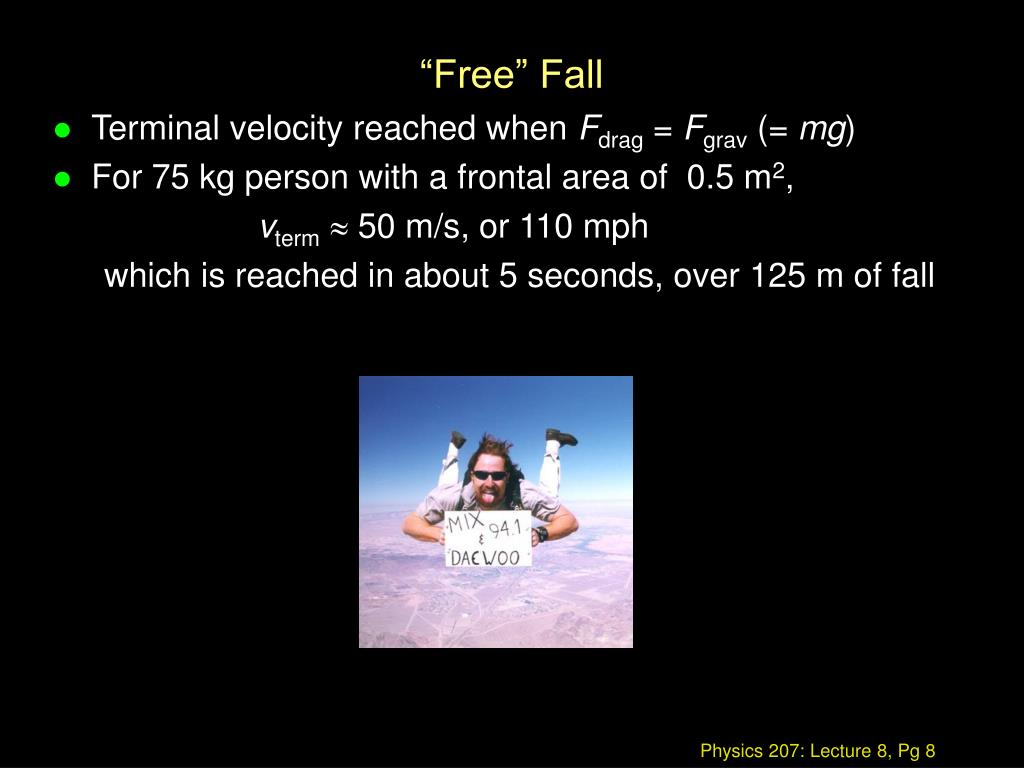

  • Terminal velocity reached when Fdrag = Fgrav (= mg)

  • For 75 kg person with a frontal area of 0.5 m2,

    vterm 50 m/s, or 110 mph

    which is reached in about 5 seconds, over 125 m of fall


Newton s laws

Newton’s Laws

Read: Force of B on A

Law 1: An object subject to no external forces is at rest or moves with a constant velocity if viewed from an inertial reference frame.

Law 2: For any object, FNET = F = ma

Law 3: Forces occur in pairs: FA , B = - FB , A

(For every action there is an equal and opposite reaction.)


Newton s third law

Newton’s Third Law:

If object 1 exerts a force on object 2 (F2,1) then object 2 exerts an equal and opposite force on object 1 (F1,2)

F1,2 = -F2,1

For every “action” there is an equal and opposite “reaction”

IMPORTANT:

Newton’s 3rd law concerns force pairs which

act ontwo different objects(not on the same object) !


Gravity

Gravity

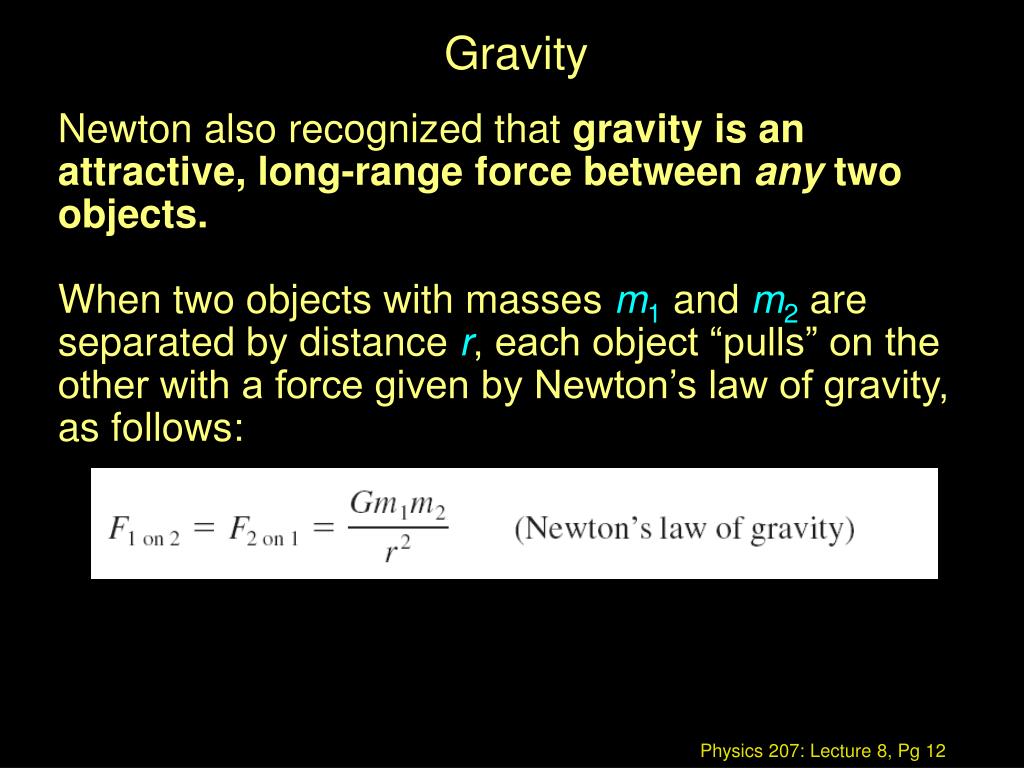

Newton also recognized that gravity is an attractive, long-range force between any two objects.

When two objects with masses m1and m2 are separated by distance r, each object “pulls” on the other with a force given by Newton’s law of gravity, as follows:

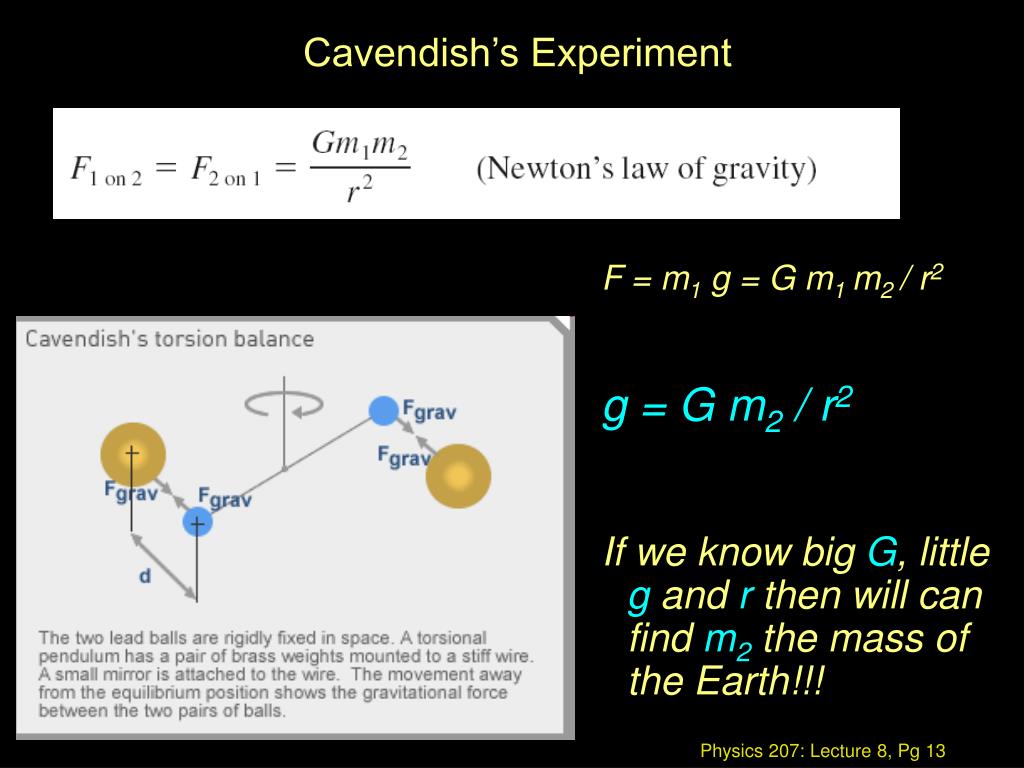

Cavendish s experiment

Cavendish’s Experiment

F = m1 g = G m1 m2 / r2

g = G m2 / r2

If we know big G, little g and r then will can find m2 the mass of the Earth!!!


Example non contact

Example (non-contact)

FB,E = - mB g

FB,E = - mB g

FE,B = mB g

FE,B = mB g

EARTH

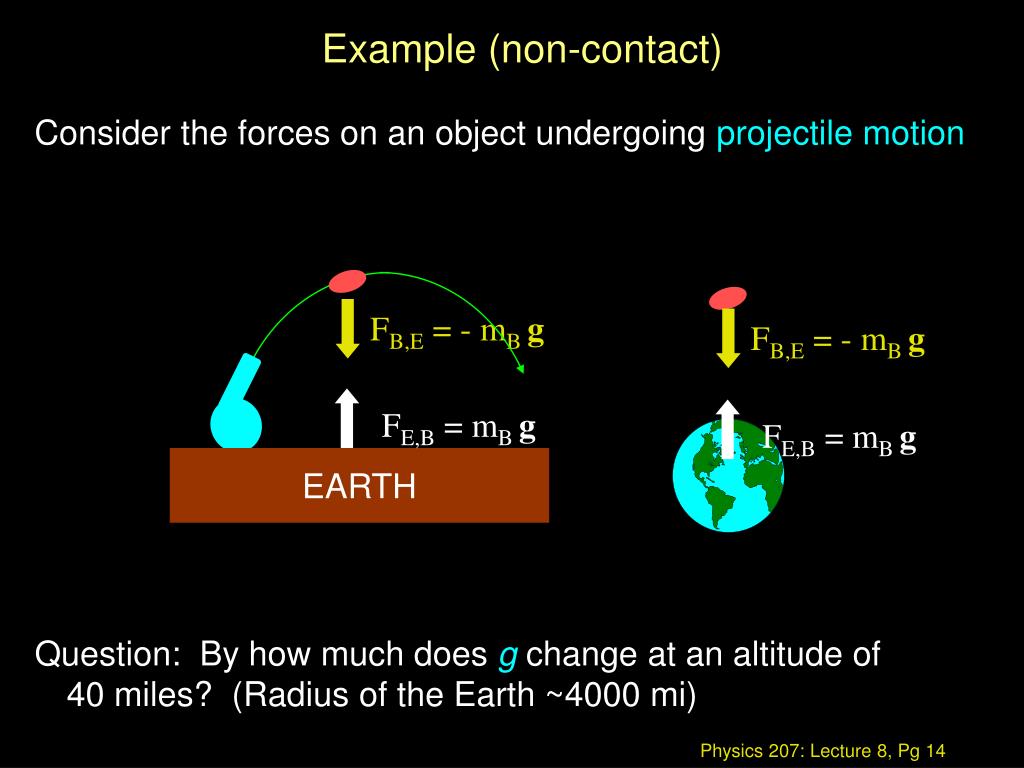

Consider the forces on an object undergoing projectile motion

Question: By how much does g change at an altitude of 40 miles? (Radius of the Earth ~4000 mi)


Example

Example

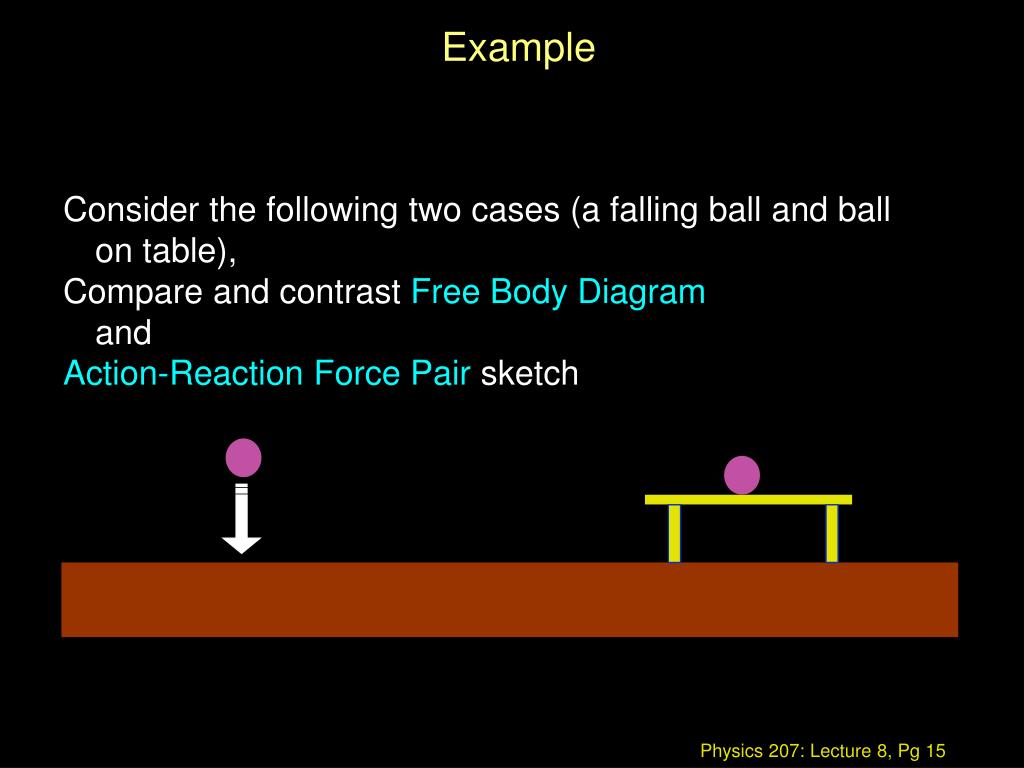

Consider the following two cases (a falling ball and ball on table),

Compare and contrast Free Body Diagram

and

Action-Reaction Force Pair sketch


Example1

Example

mg

FB,T= N

mg

The Free Body Diagram

Ball Falls

For Static Situation

N = mg

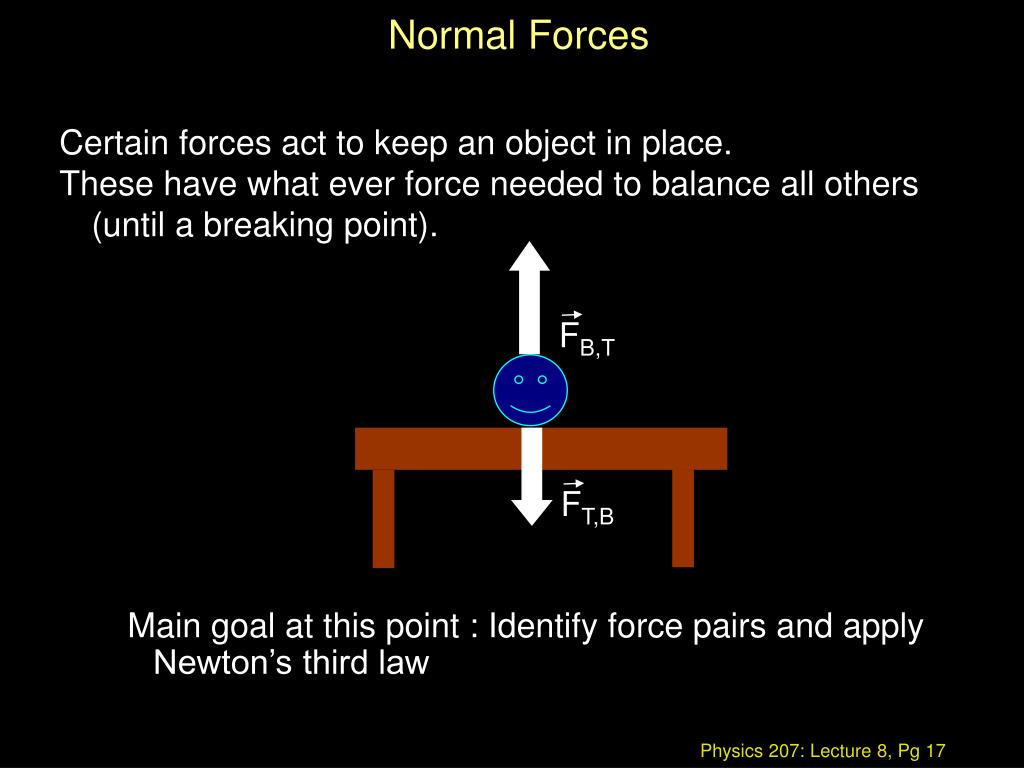

Normal forces

Normal Forces

FB,T

FT,B

Certain forces act to keep an object in place.

These have what ever force needed to balance all others (until a breaking point).

Main goal at this point : Identify force pairs and apply Newton’s third law


Example2

Example

FB,E = -mg

FB,T= N

FT,B= -N

FB,E = -mg

FE,B = mg

FE,B = mg

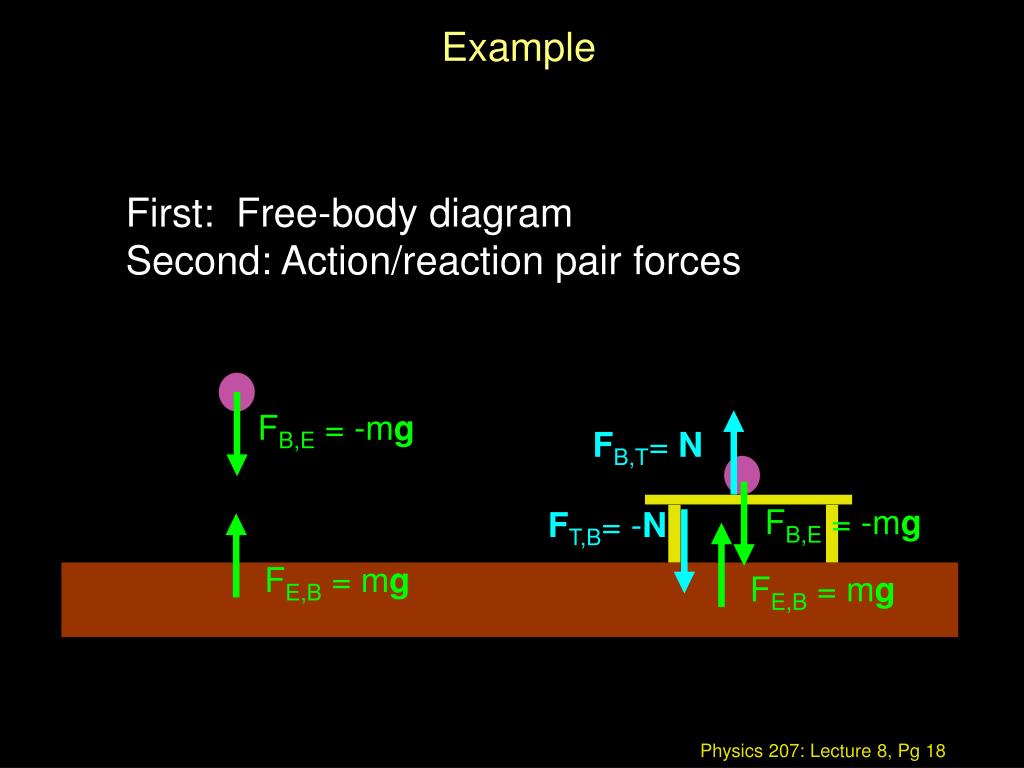

First: Free-body diagram

Second: Action/reaction pair forces


The flying bird in the cage

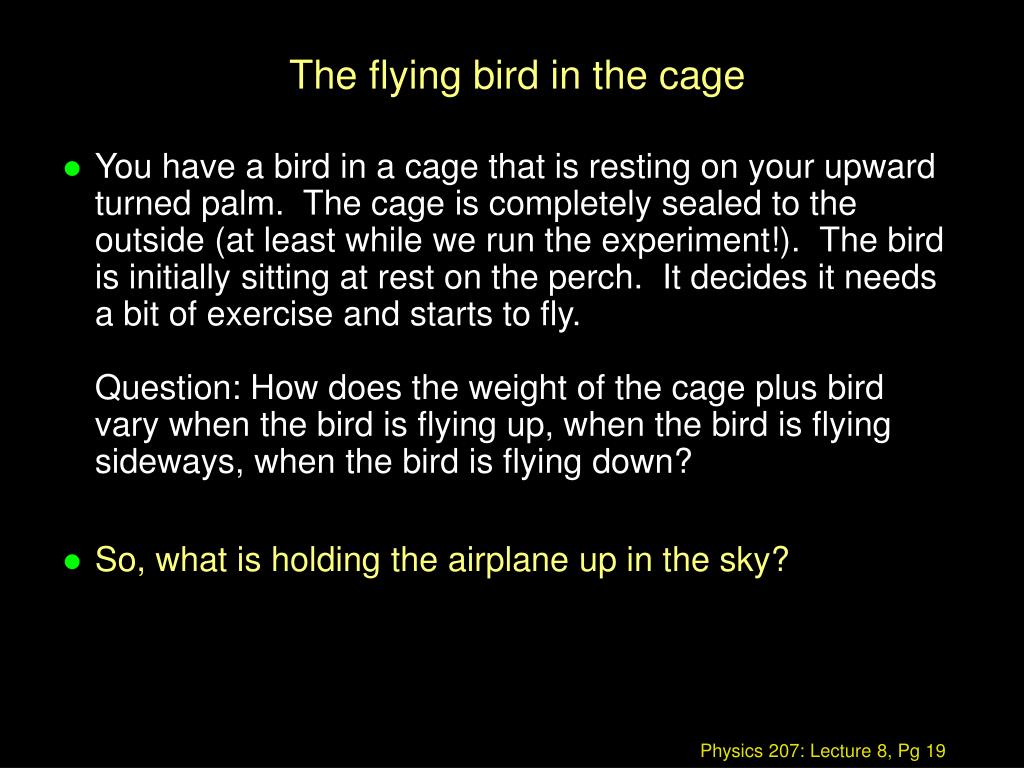

The flying bird in the cage

  • You have a bird in a cage that is resting on your upward turned palm.  The cage is completely sealed to the outside (at least while we run the experiment!).  The bird is initially sitting at rest on the perch.  It decides it needs a bit of exercise and starts to fly. Question: How does the weight of the cage plus bird vary when the bird is flying up, when the bird is flying sideways, when the bird is flying down?

  • So, what is holding the airplane up in the sky?


Exercise newton s third law

ExerciseNewton’s Third Law

  • greater than

  • equal to

  • less than

A fly is deformed by hitting the windshield of a speeding bus.

v

The force exerted by the bus on the fly is,

that exerted by the fly on the bus.


Exercise 2 newton s third law

Exercise 2Newton’s Third Law

  • greater than

  • equal to

  • less than

Same scenario but now we examine the accelerations

A fly is deformed by hitting the windshield of a speeding bus.

v

The magnitude of the acceleration, due to this collision, of the bus is

that of the fly.

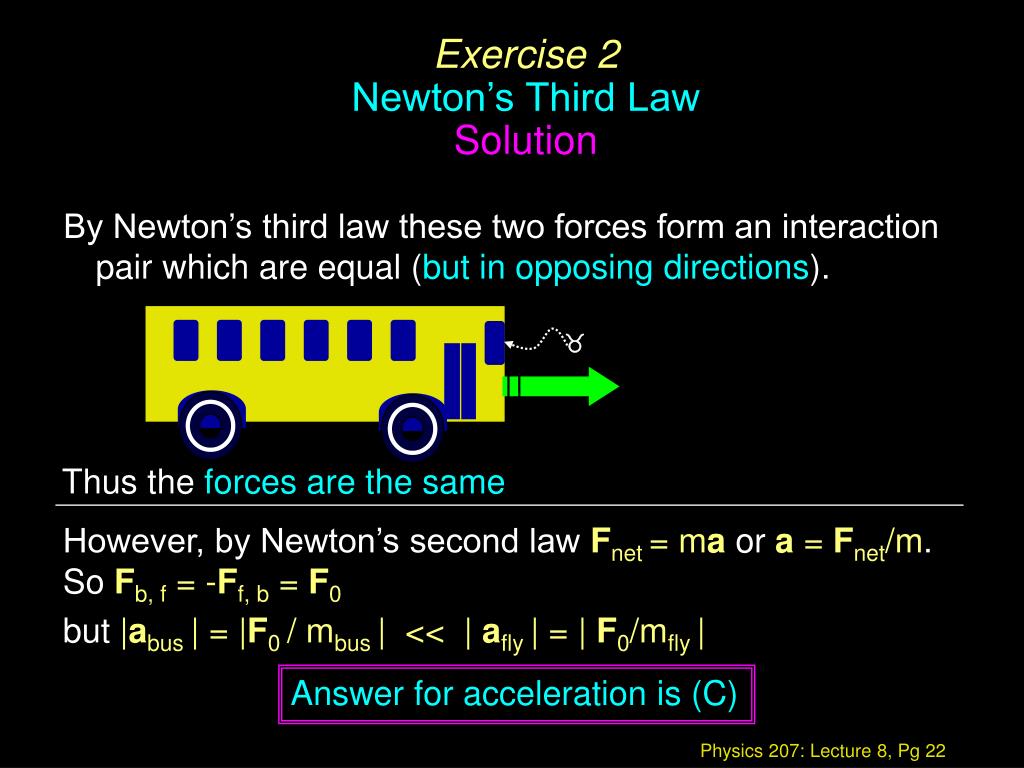

Exercise 2 newton s third law solution

Exercise 2Newton’s Third LawSolution

By Newton’s third law these two forces form an interaction pair which are equal (but in opposing directions).

Thus the forces are the same

However, by Newton’s second law Fnet = ma or a = Fnet/m.

So Fb, f = -Ff, b = F0

but |abus | = |F0 / mbus | << | afly | = | F0/mfly |

Answer for acceleration is (C)

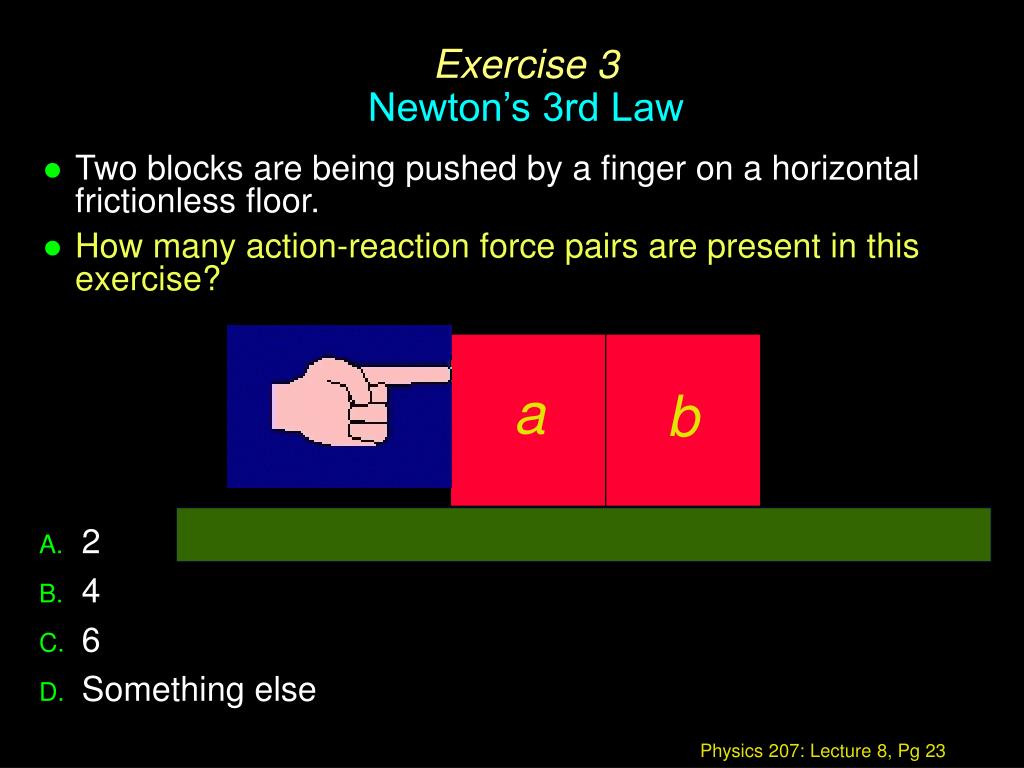

Exercise 3 newton s 3rd law

Exercise 3Newton’s 3rd Law

a

b

  • 2

  • 4

  • 6

  • Something else

  • Two blocks are being pushed by a finger on a horizontal frictionless floor.

  • How many action-reaction force pairs are present in this exercise?

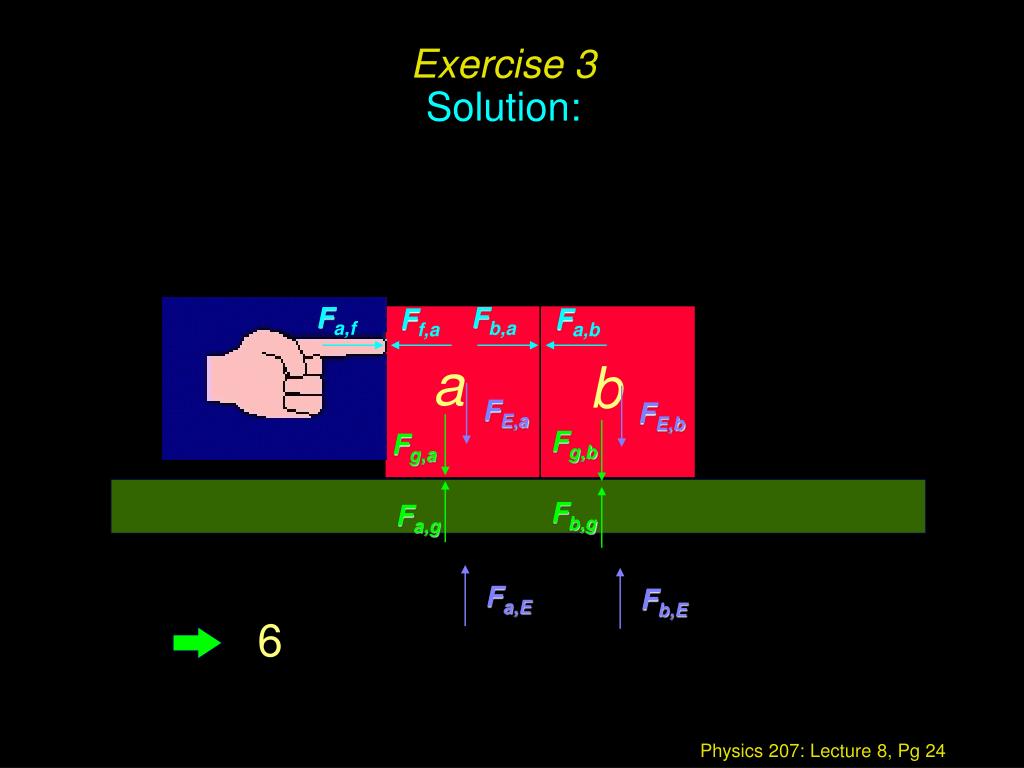

Exercise 3 solution

Exercise 3Solution:

Fa,f

Fb,a

Ff,a

Fa,b

FE,a

FE,b

Fg,b

Fg,a

Fb,g

Fa,g

Fa,E

Fb,E

a

b

6


Example friction and motion

Example: Friction and Motion

v

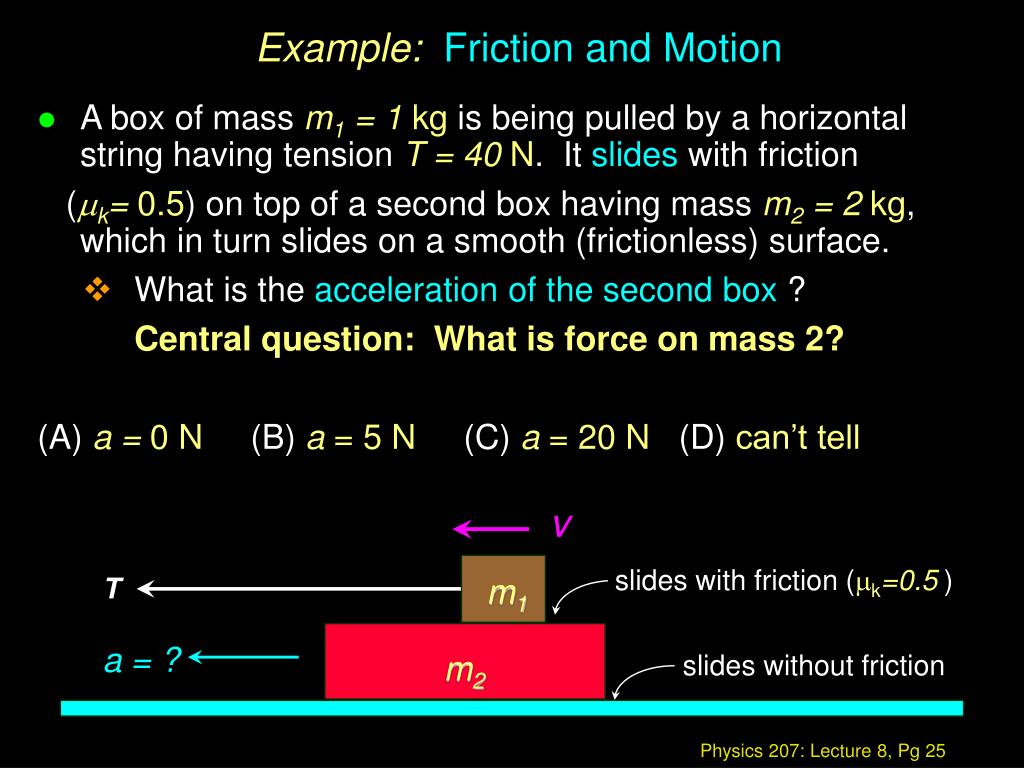

  • A box of mass m1 = 1 kg is being pulled by a horizontal string having tension T = 40 N. It slides with friction

    (mk= 0.5) on top of a second box having mass m2 = 2 kg, which in turn slides on a smooth (frictionless) surface.

    • What is the acceleration of the secondbox ?

      Central question: What is force on mass 2?

      (A) a = 0 N (B) a = 5 N (C) a = 20 N(D) can’t tell

slides with friction (mk=0.5)

T

m1

a = ?

m2

slides without friction


Example solution

ExampleSolution

v

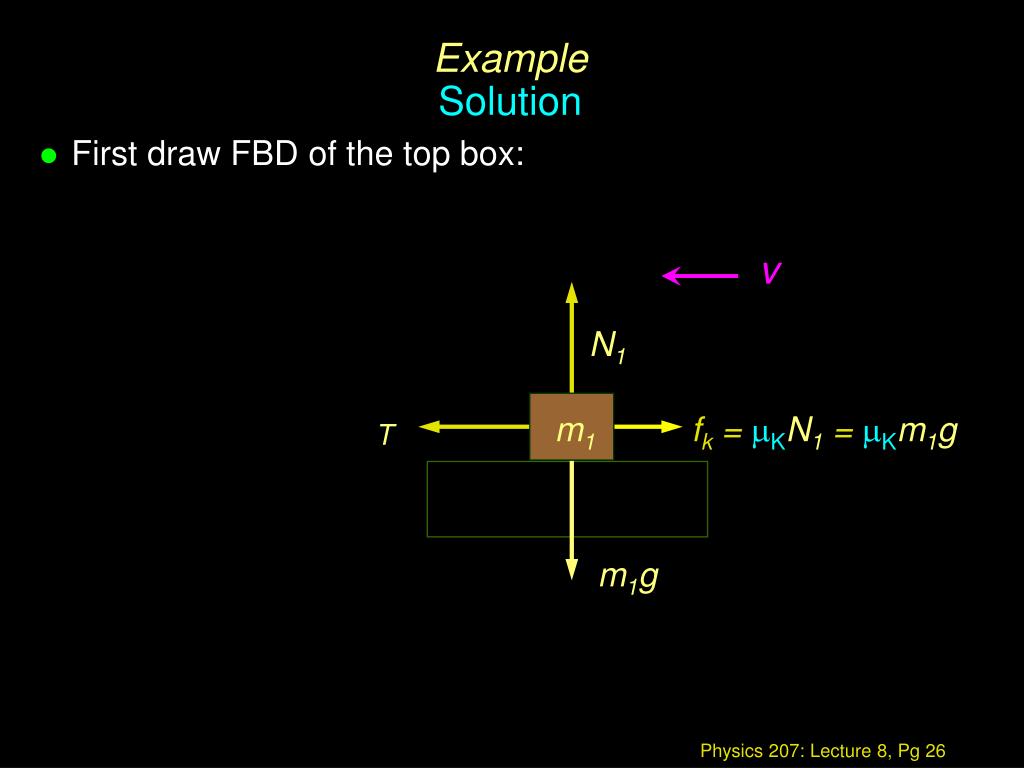

  • First draw FBD of the top box:

N1

m1

fk = mKN1 = mKm1g

T

m1g


Example solution1

ExampleSolution

  • As we just saw, this force is due to friction:

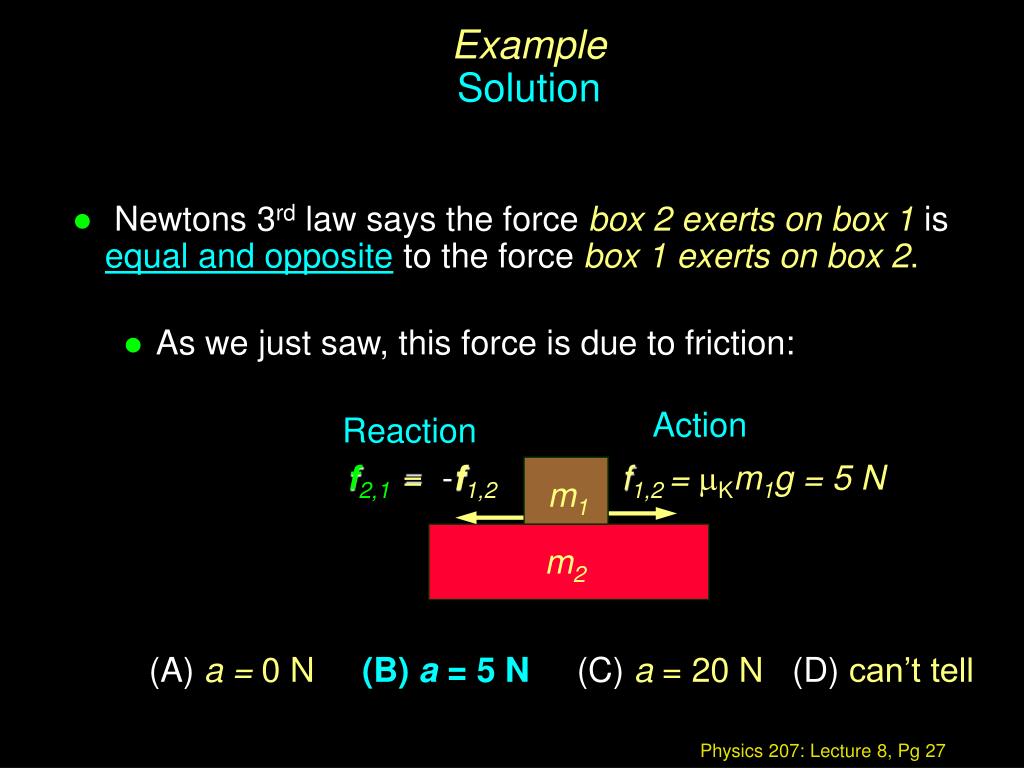

  • Newtons 3rd law says the force box 2 exerts on box 1 is equal and opposite to the force box 1 exerts on box 2.

Action

Reaction

f2,1= -f1,2

f1,2 = mKm1g = 5 N

m1

m2

(A) a = 0 N(B) a = 5 N (C) a = 20 N(D) can’t tell


Example solution2

ExampleSolution

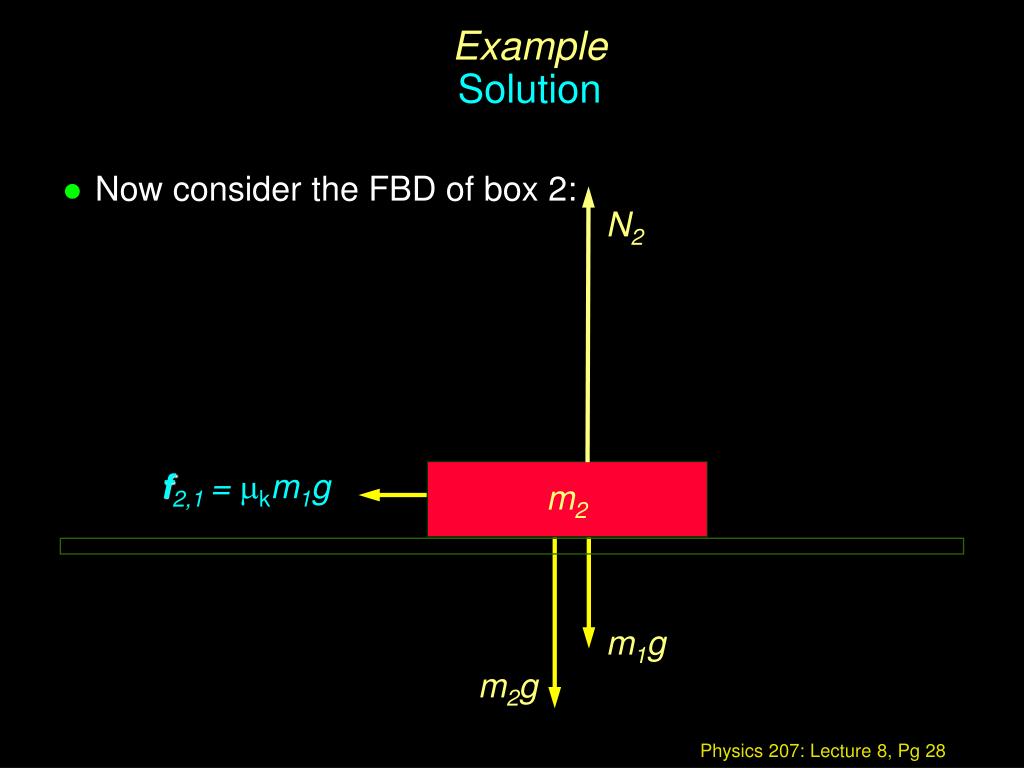

  • Now consider the FBD of box 2:

N2

f2,1 = mkm1g

m2

m1g

m2g


Example solution3

ExampleSolution

  • Finally, solve Fx = ma in the horizontal direction:

mK m1g = m2a

= 2.5 m/s2

f2,1 = mKm1g

m2

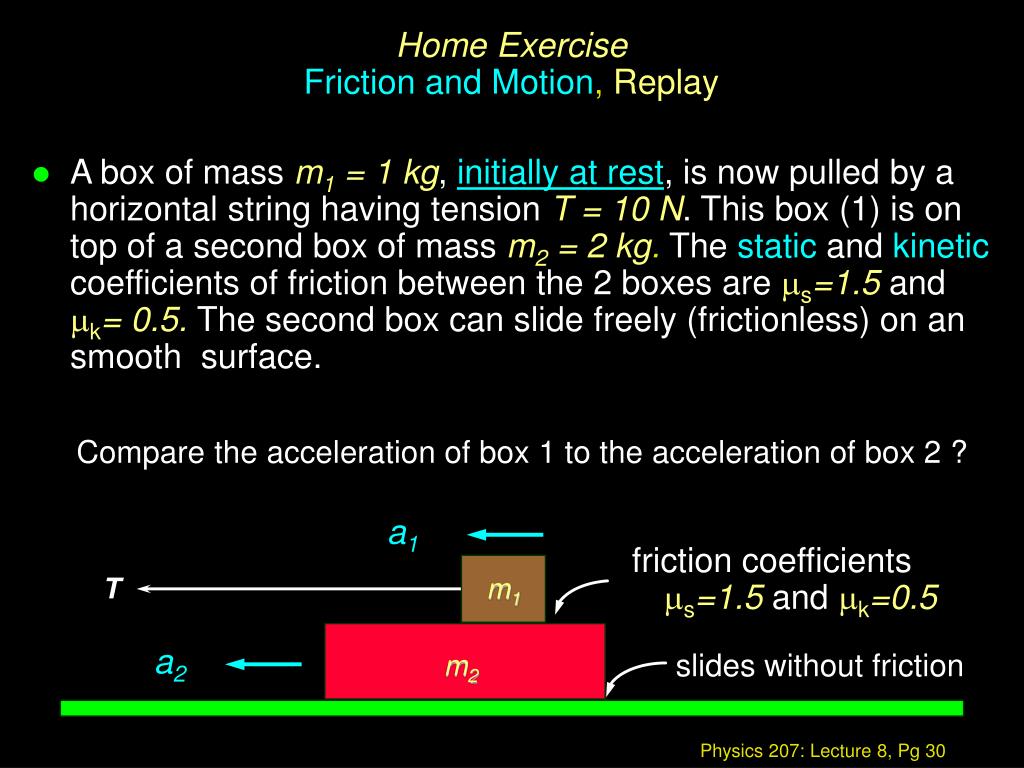

Home exercise friction and motion replay

Home Exercise Friction and Motion, Replay

  • A box of mass m1 = 1 kg, initially at rest, is now pulled by a horizontal string having tension T = 10 N. This box (1) is on top of a second box of mass m2 = 2 kg. The static and kinetic coefficients of friction between the 2 boxes are s=1.5 and mk= 0.5.The second box can slide freely (frictionless) on an smooth surface.

    Compare the acceleration of box 1 to the acceleration of box 2 ?

a1

friction coefficients ms=1.5andmk=0.5

T

m1

a2

slides without friction

m2


Home exercise friction and motion replay in the static case

Home Exercise Friction and Motion, Replay in the static case

a1

friction coefficients ms=1.5andmk=0.5

T

m1

a2

slides without friction

m2

  • A box of mass m1 = 1 kg, initially at rest, is now pulled by a horizontal string having tension T = 10 N. This box (1) is on top of a second box of mass m2 = 2 kg. The static and kinetic coefficients of friction between the 2 boxes are s=1.5 and mk= 0.5.The second box can slide freely on an smooth surface (frictionless).

    If no slippage then the maximum frictional force between 1 & 2 is

    (A) 20 N (B) 15 N (C) 5 N (D) depends on T


Home exercise friction and motion

Home ExerciseFriction and Motion

fs = 10 N and the acceleration of box 1 is

Acceleration of box 2 equals that of box 1, with |a| = |T| / (m1+m2) and the frictional force f ism2a

(Notice that if T were in excess of 15 N then it would break free)

N

fSS N = S m1 g = 1.5 x 1 kg x 10 m/s2

which is 15 N (so m2 can’t break free)

fS

T

m1 g

a1

friction coefficients ms=1.5andmk=0.5

T

m1

a2

slides without friction

m2


Lecture 8 recap

Lecture 8 Recap

Assignment: HW4, (Chapters 6 & 7, due 2/18, Wednesday)

Finish Chapter 7

1st Exam Wed., Feb. 18th from 7:15-8:45 PM Chapters 1-7

in room 2103 Chamberlin Hall
