Advanced java oop and networking

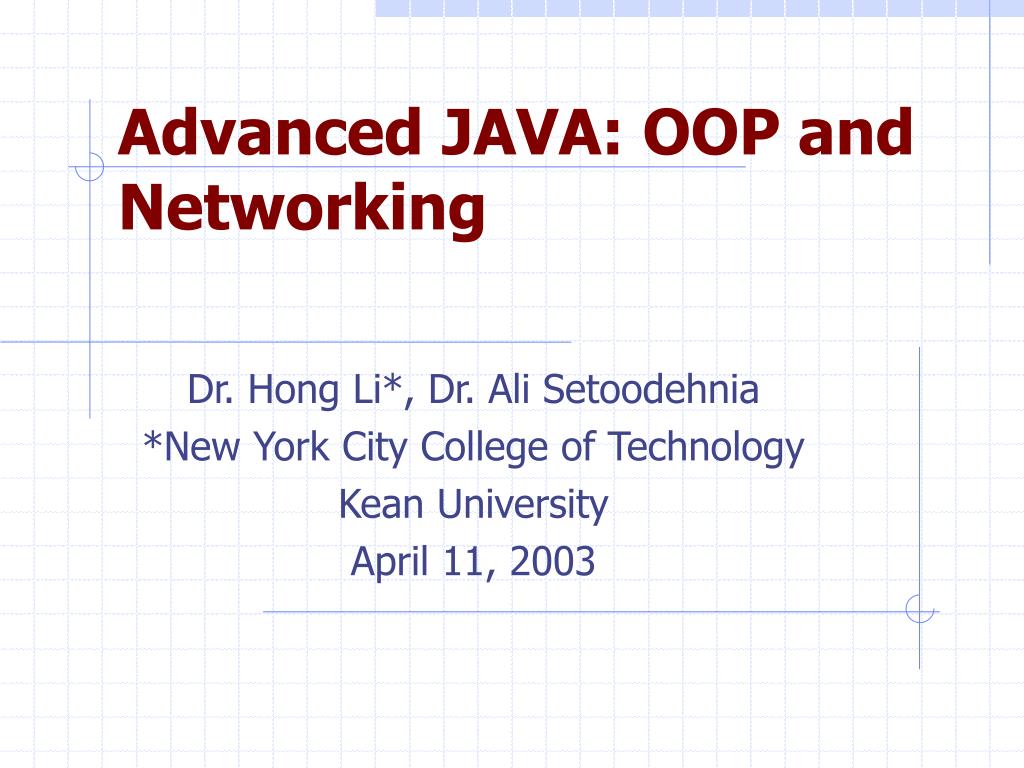

Advanced JAVA: OOP and Networking

Dr. Hong Li*, Dr. Ali Setoodehnia

*New York City College of Technology

Kean University

April 11, 2003


Agenda

AGENDA:

  • Introduction to Java

  • Introduction to Java Applets

  • OOP, methods

  • Java Networking


Introduction to java

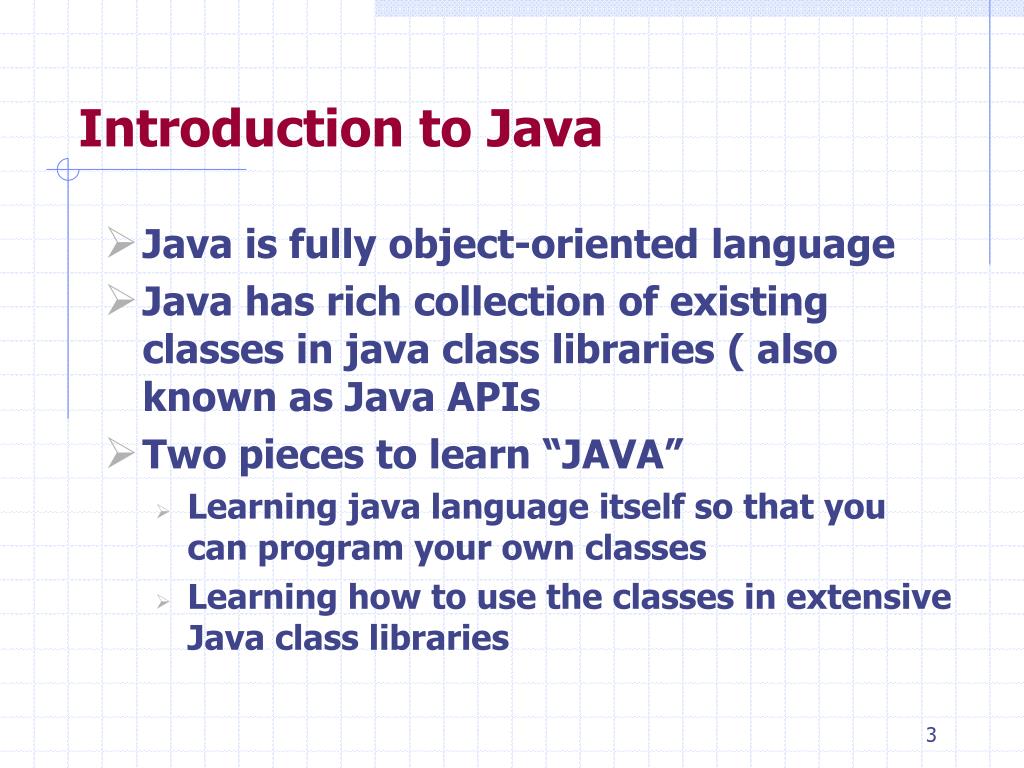

Introduction to Java

  • Java is fully object-oriented language

  • Java has rich collection of existing classes in java class libraries ( also known as Java APIs

  • Two pieces to learn “JAVA”

    • Learning java language itself so that you can program your own classes

    • Learning how to use the classes in extensive Java class libraries


Advanced java oop and networking

  • Java is case sensitive

  • public class name identical to the file name

  • file name: name.java

  • static main method will be automatic executed

  • standard output object: system.out

  • compile: javac name.java ; this creates name.class

  • execute: java name


A simple program welcome java

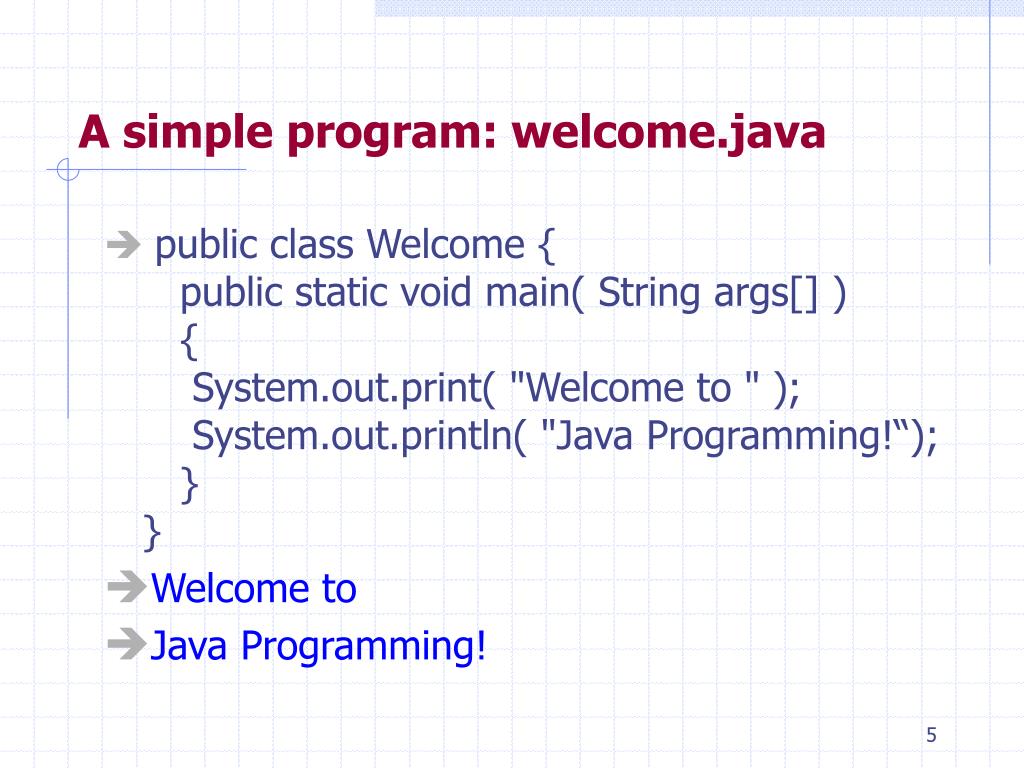

A simple program: welcome.java

  • public class Welcome { public static void main( String args[] ) { System.out.print( "Welcome to " ); System.out.println( "Java Programming!“); }}

  • Welcome to

  • Java Programming!


Introduction to java applet

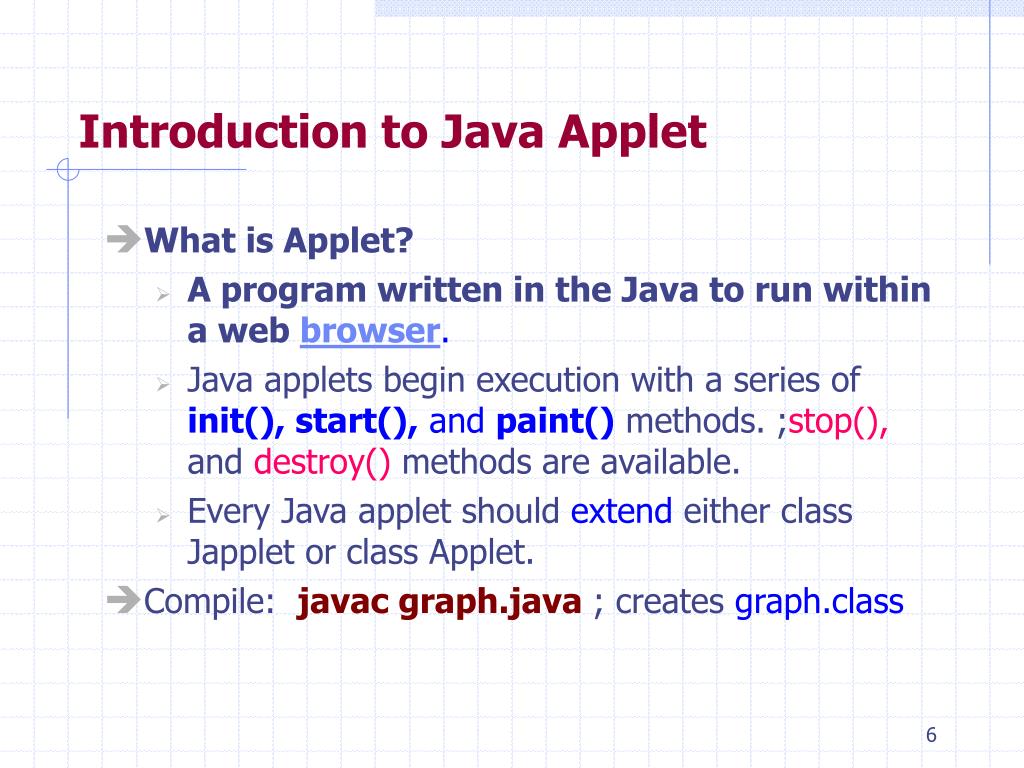

Introduction to Java Applet

  • What is Applet?

    • A program written in the Java to run within a web browser.

    • Java applets begin execution with a series of init(), start(), and paint() methods. ;stop(), and destroy() methods are available.

    • Every Java applet should extend either class Japplet or class Applet.

  • Compile: javac graph.java ; creates graph.class


Insert a applet tag in html

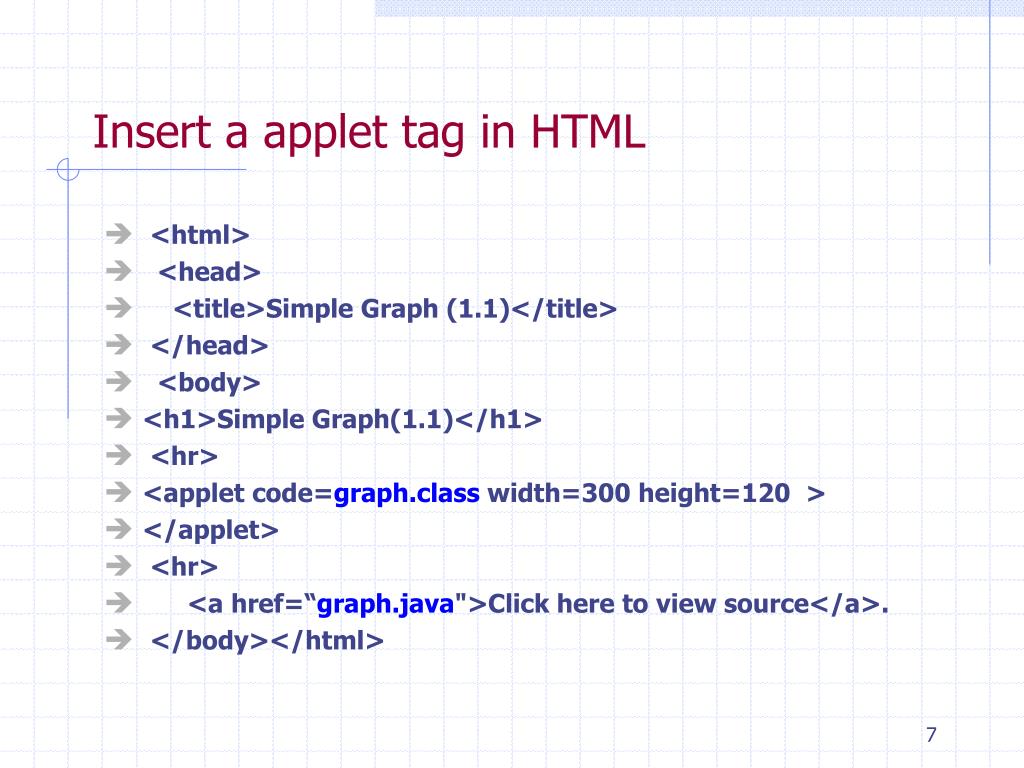

Insert a applet tag in HTML

  • <html>

  • <head>

  • <title>Simple Graph (1.1)</title>

  • </head>

  • <body>

  • <h1>Simple Graph(1.1)</h1>

  • <hr>

  • <applet code=graph.class width=300 height=120 >

  • </applet>

  • <hr>

  • <a href=“graph.java">Click here to view source</a>.

  • </body></html>


Graphapplet java

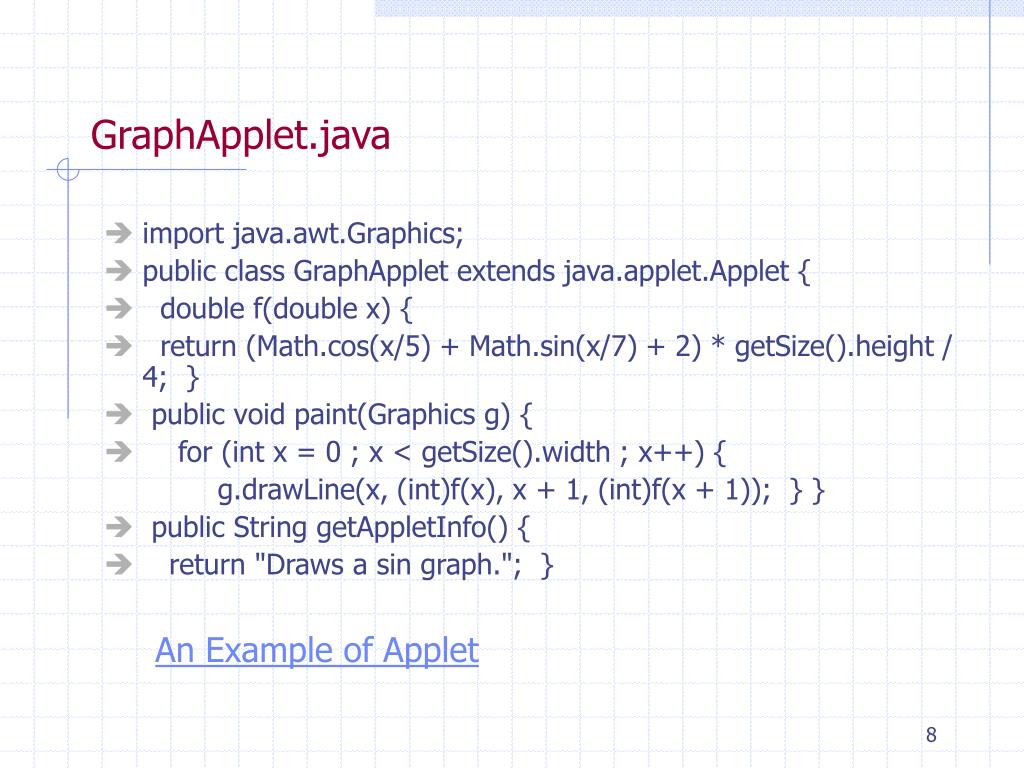

GraphApplet.java

  • import java.awt.Graphics;

  • public class GraphApplet extends java.applet.Applet {

  • double f(double x) {

  • return (Math.cos(x/5) + Math.sin(x/7) + 2) * getSize().height / 4; }

  • public void paint(Graphics g) {

  • for (int x = 0 ; x < getSize().width ; x++) {

    g.drawLine(x, (int)f(x), x + 1, (int)f(x + 1)); } }

  • public String getAppletInfo() {

  • return "Draws a sin graph."; }

An Example of Applet


Fundemental of object oriented programming

FUNDEMENTAL OFOBJECT-ORIENTED PROGRAMMING

  • What is an object?

    • An object is a computer structure

    • An object is an abstract concept

    • Objects normally contain both data and related procedure

  • A class contains

    • data

    • method


Creating object

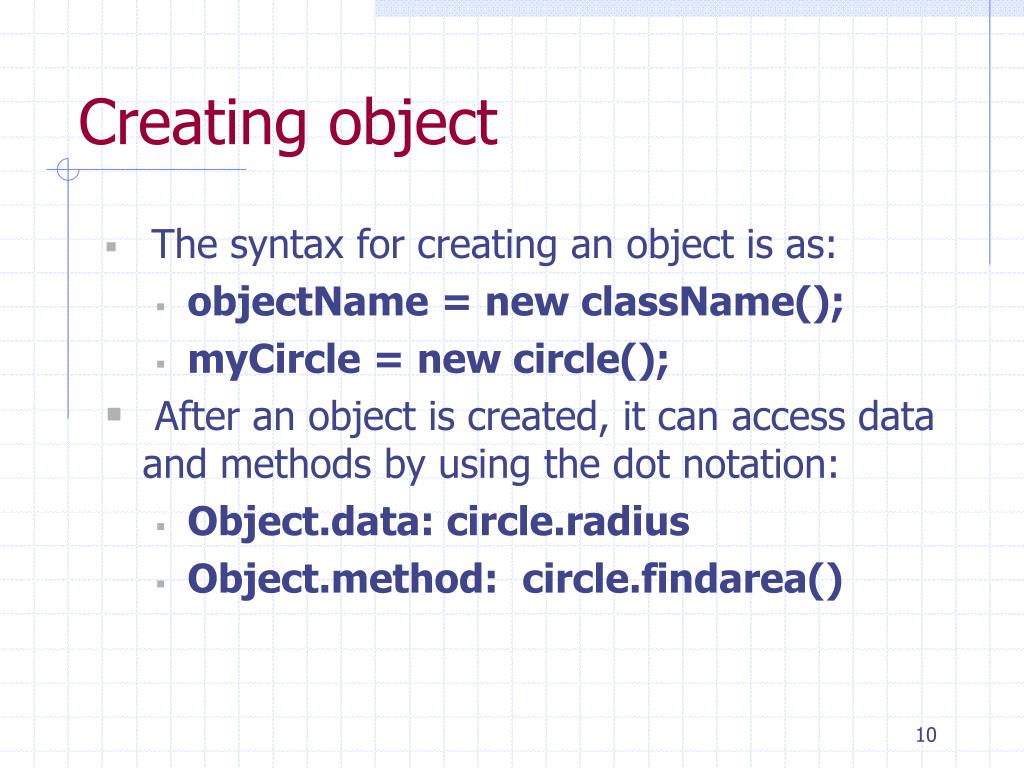

Creating object

  • The syntax for creating an object is as:

    • objectName = new className();

    • myCircle = new circle();

  • After an object is created, it can access data and methods by using the dot notation:

    • Object.data: circle.radius

    • Object.method: circle.findarea()


Instance variables and class variables

Instance Variables and class Variables

  • Instance variables belong to each instance of the class;

  • Example:

    • Circle myCircle = new Circule();

    • Circule yourCircle=new Circle;

  • The data in myCircle is independent of yourCircle, and are in different memory locations.

  • The instances of a class can share data, using class variable.

  • Class variables (static ) store values for the variables in a common memory location.

  • To declare a class variable

  • static double weight; // class variable


Instance method and class methods static methods

Instance Method and Class Methods(static methods)

  • Instance methods belong to instances and can be applied after the instances are created.

  • They are called by: objectName.methodName();

  • Java supports class methods as well as class variables.

  • Class method can be called without creating an instance of the class.

  • To define a class method

  • static returnValueType staticMethod();

  • Class method are called by one of the following syntax:

    • className.methodName();

    • objectName.methodName();


String class java lang string

STRING class: java.lang.String

  • To creat a string explicitly use:

    • String newString = new String(s);

  • String Comparisons; // = = , or s1.comparTo(s2) can be used.

  • String Concatination: you can use concat() method or +

    • string s3 = s1.concat(s2); or

    • String myString = message + “and” + “xyz”;

  • Substring()


Stringbuffer class

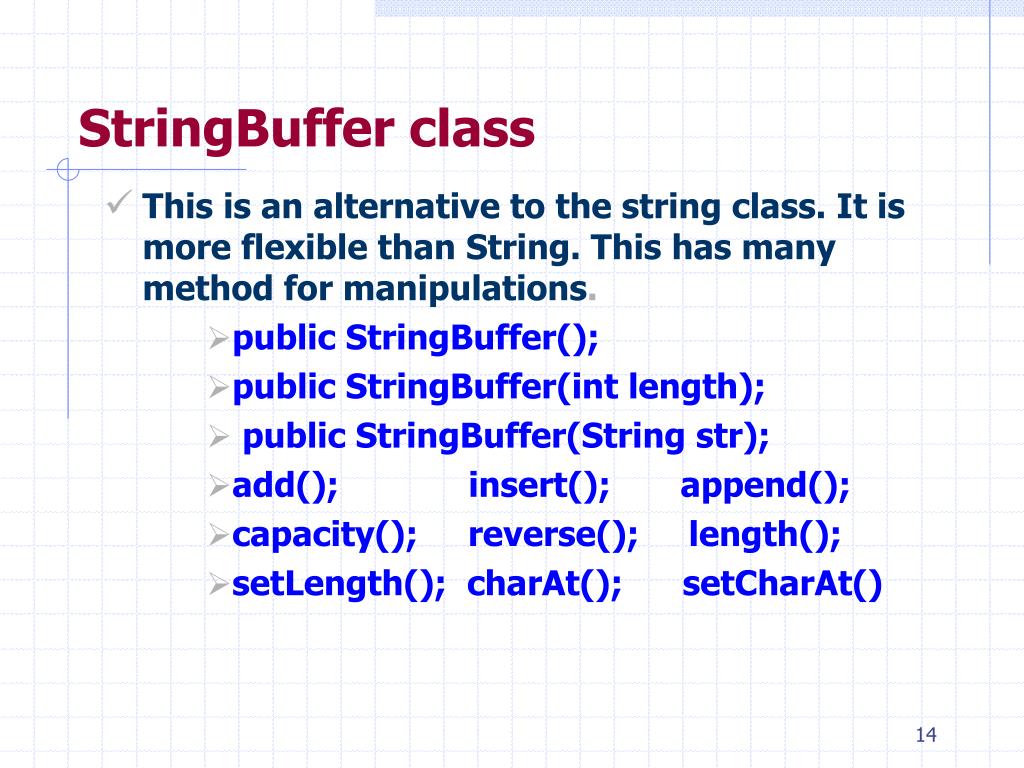

StringBuffer class

  • This is an alternative to the string class. It is more flexible than String. This has many method for manipulations.

    • public StringBuffer();

    • public StringBuffer(int length);

    • public StringBuffer(String str);

    • add(); insert(); append();

    • capacity(); reverse(); length();

    • setLength(); charAt(); setCharAt()


Stringtokenizer class

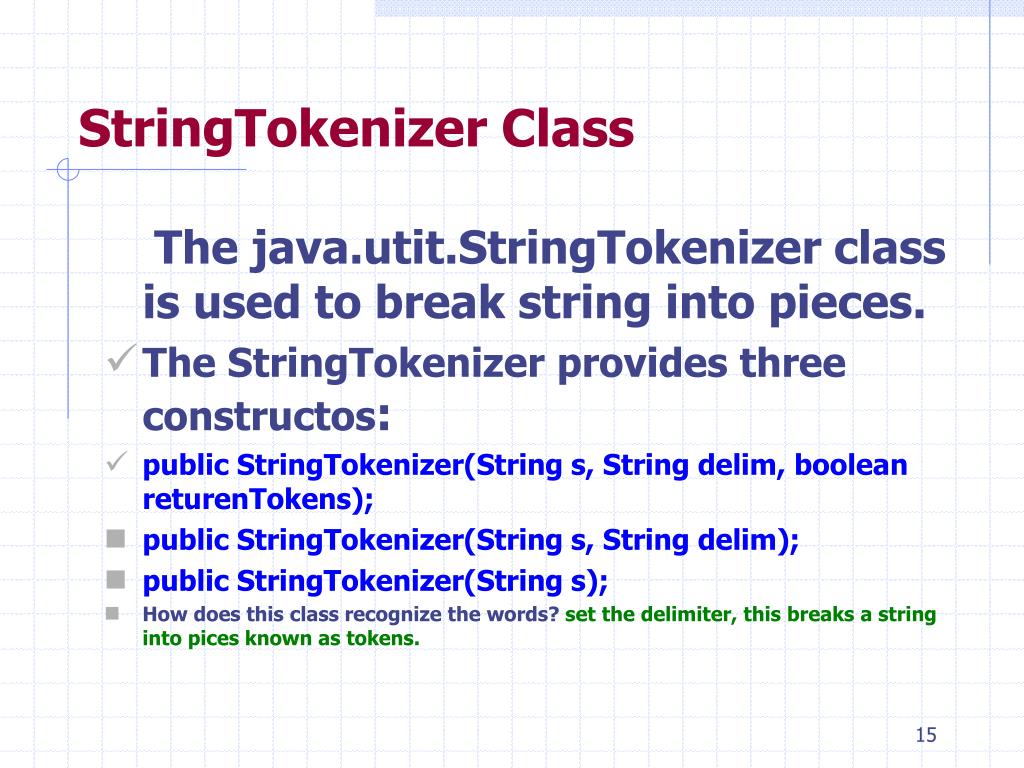

StringTokenizer Class

  • The java.utit.StringTokenizer class is used to break string into pieces.

  • The StringTokenizer provides three constructos:

  • public StringTokenizer(String s, String delim, boolean returenTokens);

  • public StringTokenizer(String s, String delim);

  • public StringTokenizer(String s);

  • How does this class recognize the words? set the delimiter, this breaks a string into pices known as tokens.


Stringtokenizer continue

StringTokenizer Continue

  • Some of the instance methods are:

    • public boolean hasMoreToken(); public String nextToken();

    • public String nextToken(String delim);

    • public int countToken();


Java networking

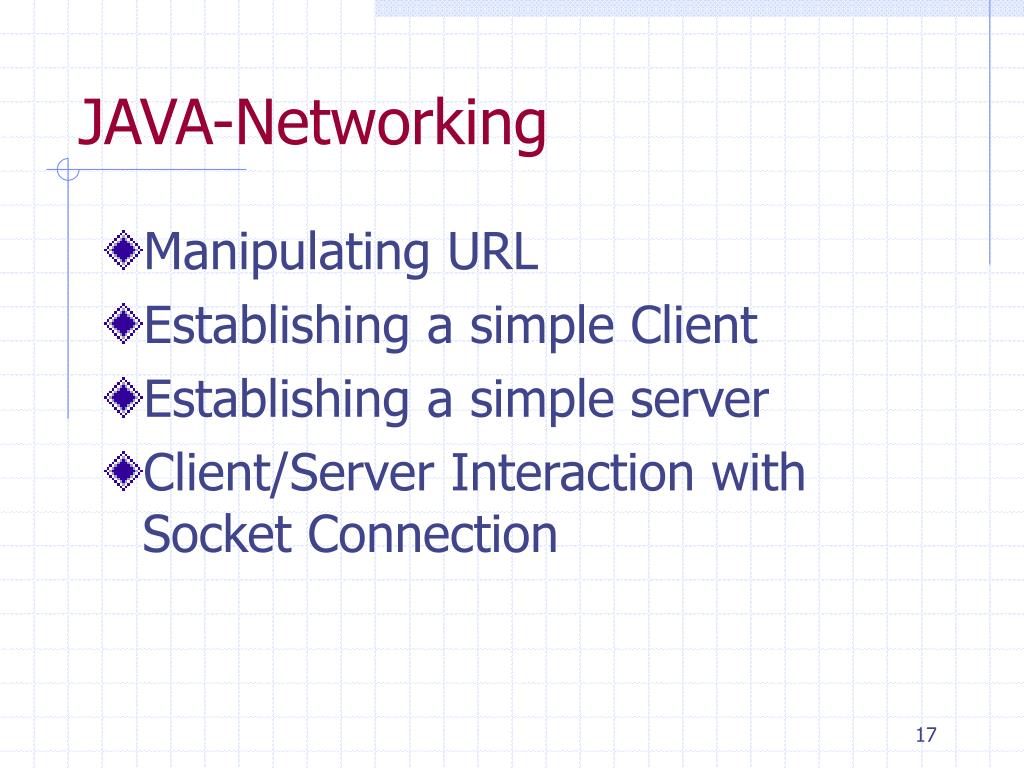

JAVA-Networking

  • Manipulating URL

  • Establishing a simple Client

  • Establishing a simple server

  • Client/Server Interaction with Socket Connection


Manipulating url

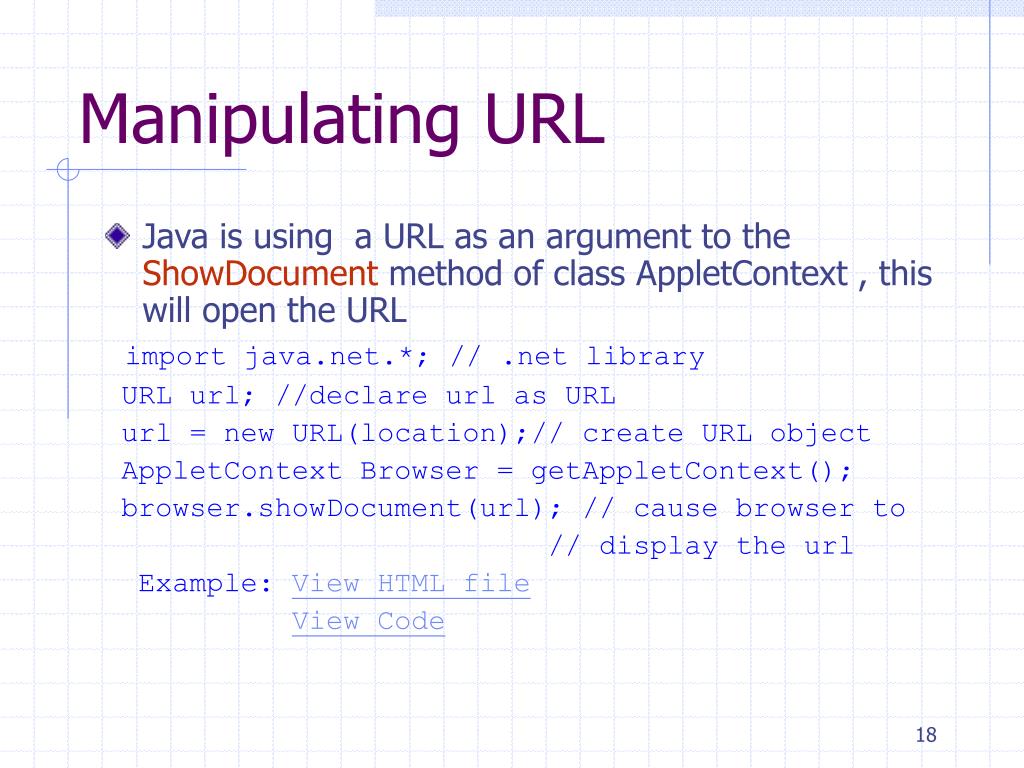

Manipulating URL

  • Java is using a URL as an argument to the ShowDocument method of class AppletContext , this will open the URL

    import java.net.*; // .net library

    URL url; //declare url as URL

    url = new URL(location);// create URL object

    AppletContext Browser = getAppletContext();

    browser.showDocument(url); // cause browser to

    // display the url

    Example: View HTML file

    View Code


Socket based communication

Socket-based communication

  • Socket is an abstraction that facilitates communication between a server and a client

  • Java treats socket communications much as it treats I/O operations

  • Thus, a program can read from a socket or write to a socket as simply as it can read from a file or writing to a file.

  • Java support stream socket and datagram socket

  • Stream socket use TCP(Transmission Control Protocol)

  • Datagram sockets use UDP(user datagram Protocol)


Client server

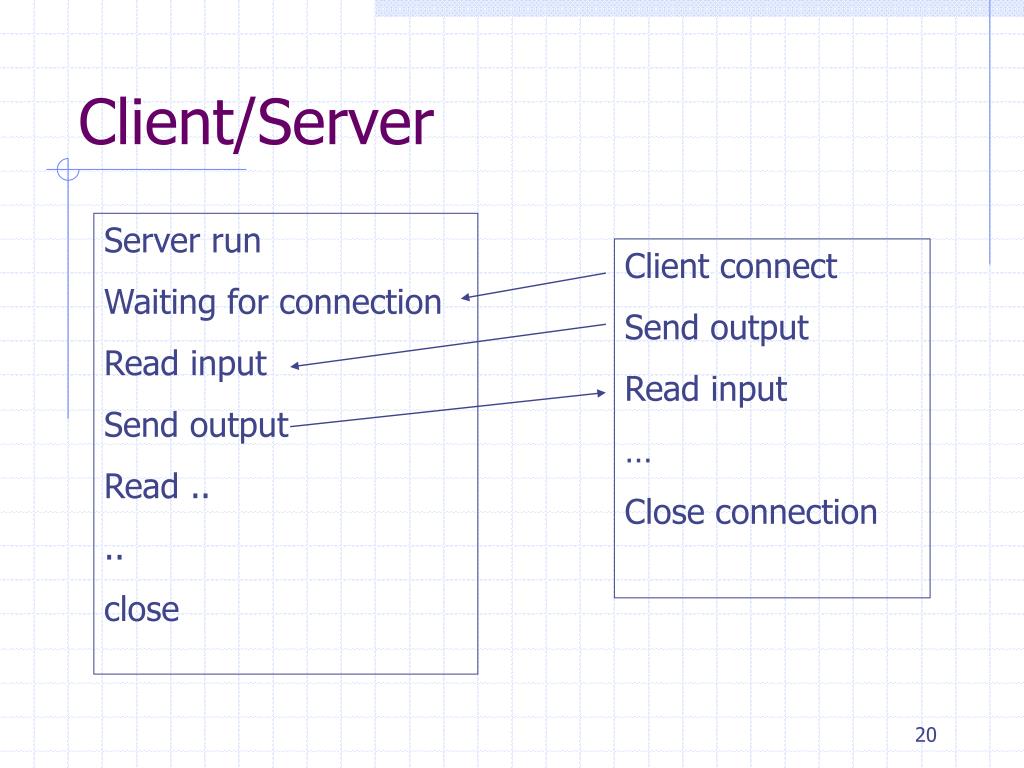

Client/Server

Server run

Waiting for connection

Read input

Send output

Read ..

..

close

Client connect

Send output

Read input

Close connection


Client server relationship

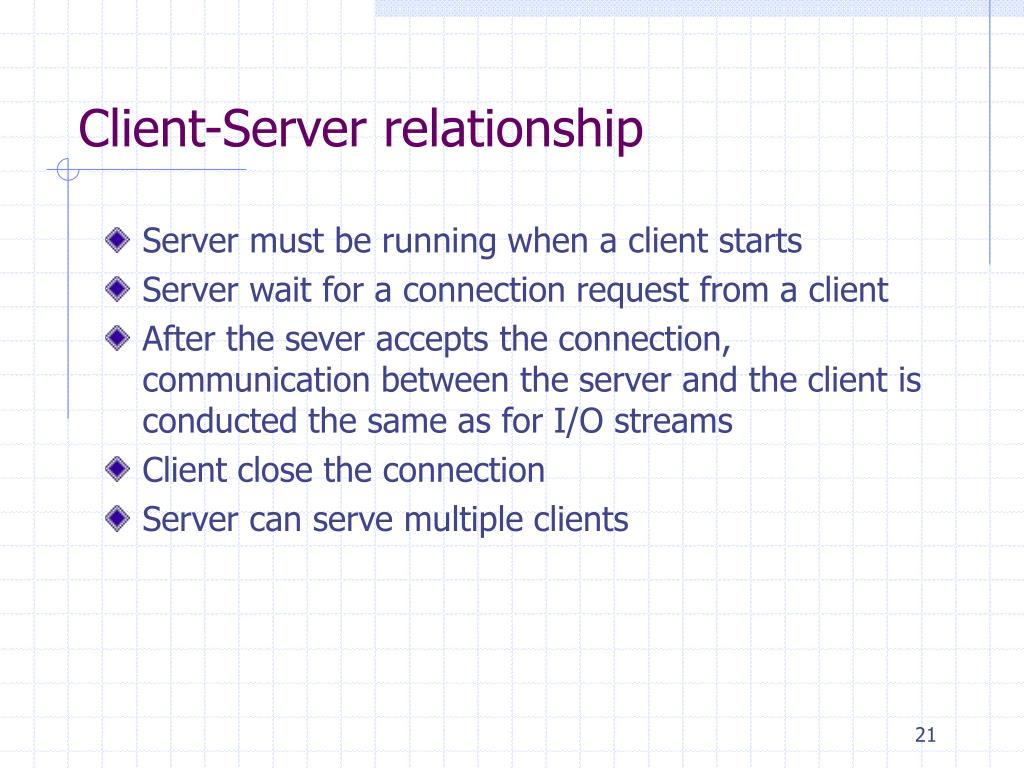

Client-Server relationship

  • Server must be running when a client starts

  • Server wait for a connection request from a client

  • After the sever accepts the connection, communication between the server and the client is conducted the same as for I/O streams

  • Client close the connection

  • Server can serve multiple clients


To establish a simple server

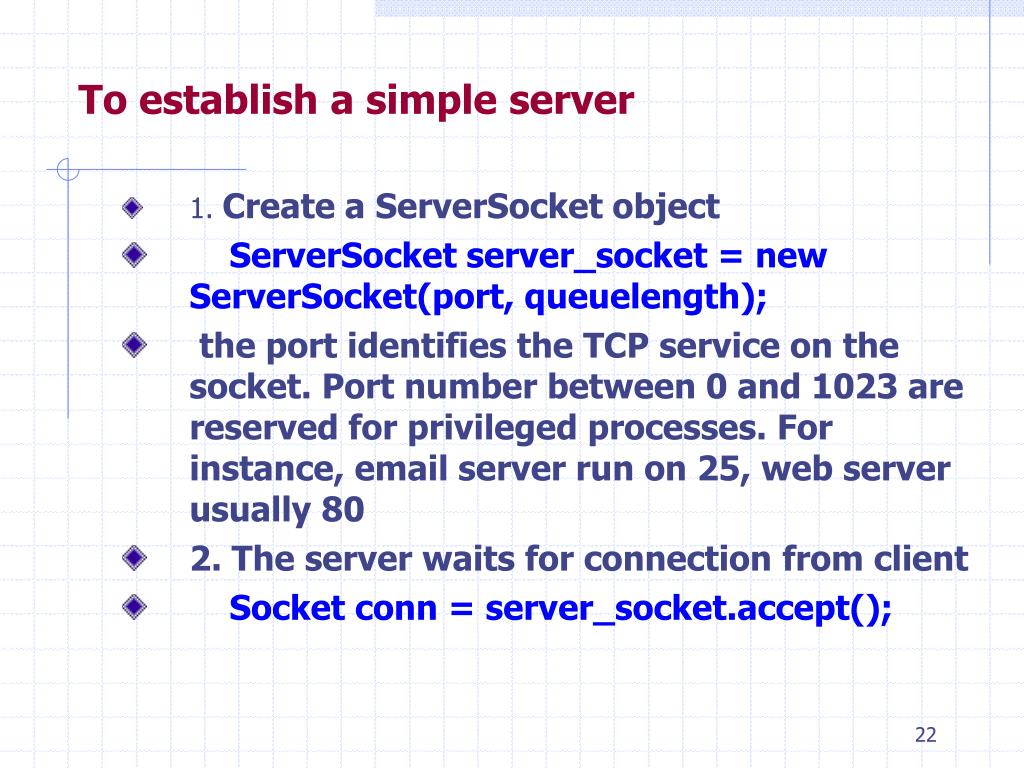

To establish a simple server

  • 1. Create a ServerSocket object

  • ServerSocket server_socket = new ServerSocket(port, queuelength);

  • the port identifies the TCP service on the socket. Port number between 0 and 1023 are reserved for privileged processes. For instance, email server run on 25, web server usually 80

  • 2. The server waits for connection from client

  • Socket conn = server_socket.accept();


To establish server continued

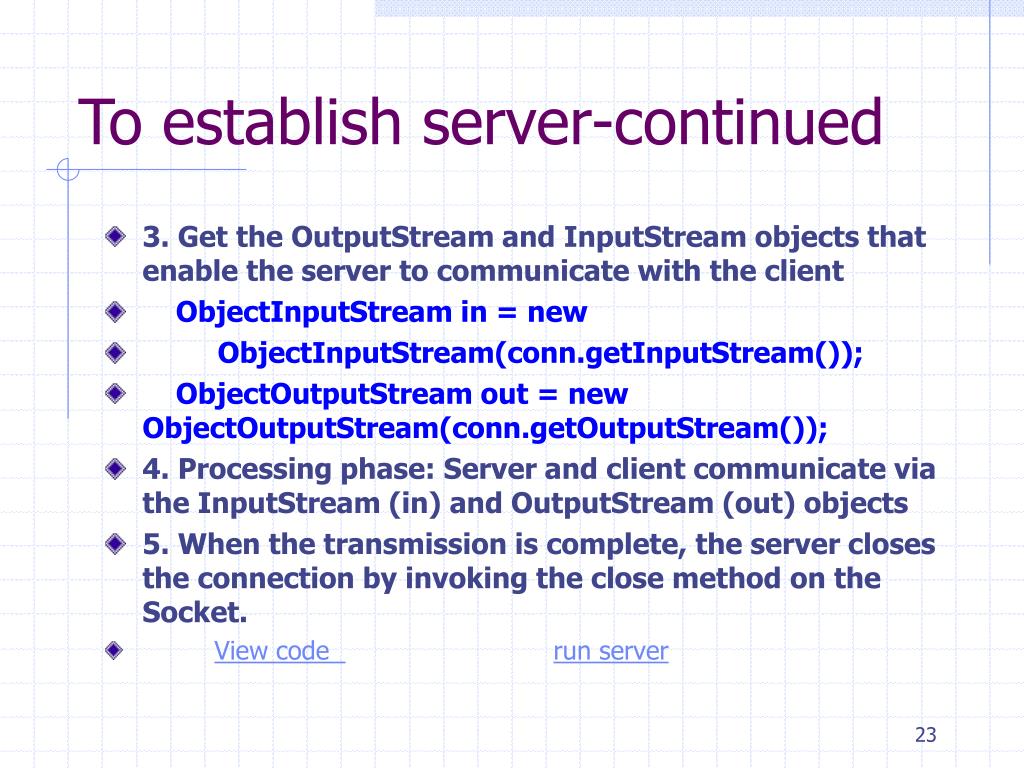

To establish server-continued

  • 3. Get the OutputStream and InputStream objects that enable the server to communicate with the client

  • ObjectInputStream in = new

  • ObjectInputStream(conn.getInputStream());

  • ObjectOutputStream out = new ObjectOutputStream(conn.getOutputStream());

  • 4. Processing phase: Server and client communicate via the InputStream (in) and OutputStream (out) objects

  • 5. When the transmission is complete, the server closes the connection by invoking the close method on the Socket.

  • View code run server


To establish a simple client

To establish a simple client

  • Create a Socket to connect to the server

    socket conn = new Socket(serverAddress, port);

  • Socket methods getInputStream and getoutputStream are used to get references to the Socket associated InputStream and OutputStream.

    3. Processing phase: Client and server communicate via the InputStream and OutputStream objects.

    4. When transmission is complete, the client closes the connection by invoking the close method on the Socket

    view code run clientrun client


Development tools

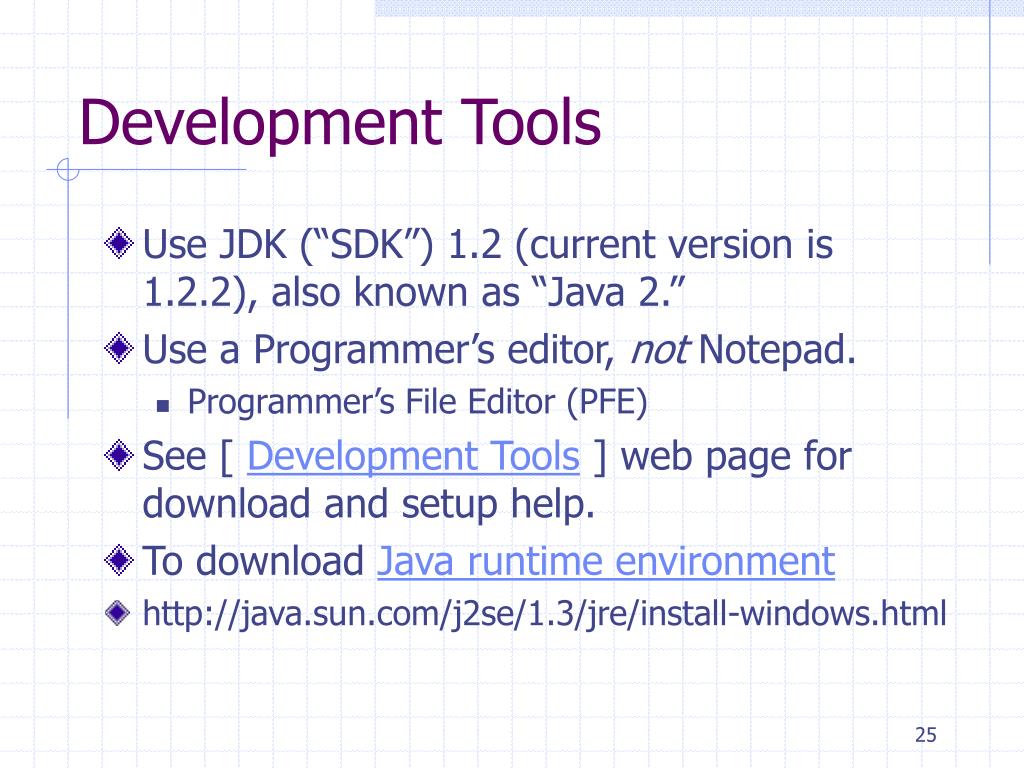

Development Tools

  • Use JDK (“SDK”) 1.2 (current version is 1.2.2), also known as “Java 2.”

  • Use a Programmer’s editor, not Notepad.

    • Programmer’s File Editor (PFE)

  • See [ Development Tools ] web page for download and setup help.

  • To download Java runtime environment

  • http://java.sun.com/j2se/1.3/jre/install-windows.html
