Gearing for Exabyte Storage with Hadoop Distributed Filesystem

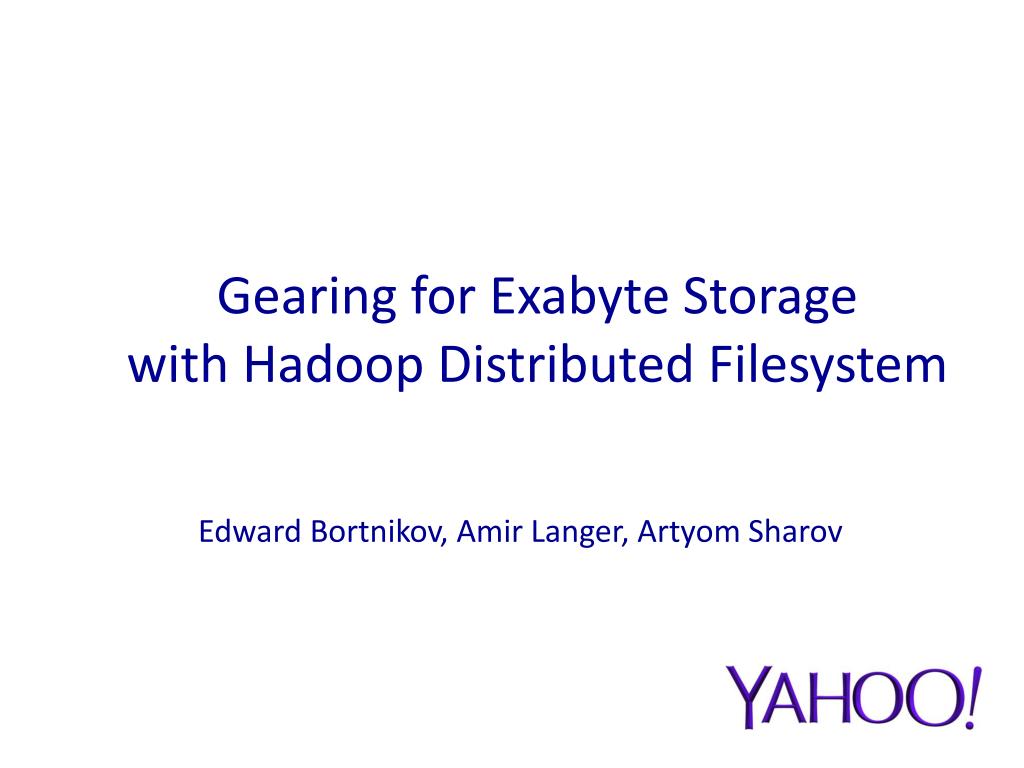

1. Gearing for Exabyte Storagewith Hadoop Distributed Filesystem Edward Bortnikov, Amir Langer, ArtyomSharov

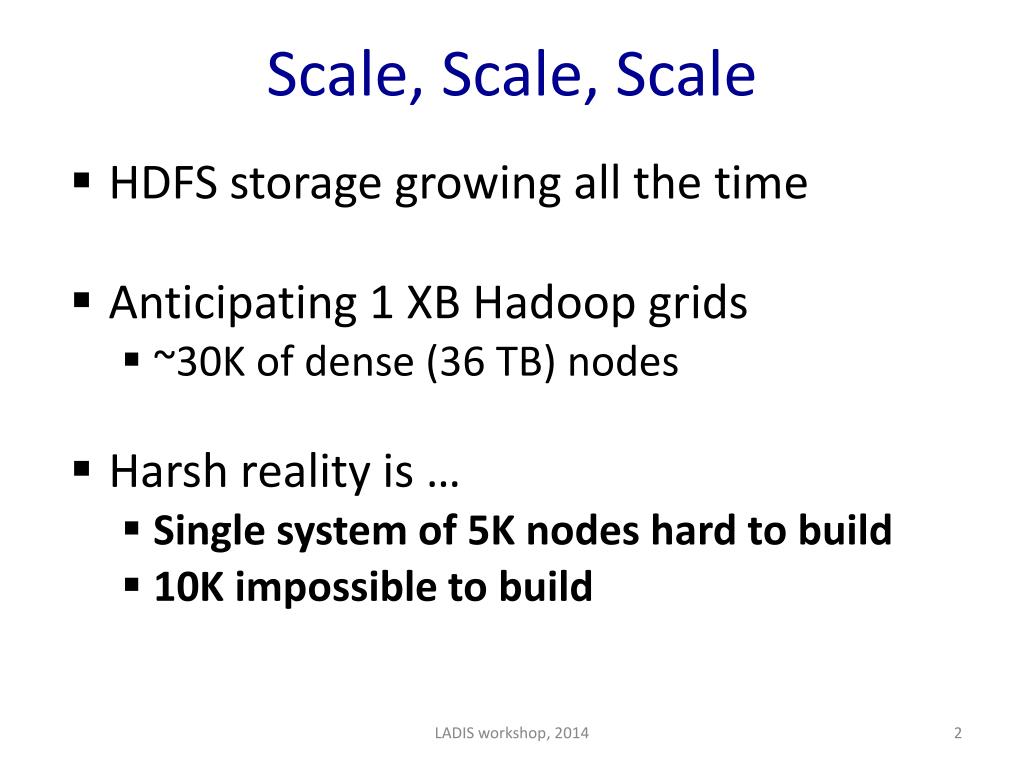

2. Scale, Scale, Scale • HDFS storage growing all the time • Anticipating 1 XB Hadoop grids • ~30K of dense (36 TB) nodes • Harsh reality is … • Single system of 5K nodes hard to build • 10K impossible to build LADIS workshop, 2014

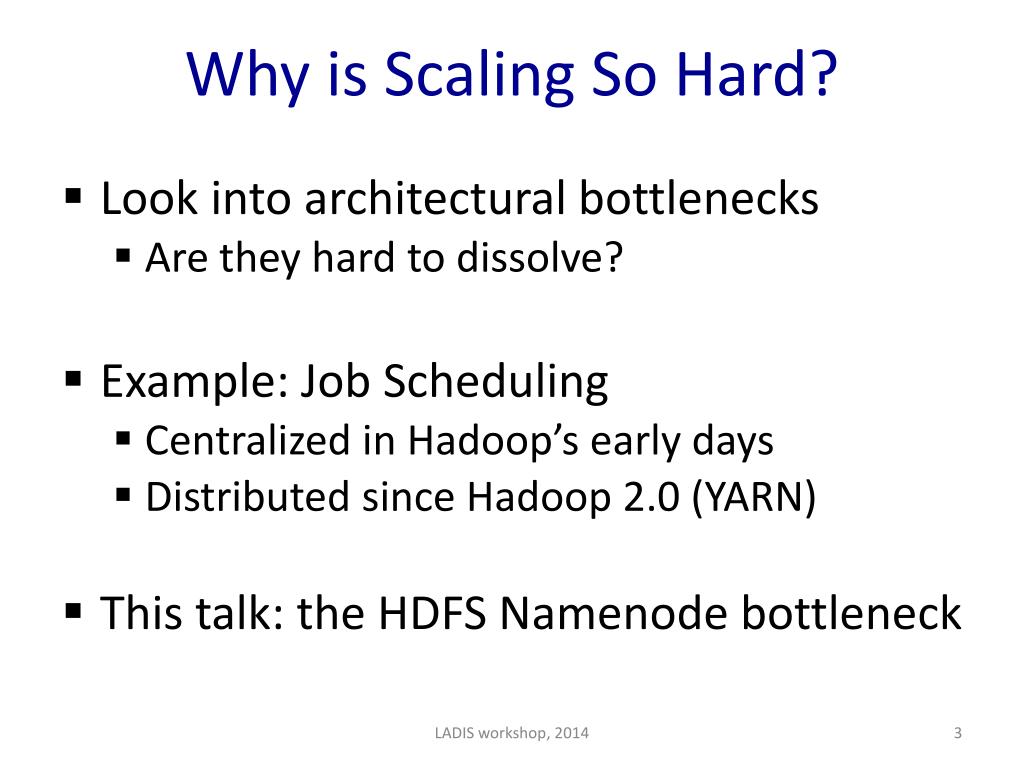

3. Why is Scaling So Hard? • Look into architectural bottlenecks • Are they hard to dissolve? • Example: Job Scheduling • Centralized in Hadoop’s early days • Distributed since Hadoop 2.0 (YARN) • This talk: the HDFS Namenode bottleneck LADIS workshop, 2014

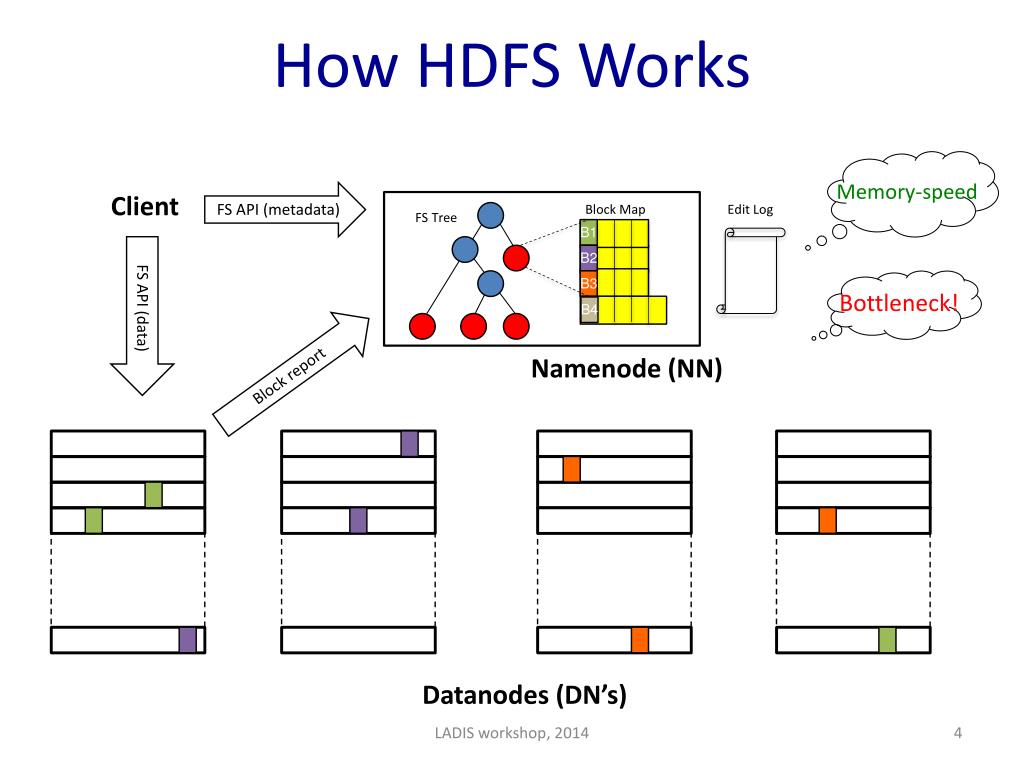

4. How HDFS Works Memory-speed FS API (metadata) Client Block Map Edit Log FS Tree B1 B2 B3 Bottleneck! FS API (data) B4 Block report Namenode (NN) Datanodes (DN’s) LADIS workshop, 2014

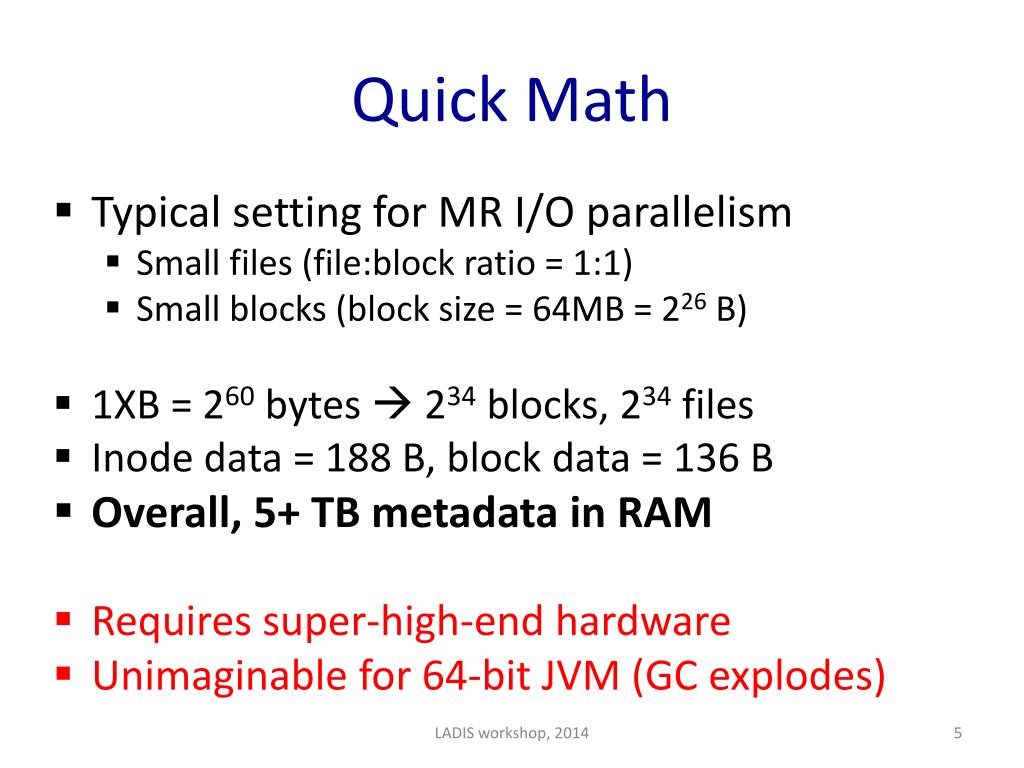

5. Quick Math • Typical setting for MR I/O parallelism • Small files (file:blockratio = 1:1) • Small blocks (block size = 64MB = 226 B) • 1XB = 260bytes  234 blocks, 234files • Inode data = 188 B, block data = 136 B • Overall, 5+ TB metadata in RAM • Requires super-high-end hardware • Unimaginable for 64-bit JVM (GC explodes) LADIS workshop, 2014

6. Optimizing the Centralized NN • Reduce the use of Java references (HDFS-6658) • Save 20% of block data • Off-heap data storage (HDFS-7244) • Most of the block data outside the JVM • Off-heap data management via a slab allocator • Negligible penalty for accessing non-Java memory • Exploit entropy in file and directory names • Huge redundancy in text LADIS workshop, 2014

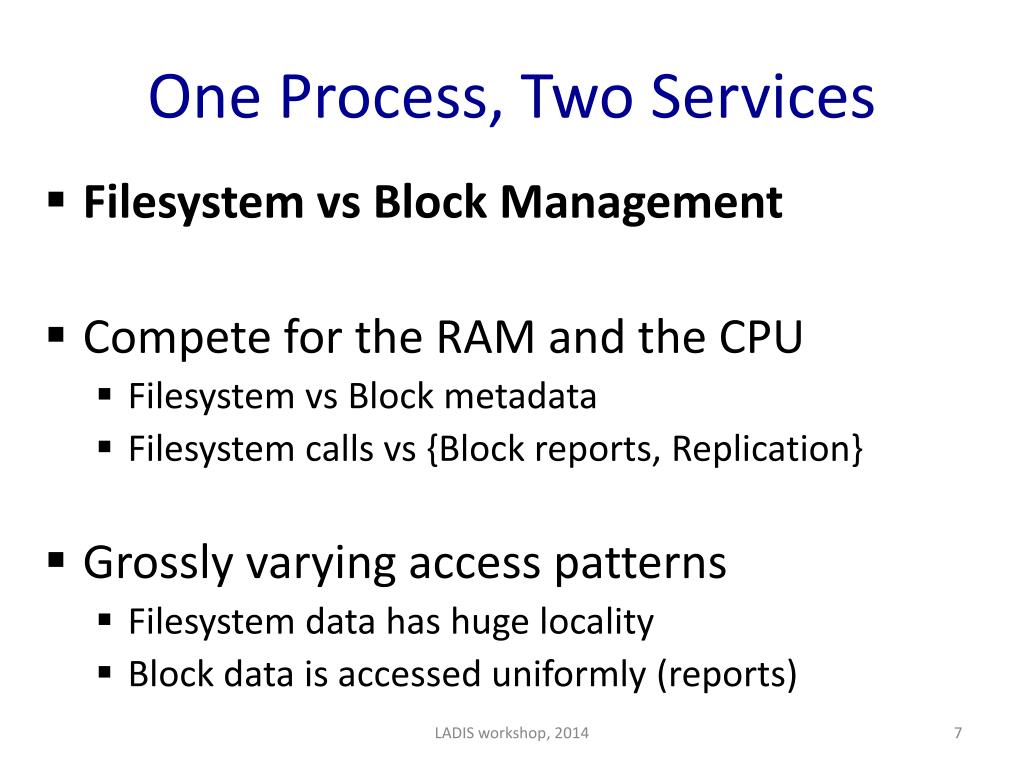

7. One Process, Two Services • Filesystem vs Block Management • Compete for the RAM and the CPU • Filesystem vs Block metadata • Filesystem calls vs {Block reports, Replication} • Grossly varying access patterns • Filesystem data has huge locality • Block data is accessed uniformly (reports) LADIS workshop, 2014

8. We Can Gain from a Split • Scalability • Easier to scale the services independently, on separate hardware • Usability • Standalone block management API attractive for applications (e.g., object store - HDFS-7240) LADIS workshop, 2014

9. The Pros • Block Management • Easy to infinitely scale horizontally (flat space) • Can be physically co-located with datanodes • Filesystem Management • Easy to scale vertically (cold storage - HDFS-5389) • De-facto, infinite scalability • Almost always memory speed LADIS workshop, 2014

10. The Cons • Extra Latency • Backward compatibility of API requires an extra network hop (can be optimized) • Management Complexity • Separate service lifecycles • New failure/recovery scenarios (can be mitigated) LADIS workshop, 2014

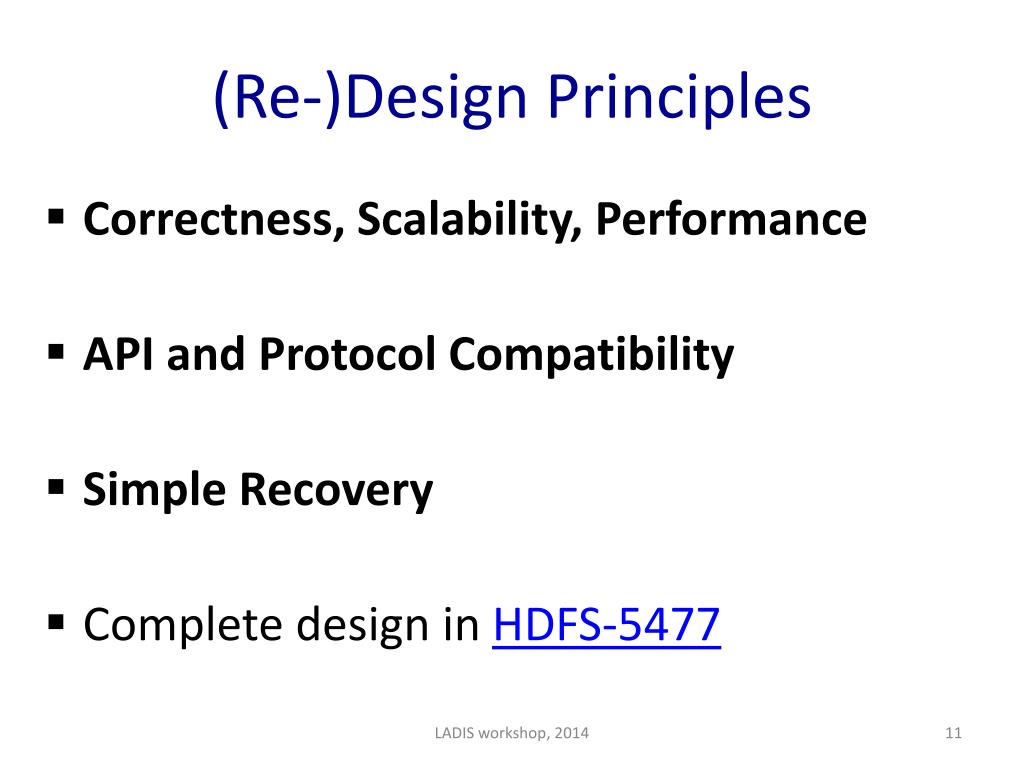

11. (Re-)Design Principles • Correctness, Scalability, Performance • API and Protocol Compatibility • Simple Recovery • Complete design in HDFS-5477 LADIS workshop, 2014

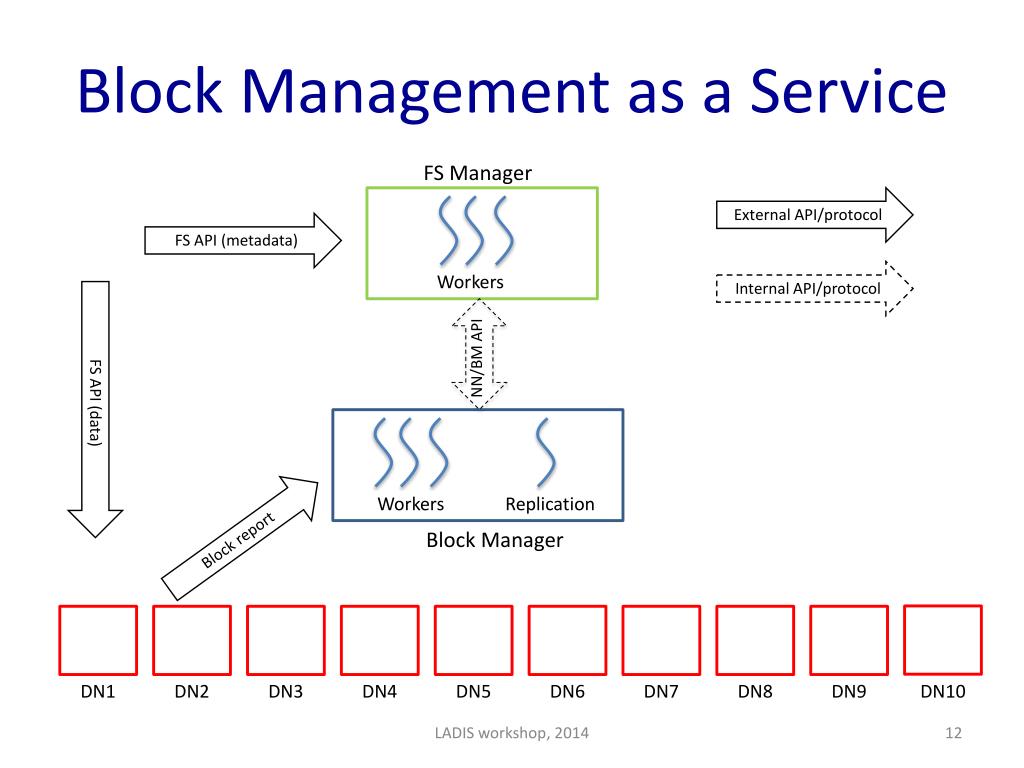

12. Block Management as a Service FS Manager External API/protocol FS API (metadata) Internal API/protocol Workers NN/BM API FS API (data) Workers Replication Block report Block Manager DN1 DN2 DN3 DN4 DN5 DN6 DN7 DN8 DN9 DN10 LADIS workshop, 2014

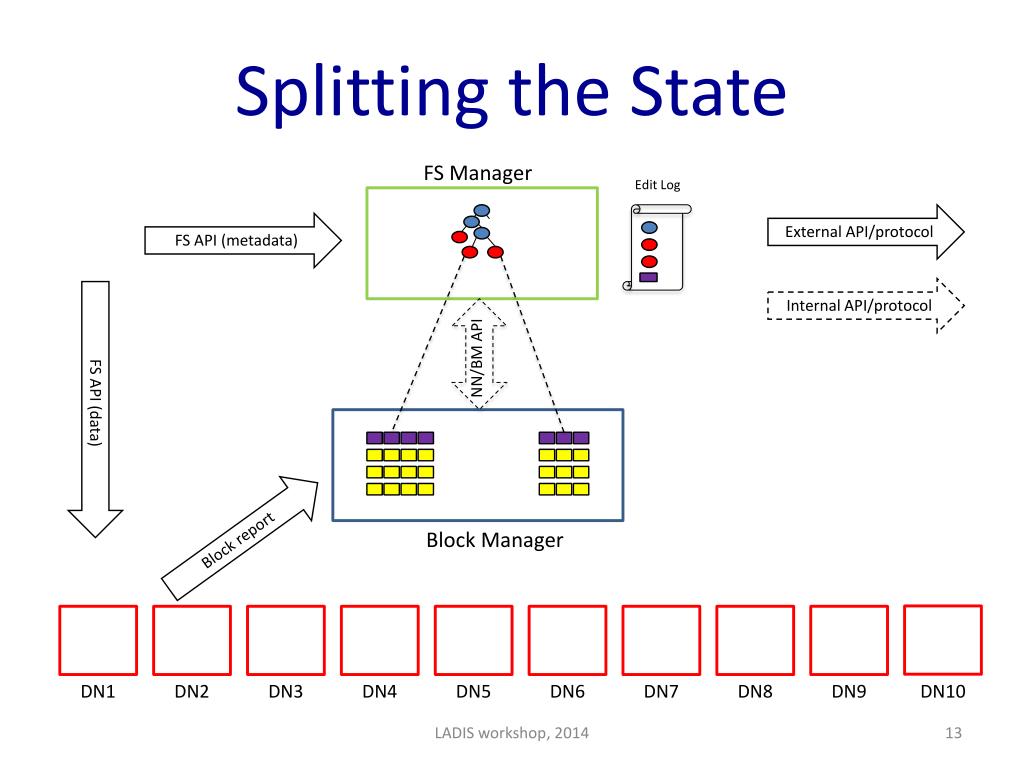

13. Splitting the State FS Manager Edit Log External API/protocol FS API (metadata) Internal API/protocol NN/BM API FS API (data) Block report Block Manager DN1 DN2 DN3 DN4 DN5 DN6 DN7 DN8 DN9 DN10 LADIS workshop, 2014

14. Scaling Out the Block Management FS Manager Edit Log Block Collection BM3 BM1 BM2 BM4 BM5 Partitioned Block Manager DN1 DN2 DN3 DN4 DN5 DN6 DN7 DN8 DN9 DN10 Block Pool LADIS workshop, 2014

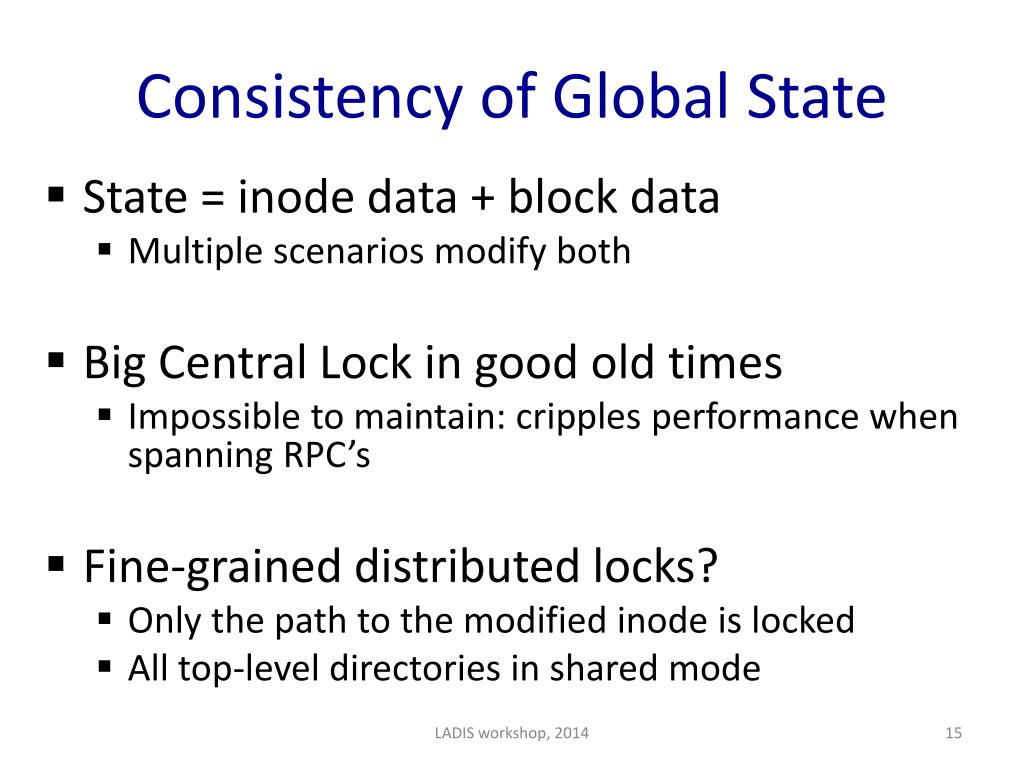

15. Consistency of Global State • State = inode data + block data • Multiple scenarios modify both • Big Central Lock in good old times • Impossible to maintain: cripples performance when spanning RPC’s • Fine-grained distributed locks? • Only the path to the modified inode is locked • All top-level directories in shared mode LADIS workshop, 2014 Add block to /d1/f2 / d1 d2 No real contention! f1  f2 f3 Add block to /d2/f3 / d1 d2 f1  f2 f3 Add block to /d2/f3 Add block to /d1/f2

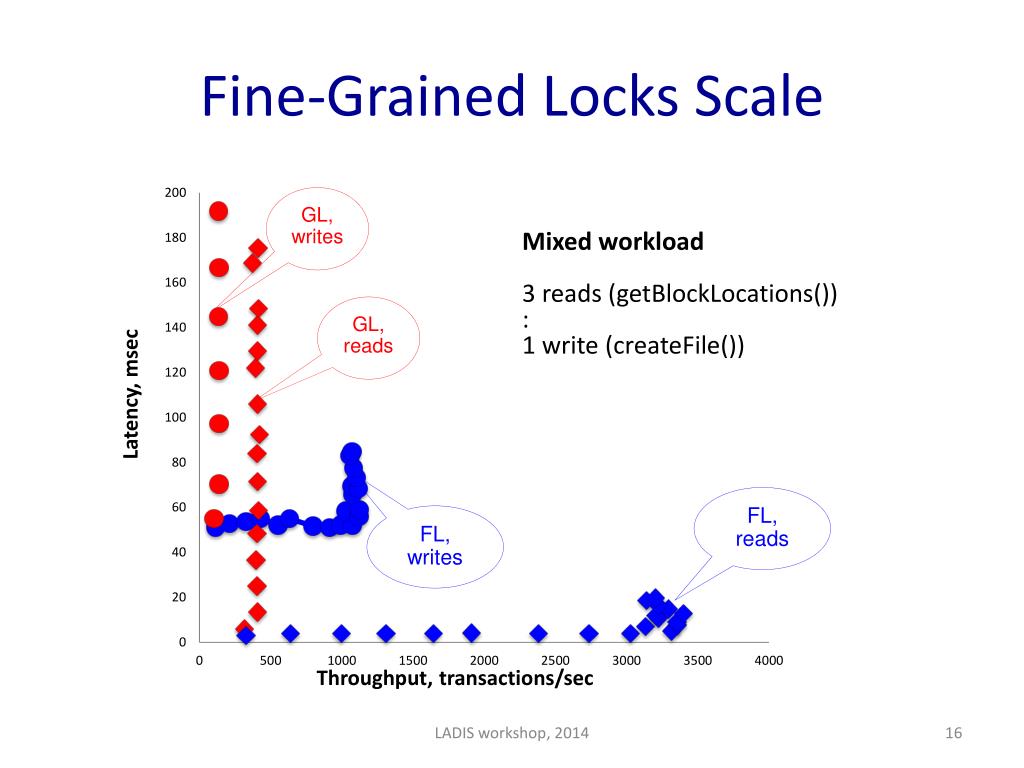

16. Fine-Grained Locks Scale GL, writes Mixed workload 3 reads (getBlockLocations()) : 1 write (createFile()) GL, reads Latency, msec FL, reads FL, writes Throughput, transactions/sec LADIS workshop, 2014 GL, writes GL, reads

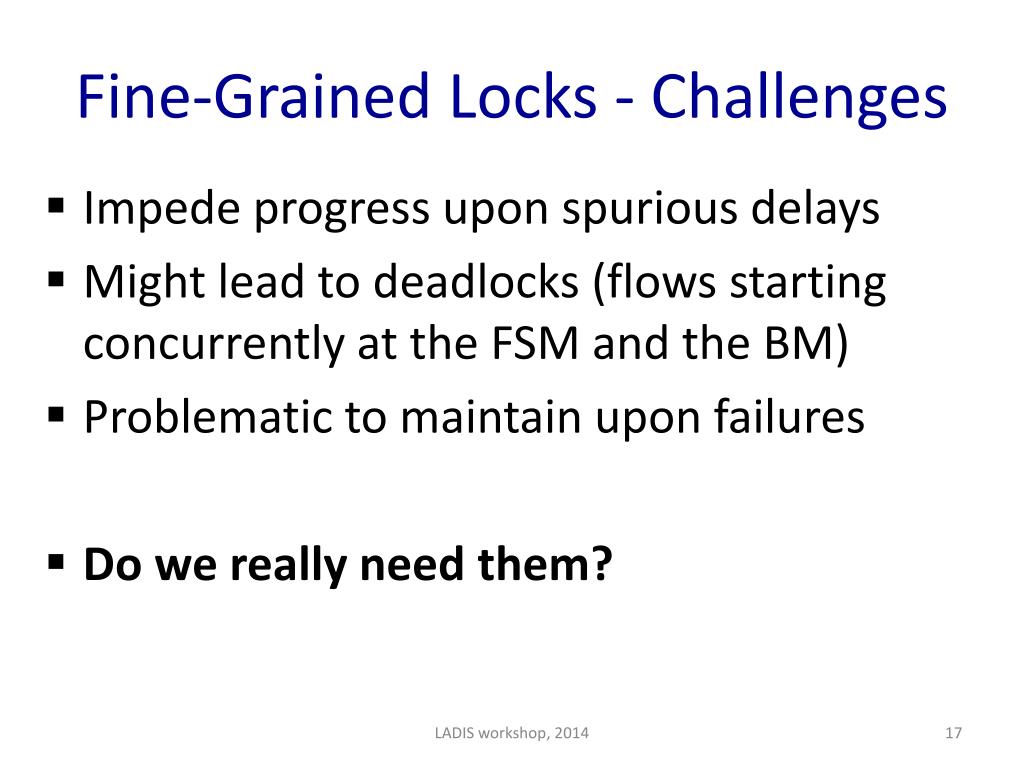

17. Fine-Grained Locks - Challenges • Impede progress upon spurious delays • Might lead to deadlocks (flows starting concurrently at the FSM and the BM) • Problematic to maintain upon failures • Do we really need them? LADIS workshop, 2014 Add block to /d1/f2 / d1 d2 No real contention! f1  f2 f3 Add block to /d2/f3 / d1 d2 f1  f2 f3 Add block to /d2/f3 Add block to /d1/f2

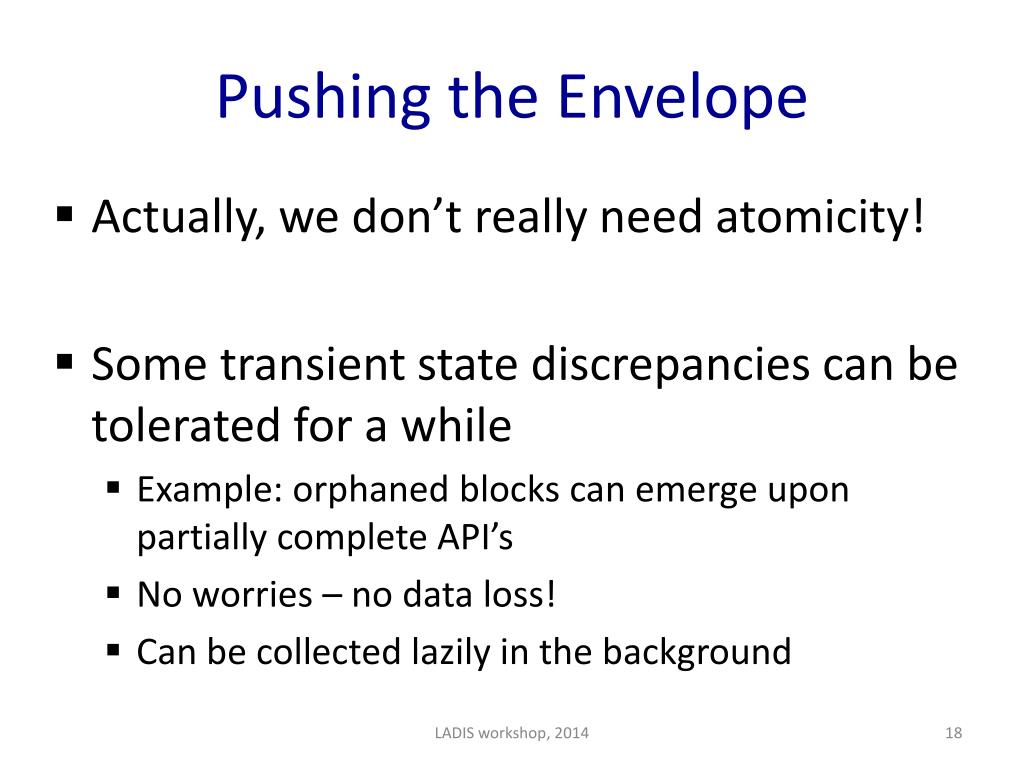

18. Pushing the Envelope • Actually, we don’t really need atomicity! • Some transient state discrepancies can be tolerated for a while • Example: orphaned blocks can emerge upon partially complete API’s • No worries – no data loss! • Can be collected lazily in the background LADIS workshop, 2014

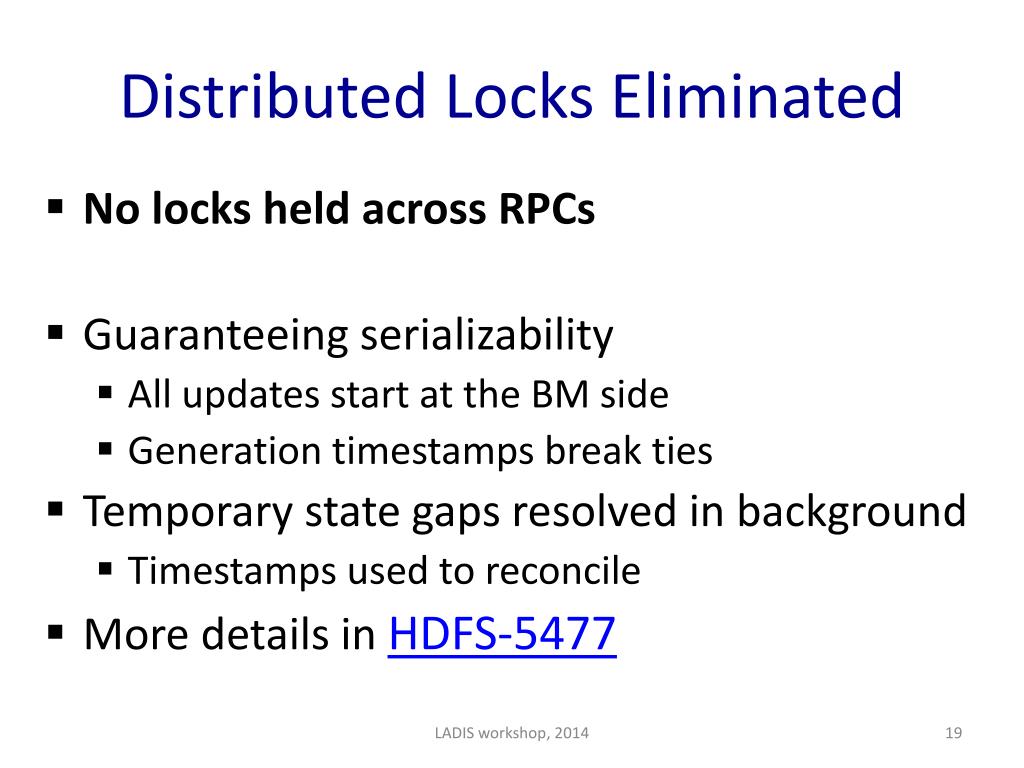

19. Distributed Locks Eliminated • No locks held across RPCs • Guaranteeing serializability • All updates start at the BM side • Generation timestamps break ties • Temporary state gaps resolved in background • Timestamps used to reconcile • More details in HDFS-5477 LADIS workshop, 2014

20. Beyond the Scope … • Scaling the network connections • Asynchronous dataflow architecture versus lock-based concurrency control • Multi-tier bootstrap and recovery LADIS workshop, 2014

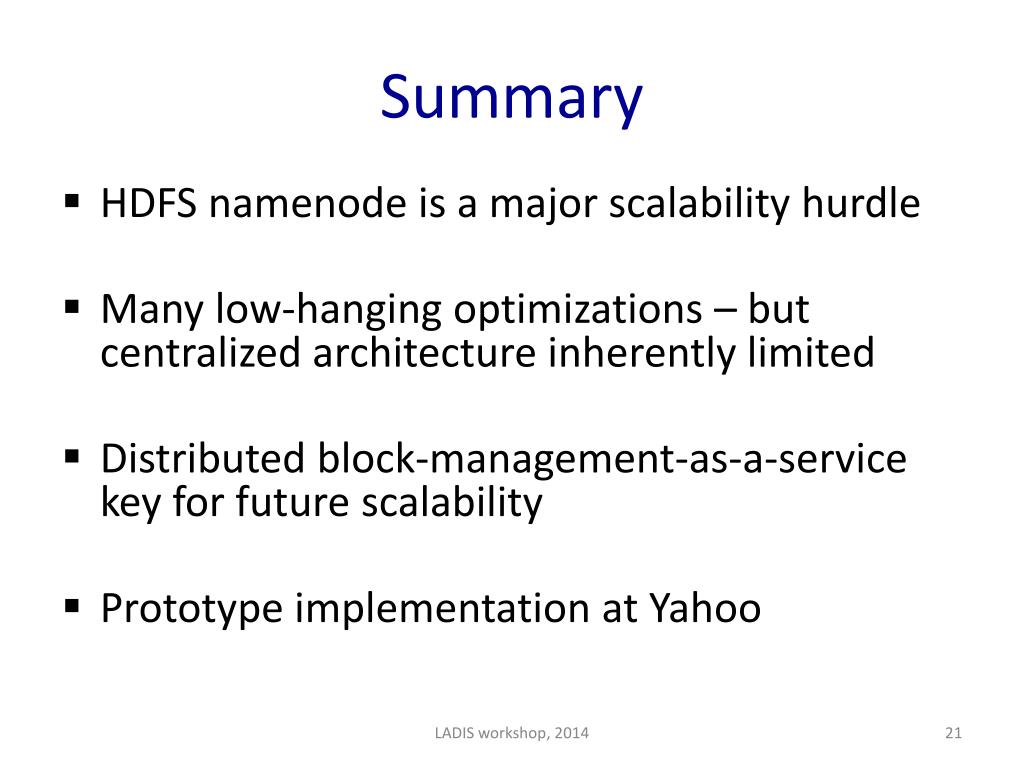

21. Summary • HDFS namenode is a major scalability hurdle • Many low-hanging optimizations – but centralized architecture inherently limited • Distributed block-management-as-a-service key for future scalability • Prototype implementation at Yahoo LADIS workshop, 2014

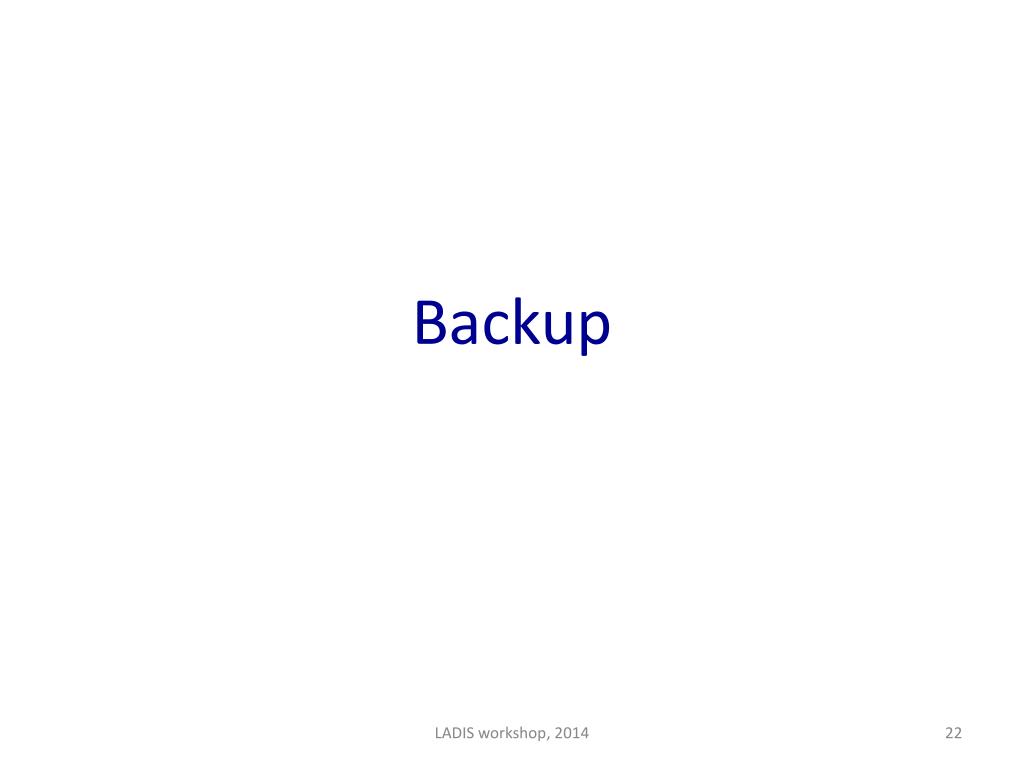

22. Backup LADIS workshop, 2014

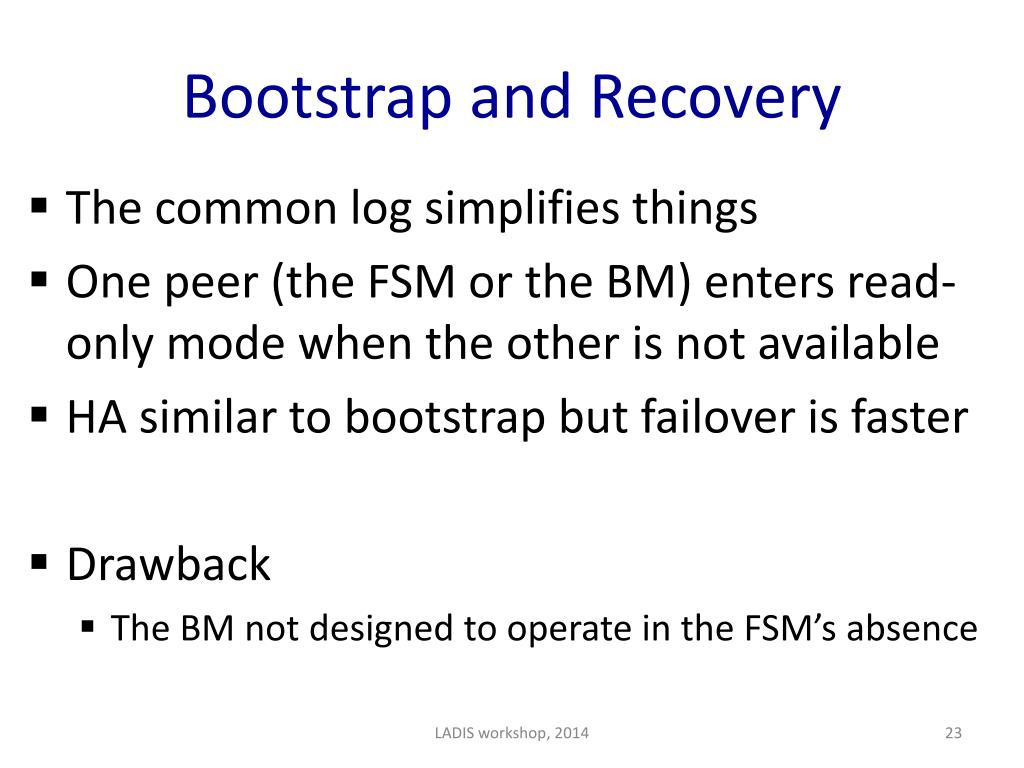

23. Bootstrap and Recovery • The common log simplifies things • One peer (the FSM or the BM) enters read-only mode when the other is not available • HA similar to bootstrap but failover is faster • Drawback • The BM not designed to operate in the FSM’s absence LADIS workshop, 2014

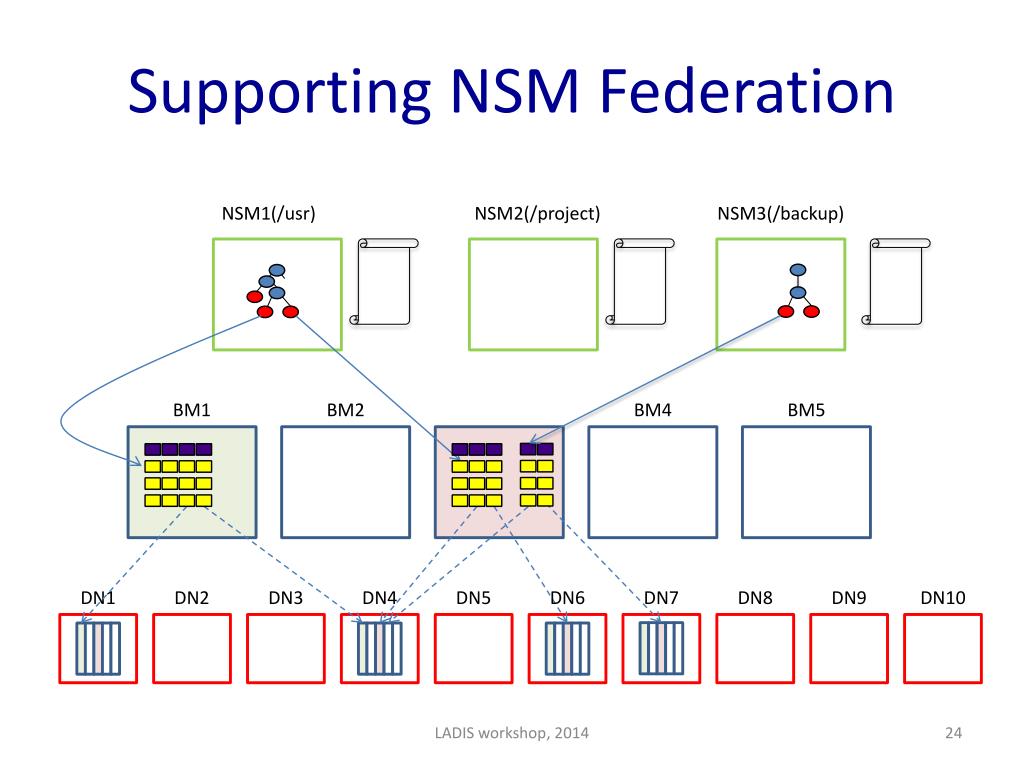

24. Supporting NSM Federation NSM1(/usr) NSM2(/project) NSM3(/backup) BM1 BM2 BM4 BM5 DN1 DN2 DN3 DN4 DN5 DN6 DN7 DN8 DN9 DN10 LADIS workshop, 2014
