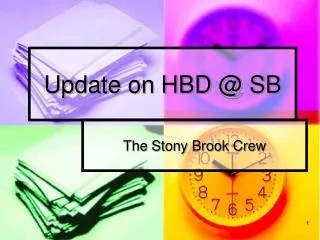

  1. Update on HBD @ SB The Stony Brook Crew

  2. QE Reproducible in Addn’l Test • Excellent QE again (basically identical). • Era of good QE production as the principal concern still over. • Working focus is maintaining QE after production.

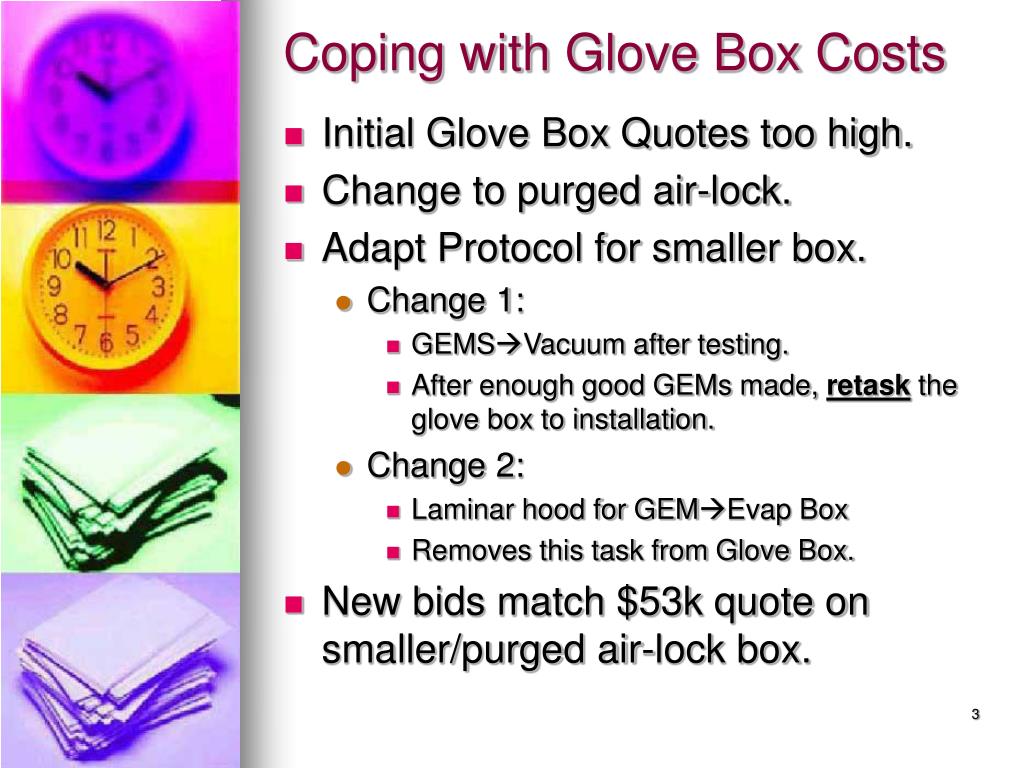

  3. Coping with Glove Box Costs • Initial Glove Box Quotes too high. • Change to purged air-lock. • Adapt Protocol for smaller box. • Change 1: • GEMSVacuum after testing. • After enough good GEMs made, retask the glove box to installation. • Change 2: • Laminar hood for GEMEvap Box • Removes this task from Glove Box. • New bids match $53k quote on smaller/purged air-lock box.

  4. $$$ redux. • Craig Woody & Co. have redesigned transparency monitor saving costs (see Craig’s talk). • Socoro placing order with sole source letter. • Advice: Stress compatibility and inter-changeable parts with existing spectrometer, • Overall reconsideration of costs in MRI • Should allow $53k box to be purchased within existing funds. • Still we’ll live lean after purchase. • New Bid process was out the door Tuesday this week.

  5. INFN Glove Box (failsafe plan) • Failsafe only (hopefully don’t need). • The gloves are home made design. • Suggestion from local company:“If you buy our smallest diameter 36” long glove and cut it to 20” long, to fit mounts you have.” • Leak tests (Vlad) show that the leaks are primarily bad design: • Threads on most all bolts leak. • One bolt missing (leaks like wind). • Possible to seal with Vacuum grease? • Not the favorite option: • Could be sealed. • No air-lock. • Mechanical changes to swap gloves.

  6. Laminar Table Installed • Tested and works! • Moved from “Room 7” to tent. • Just big enough for Evap Box. • Dramatically increased dexterity for handling GEMs prior to CsI deposition. • Costs for new filters slightly below our estimates in new budget (~80% of estimate).

  7. Vacuum Storage Box • New flanges for ends made. • Came in at estimated cost. • Still needs flange for turbo. • We’ll get pump (free) in a couple of weeks when Pietralla no longer needs one of the multiple beam lines he’s using.

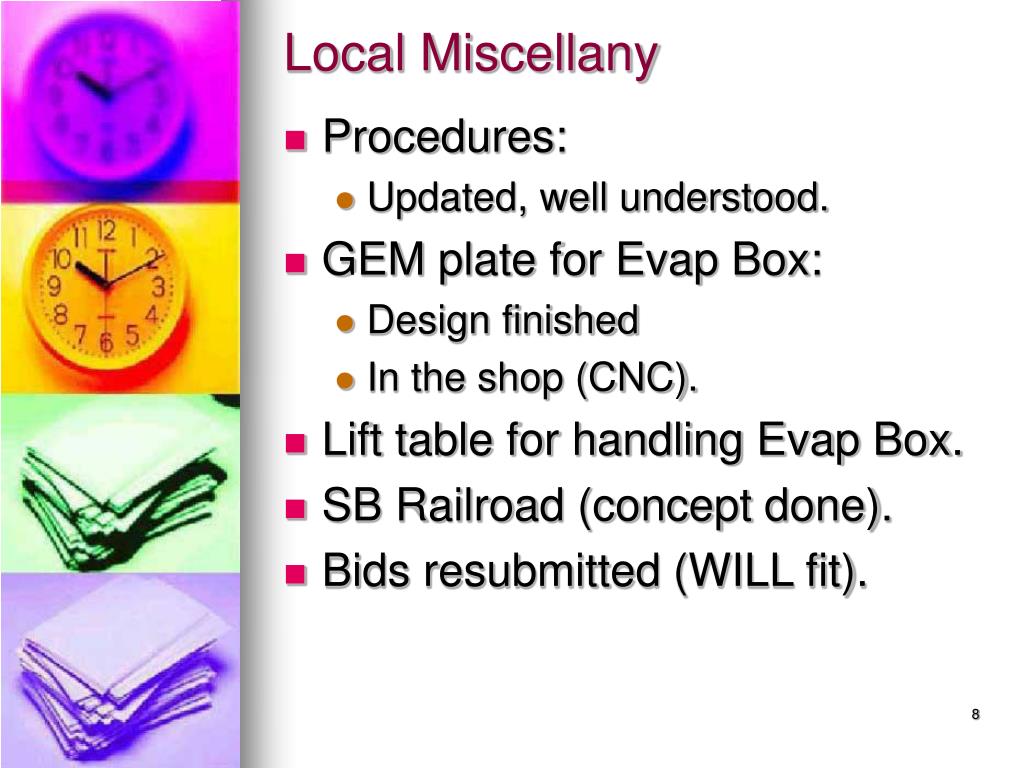

  8. Local Miscellany • Procedures: • Updated, well understood. • GEM plate for Evap Box: • Design finished • In the shop (CNC). • Lift table for handling Evap Box. • SB Railroad (concept done). • Bids resubmitted (WILL fit).
