Introduction to Kinematics

Introduction to Kinematics. 1-D Motion. Scalar. A SCALAR is ANY quantity in physics that has MAGNITUDE , but NOT a direction associated with it. Magnitude – A numerical value with units. Vector. A VECTOR is ANY quantity in physics that has BOTH MAGNITUDE and DIRECTION.

sonora
Download Presentation

Introduction to Kinematics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

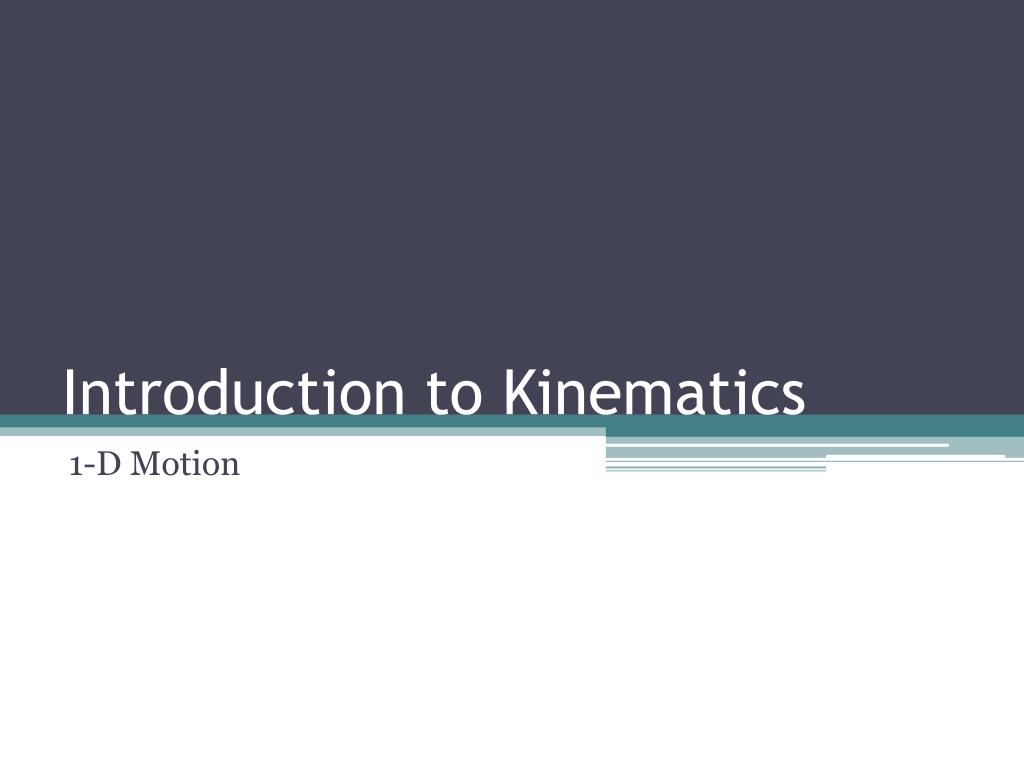

  1. Introduction to Kinematics 1-D Motion

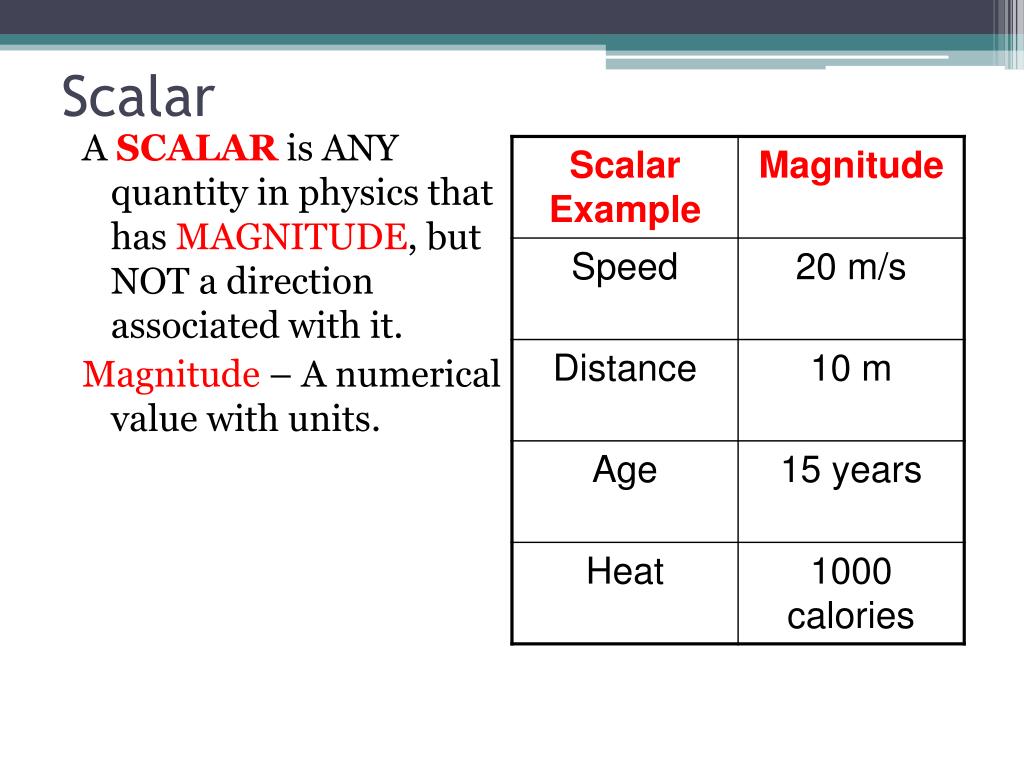

  2. Scalar A SCALAR is ANY quantity in physics that has MAGNITUDE, but NOT a direction associated with it. Magnitude – A numerical value with units.

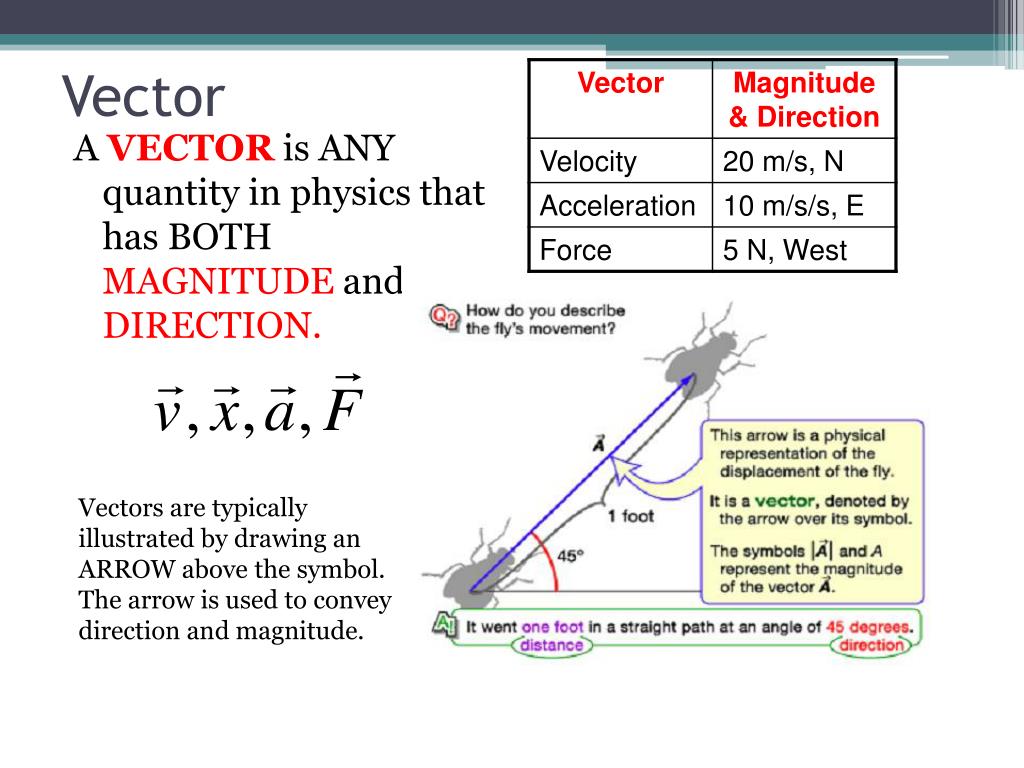

  3. Vector A VECTOR is ANY quantity in physics that has BOTH MAGNITUDE and DIRECTION. Vectors are typically illustrated by drawing an ARROW above the symbol. The arrow is used to convey direction and magnitude.

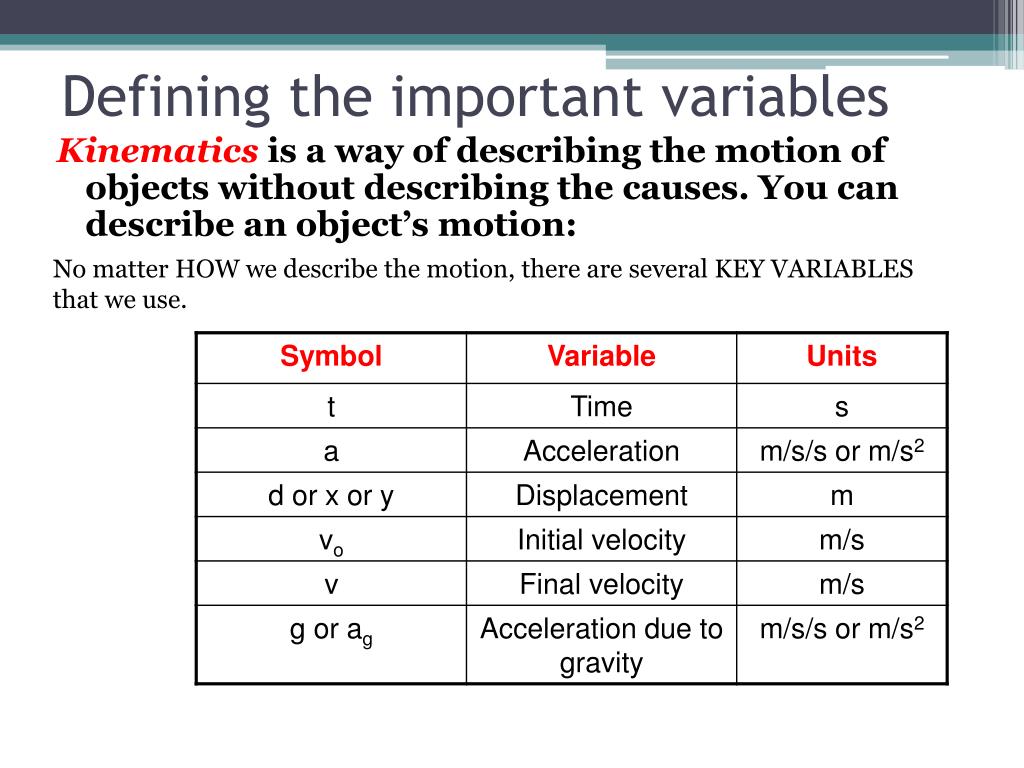

  4. Defining the important variables Kinematics is a way of describing the motion of objects without describing the causes. You can describe an object’s motion: No matter HOW we describe the motion, there are several KEY VARIABLES that we use.

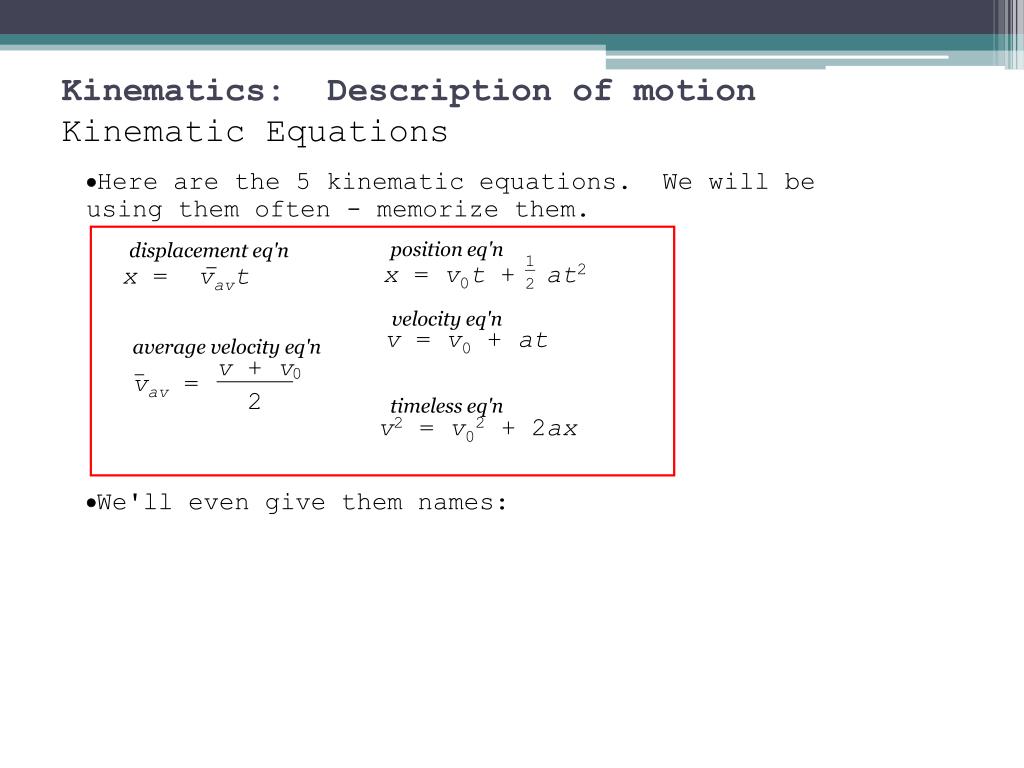

  5. v+ v 2 0 vav = 1 2 x = v0t+ at2 x = vavt Kinematics: Description of motionKinematic Equations Here are the 5 kinematic equations. We will be using them often - memorize them. position eq'n displacement eq'n velocity eq'n v = v0+ at average velocity eq'n timeless eq'n v2 = v02 + 2ax We'll even give them names:

  6. 1 2 x = v0t+ at2 v = v0+ at v2 = v02 + 2ax Kinematics: Description of motion2-4 Kinematic Equations

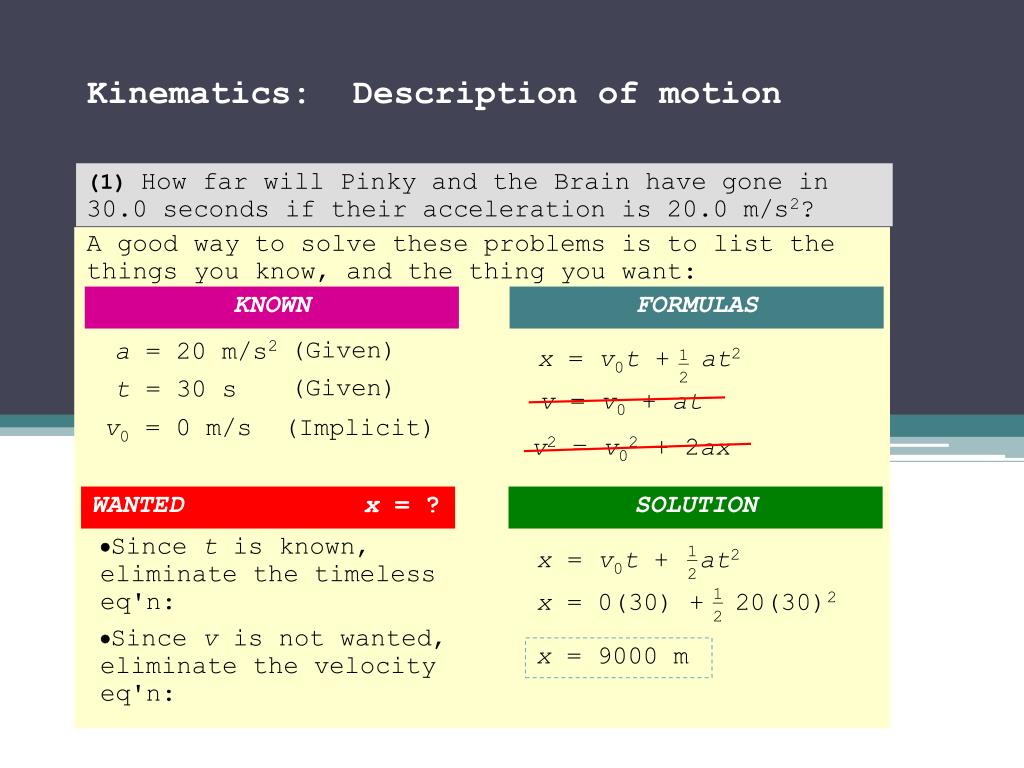

  7. 1 2 x = 0(30) + 20(30)2 1 2 x = v0t+ at2 x = v0t+ at2 1 2 (1) How far will Pinky and the Brain have gone in 30.0 seconds if their acceleration is 20.0 m/s2? A good way to solve these problems is to list the things you know, and the thing you want: Kinematics: Description of motion KNOWN FORMULAS (Given) a = 20 m/s2 (Given) t = 30 s v = v0+ at v0 = 0 m/s (Implicit) v2 = v02 + 2ax WANTED SOLUTION x = ? Since t is known, eliminate the timeless eq'n: Since v is not wanted, eliminate the velocity eq'n: x = 9000 m

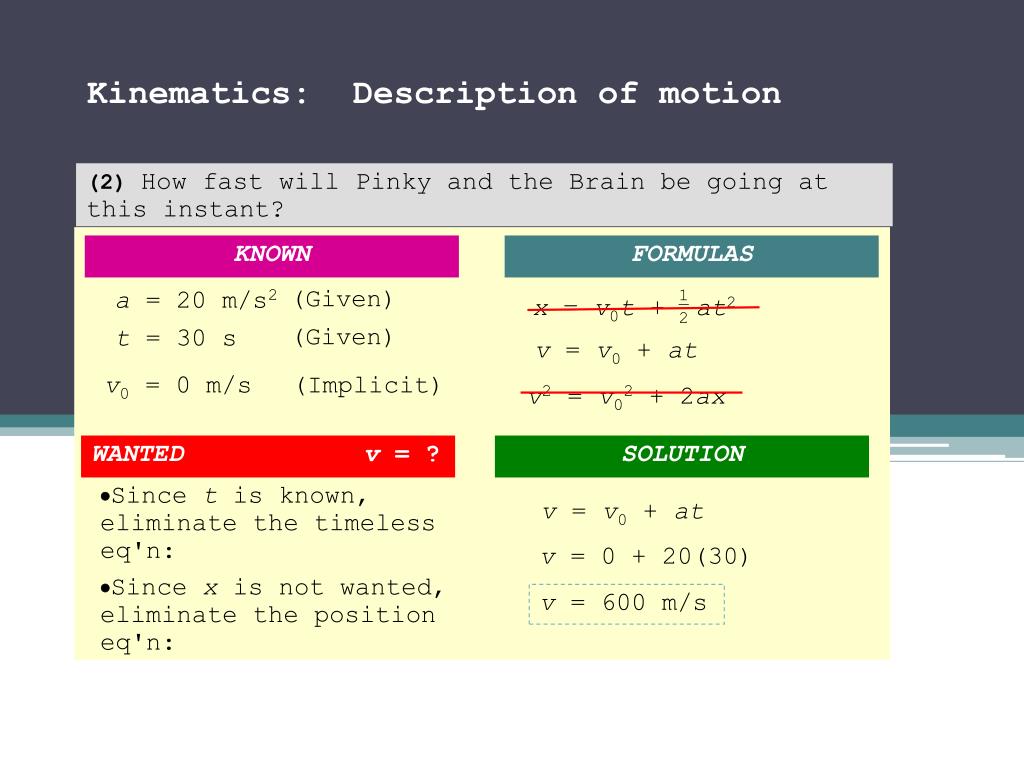

  8. 1 2 x = v0t+ at2 (2) How fast will Pinky and the Brain be going at this instant? KNOWN FORMULAS Kinematics: Description of motion (Given) a = 20 m/s2 (Given) t = 30 s v = v0+ at v0 = 0 m/s (Implicit) v2 = v02 + 2ax WANTED SOLUTION v = ? Since t is known, eliminate the timeless eq'n: v = v0+ at v = 0+ 20(30) Since x is not wanted, eliminate the position eq'n: v = 600 m/s

  9. 1 2 x = v0t+ at2 (3) How fast will Pinky and the Brain be going when they have traveled a total of 18000. m? KNOWN FORMULAS Kinematics: Description of motion (Given) a = 20 m/s2 (Given) x = 18000 m v = v0+ at v0 = 0 m/s (Implicit) v2 = v02 + 2ax WANTED SOLUTION v = ? Since t is not known, eliminate the position and the velocity eq'n: v2 = v02 + 2ax v2 = v02 + 2a(x) v2 = 02 + 2(20)(18000) v2 = 720000 v = 720000 v = 849 m/s
