  1. JET ENGINE MECHANICAL ARRANGEMENT More generally known as ‘GAS TURBINE’ Engine THE WORKING PARTS OF A JET ENGINE

  2. Rolls-Royce AVON – Canberra – 1950’s technology JET ENGINE MECHANICAL ARRANGEMENT

  3. Fuel, Oil, and Hydraulic Pumps, Electrical Generators, RPM Governor. Rolls-Royce AVON - (Graphic Representation) Compressor Handling Bleed Valve Front Engine Mount Rear Compressor Case Combustion Chambers (Cans) Intake Anti-Icing Tube Jet Pipe (Exhaust) Front Compressor Casing Accessory Gearbox Oil Tank Turbine Section Rear Engine Mount JET ENGINE MECHANICAL ARRANGEMENT

  4. Turbo-jet = no Bypass Duct JET ENGINE MECHANICAL ARRANGEMENT

  5. FRONT BULLET AND SUPPORT VANES SUPPORT BEARINGS REAR CONE AND SUPPORT VANES NOZZLE GUIDE VANES (NGV’S) STATOR VANES COMPRESSOR OUTER CASINGS COMBUSTION OUTER CASINGS COMBUSTION INNER CASING COMBUSTION FLAME TUBE Engine Casings – Static Assembly JET ENGINE MECHANICAL ARRANGEMENT

  6. Compressor Blades Turbine Blades Shaft Assembly Rotating Assembly JET ENGINE MECHANICAL ARRANGEMENT

  7. Above ambient Ambient temp 450 Deg C 2,500 Deg C 1,000 Deg C The shaded area is called the ‘GAS PATH’. These sections expand first Problem! Temperature changes cause the shaft and casings to expand and contract But by different amounts! This could put tremendous unwanted forces on the casings and shaft leading to failures (We’ll look at what happens to the air passing through the GAS PATH in Gas Turbine Operation.) Solution? Its all in the bearings! JET ENGINE MECHANICAL ARRANGEMENT

  8. Front Bearing Chamber Centre Bearing Chamber Rear Bearing Chamber Roller Bearing Ball Bearing (Location Bearing) Roller Bearing Bearing Chambers JET ENGINE MECHANICAL ARRANGEMENT

  9. Ball Bearings Provide Positive Axial Location Hot section Casing Shaft Front Bearing Chamber Centre Bearing Chamber Rear Bearing Chamber Casing Representation of jet engine bearing layout JET ENGINE MECHANICAL ARRANGEMENT

  10. Casing Then, with ‘heat soak’ the shaft expands Casing Shaft and Casing have no differential movement at this point Representation of jet engine layout The casing expands first - pushing the rear outer bearing with it The same happens at the front with pressured air and heat sink from the combustor heating the hardware The engine is actually designed to dimensions based on normal operating temperatures Shaft JET ENGINE MECHANICAL ARRANGEMENT

  11. JET ENGINE COMBUSTOR OPERATION WHERE THE POWER IS PRODUCED

  12. THE COMBUSTION PROCESS IN A PISTON ENGINE: - FUEL IS MIXED WITH AIR BEFORE ENTERING THE CYLINDERS THE FUEL/AIR MIXTURE IS THEN COMPRESSED THEN IT IS IGNITED BY A SPARK ONCE FOR TWO REVS OF THE ENGINE (IN THE 4 STROKE CYCLE) IN A JET ENGINE: - AIR IS COMPRESSED AND FORCED INTO THE COMBUSTOR FIRST THEN THE FUEL IS SPRAYED IN UNDER PRESSURE IT IS THEN IGNITED BY A SPARK (BUT ONLY ONCE FOR STARTING) COMBUSTION IS THEN CONTINUOUS WHILST THE ENGINE IS RUNNING THE SAME AS A PLUMBERS BLOW TORCH! JET ENGINE – Combustion Process

  13. We’re going to look in detail at what happens here But first we’ll look at the layout of the combustion system JET ENGINE – Combustor Layout

  14. ENGINE STRUCTURE AND SHAFTS EACH CAN HAS A FUEL SPRAY NOZZLE (FSN) OUTER CASING INNER CASING COMBUSTOR LAYOUT – (ALSO HISTORICAL DEVELOPMENT) INDIVIDUAL COMBUSTORS – ‘CANS’ 1st JET ENGINES WHITTLE ETC FLAME CONTAINED WITHIN THIS TUBE ‘FLAME-TUBE’ JET ENGINE – Combustor Layout

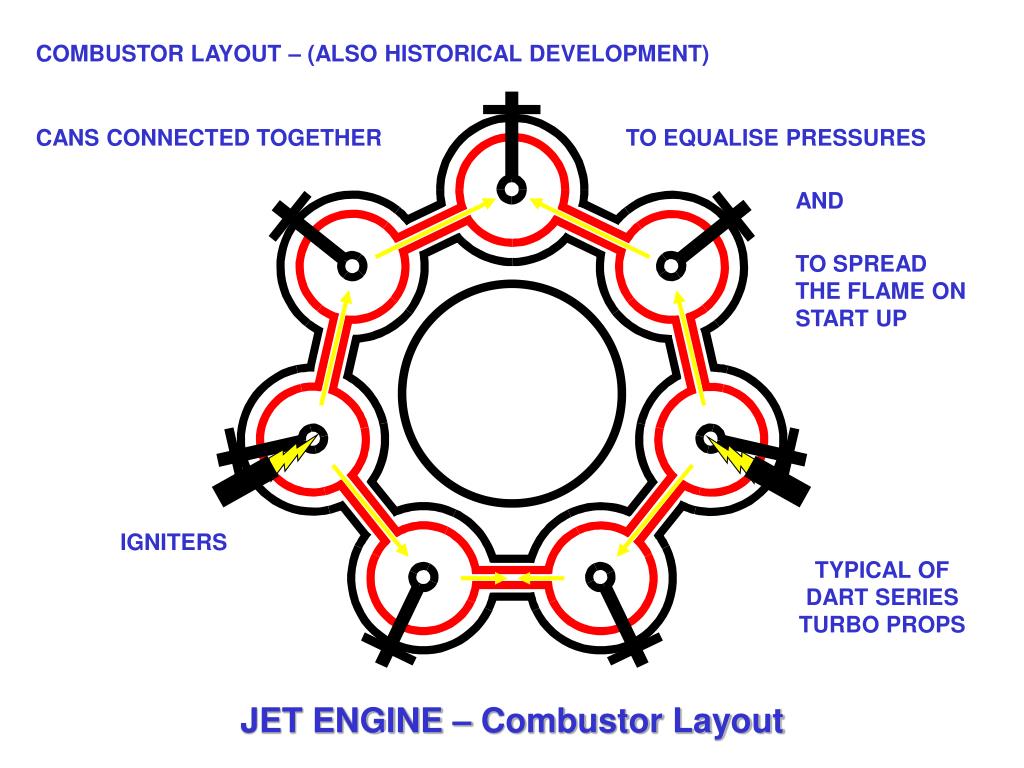

  15. IGNITERS COMBUSTOR LAYOUT – (ALSO HISTORICAL DEVELOPMENT) CANS CONNECTED TOGETHER TO EQUALISE PRESSURES AND TO SPREAD THE FLAME ON START UP TYPICAL OF DART SERIES TURBO PROPS JET ENGINE – Combustor Layout

  16. JET ENGINE COMBUSTER OPERATION

  17. INDIVIDUAL CANS WITH INTER-CONNECTORS ANNULAR OUTER CASING IGNITERS COMBUSTOR LAYOUT ‘CAN-ANNULAR’ LAYOUT ALSO FORMS THE ENGINE STRUCTURE TYPICAL OF SPEY &TAY BYPASS ENGINES JET ENGINE – Combustor Layout

  18. JET ENGINE COMBUSTER OPERATION

  19. ANNULAR OUTER CASING ANNULAR INNER CASING COMBUSTOR LAYOUT ANNULAR LAYOUT GIVES EVEN TEMPERATURE FACE TO TURBINE BLADES THE LAYOUT OF CHOICE FOR MODERN BYPASS ENGINES ALLOWS MORE FSN’S TO BE FITTED JET ENGINE – Combustor Layout

  20. JET ENGINE COMBUSTER OPERATION

  21. THE CROSS SECTION OF ALL THESE LAYOUTS IS VIRTUALLY IDENTICAL AND THEREFORE SO IS THE AIRFLOW! JET ENGINE – Combustor Layout

  22. Outer Combustion Casing 82% Cooling Flow Inner Flame Tube 1st Stage NGV’s 18% Vortex Flow Recirculating Vortex Fuel Feed JET ENGINE – Combustion Process
