  1. VARPACT Give Oxygen to your electrical network

  2. VARPACT : Give oxygen to your electrical network • Power factor correction and filtering • Power quality • Cost savings • Schneider experience in power factor correction and filtering • World wide presence • VARPACT offer • The range • Technical specifications • Standards • Customer benefits • For Panelbuilders • For End Users • Environment • Upgrading of an old installation • Tools

  3. VARPACT : Energy EfficiencyGive Oxygen to your electrical network • Power Factor Correction and Filtering means energy savings : it allows to use your transformer (installation) at its maximum efficiency and to stop the system losses : • Power Factor Correction and Filtering decreases voltage drops, avoids the overload of the network, and allows the diminution of harmonics so that you will not have to overrate your installation. • Power Factor Correction means cost savings : it allows to erase your reactive power invoice if the utilities of your country is applying penalties €

  4. VARPACT : Energy EfficiencyGive Oxygen to your electrical network • This page has to be adapted regarding each country(the part in blue) • Example of an European country where there are penalties : • the rule is cos(φ) > 0,9 • if cos(φ) < 0,9 the company will be charged for reactive power. The cost savings, thanks to a power factor correction installation, will be :

  5. VARPACT :Give Oxygen to your electrical network • More than 30 years of experience, mastering capacitors technology : 1978 - 1987 Metalised polypropylene 1987 - 2005 “VARPLUS / VARPLUS M” 2006 “VARPLUS²” • Thermo-setting resin • metalised film (dry) • internal protection • modular range • Resin case • Metalised film (dry) • Internal fuse • External discharge • resistor • Thermo-setting resin • variable metalised film (dry) • internal protection • fully modular range ADVANTAGES ADVANTAGES ADVANTAGES • Longer life • Smaller size • Losses reduction • Ecological • Full protection against • explosion (HQ) • Isolation of faults • Variable metalised film from 2004 • Full protection against • explosion (HQ) • Isolation of faults • Variable metalised film • Installation in all positions • Fully modular DRAWBACKS DRAWBACKS • Case rupture • Explosion • Partial modularity

  6. VARPACT :Give Oxygen to your electrical network • World wide presence : VARPLUS capacitors are installed all over the world, in any conditions, from tropical to polar climates. European countries Canada, USA Turkey China Mexico Thailand UAE Egypt Colombia India Indonesia Argentina South Africa

  7. Capacitors supplier Panel builder Panel builder VARPACT Contactors supplier Wiring supplier Protection supplier Assemblyof components in the cubicle + study of the engineering department to use the right component. Installation of VARPACT inside the cubicle VARPACT :Give Oxygen to your electrical network Modules Advantages • Why the module : how does it work, what is the interest ? Loos components Modules Time saving and suppliers management much easier Time saving and easier to install : no need of an engineering department Time saving and more safe All the Varpact modules have been tested inside Schneider manufacturing plant. Electrical tests to do in order to check all the connections

  8. VARPACT : the rangeGive Oxygen to your electrical network • VARPACT : • A pre-wired assembly, ready to be installed in the bank. • Capacitors, commutation function, protection function are already incorporated inside VARPACT • It will allow you to build your capacitors bank in a very short time. • Maximum power for 1 module : 120 kvar at 50 Hz • Tested at 100% inside Schneider plant • 50 or 60 Hz • With or without bus bars : you have the choice.

  9. VARPACT : the rangeGive Oxygen to your electrical network • VARPACT options : • Circuit breaker option* for Classic and Comfort range (not installed) : • Connection module : • Extensions pieces for cubicle (W=650,700,800 mm) : • Fastening crosspieces : * The circuit breaker is always installed on the Varpact Harmony modules (to protect the Detuned reactor)

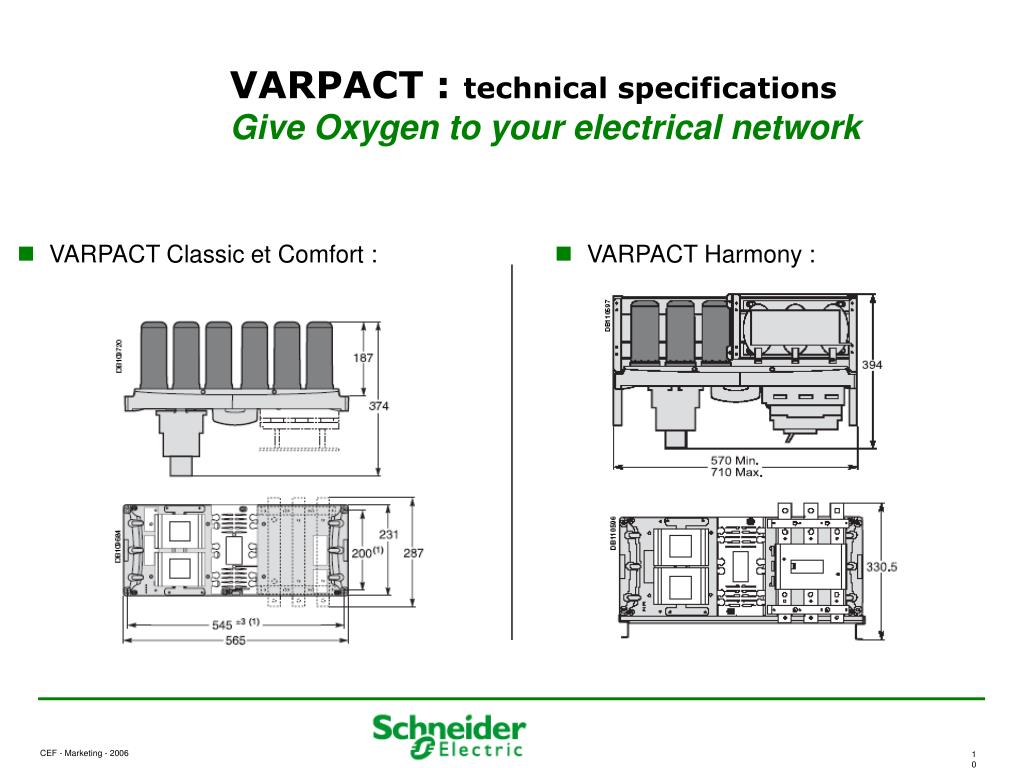

  10. VARPACT : technical specificationsGive Oxygen to your electrical network • VARPACT Classic et Comfort : • VARPACT Harmony :

  11. VARPACT : technical specificationsGive Oxygen to your electrical network • VARPACT Classic and Comfort :

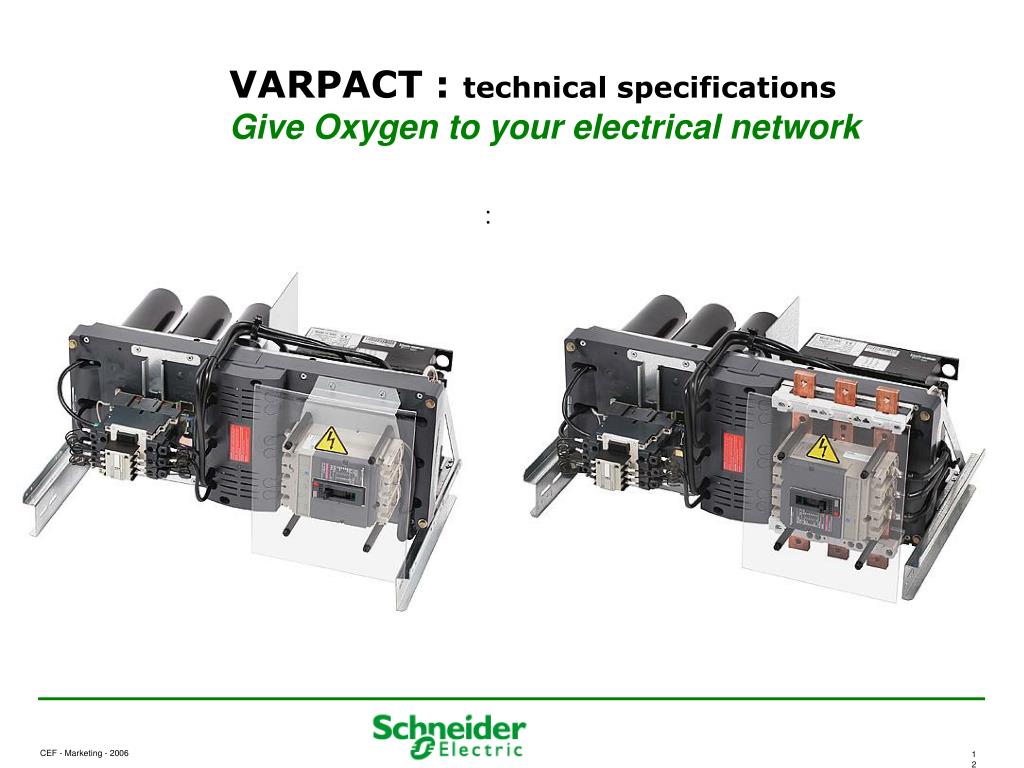

  12. VARPACT : technical specificationsGive Oxygen to your electrical network • VARPACT Harmony :

  13. VARPACT : technical specificationsGive the right specifications • Voltage ranges VARPACT : • 50 Hz : 400V, 415V • 60 Hz : 400V, 415V • Example : Network 400V - 50 Hz : an answer for all your needs • A more detailed table is on the next page. In any case, it is recommended to make measurements at site in order to validate the final solution

  14. VARPACT : technical specificationsGive the right specifications

  15. VARPACT : technical specificationsGive the right specifications • Capacitance value tolerance : -5, +10% • Insulation level : • 0,69 kV • withstand 50 Hz, 1 min : 3 kV • Maximum permissible overloads : • current : • Classic range : 30% max. under 400V • Comfort range : 50% max. under 400V • Harmony range : • Tuning 2,7 : 12 % max. under 400V • Tuning 3,8 : 19 % max. under 400V • Tuning 4,3 : 30 % max. under 400V • voltage : 10% • Ambient temperature around the capacitor bank (electrical room) :

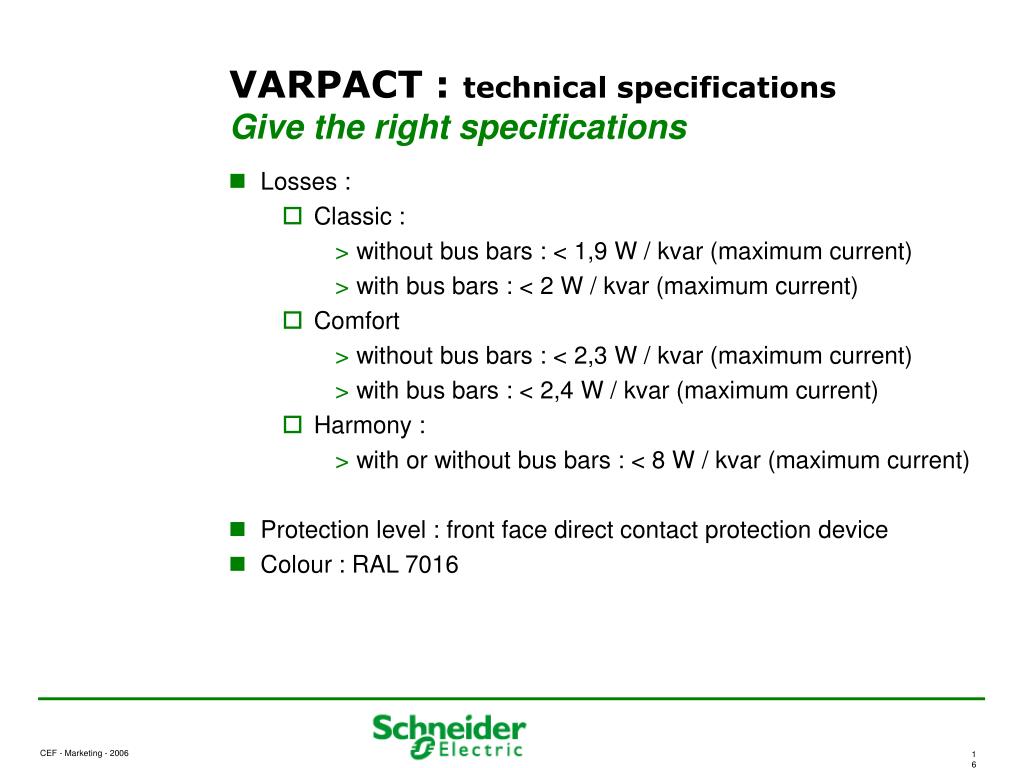

  16. VARPACT : technical specificationsGive the right specifications • Losses : • Classic : • without bus bars : < 1,9 W / kvar (maximum current) • with bus bars : < 2 W / kvar (maximum current) • Comfort • without bus bars : < 2,3 W / kvar (maximum current) • with bus bars : < 2,4 W / kvar (maximum current) • Harmony : • with or without bus bars : < 8 W / kvar (maximum current) • Protection level : front face direct contact protection device • Colour : RAL 7016

  17. VARPACT : installationGive the right specifications • VARPACT can be installed in all the following type of banks : • Prisma, Prisma Plus • Universal • Horizontal mounting in functional or universal bank, depth D = 400 or 500 mm : • in cubicle (width W=600 mm), using fastening crosspieces • in cubicle (width W=650, 700, 800 mm), using fastening crosspieces and extension pieces • Vertical fastening every 300 mm (5 modules maximum) directly to cubicles uprights using sliding crosspieces or to intermediate upright support. • Control circuit power supply : 230V, 50 Hz

  18. VARPACT : installationGive the right specifications • Installation of modules in the cubicle : • Varpact with bus bars : • Varpact without bus bars :

  19. VARPACT : Give compliance with standards • International standards IEC • IEC 60439 - 1 • IEC 61921 • European standards • EN 60439 - 1

  20. VARPACT : Give simplicity to the Panel Builders • VARPACT modules allow to assemble a power factor correction cubicle quickly and easily : • Connection points are decreased • Bus bars option --> Easier installation (connection) • Logistic : 1 unique product to order instead of many products (capacitors, wires, contactors, protection…) • You don ’t need to have an engineering department to calculate the right components to use (wires size…) • Fastening crosspieces to install VARPACT in the cubicle • VARPACT is tested at 100% inside the manufacturing plant

  21. VARPACT : Give peace of mind to End Users • Life duration of VARPACT is 15 years (130 000 hours) • The modules are tested at 100% in the manufacturing plant (following IEC standards). • Decrease of hot points on the module, and decrease of the temperature inside cubicles compare to P400 modules. • Losses reduction = less overheating = more power inside 1 cubicle : • 600 kvar / column for the Classic range (450 kvar in the past) • 450 kvar / column for the Comfort range (405 kvar in the past) • 250 kvar / column for the Harmony range (like in the past)

  22. VARPACT : Give peace of mind to End Users Insulation reinforced on VARPACT • External : insulation reinforced • All the insulation distances are 2 times bigger than necessary for the using voltage of products (following IEC 664-1 standards) : it erase all the risks to have local insulation losses. • Protection against direct contact thanks to the protection covers. • Internal : insulation of internal wires (inside the module) have been reinforced • Wires have a high insulation withstand (Ui=1000V) • Temperature conditions are much lower than the using limits • All risks of contacts between wires and active part are eliminated.

  23. VARPACT : Give peace of mind to End Users • No maintenance during the first 5 years • After 5 years, we advise you to measure the capacitance value of VARPACT to keep the maximum efficiency for your installation. • No corrosion thanks to the plastic envelop of the VARPLUS² capacitors. • Safety of the operator during the maintenance operation thanks to the internal discharge resistor. • Protection against direct contacts during the maintenance thanks to the protection plate.

  24. VARPACT : Give safety to the End Users • Using of the new VARPLUS² technology : • A new production line fully automated especially designed for VARPLUS² • Mechanical resistance of the enclosure has multiplied by 2 • High quality protection system : VARPACT is the one to use this technology, allowing to prevent 100% of the eventual defaults. Automatic controls at each step of the production Robots for high quality

  25. VARPLUS² : protection systemGive safety to End Users • Against internal defaults (with a low current), thanks to the overpressure system • Against external defaults (with high current), thanks to the HRC fuse • The fuse protects against high current faults > I fuse • It operates for high current short time faults • Dielectric losses its self healing properties • Gas pressure increases slightly and reaches the below. • The below rise • The metallic disc short circuits the terminals across the fuse. • The faulty capacitor is out of service.

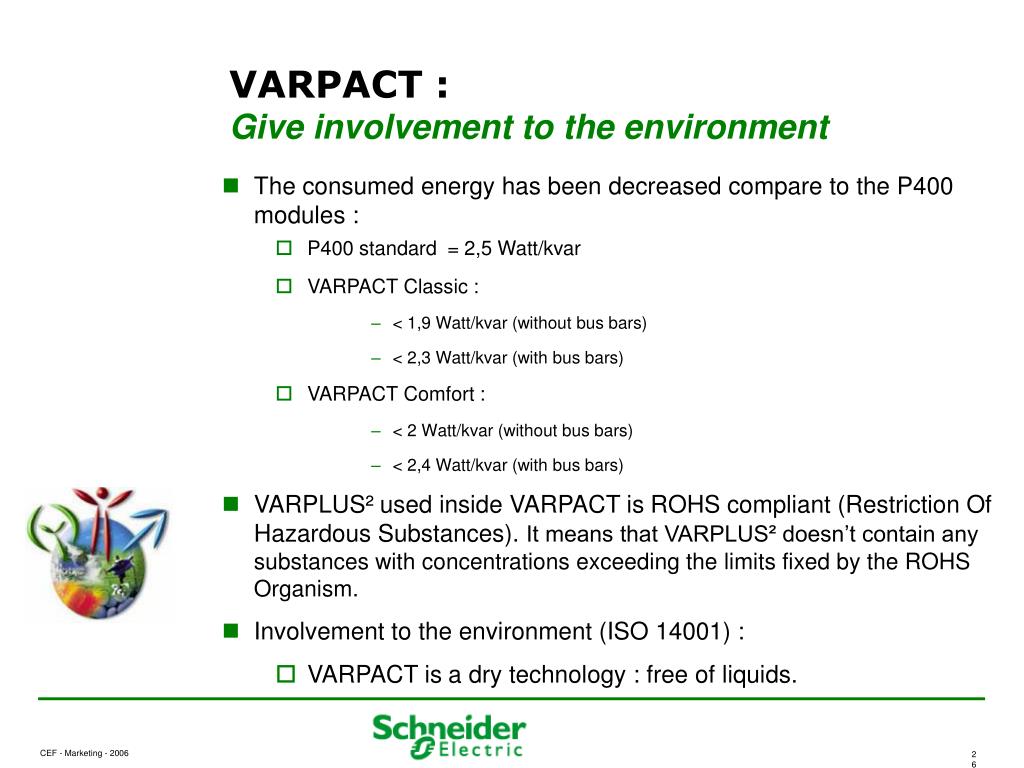

  26. VARPACT : Give involvement to the environment • The consumed energy has been decreased compare to the P400 modules : • P400 standard = 2,5 Watt/kvar • VARPACT Classic : • < 1,9 Watt/kvar (without bus bars) • < 2,3 Watt/kvar (with bus bars) • VARPACT Comfort : • < 2 Watt/kvar (without bus bars) • < 2,4 Watt/kvar (with bus bars) • VARPLUS² used inside VARPACT is ROHS compliant (Restriction Of Hazardous Substances). It means that VARPLUS² doesn’t contain any substances with concentrations exceeding the limits fixed by the ROHS Organism. • Involvement to the environment (ISO 14001) : • VARPACT is a dry technology : free of liquids.

  27. VARPACT : Give a fully compatibility with P400 modules • Retrofit kits exist. It allows to replace former modules by VARPACT in the following case : • Retrofit kit to replace a P400 module by a VARPACT module inside a Prisma or Prisma Plus cubicle • Retrofit kit to replace a P400 SAH module by a VARPACT module inside a Prisma or Prisma Plus cubicle • Retrofit kit to replace a P400 module by a VARPACT module inside a Rectimat2

  28. VARPACT : Give you many benefits • Give you more Energy Efficiency • Give you more Simplicity • Give you more Safety • Give you more Environment

  29. VARPACT :Give Oxygen to your electrical network • VARPLUS² will give to your electrical installation, its maximum energy efficiency : • To erase expense on reactive power • Higher transmission capacities for effective power • Environment involvement thanks to a lower electrical consumption • Improvement of power quality • Reducing the operating costs • The installation of VARPLUS² capacitors means : • a static system, don’t need maintenance • Life duration of 15 years • Fast Return on Investment (average time 2 years)

  30. VARPACT :Give you tools • Available documents : • VARPACT catalogue • VARPACT installation guide • VARPACT presentation • Promotional leaflet • For the End Users : www.schneider-electric.com
