  1. Concurrent Programming15-213 / 18-213: Introduction to Computer Systems23rd Lecture, Nov. 15, 2012 Instructors: Dave O’Hallaron, Greg Ganger, and Greg Kesden

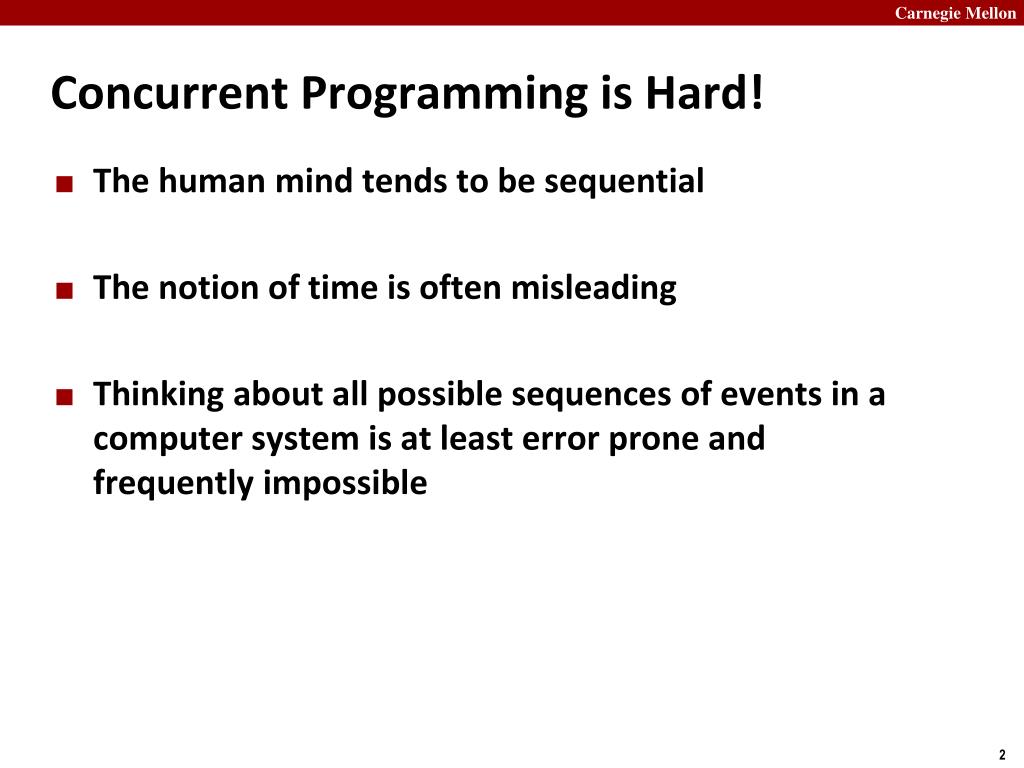

  2. Concurrent Programming is Hard! • The human mind tends to be sequential • The notion of time is often misleading • Thinking about all possible sequences of events in a computer system is at least error prone and frequently impossible

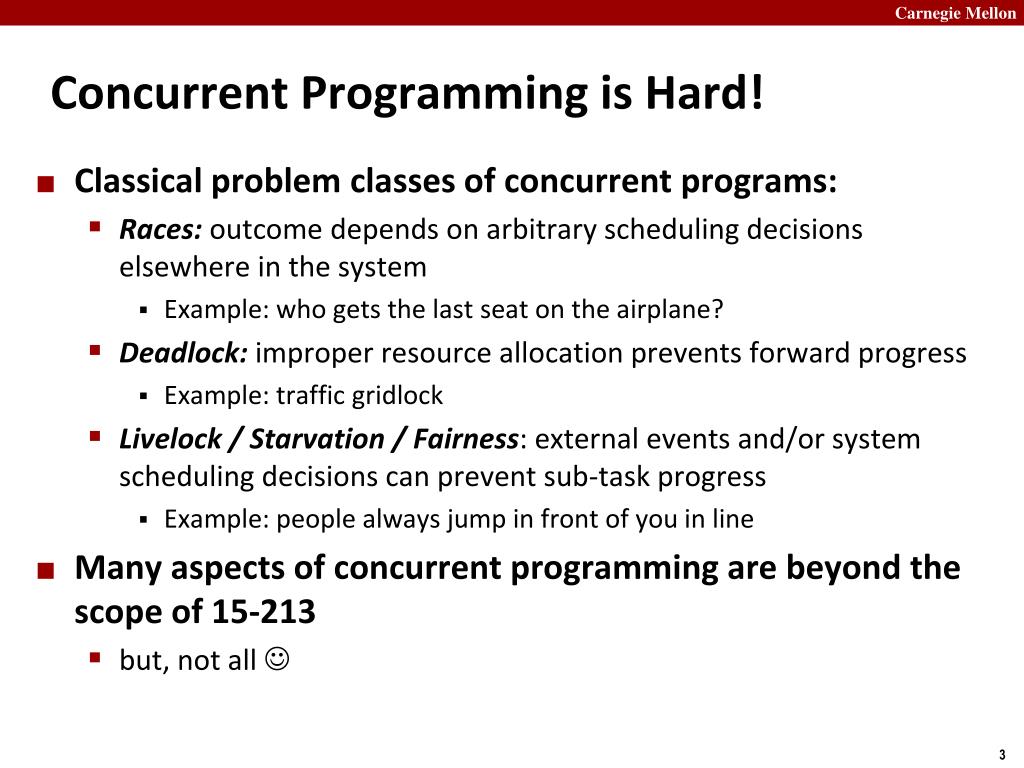

  3. Concurrent Programming is Hard! • Classical problem classes of concurrent programs: • Races: outcome depends on arbitrary scheduling decisions elsewhere in the system • Example: who gets the last seat on the airplane? • Deadlock: improper resource allocation prevents forward progress • Example: traffic gridlock • Livelock / Starvation / Fairness: external events and/or system scheduling decisions can prevent sub-task progress • Example: people always jump in front of you in line • Many aspects of concurrent programming are beyond the scope of 15-213 • but, not all 

  4. rio_writen rio_readlineb rio_readlineb rio_writen EOF rio_readlineb close close Reminder: Iterative Echo Server Client Server socket socket bind open_listenfd open_clientfd listen Connection request connect accept Client / Server Session Await connection request from next client

  5. Iterative Servers • Iterative servers process one request at a time client 1 server client 2 connect connect accept read write write call read call read write ret read close close Wait for Client 1 accept read write ret read

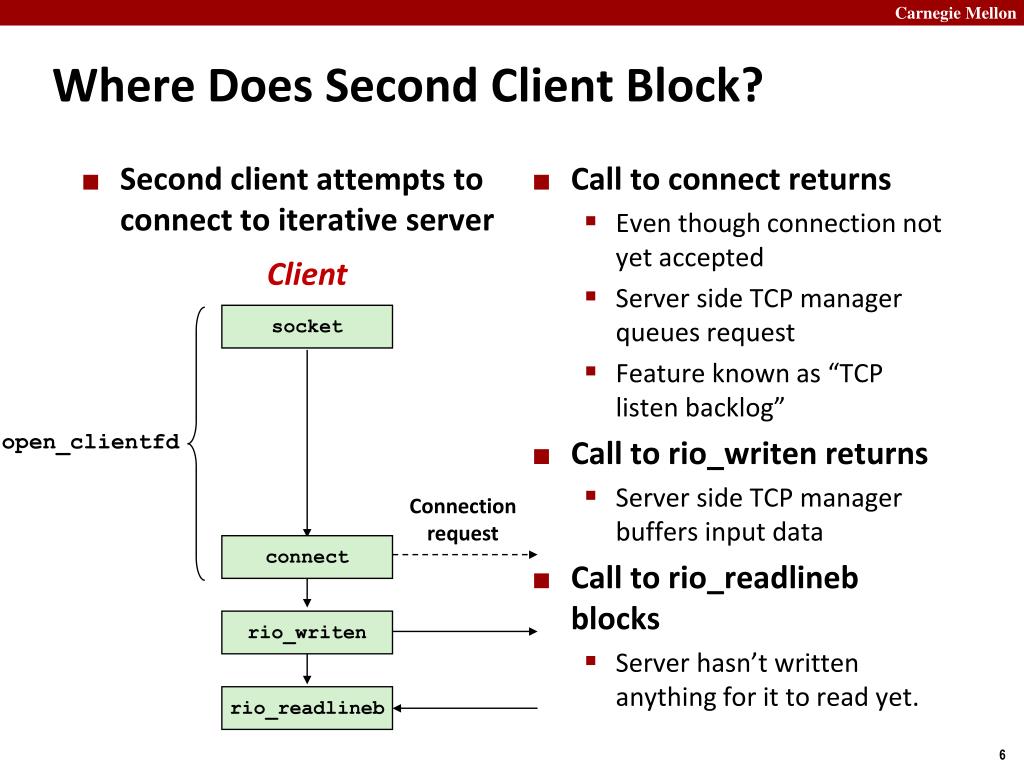

  6. Where Does Second Client Block? • Second client attempts to connect to iterative server • Call to connect returns • Even though connection not yet accepted • Server side TCP manager queues request • Feature known as “TCP listen backlog” • Call to rio_writen returns • Server side TCP manager buffers input data • Call to rio_readlineb blocks • Server hasn’t written anything for it to read yet. Client socket open_clientfd Connection request connect rio_writen rio_readlineb

  7. Fundamental Flaw of Iterative Servers client 1 server client 2 • Solution: use concurrent servers instead • Concurrent servers use multiple concurrent flows to serve multiple clients at the same time connect connect accept read write write call read call read write ret read User goes out to lunch Client 1 blocks waiting for user to type in data Server blocks waiting for data from Client 1 Client 2 blocks waiting to read from server

  8. Server concurrency (3 approaches) Allow server to handle multiple clients simultaneously • 1. Processes • Kernel automatically interleaves multiple logical flows • Each flow has its own private address space • 2. Threads • Kernel automatically interleaves multiple logical flows • Each flow shares the same address space • 3. I/O multiplexing with select() • Programmer manually interleaves multiple logical flows • All flows share the same address space • Relies on lower-level system abstractions

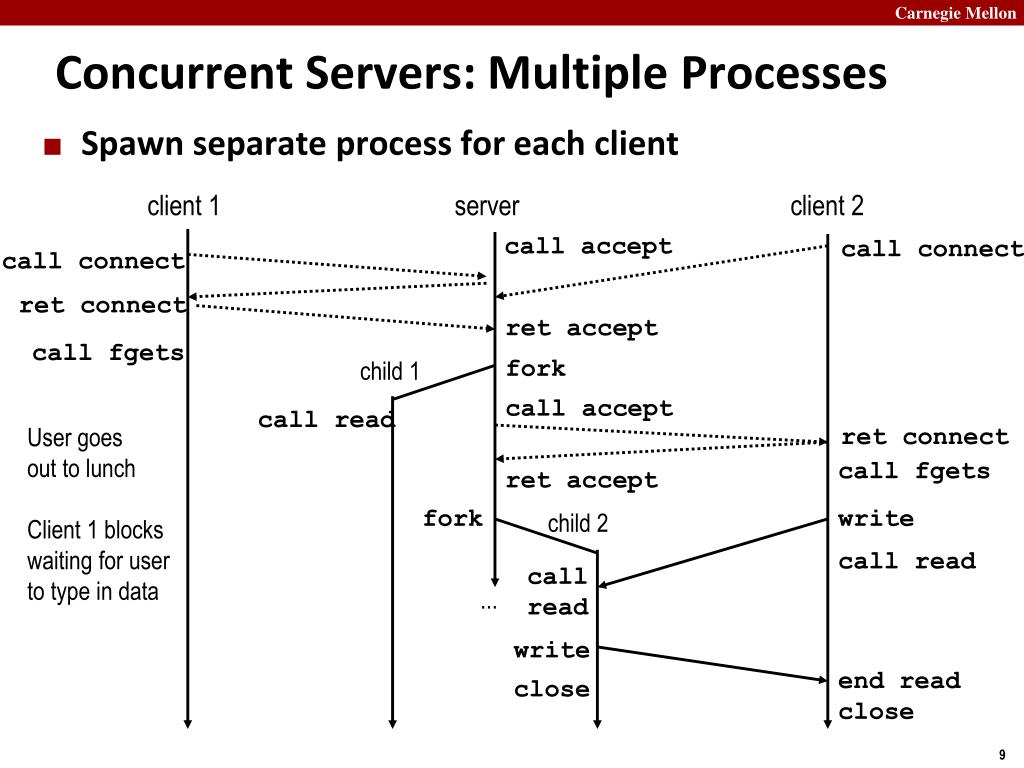

  9. Concurrent Servers: Multiple Processes • Spawn separate process for each client client 1 server client 2 call accept call connect call connect ret connect ret accept call fgets fork child 1 call accept call read User goes out to lunch Client 1 blocks waiting for user to type in data ret connect call fgets ret accept fork write child 2 call read call read ... write end read close close

  10. Review: Iterative Echo Server int main(int argc, char **argv) { int listenfd, connfd; int port = atoi(argv[1]); struct sockaddr_in clientaddr; int clientlen = sizeof(clientaddr); listenfd = Open_listenfd(port); while (1) { connfd = Accept(listenfd, (SA *)&clientaddr, &clientlen); echo(connfd); Close(connfd); } exit(0); } • Accept a connection request • Handle echo requests until client terminates

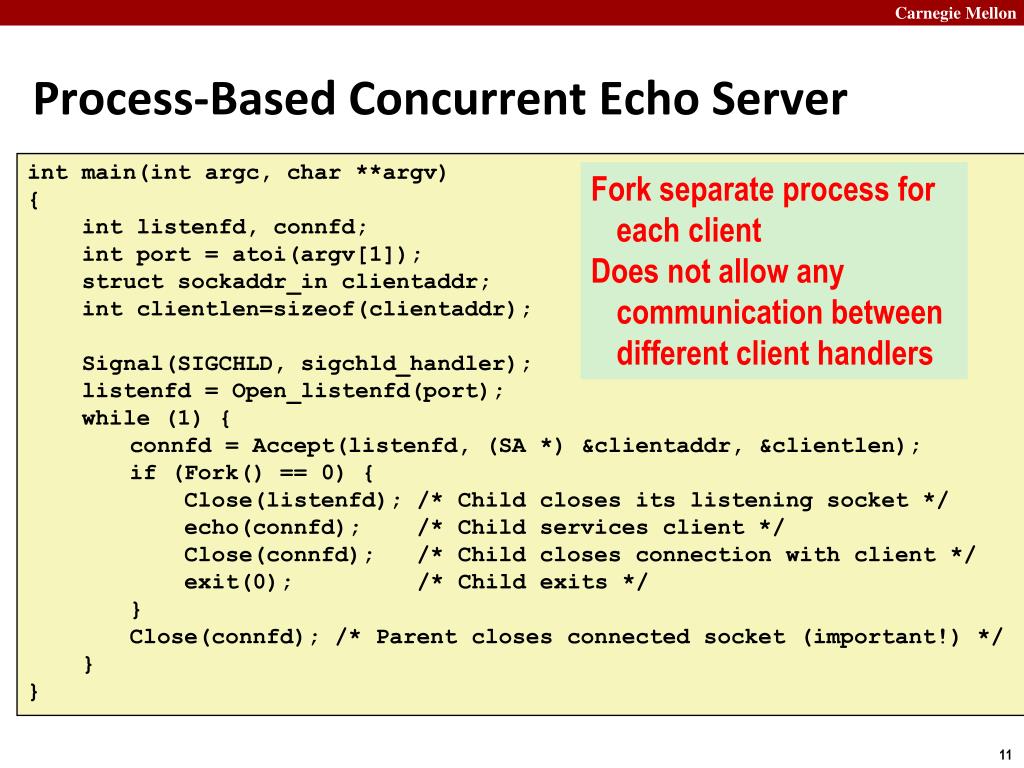

  11. Process-Based Concurrent Echo Server int main(int argc, char **argv) { int listenfd, connfd; int port = atoi(argv[1]); struct sockaddr_in clientaddr; int clientlen=sizeof(clientaddr); Signal(SIGCHLD, sigchld_handler); listenfd = Open_listenfd(port); while (1) { connfd = Accept(listenfd, (SA *) &clientaddr, &clientlen); if (Fork() == 0) { Close(listenfd); /* Child closes its listening socket */ echo(connfd); /* Child services client */ Close(connfd); /* Child closes connection with client */ exit(0); /* Child exits */ } Close(connfd); /* Parent closes connected socket (important!) */ } } Fork separate process for each client Does not allow any communication between different client handlers

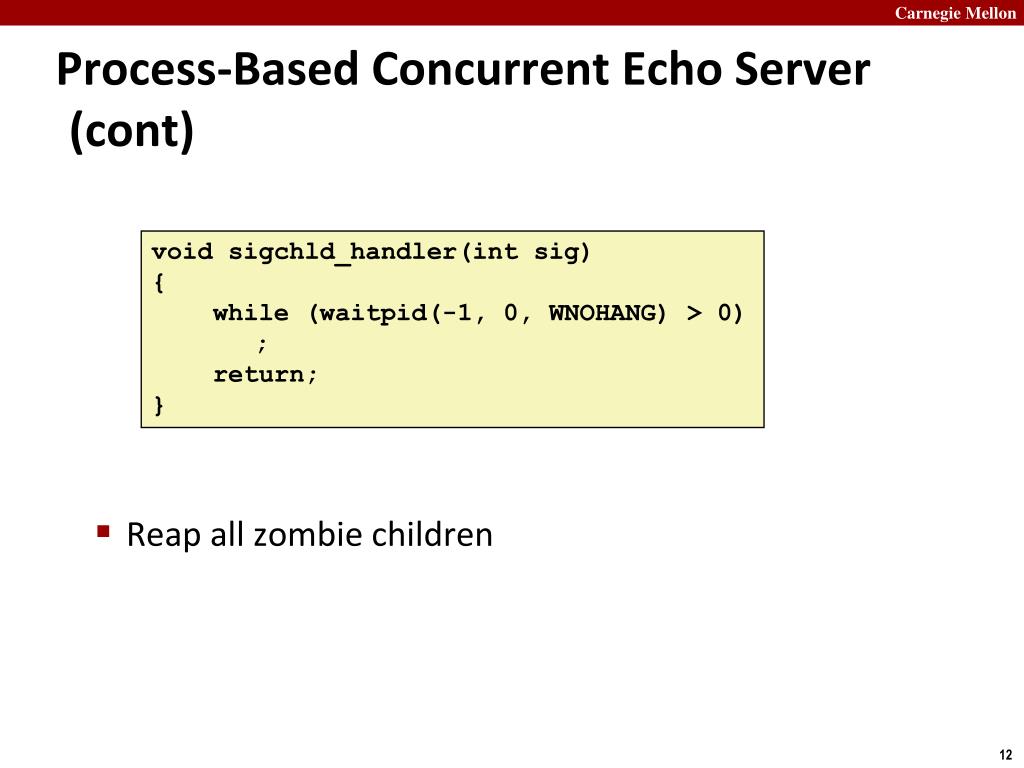

  12. Process-Based Concurrent Echo Server(cont) • Reap all zombie children void sigchld_handler(int sig) { while (waitpid(-1, 0, WNOHANG) > 0) ; return; }

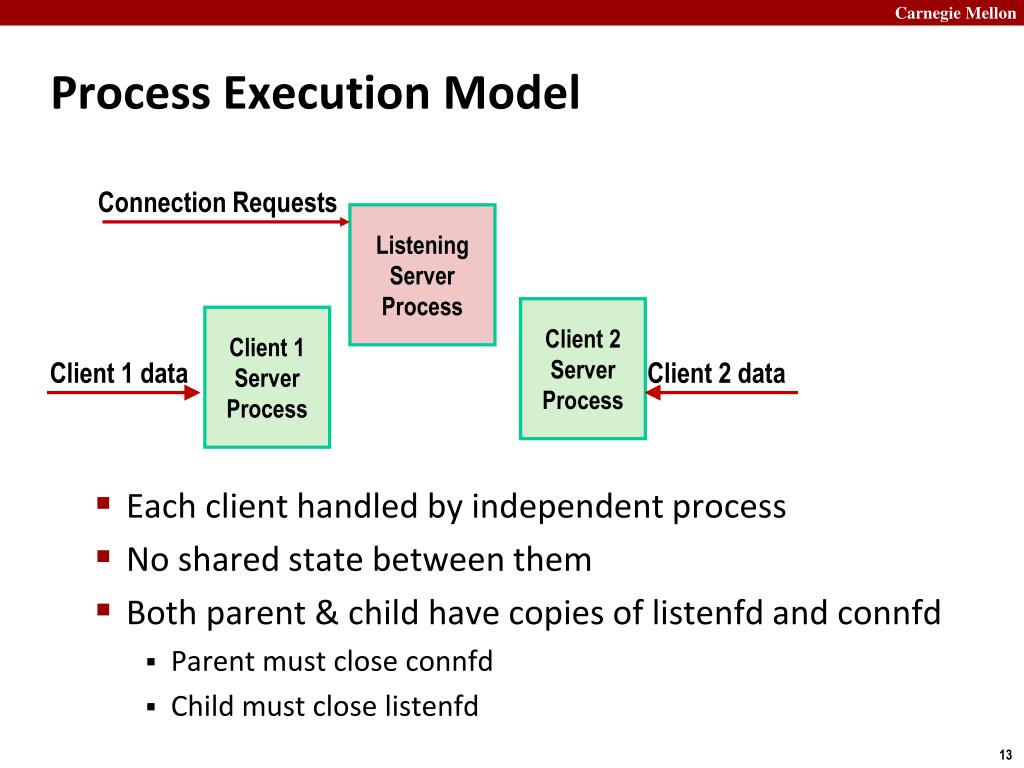

  13. Process Execution Model • Each client handled by independent process • No shared state between them • Both parent & child have copies of listenfd and connfd • Parent must close connfd • Child must close listenfd Connection Requests Listening Server Process Client 2 Server Process Client 1 Server Process Client 1 data Client 2 data

  14. Concurrent Server: accept Illustrated listenfd(3) 1. Server blocks in accept, waiting for connection request on listening descriptor listenfd Client Server clientfd Connection request listenfd(3) 2. Client makes connection request by callingconnect Client Server clientfd listenfd(3) 3. Server returns connfd from accept. Forks child to handle client. Connection is now established between clientfd and connfd Server Server Child Client clientfd connfd(4)

  15. Implementation Must-dos With Process-Based Designs • Listening server process must reap zombie children • to avoid fatal memory leak • Listening server process must close its copy of connfd • Kernel keeps reference for each socket/open file • After fork, refcnt(connfd) = 2 • Connection will not be closed until refcnt(connfd) == 0

  16. Pros and Cons of Process-Based Designs • + Handle multiple connections concurrently • + Clean sharing model • descriptors (no) • file tables (yes) • global variables (no) • + Simple and straightforward • –Additional overhead for process control • –Nontrivial to share data between processes • Requires IPC (interprocess communication) mechanisms • FIFO’s (named pipes), System V shared memory and semaphores

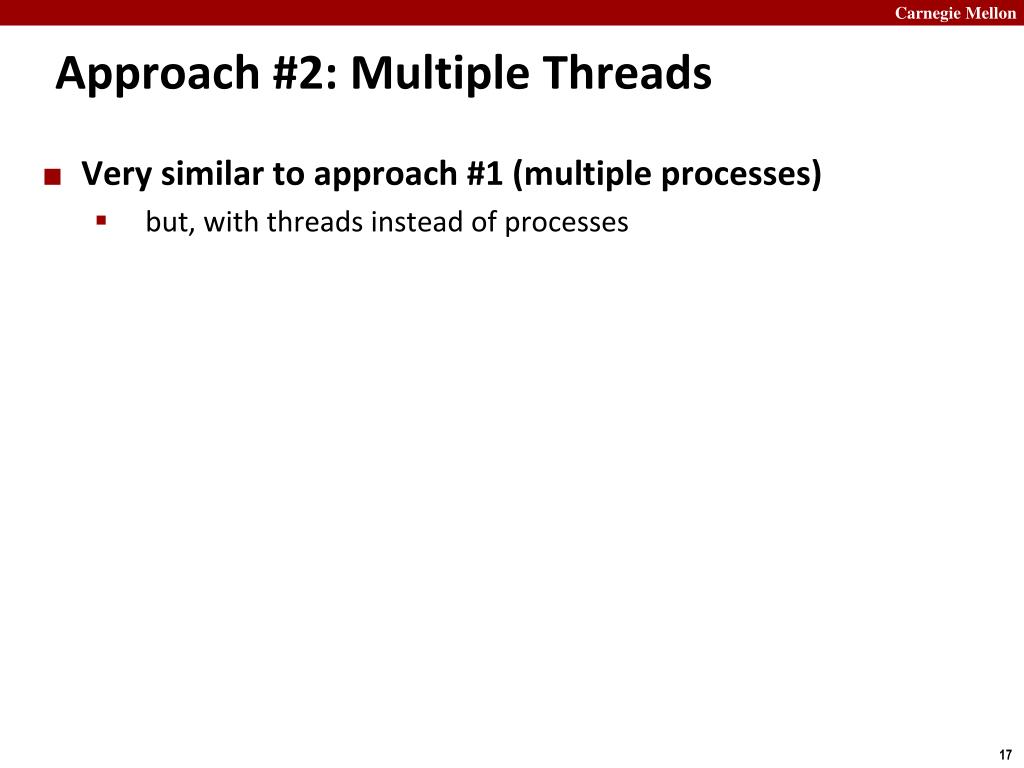

  17. Approach #2: Multiple Threads • Very similar to approach #1 (multiple processes) • but, with threads instead of processes

  18. Traditional View of a Process • Process = process context + code, data, and stack Process context Code, data, and stack stack Program context: Data registers Condition codes Stack pointer (SP) Program counter (PC) Kernel context: VM structures Descriptor table brk pointer SP shared libraries brk run-time heap read/write data PC read-only code/data 0

  19. Alternate View of a Process • Process = thread + code, data, and kernel context Thread (main thread) Code and Data shared libraries stack brk SP run-time heap read/write data Thread context: Data registers Condition codes Stack pointer (SP) Program counter (PC) PC read-only code/data 0 Kernel context: VM structures Descriptor table brk pointer

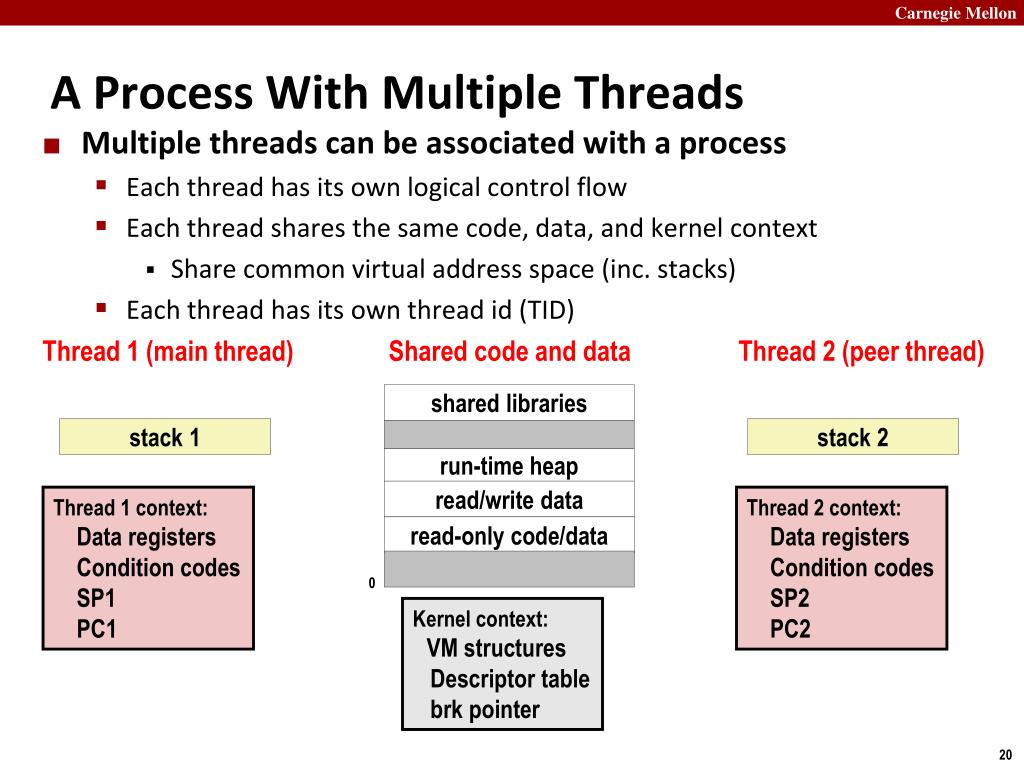

  20. A Process With Multiple Threads • Multiple threads can be associated with a process • Each thread has its own logical control flow • Each thread shares the same code, data, and kernel context • Share common virtual address space (inc. stacks) • Each thread has its own thread id (TID) Thread 1 (main thread) Shared code and data Thread 2 (peer thread) shared libraries stack 1 stack 2 run-time heap read/write data Thread 1 context: Data registers Condition codes SP1 PC1 Thread 2 context: Data registers Condition codes SP2 PC2 read-only code/data 0 Kernel context: VM structures Descriptor table brkpointer

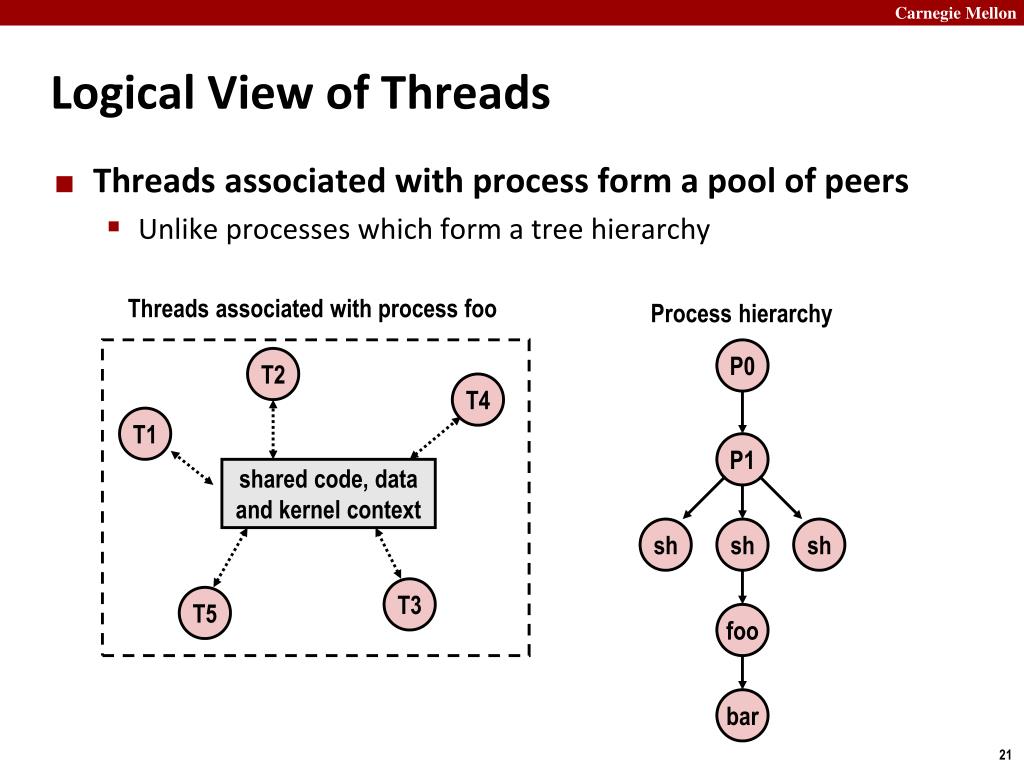

  21. Logical View of Threads • Threads associated with process form a pool of peers • Unlike processes which form a tree hierarchy Threads associated with process foo Process hierarchy P0 T2 T4 T1 P1 shared code, data and kernel context sh sh sh T3 T5 foo bar

  22. Thread Execution • Single Core Processor • Simulate concurrency by time slicing • Multi-Core Processor • Can have true concurrency Thread A Thread B Thread C Thread A Thread B Thread C Time Run 3 threads on 2 cores

  23. Logical Concurrency • Two threads are (logically) concurrent if their flows overlap in time • Otherwise, they are sequential • Examples: • Concurrent: A & B, A&C • Sequential: B & C Thread A Thread B Thread C Time

  24. Threads vs. Processes • How threads and processes are similar • Each has its own logical control flow • Each can run concurrently with others (possibly on different cores) • Each is context switched • How threads and processes are different • Threads share code and some data • Processes (typically) do not • Threads are somewhat less expensive than processes • Process control (creating and reaping) twice as expensive as thread control • Linux numbers: • ~20K cycles to create and reap a process • ~10K cycles (or less) to create and reap a thread

  25. Posix Threads (Pthreads) Interface • Pthreads: Standard interface for ~60 functions that manipulate threads from C programs • Creating and reaping threads • pthread_create() • pthread_join() • Determining your thread ID • pthread_self() • Terminating threads • pthread_cancel() • pthread_exit() • exit() [terminates all threads] , RET [terminates current thread] • Synchronizing access to shared variables • pthread_mutex_init • pthread_mutex_[un]lock • pthread_cond_init • pthread_cond_[timed]wait

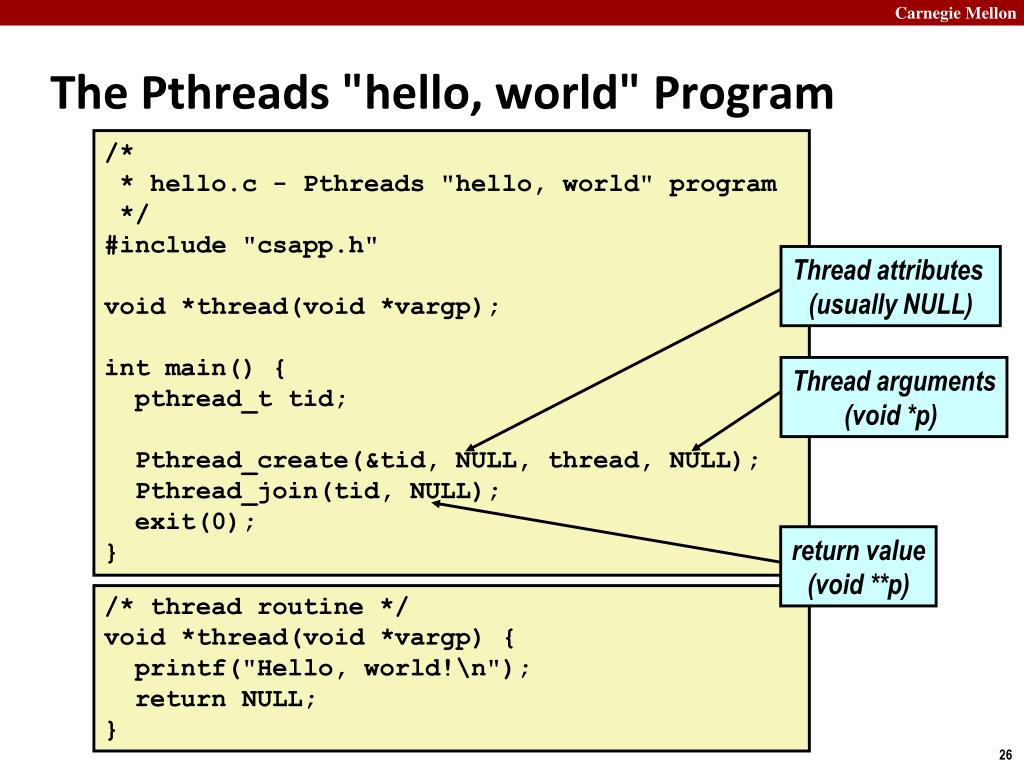

  26. The Pthreads "hello, world" Program /* * hello.c - Pthreads "hello, world" program */ #include "csapp.h" void *thread(void *vargp); int main() { pthread_ttid; Pthread_create(&tid, NULL, thread, NULL); Pthread_join(tid, NULL); exit(0); } Thread attributes (usually NULL) Thread arguments (void *p) return value (void **p) /* thread routine */ void *thread(void *vargp) { printf("Hello, world!\n"); return NULL; }

  27. Execution of Threaded“hello, world” main thread call Pthread_create() Pthread_create() returns peer thread call Pthread_join() printf() main thread waits for peer thread to terminate return NULL; (peer thread terminates) Pthread_join() returns exit() terminates main thread and any peer threads

  28. Thread-Based Concurrent Echo Server int main(intargc, char **argv) { int port = atoi(argv[1]); structsockaddr_inclientaddr; intclientlen=sizeof(clientaddr); pthread_ttid; intlistenfd = Open_listenfd(port); while (1) { int *connfdp = Malloc(sizeof(int)); *connfdp = Accept(listenfd, (SA *) &clientaddr, &clientlen); Pthread_create(&tid, NULL, echo_thread, connfdp); } } • Spawn new thread for each client • Pass it copy of connection file descriptor • Note use of Malloc()! • Without corresponding Free()

  29. Thread-Based Concurrent Server (cont) /* thread routine */ void *echo_thread(void *vargp) { intconnfd = *((int *)vargp); Pthread_detach(pthread_self()); Free(vargp); echo(connfd); Close(connfd); return NULL; } • Run thread in “detached” mode • Runs independently of other threads • Reaped automatically (by kernel) when it terminates • Free storage allocated to hold clientfd • “Producer-Consumer” model

  30. Threaded Execution Model • Multiple threads within single process • Some state between them • e.g., file descriptors Connection Requests Listening Server Client 2 Server Client 1 Server Client 1 data Client 2 data

  31. Potential Form of Unintended Sharing while (1) { intconnfd = Accept(listenfd, (SA *) &clientaddr, &clientlen); Pthread_create(&tid, NULL, echo_thread, (void *) &connfd); } } main thread Main thread stack connfd connfd = connfd1 peer1 Peer1 stack vargp connfd = *vargp connfd = connfd2 Race! peer2 Peer2 stack connfd = *vargp vargp Why would both copies of vargp point to same location?

  32. Could this race occur? Main Thread • Race Test • If no race, then each thread would get different value of i • Set of saved values would consist of one copy each of 0 through 99 inti; for (i = 0; i < 100; i++) { Pthread_create(&tid, NULL, thread, &i); } void *thread(void *vargp) { inti = *((int *)vargp); Pthread_detach(pthread_self()); save_value(i); return NULL; }

  33. Experimental Results No Race • The race can really happen! Single core laptop Multicore server

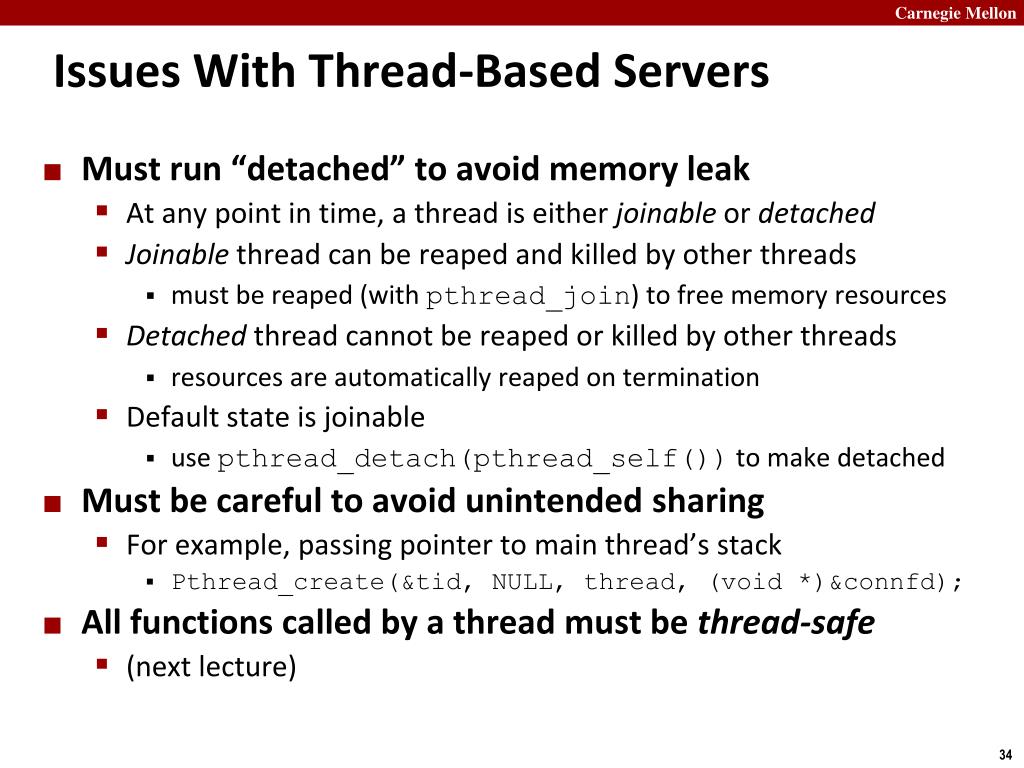

  34. Issues With Thread-Based Servers • Must run “detached” to avoid memory leak • At any point in time, a thread is either joinable or detached • Joinable thread can be reaped and killed by other threads • must be reaped (with pthread_join) to free memory resources • Detached thread cannot be reaped or killed by other threads • resources are automatically reaped on termination • Default state is joinable • use pthread_detach(pthread_self()) to make detached • Must be careful to avoid unintended sharing • For example, passing pointer to main thread’s stack • Pthread_create(&tid, NULL, thread, (void *)&connfd); • All functions called by a thread must be thread-safe • (next lecture)

  35. Pros and Cons of Thread-Based Designs • + Easy to share data structures between threads • e.g., logging information, file cache • + Threads are more efficient than processes • –Unintentional sharing can introduce subtle and hard-to-reproduce errors! • The ease with which data can be shared is both the greatest strength and the greatest weakness of threads • Hard to know which data shared & which private • Hard to detect by testing • Probability of bad race outcome very low • But nonzero! • Future lectures

  36. Approaches to Concurrency • Processes • Hard to share resources: Easy to avoid unintended sharing • High overhead in adding/removing clients • Threads • Easy to share resources: Perhaps too easy • Medium overhead • Not much control over scheduling policies • Difficult to debug • Event orderings not repeatable • I/O Multiplexing • Tedious and low level • Total control over scheduling • Very low overhead • Cannot create as fine grained a level of concurrency • Does not make use of multi-core

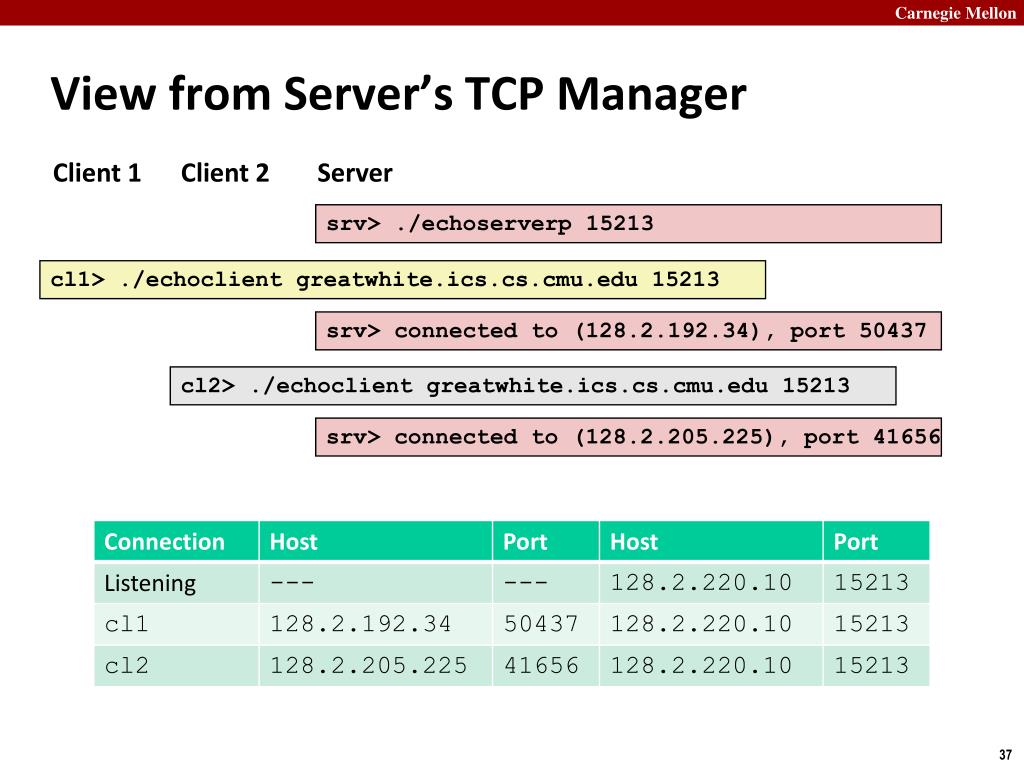

  37. View from Server’s TCP Manager Client 1 Client 2 Server srv> ./echoserverp 15213 cl1> ./echoclient greatwhite.ics.cs.cmu.edu 15213 srv> connected to (128.2.192.34), port 50437 cl2> ./echoclient greatwhite.ics.cs.cmu.edu 15213 srv> connected to (128.2.205.225), port 41656

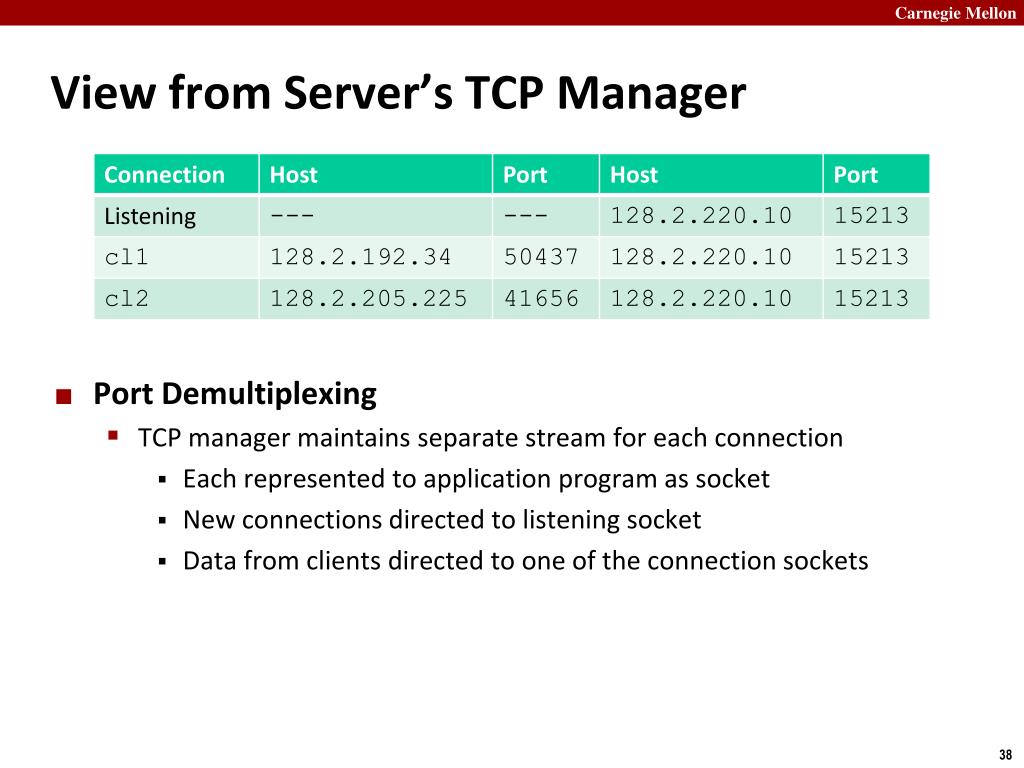

  38. View from Server’s TCP Manager • Port Demultiplexing • TCP manager maintains separate stream for each connection • Each represented to application program as socket • New connections directed to listening socket • Data from clients directed to one of the connection sockets
