  1. KEYMILE 3rd Party Portfolio

  2. THE KEYMILE SOLUTION • 3RD PARTY CPE PORTFOLIO © KEYMILE

  3. FTTH Product Portfolio – 3rd Party Products • The 3rd party product portfolio currently includes the following products - Status today: No KM products – can be bought directly from manufacturer / distributor • BKtel • Optical Amplifiers • CPEs • Genexis • CPEs Further Candidates • ELCON • CPEs • 42Networks • CPEs © KEYMILE

  4. BKtel XON500 CPE Series • BKtel XON500.S • Switching • BKtel XON500.SC • Switching • CATV Converter • BKtel XON500.SVC • Switching • CATV • VoIP (SIP Client) © KEYMILE

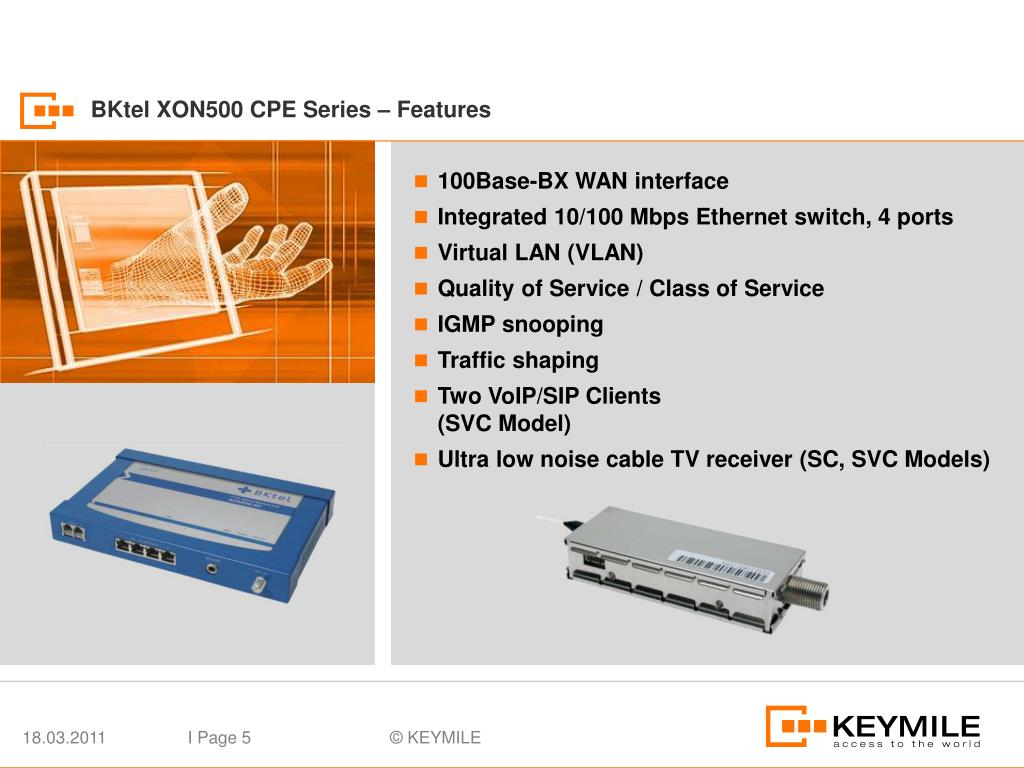

  5. BKtel XON500 CPE Series – Features • 100Base-BX WAN interface • Integrated 10/100 Mbps Ethernet switch, 4 ports • Virtual LAN (VLAN) • Quality of Service / Class of Service • IGMP snooping • Traffic shaping • Two VoIP/SIP Clients (SVC Model) • Ultra low noise cable TV receiver (SC, SVC Models) © KEYMILE

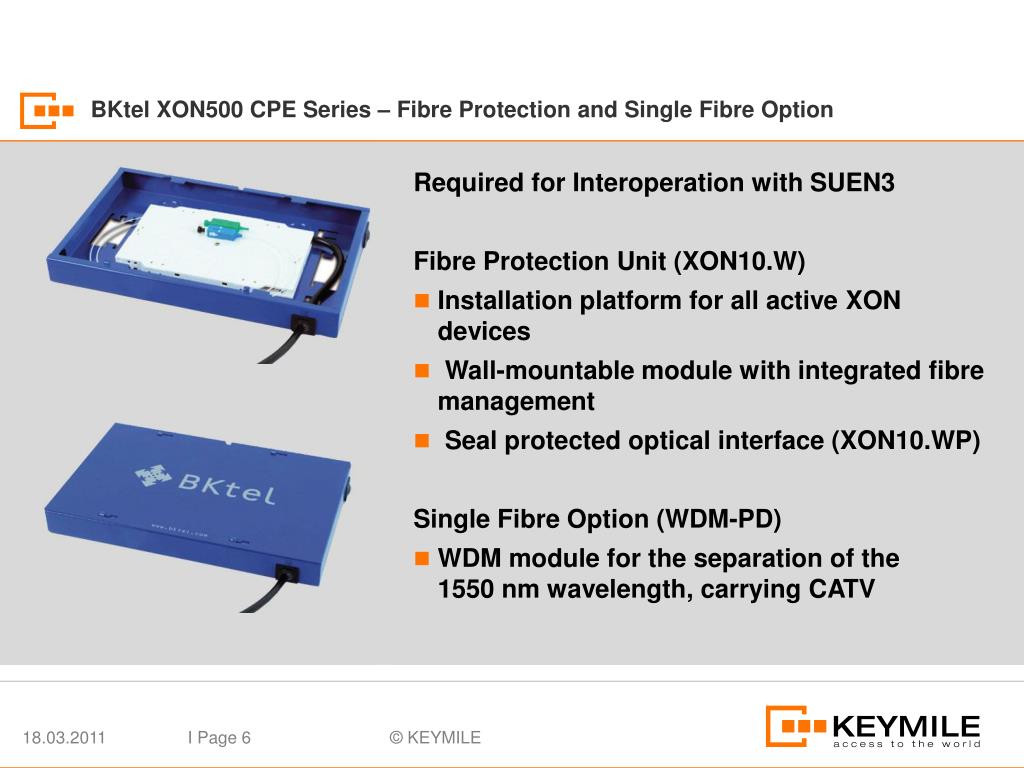

  6. BKtel XON500 CPE Series – Fibre Protection and Single Fibre Option • Required for Interoperation with SUEN3 • Fibre Protection Unit (XON10.W) • Installation platform for all active XON devices • Wall-mountable module with integrated fibre management • Seal protected optical interface (XON10.WP) • Single Fibre Option (WDM-PD) • WDM module for the separation of the 1550 nm wavelength, carrying CATV © KEYMILE

  7. BKtel XON600.SVC – Key Features • 100Base-BX WAN interface • Four 10/100Base-TX Ethernet ports • 10/100Base-TX support (LAN) • VLAN Support, Port-Based and 802.1q • Quality of Service / Class of Service • IGMP snooping v1/v2 • Rate Limiting Capability • Two simultaneous voice over IP (VoIP) calls • SIP 2.0 VoIP protocol • Ultra low noise optical CATV receiver © KEYMILE

  8. Genexis FiberXport Product Portfolio Genexis offers the following CPE types • OCG-118 • 100 Mbps optical interface • VoIP Gateway (SIP) • OCG-120 • 100 Mbps optical interfaces • OCG-1018 • 1,000 Mbps optical interfaces • VoIP Gateway (SIP) • OCG-1020 • 1,000 Mbps optical interfaces • OCG-14 • CATV option • FXP-kit-131 • Housing with single-fibre WDM module © KEYMILE

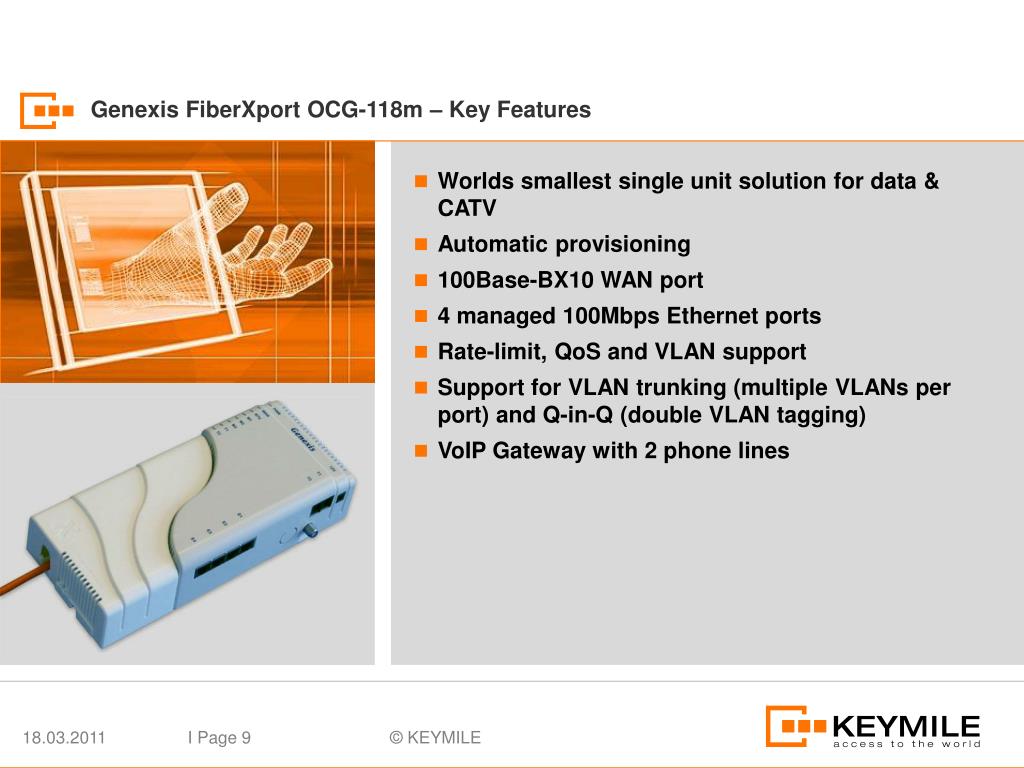

  9. GenexisFiberXport OCG-118m – Key Features • Worlds smallest single unit solution for data & CATV • Automatic provisioning • 100Base-BX10 WAN port • 4 managed 100Mbps Ethernet ports • Rate-limit, QoS and VLAN support • Support for VLAN trunking (multiple VLANs per port) and Q-in-Q (double VLAN tagging) • VoIP Gateway with 2 phone lines © KEYMILE

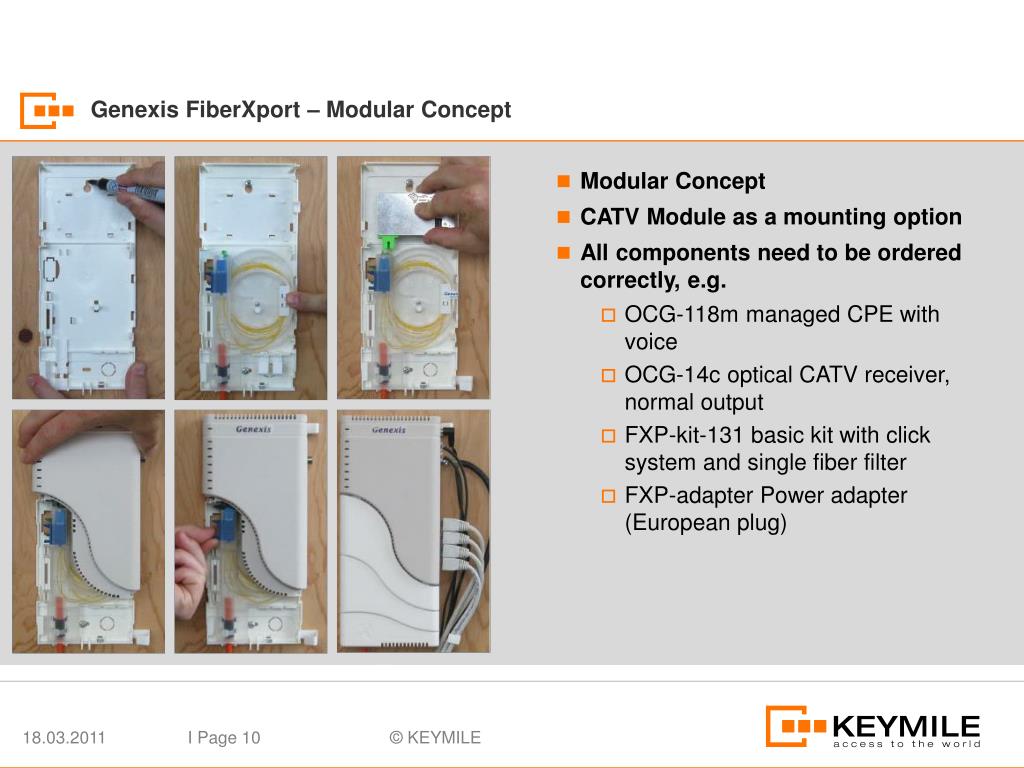

  10. GenexisFiberXport– Modular Concept • Modular Concept • CATV Module as a mounting option • All components need to be ordered correctly, e.g. • OCG-118m managed CPE with voice • OCG-14c optical CATV receiver, normal output • FXP-kit-131 basic kit with click system and single fiber filter • FXP-adapter Power adapter (European plug) © KEYMILE

  11. CABLE TV OVERLAY • ADDITIONAL EQUIPMENT © KEYMILE

  12. BKtel 20 and 40 Port Optical Amplifiers • Optical amplifiers type EDFA tailored for • Amplifies and distributes the CATV signal to 20 or 40 ports • 20 port variant for applications with one MileGate 2500 fully equipped with SUEN3 • 40 port variant for applications with two MileGate 2500 fully equipped with SUEN3 • Output Power 13.5 dBm per port • 1550 nm input and output wavelength • Integrated into UNEM management system / Alarming Inventory (R8C SP2) © KEYMILE

  13. BKtel Optical Transmitters Externally Modulated Fx-ES10 • 1550 nm high performance Optical BC (broadcast) Transmitter for HFC and FTTH-Networks • Long distance >100 km • Up to 2x 10.5 dBm optical output power Direct Modulated Fx-DS26 • 1550 nm Optical BC (broadcast) Transmitter for HFC and FTTH-Networks • Shorter distances • Up to 13 dBm optical output power © KEYMILE
