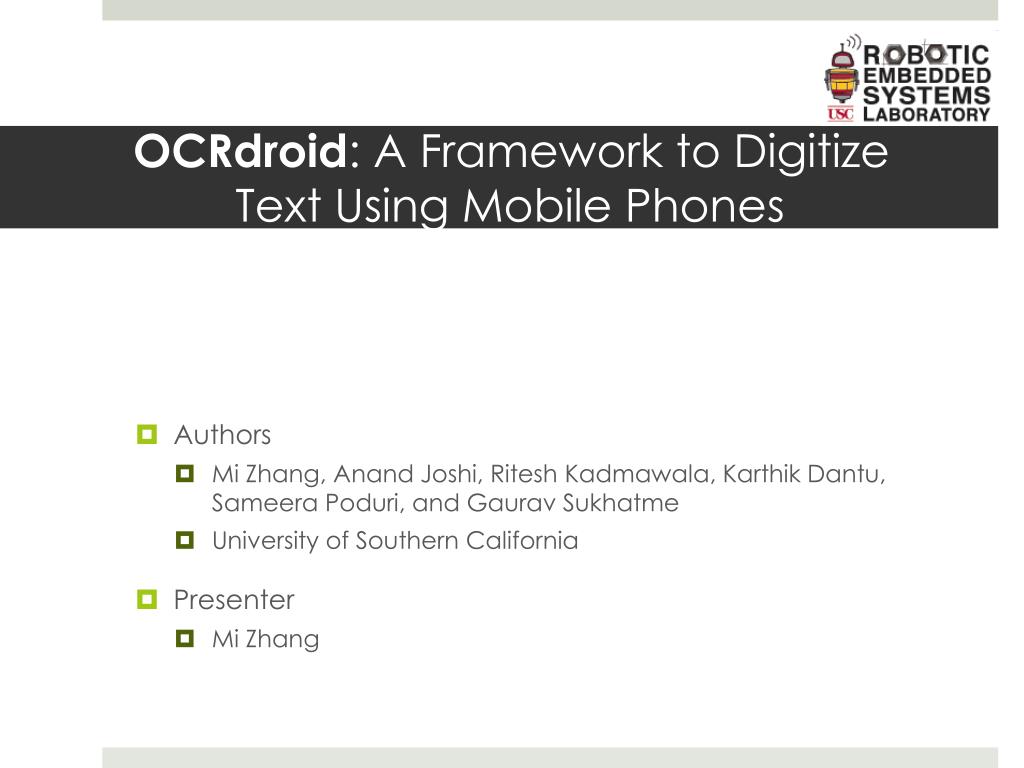

OCRdroid: A Framework to Digitize Text Using Mobile Phones

  • Authors

    • Mi Zhang, Anand Joshi, Ritesh Kadmawala, Karthik Dantu, Sameera Poduri, and Gaurav Sukhatme

    • University of Southern California

  • Presenter

    • Mi Zhang


Outline

Outline

  • What is OCRdroid ?

  • Related Work

  • Design Considerations

  • System Architecture

  • Experimental Results

  • Summary


What is ocrdroid

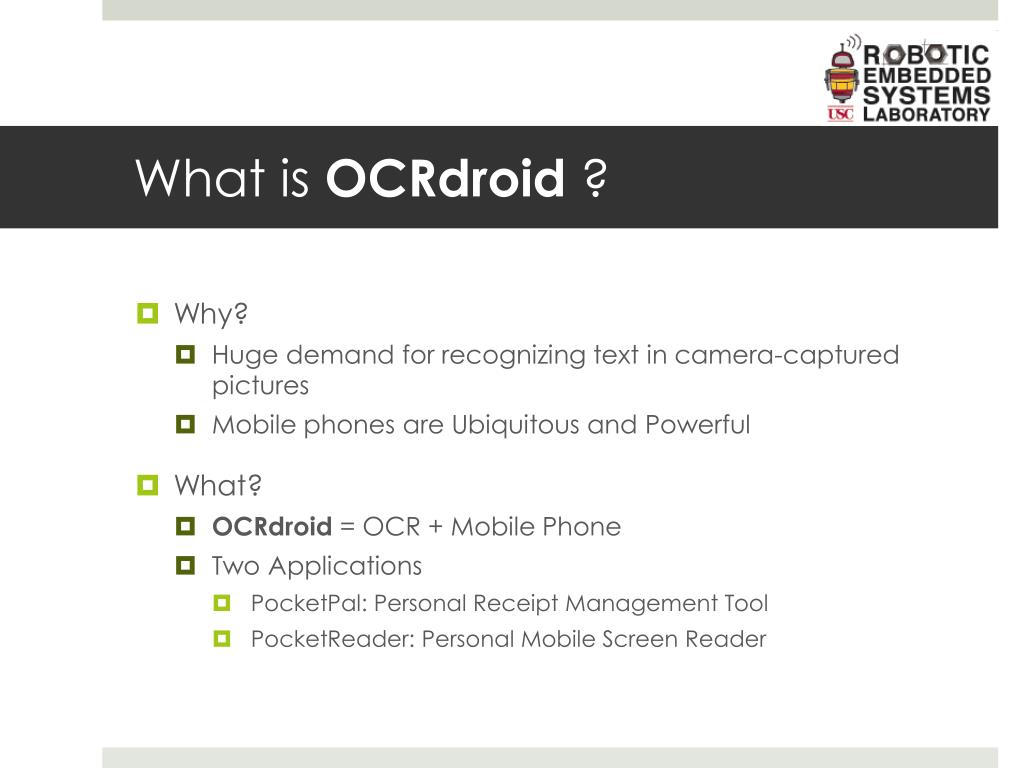

What is OCRdroid ?

Why?

Huge demand for recognizing text in camera-captured pictures

Mobile phones are Ubiquitous and Powerful

What?

OCRdroid = OCR + Mobile Phone

Two Applications

PocketPal: Personal Receipt Management Tool

PocketReader: Personal Mobile Screen Reader


Related work

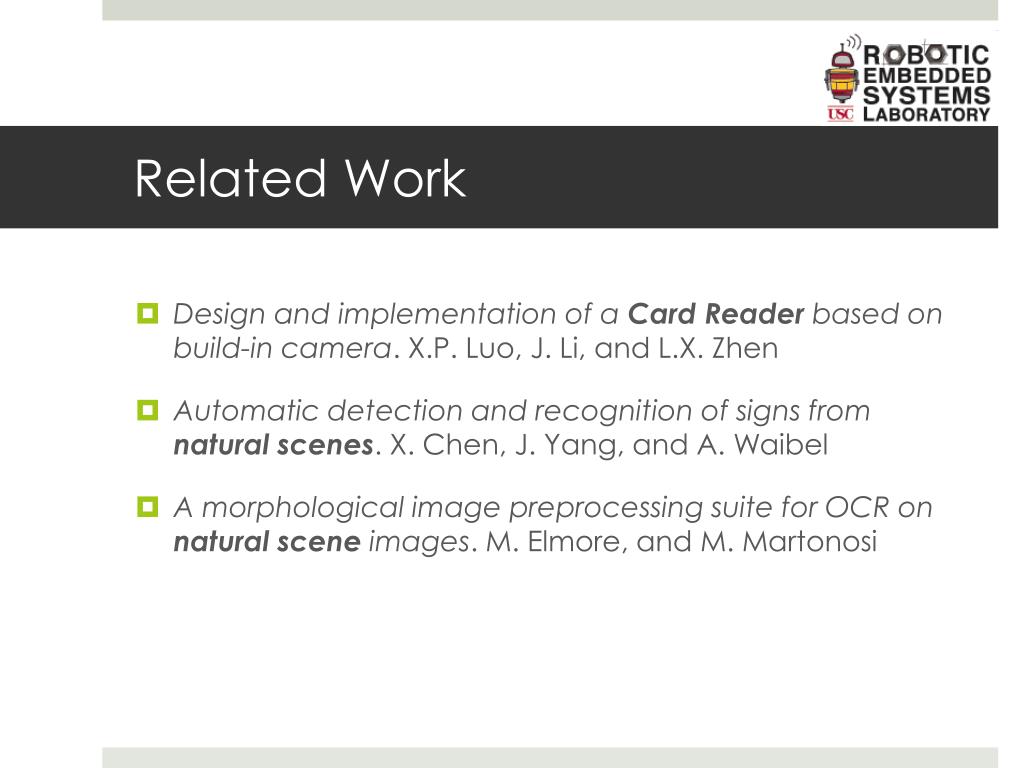

Related Work

Design and implementation of a Card Reader based on build-in camera. X.P. Luo, J. Li, and L.X. Zhen

Automatic detection and recognition of signs from natural scenes. X. Chen, J. Yang, and A. Waibel

A morphological image preprocessing suite for OCR on natural scene images. M. Elmore, and M. Martonosi


Design considerations

Design Considerations

  • Real-Time Processing

  • Lighting Conditions

  • Text Skew

  • Perception Distortion (Tilt)

  • Text Misalignment

  • Blur (Out – Of - Focus)


Real time processing

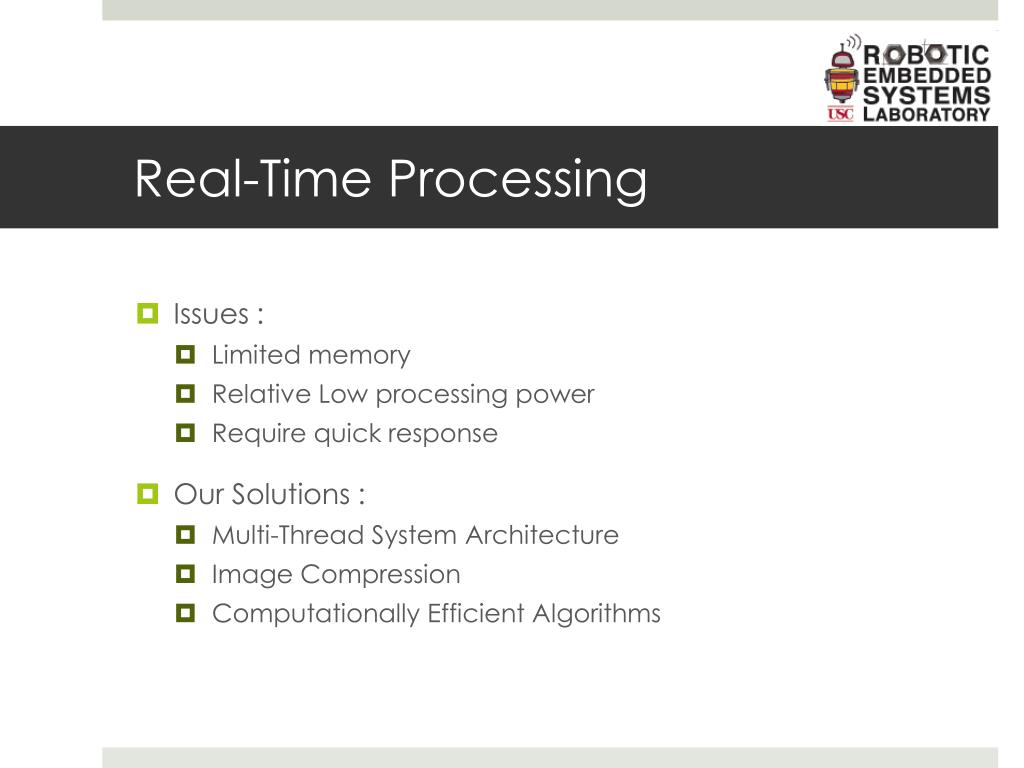

Real-Time Processing

  • Issues :

    • Limited memory

    • Relative Low processing power

    • Require quick response

  • Our Solutions :

    • Multi-Thread System Architecture

    • Image Compression

    • Computationally Efficient Algorithms


Lighting conditions

Lighting Conditions

  • Issues :

    • Uneven Lighting (Shadows, Reflection, Flooding, etc.)


Lighting conditions1

Lighting Conditions

  • Our Solution :

    • Local Binarization : Fast Sauvola’s Algorithm


Text skew

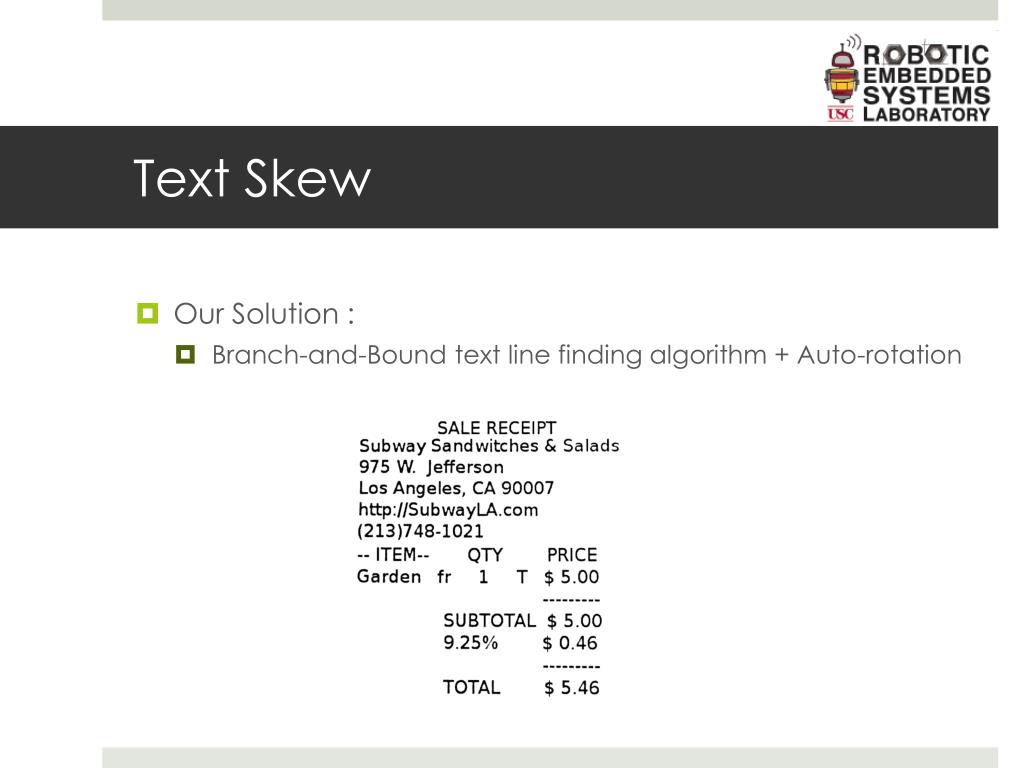

Text Skew

  • Issues :

    • When perspective is not fixed, text lines may get skewed from their original orientation


Text skew1

Text Skew

  • Our Solution :

    • Branch-and-Bound text line finding algorithm + Auto-rotation


Perception distortion tilt

Perception Distortion (Tilt)

  • Issues :

    • When the text plane is not parallel to the imaging plane

    • Mobile phones are susceptible to tilts

    • Small Perception Distortion causes OCR to fail


Perception distortion tilt1

Perception Distortion (Tilt)

  • Our Solution :

    • Use Embedded Orientation Sensor (Pitch and Roll)

    • Calibration


Text misalignment

Text Misalignment

  • Issues :

    • Camera screen covers a partial text region

    • Irregular shapes of text characters


Text misalignment1

Top Border

Left Border

Right Border

Bottom Border

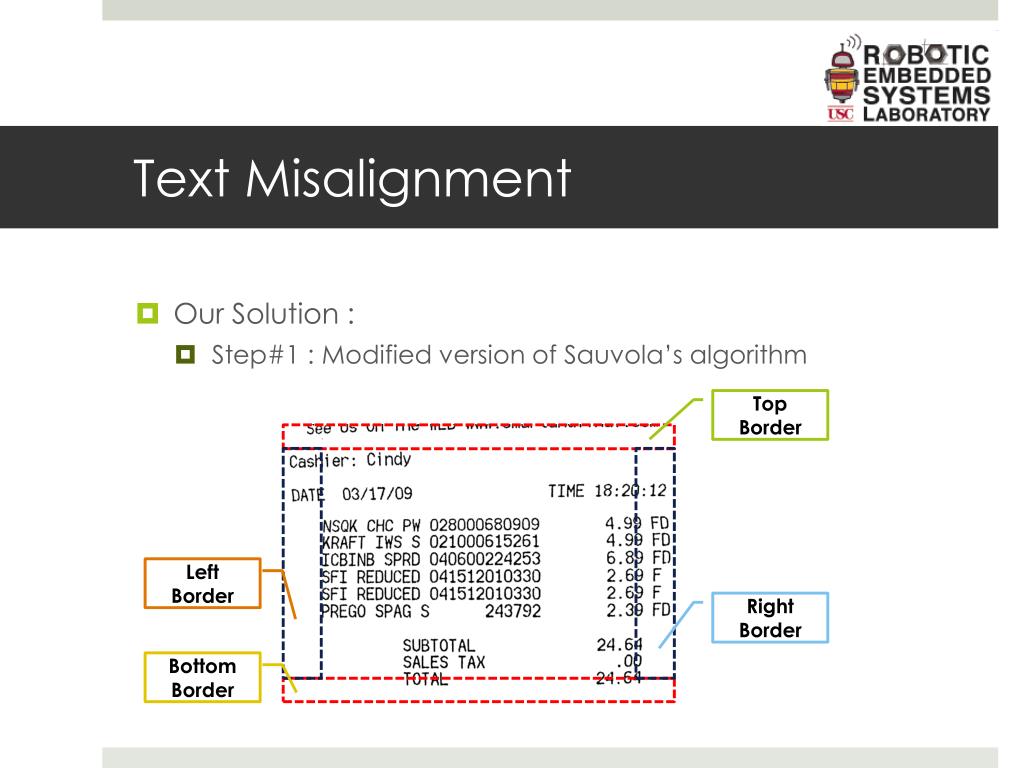

Text Misalignment

  • Our Solution :

    • Step#1 : Modified version of Sauvola’s algorithm


Text misalignment2

Text Misalignment

  • Our Solution :

    • Step#1(Cont) : Routes to perform Sauvola’s algorithm


Text misalignment3

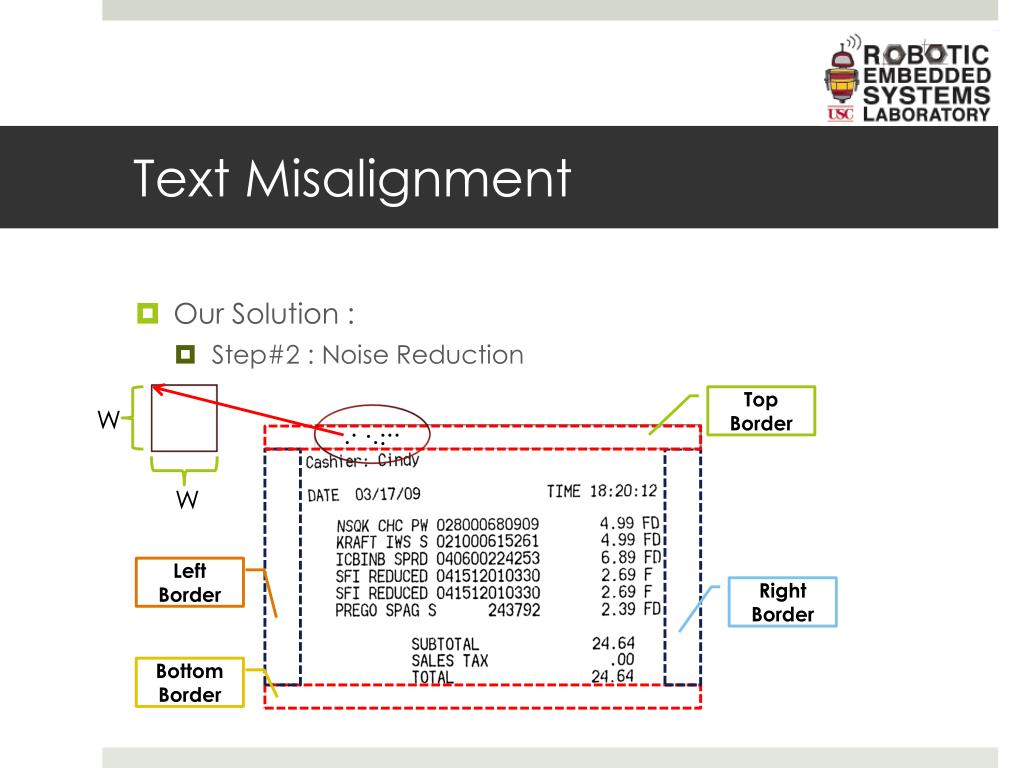

Text Misalignment

  • Our Solution :

    • Step#2 : Noise Reduction

Top Border

W

.

.

.

.

.

.

.

.

W

Left Border

Right Border

Bottom Border


Blur out of focus

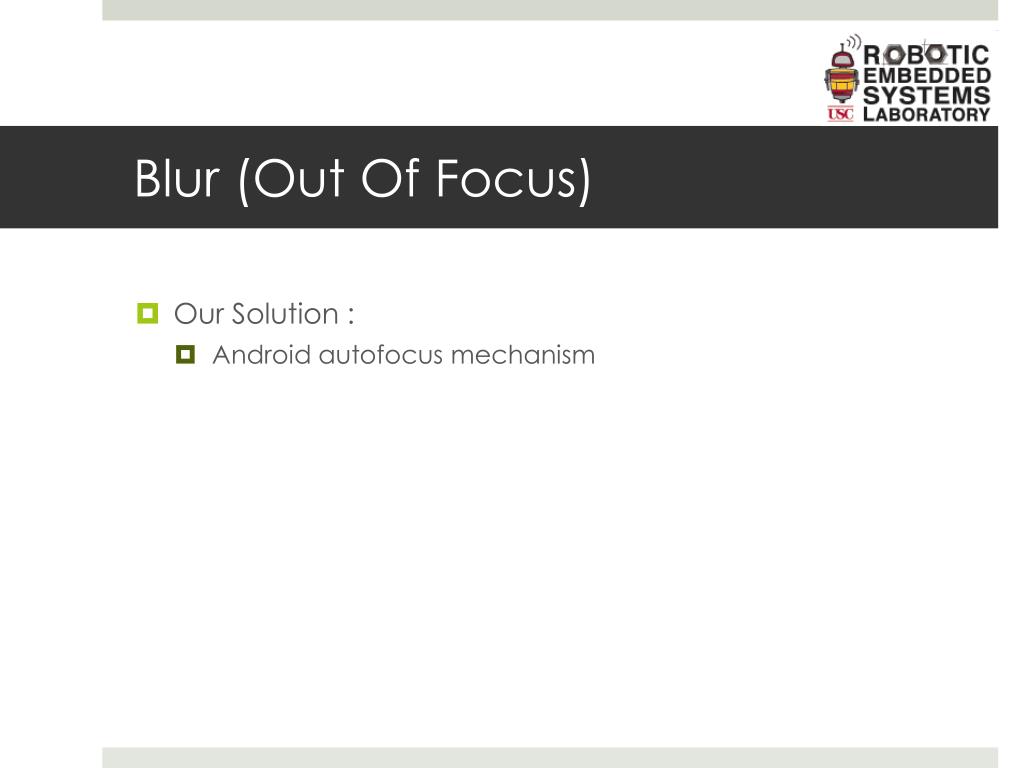

Blur (Out Of Focus)

  • Issues :

    • OCR needs sharp edge response


Blur out of focus1

Blur (Out Of Focus)

  • Our Solution :

    • Android autofocus mechanism


Ocrdroid a framework to digitize text using mobile phones

Web Server

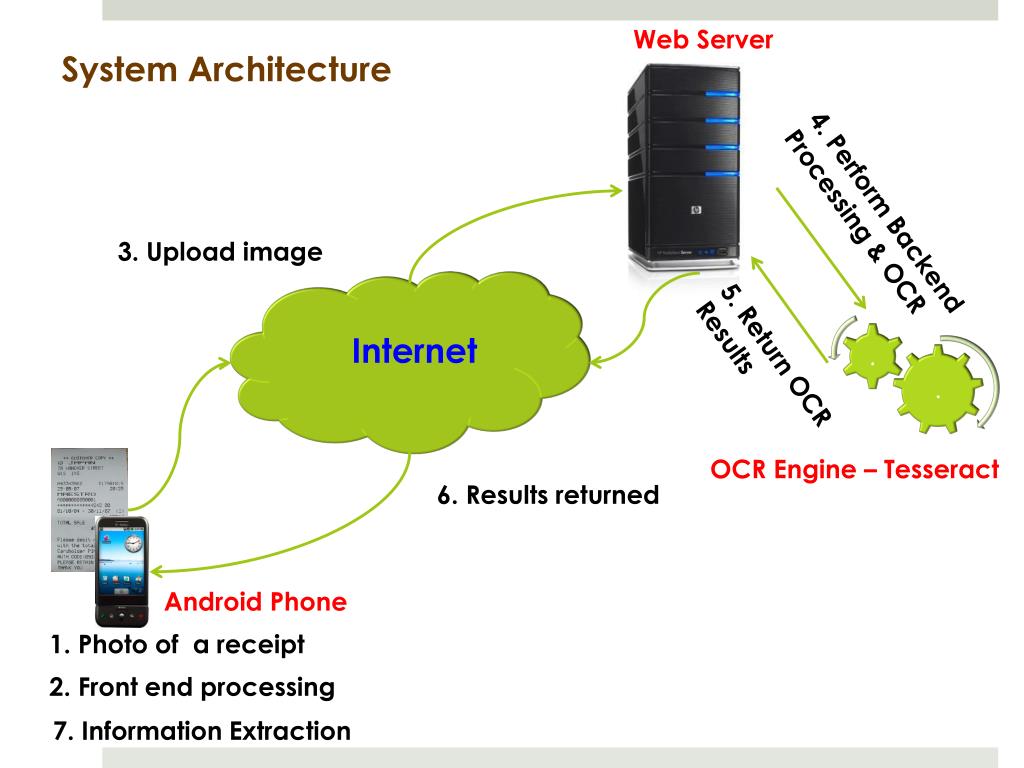

System Architecture

4. Perform Backend Processing & OCR

3. Upload image

Internet

5. Return OCR

Results

OCR Engine – Tesseract

6. Results returned

Android Phone

1. Photo of a receipt

2. Front end processing

7. Information Extraction


Ocrdroid a framework to digitize text using mobile phones

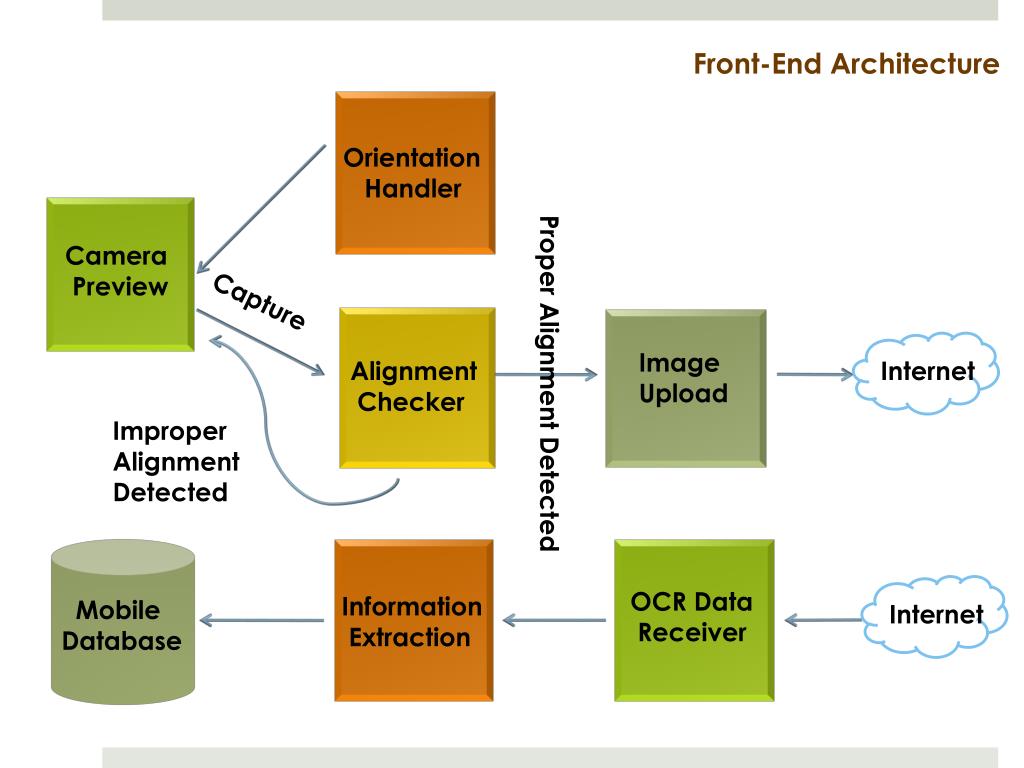

Front-End Architecture

Orientation

Handler

Camera

Preview

Capture


Upload

Alignment

Checker

Internet

Proper Alignment Detected

Improper Alignment Detected

OCR Data

Receiver

Information

Extraction

Mobile

Database

Internet


Ocrdroid a framework to digitize text using mobile phones

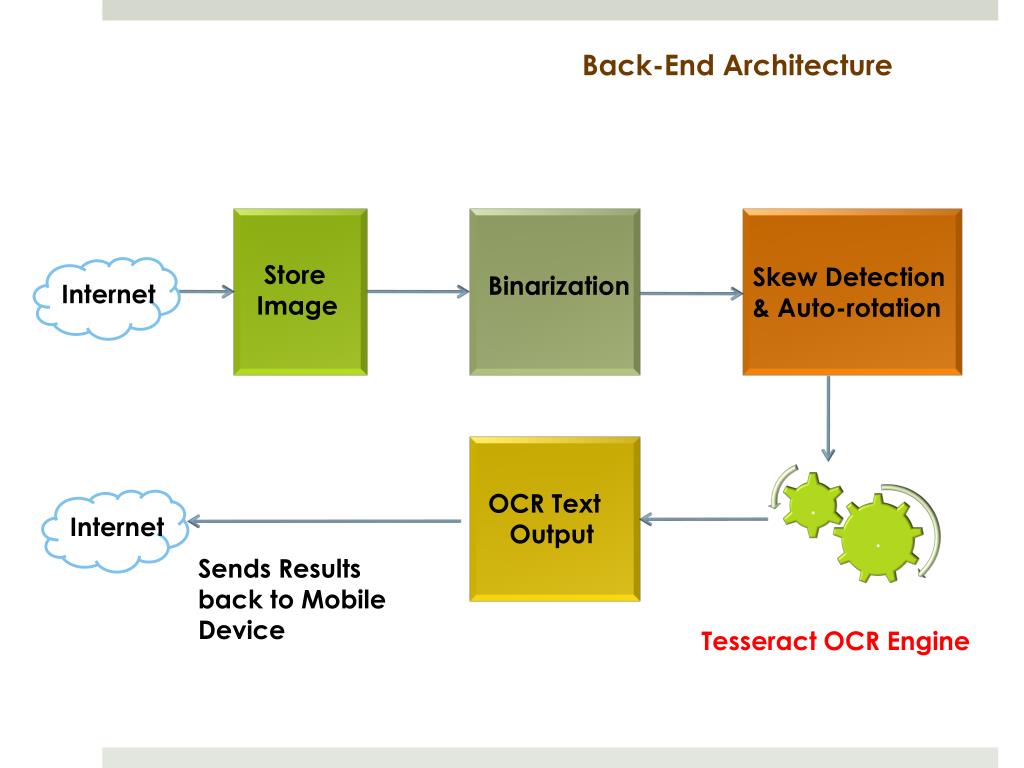

Back-End Architecture

Store Image

Skew Detection & Auto-rotation

Binarization

Internet

OCR Text

Output

Internet

Sends Results back to Mobile Device

Tesseract OCR Engine


Experimental results

Experimental Results

Test Corpus

Ten distinct black & white images

Three distinct lighting conditions

Normal: Adequate light

Poor: Dim

Flooding: Light source focus on a particular portion of image

Performance Metrics

Character Accuracy

Word Accuracy

Timing


Experimental results1

Experimental Results

  • Binarization: (Measured by Character Accuracy)

    • Normal: Around 97%

    • Poor: Around 60%

    • Flooding: Around 60%

  • Skew tolerance: Up to 30 degrees

  • Perception Distortion: Up to 10 degrees


Experimental results2

Experimental Results

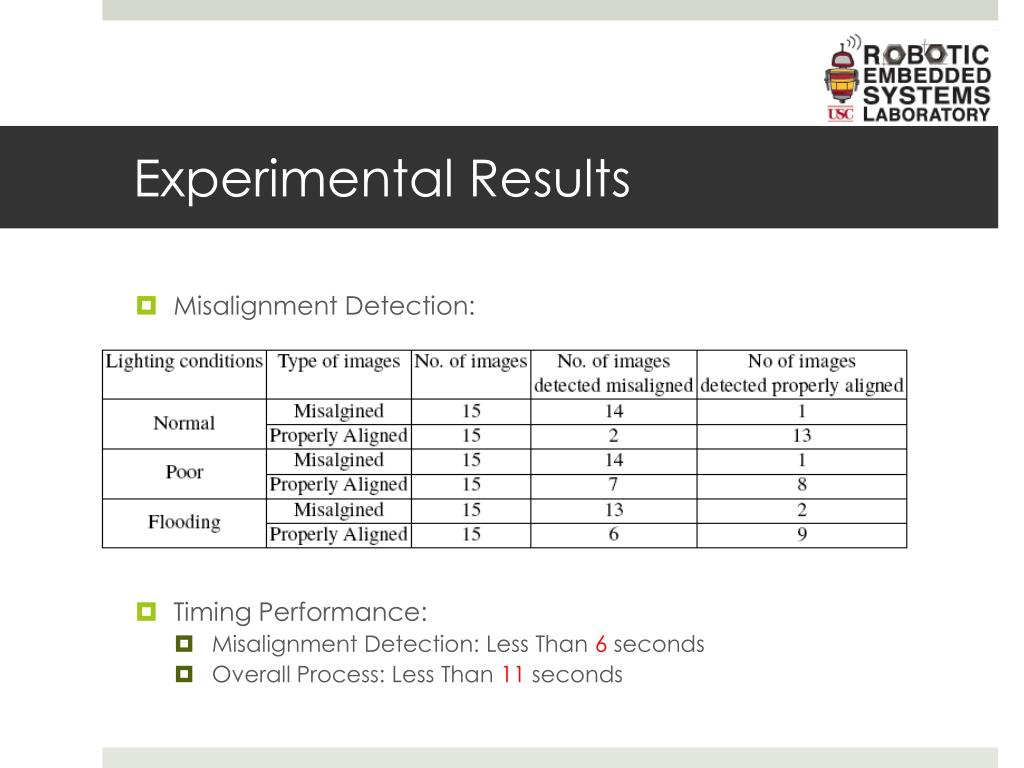

Misalignment Detection:

Timing Performance:

Misalignment Detection: Less Than 6 seconds

Overall Process: Less Than 11 seconds


More information

More Information

  • Project Website @: http://www-scf.usc.edu/~ananddjo/ocrdroid/index.php

    • Test Cases & Results

    • Demo Video

    • Paper

    • Presentation Slide

    • Tools Information (Mobile Phone + Software)


Summary

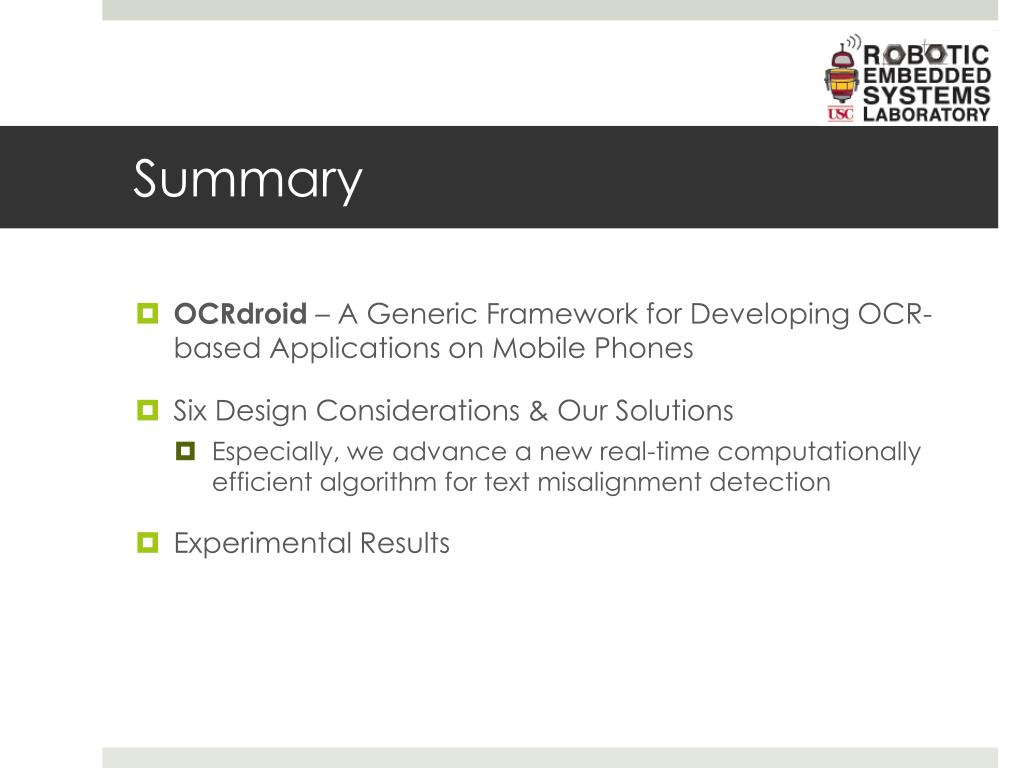

Summary

  • OCRdroid – A Generic Framework for Developing OCR-based Applications on Mobile Phones

  • Six Design Considerations & Our Solutions

    • Especially, we advance a new real-time computationally efficient algorithm for text misalignment detection

  • Experimental Results


Questions

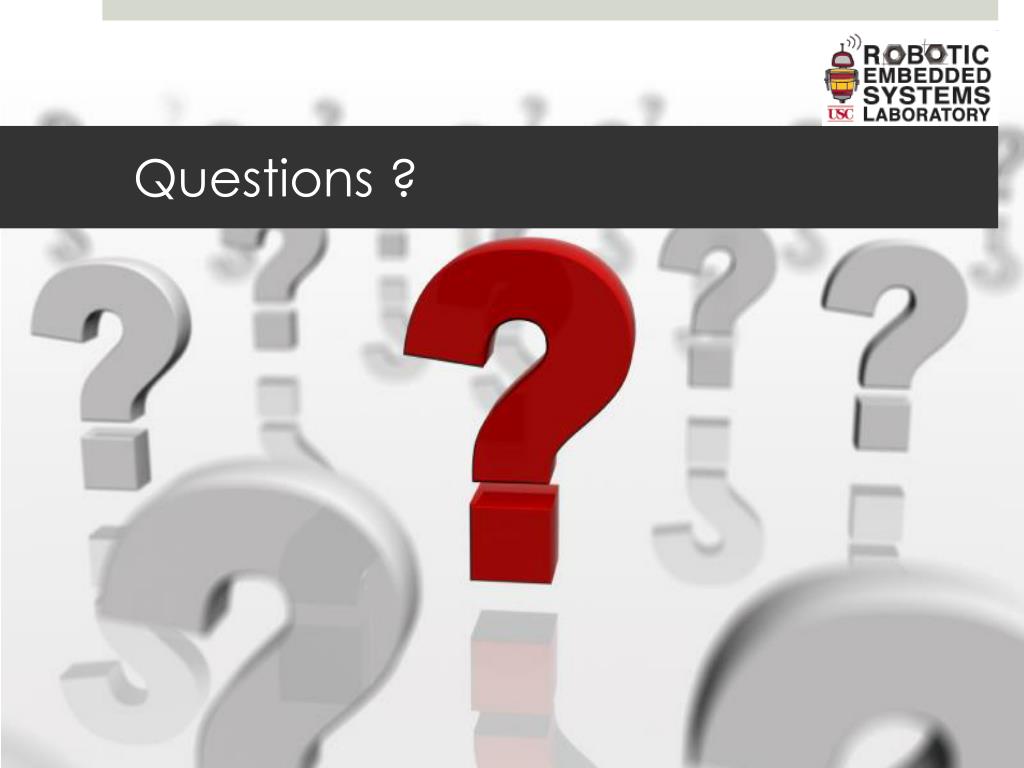

Questions ?


Thank you

Thank You
