BGA Rework- From Beginner to Expert

1. BGA Rework: From Beginner to Expert

2. The BGA rework procedure consists of a sequence of processes used to repair or replace a BGA component on a printed circuit board. A BGA component is a surface mount device with a grid of tiny solder balls on the underside to make electrical contact with the PCB. One may need to employ sophisticated tools and methods to complete a BGA rework process. BGA ReworkStation Surface-mount devices that have defective printed circuit boards can have their problems fixed using Ball Grid Array rework stations (SMDs). Besides BGA rework station, other names for this technology include SMD rework station, SMT rework station, and BGA rework station. It is common practice for printed circuit board repair technicians to use a BGA rework station when fixing malfunctioning boards. Why Is BGA Rework Required? • Repairing a faulty BGA component Fixing a broken or malfunctioning BGA part is a frequent need for BGA rework. Manufacturing flaws, physical damage, and severe temperatures are only some of the many potential causes of failure in BGA components. It is feasible to fix the PCB and get it working again by replacing the broken part.

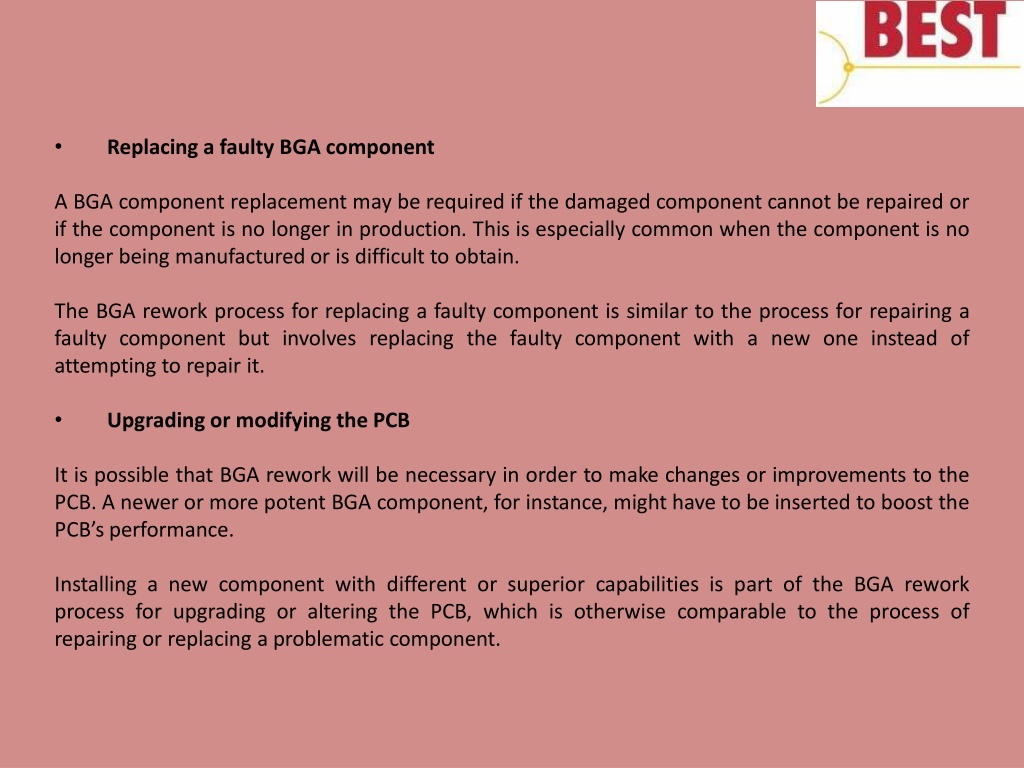

3. • Replacing a faulty BGA component A BGA component replacement may be required if the damaged component cannot be repaired or if the component is no longer in production. This is especially common when the component is no longer being manufactured or is difficult to obtain. The BGA rework process for replacing a faulty component is similar to the process for repairing a faulty component but involves replacing the faulty component with a new one instead of attempting to repair it. • Upgrading or modifying the PCB It is possible that BGA rework will be necessary in order to make changes or improvements to the PCB. A newer or more potent BGA component, for instance, might have to be inserted to boost the PCB’s performance. Installing a new component with different or superior capabilities is part of the BGA rework process for upgrading or altering the PCB, which is otherwise comparable to the process of repairing or replacing a problematic component.

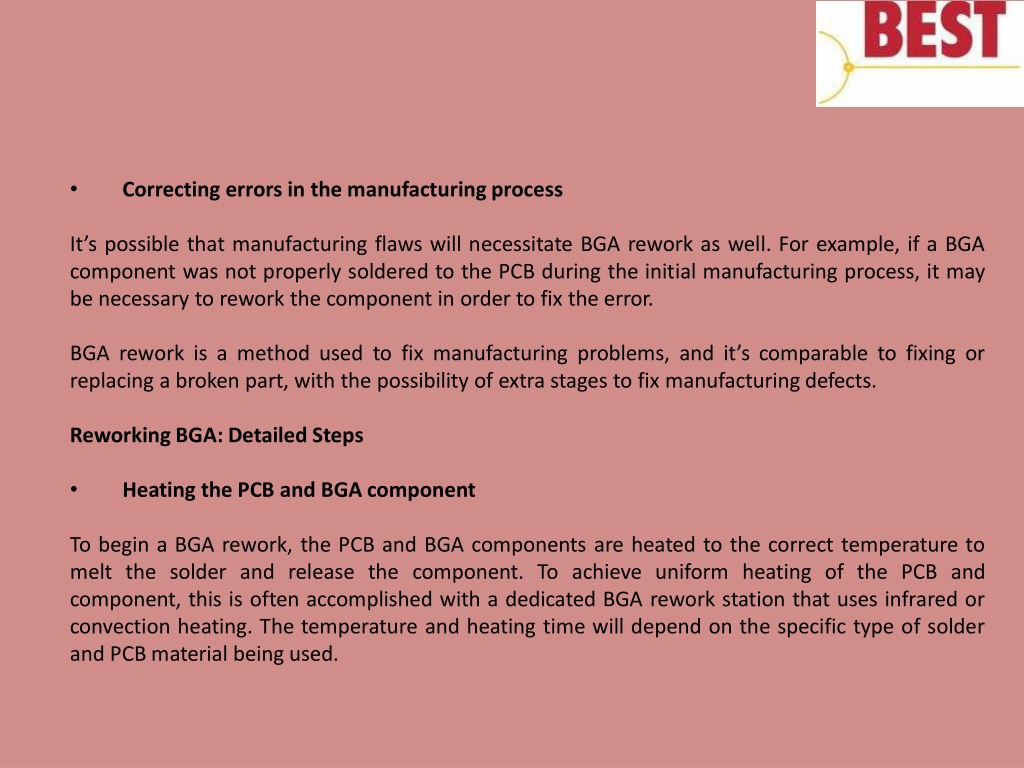

4. • Correcting errors in the manufacturing process It’s possible that manufacturing flaws will necessitate BGA rework as well. For example, if a BGA component was not properly soldered to the PCB during the initial manufacturing process, it may be necessary to rework the component in order to fix the error. BGA rework is a method used to fix manufacturing problems, and it’s comparable to fixing or replacing a broken part, with the possibility of extra stages to fix manufacturingdefects. ReworkingBGA: Detailed Steps • Heating the PCB and BGA component To begin a BGA rework, the PCB and BGA components are heated to the correct temperature to melt the solder and release the component. To achieve uniform heating of the PCB and component, this is often accomplished with a dedicated BGA rework station that uses infrared or convection heating. The temperature and heating time will depend on the specific type of solder and PCB material being used.

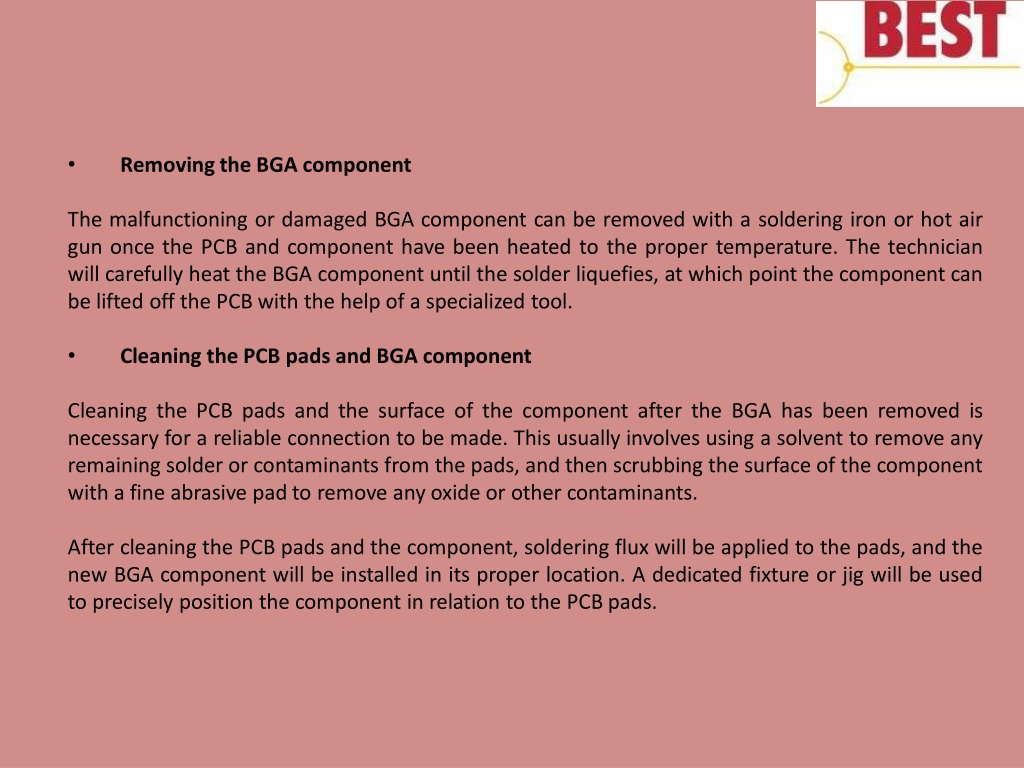

5. • Removing the BGA component The malfunctioning or damaged BGA component can be removed with a soldering iron or hot air gun once the PCB and component have been heated to the proper temperature. The technician will carefully heat the BGA component until the solder liquefies, at which point the component can be lifted off the PCB with the help of a specialized tool. • Cleaning the PCB pads and BGA component Cleaning the PCB pads and the surface of the component after the BGA has been removed is necessary for a reliable connection to be made. This usually involves using a solvent to remove any remaining solder or contaminants from the pads, and then scrubbing the surface of the component with a fine abrasive pad to remove any oxide or other contaminants. After cleaning the PCB pads and the component, soldering flux will be applied to the pads, and the new BGA component will be installed in its proper location. A dedicated fixture or jig will be used to precisely position the component in relation to the PCB pads.

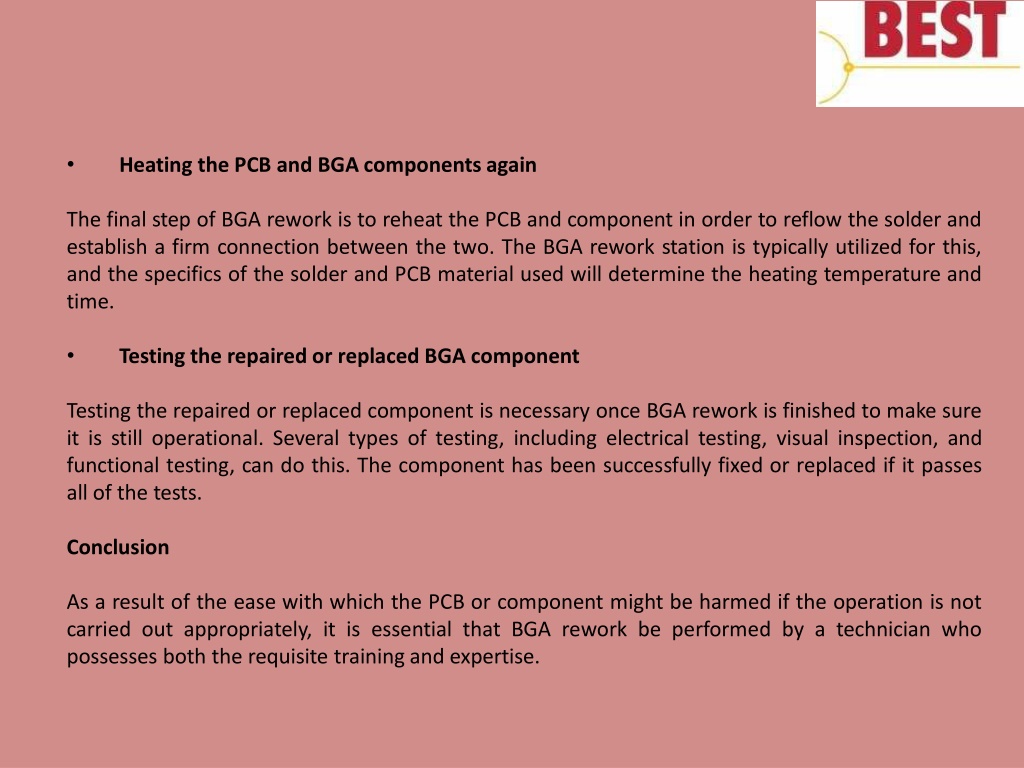

6. • Heating the PCB and BGA components again The final step of BGA rework is to reheat the PCB and component in order to reflow the solder and establish a firm connection between the two. The BGA rework station is typically utilized for this, and the specifics of the solder and PCB material used will determine the heating temperature and time. • Testing the repaired or replaced BGA component Testing the repaired or replaced component is necessary once BGA rework is finished to make sure it is still operational. Several types of testing, including electrical testing, visual inspection, and functional testing, can do this. The component has been successfully fixed or replaced if it passes all of the tests. Conclusion As a result of the ease with which the PCB or component might be harmed if the operation is not carried out appropriately, it is essential that BGA rework be performed by a technician who possesses both the requisite training and expertise.
