BGA Inspection for Failure Analysis and Troubleshooting

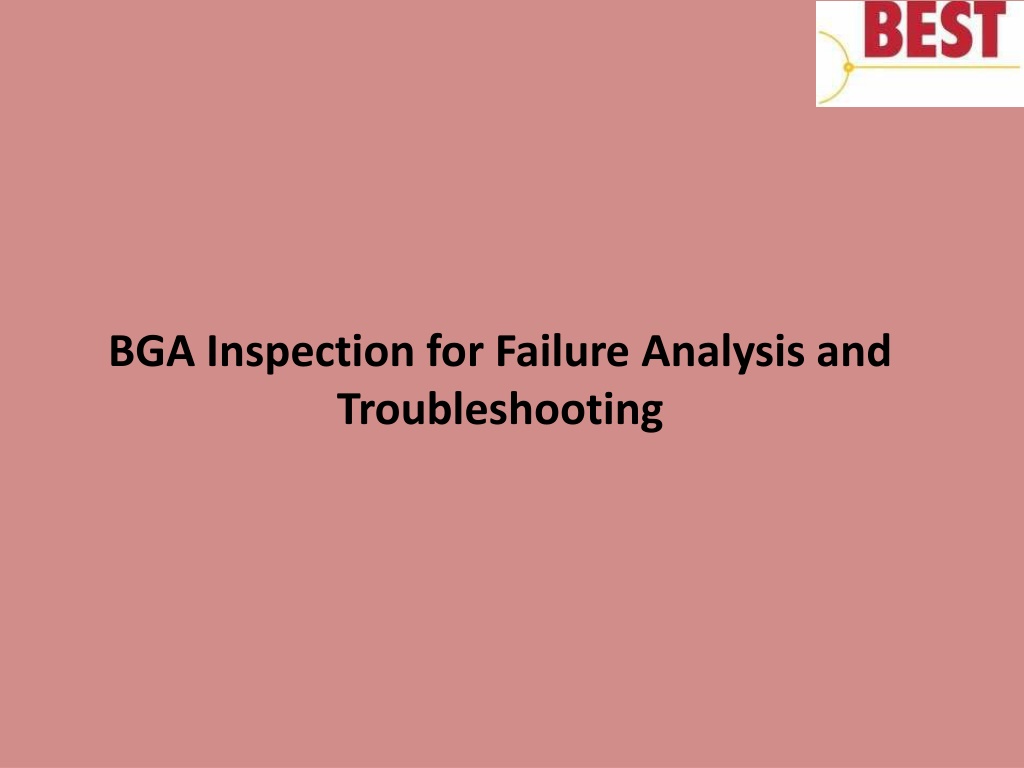

1. BGA Inspection for Failure Analysis and Troubleshooting

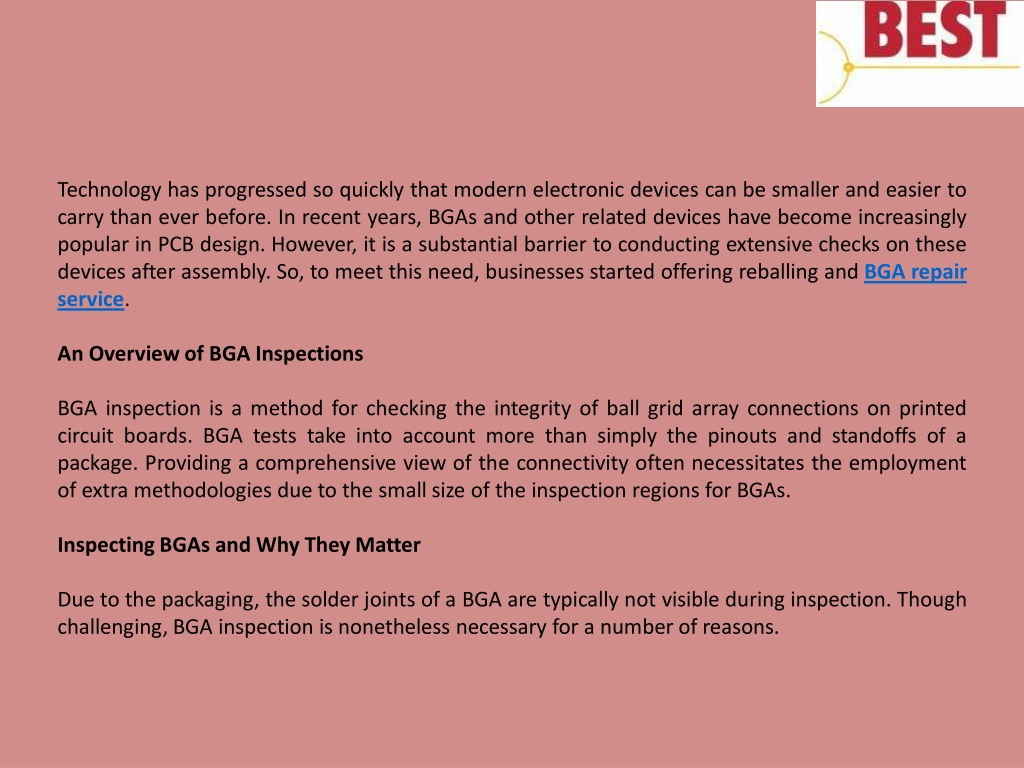

2. Technology has progressed so quickly that modern electronic devices can be smaller and easier to carry than ever before. In recent years, BGAs and other related devices have become increasingly popular in PCB design. However, it is a substantial barrier to conducting extensive checks on these devices after assembly. So, to meet this need, businesses started offering reballing and BGA repair service. An Overview of BGA Inspections BGA inspection is a method for checking the integrity of ball grid array connections on printed circuit boards. BGA tests take into account more than simply the pinouts and standoffs of a package. Providing a comprehensive view of the connectivity often necessitates the employment of extra methodologies due to the small size of the inspection regions for BGAs. Inspecting BGAs and Why They Matter Due to the packaging, the solder joints of a BGA are typically not visible during inspection. Though challenging,BGA inspection is nonetheless necessary for a number of reasons.

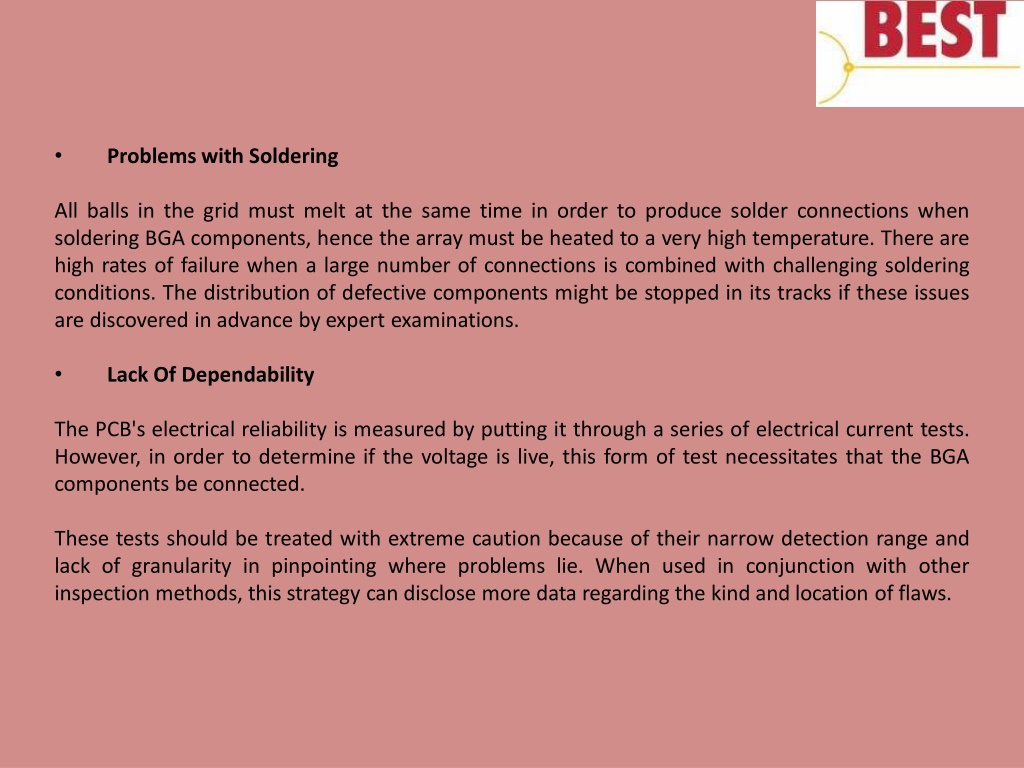

3. • Problems with Soldering All balls in the grid must melt at the same time in order to produce solder connections when soldering BGA components, hence the array must be heated to a very high temperature. There are high rates of failure when a large number of connections is combined with challenging soldering conditions. The distribution of defective components might be stopped in its tracks if these issues are discovered in advance by expert examinations. • Lack Of Dependability The PCB's electrical reliability is measured by putting it through a series of electrical current tests. However, in order to determine if the voltage is live, this form of test necessitates that the BGA components be connected. These tests should be treated with extreme caution because of their narrow detection range and lack of granularity in pinpointing where problems lie. When used in conjunction with other inspection methods, this strategy can disclose more data regarding the kind and location of flaws.

4. • Component Reuse At rework stations, BGAs that have solder flaws can be removed, and then either repaired or replaced, depending on the situation. The inspection process helps find problems before they ruin usable products. • Quality Control The reliability of a BGA SMT assembly relies heavily on the strength of the communication links, making rigorous testing of these joints an essential part of quality assurance. In addition to spotting common issues, such as worn parts, thorough examinations can also reveal defects that have persisted for some time. These metrics are crucial because instances of recurring errors may suggest problems with the PCB's design or manufacturing and assembly procedures. • Decreased Expenditures It is possible to reduce the number of problems that make it into subsequent production steps by employing more stringent inspection processes. When defects are discovered later in production, it may cost more to rectify them than they would have at the beginning of the process.

5. Your organization will incur more expenses to repair the issue if it is not found in time. Therefore, developing workable solutions requires rapid action taken with due care. The BGA's Inspection Procedures for Components • Analyzing Electricity A BGA is put through an electrical test to see how well it handles power. When the BGA part is reinstalled, the test will see if electricity is flowing again. This kind of testing can be useful for locating open circuits and short circuits in electrical systems. Testing electrical components is an important part of any examination, but it can be difficult to locate test locations under BGA circuits. In other words, passing the electrical tests is no assurance that you'll pass the examination. Electrical tests are just one of many that are used by ball grid array inspectors to find problems. • Visual Analysisor Optical Inspection The process of inspecting a BGA and its connections using optics technology is known as optical inspection, sometimes known as visual inspection. When this method was first implemented, it could only be observed with the naked eye or through a microscope, limiting the extent of its findings. However, the endoscope has made it much simpler to conduct such an investigation.

6. The endoscope has a long and distinguished history in medicine, but it also finds application in BGAs due to its ability to visually check microscopic items in tight quarters. High-resolution, up- close photographs of the subject are captured with the help of a camera equipped with a powerful zoom lens and a connected monitor. For more complex image collection and measurement, this technique is generally utilized in tandem with visualization software. • Diagnosis Utilizing X-Rays Modern X-ray inspection equipment is flexible enough to allow for the inspection of solder connection geometry from a variety of angles. Images captured by this technique are of such high quality that solder faults like bridging,popcorning, and over-soldering can be easily identified. Conclusion Ultimately, it is critical to select the most appropriate BGA inspection method for your application by learning its ins and outs. Doing so will allow you to make the most of BGA inspection to guarantee the quality and functionality of your electronic devices and prevent expensive breakdowns.

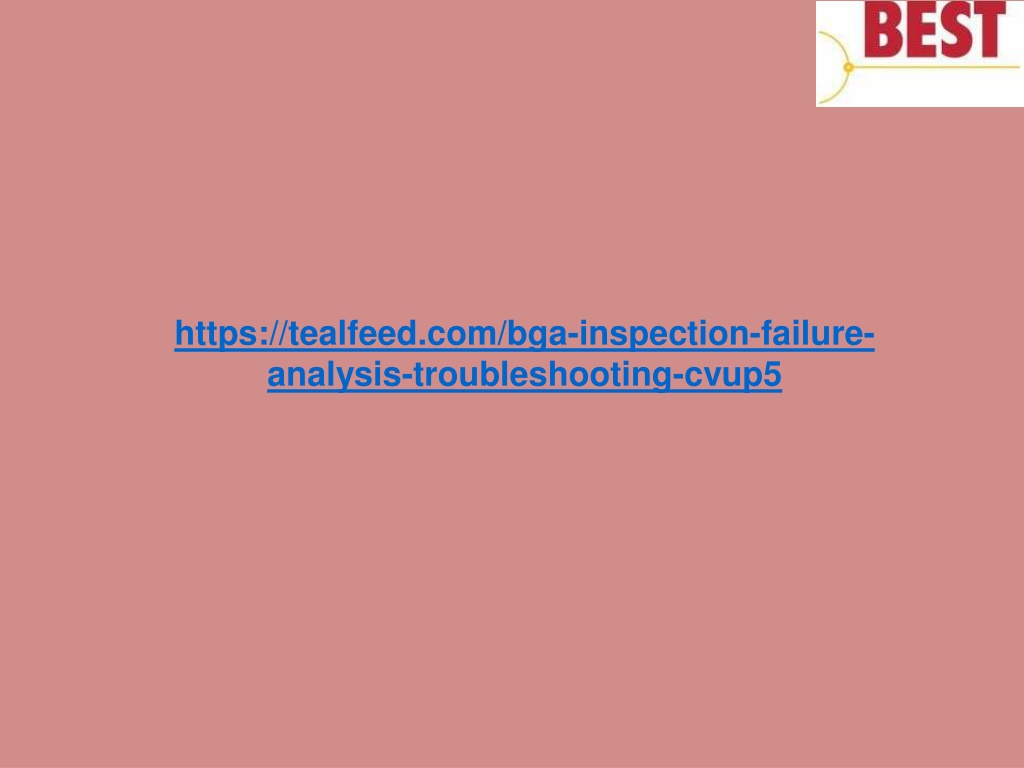

7. https://tealfeed.com/bga-inspection-failure- analysis-troubleshooting-cvup5
