  1. SSERemote Telemetry UnitSSE RTU

  2. Telemetry Systems…40-20 Years Ago • Rural Pumping Schemes – Controlled by hand • Urban Schemes – Controlled by Relay Logic & Instrumentation • Very Basic Telemetry Systems – Hard Wired with Mimic • Radio Telemetry – Starting to emerge for remote control.

  3. …15 to 20 Years Ago • Demand for Operational Function – Alarms & Remote Control • Slow Radios (300 Baud) Installed – Limited Data Throughput • “Cable Replacer” Type Telemetry System • Control – Relay Logic/Basic PLC • Small Amount of Data – Mainly Basic Alarming & Limited Control • Master Station – MainlyMimic Panels & DOS Based SCADA

  4. Typical Telemetry Network – Then!

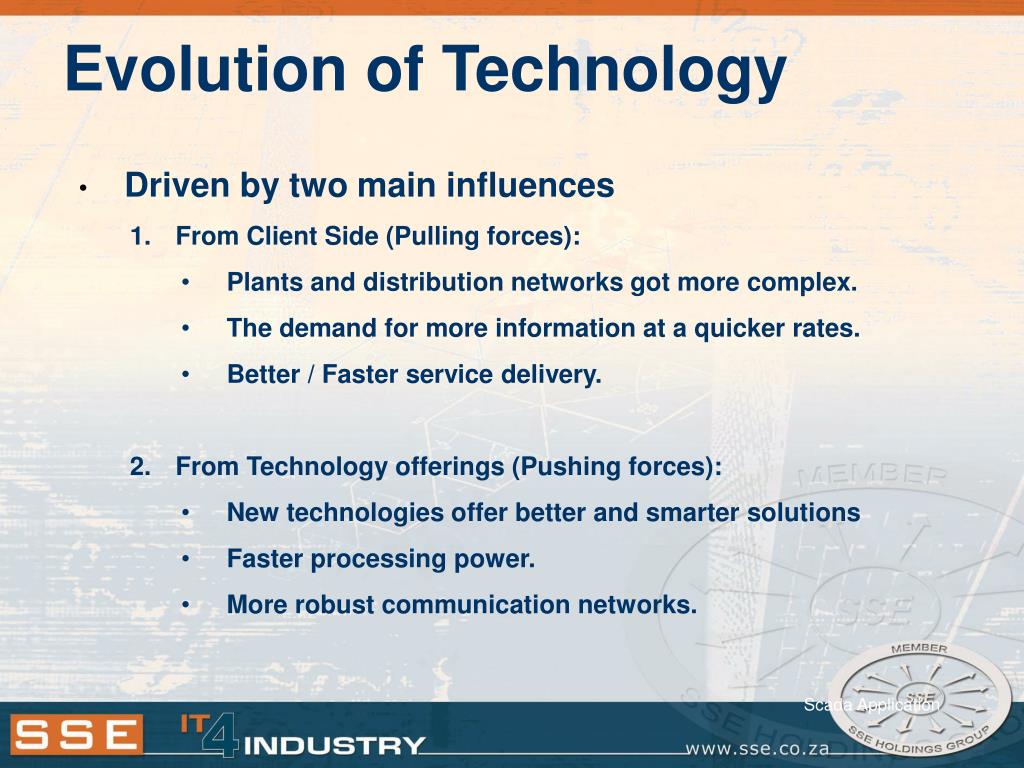

  5. Scada Application Evolution of Technology • Driven by two main influences • From Client Side (Pulling forces): • Plants and distribution networks got more complex. • The demand for more information at a quicker rates. • Better / Faster service delivery. • From Technology offerings (Pushing forces): • New technologies offer better and smarter solutions • Faster processing power. • More robust communication networks.

  6. Modern RTU’s • Compact – more I/O with smaller footprint • Connect to all wide area networks – compatible with new IP based networks • Intelligent – PLC Based processing capabilities • OPC Compliant Software – open standard for industrial applications • Remote Diagnostics – Network wide fault finding and configuration tools • Support for IED’s – protocol support for intelligent devices • Protocol Standardization

  7. SSE Design Philosophy • Client Requirement driven. • Technology driven. • Follow well established engineering practises. • Hardware & Software are modular in design. • To design products that are: • Economical • User friendly • Open • Compatible • Expandable • Always backwards compatible to older version RTU’s

  8. Typical Telemetry System Layout SCADA, MES & Information Systems Backhaul Communication Network Monitoring Equipment RTU’s Interfacing & Connectivity Instrumentation & IED’s Security & Access Control Energy Meters Soft Starters Actuators Flow Meters PLC’s

  9. Security & Access Control Energy Meters Soft Starters Actuators Flow Meters PLC’s SSE RTU-12 Features Instrumentation & IED’s: • A wider choice of instruments. • Different interface signals: • 4-20 mAmp, -20 - +20 mAmp • Volt & mVolt. • Frequency & pulses. • Micro Processor based instruments got more an more popular. • Intelligent Electronic Devices (IED’s) • IED’s with Direct communication capabilities. • Running different protocols, • At different baud rate, • Using different communication mediums. • IED’s got more and more popular, but started posing more and more interfacing challenges.

  10. Security & Access Control Energy Meters Soft Starters Actuators Flow Meters PLC’s SSE RTU-12 Features…cont. Interfacing: • Discrete signals via conventional cabling • IED’s supported on a wide variety of interfacing and communication network’s • RS-232 • RS-485 • Ethernet LAN • Etc • RTU-12 Equipment supports these mediums simultaneously

  11. Security & Access Control Energy Meters Soft Starters Actuators Flow Meters PLC’s SSE RTU-12 Features…cont. Communications Backhaul: • Communication between remote RTU’s and Master SCADA computers. • Protocols: • DNP-3 Slave. • IEC 60870-5-101. • Modbus. • DF-1 • Enermax. • Etc. • Running different communication mediums: • Analogue Radio. • Data Radio. • Dial-Up. • SMS / GPRS / 3G. • Fibre Optic. • LAN • Wireless LAN. • Wi-Max • Satellite. • Etc.

  12. Comms Mediums • RS-232 / RS-485 • Analogue Radio • Digital Radio • Dial-Up • Comms Mediums • SMS / GPRS / 3G • Fibtre Optic • Ethernet • Wi MAX • Satellite • Protocols • DNP-3 • IEC-60870-5-101 • TCP-IP • Modbus • DF-1 • Protocols • Modbus • DF-1 • DNP3 Slave • IEC 60870-5-101 • Hart • Enermax • ABB Magmaster • Comms Mediums • RS-232 • RS-485 • Discrete IO’s • 4-20mAmp • Voltage • Pulses • Frequency • Etc Security & Access Control Energy Meters Soft Starters Actuators Flow Meters PLC’s SSE RTU-12 Features…cont. RTU-12 Summary: • Monitor discrete I/O. • Interface simultaneously with IED’s on multiple protocols and on multiple mediums. • Backhaul comms interfacing on multiple protocols and on multiple mediums. • Data concentrator and manager. • Configurability vs Programmability. • PLC like programming for local or distributed control. • Intelligent data logger with event reporting and time stamping to 1ms resolution. • Advanced alarming direct to users cell phone via SMS. • Comprehensive configuration toolbox. • Advanced diagnostics functionality.

  13. The Road ahead • Six new product releases in the next 12 Months. • Maestro 2000 RTU : June 2011. • Based on RTU-12 technologies. • Speed : 3 MIPS • New Enclosures. • Memory : 640 K • New Switch-mode PSU. • Maestro 4000 RTU : Feb 2012 • Complete new Hardware design • Speed : 66 MIPS • Memory : 64 Meg. • 4 RS 232 Ports standard / One Isolated RS-485 optional • Ethernet Port. • USB Port. • Serial / Remote IO Modules.

  14. The Road ahead • IO Expansion Modules : Feb 2012 • Highspeed Serial Interfacing between RTU & IO Modules. • Processor on each IO Module. • Remote IO’s. • 1 msSec Time Stamping. • Maestro 8000 RTU : Sept 2012 • Complete new Hardware design. • Speed : 250 MIPS • Memory : 64 Meg. • Run Real-time Operating System : Linux • 4 RS 232 Ports standard / One Isolated RS-458 optional • Ethernet Port. • USB Host & Device. • Serial / Remote IO Modules. • 1028 AIN, 1028 DIN, 1028 DOT, 1028 CIN, 512 AOT, 1028 FIN
