10S. Acceptance Sampling. Learning Objectives. Explain the purpose of acceptance sampling Contrast acceptance sampling and process control Compare and contrast single- and multiple-sampling plans Determine the average outgoing quality of inspected lots. Acceptance Sampling.

skyler
Download Presentation

10S

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 10S Acceptance Sampling

  2. Learning Objectives • Explain the purpose of acceptance sampling • Contrast acceptance sampling and process control • Compare and contrast single- and multiple-sampling plans • Determine the average outgoing quality of inspected lots

  3. Acceptance Sampling • Acceptance sampling: Form of inspection applied to lots or batches of items before or after a process, to judge conformance with predetermined standards

  4. Acceptance Sampling • Acceptance sampling is most useful when • A large number of items must be processed in a short time • The cost consequences of passing defects are low • Destructive testing is required • Fatigue or boredom leads to inspection errors

  5. Sampling Plans • Plans that specify lot size, sample size, number of samples, and acceptance/rejection criteria • Types of plans: • Single-sampling • Double-sampling • Multiple-sampling

  6. Operating Characteristic Curve • Operating Characteristic (OC) Curve: Probability curve that shows the probabilities of accepting lots with various fractions defective.

  7. Typical OC Curve 1 0.9 0.8 0.7 0.6 0.5 Probability of accepting lot 0.4 0.3 0.2 3% 0.1 0 0 .05 .10 .15 .20 .25 Lot quality (fraction defective) Figure 10S.1

  8. Decision Criteria 1.00 Ideal Not very discriminating Probability of accepting lot “Good” “Bad” 0 Lot quality (fraction defective) Figure 10S.2

  9. Sampling Terms • Acceptance quality level (AQL): the percentage of defects at which consumers are willing to accept lots as “good” • Lot tolerance percent defective (LTPD): the upper limit on the percentage of defects that a consumer is willing to accept • Consumer’s risk: the probability that a lot containing defectives exceeding the LTPD will be accepted • Producer’s risk: the probability that a lot containing the acceptable quality level will be rejected

  10. Consumer’s and Producer’s Risk 1  = .10 0.9 0.8 0.7 0.6 0.5 Probability of accepting lot LTPD 0.4 0.3 “Good” Indifferent “Bad” 0.2 0.1  = .10 0 0 .05 .10 .15 .20 .25 Lot quality (fraction defective) AQL Figure 10S.3

  11. 1 .9139 0.9 0.8 .7361 0.7 0.6 .5443 0.5 Probability of acceptance 0.4 .3758 0.3 .2440 0.2 .1493 .0860 0.1 0 .10 .20 .30 .40 .50 0 Fraction defective in lot QC Curve for n = 10, c = 1 Figure 10S.4

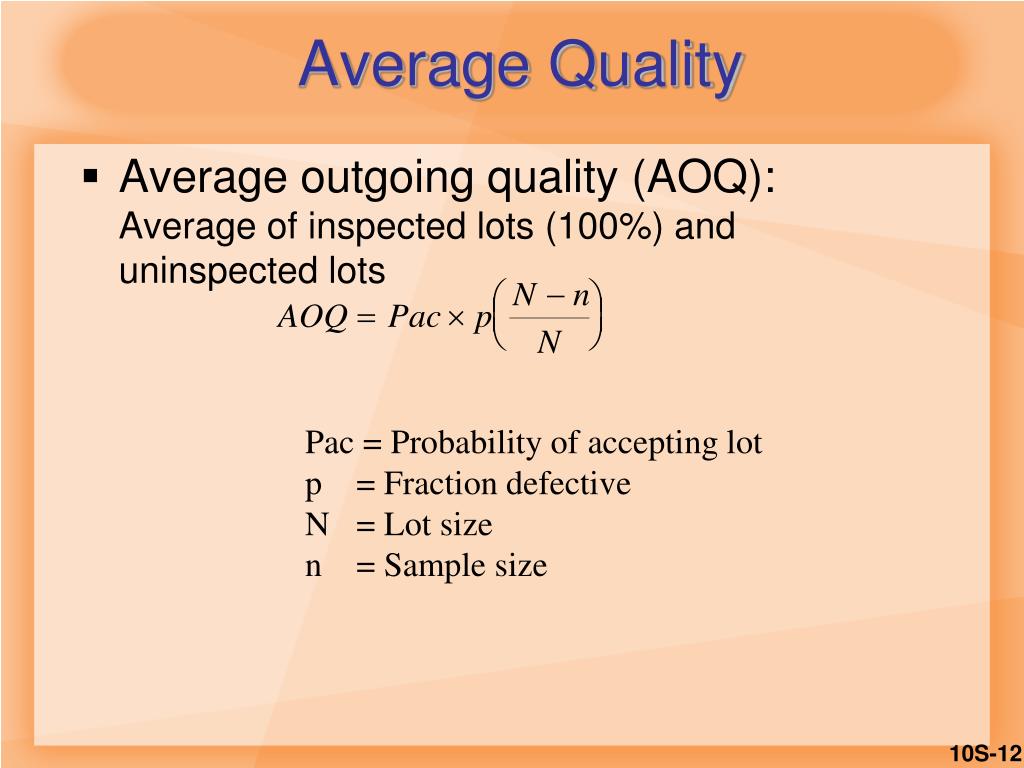

  12. Average Quality Pac = Probability of accepting lot p = Fraction defective N = Lot size n = Sample size • Average outgoing quality (AOQ): Average of inspected lots (100%) and uninspected lots

  13. Example 10S-2: AOQ Approximate AOQL = .082 AOQ (Fraction defective out) Incoming fraction defective
