Reliability of Antifuse-Based field Programmable Gate Arrays for Military and Aerospace Applications

John McCollum, Roy Lambertson, Jeewicka Ranweera, Jennifer Moriarta, Jih-Jong Wang, Frank Hawley, and Arun Kundu

Actel Corporation

Figure1


Figure 1

  • The Design Engineer (user) and his CAE tools is partially responsible for the content of an FPGA

  • Reliability of an FPGA design is therefore a mix of the manufacturer and the user

Figure2


Manufacturer responsibility

Manufacturer Responsibility

  • Antifuses are an addition to the base CMOS process

  • Reliability of the ONO antifuse

  • There are two states that must be reliable

    • Open

    • Short

Figure3


Figure 1

N+ Polysilicon

Oxide

Nitride

Oxide

N+ Diffusion

ONO Antifuse

Figure4


Figure 1

ONO Antifuse Photomicrograph

Figure5


Figure 1

Figure6


Figure 1

Programmed State of ONO

Figure7


Figure 1

Note: No Switch off

Heating of Filament

Programmed at 5mA

Figure8


Figure 1

ONO Antifuse Switch off Test

Figure9


Figure 1

Photomicrograph showing Poly Contact failed not the Antifuse

Figure10


Figure 1

SEDR Curve

90A Thickness

Typical is 96A

Figure11


Figure 1

  • Amorphous-Silicon Antifuse allow higher density(Sea of Modules)

  • Higher performance - Lower Capacitance

  • Reliability analysis for opens and shorts

Figure12


Figure 1

Unprogrammed Antifuse

Via to Metal 4

Antifuse

Metal 3

Figure13


Figure 1

Life of the Universe

Data indicates that this line

actually turns up

Figure14


Figure 1

Programmed Antifuse

Figure15


Figure 1

Data showing that switch off the metal Antifuse

is over designed by at least a factor of 2

Figure16


Figure 1

SEDR of the Metal to Metal Antifuse

No failure

SXS shows one fail

at 2.85V

max spec is 2.75V

Figure17


Figure 1

  • Since BVG (Break Down Voltage) of ONO was lower than gate oxide no antifuses are connected to pins

  • ESD thus achieved Class 2 >2000 Volts

  • Actel however discovered PID (Process Induced Damage) in Fabs

  • Implanters and Plasma Etchers could produce 20 volts on the wafer and destroy the ONO

  • Actel worked with the Fabs and solved this problem

  • Additionally Actel voltage stresses each part at Wafer Sort and Final Test to eliminate all antifuse defects

Figure18


Figure 1

Nominal BVG

PID tale

Figure19


Figure 1

  • Most MOS reliability defects are traditionally Gate oxide Failures

  • By virtue of the high voltage stresses applied to Actel circuits for programming (even low voltage transistors) there have been very few oxide failures

Figure20


Figure 1

Apparent turn up is due

to less time to collect

long term data

Figure21


Figure 1

With ten years of production of

Multi-Layer Aluminum the process

is very mature even though

it has been scaled

Early defects related to via failures

Figure22


Figure 1

Due to the high level of integration

modern ICs are have progressed

dramatically

Note: no failures

Figure23


Figure 1

  • Testing ASIC s with test vectors of less than 100% can lead to unacceptable failure rates

  • FPGAs are however 100% tested

  • All tracks

  • All modules

  • All clocks

  • All programming circuits

  • All I/Os

  • All isolation transistors

  • The charge pump

  • All antifuses in the open state

  • All antifuses are stressed

  • A column of circuits is programmed (binning circuit) to verify programming

Figure24


Figure 1

Fault Coverage

Figure25


Figure 1

  • During programming a small fraction of antifuses will fail to program

  • Once the programmer passes a part it is guaranteed to be 100% functional

  • Tests are performed to verify the correct antifuse is programmed and is the correct impedance

  • Additional tests are done to verify that no other antifuse was erroneously programmed or any circuit damage was done

Figure26


Figure 1

  • CAE tools are reliable in translating RTL code to a logic design, but may pitfalls await the designer

  • Behavior level code would be less prone to bugs, but it will not be very efficient in silicon use or very fast - hence not much demand

  • Remember with FPGAs YOU are an IC designer

  • Following are few examples of pitfalls

Figure27


Figure 1

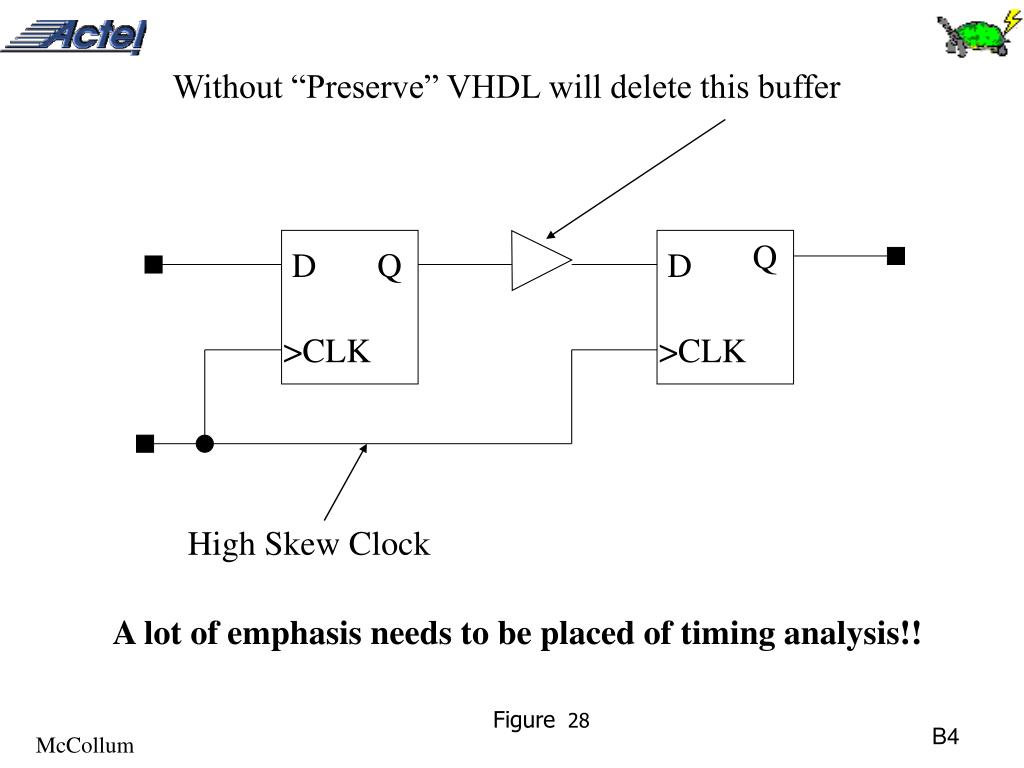

Without “Preserve” VHDL will delete this buffer

Q

D

Q

D

>CLK

>CLK

High Skew Clock

A lot of emphasis needs to be placed of timing analysis!!

Figure28


Figure 1

  • The designer must know his target FPGA and understand the proper coding style to achieve his design goals

  • Improper coding will produce a logically correct circuit, but might use combinatorial logic to clock a register rather than merely enabling the register and using the clock

Figure29


Figure 1

  • For example, the following Verilog code will synthesize to a two-input AND gate the output of which will clock the register.

    module gatedFF(Q, Data, Clock, Enable);

    input Clock, Data, Enable;

    output Q;

    reg Q;

    wire GC;

    assign = (Clock && Enable);

    always @(posedge GC)

    begin

    Q = Data;

    end

    endmodule

Figure30


Figure 1

  • Once you rewrite the Verilog in the following way, the tools are able to infer the Enable-FF.

    module enableFF(Q, Data, Clock, Enable);

    input Clock, Data, Enable;

    output Q;

    reg Q;

    always @(posedge Clock)

    begin

    if (Enable)

    Q = Data;

    end

    endmodule

Figure31


Figure 1

  • In space based applications Register Duplication is to be avoided as SEU can easily create illegal states

  • VHDL requires you to instantiate the special CLKINT or CLKBUF

  • Synplify has an option to turn register duplication off

Figure32


Figure 1

  • If SEU is a concern the use of CC Module or TMR techniques are required. Actel tools fully support these techniques in synthesis

  • The RTSXS family has self refreshing TMR built into every register. It has proven nearly ion proof, such that SEU upsets do not have to be considered in design

Figure33


Figure 1

  • RTSXS have new features to make it power-up friendly while the charge pump is turning on

    • Outputs are tristated

    • Logic Modules are in standby

    • Outputs can be programmed to source or sink 50 a

    • Once Charge pump has reached operating voltage the modules are activated and the outputs become valid with no glitches

Figure34


Figure 1

  • Every FPGA manufacturer will tell their customers “use fully synchronous design”

  • Yet many designers don’t or manage to avoid fully synchronous design points at critical interfaces

  • The successful designer will learn his CAE tools and the target FPGA and follow good design practice

Figure35


User testing

User Testing

  • FLIP FLOPs can remember their last state up to 24 hours

  • Set flip flops to the opposite state of the desired power-up state for one hour before power-down followed by the power-up sequence

  • Power-on reset signals should not be applied until the power supplies have reached spec.

Figure36


Summary

Summary

  • Devices and CAE tools have improved tremendously in 30 years.

  • Very high levels of integration have made systems more reliable

  • ICs and CAE tools benefit from multiple users to scrub defects from the circuits

  • FPGAs have made the system designer an IC designer - ultimately the system reliability rests with him

Figure37
