Surface modification of tungsten due to carbon ion implantation

Surface modification of tungsten due to carbon ion implantation. A. Martinavičius. Introduction. The first wall of future fusion devices will be made from the materials W, C and Be.

sivan
Download Presentation

Surface modification of tungsten due to carbon ion implantation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Surface modification of tungsten due to carbon ion implantation A. Martinavičius

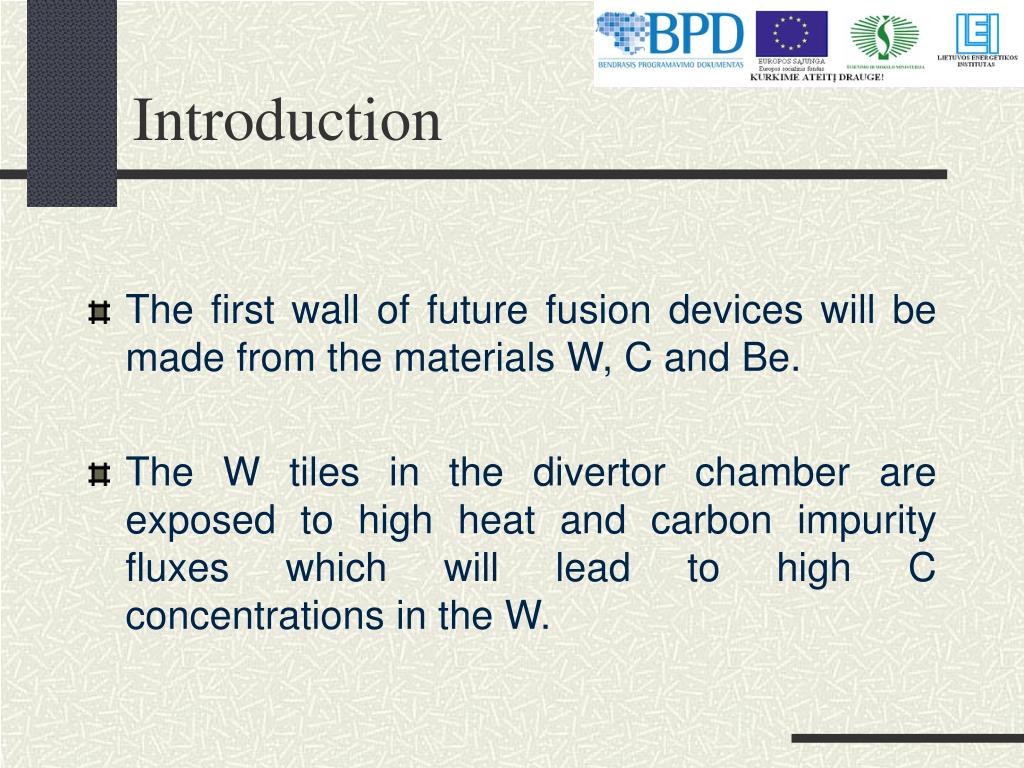

  2. Introduction • The first wall of future fusion devices will be made from the materials W, C and Be. • The W tiles in the divertor chamber are exposed to high heat and carbon impurity fluxes which will lead to high C concentrations in the W.

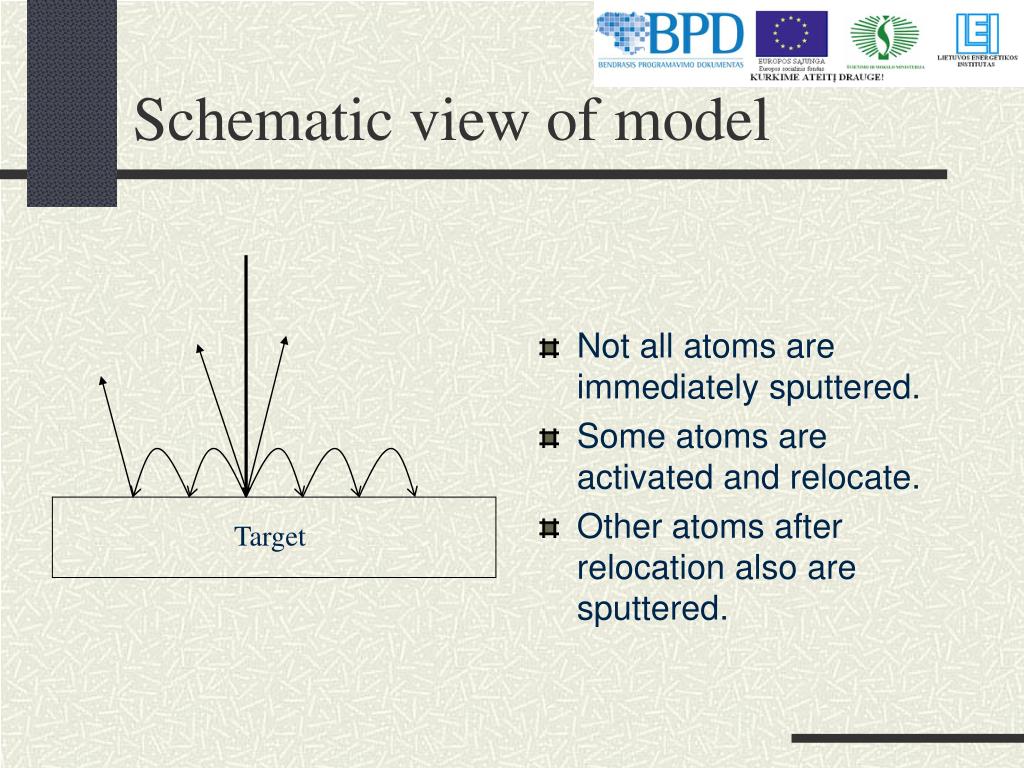

  3. Schematic view of model • Not all atoms are immediately sputtered. • Some atoms are activated and relocate. • Other atoms after relocation also are sputtered. Target

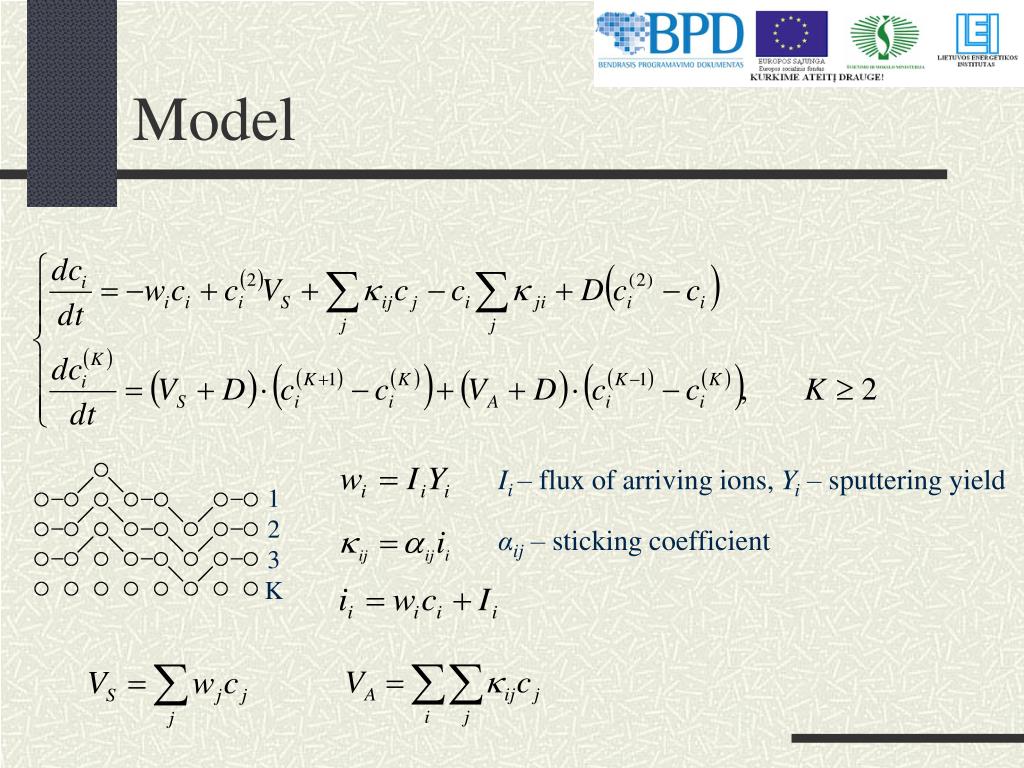

  4. 1 2 3 K Model Ii – flux of arriving ions, Yi – sputtering yield αij – sticking coefficient

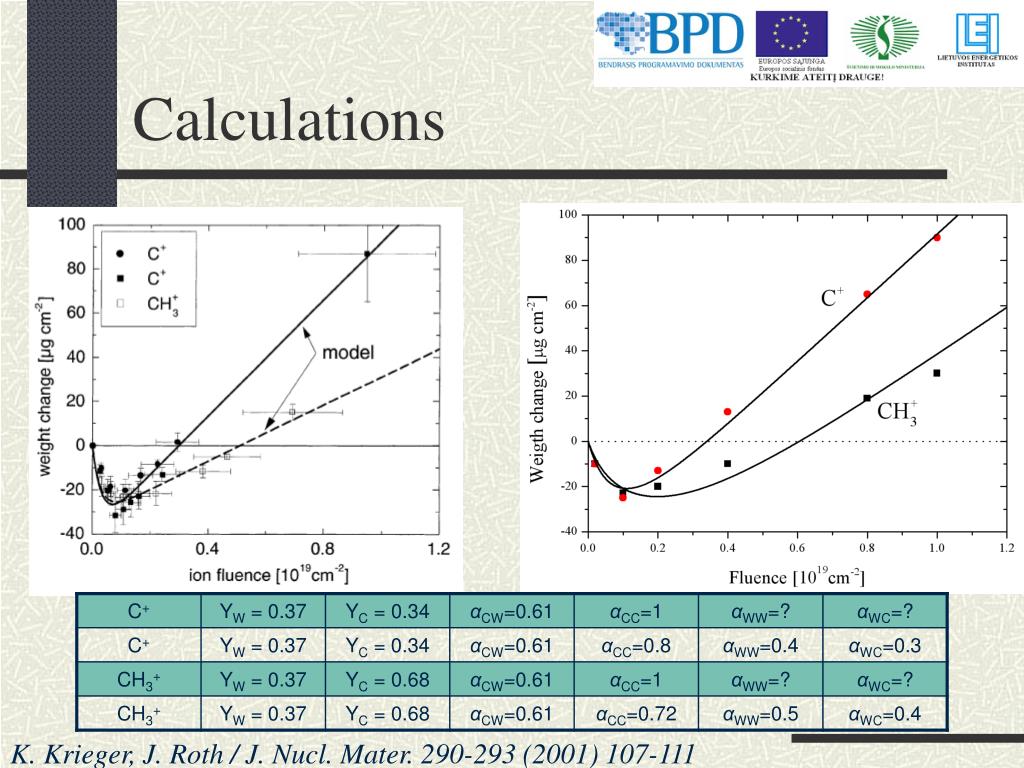

  5. Calculations K. Krieger, J. Roth / J. Nucl. Mater. 290-293 (2001) 107-111

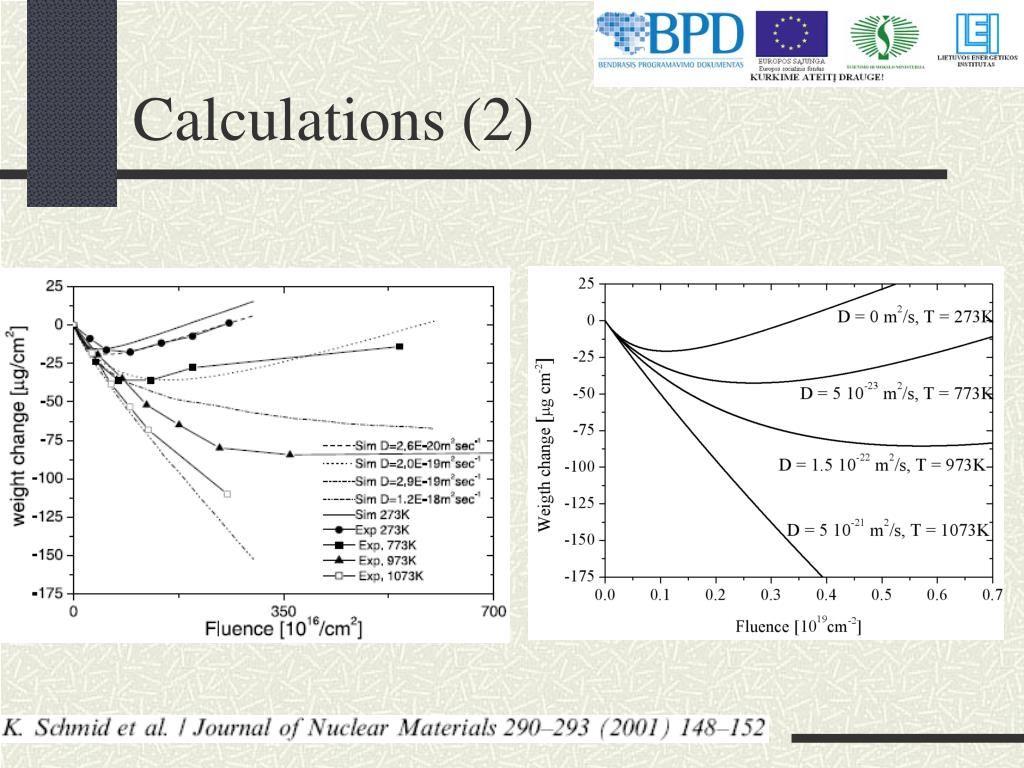

  6. Calculations (2)

  7. Diffusion data D = 0 m2/s, T = 3.66 (103 K-1) D = 5 10-23 m2/s, T = 1.29 (103 K-1) D = 1.5 10-22 m2/s, T = 1.03 (103 K-1) D = 5 10-21 m2/s, T = 0.93 (103 K-1)
