KX-TDE/NCP

New Features/Functions Ver.5 (Edition-1)

Panasonic System Networks CO.,LTD.


Kx tde ncp new features functions ver 5 edition 1

New Features/Functions - 1

The new features/functions are available from,

- KX-TDE100/200/600 MPR Ver.5.

- KX-NCP500/1000 MPR Ver.5.


Kx tde ncp new features functions ver 5 edition 1

New Features/Functions - 2

The new features/functions are available from,

- KX-TDE100/200/600 MPR Ver.5.

- KX-NCP500/1000 MPR Ver.5.


Kx tde ncp new features functions ver 5 edition 1

For KX-TDE100/200 (Ver.5)only

NEW SLC (MCSLC) CARDSKX-TDA1176 (MCSLC-16)KX-TDA1178 (MCSLC-24)


Kx tde ncp new features functions ver 5 edition 1

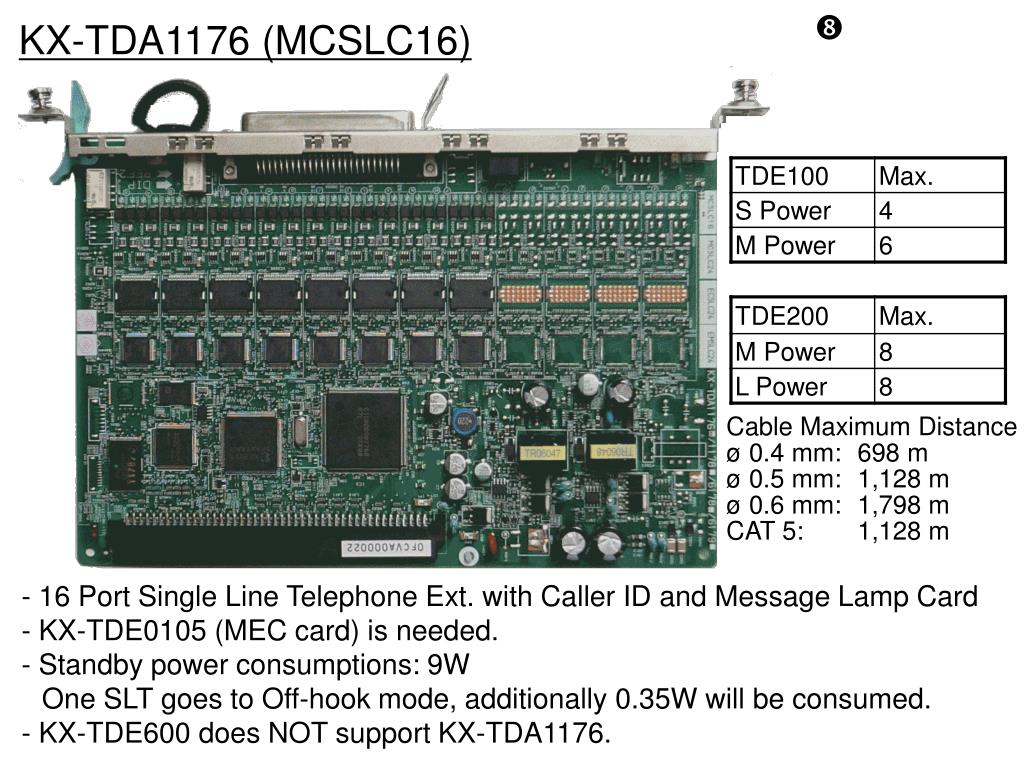

KX-TDA1176 (MCSLC16)

Cable Maximum Distance

ø 0.4 mm:698 m

ø 0.5 mm:1,128 m

ø 0.6 mm:1,798 m

CAT 5: 1,128 m

- 16 Port Single Line Telephone Ext. with Caller ID and Message Lamp Card

- KX-TDE0105 (MEC card) is needed.

- Standby power consumptions: 9W

One SLT goes to Off-hook mode, additionally 0.35W will be consumed.

- KX-TDE600 does NOT support KX-TDA1176.


Kx tde ncp new features functions ver 5 edition 1

KX-TDA1178 (MCSLC24)

Cable Maximum Distance

ø 0.4 mm:698 m

ø 0.5 mm:1,128 m

ø 0.6 mm:1,798 m

CAT 5: 1,128 m

- 24 Port Single Line Telephone Ext. with Caller ID and Message Lamp Card

- KX-TDE0105 (MEC card) is needed.

- Standby power consumptions: 11W

One SLT goes to Off-hook mode, additionally 0.35W will be consumed.

- KX-TDE600 does NOT support KX-TDA1178.


Kx tde ncp new features functions ver 5 edition 1

KX-TDA1176/1178 (MCSLC16/24)

Maximum SLT capacity of KX-TDE100/200 is as follows.


Kx tde ncp new features functions ver 5 edition 1

Ver.5

KX-NCP500 CAPACITY EXPANSION


Kx tde ncp new features functions ver 5 edition 1

NCP500 Capacity Expansion

The current NCP500 hardware with Ver.5 software can support the below specification.

NCP500 Ver.5

*) 2 x DLC16 or SLC16 Required = Cannot use OPB3 (& Doorphone card)


Kx tde ncp new features functions ver 5 edition 1

NCP500 Capacity Expansion

The current NCP500 hardware with Ver.5 software can support the below specification.

NCP500 Ver.5


Kx tde ncp new features functions ver 5 edition 1

Ver.5

MAXIMUM ICD-G QUEUING : 30→100


Kx tde ncp new features functions ver 5 edition 1

Maximum ICD-G Queuing : 30 → 100

Before Ver.5 (Max. 30)

ICD-G 600

Queuing Table

Max. 30

CO

TDE/NCP Ver.5 (Max. 100)

ICD-G 600

Queuing Table

Max. 100

CO

No Optional Programming

Default : 30


Kx tde ncp new features functions ver 5 edition 1

Ver.5

CALLER CAN EXIT FROM ICD-G QUEUING


Kx tde ncp new features functions ver 5 edition 1

Caller can exit from ICD-G Queuing

Before Ver.5

Once an external call goes into an ICD-G queuing table, the caller has only two options, wait for the call to be answered by the ICD-G agent or disconnect the line

Cycles forever

External call

OGM-1:Welcome to Panasonic…..

OGM-2:Please wait for the moment.

The user wants to exit from the queuing and leave a message in the mail box.

Customer Request function

External call


Kx tde ncp new features functions ver 5 edition 1

Caller can exit from ICD-G Queuing

TDE/NCP Ver.5

The ICD-G Queuing OGM performs not only sending OGM but also DISA AA service. When the caller is listening the OGM, the caller can exit to an extension specified by AA.

No AA Service

- Only AA is available (not DISA - dial extension number).

- During the caller is listening the BGM/MOH (wait period), the DISA AA function does not work.

Dial “2”

Ext.202

Dial “1”

Ext.201

Dial “0”

Ext.500


Kx tde ncp new features functions ver 5 edition 1

Caller can exit from ICD-G Queuing

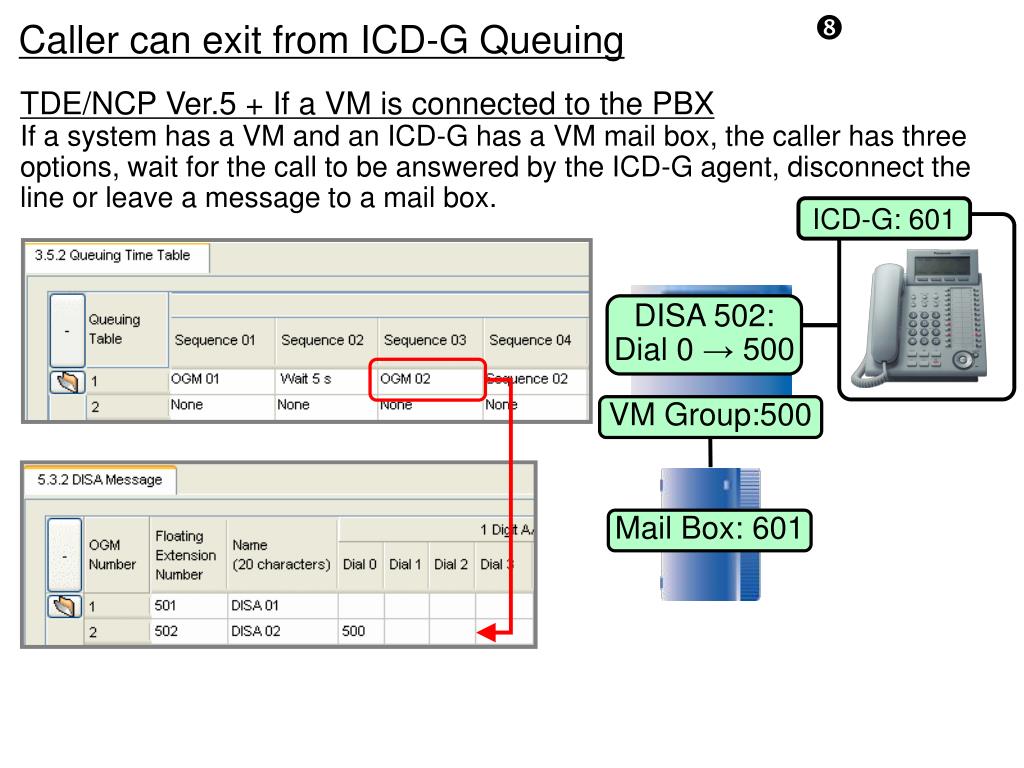

TDE/NCP Ver.5 + If a VM is connected to the PBX

If a system has a VM and an ICD-G has a VM mail box, the caller has three options, wait for the call to be answered by the ICD-G agent, disconnect the line or leave a message to a mail box.

ICD-G: 601

DISA 502:

Dial 0 → 500

VM Group:500

Mail Box: 601


Kx tde ncp new features functions ver 5 edition 1

Caller can exit from ICD-G Queuing

TDE/NCP Ver.5 + If a VM is connected to the PBX

VM Mail Box 601

Dial “0”

External call

OGM-1:Welcome to Panasonic…..

OGM-2:Please wait for the moment. Or dial “0” to leave voice message.

Add Message


Kx tde ncp new features functions ver 5 edition 1

Caller can exit from ICD-G Queuing

TDE/NCP Ver.5 + If a VM is connected to the PBX

  • VM custom service is also available

VM Custom Service

Dial “0”

External call

ICD-G: 601

Program Point

DISA 502:

Dial 0 → 500

Select

VM Group:500

Custom Service


Kx tde ncp new features functions ver 5 edition 1

Caller can exit from ICD-G Queuing

Limitation

Only when the caller is listening the OGM (OGM-2), the caller can exit to the extension specified by AA. When the caller is listening the BGM/MOH (wait period), the OGM-2 DISA AA function does not work.

Exit

Dial

Dial

Counter Idea

Change wait period to OGM-3 (OGM-3 records MOH/BGM)


Kx tde ncp new features functions ver 5 edition 1

Caller can exit from ICD-G Queuing

TDE/NCP Ver.5 Technical Condition

- VM has to be KX-TVA/TVM using Digital (PT) integration.

VM Group

D-PT integration

- VM in other PBX (Centralized VM) can NOT be DISA-AA destination.

VM Group:

500

DISA 502:

Dial 0 → 500

Centralized VM


Kx tde ncp new features functions ver 5 edition 1

Caller can exit from ICD-G Queuing

If Customer wants to use ESVM for recording message?

ESVM floating extension number can be assigned in the DISA AA destination.

1.External call

ICD-G: 601

Ext.2001

DISA 502:

Dial 0 → 599

2. Dial 0

ESVM box

ESVM:599

Ext.2002

3. Go to

Ext.2001 SVM

The SVM of 1st ICD-G member will

answer after the caller is dialing digit 0.

Ext.2003

- Ext.2001 has to have SVM box.

- A setup of C-FWD to SVM on Ext.2001 is unnecessary.


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

AUTOMATIC START 2-WAY RECORDING


Kx tde ncp new features functions ver 5 edition 1

Automatic start 2-way Recording

TDE/NCP Ver.5

Ext.2001

2- Answer

1- Call to Ext.2001

Three party conference

CO

3- 2-way Recording

1- Call to Ext.2001

2- Ext.2001 answers the call.

3- The PBX starts 2 way recording automatically.

Before Ver.5

1- Call to Ext.2001

2- Ext.2001 answers the call.

3- Press “2-way recording” button to starts 2 way recording.


Kx tde ncp new features functions ver 5 edition 1

Automatic start 2-way Recording

TDE/NCP Ver.5 (New Program Item)

Once it is programmed it will always start automatically “2-way recording”. A manual start cannot be performed.

Automatic Recording

Manual Recording

Condition

- PT(IP/Digital/Analog), PS and SLT can use the function.

- SIP Phone can NOT use the function.

- Internal call/External call/ICD-G call is automatically recorded.

- Incoming call/Outgoing call is automatically recorded.

- We cannot change the above-mentioned conditions

(E.g. Only external incoming call is automatically recorded)

- Programming “2-way recording” button is not necessary.

If you program a 2-way recording button, it can be used to stop and then re-start 2-Way recording"

.


Kx tde ncp new features functions ver 5 edition 1

Automatic start 2-way Recording

Technical Specifications

The Max. number of simultaneous recordings

  • A maximum of 10 calls can be recorded to VM for NCP and TDE100/200 at the same time (PBX supports 10 x 3 conference)

  • A maximum of 24 calls can be recorded to one VM for TDE600, because one VM supports 24ch.

  • A maximum of 40 calls can be recorded to two or more VM for TDE600, because TDE600 supports10 x 3 conference hardware per cabinet.

  • VM has to be KX-TVA/TVM using Digital (PT) integration.

  • VM DTMF integration does NOT support automatic recording.

  • - Centralized voice mail does NOT support automatic recording.

  • - E-SVM card cannot be used this function.


Kx tde ncp new features functions ver 5 edition 1

Automatic start 2-way Recording

TDE/NCP Ver.5

Ext.2001

It is also possible to record all the conversation to one mail box.

E.g.

Ext.1001 (Manager) has a mail box 201.

Ext.2001, Ext2002 (Operator) conversation can be recorded on the mail box 201.

Only Ext.1001 can listen to the recorded message.

All operator conversation

Ext.2002

Mail BoxExt. No

2011001

Ext.1001

Manager

Programming Point


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

EMERGENCY ALERT (SMDR)


Kx tde ncp new features functions ver 5 edition 1

Emergency Alert (SMDR)

TDE/NCP Ver.5

If a dialed number is matched with the “Emergency Dial” table, when dialing is completed, the extension number is outputted to SMDR (1st SDMR). Also, after finishing the call, this extension number is outputted to SMDR (2nd SMDR).

Ext.2001

Emergency Call

CO

“Emergency Dial” table

SDMR

(RS232C/LAN)

Ver.5 New

Before Ver.5

After finishing the call, this extension number is outputted to SMDR, only.


Kx tde ncp new features functions ver 5 edition 1

Emergency Alert (SMDR)

Related Programming

Default

Ver.4 function

Option

Ver.5 function


Kx tde ncp new features functions ver 5 edition 1

Emergency Alert (SMDR)

Ext.2001

Emergency Call

CO

CA Call Account

“Emergency Dial” table

SDMR

(RS232C/LAN)

If the CA call account software is installed a PC, we can see an Emergency call alert by a popup window after the dial is completed.

- Version up is NOT required for CA Call Accounting software.


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

CONFERENCE GROUP WITH AUTO-ANSWER FUNCTION


Kx tde ncp new features functions ver 5 edition 1

Conference Group with Auto-Answer

Before Ver.5

Conference Group No.1

Ext.2001

Ext.2002

Ext.2003

2. Call

1.Dial *321#

Auto-Answer=ON

Have to

Ext.1001

4. Paging

3. Speaker automatically ON

  • Ext.1001 holds a conference (*321#)

  • 2. The PBX calls pre-programmed DECT-PS

  • 3. All DECT PS on the conference group automatically answer.

  • Speaker phone automatically “ON”.

  • 4. Ext.1001 user can page.

  • Condition: All PS has to set “Auto-Answer” = ON.

Auto Answer setting is a necessity!!!


Kx tde ncp new features functions ver 5 edition 1

Conference Group with Auto-Answer

TDE/NCP Ver.5

Conference Group No.1

Ext.2001

Ext.2002

Ext.2003

2. Call

1.Dial *321#

Ext.1001

Regardless of “Auto Answer” = ON/OFF

4. Paging

3. Speaker automatically ON

  • Ext.1001 holds a conference (*321#)

  • 2. The PBX calls pre-programmed DECT-PS

  • 3. All DECT PS on the conference group automatically answer.

  • Speaker phone automatically “ON”.

  • 4. Ext.1001 user can page.

  • Condition: System programming is required.

Auto Answer setting is not a necessity!!!


Kx tde ncp new features functions ver 5 edition 1

Conference Group with Auto-Answer

New Program Item and Functionality

Please set “Enable”


Kx tde ncp new features functions ver 5 edition 1

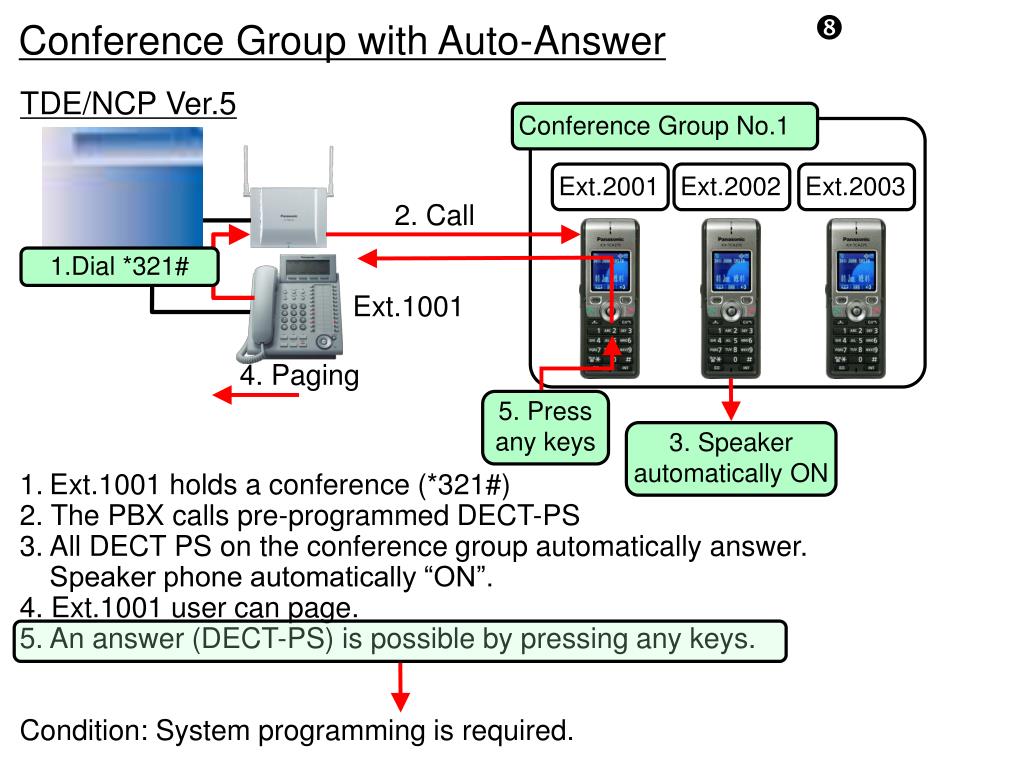

Conference Group with Auto-Answer

TDE/NCP Ver.5

Conference Group No.1

Ext.2001

Ext.2002

Ext.2003

2. Call

1.Dial *321#

Ext.1001

4. Paging

5. Press any keys

3. Speaker automatically ON

  • Ext.1001 holds a conference (*321#)

  • 2. The PBX calls pre-programmed DECT-PS

  • 3. All DECT PS on the conference group automatically answer.

  • Speaker phone automatically “ON”.

  • 4. Ext.1001 user can page.

  • 5. An answer (DECT-PS) is possible by pressing any keys.

  • Condition: System programming is required.


Kx tde ncp new features functions ver 5 edition 1

Conference Group with Auto-Answer

New Program Item and Functionality

Please set “Enable”


Kx tde ncp new features functions ver 5 edition 1

Conference Group with Auto-Answer

TDE/NCP Ver.5

Conference Group No.1

Ext.2001

Ext.2002

Ext.2003

2. Call

1.Dial *321#

Ext.1001

Regardless of “Auto Answer” = ON/OFF

4. Paging

3. Speaker automatically ON

  • Ext.1001 holds a conference (*321#)

  • 2. The PBX calls pre-programmed D-PT

  • 3. All D-PT’s on the conference group automatically answer.

  • Speaker phone automatically “ON”.

  • 4. Ext.1001 user can page.

This function also works on a D-PT.


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

ONE TOUCH BUSY OVERRIDE


Kx tde ncp new features functions ver 5 edition 1

One Touch Busy Override

Ext.2001

Before Ver.5

1- Talking

CO

Ext.2002

1- Ext.2001 is talking to an external person on SCO-1.

2- Ext.2002 press the SCO-1 button → Busy Tone

3- Ext.2002 press “3” or “OVER” for overriding the call.

Ver.5 (System option = ON)

1- Ext.2001 is talking to an external person on SCO-1.

2- Ext.2002 press the SCO-1 button → Overriding the call.

New Program Item

Default : Disable


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

TENANT BASED ARS


Kx tde ncp new features functions ver 5 edition 1

Tenant based ARS

Before Ver.5 ARS function

All ARS reading tables are all for tenants,

Customer Request function (Sample)

One PBX is shared with two or more companies. The companies have a contract with different telephone carriers.

Japanese company has to use KDDI for international call.

→ Dial +1 (USA call) → KDDI Line

UK company has to use BT for international call.

→ Dial +1 (USA call) → BT Line

Tenant-A

Japanese

Company

Customer needs tenant base ARS reading table.

International call Provider :KDDI

KDDI

BT

Tenant-B

UK

Company

International call Provider :BT


Kx tde ncp new features functions ver 5 edition 1

Tenant based ARS

TDE/NCP Ver.5

TDE-NCP version 5 supports tenant independent ARS table.

Tenant Base

If the tenant ARS mode is selected to “Enable”,


Kx tde ncp new features functions ver 5 edition 1

Tenant based ARS

TDE/NCP Ver.5

If the tenant ARS mode is selected to “Same as System Setting”, the PBX checks “8-1 System Setting”, applied ARS Leading Digits Table is as follows.


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

IMPROVES SERVICE OUT FUNCTION


Kx tde ncp new features functions ver 5 edition 1

Improves Service Out Function

Before Ver.5 Service Out status

“Extension dial lock” and “DND” are assigned automatically by “Service Out” operation. Therefore other users can see the call log and listen to the SVM message.

TDE/NCP Ver.5 Service Out status

“Extension dial lock”, “DND” and “Display Lock” are assigned automatically by “Service Out” operation.

“Extension dial lock”: Ver.4/5

“DND” : Ver.4/5

“Display Lock”: Ver.5

Other user cannot see call log and cannot listen to SVM message.

Need the extension PIN


Kx tde ncp new features functions ver 5 edition 1

Improves Service Out Function

How to un-lock

NB: Input an extension PIN (Default: Blank) before use this function.


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

CLIP WHEN VM TRANSFER


Kx tde ncp new features functions ver 5 edition 1

CLIP when VM Transfer

Before Ver.5

When a VM transfers a CO call to a remote extension, The CLIP information form the VM is depend upon the system programming.

PBX-1

PBX-2

CO

VoIP-Net

2. Transfer

1. Call

Ext.2001

System Programming

2.9 System Options → Option 4

Ext.1001

CLIP:4771111

CLIP:4771111

VM Ext. Number

Centralized VM

Note:

Ext.1001 (Local extension) receives always CLIP: 4771111, regardless of programming.


Kx tde ncp new features functions ver 5 edition 1

CLIP when VM Transfer

TDE/NCP Ver.5

The remote extension receives always the CO CLIP, regardless of the system programming.

PBX-1

PBX-2

CO

VoIP-Net

2. Transfer

1. Call

Ext.2001

System Programming

2.9 System Options → Option 4

Ext.1001

CLIP:4771111

CLIP:4771111

CLIP:4771111

Centralized VM


Kx tde ncp new features functions ver 5 edition 1

CLIP when VM Transfer

TDE/NCP Ver.5

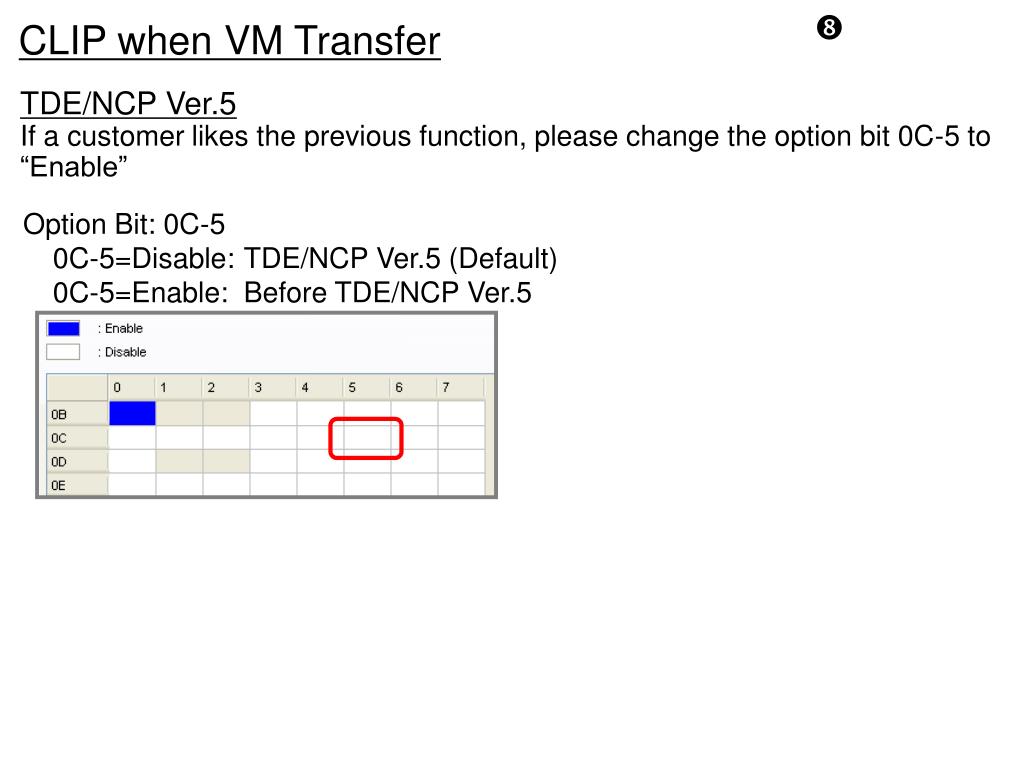

If a customer likes the previous function, please change the option bit 0C-5 to “Enable”

Option Bit: 0C-5

0C-5=Disable:TDE/NCP Ver.5 (Default)

0C-5=Enable:Before TDE/NCP Ver.5


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

INCOMING CALL LCD


Kx tde ncp new features functions ver 5 edition 1

Incoming Call LCD

Before Ver.5

If a caller name or ID / DID name / CO line number is displayed on PT LCD. They can be switched by the “Transfer” key or the “INFO” soft key.If the user presses the button by accident, this can become confusing, because last mode is stored and displayed, when the next call arrives.

TDE/NCP Ver.5

TDE-NCP Ver.5 does not the save display mode, even after PT operation. - Display switch operation itself is kept.- Display mode can be assigned using PCMC.- “Automatic save after PT operation” is controlled by the PCMC system reserved bit. This is now default and new specification for this function.


Kx tde ncp new features functions ver 5 edition 1

Incoming Call LCD

TDE/NCP Ver.5

Default (Disable)

Option Bit: 06-5

06-5=Disable:TDE/NCP Ver.5 (Default)

06-5=Enable:Automatic save after PT operation


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

IMPROVES ICD GROUP CALL LOG


Kx tde ncp new features functions ver 5 edition 1

Improves ICD-G Call Log

Before Ver.5

1- If an incoming call goes to an ICD-G.

2- If a member of ICD-G does not answer, the call is OVF to a VM,

3- The VM answers the call.

4- If the caller disconnects the line before the VM starts the message recording.

→There is No call log on the system (ICD-G Log key or VM).

ICD-G Log Key

ICD-G

1. Call

2. OVF

CO

4. Disconnect

3. VM Answer

Ext.1001

TDE/NCP Ver.5

TDE-NCP Ver. 5 records ICD group call, when the call is overflowed to VM.


Kx tde ncp new features functions ver 5 edition 1

Improves ICD-G Call Log

TDE/NCP Ver.5 New Option

If the OVF destination is a VM

Default: Disable

ICD-G Log Key

ICD-G

1. Call

2. OVF

CO

4. Disconnect

3. VM Answer

Ext.1001


Kx tde ncp new features functions ver 5 edition 1

Improves ICD-G Call Log

TDE/NCP Ver.5 New Option

If the OVF destination is a D-PT

Default: Disable

ICD-G Log Key

ICD-G

1. Call

2. OVF

CO

4. Disconnect

Ext.1001

3. Answer


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

IMPROVES VM CONNECTION


Kx tde ncp new features functions ver 5 edition 1

Improves VM connection

Before Ver.5

There is one optional item to control VM function, when an incoming call is intercepted (OVF) to VM from the Ext. (ICD-G).

1. Call

2. Intercept

Mailbox

Service

Enable

2. Intercept

1. Call

AA

Service

Disable

Customer Request function

2. Intercept

1. Call

Mailbox

Service

Extension Intercept →Mailbox

ICD-G

2. OVF

1. Call

AA

Service

ICD-G OVF → AA Service


Kx tde ncp new features functions ver 5 edition 1

Improves VM connection

TDE/NCP Ver.5

Two optional items to control VM function, when an incoming call is intercepted (OVF) to VM from the Ext. (ICD-G).

1. Call

2. Intercept

Mailbox

Service

Enable

2. Intercept

1. Call

AA

Service

Disable

ICD-G

2. Intercept

1. Call

Mailbox

Service

Enable

ICD-G

This option has an effect for external calls only, not for internal calls.

2. OVF

1. Call

AA

Service

Disable


Kx tde ncp new features functions ver 5 edition 1

Improvement features of SIP Trunk

- T.38 DISABLE MODE IS SUPPORTED.- FORWARD CLIP (A-NUMBER) FOR SIP TRUNK- REFER TRANSFER IS SUPPORTED FOR SIP TRUNK- P-ASSERTED-IDENTITY HEADER IS SUPPORTED FOR SIP TRUNK- CODEC PRIORITY NOTIFICATION FROM SIP NETWORK- IMPROVES FAX CONNECT ABILITY - REDUNDANCY FUNCTION IS SUPPORTED FOR SIP TRUNK- DELETE ALPHABET CALLER-ID


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

New Program Item

T.38 disable mode

Before Ver.5

Out going FAXWe can select “enable”/”disable” T.38 function.

Incoming FAXWe cannot select “enable”/”disable” T.38 function.

→ When un-compatible T.38 incoming FAX arrives the system, the FAX connection will be failed.

TDE-NCP Ver.5

Out going FAXWe can select “enable”/”disable” T.38 function.

Incoming FAXWe can select “enable”/”disable” T.38 function.

→ Un-compatible T.38 incoming FAX → Please set “Disable” → G.711 mode


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Forward CLIP (A-number)

When the SIP trunk incoming call is forwarded to a mobile network through the SIP trunk, incoming CO callers CLIP (A-number) can be sent using the diversion header feature.

TDE/NCP

1. Call

SIP-Provider

INVITE: CLIP Information ?

CLIP:4771111

CLIP:8821111

C-FWD to CO

Before Ver.5

CLIPWe can select the extension CLIP or the Caller CLIP.

TDE-NCP Ver.5

CLIPWe can select the extension CLIP or the Caller CLIP.

And the PBX sends the Caller CLIP by the diversion header element (Select System Option).


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Forward CLIP (A-number) (New Program Item)

New Program Item

NB: SIP IOT is strongly required before set to “Enable”


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Refer Transfer

When a TDE/NCP Ver. 5 extension makes a call, the caller can transfer the call to another external party through the SIP trunk by using the Refer Transfer feature.

TDE/NCP

1. Talking

-Attended Transfer

-Blind Transfer

SIP-Provider

2. Refer Transfer

External Caller

Ext.1001

TDE/NCP

3.Connect

SIP-Provider

External Caller

Ext.1001

4.Voice paths are released


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Refer Transfer (Operation differences)

Attended Transfer

Blind Transfer


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Refer Transfer (New Program Item)

New Program Item

NB: SIP IOT is strongly required before set to “Yes”


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Refer Transfer (Condition)

TDE/NCP Ver. 5 does not support a refer transfer request from the SIP provider.

TDE/NCP

1. Talking

SIP-Provider

External Caller

2. Refer Transfer to Ext.1002

Ext.1001


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

P-Asserted-Identity Header

TDE/NCP Ver.5 supports the P-Asserted-Identity header.

TDE/NCP

Make a call

SIP-Provider

INVITE Message

INVITE Message Header (TDE/NCP Ver.5)


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

P-Asserted-Identity Header (New Program Item)

New Program Item

NB: SIP IOT is strongly required before set to “Yes”


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

CODEC Priority Notification

Before Ver.5

When the PBX receives a SIP call from the SIP network, the PBX CODEC selection is first priority against SIP network request.

TDE/NCP Ver.5

CODEC priority is selectable (PBX CODEC or SIP network CODEC )

System Programming

2.9 System Options → Option 2

New Program Item

Enable: SIP network CODEC

Disable: PBX CODEC (Default)


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Improves FAX Connectability

TDE/NCP Ver.5 supports Super G3 FAX function over SIP trunk.

TDE/NCP

FAX Call

DSP

SIP-Provider

G3 FAX

Support Super G3 FAX


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Redundancy Function

TDE/NCP Ver.5 supports the redundancy function in two cases.

Redundancy Case-1

TDE/NCP

2. INVITE

SIP-Server-1

1. Call

SIP-Provider

3. No-Reply

SIP-Server-2

4. INVITE

Redundancy Case-1

TDE/NCP

2. INVITE

SIP-Server-1

1. Call

3. Error

SIP-Provider

SIP-Server-2

4. INVITE


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Redundancy Function (New Option Program)

Redundancy Case-1

TDE/NCP

2. INVITE

SIP-Server-1

1. Call

SIP-Provider

3. No-Reply

SIP-Server-2

Timer Value=0:Disable Redundancy

Timer Value≠0: Enable Redundancy

4. INVITE

New Program Item

NB: SIP IOT is strongly required before set to “Yes”


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Redundancy Function (New Option Program)

Redundancy Case-2

TDE/NCP

2. INVITE

SIP-Server-1

1. Call

3. Error

SIP-Provider

SIP-Server-2

Disable:Disable Redundancy

Enable:Enable Redundancy

4. INVITE

New Program Item

It should not be “0”

NB: SIP IOT is strongly required before set to “Yes”


Kx tde ncp new features functions ver 5 edition 1

Improves SIP Trunk feature (TDE/NCP Ver.5)

Delete alphabet Caller-ID

When an alphabet characters are contained within the CLIP information, in the INVITE message, these alphabet character’s are deleted.

CLIP

0924771234

TDE/NCP

Make a call

SIP-Provider

INVITE Message

CLIP: 0924771234aaaaa

Delete data


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

SIP PHONE FEATURE


Kx tde ncp new features functions ver 5 edition 1

SIP Phone Feature

Before Ver.5

TDE-NCP does not support verification code feature for SIP phone.

TDE/NCP Ver.5

TDE-NCP version 5 supports verification code feature for SIP phone.


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

PCMC ID LOCK(RU/UA Model Only)


Kx tde ncp new features functions ver 5 edition 1

PCMC ID Lock

TDE/NCP Ver.5

TDE-NCP version 5 supports PCMC ID lock for NCP500-1000RU/UA, TDE100-200RU/UA and TDE600RU/UA.


Kx tde ncp new features functions ver 5 edition 1

Ver. 5

PC MAINTENANCE CONSOLE (PCMC) FOR TDE-NCP


Kx tde ncp new features functions ver 5 edition 1

PCMC for KX-TDE/NCP Ver.5.

Please use U-PCMC Ver. 7.2.x.x

KX-TDE600Ver. 7.2.x.x or later

KX-NCP500/1000Ver. 7.2.x.x or later

KX-TDE100/200Ver. 7.2.x.x or later


Kx tde ncp new features functions ver 5 edition 1

Thank You Very Much

For Your Attention


Kx tde ncp new features functions ver 5 edition 1

Modification History


  • Login
