  1. Indexes—Topics • Reasons for concern • Data Volume Analysis • Data Usage Analysis • Index Design

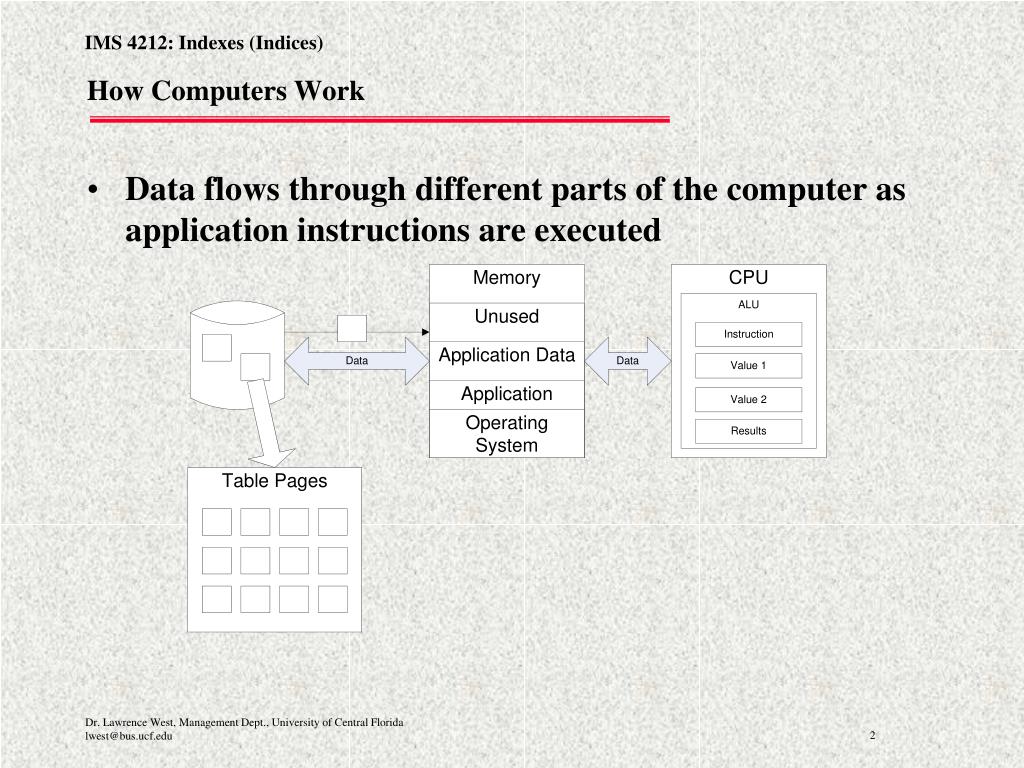

  2. How Computers Work • Data flows through different parts of the computer as application instructions are executed

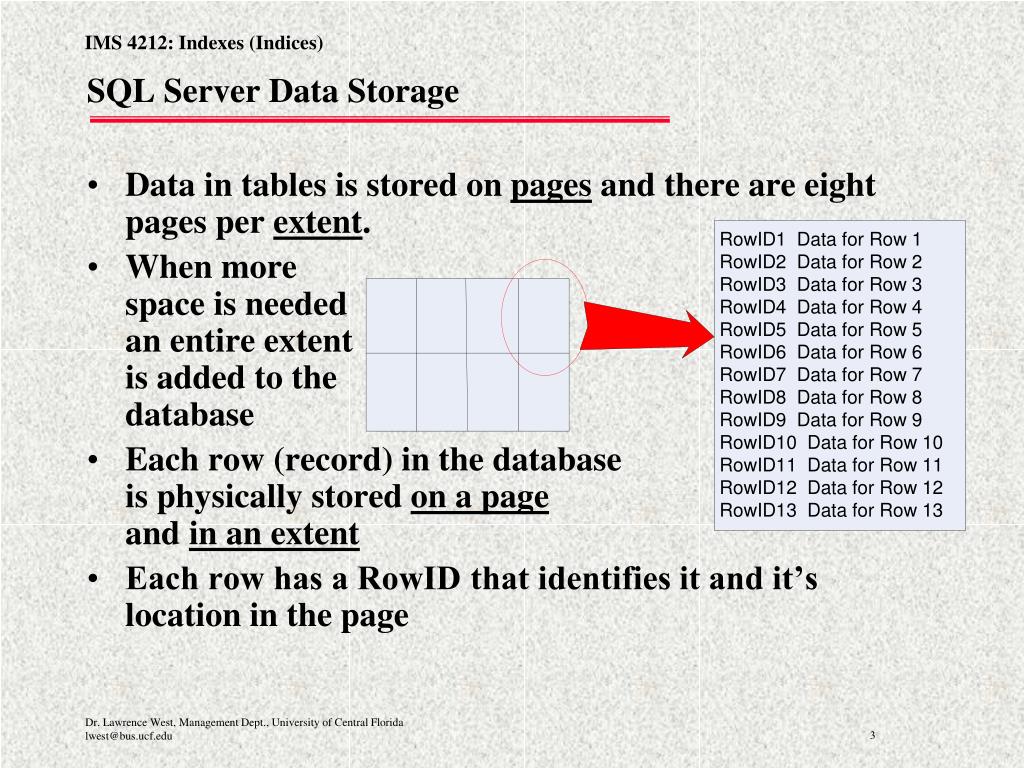

  3. SQL Server Data Storage • Data in tables is stored on pages and there are eight pages per extent. • When more space is needed an entire extent is added to the database • Each row (record) in the databaseis physically stored on a pageand in an extent • Each row has a RowID that identifies it and it’s location in the page

  4. SQL Server Data Storage (cont.) • Without a clustered index(covered soon) rows areadded to pages in the order of insertion. • When pages are full rowsare added to the next page in the extent. • When extents are full new extents are created • Tables keep track of the sequence of extents thatcontain their contents

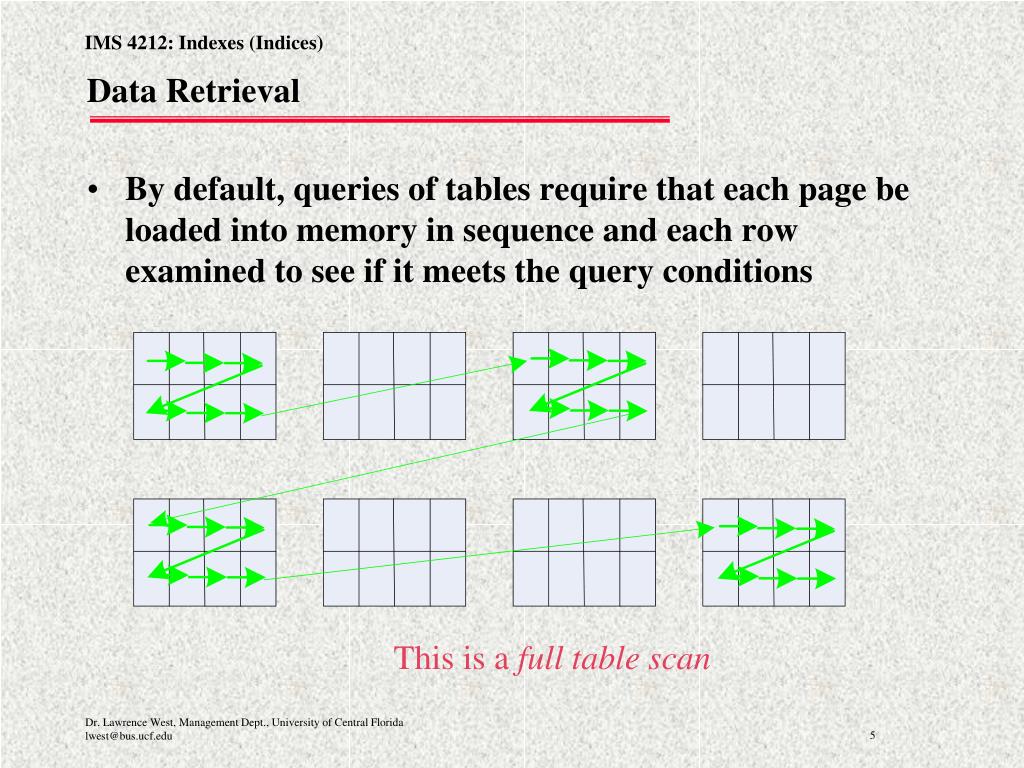

  5. Data Retrieval • By default, queries of tables require that each page be loaded into memory in sequence and each row examined to see if it meets the query conditions This is a full table scan

  6. Data Retrieval (cont.) • The Page is the basic unit of IO • Entire page is moved from physical storage to RAM for evaluation • In a pure table scan (the default method of retrieval) each record is examined to see if it matches the WHERE clause conditions (if any) • Test value and column value moved to CPU for testing • Records where condition is TRUE are added to result set • Pages are cached and the cached copy will be read if available and needed

  7. Data Retrieval (cont.) • In SQL Server page sizes are fixed at 8 KB • (Entire extent is 64 KB) • Some DBMS have different sizes • Some DBMS allow tuning on a table by table basis • 8 KB is also the maximum record size • Number of Records on a page depends on record size • Sum of data sizes of each column • IO time for a pure scan increases with • Number of records • Record size

  8. Data Retrieval Costs • Two levels of costs associated with data retrieval • Most Important: IO moving page from disk storage to RAM • Less Important: CPU effort to evaluate records • In default mode records cannot be evaluated until they have been moved into RAM • We also care about physical storage space • Less important as a performance issue • We also care about costs of reorganizing data as it is added to the DB or updated (later)

  9. Data Retrieval Costs (cont.) • ALL Retrieval Enhancement mechanisms must be evaluated on the dimensions from the previous slide • None of the enhancements come without cost • Decisions affected by use of the data, not just pure database characteristics • Understanding organizational tasks and priorities key • Requires balance between technical and organizational knowledge • MIS graduates ideally positioned to participate in this analysis

  10. Data Retrieval Costs (cont.) • Degree of the cost changes with many factors • Table sizes • Access mechanisms (paths—more later) • Nature of query • Number of tables needed in query • Nature of the enhancement approach • Remember that our DB design goal of minimizing storage space and redundancy (normalization) spread data around the database • More tables containing transaction logic • More complicated queries

  11. Indexes • If SQL Server knows the extent address, page address, and RowID of desired data it can go directly to the page in question (one page read into memory) and directly to the desired record • Indexes are separate storage structures that map from values in columns of tables to the Page and RowID of the row from which the value was taken

  12. Indexes (cont.) • Indexes let the system search a small record to find the exact address of a large record More records per page than the main table

  13. Indexes (cont.) • There are a multitude of algorithms and techniques for implementing indexes • Computer scientists develop, test, and evaluate various indexing methods • Our indexing techniques will usually be determined by our choice of RDBMS

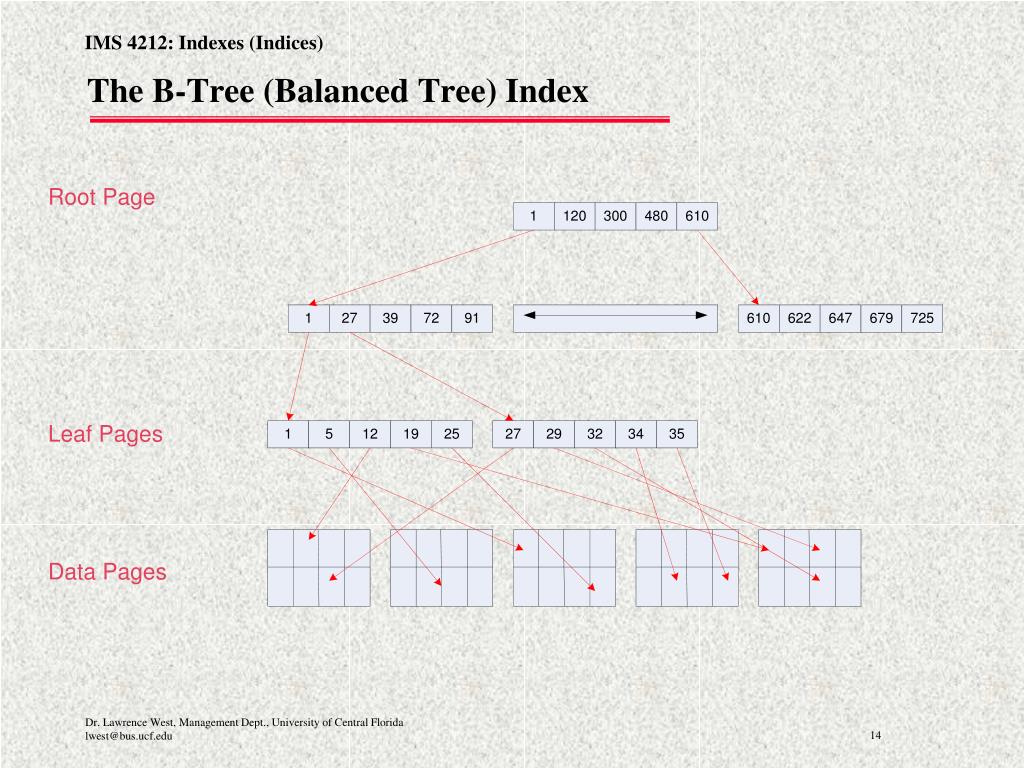

  14. The B-Tree (Balanced Tree) Index Root Page Leaf Pages Data Pages

  15. The B-Tree Index (cont.) • Rows in each index page are inorder according to the column(s)on which the index was created • Upper level pages have sparsepopulations of indexes values • Not all values listed • Each entry points to the page with denser values • Leaf pages (nodes) contain all values within a range • Leaf pages point to the actual data page and Row ID from which the index value came

  16. Clustered Index • In a clustered index the data rows are physically in the order specified by the index key • Leaf Nodes in the index are actually the data pages CustomerID CompanyName ---------- ---------------------------------------- ALFKI Alfreds Futterkiste ANATR Ana Trujillo Emparedados y helados ANTON Antonio Moreno Taquería AROUT Around the Horn BERGS Berglunds snabbköp BLAUS Blauer See Delikatessen BLONP Blondesddsl père et fils BOLID Bólido Comidas preparadas BONAP Bon app' BOTTM Bottom-Dollar Markets

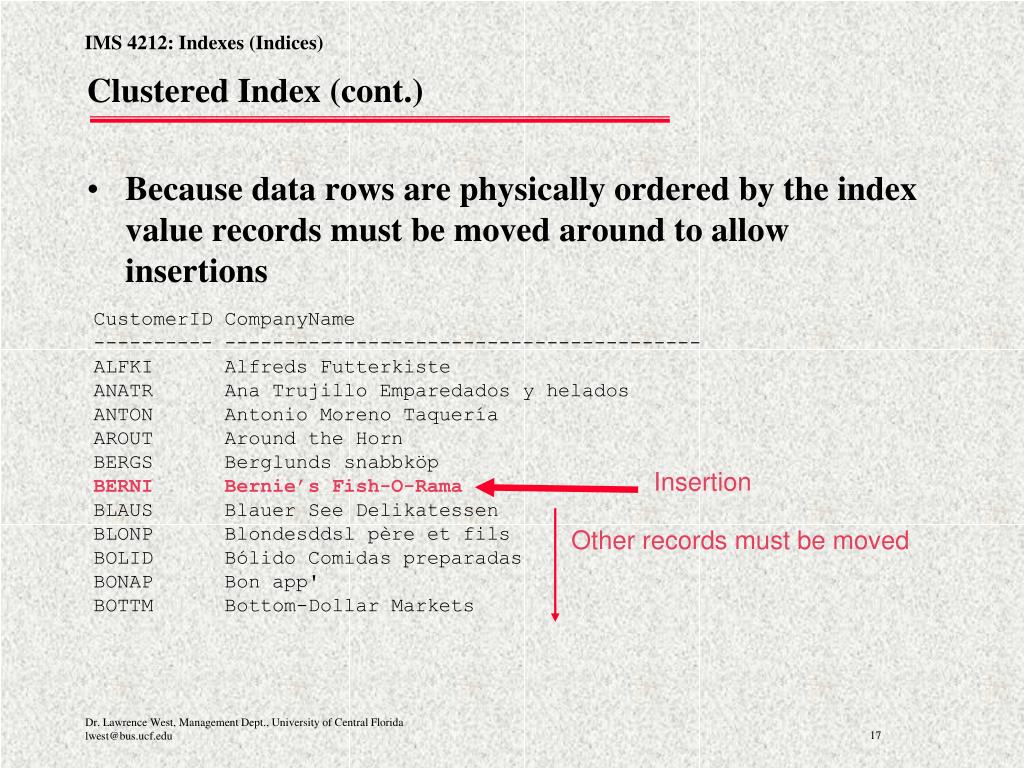

  17. Clustered Index (cont.) • Because data rows are physically ordered by the index value records must be moved around to allow insertions CustomerID CompanyName ---------- ---------------------------------------- ALFKI Alfreds Futterkiste ANATR Ana Trujillo Emparedados y helados ANTON Antonio Moreno Taquería AROUT Around the Horn BERGS Berglunds snabbköp BERNI Bernie’s Fish-O-Rama BLAUS Blauer See Delikatessen BLONP Blondesddsl père et fils BOLID Bólido Comidas preparadas BONAP Bon app' BOTTM Bottom-Dollar Markets Insertion Other records must be moved

  18. Clustered Indexes (cont.) • When a clustered index page is full it must “split” • Half of records are moved to new page and half remain in place • New pages may end up in new extents • Pointers must link pages in the logical order of the data • Pages with extensive insertions that are not naturally in the clustered index order can take extensive processing time • E.g.—Adding Employees with SSN PK • Page splits may cascade upwards to splits of index pages

  19. Clustered Indexes (cont.) • Clustered indexes have significant advantages when performing range queries or when the desired index value is a ‘natural’ sequence for the data • Timestamp • CustomerID • There can only be one clustered index per table (Why?) • Nonclustered indexes on a clustered index table point to the clustered index leaf node

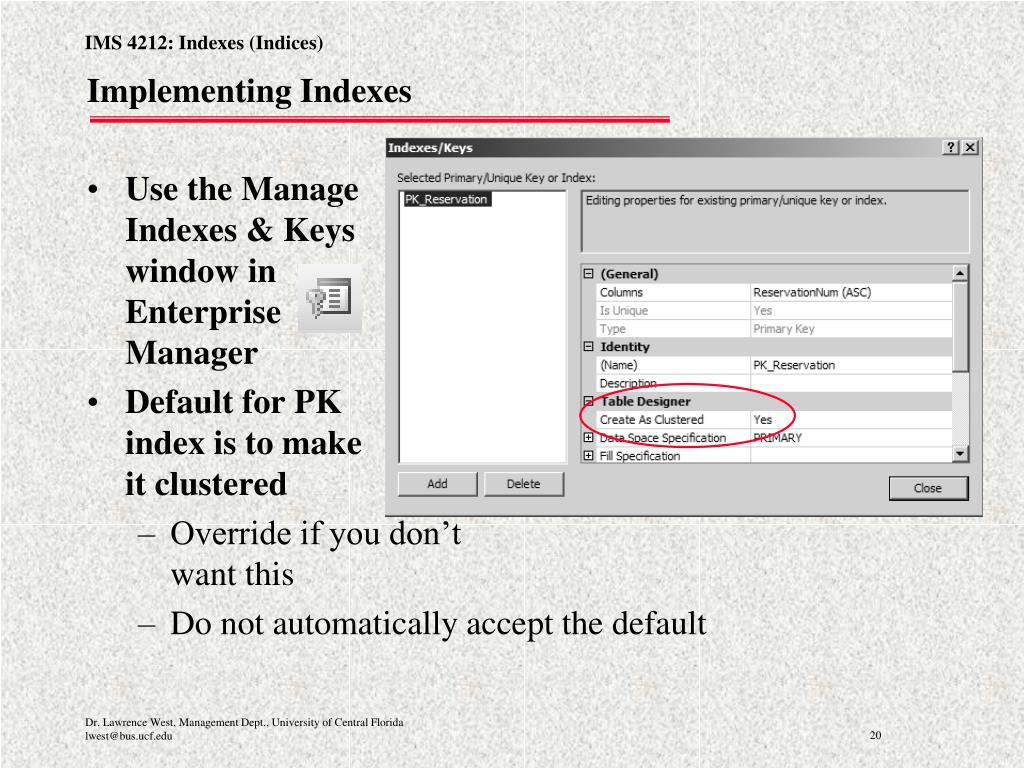

  20. Implementing Indexes • Use the ManageIndexes & Keyswindow in EnterpriseManager • Default for PK index is to make it clustered • Override if you don’twant this • Do not automatically accept the default

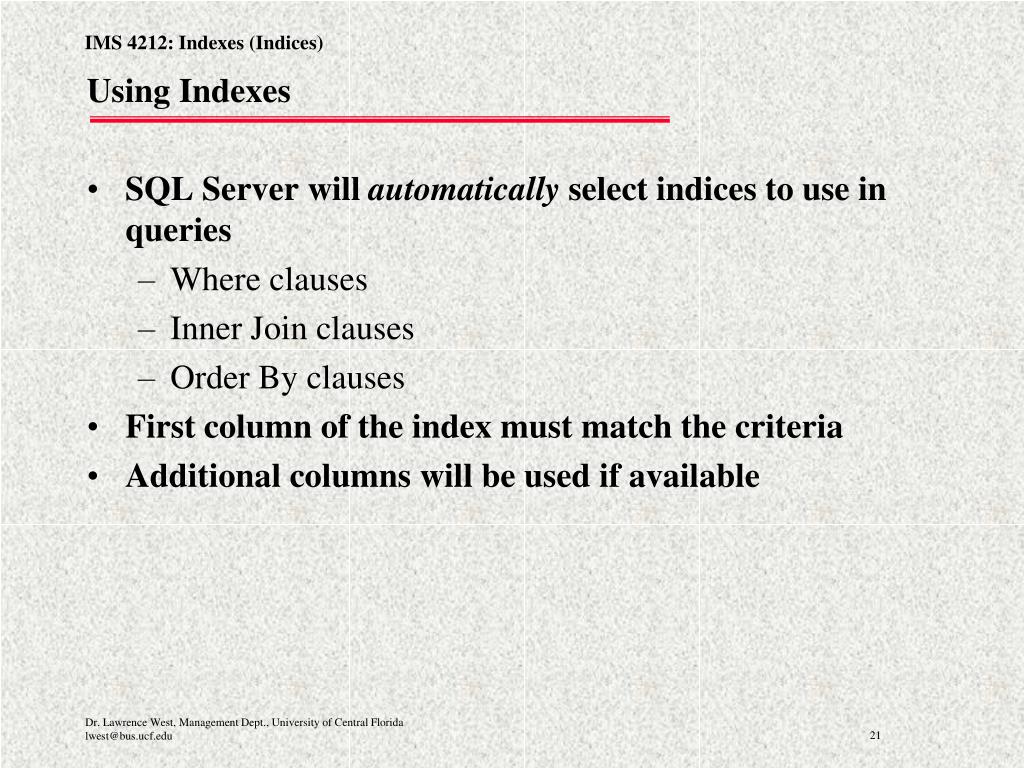

  21. Using Indexes • SQL Server will automatically select indices to use in queries • Where clauses • Inner Join clauses • Order By clauses • First column of the index must match the criteria • Additional columns will be used if available

  22. Indexes (cont.) • Places to consider implementing indexes • Primary Keys (required in most RDBMS) • Foreign Keys • Other ‘access fields’ • E.g., Customer phone number if used as a lookup field • Look at data usage analysis for other potential targets • Fields in WHERE clause of SQL statements • Fields in ORDER BY clause of SQL query

  23. Indexes (cont.) • Contraindications for indexes • Very little variation among the attribute values in the indexed field(s) • Class (Freshman, Sophomore, etc.) • Gender • Many null values in the indexed field(s) • Small tables (Index may be as large as the table)

  24. Indexes (cont.) • Don't forget indexing second (or more) FKs in composite PK associative entities when both PK elements are also FKs Searching for OrderID will usePK index Searching for ProductID cannot usePK index—needsits own index

  25. Index Benefits • Avoid table scan • Quick location of record address—one page record to get data • Small row sizes per each index entry→many fewer page reads to find record address • B-tree algorithm discards high percentage of records with each level of the index pages evaluated • SQL stops looking when it knows it has finished—indices can determine this • Indexes may be used for IF EXISTS queries without accessing data pages (Referential Integrity Checking)

  26. Index Costs • Extra storage space • Each table index must be updated with each data modification to the table • Increased processing time • Easy to implement and sometimes overused

  27. Index Tricks and Techniques • Consider dropping and then rebuilding indices when bulk updates are required • Nonclustered indices can have additional data included in the leaf node • Avoid retrieval of main data page • Increases index size and therefore reduces efficiency
