  1. Advance of Bank Trojan Nov 2005

  2. Current threat from Bank Trojans • Steals online banking information; typically usernames and passwords. • PWSteal.JGinko targets Japanese banks. (Trojan-Spy.Win32.Banker.vt [Kaspersky Lab], PWS-Jginko [McAfee], TSPY_BANCOS.ANM [Trend Micro]) • These Trojans work closely and actively with Internet Explorer.

  3. Submission increase • Symantec gets almost 2 million submissions per year. • The rate of submissions is increasing. • Are Bank Trojan submissions increasing?

  4. PWSteal.Bancos submissions • Why have submissions decreased?

  5. Bancos submissions vs Total Symantec submissions.

  6. How samples are collected • User submissions • Honey pot • Web site routine patrol(Adware, Spyware) • Brightmail • BBS

  7. Japanese Banks VS Bank Trojan • PWSteal.Bancos originally targeted Brazilian Banks. • Then, support was added for German and English Banks. • PWSteal.Jginko targets only Japanese Banks. • PWSteal.Jginko monitors 27 domains. • PWSteal.Bancos.T monitors 2746 domains.

  8. PWSteal.Jginko domains • resonabank.anser.or.jp, btm.co.jp, ebank.co.jp • japannetbank.co.jp, smbc.co.jp, yu-cho.japanpost.jp • ufjbank.co.jp, mizuhobank.co.jp • shinseibank.co.jp, iy-bank.co.jp • shinkinbanking.com, shinkin-webfb-hokkaido.jp • shinkin-webfb.jp • And more, more, more

  9. Other Bank Trojans also target rural banks • 82bank.co.jp, akita-bank.co.jp • all.rokin.or.jp, toyotrustbank.co.jp • hyakugo.co.jp, chibabank.co.jp • fukuibank.co.jp, gunmabank.co.jp • hirogin.co.jp, hokugin.co.jp • joyobank.co.jp, nishigin.co.jp • And more, more, more

  10. Security measures taken by Japanese Banks recently • Software Keyboard • Strong password requirements • Challenge and response with one-time encryption key • Prevent phishing mail • Login restricted by IP address • SSL

  11. Advantage of Trojan over KeyLogger • These Trojans are not KeyLogger.Trojans • Stealth techniques can be used • Intercepts transaction information • Silent download • Silent update

  12. Bank Trojans are not KeyLogger.Trojan • Old KeyLoggers log key strokes and send logged data. • Difficult to know which application the user was using • Logs user error (passeo[Back Space][Back Space]word ) • Difficult to know when the user changes to a different input field

  13. Stealth techniques used by Bank Trojans • Works with Internet Explorer. • Firewall does not stop HTTP transaction of Internet Explorer. (BHO, Inject, layered service provider) • Injects itself into other process • Rootkit may hide files or protect them from security application • Hide packet traffic from system to avoid detection

  14. Intercept transaction • These Trojans can hook specific procedure calls • These Trojans can inject itself into an application • HTTPS is not secure if the data is intercepted before and after it is encrypted

  15. Silent download/ Silent update techniques • Trojans may close Alerts from Windows Firewall • Delete Zone.Identifier settings • Add itself to Authorized Applications list, bypassing the firewall

  16. Technique: Key Logging

  17. Technique: Key Logging(2)

  18. Technique: Inject • Taskmanager can enumerate process • DLLs are never enumerated by taskmanager. • If IEXPLORE.EXE calls loadlibrary? • VirtualAllocEx • WriteProcessMemory • GetProcAddress • CreateRemoteThread

  19. Technique: BHO • A Browser helper object is an additional software component that is loaded when Internet Explorer starts. • When a BHO sends a data, It looks like the data is sent by Internet Explorer. • The BHO can’t be seen with Task manager.

  20. Loading BHO • How Internet Explorer loads and initializes helper objects.

  21. Technique: BHO (2)

  22. Technique: Intercept transaction

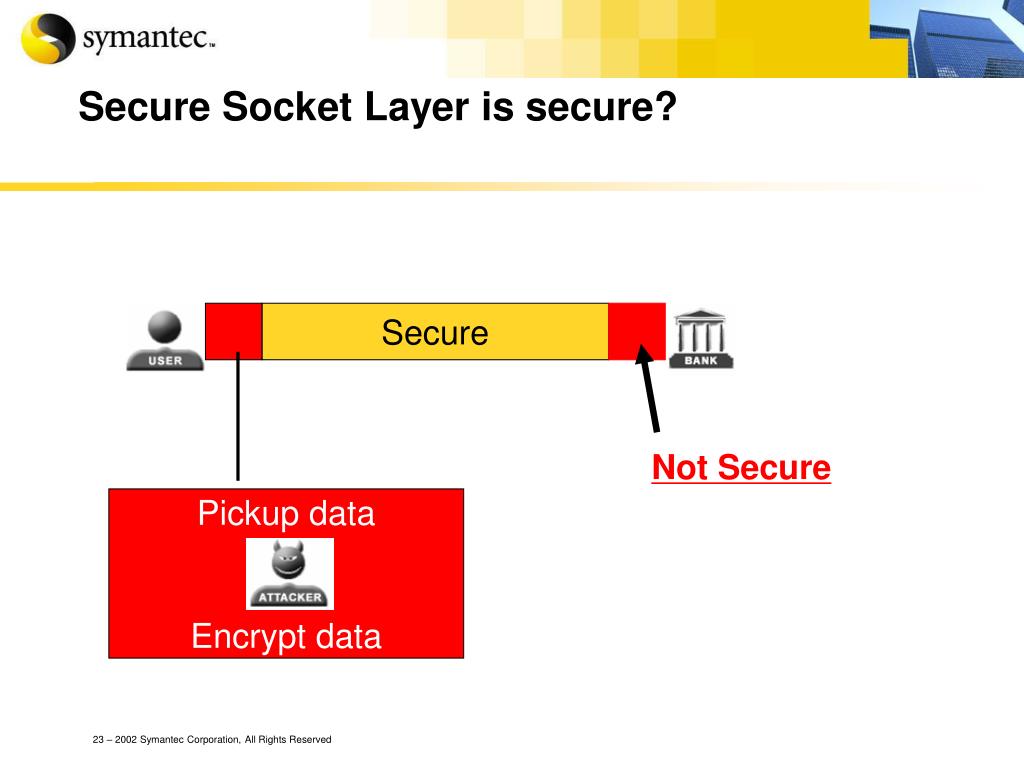

  23. Secure Socket Layer is secure? Secure Not Secure Pickup data Encrypt data

  24. Technique: Intercept transaction (2)

  25. Technique: Intercept transaction (3)

  26. Technique: Intercept transaction (4)

  27. Technique: Intercept transaction (5) • DWebBrowserEvents2, IHTMLDocument2 • Onmouseover • User push “A” or “A” filled to field. • Onsubmit

  28. Technique: Silent download

  29. Technique: Silent update

  30. Technique: Silent update (2) • HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SharedAccess\Parameters\FirewallPolicy\StandardProfile\AuthorizedApplications\List • Value: ":*:Enabled:"

  31. Steal password

  32. Challenge and response Send user name Send user name Answer random “Challenge” Answer “Challenge” Calculate one-time password by “Challenge” and send it Send one-time password Accepted Answer fake error page Transfer money

  33. Thank You! Hiroshi Shinotsuka Hiroshi_Shintosuka@symantec.com
