  1. VISTA OPERATING SYSTEM

  2. VISTA OPERATING SYSTEM • Software that helps the computer carry out operating tasks • Similar to a “Air Traffic Controller” • Manages input/output • Displays info on the monitor • Saves data on disks • Allocatescomputerresources • Includes the Start menu, Taskbar and Control Panel.

  3. START MENU • List of folders embedded in left pane • No longer submenus • TREE VIEW DIRECTORY: • “Branch off” to start any program • Can expand and collapse any folder • Even multiple folders • INSTANT SEARCH FEATURE • Can key in a program/document “incrementally”: • As you type in each letter of the name of the program/document, the list is then constrained to display your search string

  4. PIN/UNPIN/hide A PROGRAM ON THE START MENU • To pin a program, find the program you want • Right-click the program > PIN TO START MENU • To unpin a program Right-click the pinned program > UNPIN FROM START MENU • To HIDE items on the START MENU: • Right-click the START button > PROPERTIES • In the PRIVACYsection,  clear the check boxes to HIDE recently open documents/programs

  5. Add your favorites list to start menu • Your FAVORITES list from Internet Explorer can be added to the STARTbutton • Right-click the STARTbutton > PROPERTIES • Click the: CUSTOMIZEbutton • Check the FAVORITES MENU check box > OK > OK • Now, when you select one of your FAVORITES, IE will automatically launch, and the desired page will open!!

  6. OPENING A PROGRAM/FILE • STARTPROGRAMSSelect the programyou want to open • START RECENT ITEMS • lists the last15 documents accessed OR: • Open “COMPUTER” (previously: “MY Computer”) OR “Windows Explorer” • Open the folder containing the file you want to open anddouble-click the file • The application opens, then the file RUN command • START button> in the SEARCH textbox • Key in the name of the program > i.e. “ winword.exe (MS WORD) ENTER

  7. SHADOW COPY • If you accidentallySAVE OVERa critical file and you have noUndo option? • automatically creates point-in-timecopies of files as you work • While you work, VISTAmakes backup copiesof your work files: SHADOW COPIES, that you can restore from earlier versions, copy, or save with new file names. • It is a good idea to save all important files to a separate physical location, e.g. external hard drive, memory stick, dvd, etc • Only works if System Restore pointsare created. To make sure this feature is on: • START> type: systempropertiesprotection> ENTER (Click Continueif you're prompted.) • Check the disk you want shadow copies created to, >APPLY(if the only available drive is already checked, APPLY will be grayed out). • Each drive must have at least 300MB of free space • You can create a restore point manually in this dialog box by clicking: CREATE> Type a name for the restore point > CREATE, again.

  8. SHADOW COPY cont. • When you need the previous version of a file or folder, right-click it in Windows Explorer and choose RESTORE PREVIOUS VERSIONS • For a full restoration, select the version you want and click RESTORE • If you're not sure which version to choose, • select one and click OPEN to see it in read-only form. • If the file you want to restore was moved or deleted from its original location, or if it has a different name: • select the folder that formerly contained the version you want to restore. • If the folder no longer exists, select the next highest folder that contained the missing folder. • Right-click it and choose RESTORE PREVIOUS VERSIONS > double-click to navigate through the folders in the PREVIOUS VERSIONStab to open or copy the older version.

  9. ARRANGING OPEN WINDOWS. • Right-click an open area on the taskbar. • On the shortcut menu, click • Cascade Windows. • Show Windows Stacked • Show Windows Side by Side • Show the Desktop • UNDO arrangement • Right-click an open area on the taskbar • On the shortcut menu, click Undo

  10. FILE MANAGEMENT • Is the process of creating, copying, moving, or deleting files and folders to arrange your information • File • something that you create or download e.g. mp3 or word document • Folder • a group of related files • Folders can be created inside of folders

  11. FILE MANAGEMENT cont. • Two file managers • Computer • Windows Explorer • Can be accessed by • Double clicking the Computer icon • By right clicking on the Start button and choosing “Explore” • Shows the contents of the selected driveor folder

  12. Windows Explorer cont. • Right-click on “START” > “EXPLORE” • note: PROGRAM is: “Windows Explorer”, • BUT you are viewingcontents of “START MENU” folder • VIEW > DETAILS • Click on the “MODIFIED” button (Header button)-to put info sorted in ascending order OR in descending order • Click on the “NAME” button • Click on the “SIZE” button

  13. Windows Explorer • Windows Explorer's task panel has been replaced by: • The address bar has been replaced with a breadcrumb navigation system. A "Favorite links" panel has been added, enabling one-click access to common directories.

  14. Windows explorer cont.: • At the left is the navigation pane, which lists the commonly used folders: • Recently changed: • a list of all files and e-mail messages that you have edited in the last 30 days • you can access a list of additional folders by clicking on the FOLDERSbutton (at left—underneath FAVORITE LINKS list) • if you use a folder on a regular basis, you can drag it to the FAVORITE LINKS pane

  15. Windows explorer cont.: • when you select a file, a pane opens at the bottom of the window called: DETAILS PANE, displaying: PROPERTIES • PREVIEW PANE--live preview at right • Must be turned on: ORGANIZEbutton > LAYOUT > PREVIEW PANE • if it’s a PowerPoint presentation, using the scroll bar, you can previewevery slide in the presentation!! • By clicking on the LIVE ICON of a folder, you can then get a visual look at the files contained inside it!!

  16. Windows explorer cont.: • You can further personalize by going to: ORGANIZEbutton >LAYOUT • (MENU BAR—XPmenu headings) • Can hide: DETAILS , PREVIEW & NAIVGATION panes • Choices are SAVED when you close the window • Can select multiple adjacent files by click-shift-click method • Can select multiple non-adjacent files by ctrl-click method

  17. VIEWING ICONS IN WINDOWS EXPLORER • click on button OR drop-down arrow in “Windows Explorer” & “Computer” to changeVIEW: • Extra large icons, Large,Medium & Small icons List, Details,Tile • SORT BY: • Clicking on the COLUMN HEADINGS • ORGANIZE button allows creation of new folders • BURN button

  18. BREADCRUMB NAVIGATION • folder names on address bar are links –which will take you back and open a folder • Click on the folder name to open it • Click on the white arrow beside folder name, to view other subfolders/folders • back & forward buttons for easy navigation • a list of recently visited websites or folders, by clicking on “previous location button” (down-pointing arrow at end of address bar)

  19. TRIANGLESBESIDE FOLDERS: • They just show you the FILE HIERARCHY (pathnamesof folder & file locations) • Does not open FILE CONTENTS • ADDRESS BAR: • Click on triangles beside , will bring up folders which reside 1 folder up • The folder name which is bolded, is the one in which the 1stfolder in the address bar resides • Click on triangle beside FOLDER names: • Lists subfolders

  20. FOLDERS: • Some folders automatically there by defaulte.g. “Documents”, “Program Files” • CREATING a folder –pay attention to where it is being created • ORGANIZEfolder > NEW FOLDER OR • Right-mouse click on an empty space on right-hand side of split screen > NEW > FOLDER • Can also COPY, MOVE, & RENAME FOLDERS • SEND TO:

  21. Show file name extensions • An extension is a 3 or 4 letter ending after a filename that indicates the kind of file you are looking at • Common extensions • mp3 • docx • xlsx • Pptx • htm/html • START > CONTROL PANEL >APPEARANCE and PERSONALIZATION > FOLDER OPTIONS

  22. File Extensions cont. • ORGANIZEbutton > FOLDER AND SEARCH OPTIONS > the VIEWtab, > ADVANCED SETTINGS • Clear the HIDE EXTENSIONS FOR KNOWN FILE TYPES > OK

  23. skydrive • Live@AC • Your own personal space • 25 GB of storage space • You will have the “Live accounts” forever!! (become alumni) • Access,edit & share documents from virtually anywhere- • PC, mobile phone & web browser • COLLABORATIVE, SIMULTANEOUS • 1 file that ALL people (that you have given the “rights to”) can open SIMULTANEOUSLY

  24. “Skydrive” Cont. • Opens up the document in a Windows LIVE program • NO CONVERSION-true “FIDELTIY” • OPEN IN specific programbutton (actual PROGRAM) • (WORD, EXCEL, etc. 2007, 2010) • Can SHARE the files • PERMISSIONS • SEND A LINK • Other person gets the link • EDIT IN BROWSER • OPENS OFFICE WEB APPS (ONLINE—not the actual PROGRAM)

  25. CREATING SHORTCUTS • Locate the specific file/program you want in ”Windows Explorer” • OR: An INTERNET web address to “DESKTOP” • Right-click and drag the file from the ”Windows Explorer” window to: • an open area on the desktop • OR: right-mouse click on DESKTOP > NEW > SHORTCUT > a Wizard will come up > key in the name of the website> NEXT > key in the name of the shortcut • Wizards assist you with the installation of software/programs/applications

  26. FORMATTING A DRIVEDISPLAYING PROPERTIES • FORMATTING: • Makes a disk ready to receive data • Will delete all data on a drive that has information on it, including the operating system • Right click on the drive • Select Format from the shortcut menu. • Click the START button > OK > OK > CLOSE • DISPLAYING PROPERTIES: • Right click the drive • Select Properties from the shortcut menu • SYSTEM PROPERTIES • To get an overview of your operating system and the amount of available RAM, click System Properties • CONTROL PANEL > SYSTEM

  27. RECYCLE BIN • SHOW DESKTOP icon (on taskbar) • RECYLE BIN • Storesdeleteditems (deleted items do take up space on hard drive) • Can “restore” items • If the recycle bin contains deleted files, crumpled pieces of paper display in the icon on the desktop. • Once you delete from the Recycle Bin— PERMANENTLYdeleted

  28. SEARCH FOR FILES • SEARCH (textbox; top of window) • Filenames • WILDCARDS * ? e.g.. *.DOC • Key in “SEARCH BY” in SEARCH textbox • Click on the ADVANCED SEARCH drop-down arrow • Location • Date etc.

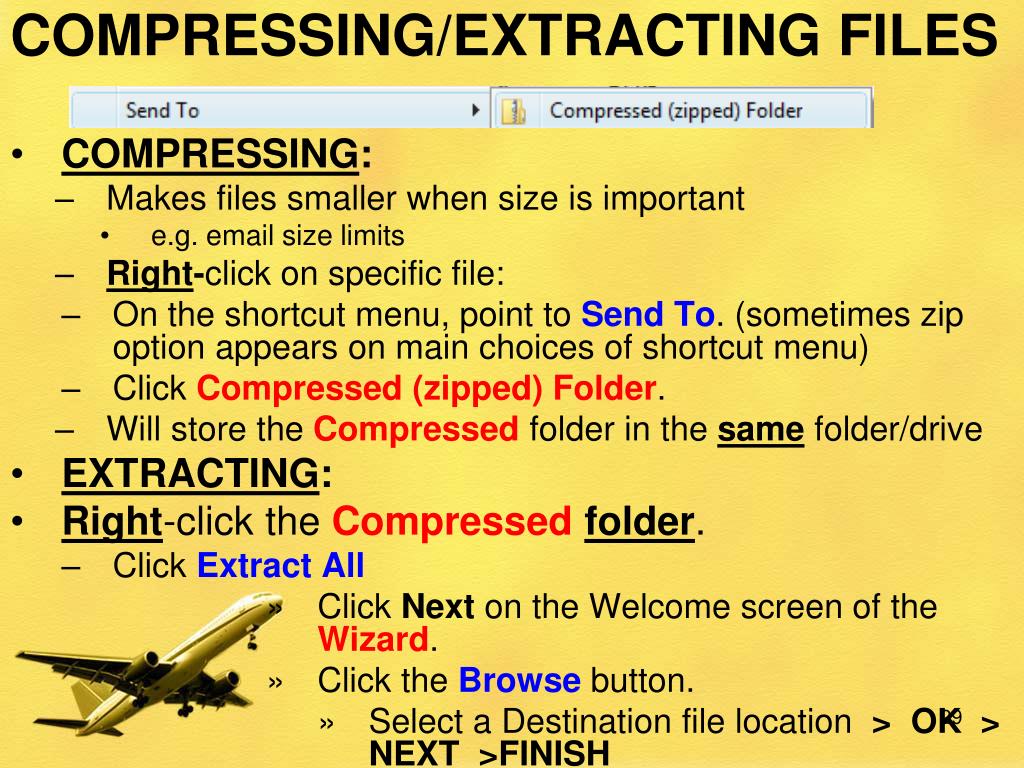

  29. COMPRESSING/EXTRACTING FILES • COMPRESSING: • Makes files smaller when size is important • e.g. email size limits • Right-click on specific file: • On the shortcut menu, point to Send To. (sometimes zip option appears on main choices of shortcut menu) • Click Compressed (zipped) Folder. • Will store the Compressed folderin the same folder/drive • EXTRACTING: • Right-click the Compressedfolder. • Click Extract All • Click Next on the Welcome screen of the Wizard. • Click the Browse button. • Select a Destination file location > OK > NEXT >FINISH

  30. HELP-F1; OR: START > HELP and SUPPORTOR: Click on question mark at top of window • Help & Support home

  31. Browse Help:

  32. ASK SOMEONE OR EXPAND YOUR SEARCH A blue compass on a help topic indicates that Guided help is available.

  33. PRINTING • Check the “Print Status” of your print jobs: • Double-click on PRINT icon on taskbar • How to Change “Default Printer” • START > CONTROL PANEL > HARDWARE and SOUND > PRINTERS > CHANGE DEFAULT PRINTER • Rightclick on the desired printer >SET AS DEFAULT PRINTER

  34. ACCESSORIES • START> ALL PROGRAMS > ACCESSORIES i.e. CALCULATOR

  35. CHANGE VIEW OF ICONS ON DESKTOP • Right-click on DESKTOP > SORT BY

  36. DISPLAY COMPUTERs DATE & TIME • Control panel> clock language & region > set the time & date

  37. FREE “TIP OF THE WEEK”
