How to Analyze a Pedigree

How to Analyze a Pedigree. Honors Biology Genetics!. What’s a Pedigree?. Pedigree is a family tree used to study how particular human traits are inherited. It is analyzed using logic and the Mendelian laws. Goals of a Pedigree.

silvio
Download Presentation

How to Analyze a Pedigree

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. How to Analyze a Pedigree Honors Biology Genetics!

  2. What’s a Pedigree? • Pedigree is a family tree used to study how particular human traits are inherited. • It is analyzed using logic and the Mendelian laws

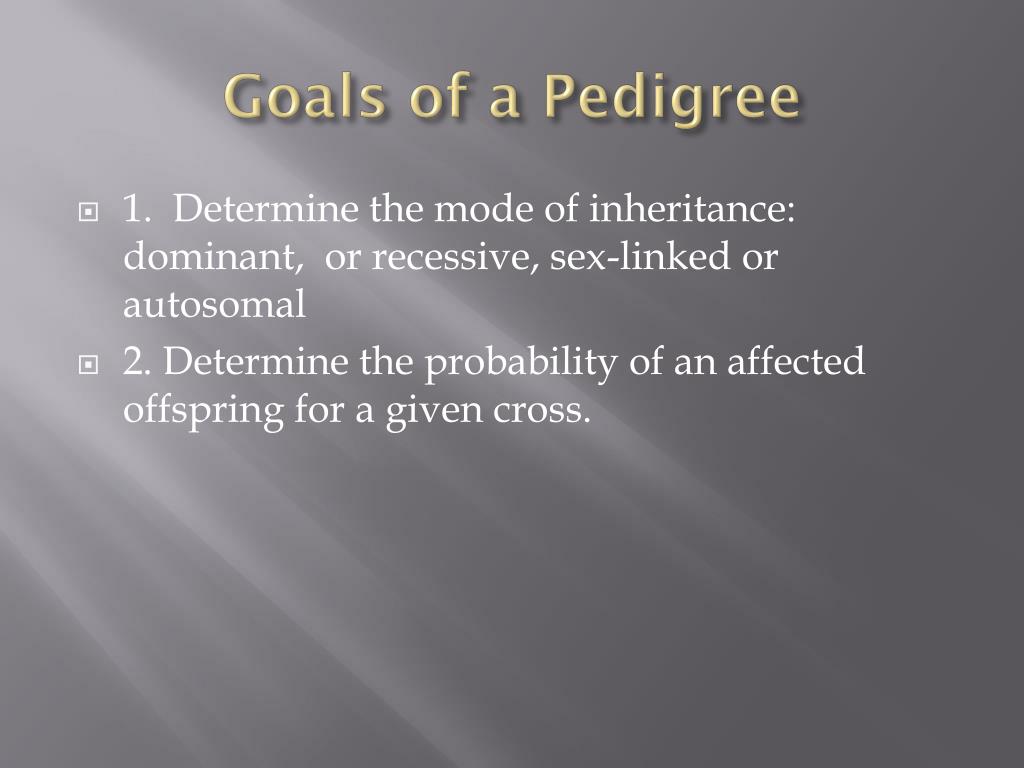

  3. Goals of a Pedigree • 1. Determine the mode of inheritance: dominant, or recessive, sex-linked or autosomal • 2. Determine the probability of an affected offspring for a given cross.

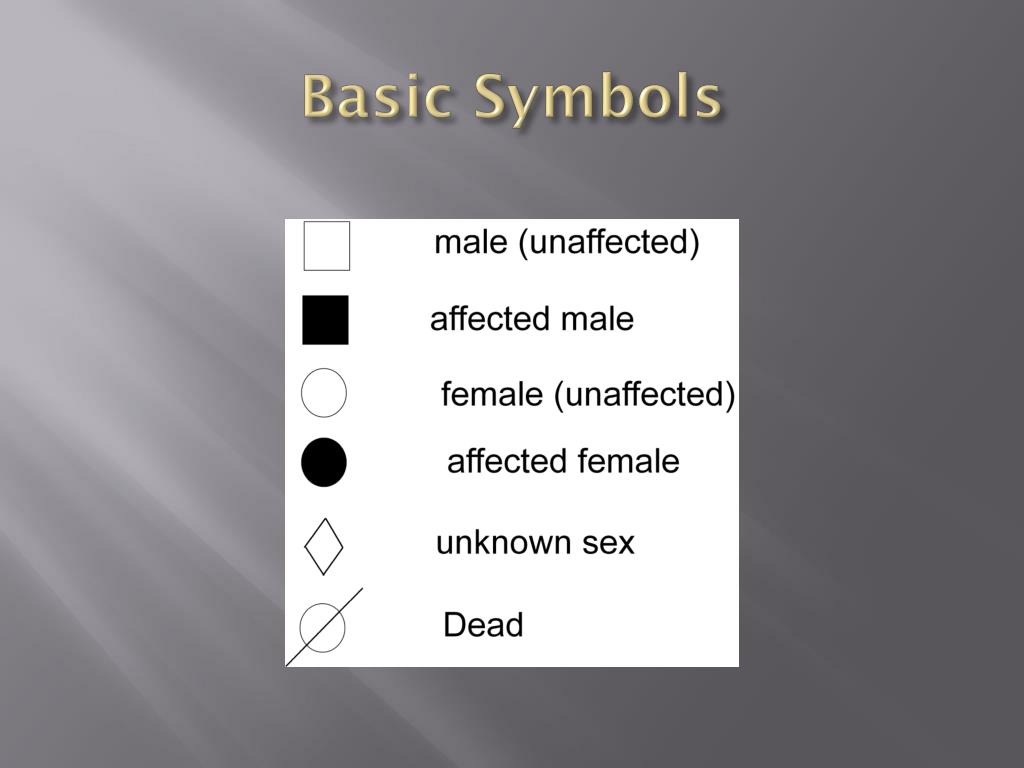

  4. Basic Symbols

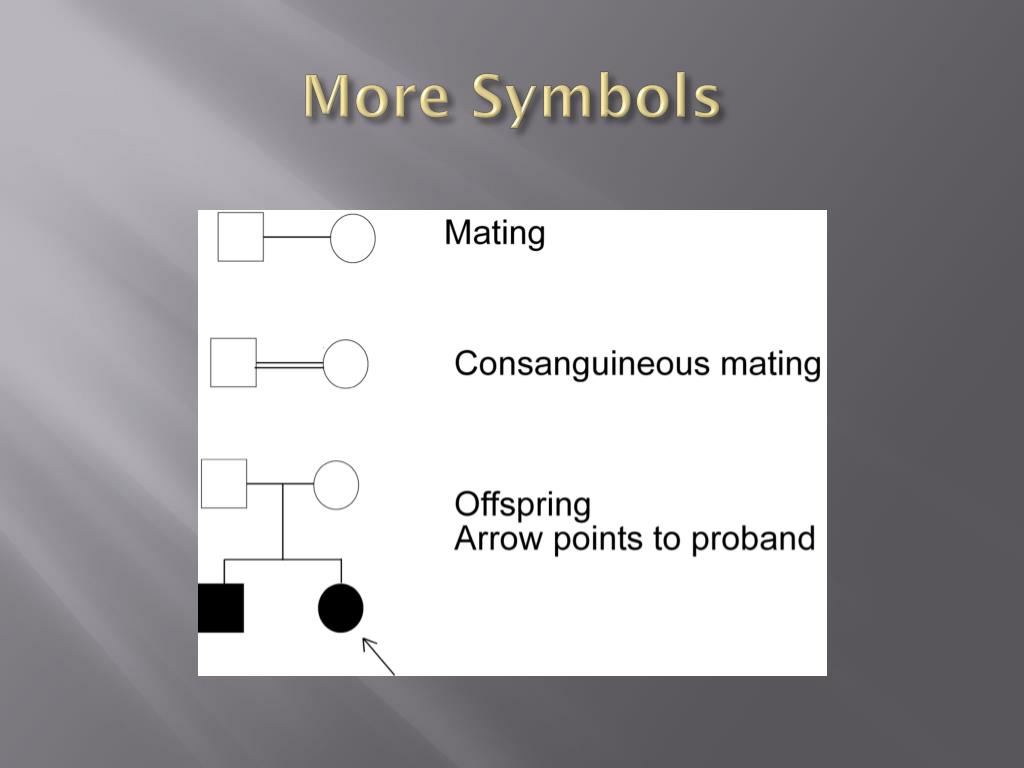

  5. More Symbols

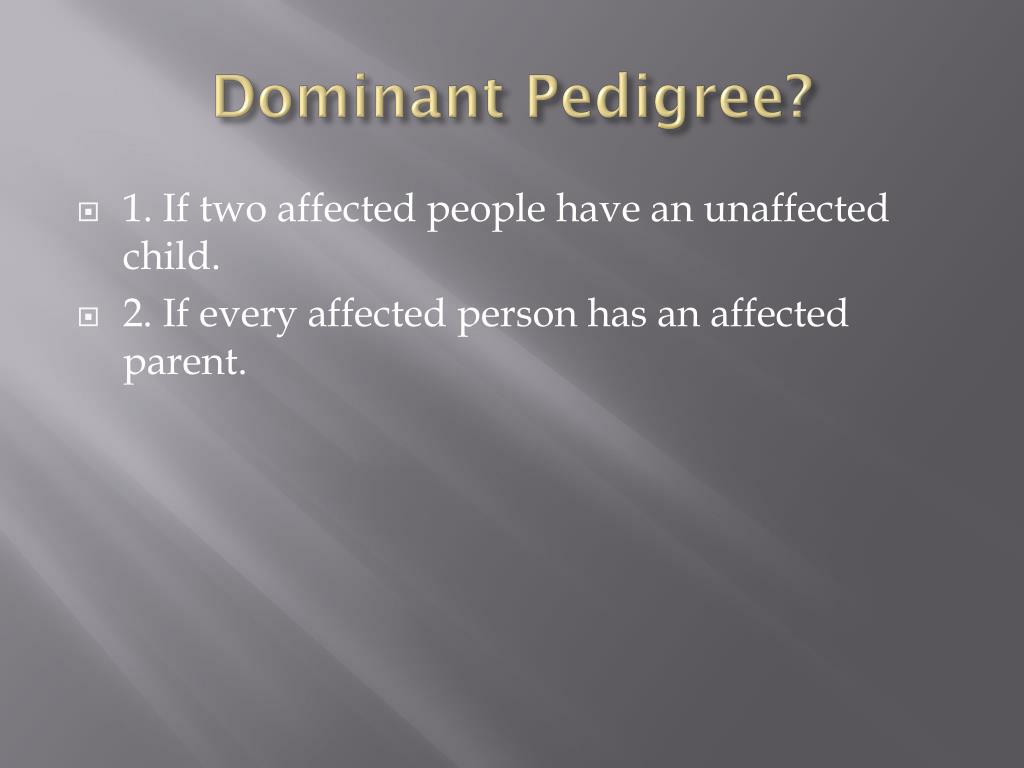

  6. Dominant Pedigree? • 1. If two affected people have an unaffected child. • 2. If every affected person has an affected parent.

  7. Assigning Genotype for Dominant • 1. All unaffected are dd. • 2. Affected children of an affected parent and an unaffected parent must be heterozygous Dd, because they inherited a d allele from the unaffected parent. • 3. The affected parents of an unaffected child must be heterozygotes Dd, since they both passed a d allele to their child. (also called carriers)

  8. I 2 1 II 1 2 3 4 5 6 III 1 2 3 4 5 6 7 8 9 10 Dominant Autosomal Pedigree

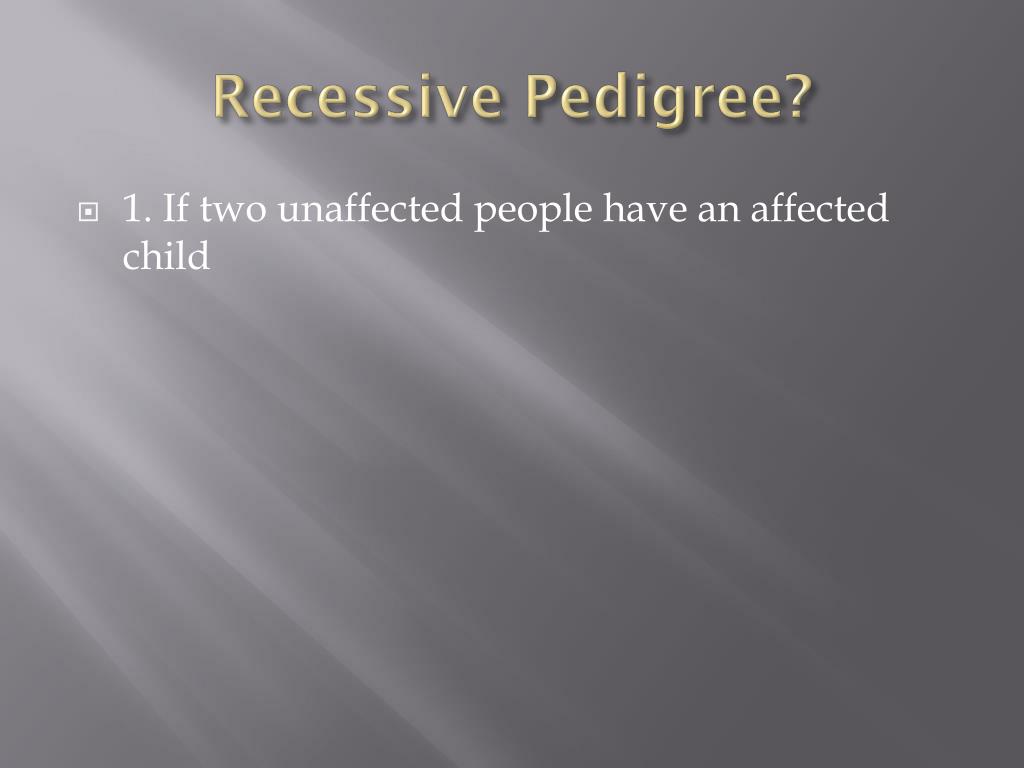

  9. Recessive Pedigree? • 1. If two unaffected people have an affected child

  10. Assigning Genotype for Recessive • 1. all affected are rr. • 2. If an affected person (rr) mates with an unaffected person, any unaffected offspring must be Rr heterozygotes, because they got a r allele from their affected parent. • 3. If two unaffected mate and have an affected child, both parents must be Rr heterozygotes.

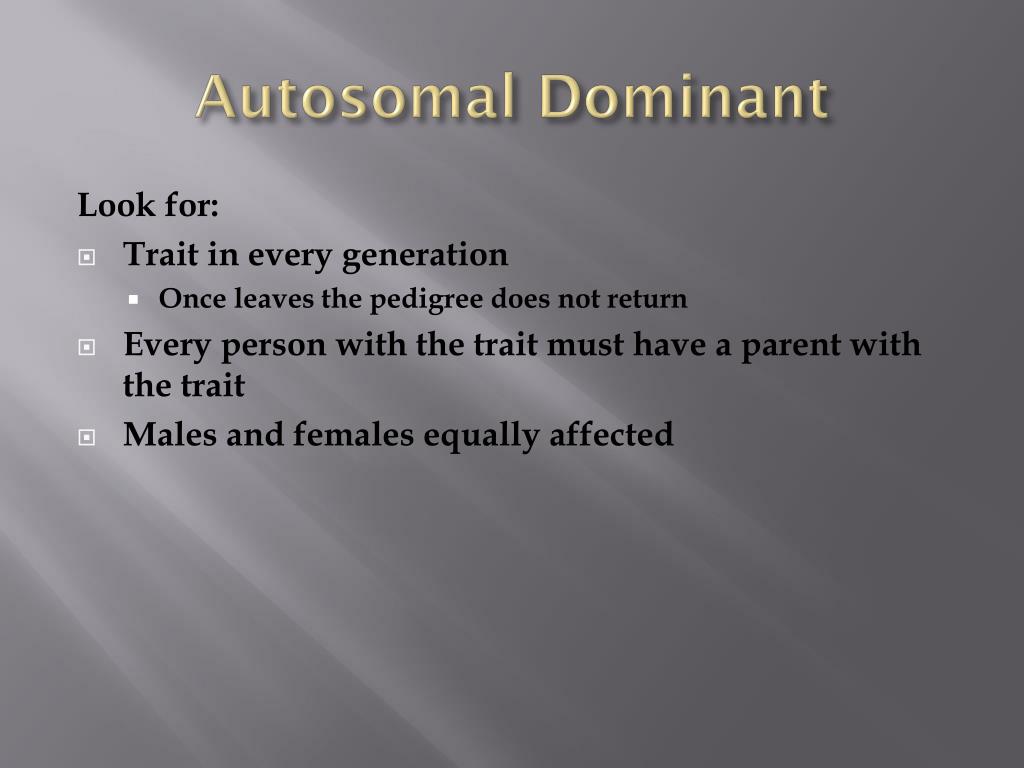

  11. Autosomal Dominant Look for: • Trait in every generation • Once leaves the pedigree does not return • Every person with the trait must have a parent with the trait • Males and females equally affected

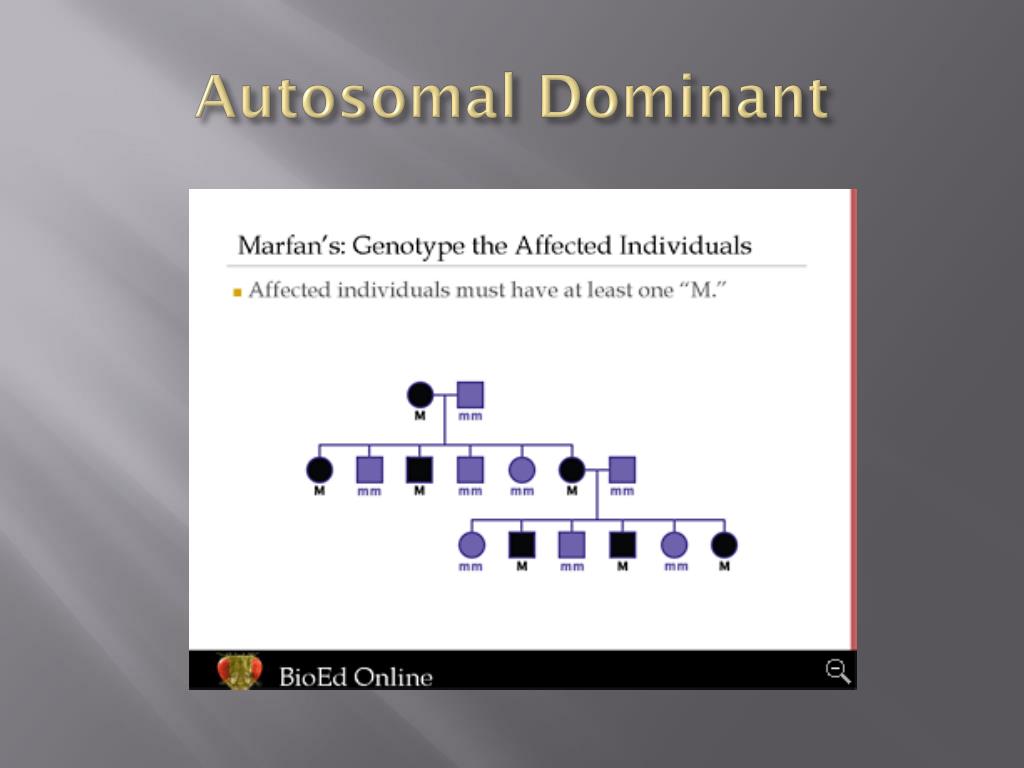

  12. Autosomal Dominant

  13. Autosomal Recessive Look for: • Skips in generation • Unaffected parents can have affected children • Affected person must be homozygous • Males and females affected equally

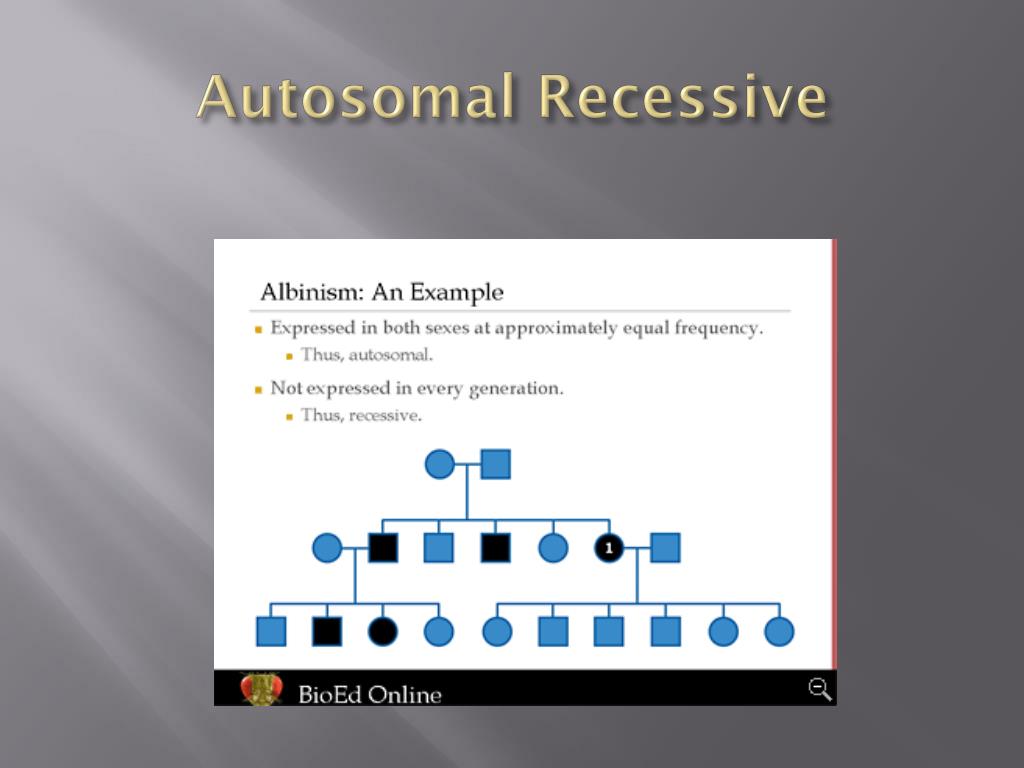

  14. Autosomal Recessive

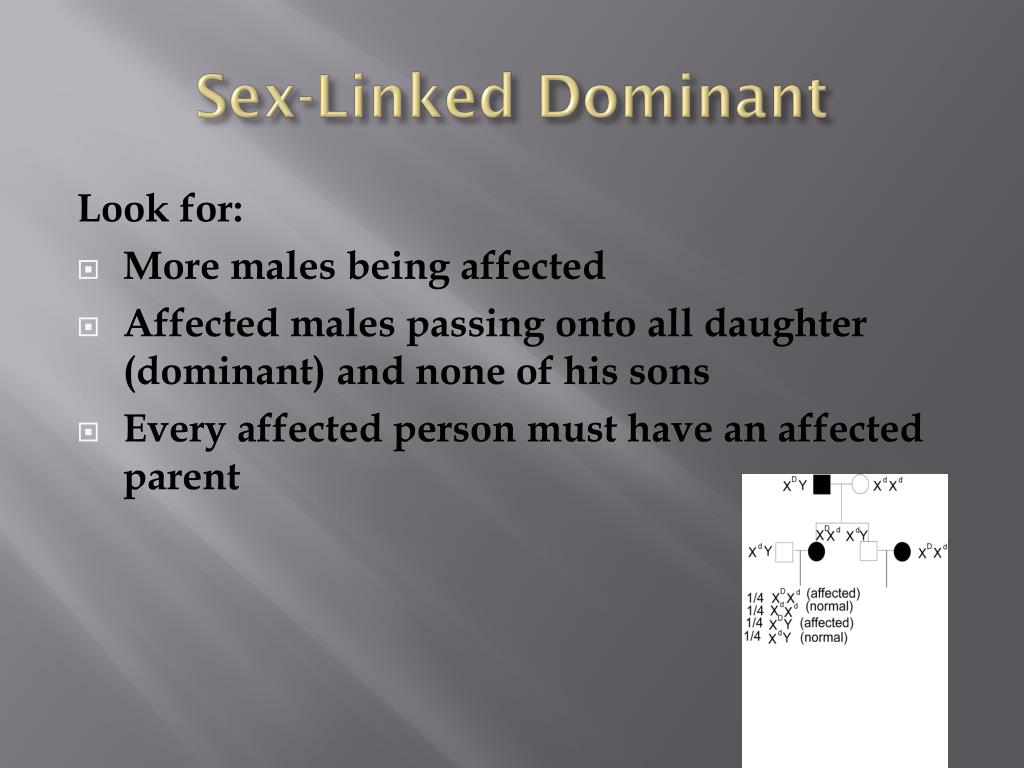

  15. Sex-Linked Dominant Look for: • More males being affected • Affected males passing onto all daughter (dominant) and none of his sons • Every affected person must have an affected parent

  16. Sex-Linked Recessive • Look for: • More males being affected • Affected female will pass onto all her sons • Affected male will pass to daughters who will be a carrier (unless mother also affected) • Unaffected father and carrier mother can produce affected sons

  17. Sex-linked recessive
