Adaptive multi robot team reconfiguration using a policy reuse reinforcement learning approach

Adaptive Multi-Robot Team Reconfiguration using a Policy-Reuse Reinforcement Learning Approach

KeCheng1, Raj Dasgupta1 and Bikramjit Banerjee2

1Computer Science Department, University of Nebraska, Omaha

2Computer Science Department, University of Southern Mississippi

Autonomous Robots and Multi-robot Systems (ARMS) 2011 Workshop

May 2, 2011


Distributed multi robot coverage

Distributed Multi-robot Coverage

  • Enable a group of robots to cover an initially unknown environment

    • Unmanned search and rescue

    • Robotic de-mining

    • Explore an extra-terrestrial surface (Mars, Moon)

    • Explore an engineering structure like a airplane’s turbine-blade or a bridge for anomalies (e.g., cracks)

    • Robotic lawn-mowing, vacuum cleaning

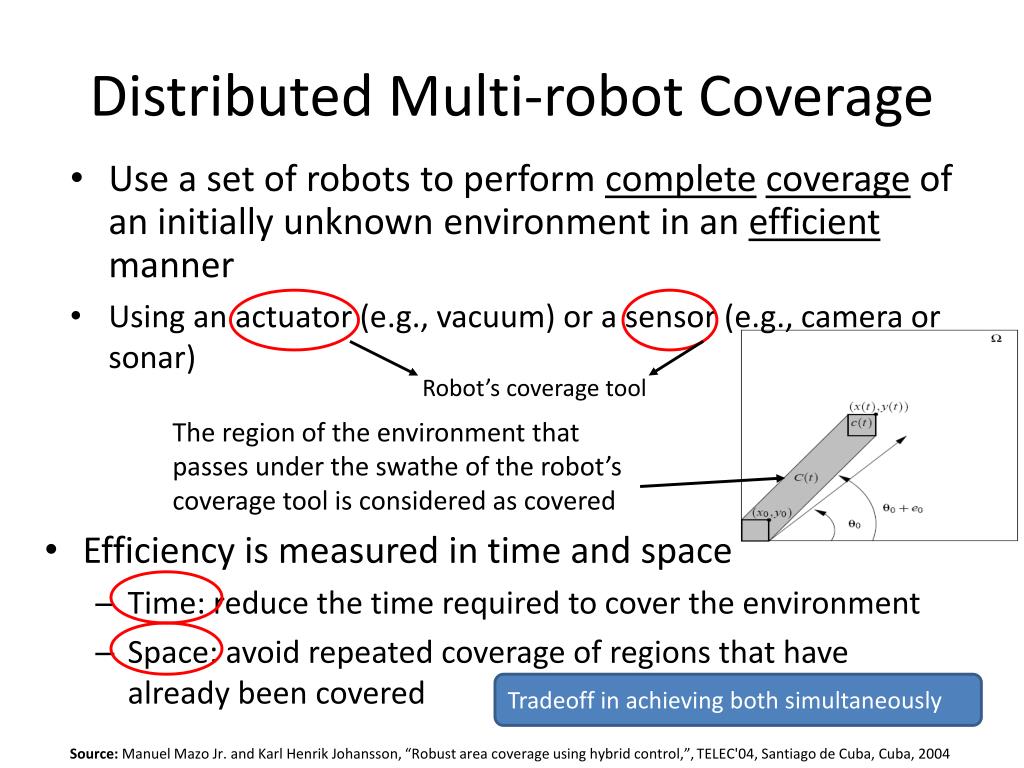

Distributed multi robot coverage1

Distributed Multi-robot Coverage

  • Use a set of robots to perform completecoverage of an initially unknown environment in an efficient manner

  • Efficiency is measured in time and space

    • Time: reduce the time required to cover the environment

    • Space: avoid repeated coverage of regions that have already been covered

  • Using an actuator (e.g., vacuum) or a sensor (e.g., camera or sonar)

Robot’s coverage tool

  • The region of the environment that passes under the swathe of the robot’s coverage tool is considered as covered

Tradeoff in achieving both simultaneously

Source: Manuel Mazo Jr. and Karl Henrik Johansson, “Robust area coverage using hybrid control,”, TELEC'04, Santiago de Cuba, Cuba, 2004


Major challenges

Major Challenges

  • Distributed – no shared memory or map of the environment that the robots can use to know which portion of the environment is covered

  • Each robot has limited storage and computation capabilities

    • Can’t store map of the entire environment

  • Other challenges: Sensor and encoder noise, communication overhead, localizing robots

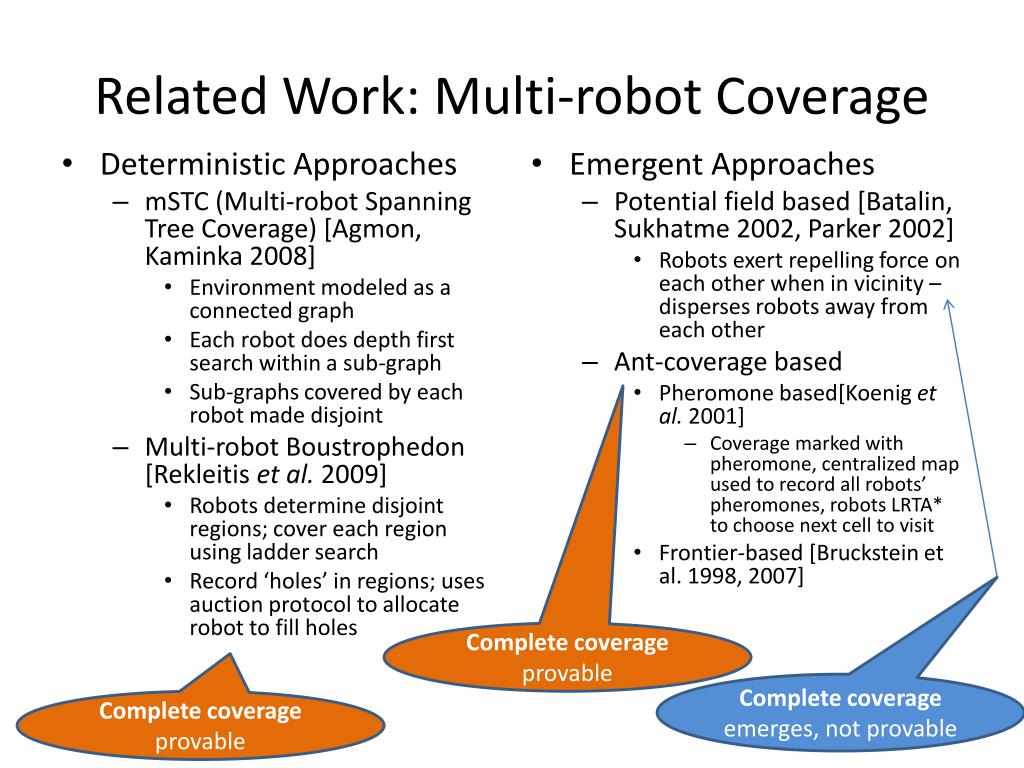

Related work multi robot coverage

Related Work: Multi-robot Coverage

  • Deterministic Approaches

    • mSTC (Multi-robot Spanning Tree Coverage) [Agmon, Kaminka 2008]

      • Environment modeled as a connected graph

      • Each robot does depth first search within a sub-graph

      • Sub-graphs covered by each robot made disjoint

    • Multi-robot Boustrophedon [Rekleitiset al. 2009]

      • Robots determine disjoint regions; cover each region using ladder search

      • Record ‘holes’ in regions; uses auction protocol to allocate robot to fill holes

  • Emergent Approaches

    • Potential field based [Batalin, Sukhatme 2002, Parker 2002]

      • Robots exert repelling force on each other when in vicinity – disperses robots away from each other

    • Ant-coverage based

      • Pheromone based[Koenig et al. 2001]

        • Coverage marked with pheromone, centralized map used to record all robots’ pheromones, robots LRTA* to choose next cell to visit

      • Frontier-based [Bruckstein et al. 1998, 2007]

Complete coverage provable

Complete coverage emerges, not provable

Complete coverage provable

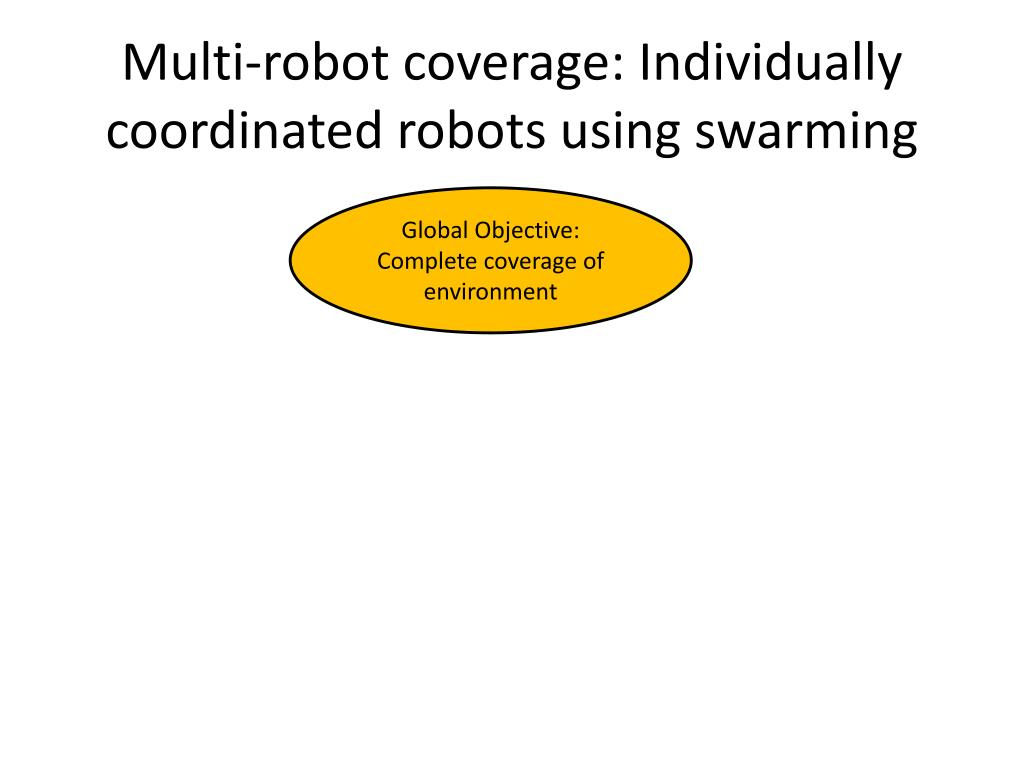

Multi robot coverage individually coordinated robots using swarming

Multi-robot coverage: Individually coordinated robots using swarming

Global Objective: Complete coverage of environment


Multi robot coverage individually coordinated robots using swarming1

Multi-robot coverage: Individually coordinated robots using swarming

Global Objective: Complete coverage of environment

Local coverage rule of robot

Local coverage rule of robot

Local coverage rule of robot

...

...

Local coverage rule of robot

Local coverage rule of robot

Local coverage rule of robot

...

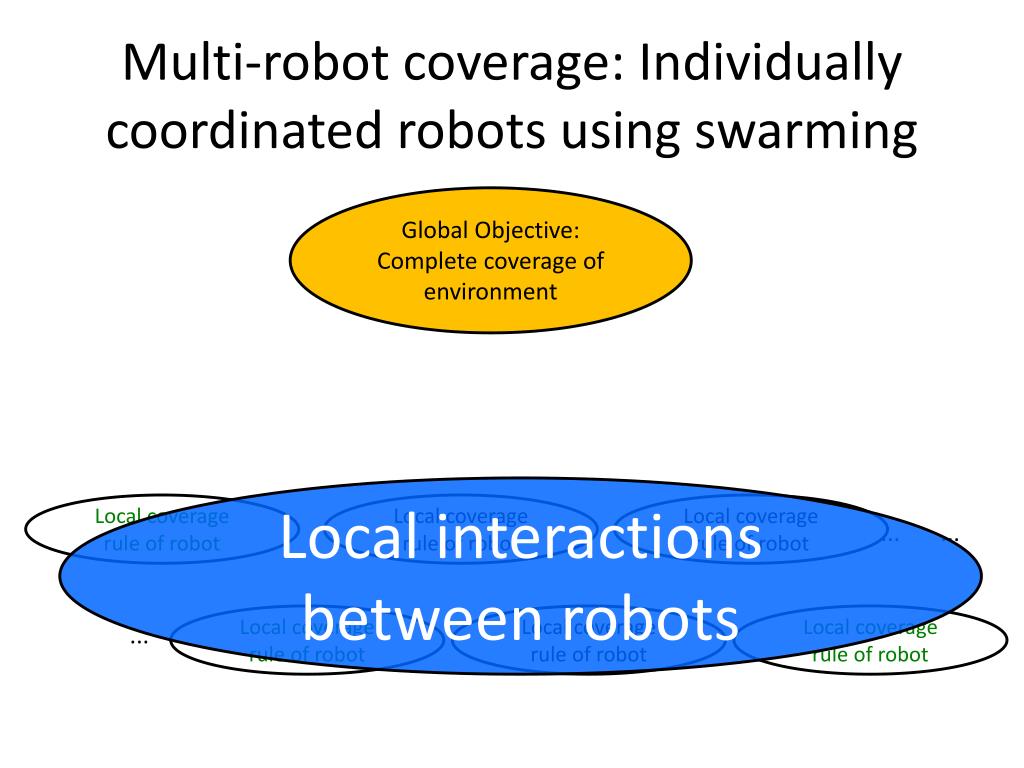

Multi robot coverage individually coordinated robots using swarming2

Multi-robot coverage: Individually coordinated robots using swarming

Global Objective: Complete coverage of environment

Local interactions

between robots

Local coverage rule of robot

Local coverage rule of robot

Local coverage rule of robot

...

...

Local coverage rule of robot

Local coverage rule of robot

Local coverage rule of robot

...


Multi robot coverage individually coordinated robots using swarming3

Multi-robot coverage: Individually coordinated robots using swarming

Global Objective: Complete coverage of environment

Done empirically

How well do the results of the local interactions translate to achieving the global objective?

Local interactions

between robots

Local coverage rule of robot

Local coverage rule of robot

Local coverage rule of robot

...

...

Local coverage rule of robot

Local coverage rule of robot

Local coverage rule of robot

...

References:

K. Cheng and P. Dasgupta, "Dynamic Area Coverage using Faulty Multi-agent Swarms" Proc. IEEE/WIC/ACM International Conference on Intelligent Agent Technology (IAT 2007), Fremont, CA, 2007, pp. 17-24.

P. Dasgupta, K. Cheng, "Distributed Coverage of Unknown Environments using Multi-robot Swarms with Memory and Communication Constraints," UNO CS Technical Report (cst-2009-1).

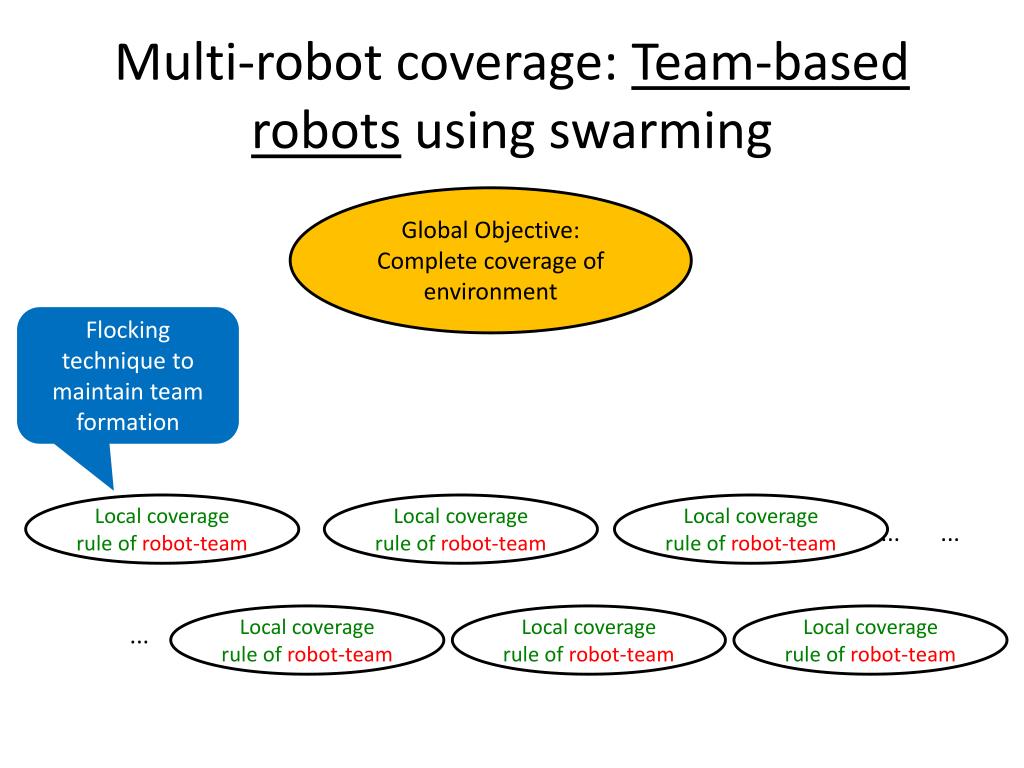

Multi robot coverage team based robots using swarming

Multi-robot coverage: Team-based robots using swarming

Global Objective: Complete coverage of environment

Flocking technique to maintain team formation

Local coverage rule of robot-team

Local coverage rule of robot-team

Local coverage rule of robot-team

...

...

Local coverage rule of robot-team

Local coverage rule of robot-team

Local coverage rule of robot-team

...

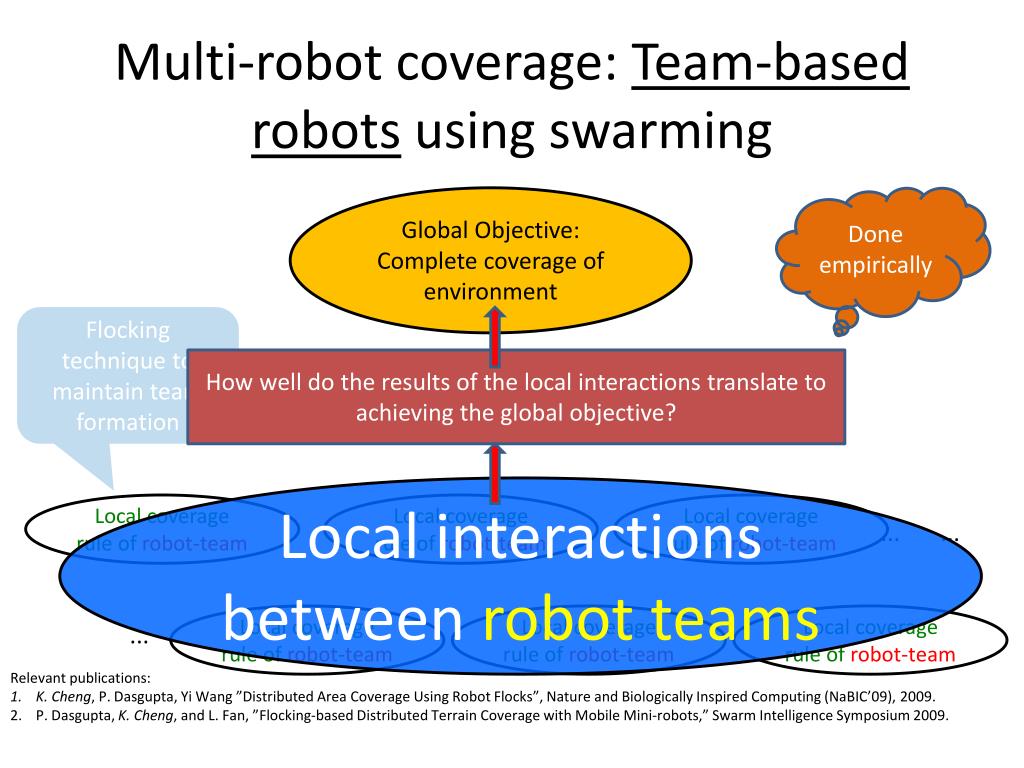

Multi robot coverage team based robots using swarming1

Multi-robot coverage: Team-based robots using swarming

Global Objective: Complete coverage of environment

Done empirically

Flocking technique to maintain team formation

How well do the results of the local interactions translate to achieving the global objective?

Local interactions

between robot teams

Local coverage rule of robot-team

Local coverage rule of robot-team

Local coverage rule of robot-team

...

...

Local coverage rule of robot-team

Local coverage rule of robot-team

Local coverage rule of robot-team

...

Relevant publications:

K. Cheng, P. Dasgupta, Yi Wang ”Distributed Area Coverage Using Robot Flocks”, Nature and Biologically Inspired Computing (NaBIC’09), 2009.

P. Dasgupta, K. Cheng, and L. Fan, ”Flocking-based Distributed Terrain Coverage with Mobile Mini-robots,” Swarm Intelligence Symposium 2009.


Flocking based controller for multi robot teams

Flocking-based Controller for Multi-robot Teams

Works with physical characteristics such as wheel speed, sensor reading, pose, etc.

Controller

Layer (uses flocking)


Multi robot teams for area coverage

Multi-robot teams for area coverage

  • Theoretical analysis: Forming teams gives a significant speed-up in terms of coverage efficiency 

  • Simulation Results: The speed-up decreases from the theoretical case but still there is some speed-up as compared to not forming teams

  • Based on Reynolds’ flocking model

  • Leader referenced

  • Follower robots designated specific positions within team

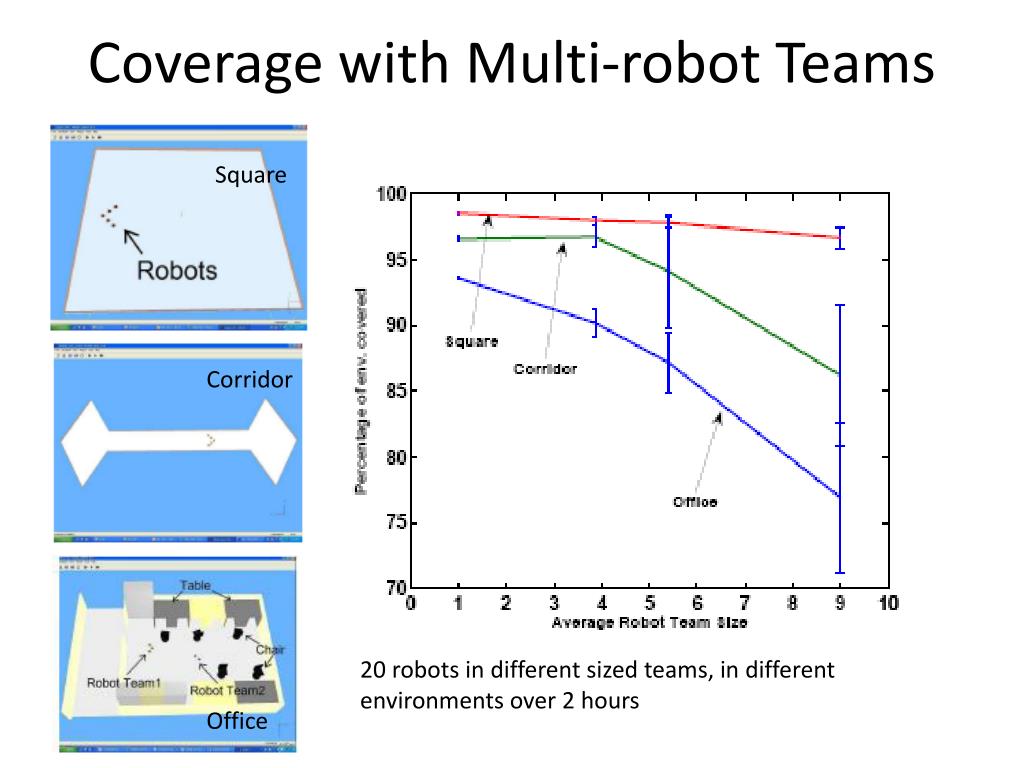

Coverage with multi robot teams

Coverage with Multi-robot Teams

Square

Corridor

20 robots in different sized teams, in different environments over 2 hours

Office


Dynamic reconfigurations of multi robot teams

Dynamic Reconfigurations of Multi-robot Teams

  • Having teams of robots is efficient for coverage

  • Having largeteams of robots doing frequent reformations is inefficient for coverage

  • Can we make the modules change their configurations dynamically

    • Based on their recent performance: If a team of robots is doing frequent reformations (and getting bad coverage efficiency), split the team into smaller teams and see if coverage improves

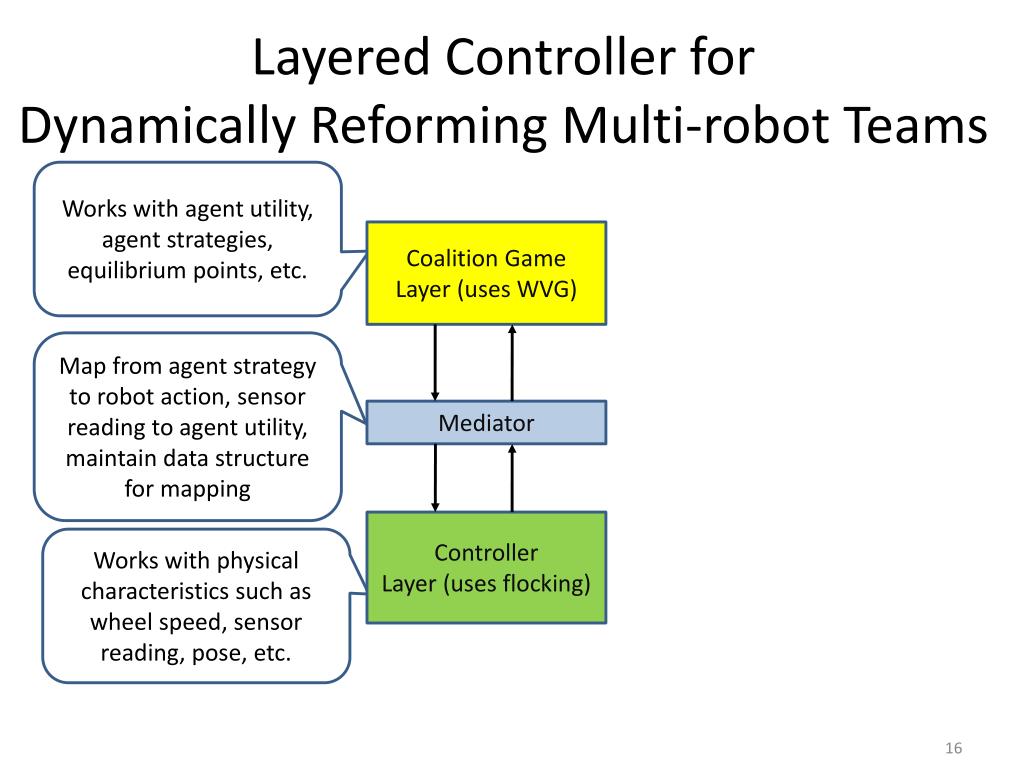

Layered controller for dynamically reforming multi robot teams

Layered Controller for Dynamically Reforming Multi-robot Teams

Works with agent utility, agent strategies, equilibrium points, etc.

Coalition Game

Layer (uses WVG)

Map from agent strategy to robot action, sensor reading to agent utility, maintain data structure for mapping

Mediator

Controller

Layer (uses flocking)

Works with physical characteristics such as wheel speed, sensor reading, pose, etc.


Coalition game based team reconfiguration

Coalition game-based Team Reconfiguration

  • Coalition games provide a theory to divide a set of players into smaller subsets or teams

  • We used a form of coalition games called weighted voting games (WVG)

    • N: set of players

    • Each player i is assigned a weightwi

    • q: threshold value called quota

    • Solution concept: What is the minimum set of players whose weights taken together can reach q

minimize |S|

subject toS wi>=q for all S subset of N

ie S


Coalition game based team reconfiguration1

Coalition game-based Team Reconfiguration

  • Coalition games provide a theory to divide a set of players into smaller subsets or teams

  • We used a form of coalition games called weighted voting games (WVG)

    • N: set of players

    • Each player i is assigned a weightwi

    • q: threshold value called quota

    • Solution concept: What is the minimum set of players whose weights taken together can reach q

Minimum Winning Coalition (MWC)

minimize |S|

subject toS wi>=q for all S subset of N

ie S

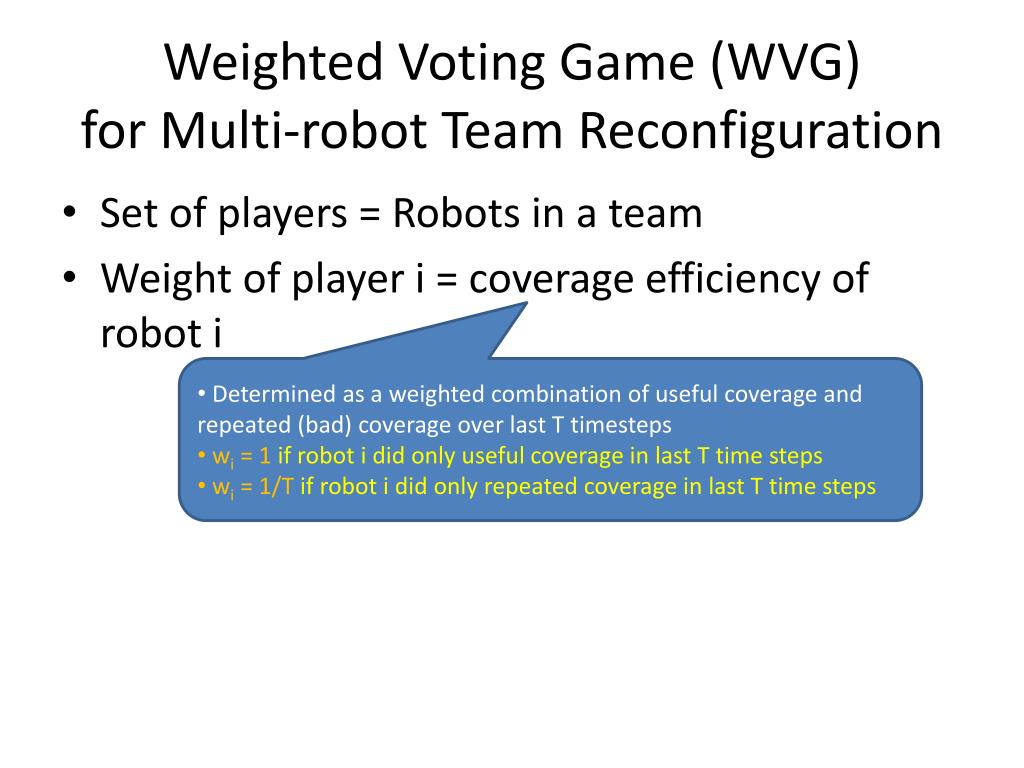

Weighted voting game wvg for multi robot team reconfiguration

Weighted Voting Game (WVG) for Multi-robot Team Reconfiguration

  • Set of players = Robots in a team

  • Weight of player i = coverage efficiency of robot i

  • Determined as a weighted combination of useful coverage and repeated (bad) coverage over last T timesteps

  • wi = 1 if robot i did only useful coverage in last T time steps

  • wi = 1/T if robot i did only repeated coverage in last T time steps

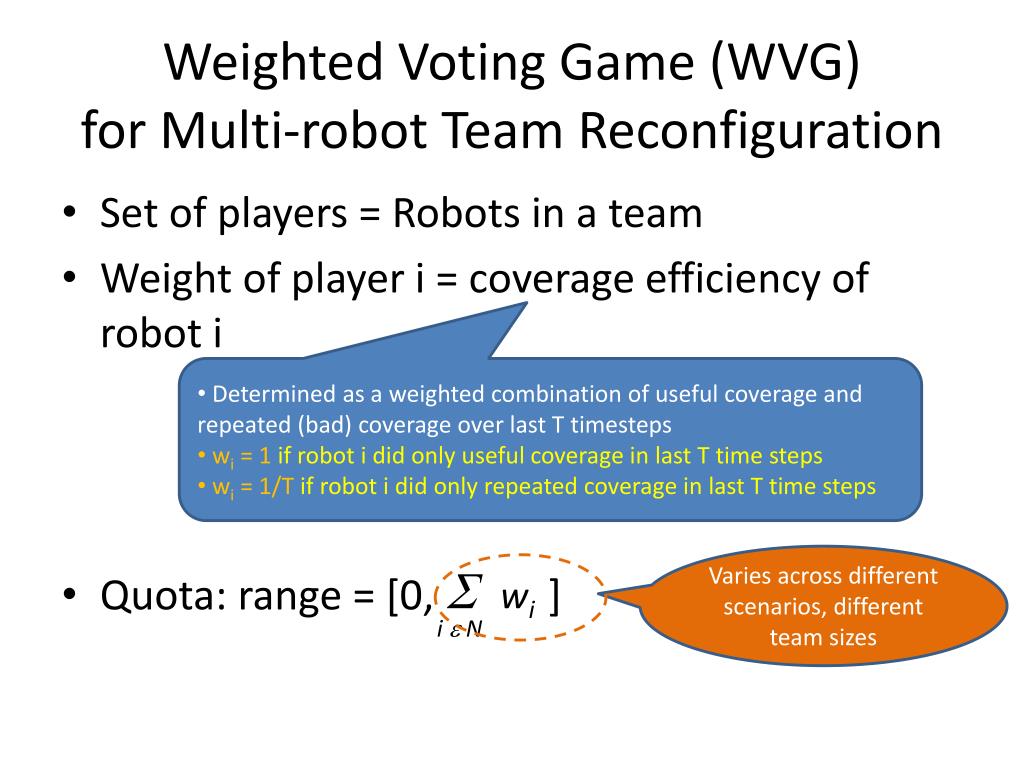

Weighted voting game wvg for multi robot team reconfiguration1

Weighted Voting Game (WVG) for Multi-robot Team Reconfiguration

  • Set of players = Robots in a team

  • Weight of player i = coverage efficiency of robot i

  • Quota: range = [0, ]

  • Determined as a weighted combination of useful coverage and repeated (bad) coverage over last T timesteps

  • wi = 1 if robot i did only useful coverage in last T time steps

  • wi = 1/T if robot i did only repeated coverage in last T time steps

Varies across different scenarios, different team sizes

S wi

ie N


Weighted voting game wvg for multi robot team reconfiguration2

Weighted Voting Game (WVG)for Multi-robot Team Reconfiguration

  • Set of players = Robots in a team

  • Weight of player i = coverage efficiency of robot i

  • Quota: range = [0, ]

    • q = qf X , where qfe [0,1]

  • Determined as a weighted combination of useful coverage and repeated (bad) coverage over last T timesteps

  • wi = 1 if robot i did only useful coverage in last T time steps

  • wi = 1/T if robot i did only repeated coverage in last T time steps

Varies across different scenarios, different team sizes

S wi

S wi

ie N

ie N

Quota fraction

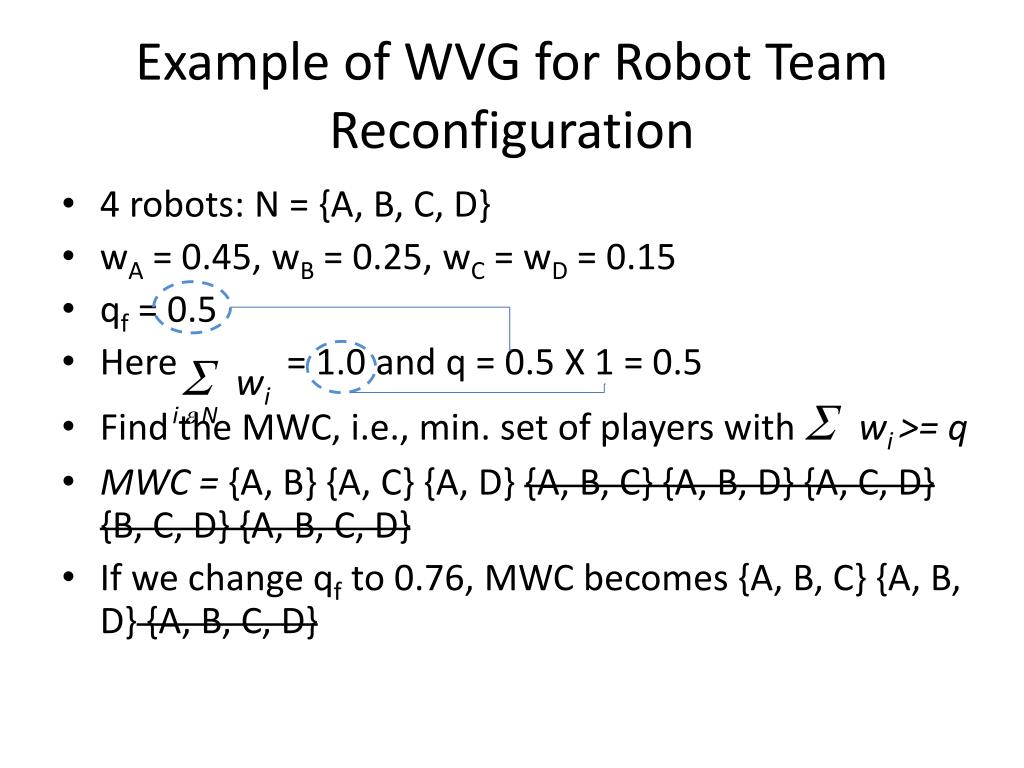

Example of wvg for robot team reconfiguration

Example of WVG for Robot Team Reconfiguration

  • 4 robots: N = {A, B, C, D}

  • wA = 0.45, wB = 0.25, wC = wD = 0.15

  • qf = 0.5

  • Here = 1.0 and q = 0.5 X 1 = 0.5

  • Find the MWC, i.e., min. set of players with S wi>= q

  • MWC = {A, B} {A, C} {A, D} {A, B, C} {A, B, D} {A, C, D} {B, C, D} {A, B, C, D}

  • If we change qf to 0.76, MWC becomes {A, B, C} {A, B, D} {A, B, C, D}

S wi

ie N


Example of wvg for robot team reconfiguration1

Example of WVG for Robot Team Reconfiguration

  • 4 robots: N = {A, B, C, D}

  • wA = 0.45, wB = 0.25, wC = wD = 0.15

  • qf = 0.5

  • Here = 1.0 and q = 0.5 X 1 = 0.5

  • Find the MWC, i.e., min. set of players with S wi>= q

  • MWC = {A, B} {A, C} {A, D} {A, B, C} {A, B, D} {A, C, D} {B, C, D} {A, B, C, D}

  • If we change qf to 0.76, MWC becomes {A, B, C} {A, B, D} {A, B, C, D}

Changing the value of qf (quota) changes the solution (MWCs)

S wi

Our prior works refine the MWCs further to select one best MWC (BMWC) depending on the pose of the robots forming the team - P. Dasgupta and K. Cheng, "Robust Multi-robot Team Formations using Weighted Voting Games," 10th International Symposium on Distributed Autonomous Robotic Systems (DARS 2010), Lausanne, Switzerland, 2010

ie N

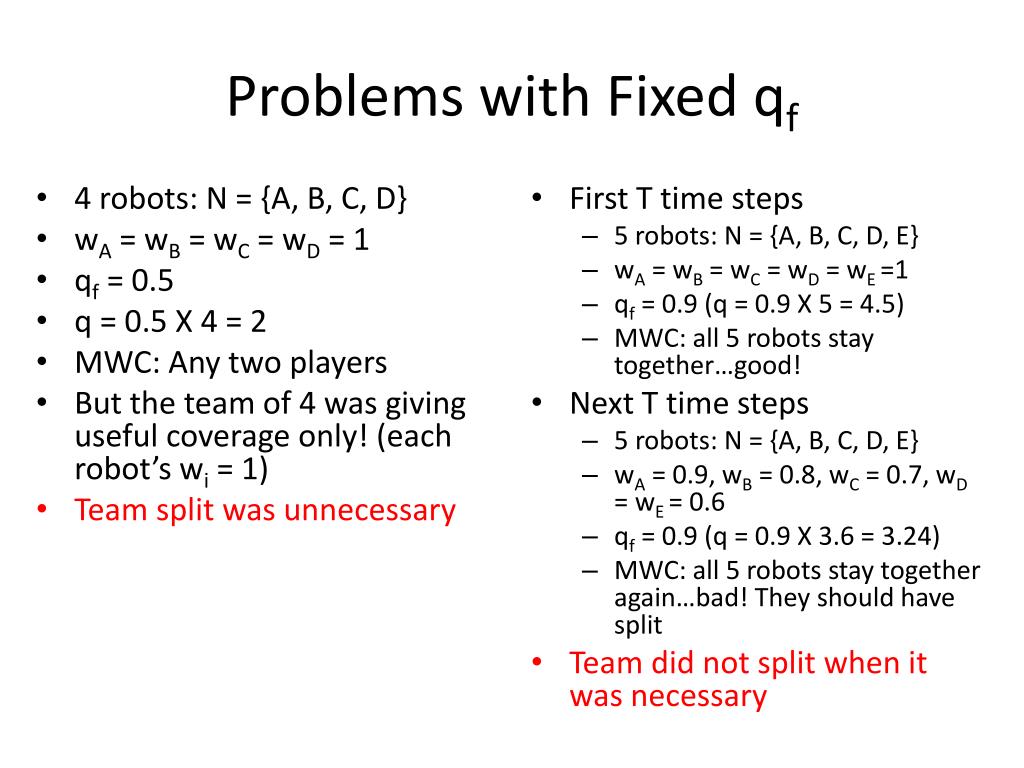

Problems with fixed q f

Problems with Fixed qf

  • 4 robots: N = {A, B, C, D}

  • wA = wB = wC = wD = 1

  • qf = 0.5

  • q = 0.5 X 4 = 2

  • MWC: Any two players

  • But the team of 4 was giving useful coverage only! (each robot’s wi = 1)

  • Team split was unnecessary

  • First T time steps

    • 5 robots: N = {A, B, C, D, E}

    • wA = wB = wC = wD = wE=1

    • qf = 0.9 (q = 0.9 X 5 = 4.5)

    • MWC: all 5 robots stay together…good!

  • Next T time steps

    • 5 robots: N = {A, B, C, D, E}

    • wA = 0.9, wB = 0.8, wC = 0.7, wD = wE= 0.6

    • qf = 0.9 (q = 0.9 X 3.6 = 3.24)

    • MWC: all 5 robots stay together again…bad! They should have split

  • Team did not split when it was necessary


Problems with fixed q f1

Problems with Fixed qf

  • 4 robots: N = {A, B, C, D}

  • wA = wB = wC = wD = 1

  • qf = 0.5

  • q = 0.5 X 4 = 2

  • MWC: Any two players

  • But the team of 4 was giving useful coverage only! (each robot’s wi = 1)

  • Team split was unnecessary

  • First T time steps

    • 5 robots: N = {A, B, C, D, E}

    • wA = wB = wC = wD = wE=1

    • qf = 0.9 (q = 0.9 X 5 = 4.5)

    • MWC: all 5 robots stay together…good!

  • Next T time steps

    • 5 robots: N = {A, B, C, D, E}

    • wA = 0.9, wB = 0.8, wC = 0.7, wD = wE= 0.6

    • qf = 0.9 (q = 0.9 X 3.6 = 3.24)

    • MWC: all 5 robots stay together again…bad! They should have split

  • Team did not split when it was necessary

Depending on operating conditions, (e.g., cov. eff. in team), dynamically adapt qf

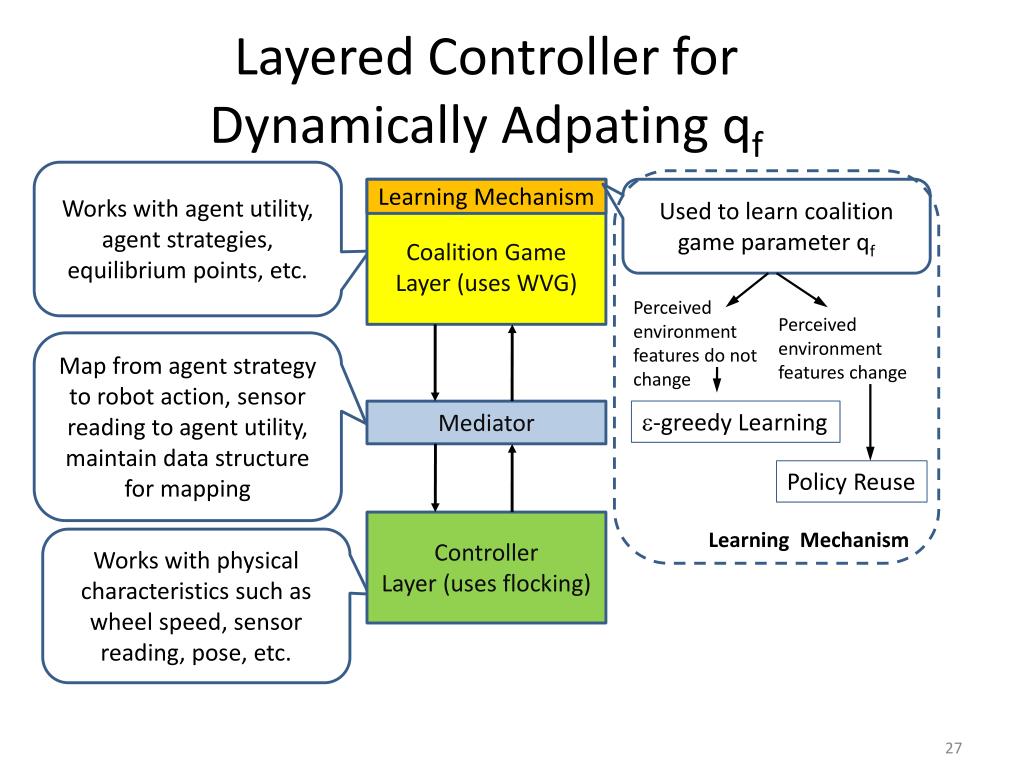

Layered controller for dynamically adpating q f

Layered Controller for Dynamically Adpatingqf

Works with agent utility, agent strategies, equilibrium points, etc.

Coalition Game

Layer (uses WVG)

Learning Mechanism

Used to learn coalition game parameter qf

Perceived environment features donot change

Perceived environment features change

Map from agent strategy to robot action, sensor reading to agent utility, maintain data structure for mapping

Mediator

e-greedy Learning

Policy Reuse

Controller

Layer (uses flocking)

Learning Mechanism

Works with physical characteristics such as wheel speed, sensor reading, pose, etc.

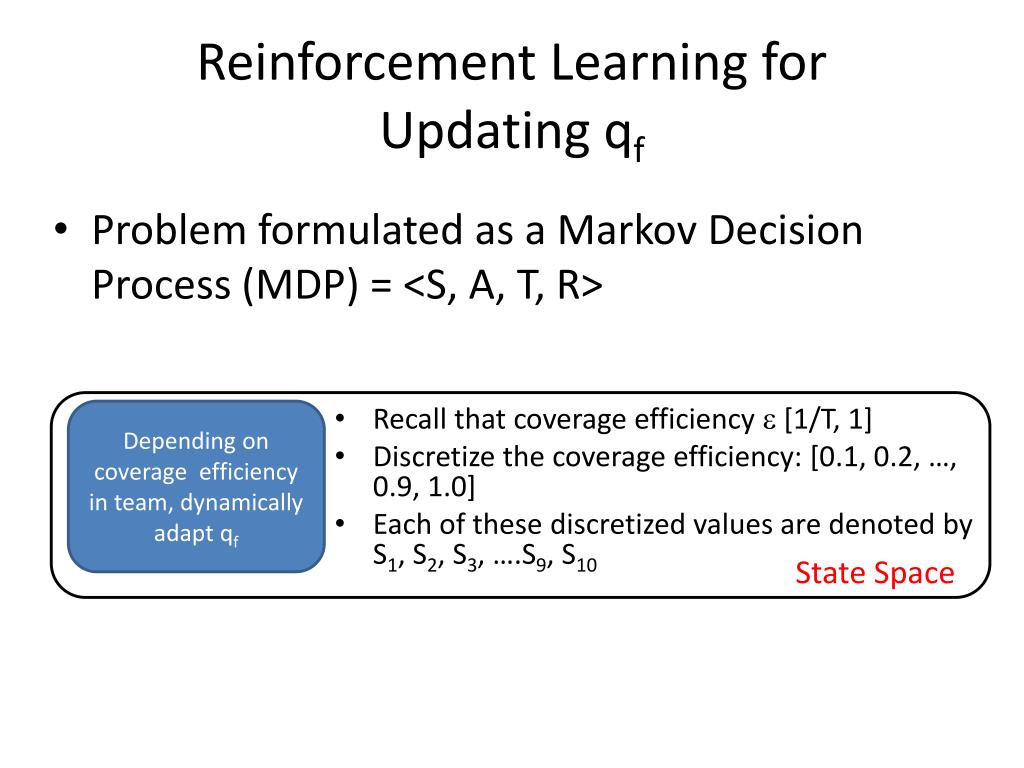

Reinforcement learning for updating q f

Reinforcement Learning forUpdating qf

  • Problem formulated as a Markov Decision Process (MDP) = <S, A, T, R>

Depending on coverage efficiency in team, dynamically adapt qf

  • Recall that coverage efficiency e [1/T, 1]

  • Discretize the coverage efficiency: [0.1, 0.2, …, 0.9, 1.0]

  • Each of these discretized values are denoted by S1, S2, S3, ….S9, S10

State Space

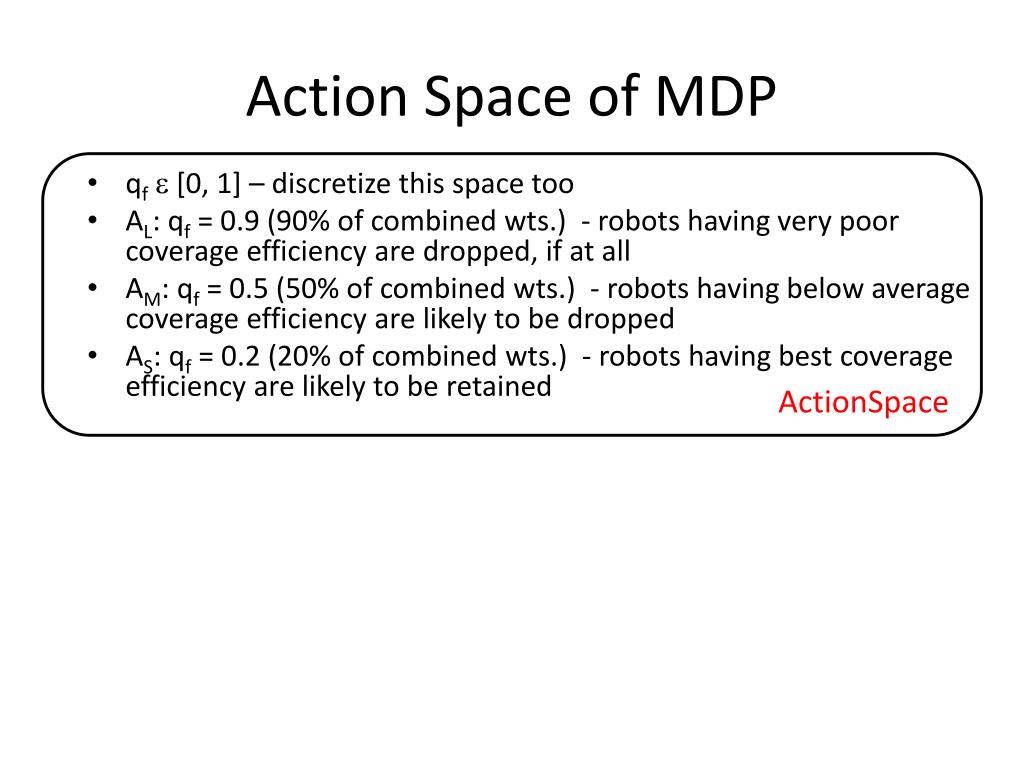

Action space of mdp

Action Space of MDP

  • qfe [0, 1] – discretize this space too

  • AL: qf = 0.9 (90% of combined wts.) - robots having very poor coverage efficiency are dropped, if at all

  • AM: qf = 0.5 (50% of combined wts.) - robots having below average coverage efficiency are likely to be dropped

  • AS: qf = 0.2 (20% of combined wts.) - robots having best coverage efficiency are likely to be retained

ActionSpace

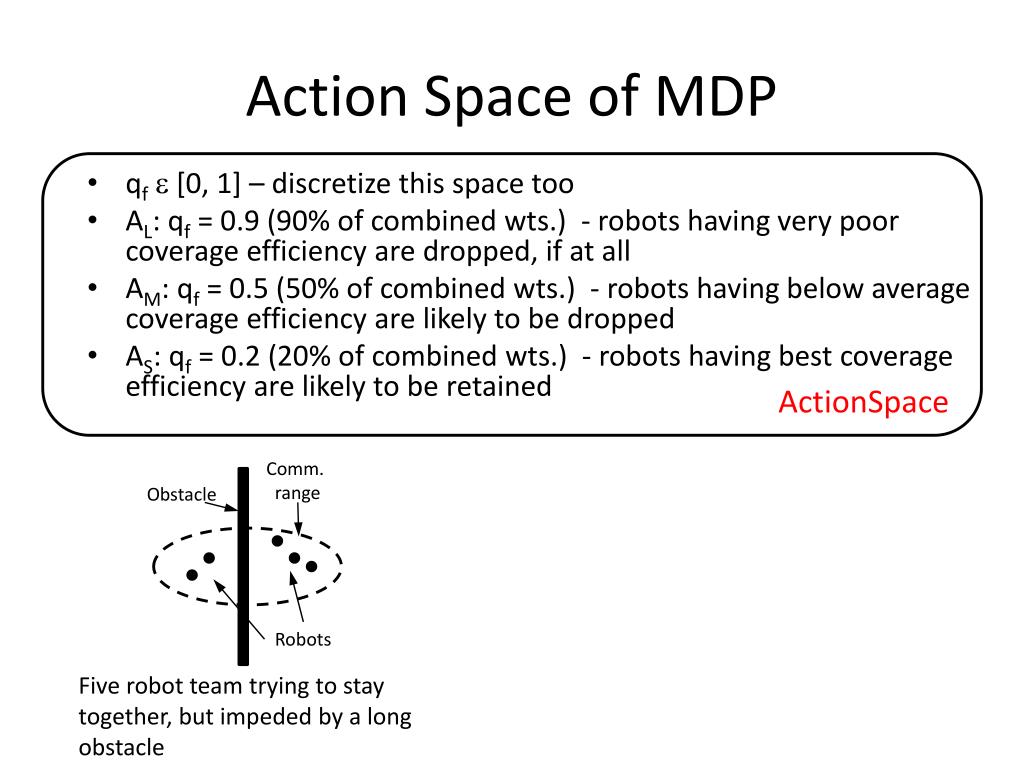

Action space of mdp1

Action Space of MDP

Comm.

range

Obstacle

  • qfe [0, 1] – discretize this space too

  • AL: qf = 0.9 (90% of combined wts.) - robots having very poor coverage efficiency are dropped, if at all

  • AM: qf = 0.5 (50% of combined wts.) - robots having below average coverage efficiency are likely to be dropped

  • AS: qf = 0.2 (20% of combined wts.) - robots having best coverage efficiency are likely to be retained

Robots

ActionSpace

Five robot team trying to stay together, but impeded by a long obstacle

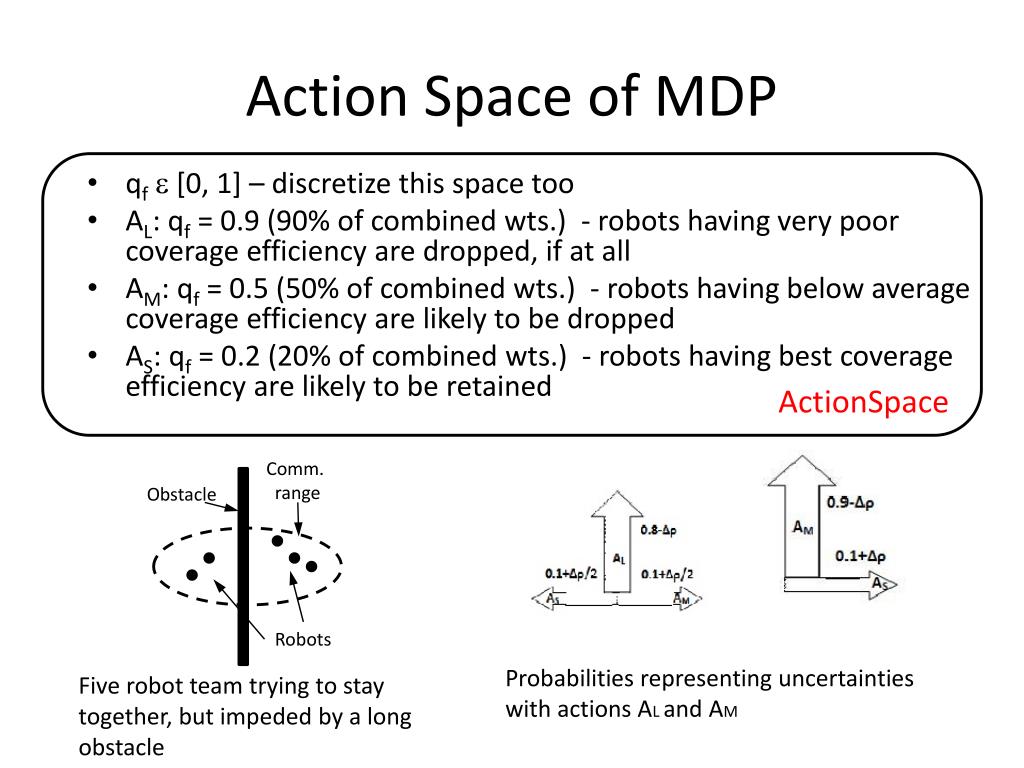

Action space of mdp2

Action Space of MDP

Comm.

range

Obstacle

  • qfe [0, 1] – discretize this space too

  • AL: qf = 0.9 (90% of combined wts.) - robots having very poor coverage efficiency are dropped, if at all

  • AM: qf = 0.5 (50% of combined wts.) - robots having below average coverage efficiency are likely to be dropped

  • AS: qf = 0.2 (20% of combined wts.) - robots having best coverage efficiency are likely to be retained

Probabilities representing uncertainties with actions AL and AM

Robots

ActionSpace

Five robot team trying to stay together, but impeded by a long obstacle


Transition function of mdp

Transition Function of MDP


Transition function of mdp1

Transition Function of MDP

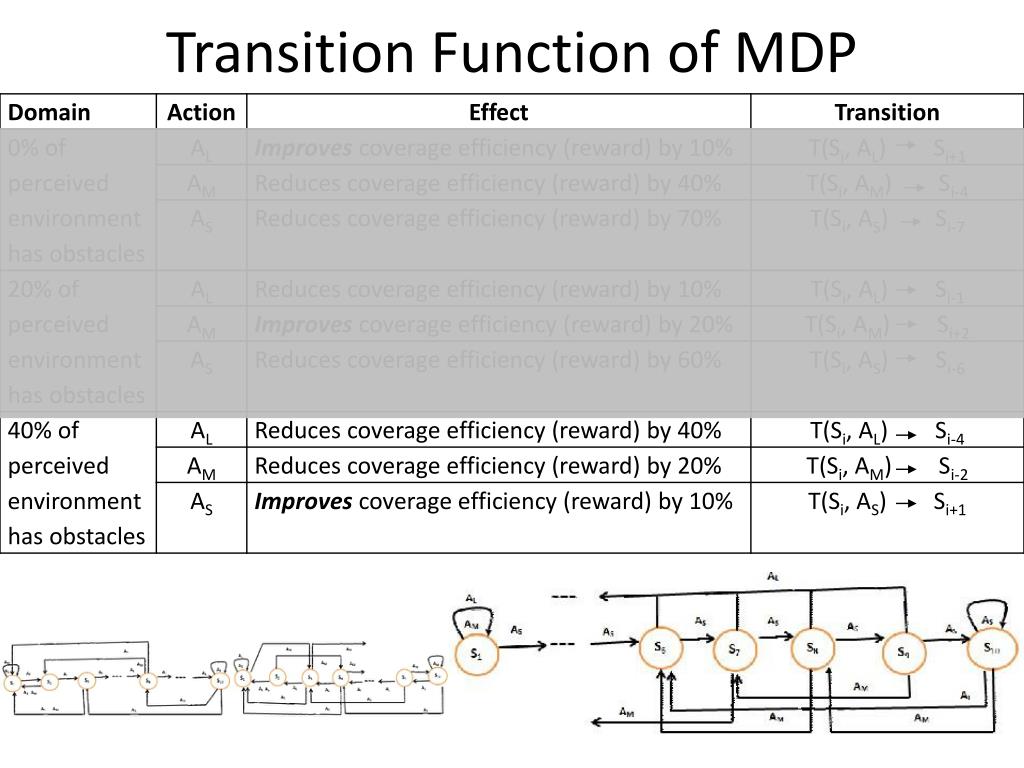

Transition function of mdp2

Transition Function of MDP


Transition function of mdp3

Transition Function of MDP

  • Summary

  • Across different environments

    • S and A are unchanged

    • T changes

    • <S, A, T> is called a domain D


Reward function of mdp

Reward Function of MDP

  • R(Si) – r X actual coverage efficiency received in state Si

  • Summary

  • Across different environments

    • S and A are unchanged

    • T changes

    • <S, A, T> is called a domain D

  • Reward changes: different domains have different awards

  • Taken together a domain and its corresponding rewards define a task W = <D, RW>

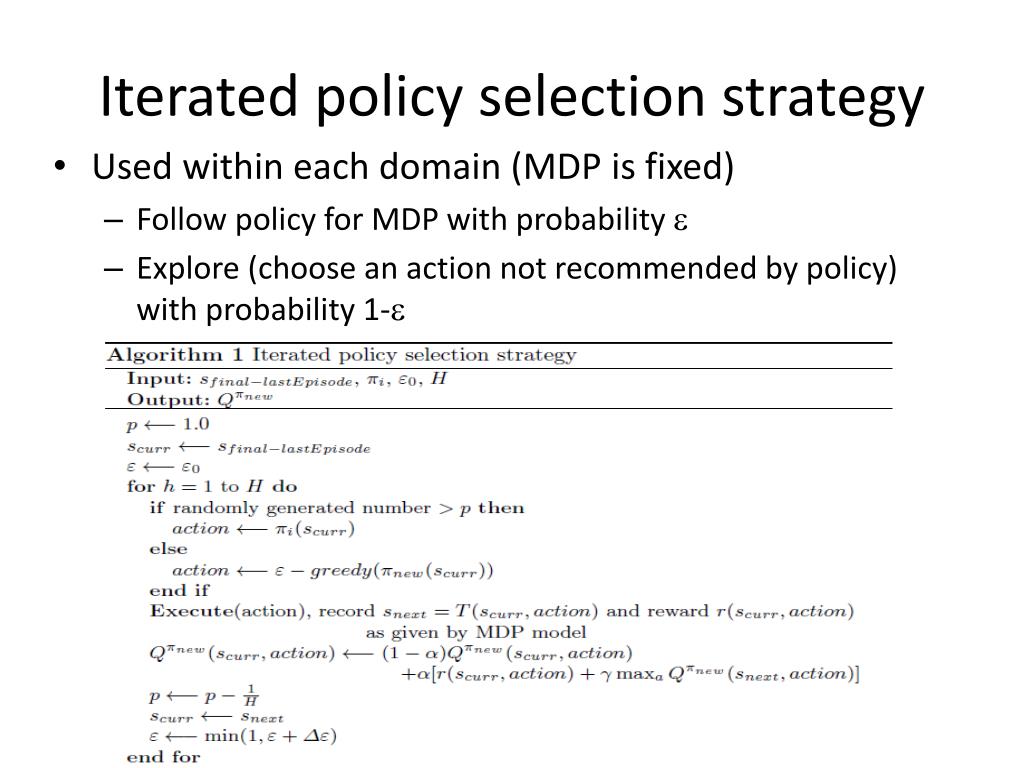

Iterated policy selection strategy

Iterated policy selection strategy

  • Used within each domain (MDP is fixed)

    • Follow policy for MDP with probability e

    • Explore (choose an action not recommended by policy) with probability 1-e

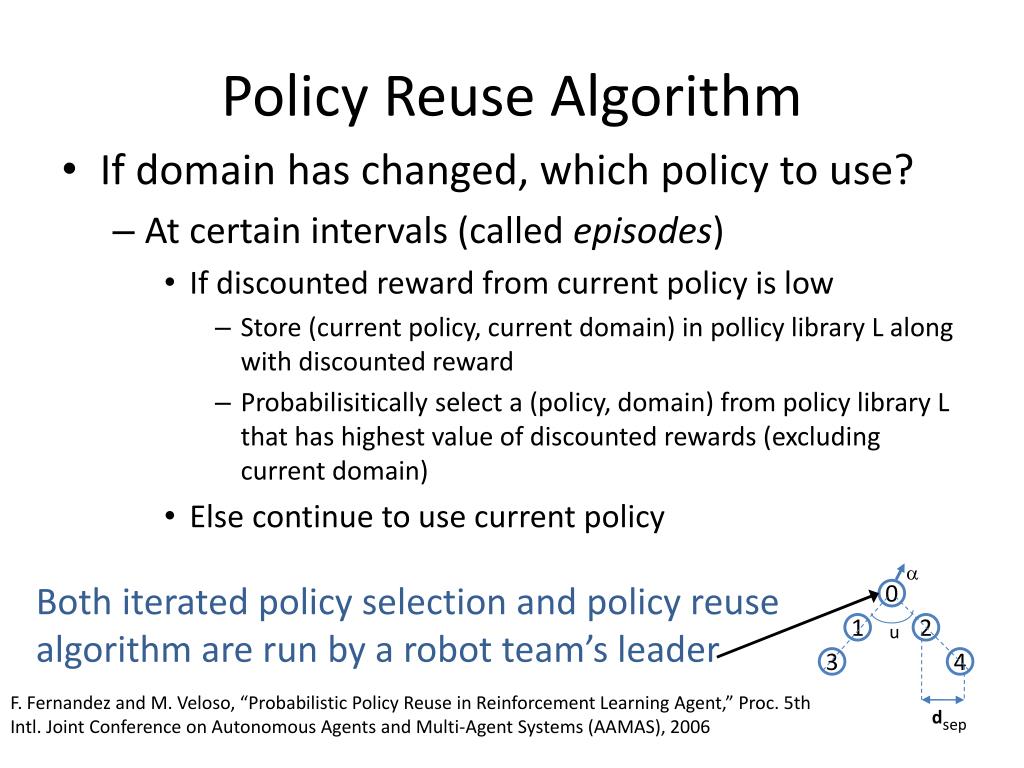

Policy reuse algorithm

Policy Reuse Algorithm

a

0

1

u

2

3

4

  • If domain has changed, which policy to use?

    • At certain intervals (called episodes)

      • If discounted reward from current policy is low

        • Store (current policy, current domain) in pollicy library L along with discounted reward

        • Probabilisitically select a (policy, domain) from policy library L that has highest value of discounted rewards (excluding current domain)

      • Else continue to use current policy

dsep

Both iterated policy selection and policy reuse algorithm are run by a robot team’s leader

F. Fernandez and M. Veloso, “Probabilistic Policy Reuse in Reinforcement Learning Agent,” Proc. 5th Intl. Joint Conference on Autonomous Agents and Multi-Agent Systems (AAMAS), 2006

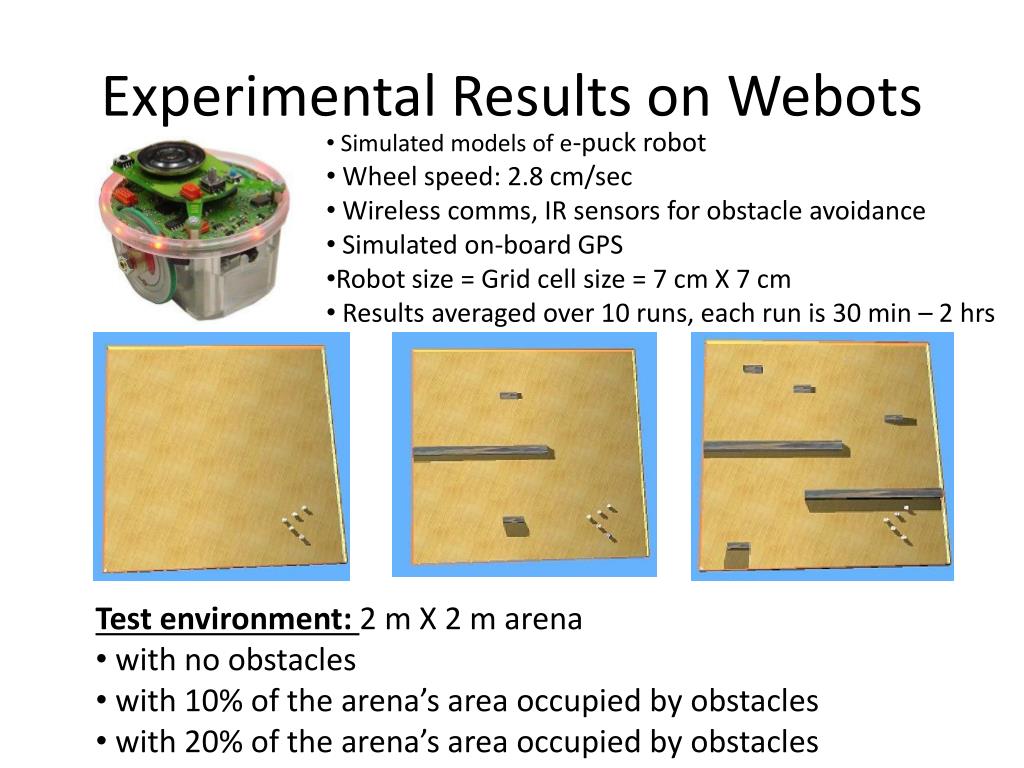

Experimental results on webots

Experimental Results on Webots

  • Simulated models of e-puck robot

  • Wheel speed: 2.8 cm/sec

  • Wireless comms, IR sensors for obstacle avoidance

  • Simulated on-board GPS

  • Robot size = Grid cell size = 7 cm X 7 cm

  • Results averaged over 10 runs, each run is 30 min – 2 hrs

  • Test environment: 2 m X 2 m arena

  • with no obstacles

  • with 10% of the arena’s area occupied by obstacles

  • with 20% of the arena’s area occupied by obstacles


Average reward per episode

Average Reward per Episode

  • Learning algorithm parameters:

  • Iterated Policy Selection

    • Learning rate, a = 0.05

    • e- greeedy strategy: e0 = 0, De = 0.001

  • Policy reuse algorithm

    • No. of time steps per episode, H = 100

    • Reward discount factor, g = 0.95

More obstacles, allows more policy reuse – library built faster, and convergence happens faster

20% of environment occupied by obstacles

No obstacles in environment

10% of environment occupied by obstacles


Percentage of environment covered

Percentage of Environment Covered

  • Adapting qf using our reinforcement learning algorithm improves the percentage of environment covered by 4-10% w.r.t. a setting where qfis fixed

Different no. of robots {5, 10, 15, 20}, 20% of environment occupied by obstacles, 2 hours

Up to 2 hours 20 robots, divided into 5 robot teams, 20% of environment occupied by obstacles

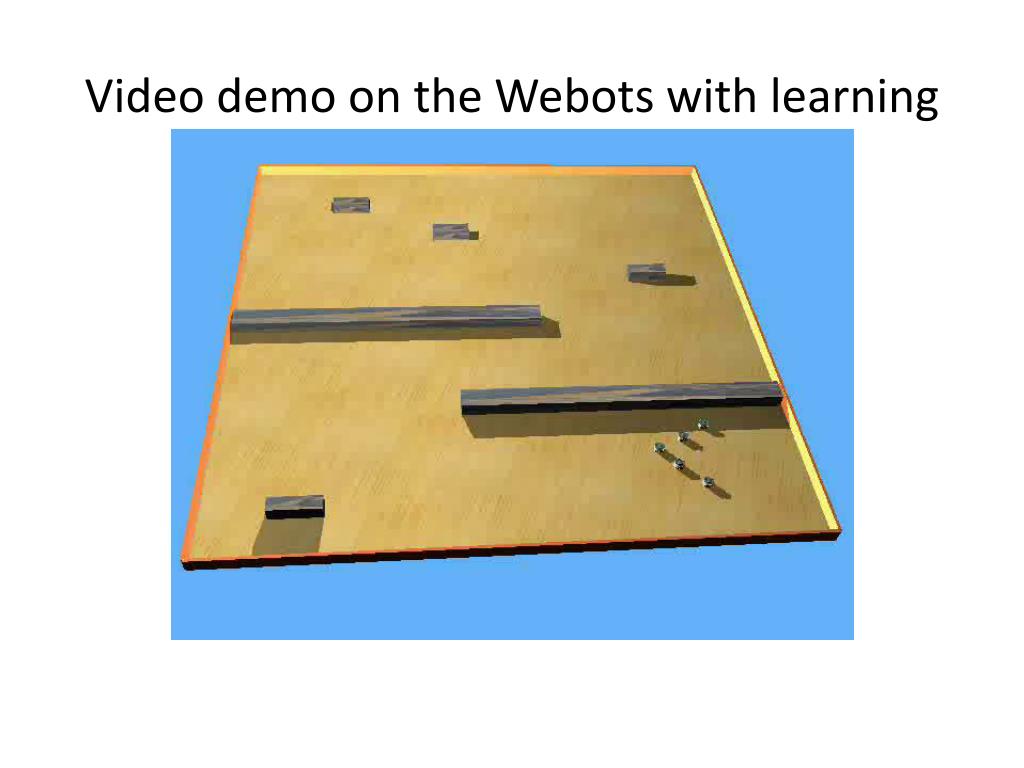

Video demo on the webots with learning

Video demo on the Webots with learning


Conclusions ongoing and future work

Conclusions, Ongoing and Future Work

  • Learning the quota fraction parameter, qf, using reinforcement learning + policy reuse improves the coverage performance of robot teams

    • By allowing them to reconfigure more efficiently

  • Improving learning algorithm:

    • Learning across multiple teams

    • Apply principles from transfer learning, keep-away soccer domain

    • Modeling partially observed information (environment features) in existing algorithm

  • Implementation on physical robots


Acknowledgements

Acknowledgements

  • Formoreinformation please visit our C-MANTIC lab’s Websitehttp://cmantic.unomaha.edu

  • THANK YOU

  • We are grateful to the sponsors of our projects:

    • COMRADES project, Office of Naval Research

    • NASA Nebraska EPSCoR Mini-grant


  • Login
