Rootkits, Backdoors, and Trojans ECE 4112 – Lab 5 Summary – Spring 2006

1. Rootkits, Backdoors, and TrojansECE 4112 – Lab 5 Summary – Spring 2006 Group 9 Greg Sheridan Terry Harvey • Group 10 • Matthew Bowman • Laura Silaghi • Michael Sanders

2. Agenda • Rootkits • User space vs. Kernel Space • Detection • Prevention • Backdoors • Different Implementations • Detection • Prevention • Trojans • Port & Web Knocking

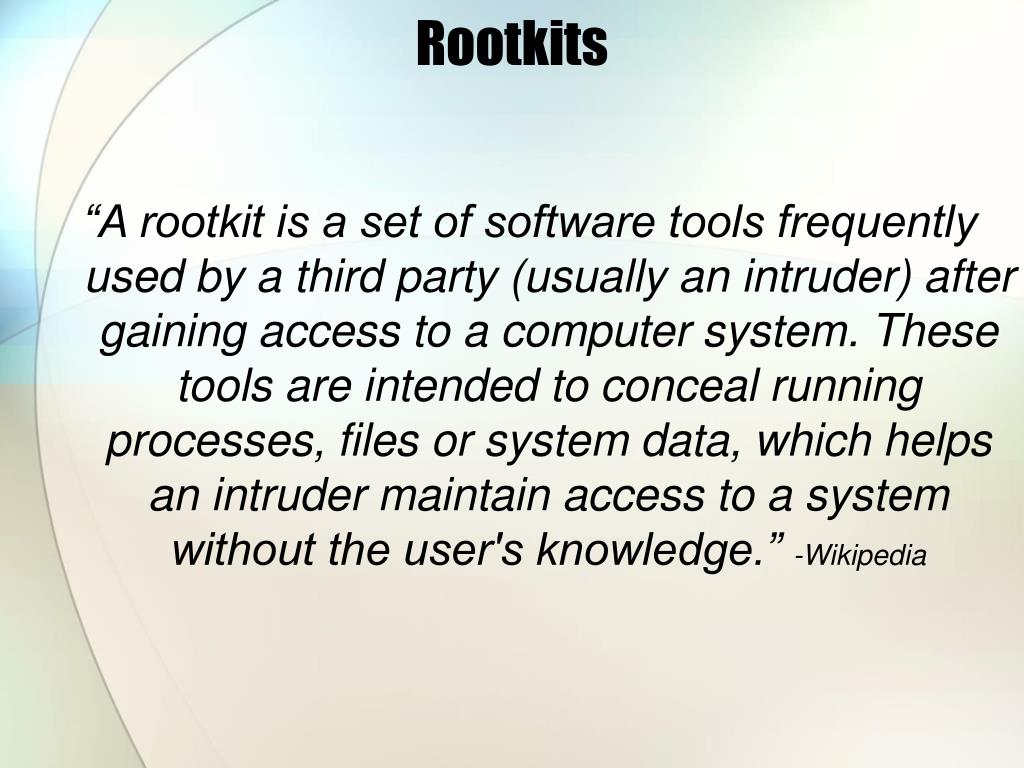

3. Rootkits “A rootkit is a set of software tools frequently used by a third party (usually an intruder) after gaining access to a computer system. These tools are intended to conceal running processes, files or system data, which helps an intruder maintain access to a system without the user's knowledge.” -Wikipedia

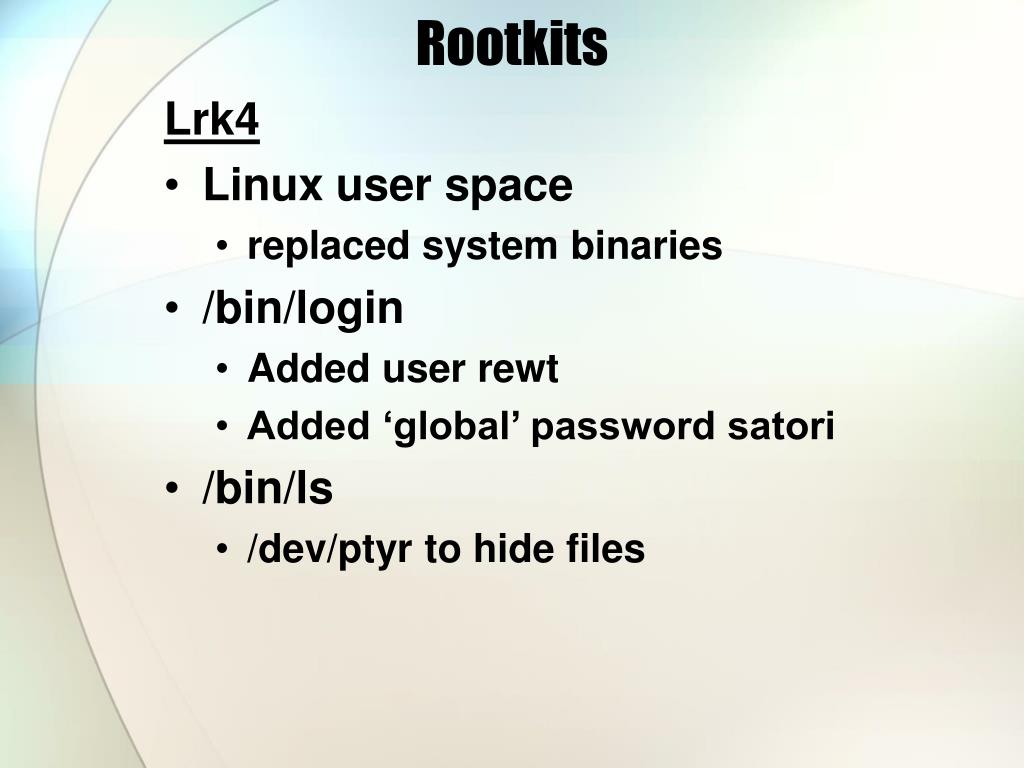

4. Rootkits Lrk4 • Linux user space • replaced system binaries • /bin/login • Added user rewt • Added ‘global’ password satori • /bin/ls • /dev/ptyr to hide files

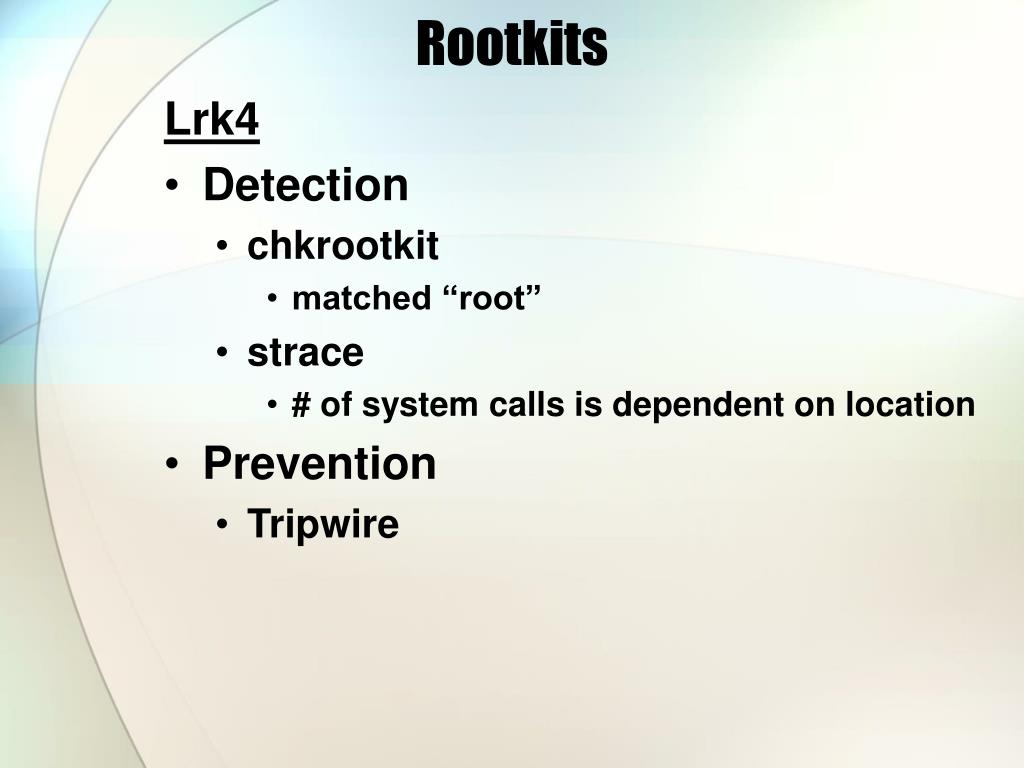

5. Rootkits Lrk4 • Detection • chkrootkit • matched “root” • strace • # of system calls is dependent on location • Prevention • Tripwire

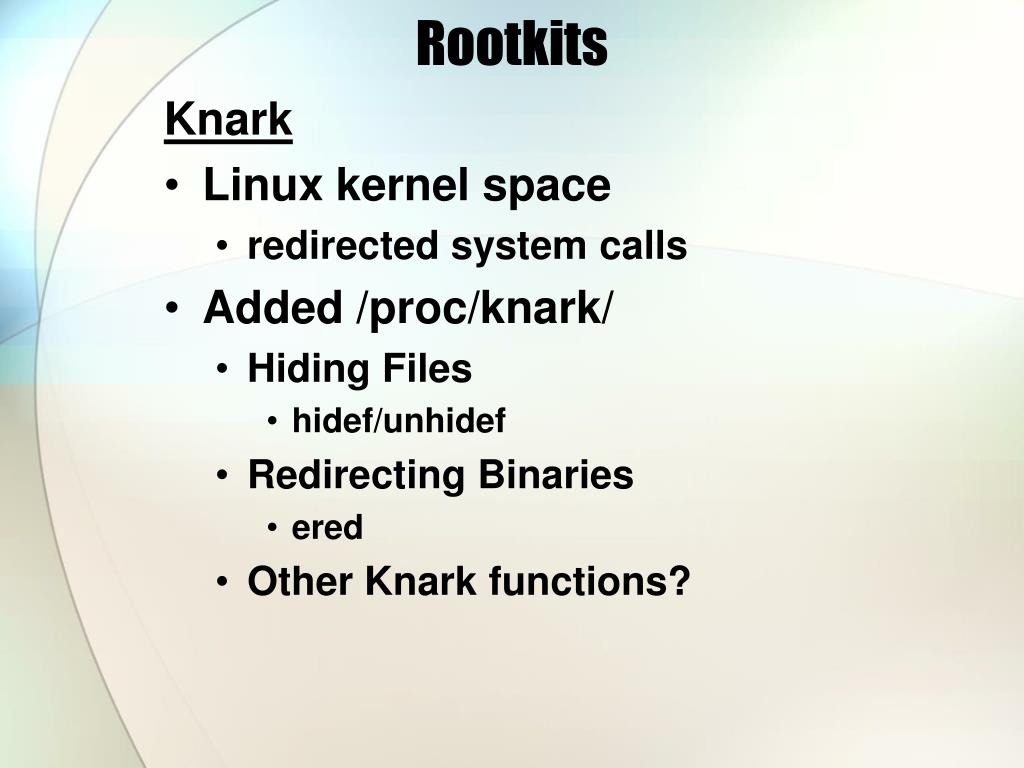

6. Rootkits Knark • Linux kernel space • redirected system calls • Added /proc/knark/ • Hiding Files • hidef/unhidef • Redirecting Binaries • ered • Other Knark functions?

7. Rootkits Knark • Detection • kern_check • Detected changes in SCT addresses • rkhunter • Has a really bad aim • chkrootkit • What trick could be used to detect Knark, and how could this be avoided by Knark? • Prevention • Tripwire • Disable LM

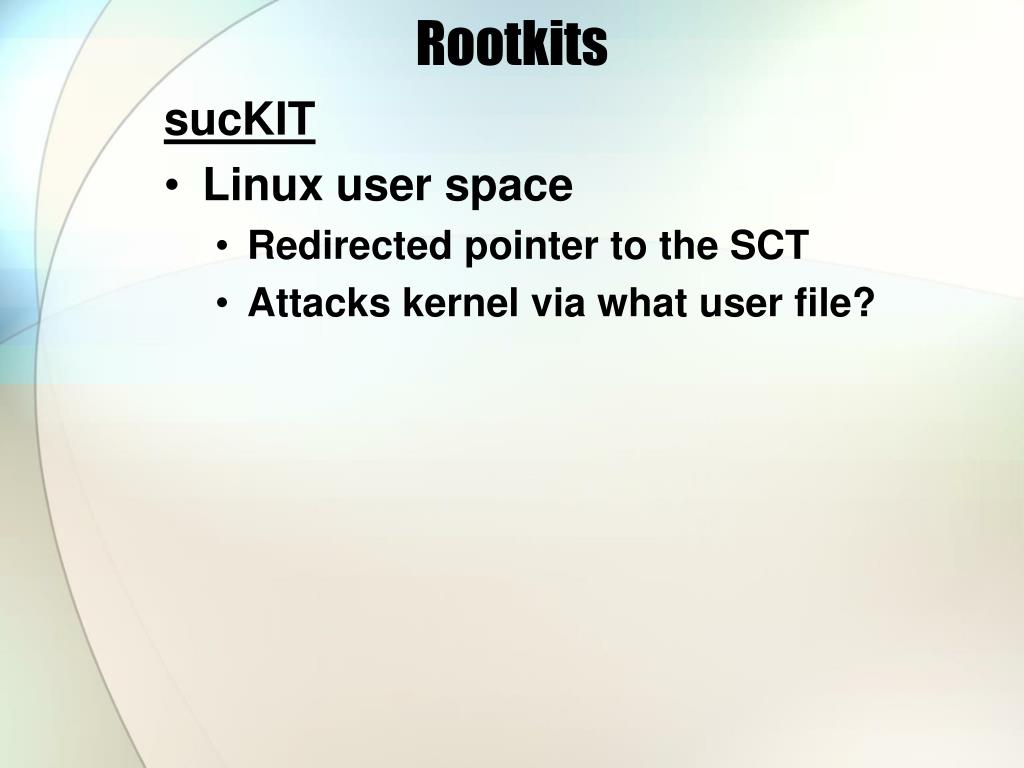

8. Rootkits sucKIT • Linux user space • Redirected pointer to the SCT • Attacks kernel via what user file?

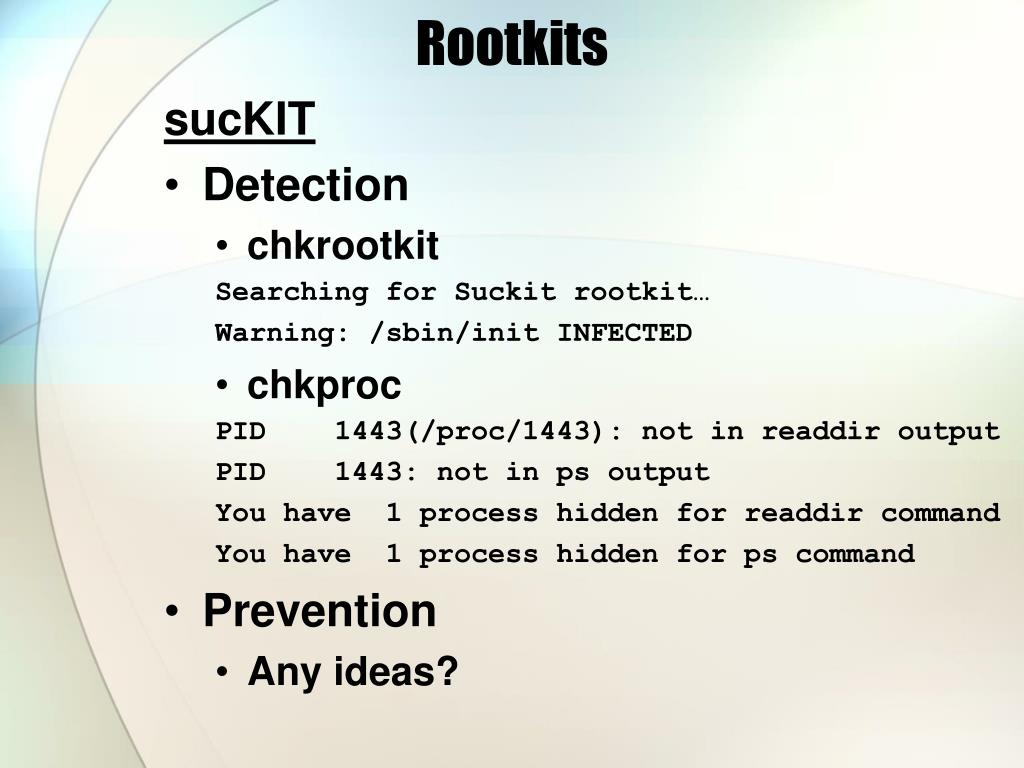

9. Rootkits sucKIT • Detection • chkrootkit Searching for Suckit rootkit… Warning: /sbin/init INFECTED • chkproc PID 1443(/proc/1443): not in readdir output PID 1443: not in ps output You have 1 process hidden for readdir command You have 1 process hidden for ps command • Prevention • Any ideas?

10. Rootkits Hacker Defender • Windows • Changed memory segments and all running processes’ behaviors • Hide files • Hide processes • Hide services • All TCP ports become potential backdoors!

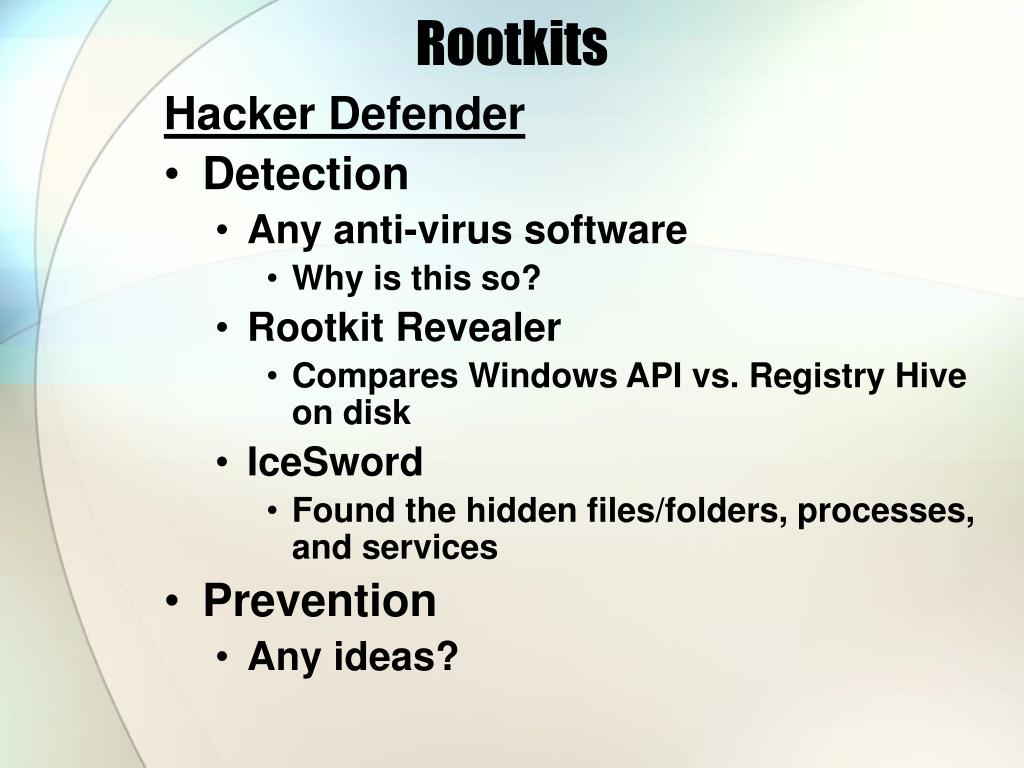

11. Rootkits Hacker Defender • Detection • Any anti-virus software • Why is this so? • Rootkit Revealer • Compares Windows API vs. Registry Hive on disk • IceSword • Found the hidden files/folders, processes, and services • Prevention • Any ideas?

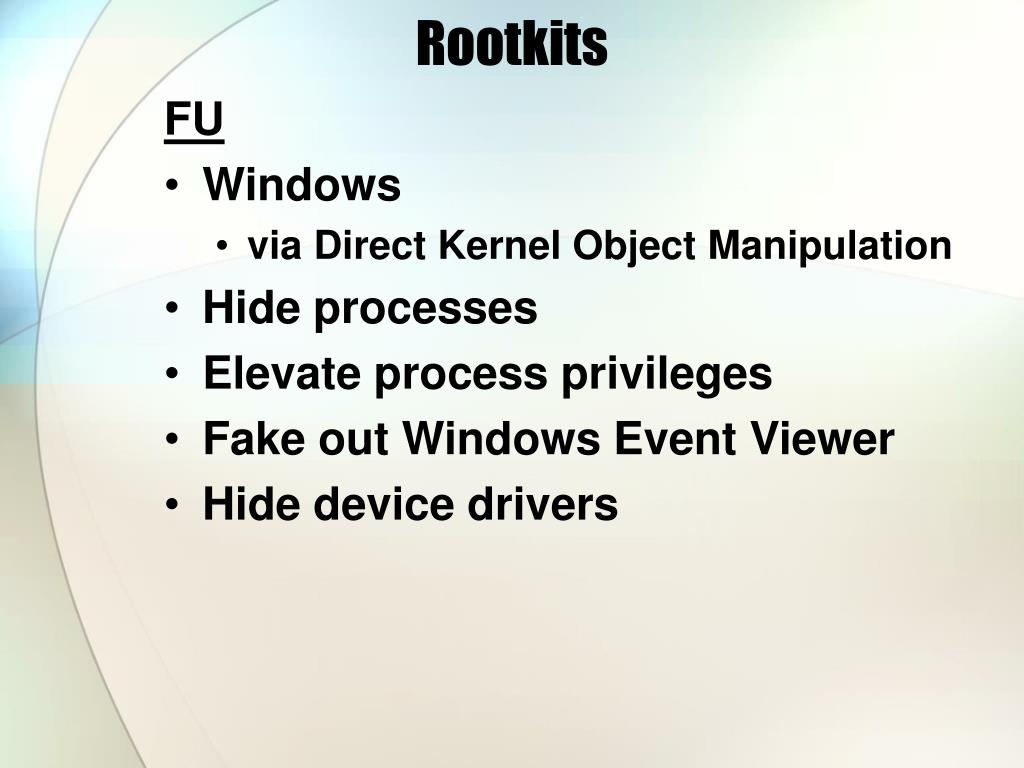

12. Rootkits FU • Windows • via Direct Kernel Object Manipulation • Hide processes • Elevate process privileges • Fake out Windows Event Viewer • Hide device drivers

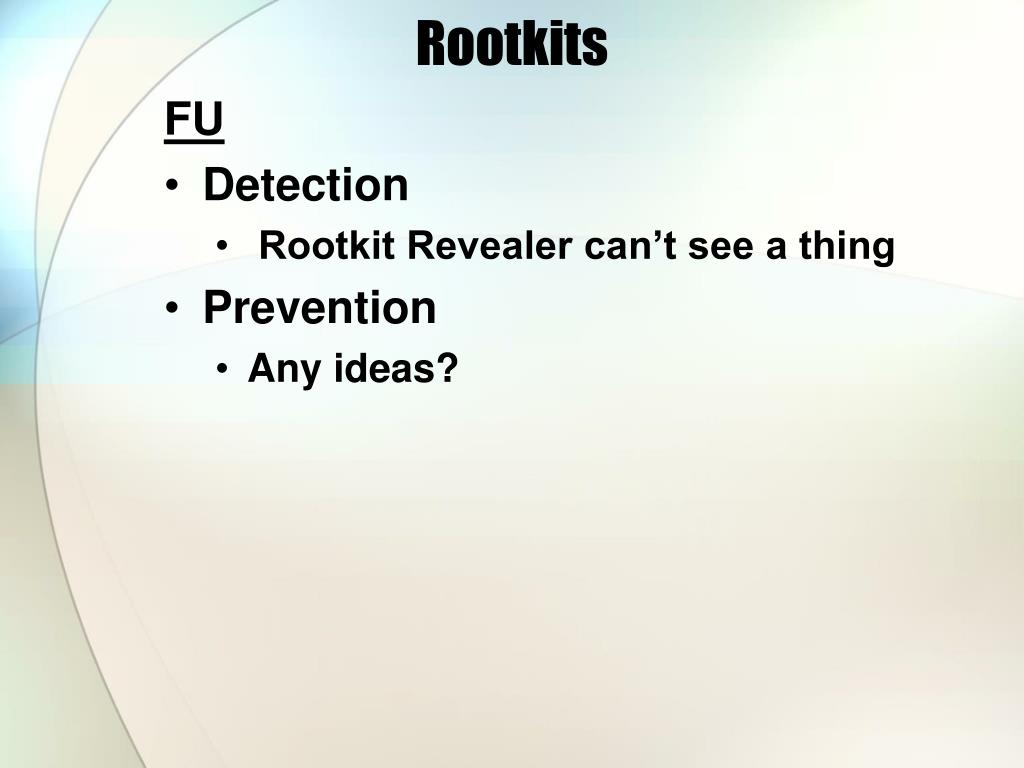

13. Rootkits FU • Detection • Rootkit Revealer can’t see a thing • Prevention • Any ideas?

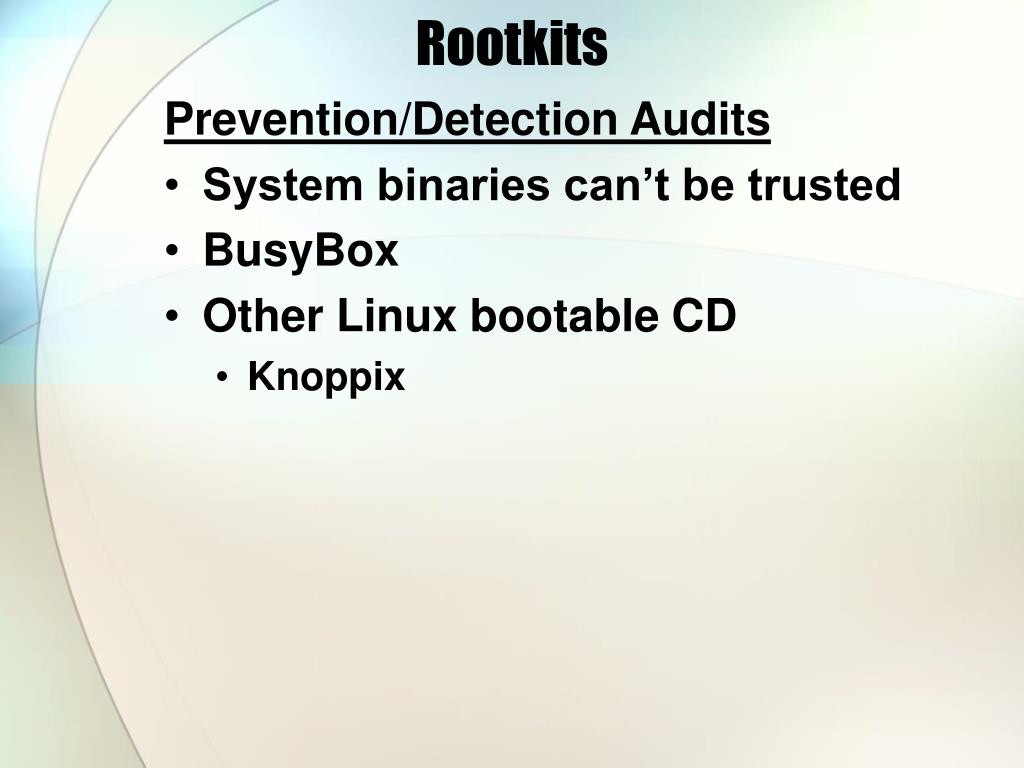

14. Rootkits Prevention/Detection Audits • System binaries can’t be trusted • BusyBox • Other Linux bootable CD • Knoppix

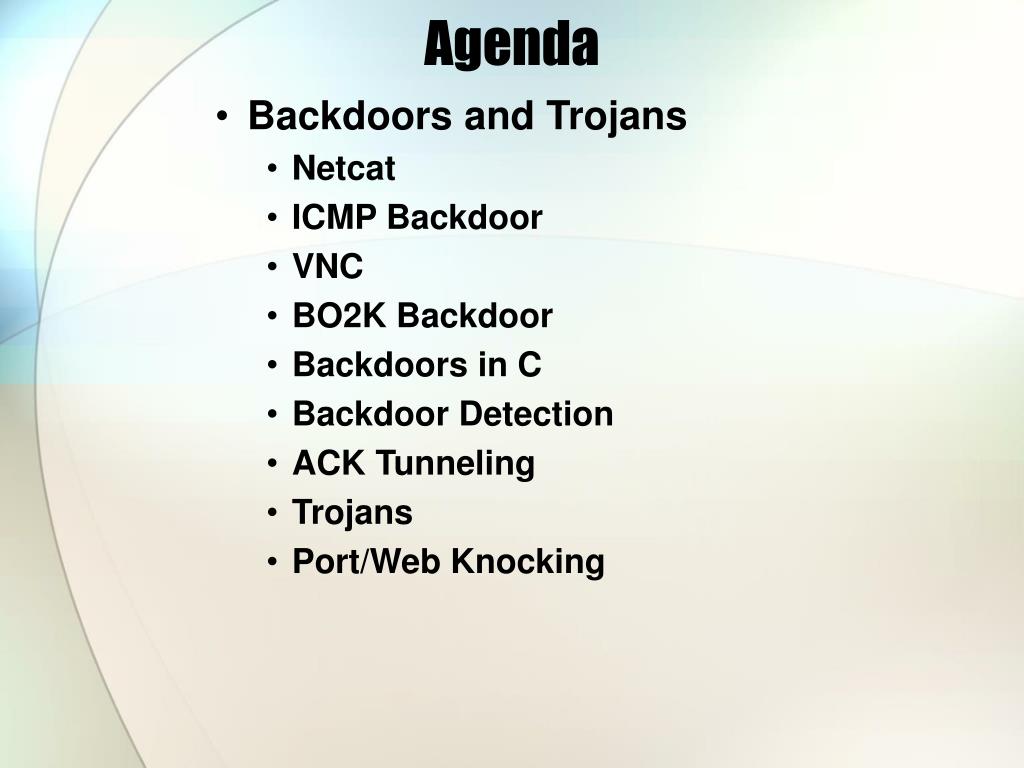

15. Agenda • Backdoors and Trojans • Netcat • ICMP Backdoor • VNC • BO2K Backdoor • Backdoors in C • Backdoor Detection • ACK Tunneling • Trojans • Port/Web Knocking

16. Netcat • Netcat is a powerful TCP/IP protocol tool it can be used as a backend tool that can be controlled by other programs or as a standalone server client. • Server/Client • Program Control • File Transfer • Relay • Tunneling • FIFO • Covering Tracks

17. ICMP Backdoor • Server installed on an infiltrated machine • Uses the ICMP packet to hide malicious network traffic • Why was the server echoing the commands back to the client?

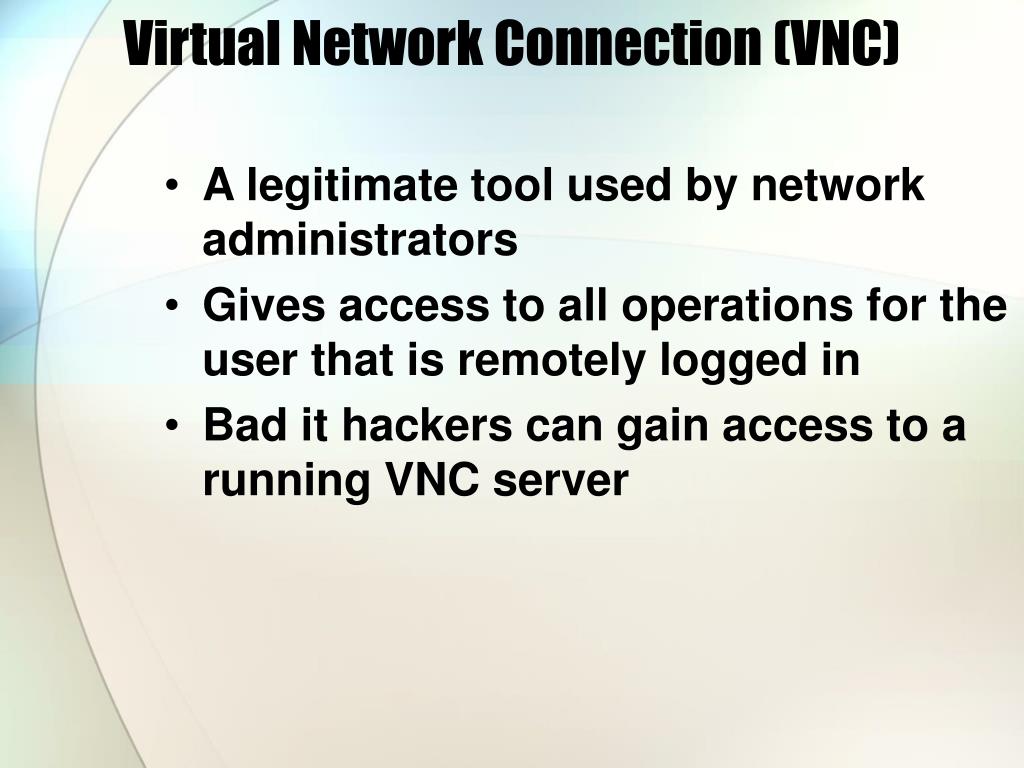

18. Virtual Network Connection (VNC) • A legitimate tool used by network administrators • Gives access to all operations for the user that is remotely logged in • Bad it hackers can gain access to a running VNC server

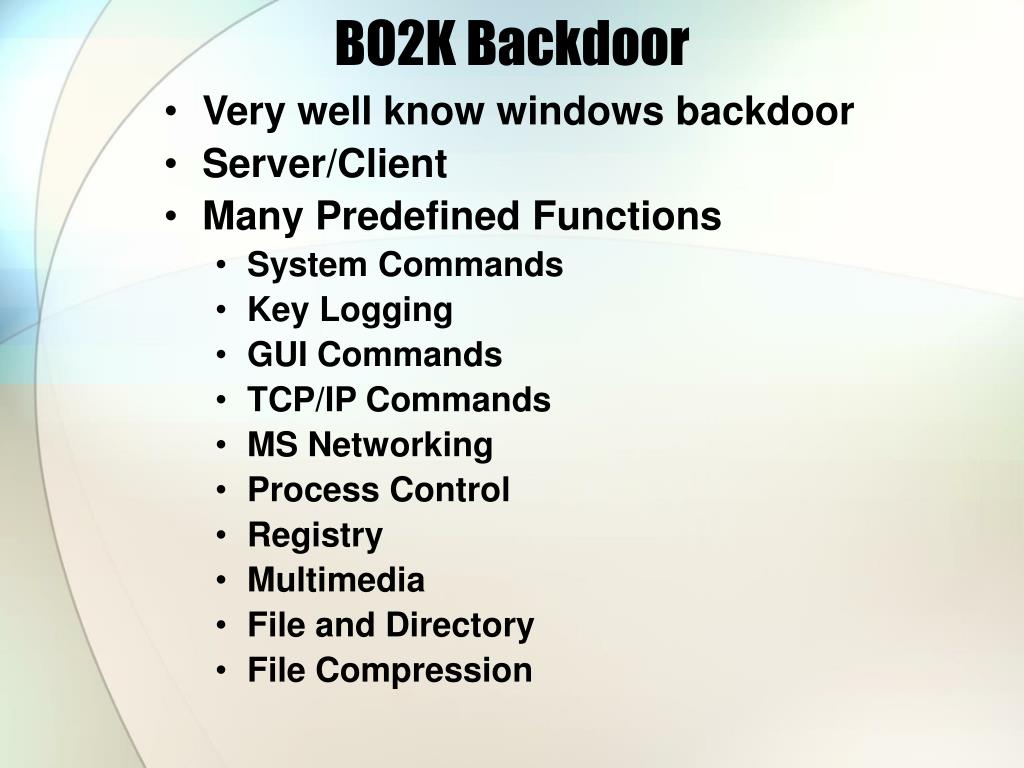

19. BO2K Backdoor • Very well know windows backdoor • Server/Client • Many Predefined Functions • System Commands • Key Logging • GUI Commands • TCP/IP Commands • MS Networking • Process Control • Registry • Multimedia • File and Directory • File Compression

20. Backdoors in C • Simple Linux telnet backdoor • 32 lines of code • Intercepts the login • Look for backdoor password • If not entered goes to the original login

21. Backdoor Detection • Netcat, VNC, BO2K • Firewalls, Port scanning • Virus check • Process checking • ICMP Detection • Packet Throughput • Turn off ICMP through gateways • Backdoor in C • Checking for file integrity

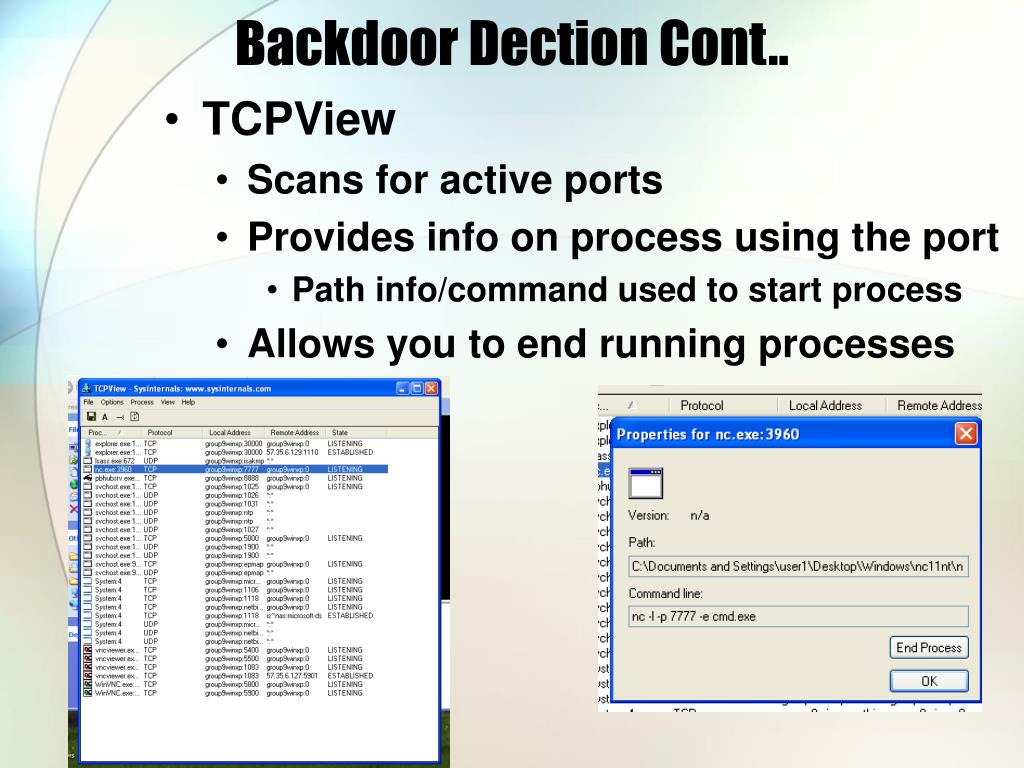

22. Backdoor Dection Cont.. • TCPView • Scans for active ports • Provides info on process using the port • Path info/command used to start process • Allows you to end running processes

23. ACK Tunneling • Used to gain access to a computer behind a firewall • Most system admin setup firewalls in a way that will block most illegitimate Traffic • All stateless firewalls allow ACK messages to pass • Majority of firewalls are stateless • Statefull firewalls keep the state of the connections • Sets ACK flag to gain access

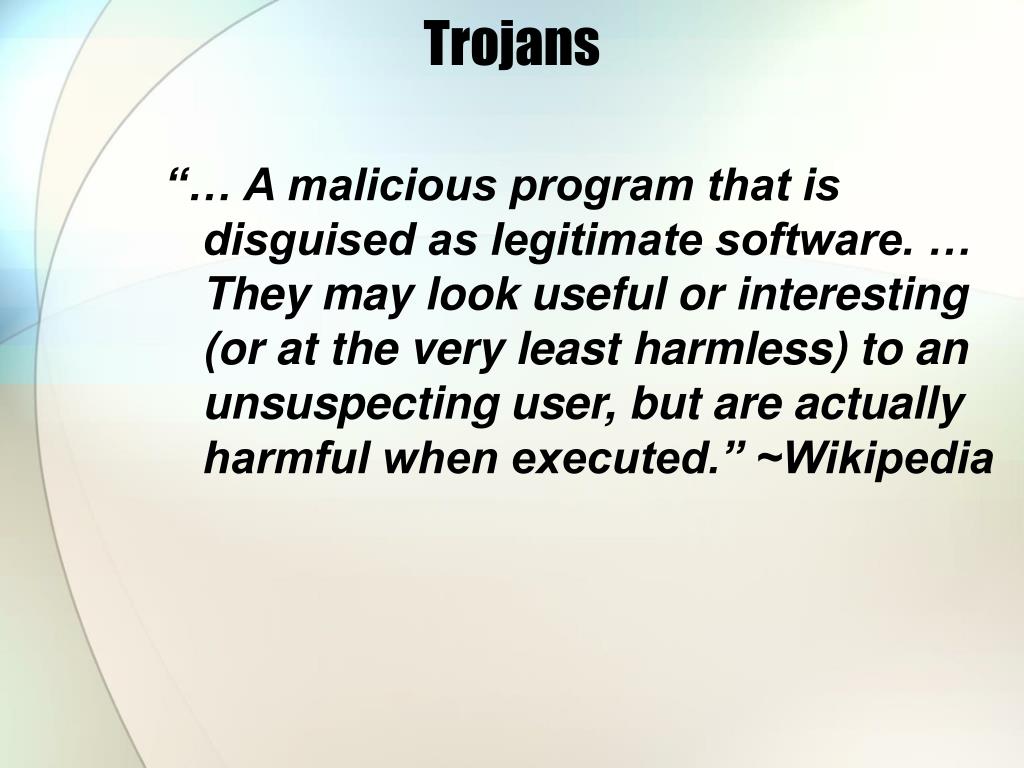

24. Trojans “… A malicious program that is disguised as legitimate software. … They may look useful or interesting (or at the very least harmless) to an unsuspecting user, but are actually harmful when executed.” ~Wikipedia

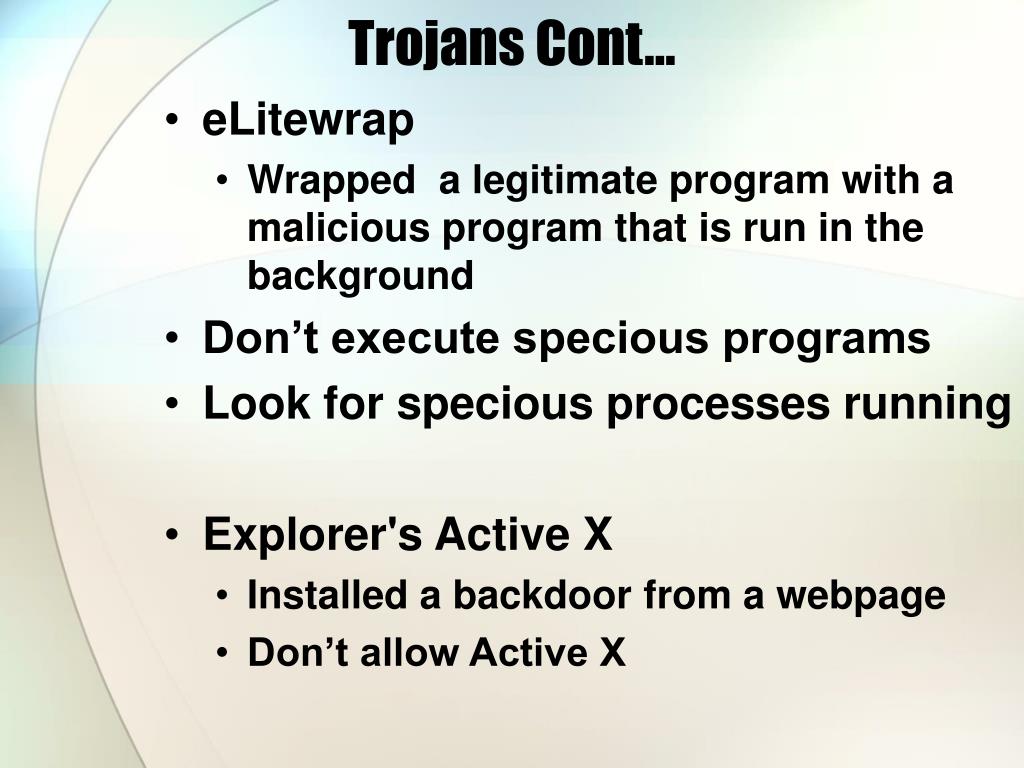

25. Trojans Cont… • eLitewrap • Wrapped a legitimate program with a malicious program that is run in the background • Don’t execute specious programs • Look for specious processes running • Explorer's Active X • Installed a backdoor from a webpage • Don’t allow Active X

26. Port/Web Knocking • Port Knocking • Blocks all ports but still allows access • Will open specified port when a correct Knock sequence is preformed • Knock sequence • Series of attempts to open certain ports • Web Knocking • Is used where were web access is allowed through the firewall • Invalid web Command are sent to the server the are logged in the error log • A command script run intermittently runs to execute the commands

27. Questions?
