  1. The BBARC Repeater System 24 minutes and 327 easy steps to a linked repeater system. (0.07 seconds/step)

  2. Introduction • I’m Doug Otoupal, N5HYD. • We’re going to build ourselves a linked repeater system, on paper.

  3. Topics of Discussion • 1: A single Repeater. • 2: Adding stuff to it. • 3: Make a Remote Site or three. • 4: Connect everything all together. • 5: Add in Hector/FARB/146.820. • 6: Look at the whole enchilada. • 7: Beeping and Booping.

  4. This Shows A Single Repeater In on 146.120 Out on 146.720 Twin Sisters DUPLEXERS REPEATER CONTROLLER BATTERIES SOLAR PANELS

  5. 146.720 Let’s Add A Link Repeater In on 448.000 Out on (443.000) Twin Sisters DUPLEXERS DUPLEXERS REPEATER LINK REPEATER CONTROLLER BATTERIES SOLAR PANELS

  6. 146.720 (443.000) Let’s Add A Link Radio In on 425.300 Out on (420.300) Twin Sisters DUPLEXERS DUPLEXERS REPEATER LINK REPEATER LINK RADIO CONTROLLER BATTERIES SOLAR PANELS

  7. 146.720 (443.000) (420.300) This All MakesTwin Sisters Twin Sisters

  8. 146.620 Let’s Make A Remote Site McDonald Observatory In on 443.000 Out on (448.000) DUPLEXERS REPEATER LINK RADIO CONTROLLER BATTERIES SOLAR PANELS

  9. 146.920 Let’s Make Another One Sibley Ranch (448.000) DUPLEXERS REPEATER LINK RADIO CONTROLLER BATTERIES SOLAR PANELS

  10. ConnectSomeDots 146.620 146.720 146.920 (448.000) (448.000) (443.000) (443.000) McDonald Obs Twin Sisters Sibley Ranch

  11. 146.820 Let’s Make ACrippled Site Christmas Mountain (448.000) DUPLEXERS REPEATER LINK RADIO CONTROLLER BATTERIES SOLAR PANELS

  12. ½ WAY THERE 168 steps to go!

  13. Here’s Hector In on 420.300 Out on (425.300) Sul Ross Usually on 146.220 146.820 DUPLEXERS LINK REPEATER CONTROLLER BATTERY “38” Talker Computer Frequency Agile Remote Base (FARB) POWER SUPPLY

  14. Add 146.820To Hector (425.300) Sul Ross 146.820 DUPLEXERS 146.820 (146.220) LINK REPEATER (146.820) CONTROLLER BATTERY Christmas Mountain Frequency Agile Remote Base (FARB) POWER SUPPLY

  15. TA-DA 146.620 146.720 146.920 (448.000) (448.000) (443.000) (443.000) McDonald Obs Twin Sisters Sibley Ranch 146.820 (420.300) (425.300) (146220) (146.820) Hector Christmas Mountain

  16. BEEPS AND BOOPS

  17. BeepFrequencies • 146.720 Beeps at 720 Hz • 146.620 Beeps at 620 Hz • 146.820 Beeps at 820 Hz • 146.920 Beeps at 920 Hz • 448.000 Boops at 448 Hz

  18. On 146.720 • Also on 146.720 = 720 Hz • On 146.620 = 448 Hz • On 146.920 = 448 Hz • On 448.000 = 448 Hz • On 146.820 = Lotsa beeps.

  19. On 146.620 • Also on 146.620 = 620 Hz & 448 Hz • On 146.720 = 720 Hz • On 146.920 = 448 Hz • On 448.000 = 448 Hz • On 146.820 = Lotsa beeps.

  20. On 146.920 • Also on 146.920 = 920 Hz & 448 Hz • On 146.620 = 448 Hz • On 146.720 = 720 Hz • On 448.000 = 448 Hz • On 146.820 = Lotsa beeps.

  21. On 146.820 • Also on 146.820 = 820 Hz • On 146.620 = 820 Hz • On 146.720 = 820 Hz • On 448.000 = 820 Hz

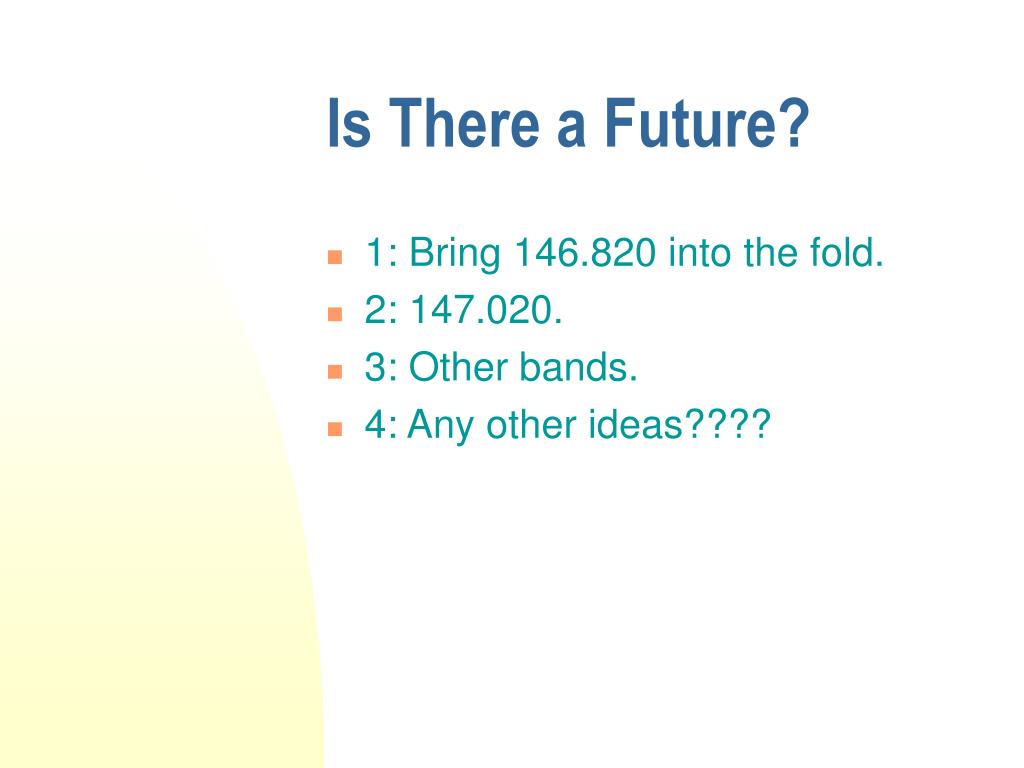

  22. Is There a Future? • 1: Bring 146.820 into the fold. • 2: 147.020. • 3: Other bands. • 4: Any other ideas????

  23. Questions? “You got questions? I got answers. They may not be the right ones, but they are answers nevertheless .
