Basic principles of AirmanshipAEF


Objectives

Objectives

Understand the types of AEF in the ATC

Introduce the ATC Basic Trainer –The Tutor

Have a basic understanding of Flight Controls

Understand ‘Safety in the Air’

Understand ‘Safety on the Ground’

Review the Tutor Passenger Brief Video


Flying in the atc

Flying in the ATC

Air Experience flights – Grob Tutor 115E

Operational Aircraft on an opportunity basis

Civil Flights on an opportunity basis

Must be 13 years 3 months

Have had at least a safety brief OR 1st Class cadet


Basic principles of airmanship aef

Opportunity Flights in

Operational Aircraft

CH-47 Chinook


Basic principles of airmanship aef

Opportunity Flights in

Operational Aircraft

Tristar


Basic principles of airmanship aef

Opportunity Flights in

Operational Aircraft

C-130 Hercules


Your local air experience flight

Your Local Air Experience Flight


1 air experience flight raf st athan

1 Air Experience FlightRAF St Athan


2 air experience flight boscombe down

2 Air Experience FlightBoscombe Down


3 air experience flight colerne

3 Air Experience FlightColerne


4 air experience flight glasgow airport

4 Air Experience FlightGlasgow Airport


5 air experience flight raf wyton

5 Air Experience FlightRAF Wyton


6 air experience flight raf benson

6 Air Experience FlightRAF Benson

This is your local AEF


7 air experience flight raf cranwell

7 Air Experience FlightRAF Cranwell


8 air experience flight raf cosford

8 Air Experience FlightRAF Cosford


9 air experience flight raf church fenton

9 Air Experience FlightRAF Church Fenton


10 air experience flight woodvale

10 Air Experience FlightWoodvale


11 air experience flight raf leeming

11 Air Experience FlightRAF Leeming


12 air experience flight raf kinloss

12 Air Experience FlightRAF Kinloss


Basic principles of airmanship aef

Grob Tutor 115E


Basic principles of airmanship aef

Grob Tutor 115E


Basic principles of airmanship aef

Grob Tutor 115E


Basic principles of airmanship aef

Grob Tutor 115E


Basic principles of airmanship aef

Grob Tutor 115E


Basic principles of airmanship aef

Grob Tutor 115E

Wingspan: 10.0m

Length: 7.6m

Height: 2.8m

Max Weight: 990Kg

Engine: 180hp

Max Speed: 185Kts

Side-by-side 2 seat

Carbon Fibre construction


Cockpit layout

Cockpit Layout


Flight instruments altimeter

Flight Instruments - Altimeter


Attitude indicator or artificial horizon

Attitude Indicator (or Artificial Horizon)


Airspeed indicator

Airspeed Indicator


Vertical speed indicator

Vertical Speed Indicator


Flight controls

FLIGHT CONTROLS


Control surfaces

Control Surfaces

Aileron

Elevator

Rudder


Control surfaces what do they look like in real life

Control Surfaces – what do they look like in real life???

Rudder

Aileron

Elevator


Basic principles of airmanship aef

Control Surfaces – what do they look like in real life???

Aileron

Elevator

Rudder


The axes of an aircraft

The Axes of an Aircraft


Longitudinal axis roll

Longitudinal Axis – “roll”

Controlled by Ailerons


Vertical axis yaw

Vertical Axis – “yaw”

Controlled by the Rudder


Lateral axis pitch

Lateral Axis – “pitch”

Controlled by Elevators


Basic principles of airmanship aef

Ailerons


Basic principles of airmanship aef

Control

column

Push right


Basic principles of airmanship aef

Left aileron down

Right aileron up


Basic principles of airmanship aef

Aircraft rolls right


Basic principles of airmanship aef

  • Aircraft rolls right


Basic principles of airmanship aef

And continues to do so until the

control column is placed

in the neutral position

Aircraft rolls right


Summary

Summary

Control column left

Left aileron up

Right aileron down

Aircraft rolls left


Basic principles of airmanship aef

Rudder


Basic principles of airmanship aef

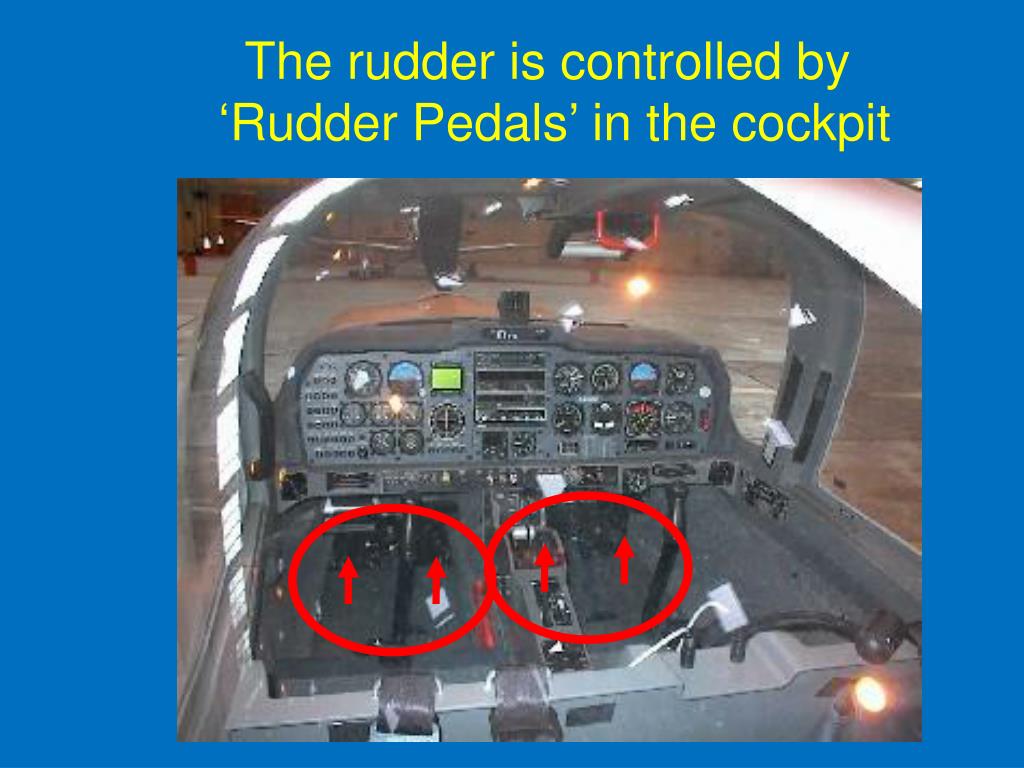

The rudder is controlled by

‘Rudder Pedals’ in the cockpit


Basic principles of airmanship aef

Rudder pedals

set to neutral


Basic principles of airmanship aef

Push right pedal forwards

(left will come back towards you!)

Rudder moves

right


Basic principles of airmanship aef

Aircraft yaws

right


Basic principles of airmanship aef

Aircraft yaws

right


Basic principles of airmanship aef

Aircraft yaws

right


Summary1

Summary

Push right pedal forward

Rudder moves right

Aircraft moves right

Push left pedal forward

Rudder moves left

Aircraft moves left


Basic principles of airmanship aef

Elevator


Basic principles of airmanship aef

Control

column

Push

Forward


Basic principles of airmanship aef

Elevator

moves

down


Basic principles of airmanship aef

Nose

pitches down


Basic principles of airmanship aef

Nose

pitches down


Basic principles of airmanship aef

Nose

pitches down

And continues to do so until the

control column is placed

in a neutral position

Airspeed will

increase


Summary2

Summary

Control column back

Elevator moves up

Nose pitches up

Speed will decrease


Explore the effects of control surfaces using the digital demo

Explore the effects of control surfaces using the digital demo


Air experience flight safety briefing video

Air Experience Flight Safety Briefing Video


Safety on the ground

SAFETY ON THE GROUND


When on the ground

When on the Ground

Never approach an aircraft unless told to do so

Never walk towards the propeller. Always approach from an angle that can be seen

Remove any hats in the aircraft dispersal area – Look & Listen


Parachute fitted

Parachute Fitted


Seat harness

Seat Harness


Rip cord extended

Rip Cord Extended

ONLY PULL THIS CORD IN AN EMERGENCY BALE OUT!

AND WHEN YOU HAVE FALLEN CLEAR OF THE AIRCRAFT


When on the ground1

When on the Ground

If a Jet beware of both the intake and the exhaust areas

Keep hands away from your parachute ’D’ ring

Listen to the Ground crews or Staff Cadets


Basic principles of airmanship aef

Ready to go!


Safety in the air

SAFETY IN THE AIR


While in the air

While in the Air

Talk to the pilot – ask questions

Ask to see the effects of controls

Ask about the instruments

Only touch the controls when told to do so


While in the air1

While in the Air

Keep hands & feet away from the controls if you are not flying the aircraft

Listen to any commands, if not sure ask to repeat

Ensure that you have no loose articles in your pocket


Summary3

Summary

Ask Questions

Ask to take control

Do not touch unless told to do so

Think Safe

Look & Listen


Basic principles of airmanship aef

Above all else...

... Enjoy your flight


Objectives1

Objectives

Understand the types of AEF in the ATC

Introduce the ATC Basic Trainer –The Tutor

Have a basic understanding of Flight Controls

Understand ‘Safety in the Air’

Understand ‘Safety on the Ground’

Review the Tutor Passenger Brief Video


Any questions

Any Questions?


Questions

Questions

What does AEF stand for?

Name the aircraft we use for AEF?

What is the number of your local AEF?

What happens when you move the control column to the right?

From which direction should you approach the Tutor?


Questions1

Questions

Which control can you touch first?

What is an ASI?

What is an Artificial Horizon?

What is this?
