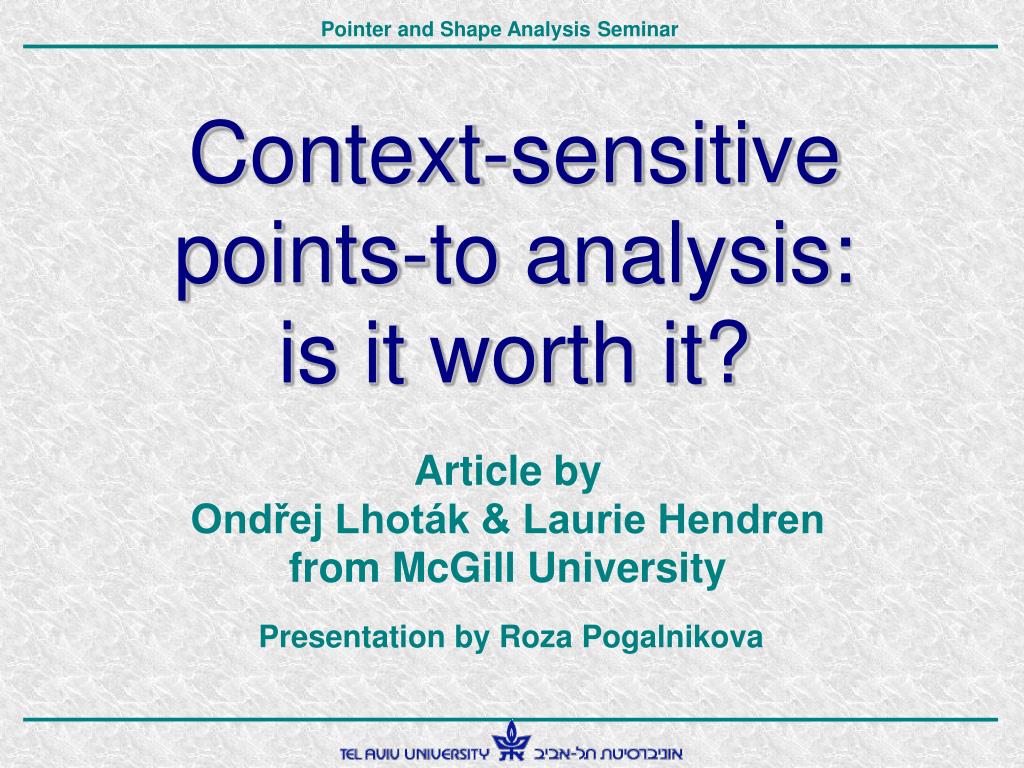

  1. Context-sensitivepoints-to analysis:is it worth it? Article by Ondřej Lhoták & Laurie Hendren from McGill University Presentation by Roza Pogalnikova

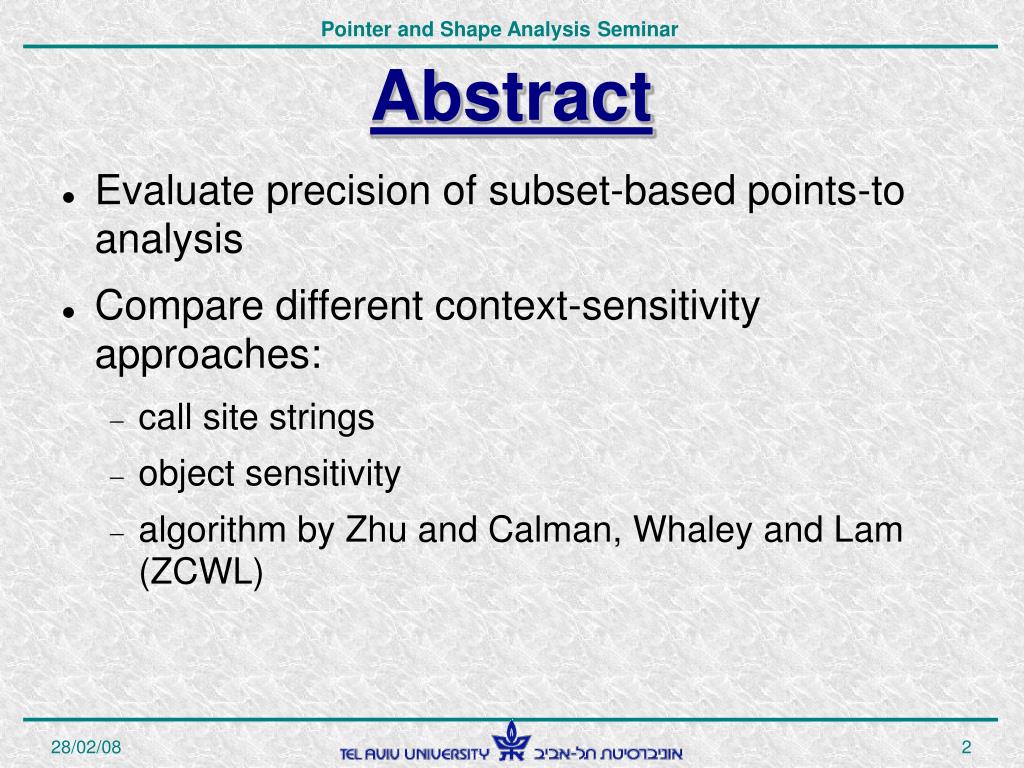

  2. Abstract • Evaluate precision of subset-based points-to analysis • Compare different context-sensitivity approaches: • call site strings • object sensitivity • algorithm by Zhu and Calman, Whaley and Lam (ZCWL)‏

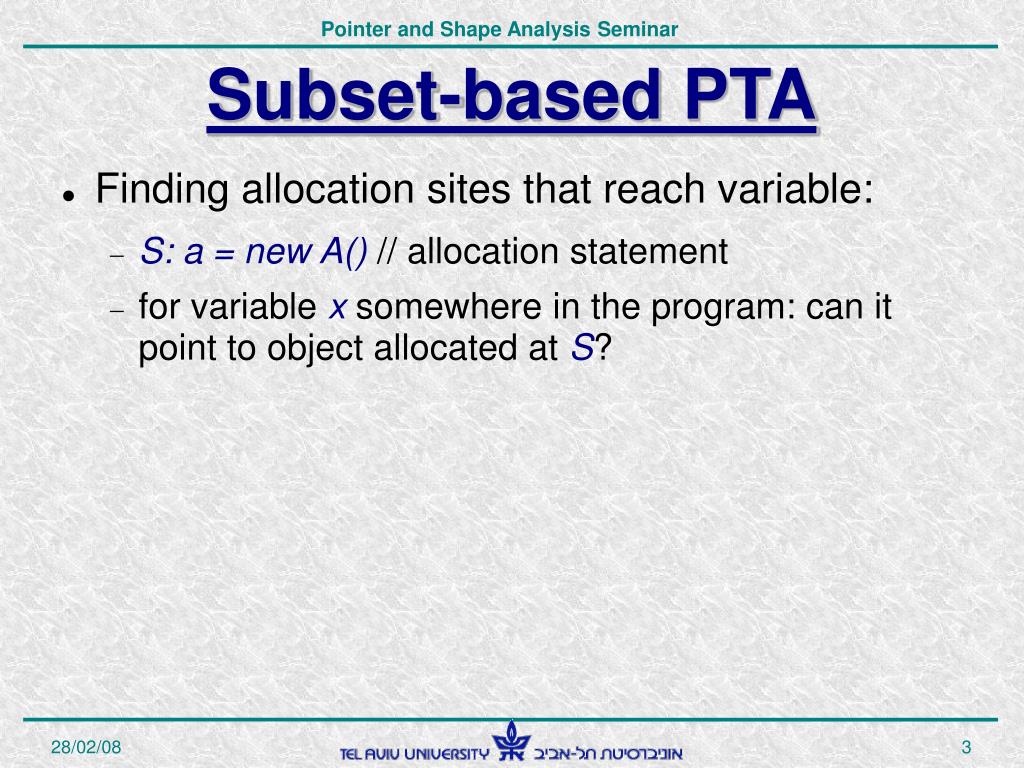

  3. Subset-based PTA • Finding allocation sites that reach variable: • S: a = new A() // allocation statement • for variable x somewhere in the program: can it point to object allocated at S?

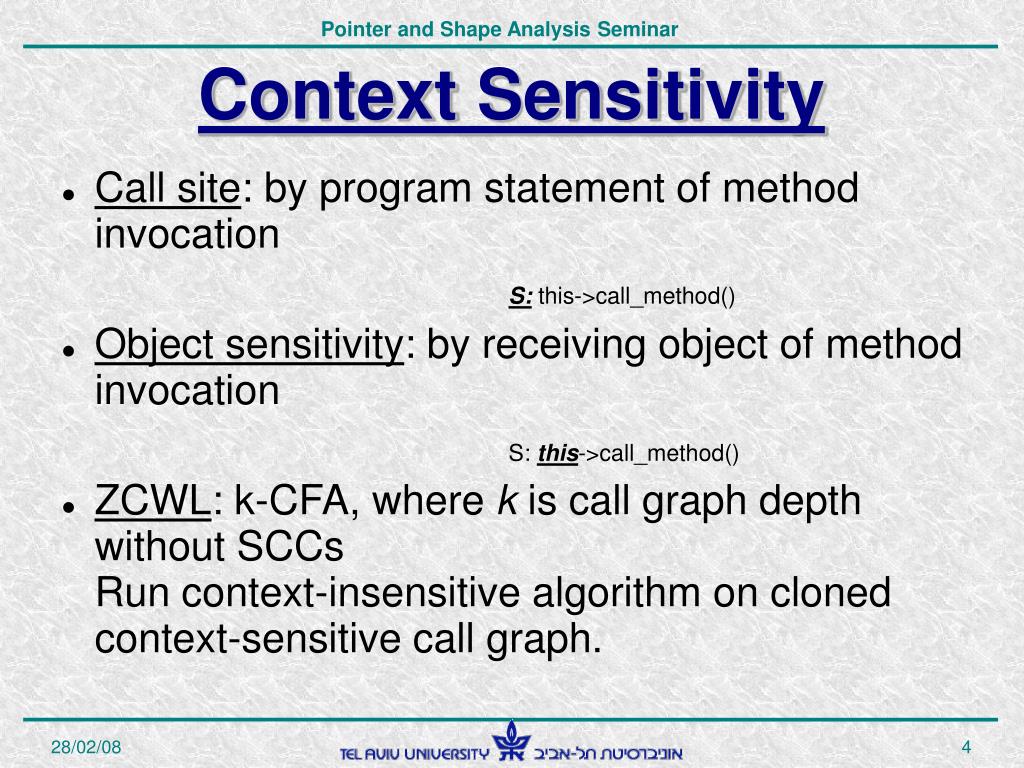

  4. Context Sensitivity • Call site: by program statement of method invocation • Object sensitivity: by receiving object of method invocation • ZCWL: k-CFA, where k is call graph depth without SCCs Run context-insensitive algorithm on cloned context-sensitive call graph. S: this->call_method()‏ S:this->call_method()‏

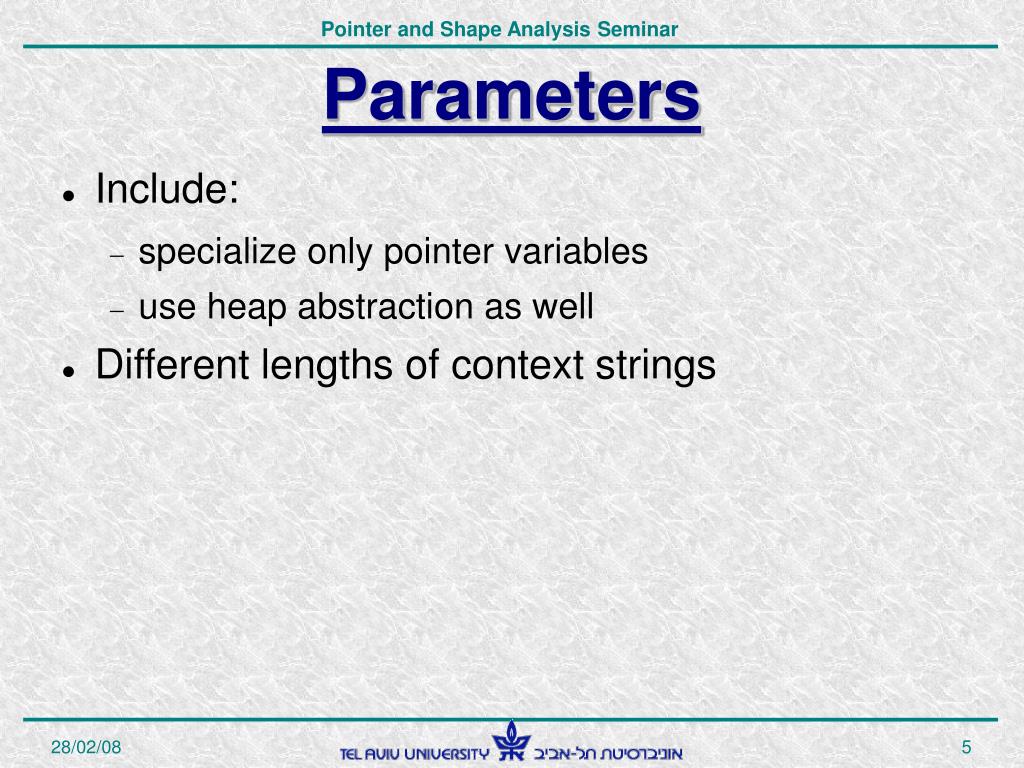

  5. Parameters • Include: • specialize only pointer variables • use heap abstraction as well • Different lengths of context strings

  6. Measurements • Measure to guide implementation: • number of contexts • number of distinct contexts • number of distinct point-to sets • Measure to evaluate: • size of the call graph (methods/edges)‏ • devirtualizable call sites • casts statically provable to be safe

  7. Results • Object sensitivity is the best and most scalable • Heap abstraction improves precision of analysis • Reduced analysis precision when no context sensitivity call graph in cycles

  8. What • Compare three kinds of context-sensitive points-to analysis: • call sites as context abstraction • object-sensitive analysis • ZCWL algorithm

  9. How • Implemented with JEDD system: • language extension of Java • abstraction of work with Binary Decision Diagrams (BDDs)‏ • Soot framework written in JEDD: • points-to analysis • call graph construction • side-effect analysis in BDDs • virtual call resolution

  10. BDDs Binary decision tree and truth table for the function f(x1, x2, x3) = -x1 * -x2 * -x3 + x1 * x2 + x2 * x3 BDD for the function f * credit: http://en.wikipedia.org/wiki/Binary_decision_diagram

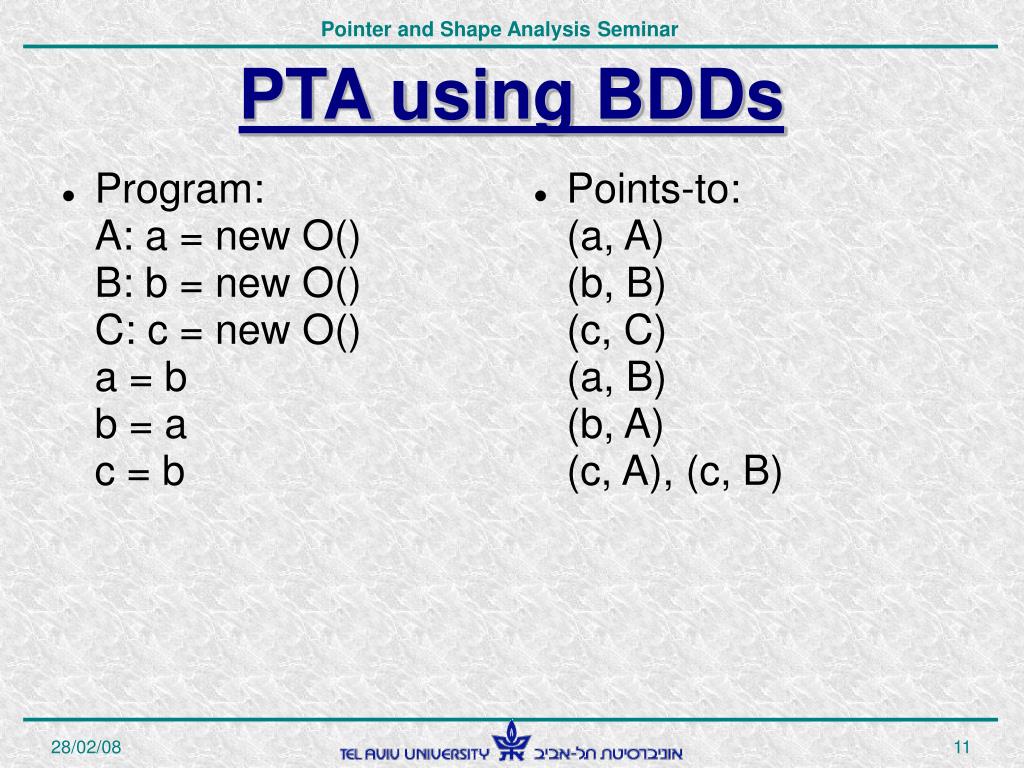

  11. PTA using BDDs Points-to:(a, A)(b, B)(c, C)(a, B)(b, A)(c, A), (c, B) • Program:A: a = new O()B: b = new O()C: c = new O()a = bb = ac = b

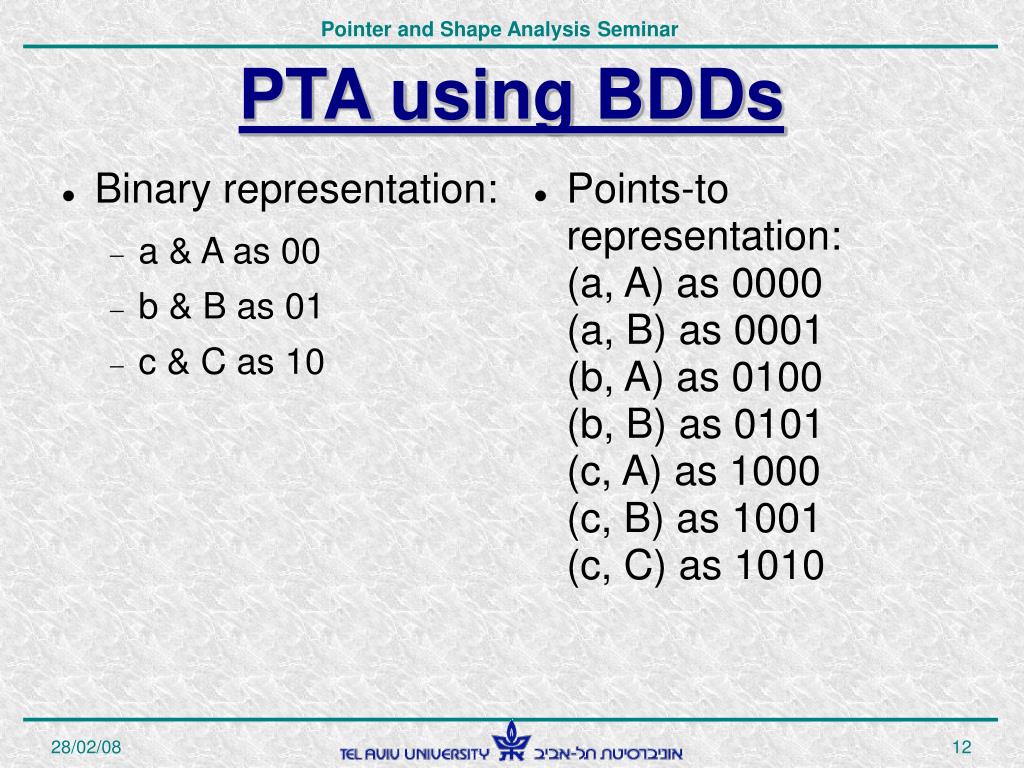

  12. PTA using BDDs Points-to representation:(a, A) as 0000(a, B) as 0001(b, A) as 0100(b, B) as 0101(c, A) as 1000(c, B) as 1001(c, C) as 1010 • Binary representation: • a & A as 00 • b & B as 01 • c & C as 10

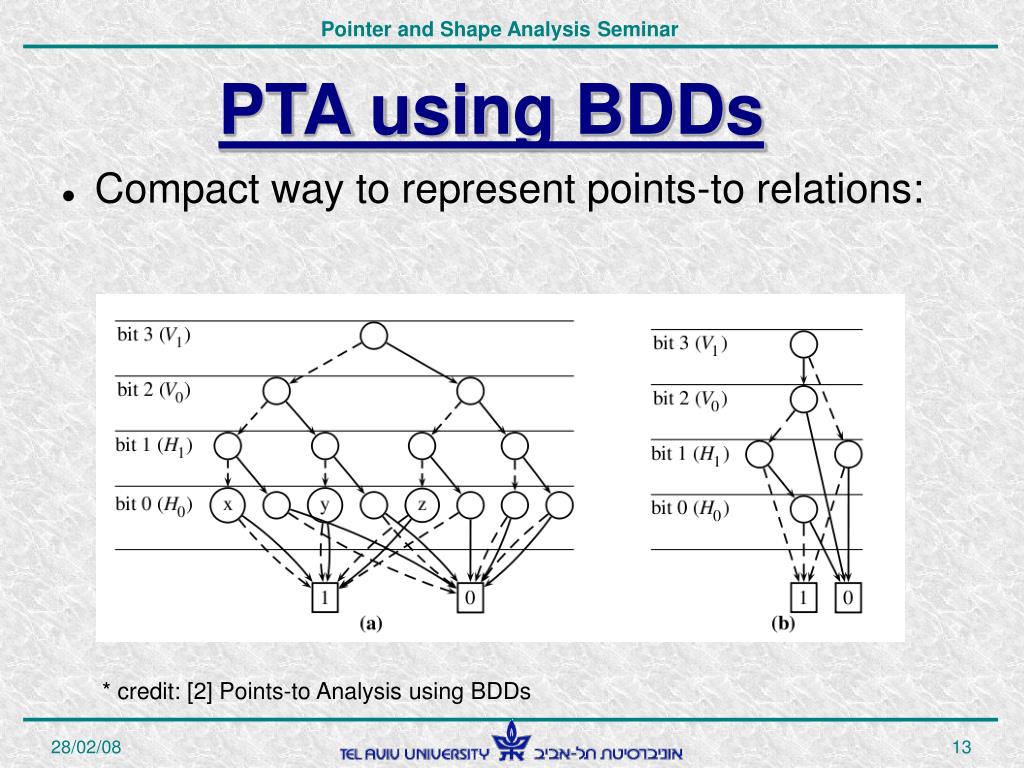

  13. PTA using BDDs • Compact way to represent points-to relations: * credit: [2] Points-to Analysis using BDDs

  14. Determine • How many contexts generalized? • How number of contexts relates to precision of analysis? • How likely scalable solution to be feasible?

  15. Background • O - pointer targets (objects)‏ • P – pointers • I – method invocation p may point to o: O(o) ϵ pt(P(p))‏

  16. Background • Oas – program statement where object was allocated • Pvar - pointer to local variable • [O(o), f] - field f of object o • Pfs(o.f) – pointer to a field f of object o

  17. Background • Compare 2 families of invocation abstraction: • call site Ics(i) (program statement of metacall)‏ • receiver object Iro(i) = O(o) (object on which method was invoked)

  18. Background • String of contexts given base abstraction Ibase: Istring(i) = [Ibase(i), Ibase(i2), Ibase(i3), ...] • ij is a j'th topmost invocation on stack during i (i = i1)‏ • Two approaches to make it finite: • define limit k to length of context string • ZCWL: exclude cycle edges from call graph

  19. Background • Another choice: which pointers/objects to model context-sensitively? • Given context-insensitive Pci and context I model run-time pointer p: • context-sensitively by P(p) = [I(ip), Pci(p)] (ip method invocation with p)‏ • context-insensitively by P(p) = Pci(p)‏

  20. Background • Given allocation site abstraction Oas, and context I model object o: • context-sensitively by O(o) = [I(io), Oas(o)] (io method invocation where o was allocated)‏ • context insensitively by O(o) = Oas(o)‏

  21. Benchmarks • The study was performed on: • SpecJVM 98 benchmark suite • DaCapo benchmark suite (ver. beta050224)‏ • Ashes benchmark suite • Polyglot extensible Java front-end • SUN standard library 1.3.1_01

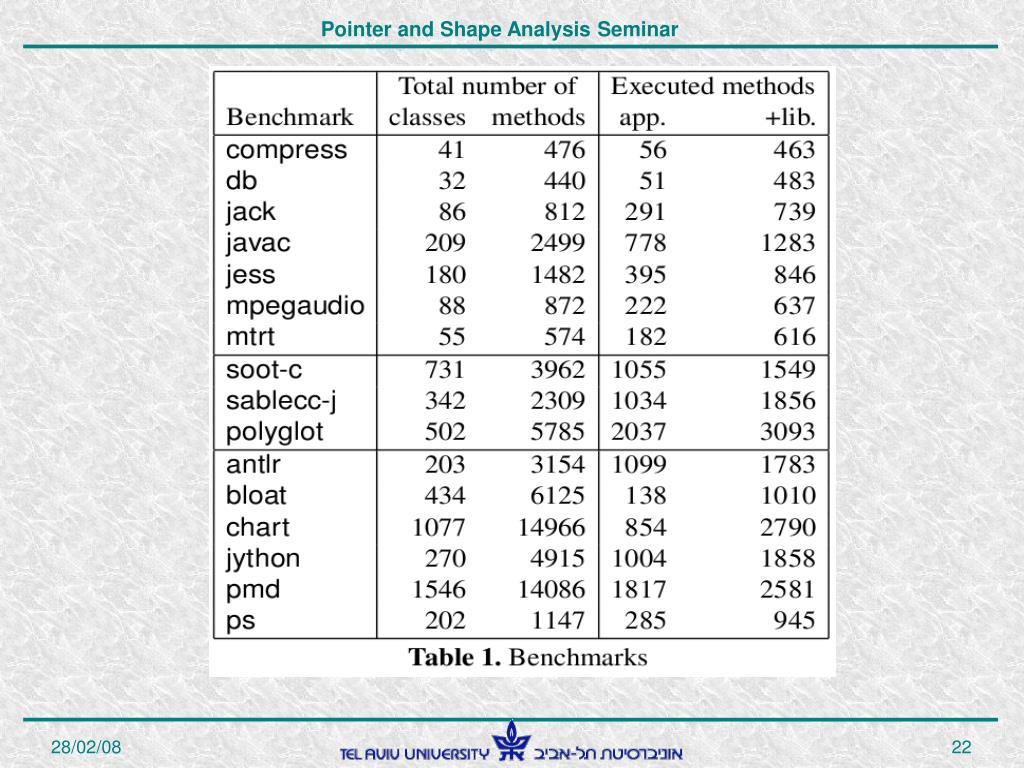

  22. Benchmarks

  23. Contexts Number • Considered intractable: • propagate context from call site to called method • context strings number grows exponentially in the length of call chains

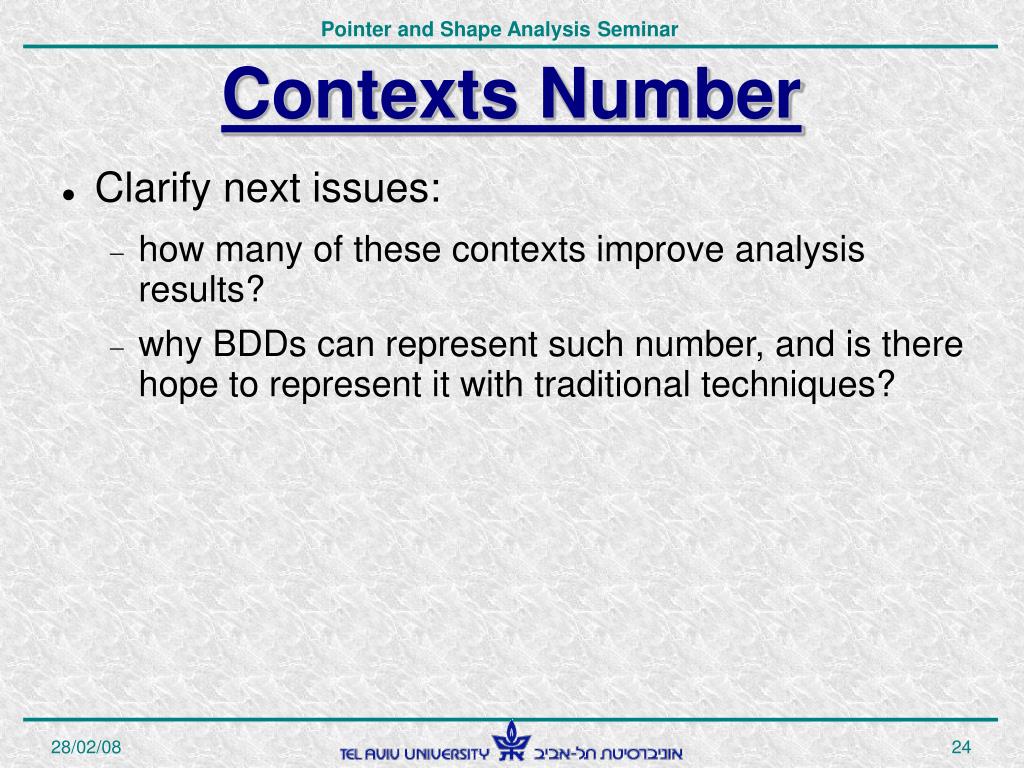

  24. Contexts Number • Clarify next issues: • how many of these contexts improve analysis results? • why BDDs can represent such number, and is there hope to represent it with traditional techniques?

  25. Total contexts number • Count method-context pairs • Empty spots – analysis not completed with available memory • BDD lib. could allocate 41 million BDD nodes (~820 MB)‏

  26. Total contexts number

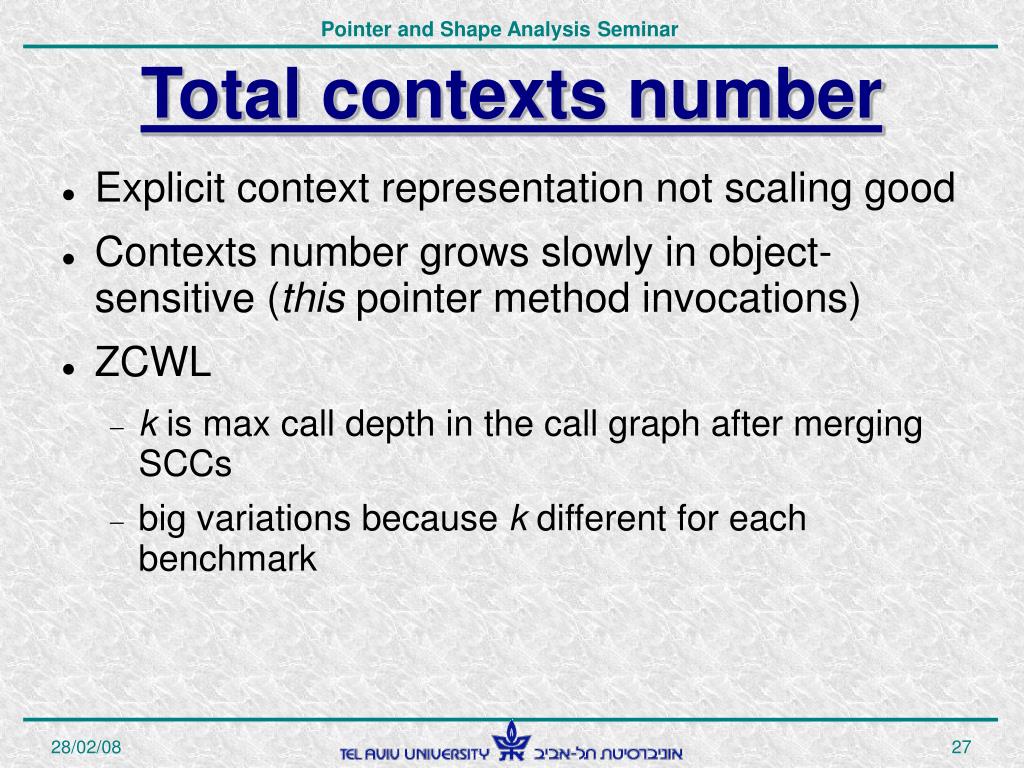

  27. Total contexts number • Explicit context representation not scaling good • Contexts number grows slowly in object-sensitive (this pointer method invocations)‏ • ZCWL • k is max call depth in the call graph after merging SCCs • big variations because k different for each benchmark

  28. Equivalent contexts • Method-context pairs (m1, c1) and (m2, c2) are equivalent if: • m1 = m2 • ∀ local pointer p in the method, pt(P(p)) is the same for c1 and c2 • Equivalence classes reflect precision improvement due to context sensitivity

  29. Equivalent contexts

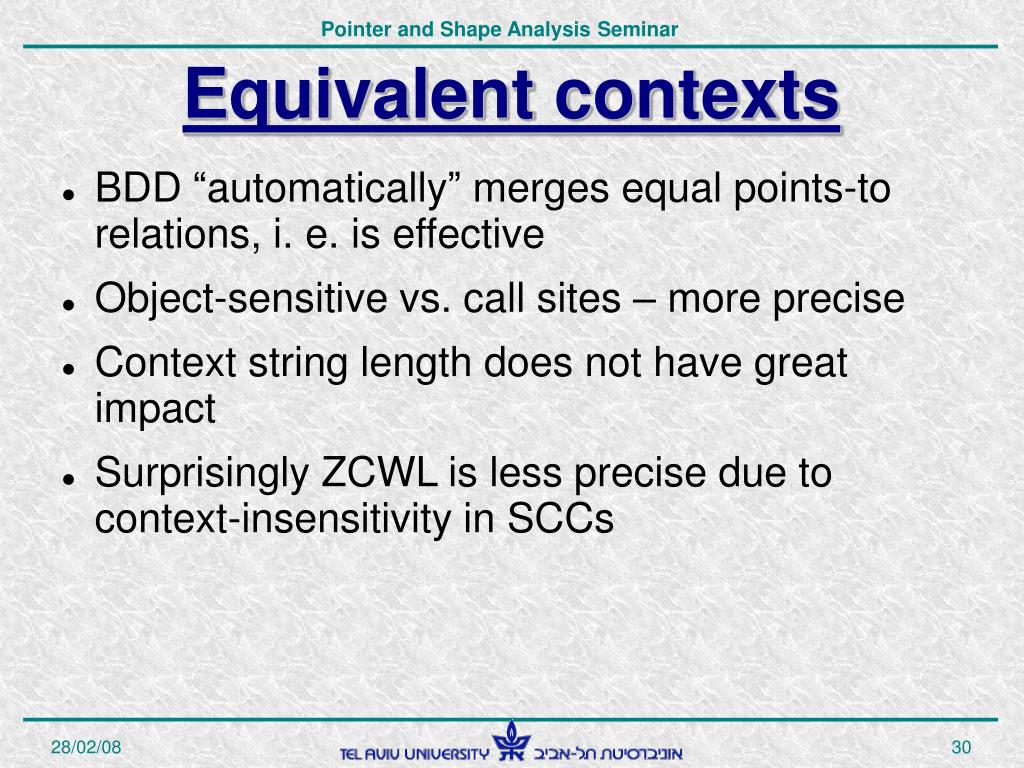

  30. Equivalent contexts • BDD “automatically” merges equal points-to relations, i. e. is effective • Object-sensitive vs. call sites – more precise • Context string length does not have great impact • Surprisingly ZCWL is less precise due to context-insensitivity in SCCs

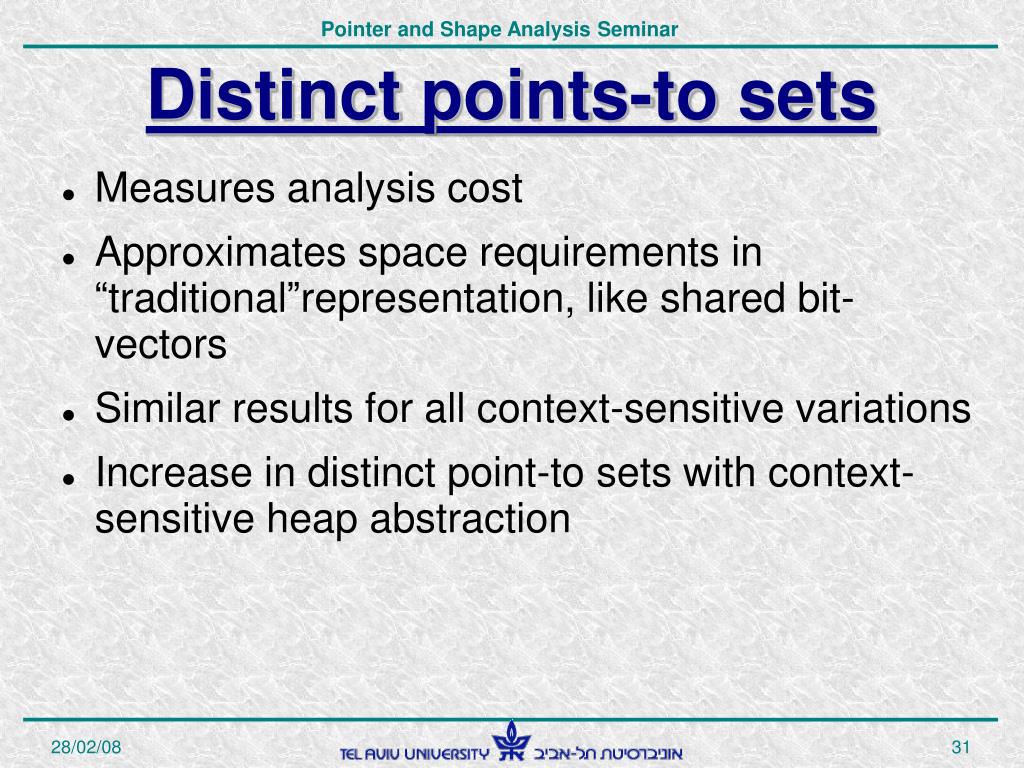

  31. Distinct points-to sets • Measures analysis cost • Approximates space requirements in “traditional”representation, like shared bit-vectors • Similar results for all context-sensitive variations • Increase in distinct point-to sets with context-sensitive heap abstraction

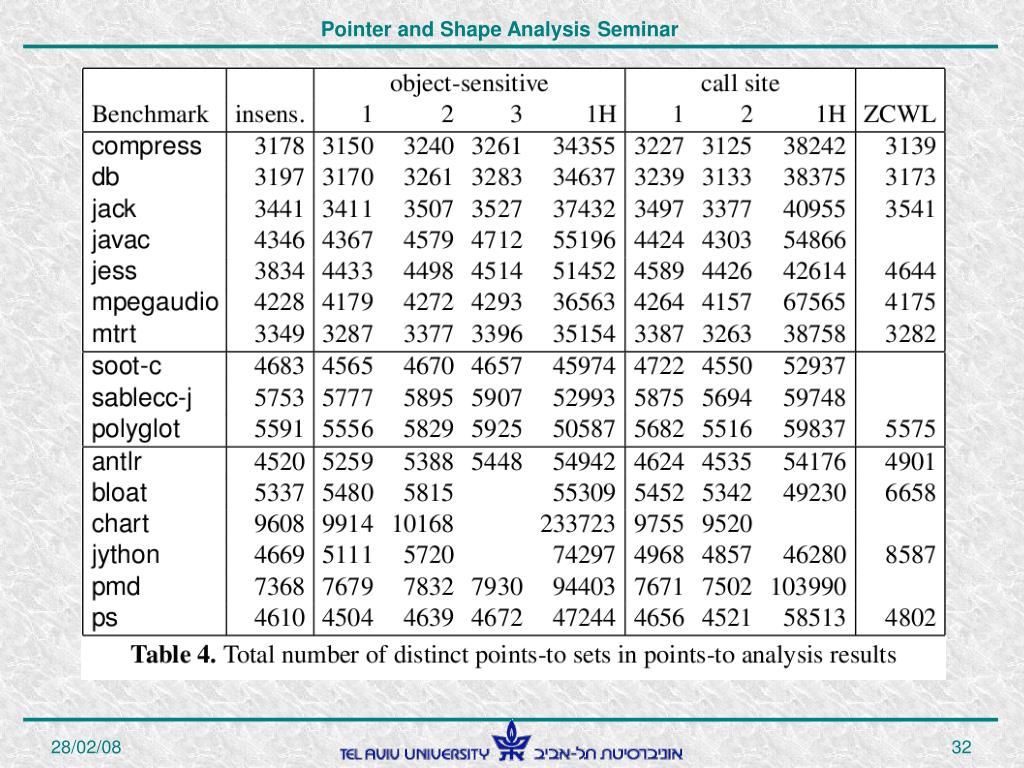

  32. Distinct points-to sets

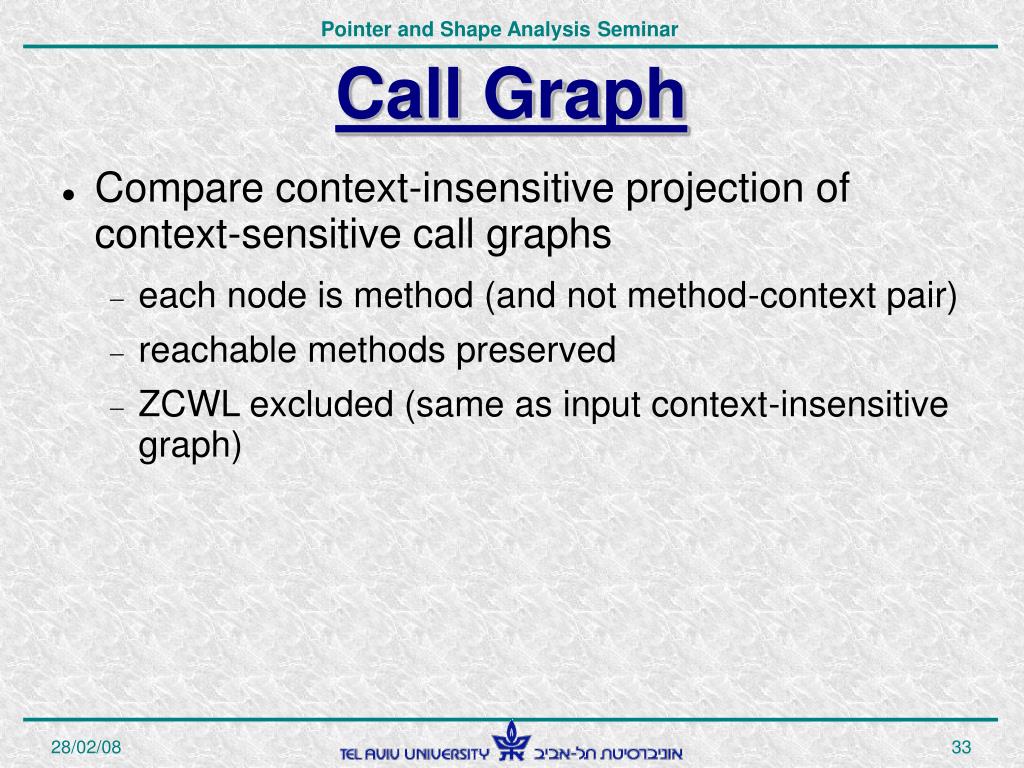

  33. Call Graph • Compare context-insensitive projection of context-sensitive call graphs • each node is method (and not method-context pair) • reachable methods preserved • ZCWL excluded (same as input context-insensitive graph)‏

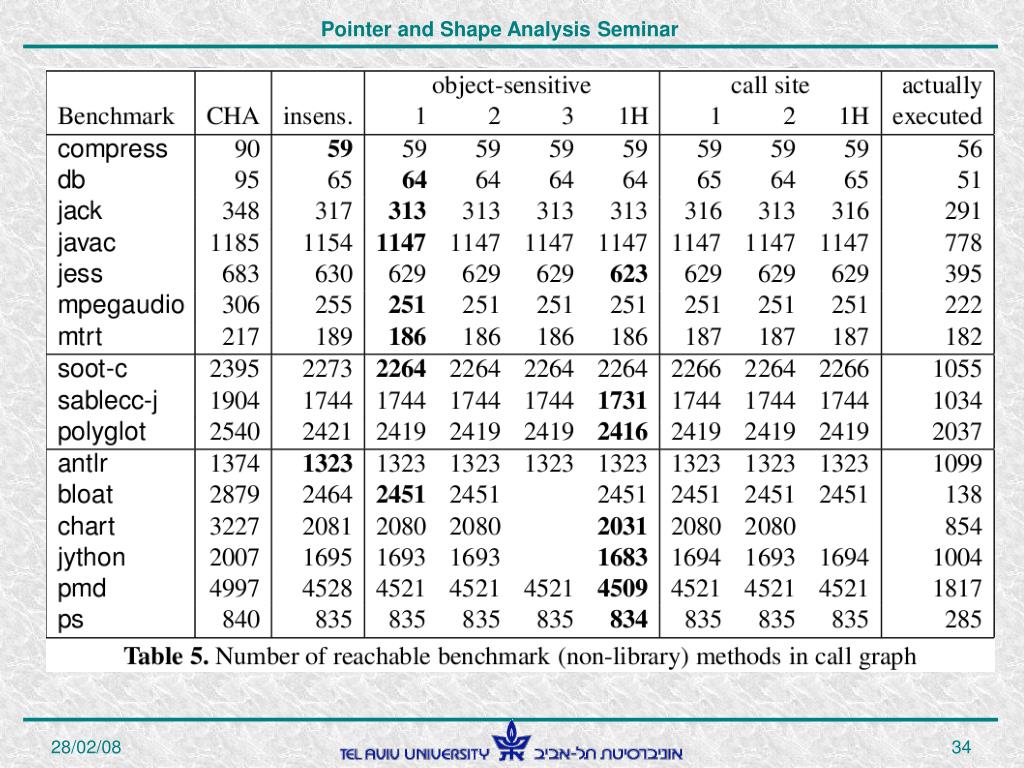

  34. Reachable methods

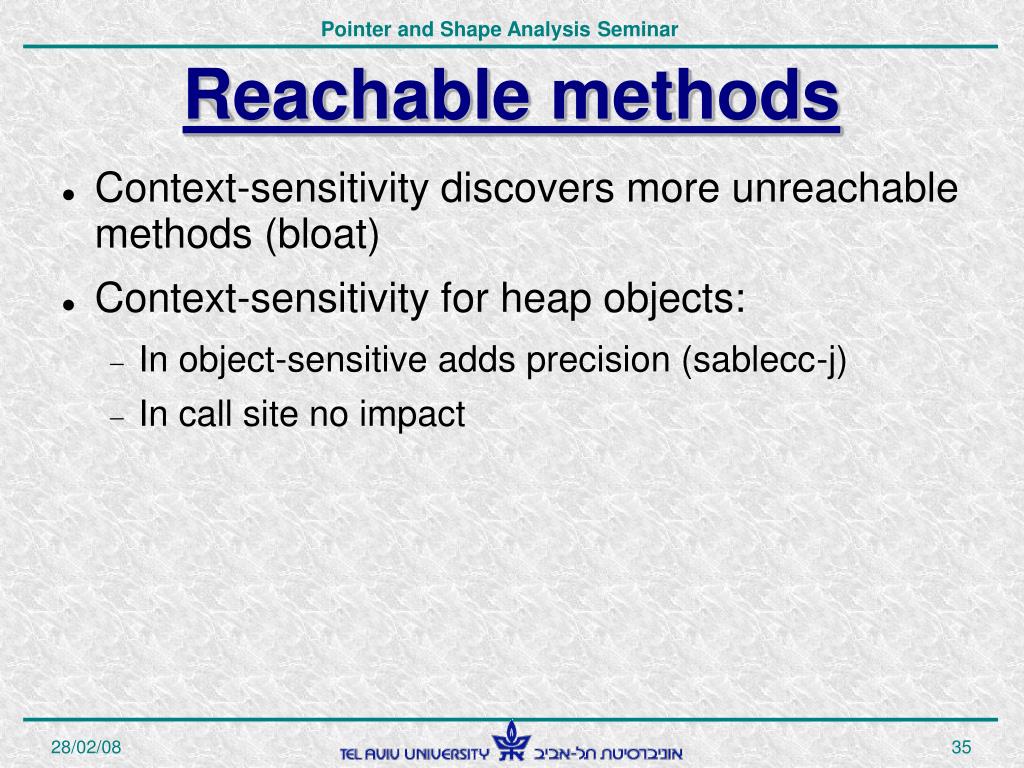

  35. Reachable methods • Context-sensitivity discovers more unreachable methods (bloat)‏ • Context-sensitivity for heap objects: • In object-sensitive adds precision (sablecc-j)‏ • In call site no impact

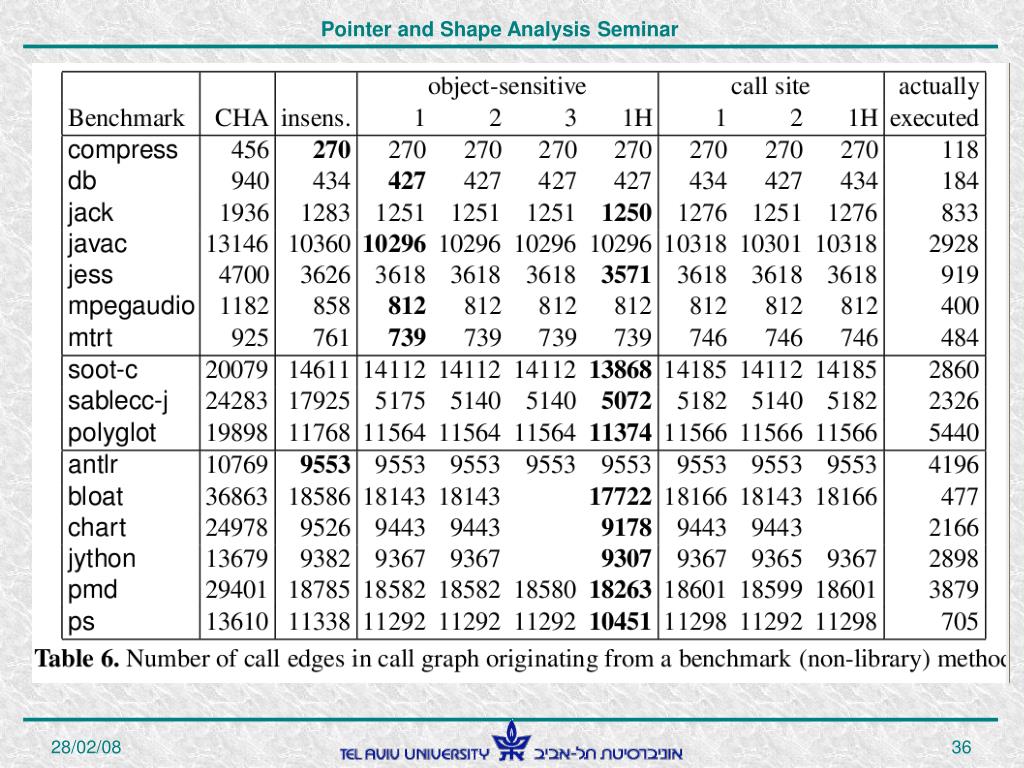

  36. Call edges

  37. Call edges • Compare size of call graph in call edges • The same with exception of large difference in sablecc-j (specific code pattern)‏

  38. Virtual call resolution • Number of virtual calls with more then one implementation • Object-sensitive analysis has clear advantage over call site. • heap objects add precision (sablecc-j)‏

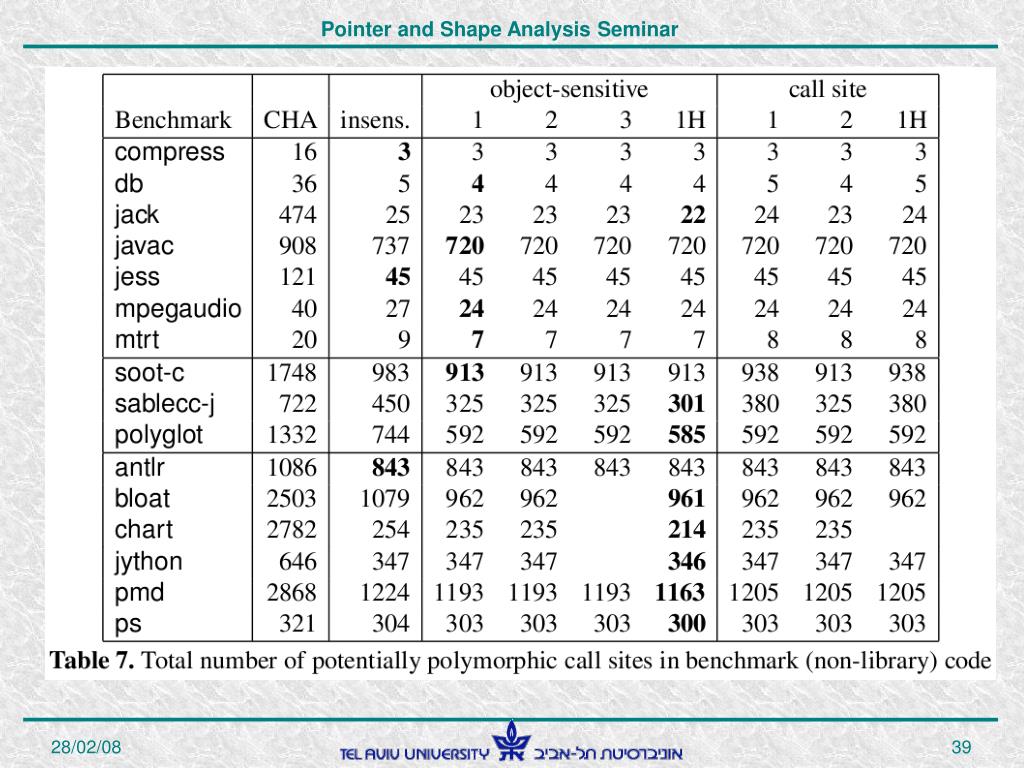

  39. Virtual call resolution

  40. Cast safety • Cast cannot fail if pointer can point-to only to object of “right” type (sub-type of the type in cast)‏ • Count non-provable casts • Object-sensitivity, especially with heap objects is the best (polyglot, javac)

  41. Cast safety

  42. Conclusions Evaluated effects: generated contexts distinct point-to sets precision of call graph construction virtual call resolution cast safety analysis • Context-sensitive variations: • object-sensitive analysis • call sites as context abstraction • ZCWL algorithm

  43. Conclusions • Context-sensitivity improvements: • small: call graph precision • medium: virtual call resolution • major: cast safety analysis • Object-sensitive analysis was the best: • analysis precision • potential scalability

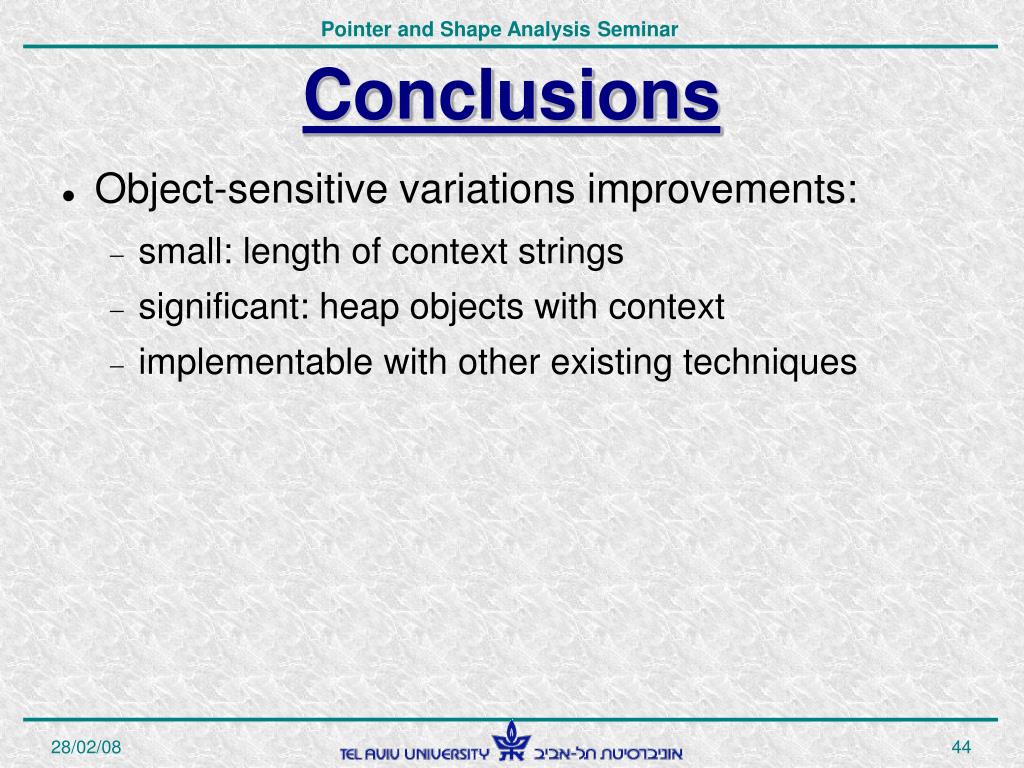

  44. Conclusions • Object-sensitive variations improvements: • small: length of context strings • significant: heap objects with context • implementable with other existing techniques

  45. Conclusions • ZCWL algorithm: • disappointing results • caused by context-insensitive treatment of calls within SCCs of the initial graph • large proportion of edges in SCC
