1 / 7

Metallic Bonds:

Metallic Bonds:. Metal atoms form bonds when the outer energy levels overlap. This is called the Electron Sea Model . It proposes that all the metal atoms in a metallic solid donate their electrons to form a “sea” of electrons.

shirleyb
Download Presentation

Metallic Bonds:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

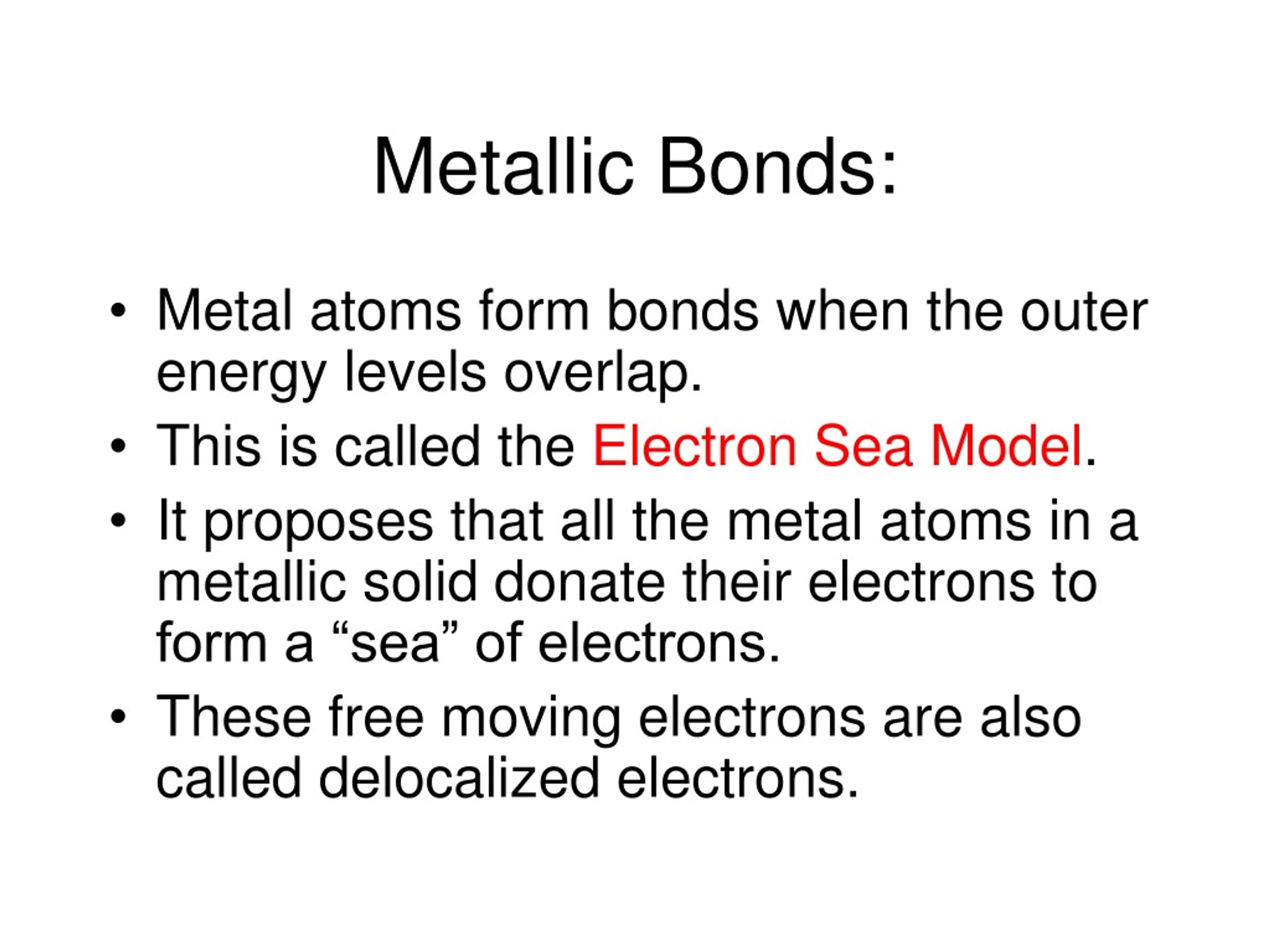

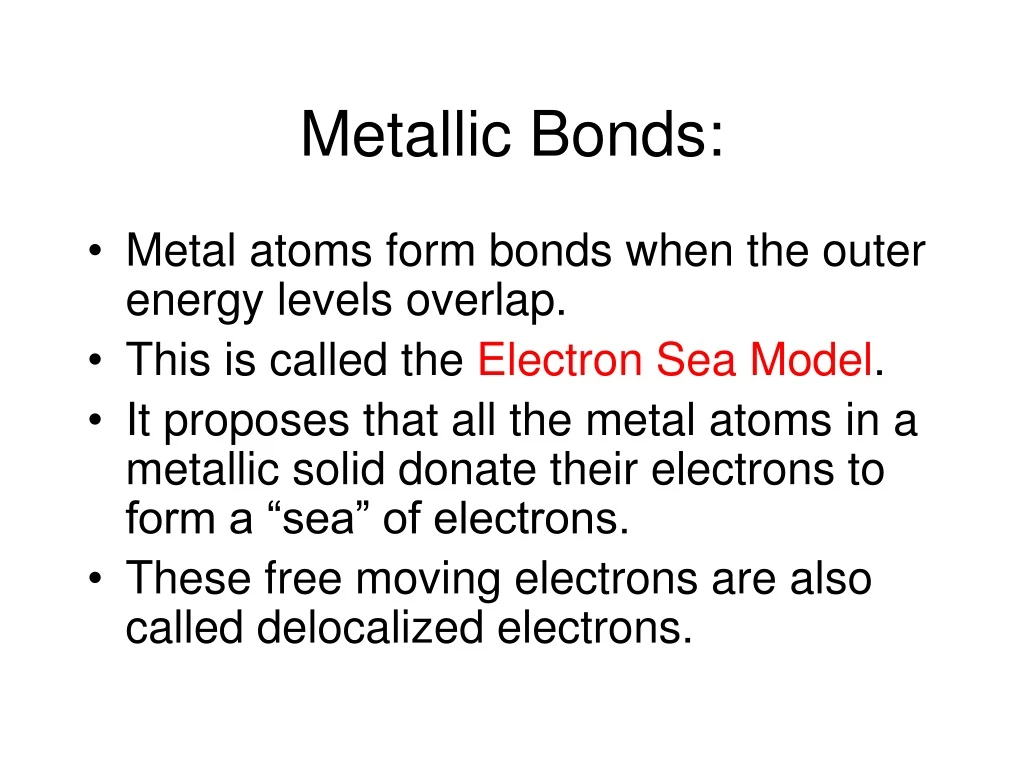

  1. Metallic Bonds: • Metal atoms form bonds when the outer energy levels overlap. • This is called the Electron Sea Model. • It proposes that all the metal atoms in a metallic solid donate their electrons to form a “sea” of electrons. • These free moving electrons are also called delocalized electrons.

  2. Properties of Metals • Conduct electricity and heat • High melting and boiling points • Hard and dense • Metals are malleable (hammered into sheets) and ductile (drawn into a wire). • Form alloys (a mixture of elements that have metallic properties). • Examples: steel, bronze, cast iron, gold 10 carat, brass.

  3. IONIC CRYSTALS • In ionic compounds, the positive and negative ions are packed into a pattern. • This particle packing forms an ionic crystal. • Crystals require a large amount of energy to break apart.

  4. CRYSTAL LATTICE • Attraction between + and - ions results in a crystal lattice. • Each positive ion is surrounded by negative ions.

  5. LATTICE ENERGY • Lattice energy = the energy released when an ionic crystalline compound is formed. • The more negative the lattice energy, the stronger the force of attraction between ions • Smaller ions have more negative lattice energy • Higher charges make for more negative lattice energies (example: MgO has more lattice energy than NaF)

  6. Ionic Properties • Made of crystals • Have high melting points • Often soluble in water • Conduct electricity in water
