Respiratory failure

Respiratory Failure

Kenney Weinmeister M.D.

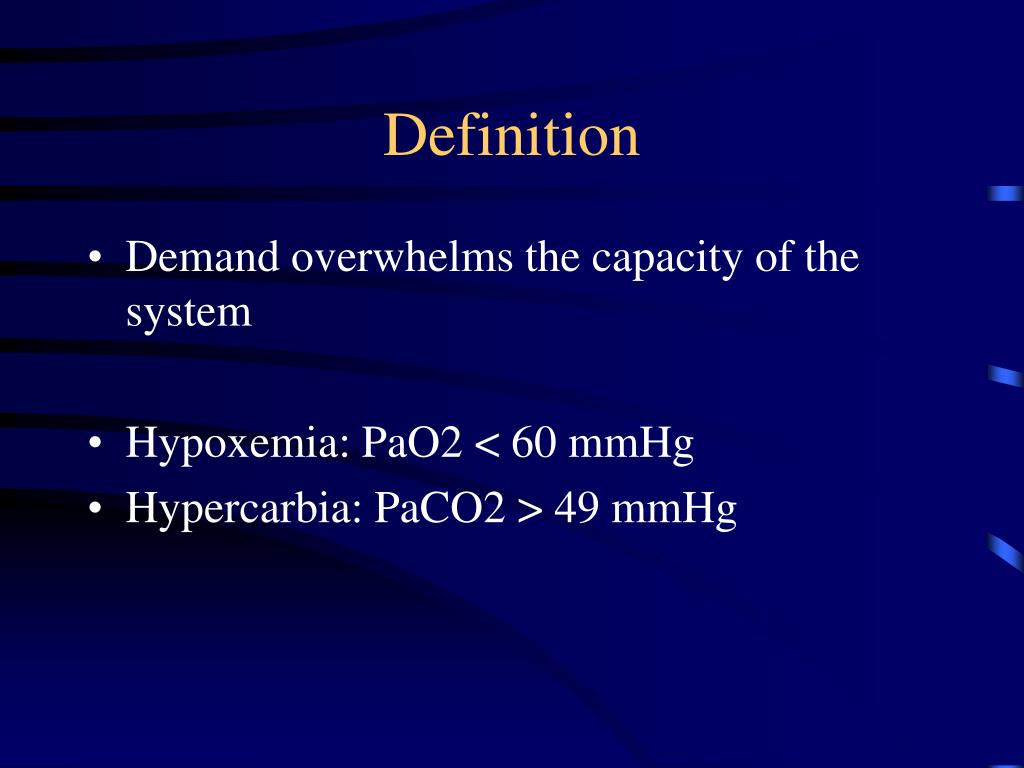

Definition

Definition

  • Demand overwhelms the capacity of the system

  • Hypoxemia: PaO2 < 60 mmHg

  • Hypercarbia: PaCO2 > 49 mmHg


Alveolar arterial oxygen tension difference

Alveolar-arterial Oxygen Tension Difference

  • PAO2 = FIO2 x atmos. pres. - PaCO2/R

  • PAO2 = 150 - PaCO2/0.8

  • P(A-a) O2 gradient = 2.5 + 0.21 x age (yr)


Duration of hypercarbia

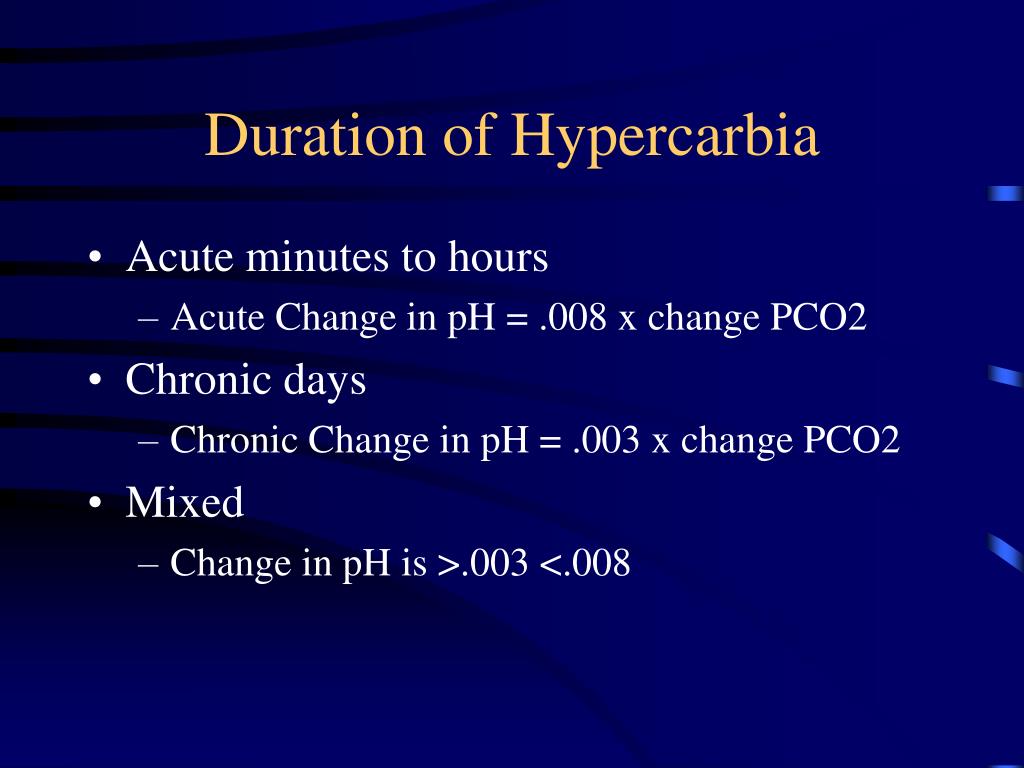

Duration of Hypercarbia

  • Acute minutes to hours

    • Acute Change in pH = .008 x change PCO2

  • Chronic days

    • Chronic Change in pH = .003 x change PCO2

  • Mixed

    • Change in pH is >.003 <.008


Hypoxemic respiratory failure

Hypoxemic Respiratory Failure

  • Hypoventilation

    • Normal A-a gradient

  • V/Q mismatch

    • Elevated A-a gradient

      • Significantly improves with !00% oxygen

  • Right to left shunts

    • Elevated A-a gradient

      • Does not significantly improve with 100% oxygen


Hypercapnic respiratory failure

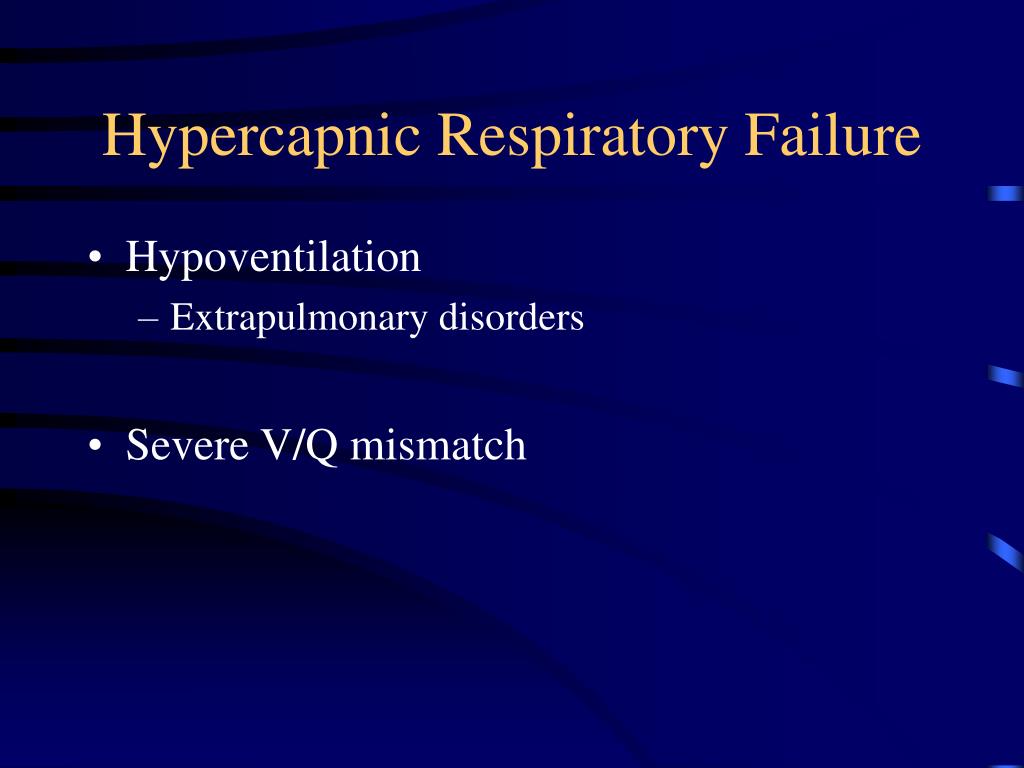

Hypercapnic Respiratory Failure

  • Hypoventilation

    • Extrapulmonary disorders

  • Severe V/Q mismatch


Extrapulmonary respiratory failure

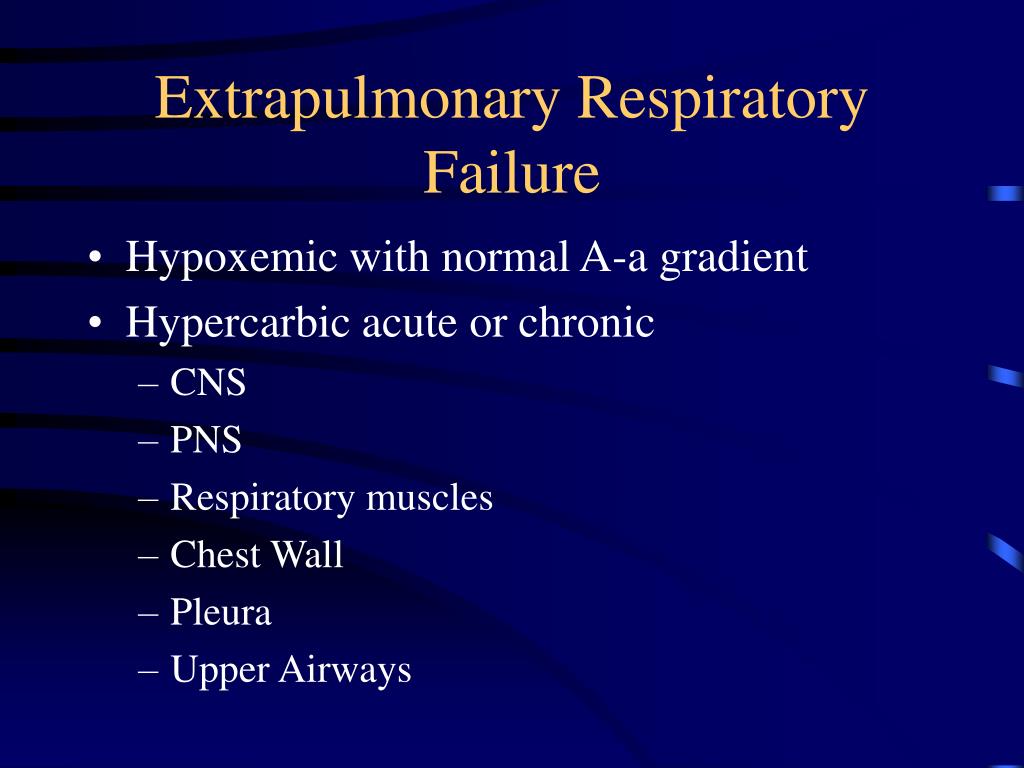

Extrapulmonary Respiratory Failure

  • Hypoxemic with normal A-a gradient

  • Hypercarbic acute or chronic

    • CNS

    • PNS

    • Respiratory muscles

    • Chest Wall

    • Pleura

    • Upper Airways

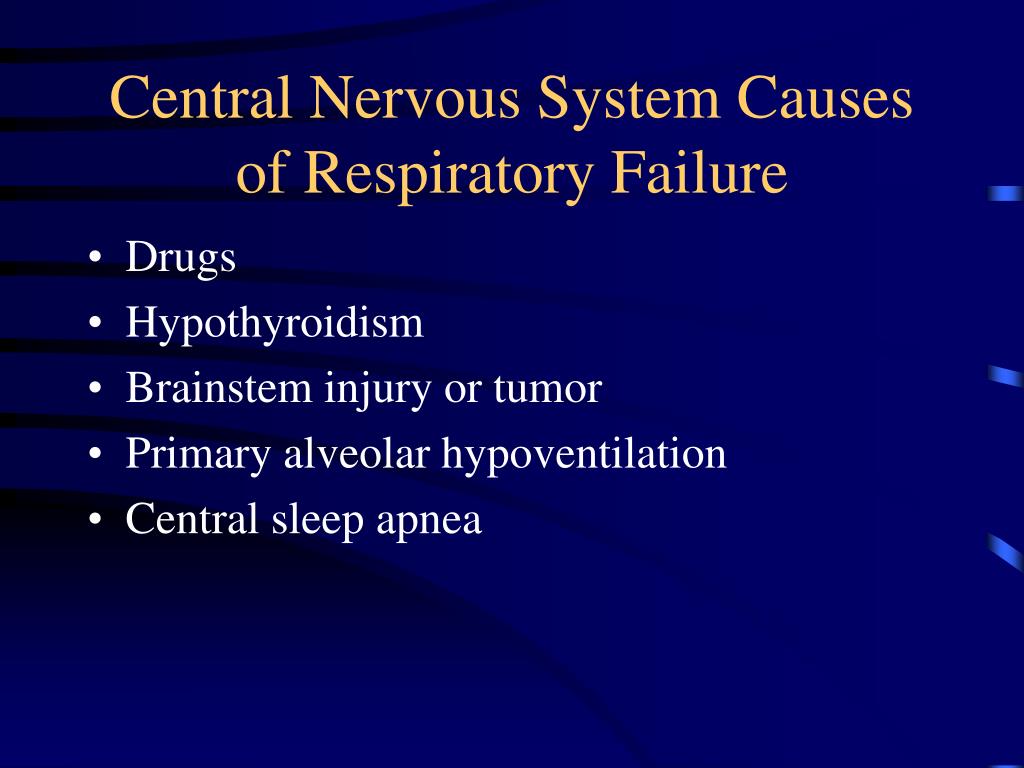

Central nervous system causes of respiratory failure

Central Nervous System Causes of Respiratory Failure

  • Drugs

  • Hypothyroidism

  • Brainstem injury or tumor

  • Primary alveolar hypoventilation

  • Central sleep apnea

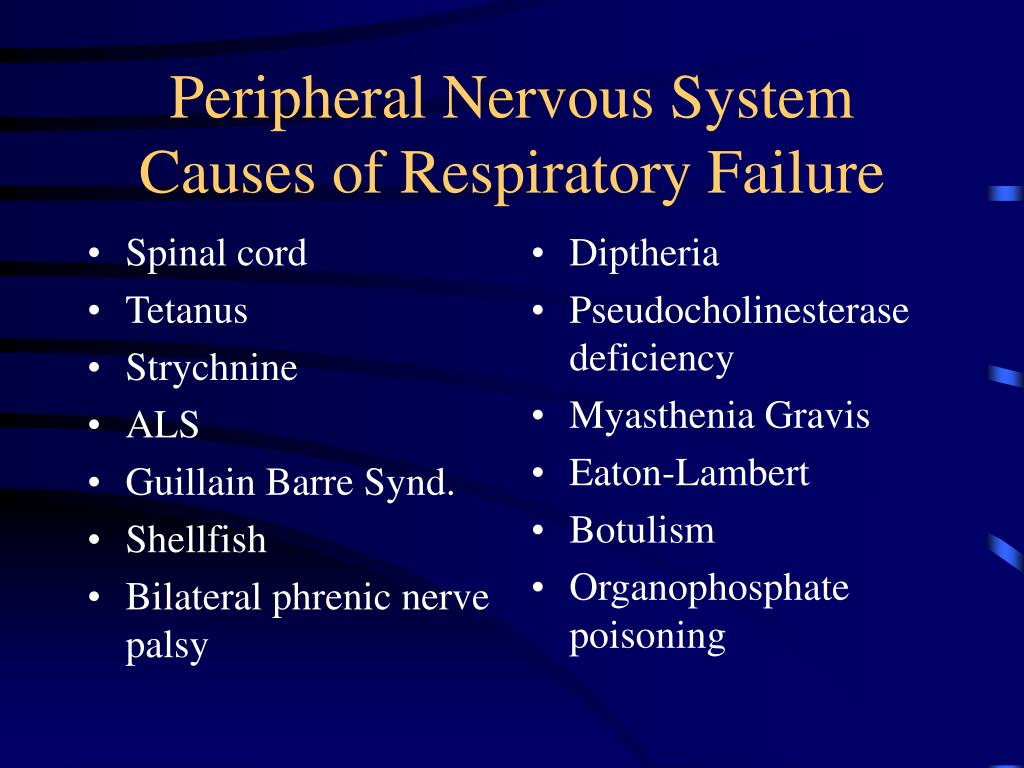

Peripheral nervous system causes of respiratory failure

Spinal cord

Tetanus

Strychnine

ALS

Guillain Barre Synd.

Shellfish

Bilateral phrenic nerve palsy

Diptheria

Pseudocholinesterase deficiency

Myasthenia Gravis

Eaton-Lambert

Botulism

Organophosphate poisoning

Peripheral Nervous System Causes of Respiratory Failure


Respiratory muscle dysfunction

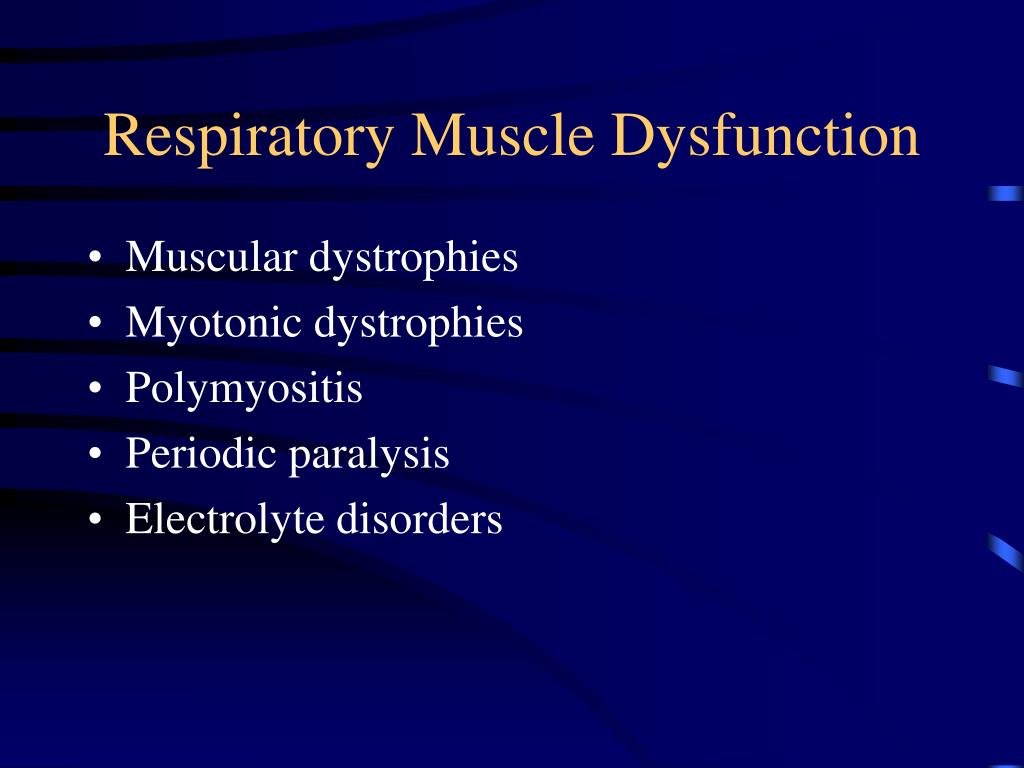

Respiratory Muscle Dysfunction

  • Muscular dystrophies

  • Myotonic dystrophies

  • Polymyositis

  • Periodic paralysis

  • Electrolyte disorders


Chest wall and pleural disorders

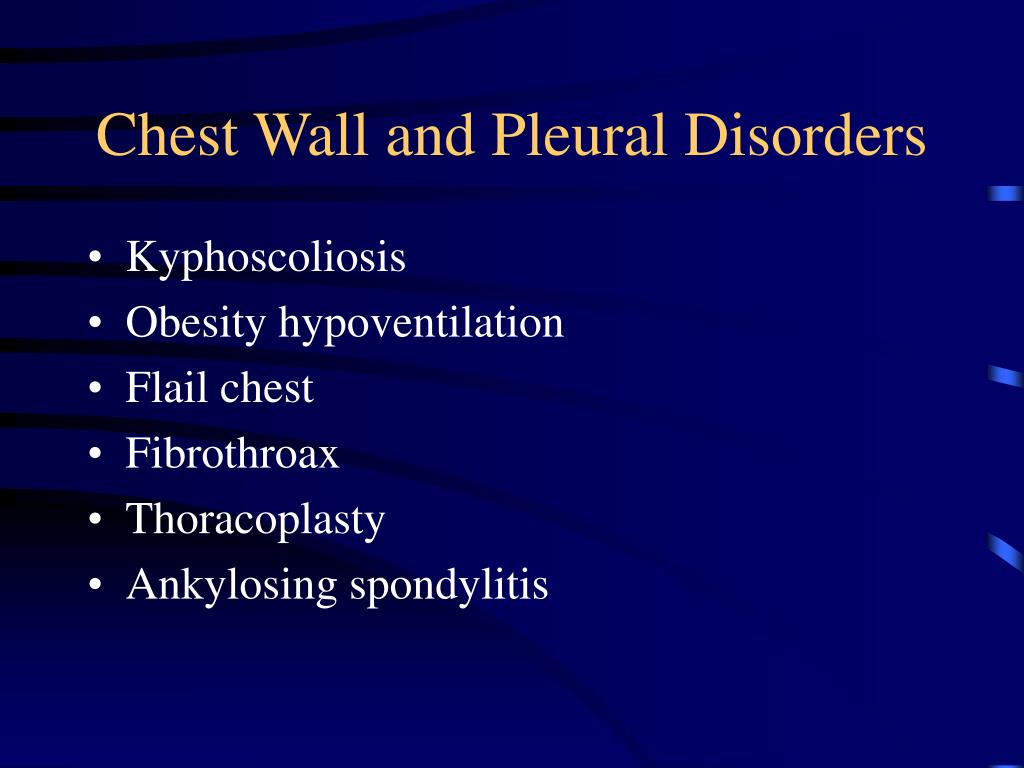

Chest Wall and Pleural Disorders

  • Kyphoscoliosis

  • Obesity hypoventilation

  • Flail chest

  • Fibrothroax

  • Thoracoplasty

  • Ankylosing spondylitis

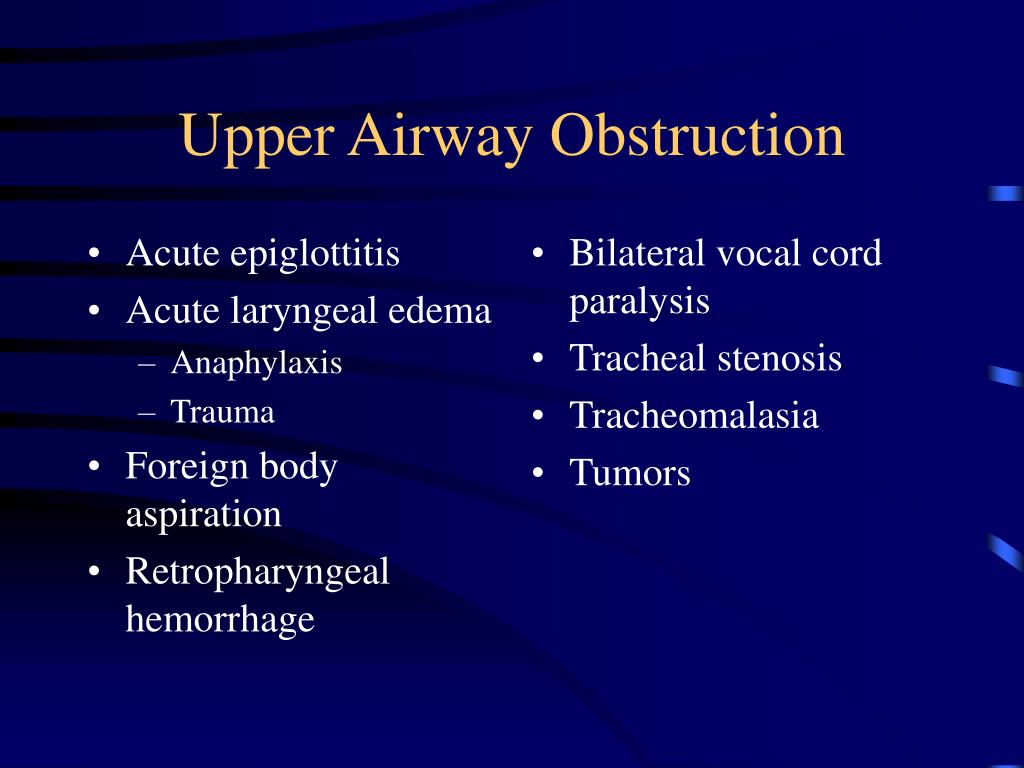

Upper airway obstruction

Acute epiglottitis

Acute laryngeal edema

Anaphylaxis

Trauma

Foreign body aspiration

Retropharyngeal hemorrhage

Bilateral vocal cord paralysis

Tracheal stenosis

Tracheomalasia

Tumors

Upper Airway Obstruction

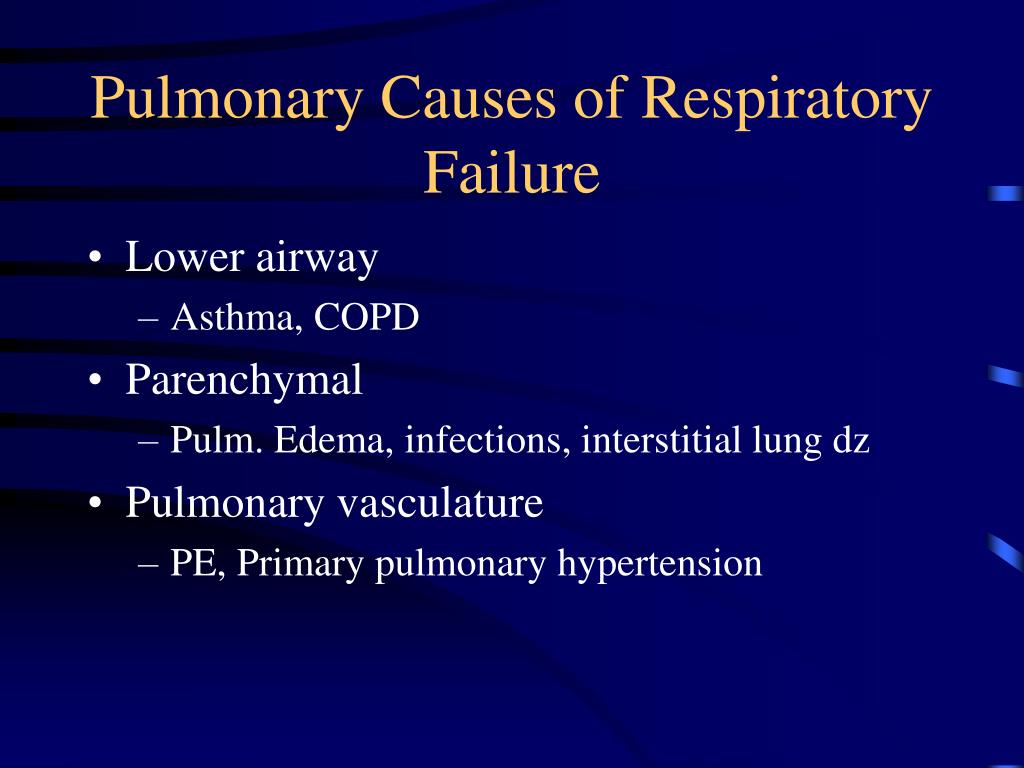

Pulmonary causes of respiratory failure

Pulmonary Causes of Respiratory Failure

  • Lower airway

    • Asthma, COPD

  • Parenchymal

    • Pulm. Edema, infections, interstitial lung dz

  • Pulmonary vasculature

    • PE, Primary pulmonary hypertension

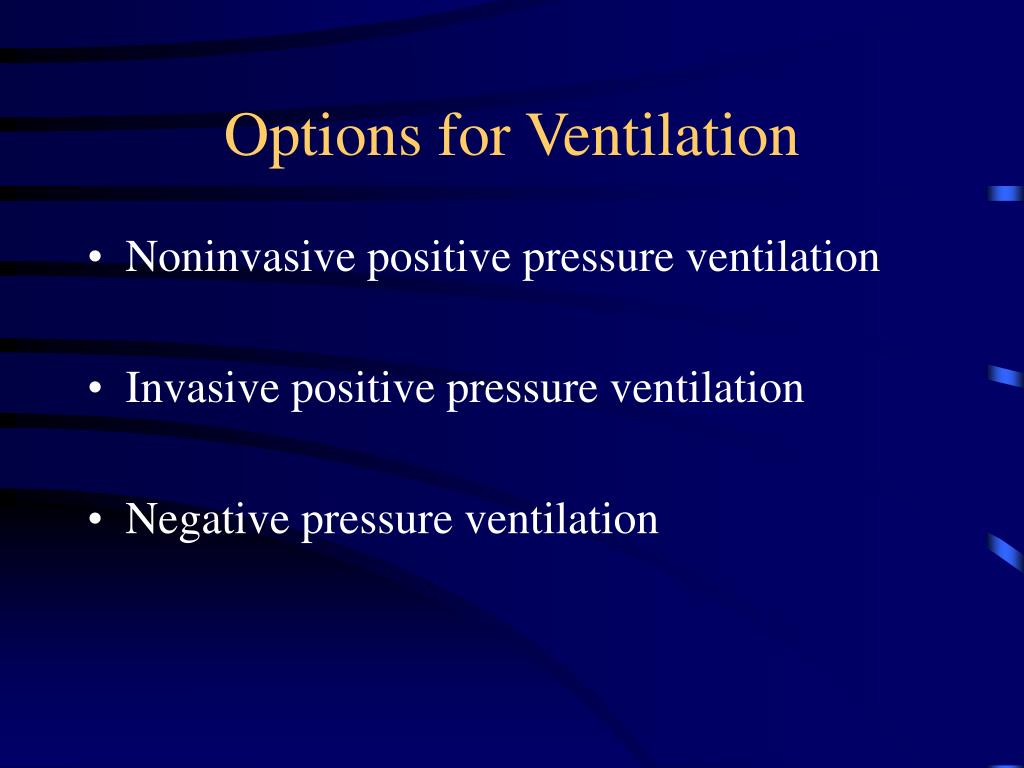

Options for ventilation

Options for Ventilation

  • Noninvasive positive pressure ventilation

  • Invasive positive pressure ventilation

  • Negative pressure ventilation


Noninvasive positive pressure ventilation

Noninvasive Positive Pressure Ventilation

  • Continuous positive airway pressure

    • Hypoxemia

    • Functional airway obstruction

  • Bilevel positive airway pressure

    • Hypercarbia

    • COPD

    • Neuromuscular or chest wall disorders

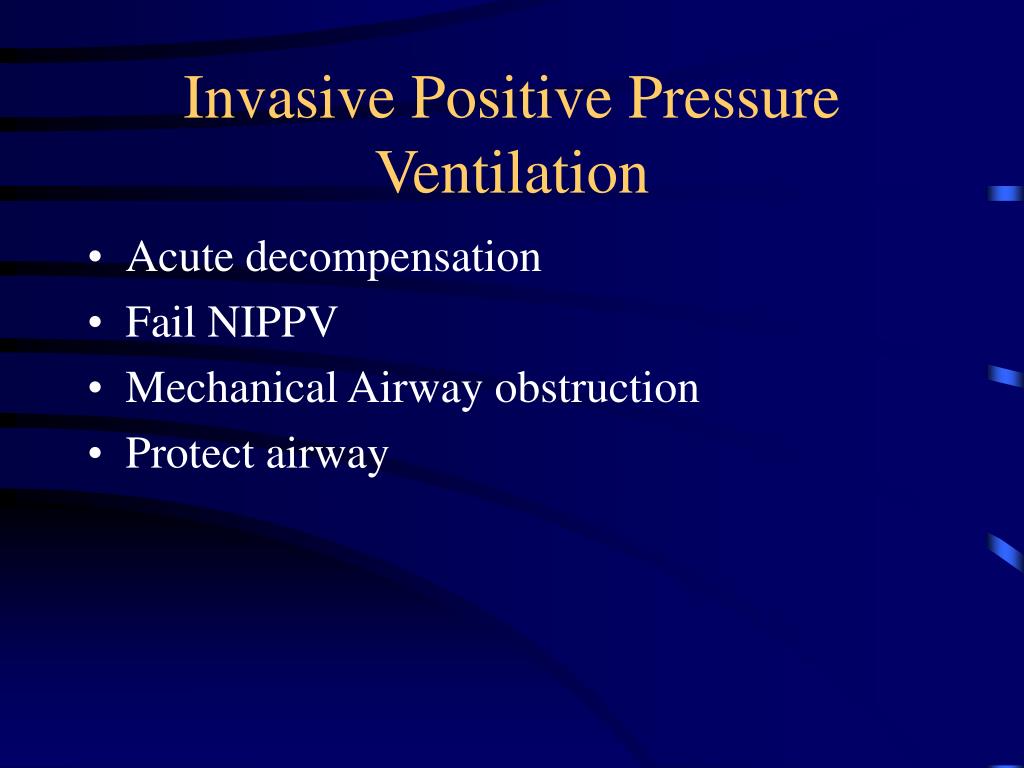

Invasive positive pressure ventilation

Invasive Positive Pressure Ventilation

  • Acute decompensation

  • Fail NIPPV

  • Mechanical Airway obstruction

  • Protect airway


Negative pressure ventilation

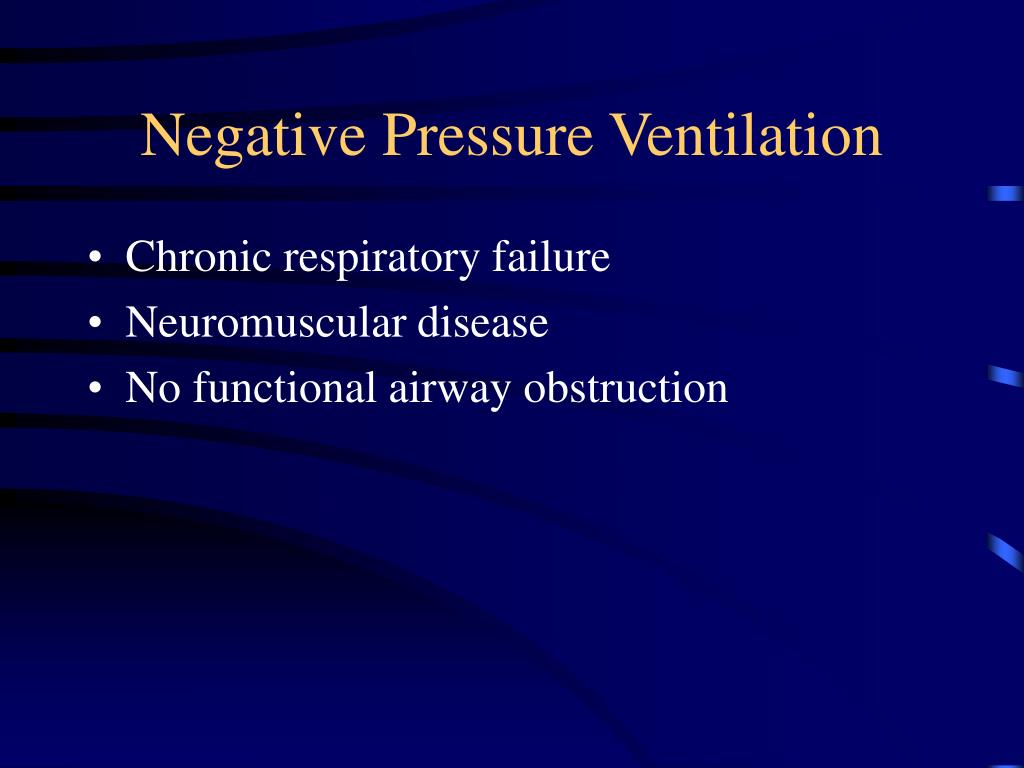

Negative Pressure Ventilation

  • Chronic respiratory failure

  • Neuromuscular disease

  • No functional airway obstruction

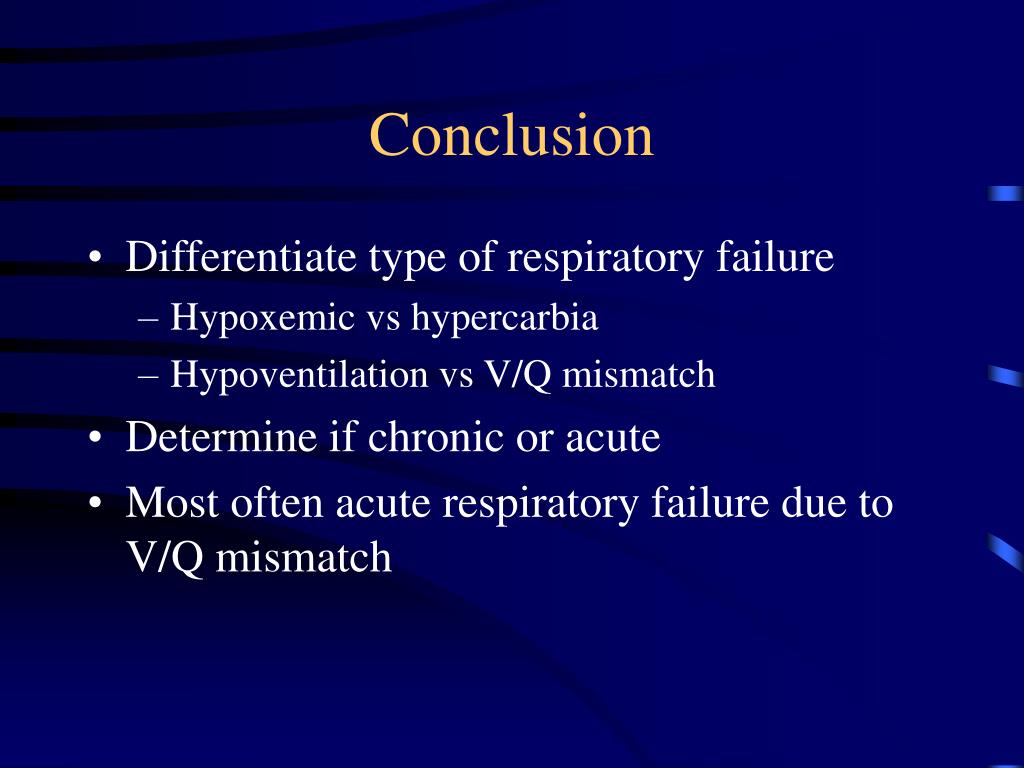

Conclusion

Conclusion

  • Differentiate type of respiratory failure

    • Hypoxemic vs hypercarbia

    • Hypoventilation vs V/Q mismatch

  • Determine if chronic or acute

  • Most often acute respiratory failure due to V/Q mismatch
