Celda primitiva= Celda convencional. SISTEMA CUBICO. Cubica Simple. FCC. BCC. ESTRUCTURAS COMPACTAS. FCC. HCP. F.E=0.74. ESTRUCTURA DIAMANTE. Red FCC + base de 2 atomos C Base: (0,0,0) ; ( ¼, ¼, ¼) (2 FCC desplazadas por ( ¼, ¼, ¼)). Cristales: diamante, Si, Ge, Sn,

shiri
Download Presentation

SISTEMA CUBICO

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Celda primitiva= Celda convencional SISTEMA CUBICO Cubica Simple.

  2. FCC

  3. BCC

  4. ESTRUCTURAS COMPACTAS FCC HCP F.E=0.74

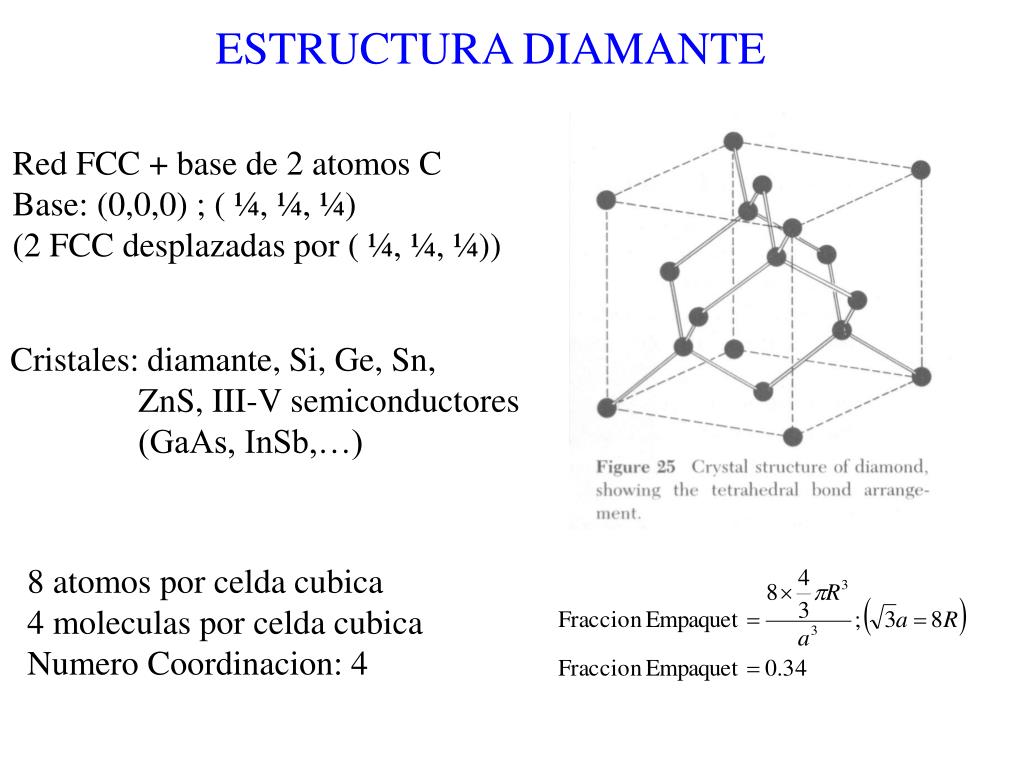

  5. ESTRUCTURA DIAMANTE Red FCC + base de 2 atomos C Base: (0,0,0) ; ( ¼, ¼, ¼) (2 FCC desplazadas por ( ¼, ¼, ¼)) Cristales: diamante, Si, Ge, Sn, ZnS, III-V semiconductores (GaAs, InSb,…) 8 atomos por celda cubica 4 moleculas por celda cubica Numero Coordinacion: 4
