  1. Purify – A tool to detect memory leaks and corruption Presented By: Keyur Malaviya

  2. Topics covered • Why Purify? • What it can do? • Features and benefits • Purify vs Static Analysis • Rational Purify for Windows • How does it work? • Type of Memory Errors • Technique • Source for this software • Support and issues • DEMO

  3. The Necessity PURIFY TOOL • Application behaviour: • Crashes intermittently • Uses too much memory • Runs too slowly • Isn’t well tested • Is about to ship • You need something • See what your code is really doing • Help spend less time finding bugs • Develop fast, reliable code

  4. PURIFY? • What is it? • What it can do for me? • How does it work? • How do I get it?

  5. Software Quality Management • IBM-Rational Products: • A set of runtime analysis tools • Increase code quality • Purify • Detecting Runtime Errors • Automatically pinpoints hard-to-find bugs • Profiling .NET Managed Code (Memory Profiling) • Quantify • Application profiler • Highlights performance bottlenecks • PureCoverage • Source code coverage analysis • Helps avoid shipping untested code

  6. Features and benefits • Who can use it? • For everybody • Unix, Windows, C, C++, Java, .NET • Developers and testers • Source Code required? • Monitors components with no source code • Interesting Features: • Rich command line interface and batch mode for automation • Integrations with Rational Robot, Rational ClearQuest, Rational ClearCase, and Microsoft Visual Studio.NET Current Version: PurifyPlus

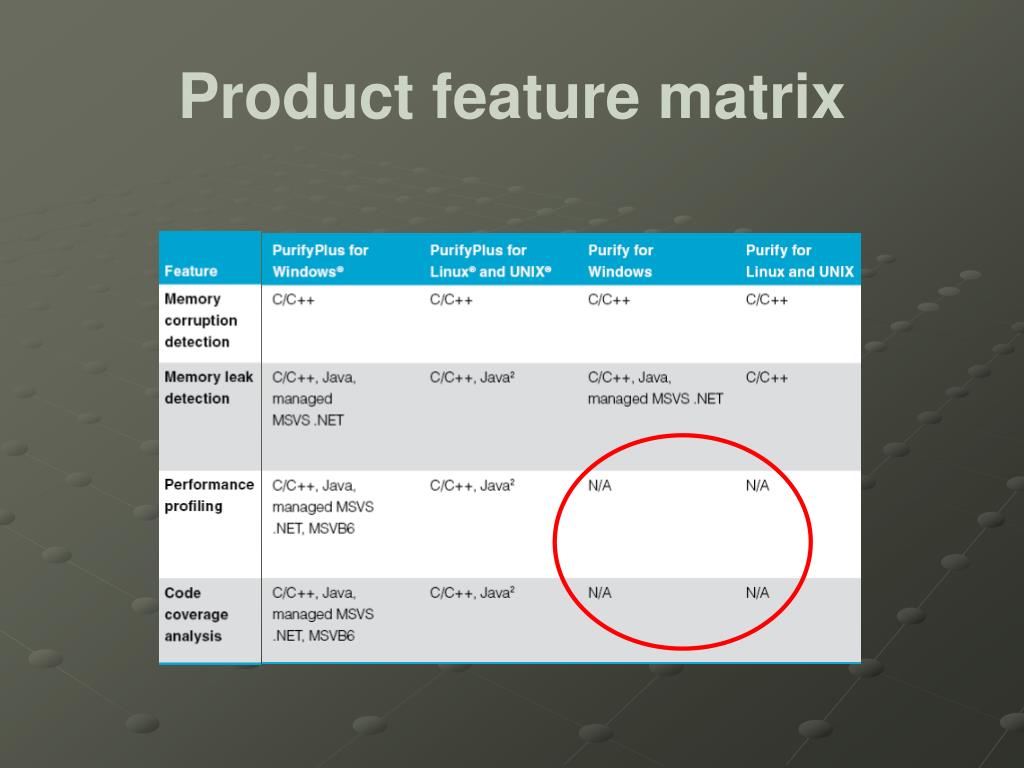

  7. Product feature matrix

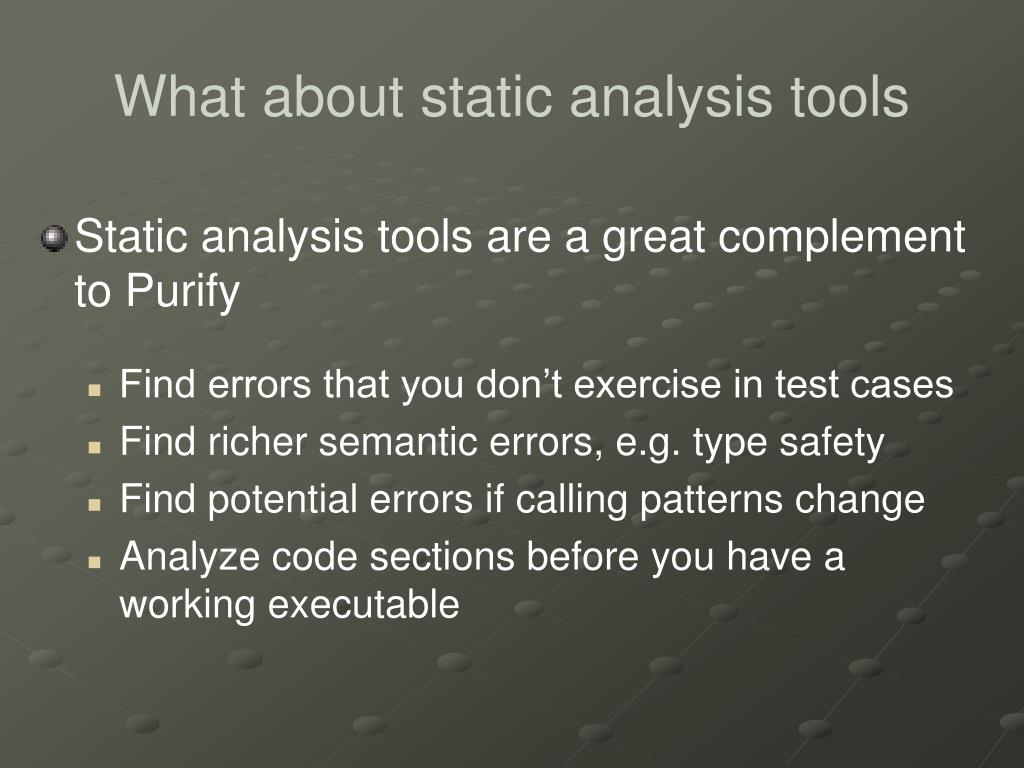

  8. What about static analysis tools • Static analysis tools are a great complement to Purify • Find errors that you don’t exercise in test cases • Find richer semantic errors, e.g. type safety • Find potential errors if calling patterns change • Analyze code sections before you have a working executable

  9. What about static analysis tools • Static analysis tools have limitations • Only find errors in the code you have source for • Not in libraries that you pass bad data too or that are buggy • Can miss errors whose cause & effect are distant in time & space • Or bury you in “possible” errors • Can take a long time to run

  10. Rational Purify for Windows • Java™, Visual C++ and all VS.NET managed languages (including C# and VB.NET) • Checks every component in your program • complex multi-threaded, multi-process applications • . DLL's, third party DLL's, Windows . DLL's • Microsoft Foundation Class Library and . DLL's • Visual C/C++ components embedded within Visual Basic • Applications, Internet Explorer, or any • Microsoft Office application • Microsoft Excel and Microsoft Word plug-ins • COM-enabled applications using OLE and ActiveX controls

  11. Requirements for Windows platform • Compilers: Microsoft Visual C++ 6.0, Microsoft Visual C++ .NET • Interpreters: Microsoft virtual machine for Java. Msjava.dll version >= 2828. Sun JVM 1.2.2 and higher. For Pentium 4 JDK 1.2.2, build 007 is required • Debuggers: Visual C++, WinDBG, NTSD • Debug formats:COFF, CV4 • Debug files:Debug data can be placed in .exe, .pdb, or .dbg files. Can also use .map files, if available

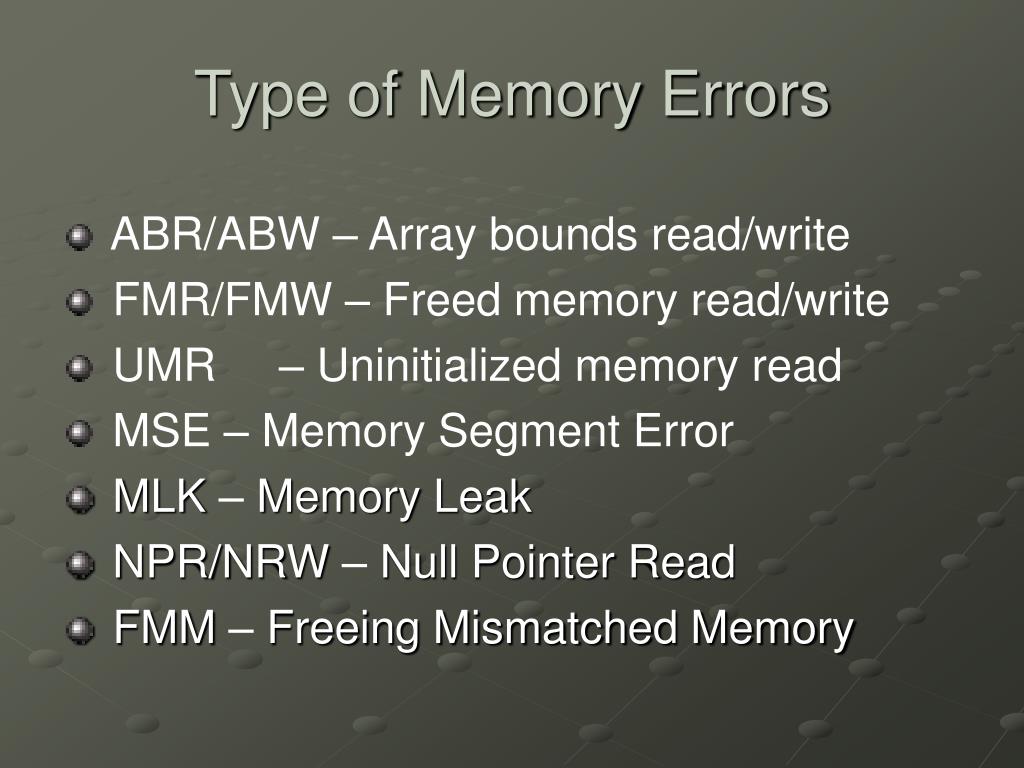

  12. Type of Memory Errors • ABR/ABW – Array bounds read/write • FMR/FMW – Freed memory read/write • UMR – Uninitialized memory read • MSE – Memory Segment Error • MLK – Memory Leak • NPR/NRW – Null Pointer Read • FMM – Freeing Mismatched Memory

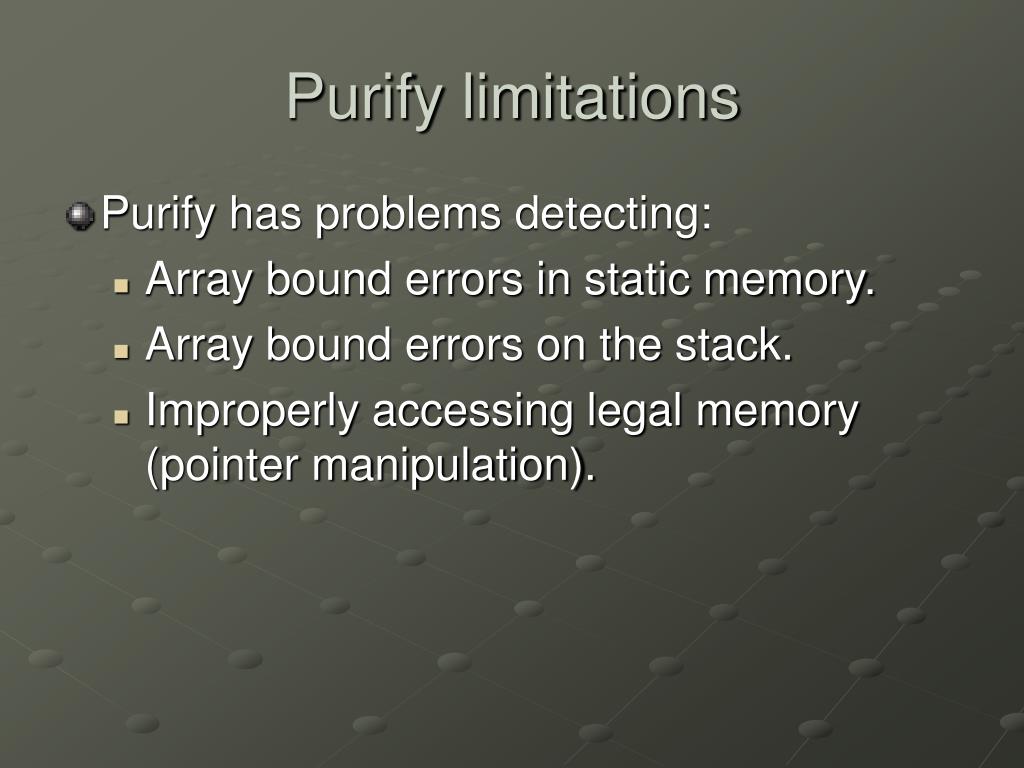

  13. Purify limitations • Purify has problems detecting: • Array bound errors in static memory. • Array bound errors on the stack. • Improperly accessing legal memory (pointer manipulation).

  14. How does it work? • Take your compiled application apart • Find interesting places to insert probes • Put your application back together again • Run it and play • Detecting memory leaks • GC-like algorithm Maintain list of all allocated blocks in all heaps And call chain of allocator • On demand, scan memory for all in-scope pointers • Starting from anchors –stack, statics, registers • Any block not pointed to is “leaked”(MLK/PLK) All other blocks are “memory in use”(MIU)

  15. Technique • Track state of each byte in process address space -Red = logically unallocated to app -Yellow = allocated (malloc/new) but not written to yet (uninitialized) -Green = allocated and initialized • Add red guard zone to the ends of allocated blocks -To catch buffer overrun errors • Monitor every read and write instruction

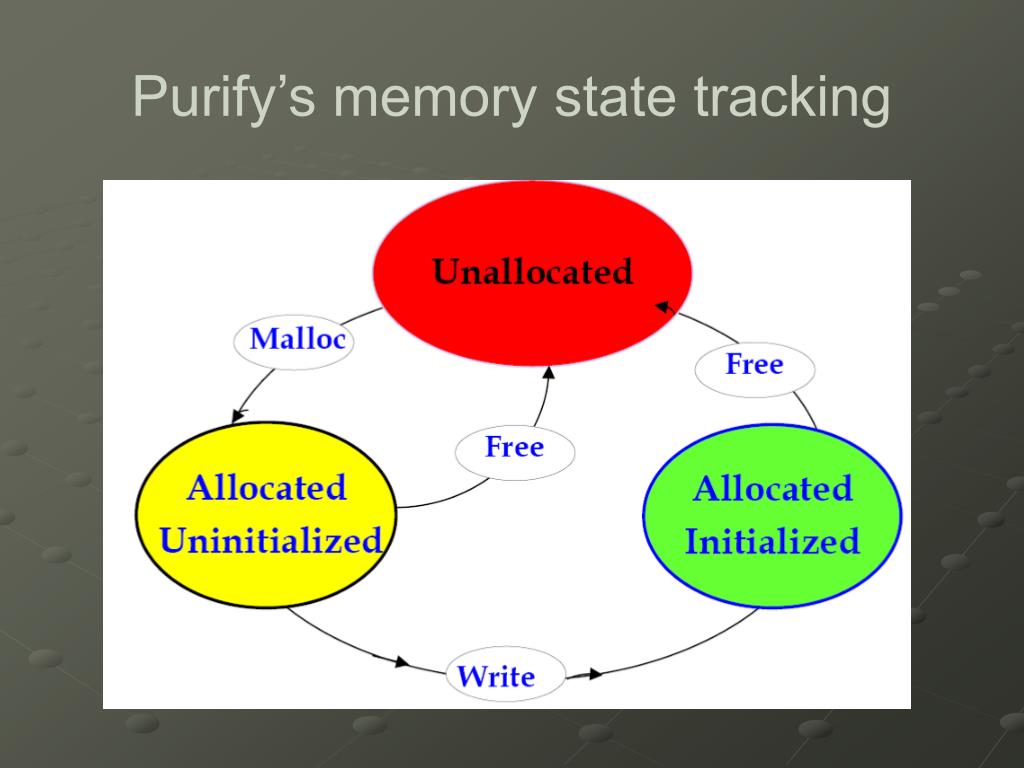

  16. Purify’s memory state tracking

  17. Purify’s array bounds detection • Inserts guard zones around each block allocated. (Guard zones are colored red. A read or write to red memory triggers an array bounds violation) A read of yellow memory triggers ??? Uninitialized Read Violation

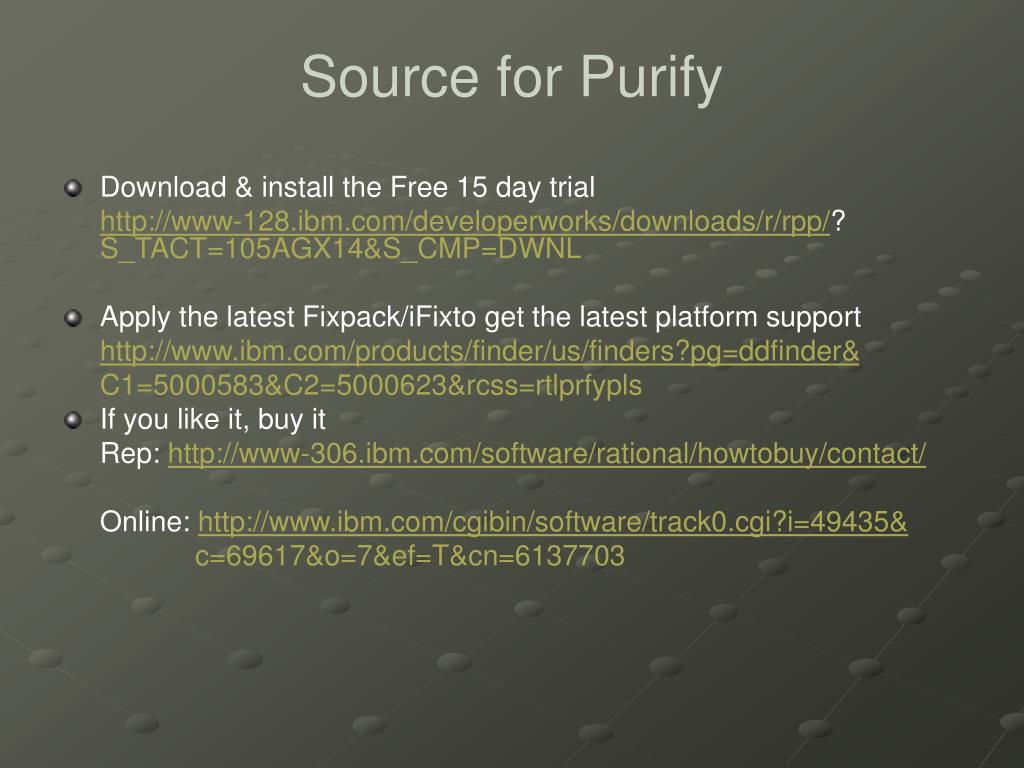

  18. Source for Purify • Download & install the Free 15 day trial http://www-128.ibm.com/developerworks/downloads/r/rpp/? S_TACT=105AGX14&S_CMP=DWNL • Apply the latest Fixpack/iFixto get the latest platform support http://www.ibm.com/products/finder/us/finders?pg=ddfinder& C1=5000583&C2=5000623&rcss=rtlprfypls • If you like it, buy it Rep: http://www-306.ibm.com/software/rational/howtobuy/contact/ Online: http://www.ibm.com/cgibin/software/track0.cgi?i=49435& c=69617&o=7&ef=T&cn=6137703

  19. Any Issues? • Yes! Many issues exists • Technical Support website • Online documentation and articles available to address such issues • developerWorks has several how-to articles and a Q&A Forum http://www128.ibm.com/developerworks/rational /products/purify • Web-based training course DEV205 http://www128.ibm.com/developerworks/rational/ library/4181.html

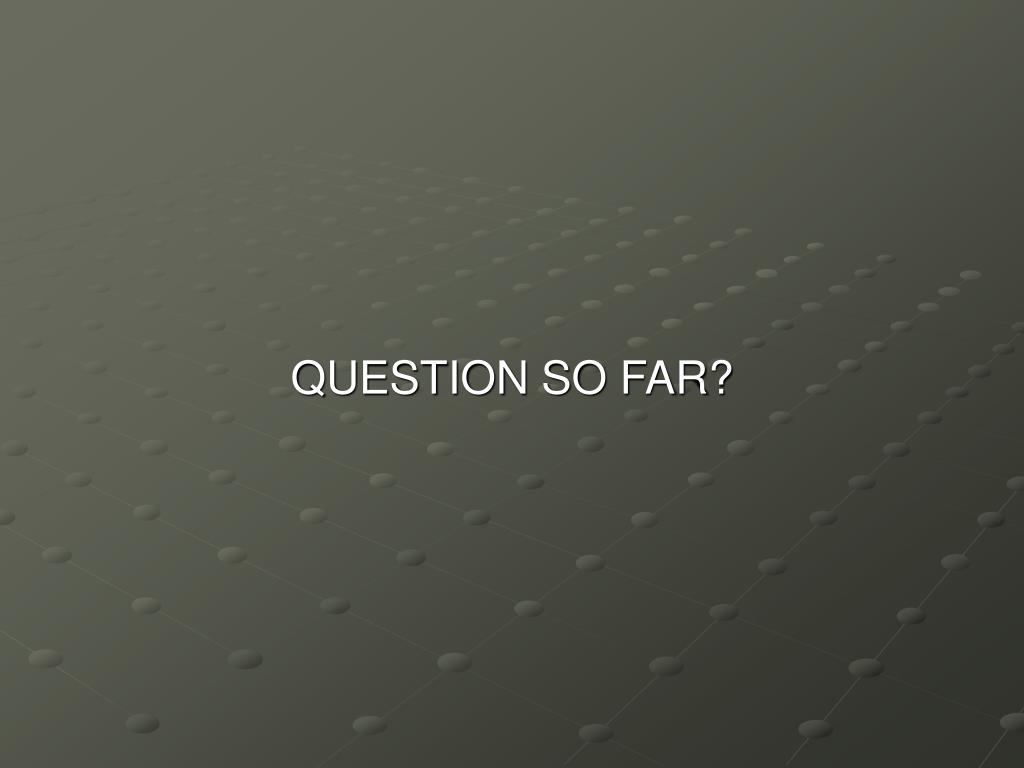

  20. QUESTION SO FAR?

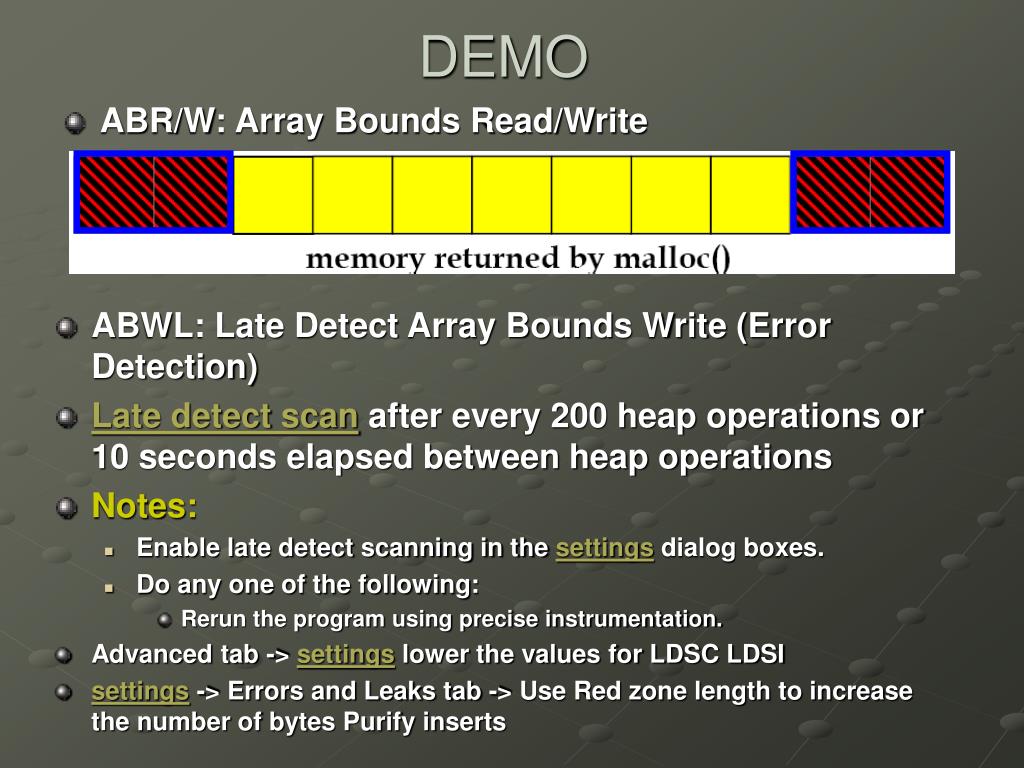

  21. DEMO • ABR/W: Array Bounds Read/Write • ABWL: Late Detect Array Bounds Write (Error Detection) • Late detect scanafter every 200 heap operations or 10 seconds elapsed between heap operations • Notes: • Enable late detect scanning in the settings dialog boxes. • Do any one of the following: • Rerun the program using precise instrumentation. • Advanced tab -> settings lower the values for LDSC LDSI • settings -> Errors and Leaks tab -> Use Red zone length to increase the number of bytes Purify inserts

  22. BOX: MessageBox • Normally hidden by error filters. • Filter Manager ->View ->Global Filters • Purify Default Filters group and deselect the BOXfilter • BSR: Beyond stack read/write int* values() { int array[100]; … return array; } void caller() { int* arrPointer; arrPointer = values(); // arrPointer??? }

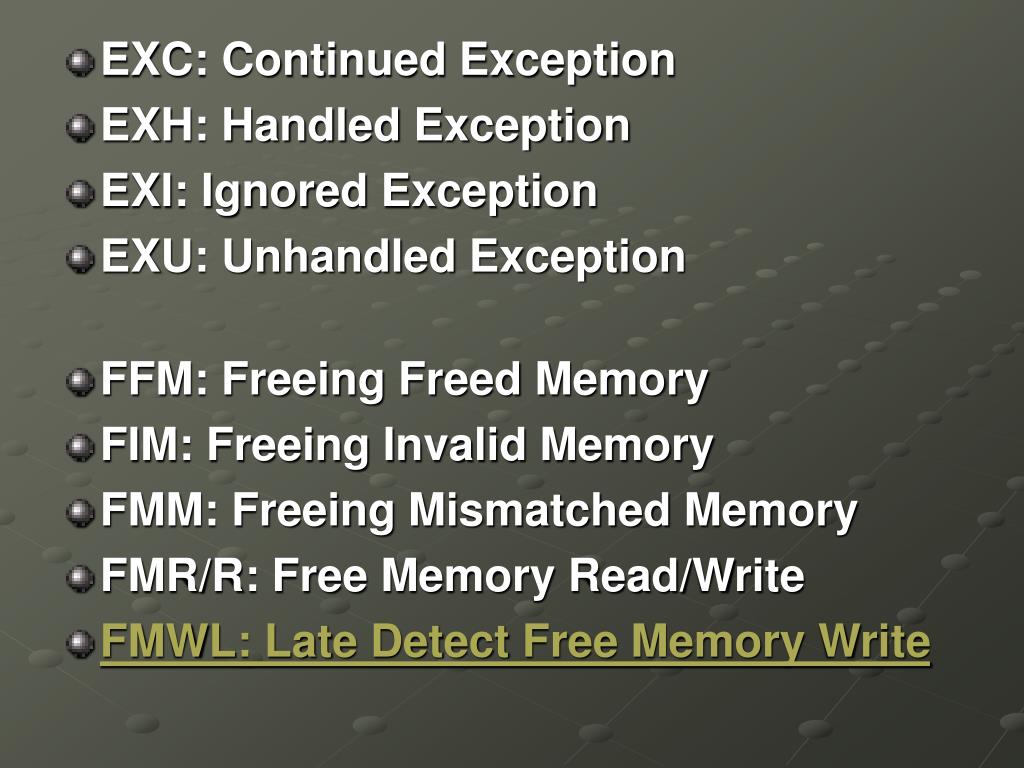

  23. EXC: Continued Exception • EXH: Handled Exception • EXI: Ignored Exception • EXU: Unhandled Exception • FFM: Freeing Freed Memory • FIM: Freeing Invalid Memory • FMM: Freeing Mismatched Memory • FMR/R: Free Memory Read/Write • FMWL: Late Detect Free Memory Write

  24. HAN: Invalid Handle • Instead of proper expected handle the value specified is not an active handle, or of the wrong type • Filter Manager ->View ->Global Filters • Purify Default Filters group and deselect the HAN filter • PAR: Bad Parameter
