SUBPROGRAMAS

SUBPROGRAMAS. PROCEDIMENTOS. procedure average_samples is variable total : real := 0.0; begin assert samples'length > 0 severity failure; for index in samples'range loop total := total + samples(index); end loop; average := total / real(samples'length);

shima
Download Presentation

SUBPROGRAMAS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. SUBPROGRAMAS • PROCEDIMENTOS procedure average_samples is variable total : real := 0.0; begin assert samples'length > 0 severity failure; for index in samples'range loop total := total + samples(index); end loop; average := total / real(samples'length); end procedure average_samples; Declarações comandos seqüenciais

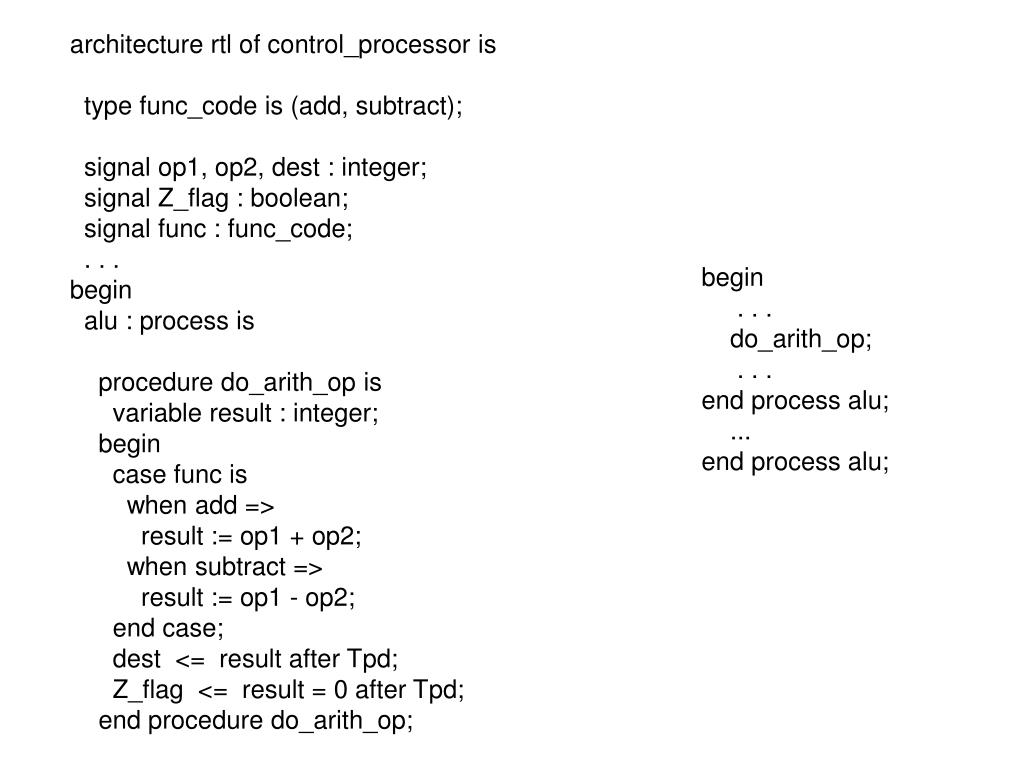

  2. architecture rtl of control_processor is type func_code is (add, subtract); signal op1, op2, dest : integer; signal Z_flag : boolean; signal func : func_code; . . . begin alu : process is procedure do_arith_op is variable result : integer; begin case func is when add => result := op1 + op2; when subtract => result := op1 - op2; end case; dest <= result after Tpd; Z_flag <= result = 0 after Tpd; end procedure do_arith_op; begin . . . do_arith_op; . . . end process alu; ... end process alu;

  3. instruction_interpreter : process is variable mem_address_reg, mem_data_reg, prog_counter, instr_reg, accumulator, index_reg : word; . . . procedure read_memory is begin address_bus <= mem_address_reg; mem_read <= '1'; mem_request <= '1'; wait until mem_ready = '1'; mem_data_reg := data_bus_in; mem_request <= '0'; wait until mem_ready = '0'; end procedure read_memory;

  4. begin . . . -- initialization loop -- fetch next instruction mem_address_reg := prog_counter; read_memory; -- call procedure instr_reg := mem_data_reg; -- . . . case opcode is -- . . . when load_mem => mem_address_reg := index_reg + displacement; read_memory; -- call procedure accumulator := mem_data_reg; -- . . . end case; end loop; end process instruction_interpreter;

  5. control_sequencer : process is procedure control_write_back is begin wait until phase1 = '1'; reg_file_write_en <= '1'; wait until phase2 = '0'; reg_file_write_en <= '0'; end procedure control_write_back; procedure control_arith_op is begin wait until phase1 = '1'; A_reg_out_en <= '1'; B_reg_out_en <= '1'; wait until phase1 = '0'; A_reg_out_en <= '0'; B_reg_out_en <= '0'; wait until phase2 = '1'; C_reg_load_en <= '1'; wait until phase2 = '0'; C_reg_load_en <= '0'; control_write_back; -- call procedure end procedure control_arith_op;

  6. RETURN instruction_interpreter : process is . . . procedure read_memory is begin address_bus <= mem_address_reg; mem_read <= '1'; mem_request <= '1'; wait until mem_ready = '1' or reset = '1'; if reset = '1' then return; end if; mem_data_reg := data_bus_in; mem_request <= '0'; wait until mem_ready = '0'; end procedure read_memory; begin . . . -- initialization loop . . . read_memory; exit when reset = '1'; . . . end loop; end process instruction_interpreter;

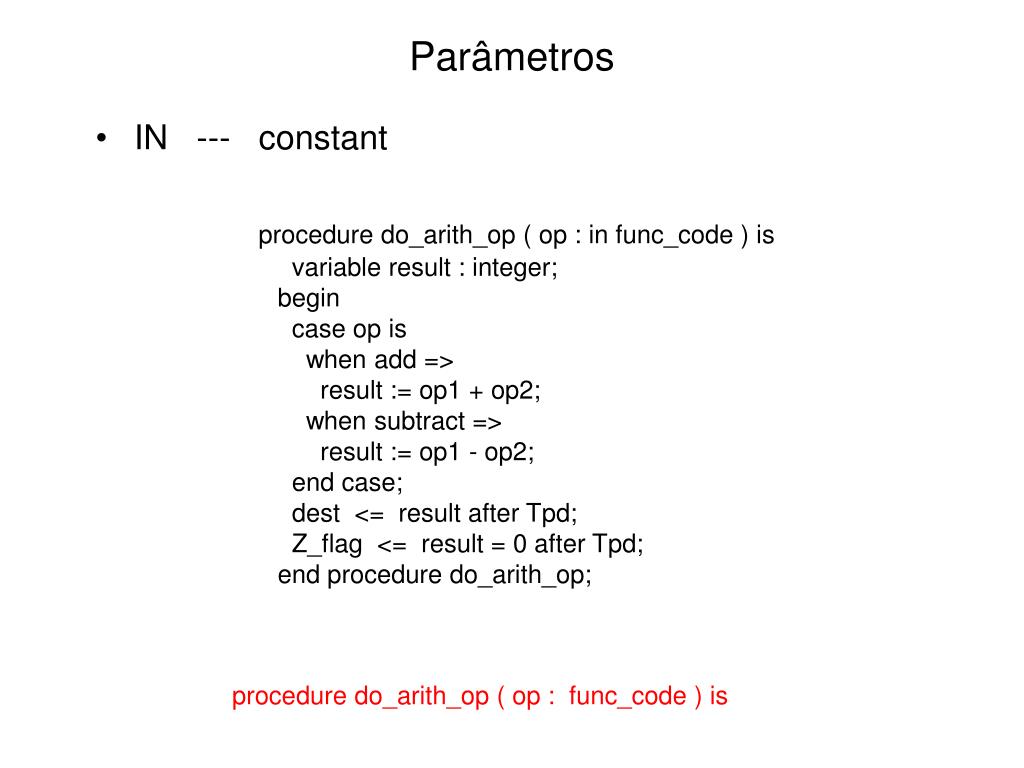

  7. Parâmetros • IN --- constant procedure do_arith_op ( op : in func_code ) is variable result : integer; begin case op is when add => result := op1 + op2; when subtract => result := op1 - op2; end case; dest <= result after Tpd; Z_flag <= result = 0 after Tpd; end procedure do_arith_op; procedure do_arith_op ( op : func_code ) is

  8. OUT --- Variable procedure addu ( a, b : in word32; result : out word32; overflow : out boolean ) is variable sum : word32; variable carry : bit := '0'; begin for index in sum'reverse_range loop sum(index) := a(index) xor b(index) xor carry; carry := ( a(index) and b(index) ) or ( carry and ( a(index) xor b(index) ) ); end loop; result := sum; overflow := carry = '1'; end procedure addu; variable PC, next_PC : word32; variable overflow_flag : boolean; ... begin PC := X"0000_0010"; addu ( PC, X"0000_0004", next_PC, overflow_flag);

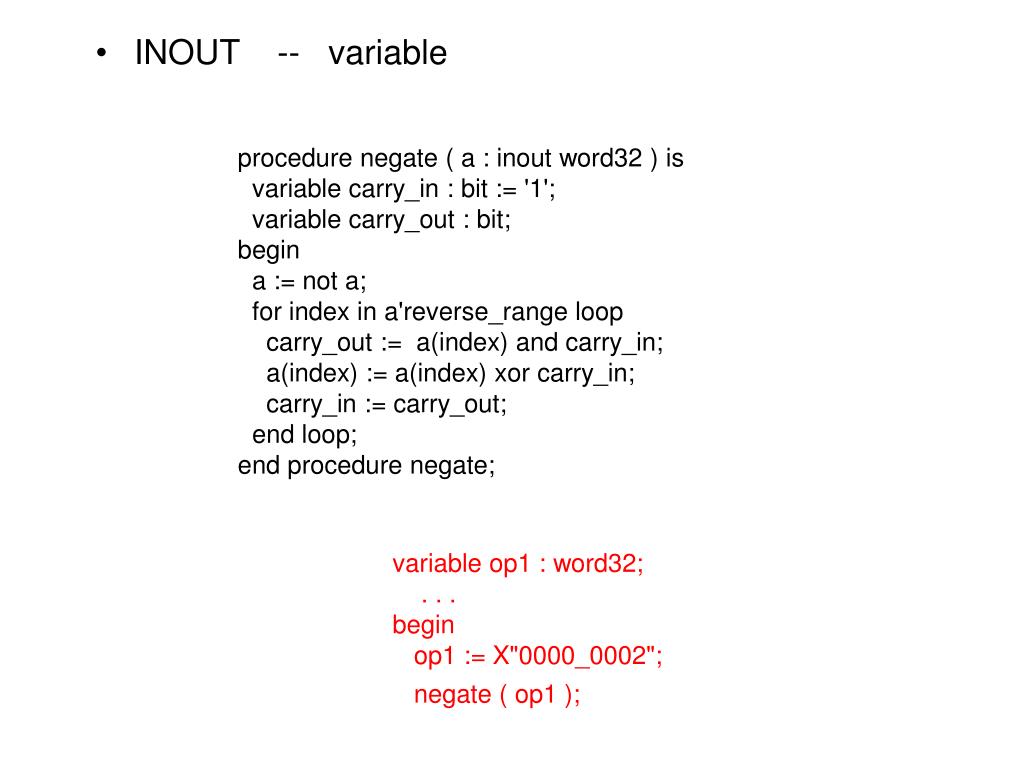

  9. INOUT -- variable procedure negate ( a : inout word32 ) is variable carry_in : bit := '1'; variable carry_out : bit; begin a := not a; for index in a'reverse_range loop carry_out := a(index) and carry_in; a(index) := a(index) xor carry_in; carry_in := carry_out; end loop; end procedure negate; variable op1 : word32; . . . begin op1 := X"0000_0002"; negate ( op1 );

  10. architecture behavioral of receiver is . . . -- type declarations, etc signal recovered_data : bit; signal recovered_clock : bit; . . . procedure receive_packet ( signal rx_data : in bit; signal rx_clock : in bit; data_buffer : out packet_array ) is begin for index in packet_index_range loop wait until rx_clock = '1'; data_buffer(index) := rx_data; end loop; end procedure receive_packet; begin packet_assembler : process is variable packet : packet_array; begin . . . receive_packet ( recovered_data, recovered_clock, packet ); . . . end process packet_assembler; . . . end architecture behavioral; • SIGNAL -- in out inout

  11. library ieee; use ieee.std_logic_1164.all; architecture top_level of signal_generator is signal raw_signal : std_ulogic; . . . procedure generate_pulse_train ( width, separation : in delay_length; number : in natural; signal s : out std_ulogic ) is begin for count in 1 to number loop s <= '1', '0' after width; wait for width + separation; end loop; end procedure generate_pulse_train; begin raw_signal_generator : process is begin . . . generate_pulse_train ( width => period / 2, separation => period - period / 2, number => pulse_count, s => raw_signal ); . . . end process raw_signal_generator; . . . end architecture top_level;

  12. subtype word32 is bit_vector(31 downto 0); procedure increment ( a : inout word32; by : in word32 := X"0000_0001" ) is variable sum : word32; variable carry : bit := '0'; begin for index in a'reverse_range loop sum(index) := a(index) xor by(index) xor carry; carry := ( a(index) and by(index) ) or ( carry and ( a(index) xor by(index) ) ); end loop; a := sum; end procedure increment; • Valores default increment(count, X"0000_0004"); increment(count); increment(count, by => open);

  13. procedure find_first_set ( v : in bit_vector; found : out boolean; first_set_index : out natural ) is begin for index in v'range loop if v(index) = '1' then found := true; first_set_index := index; return; end if; end loop; found := false; end procedure find_first_set; variable int_req : bit_vector (7 downto 0); variable top_priority : natural; variable int_pending : boolean; find_first_set ( int_req, int_pending, top_priority ); constant block_count : natural := 16; variable free_block_map : bit_vector(0 to block_count-1); variable first_free_block : natural; variable free_block_found : boolean; find_first_set ( free_block_map, free_block_found, first_free_block );

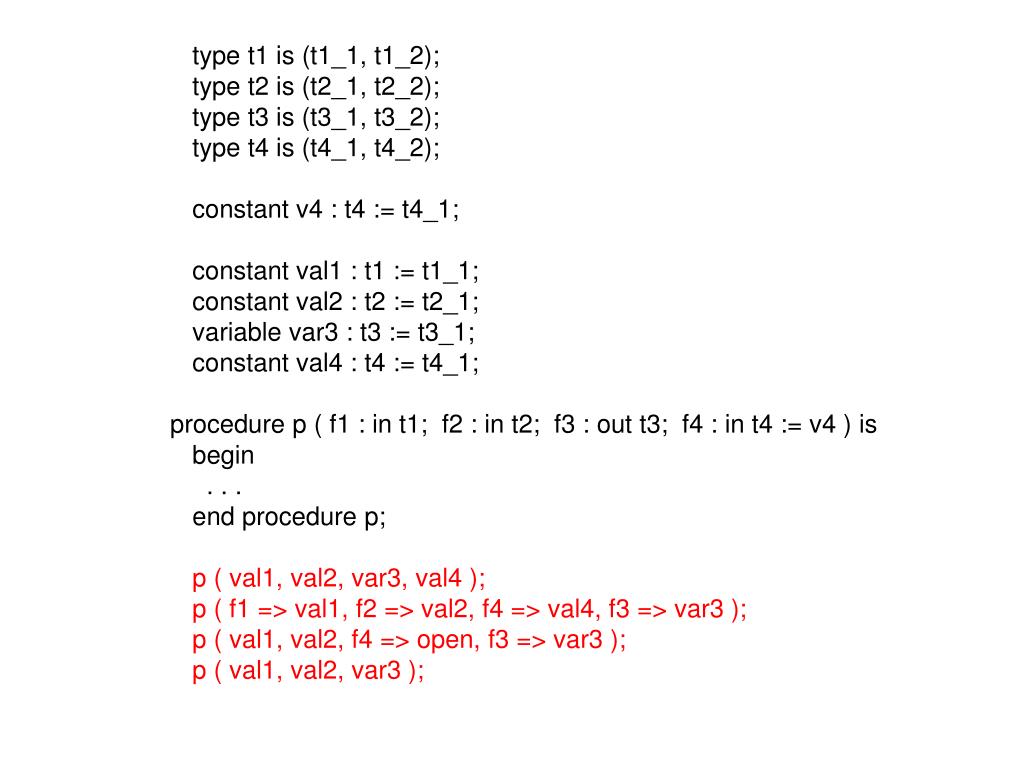

  14. type t1 is (t1_1, t1_2); type t2 is (t2_1, t2_2); type t3 is (t3_1, t3_2); type t4 is (t4_1, t4_2); constant v4 : t4 := t4_1; constant val1 : t1 := t1_1; constant val2 : t2 := t2_1; variable var3 : t3 := t3_1; constant val4 : t4 := t4_1; procedure p ( f1 : in t1; f2 : in t2; f3 : out t3; f4 : in t4 := v4 ) is begin . . . end procedure p; p ( val1, val2, var3, val4 ); p ( f1 => val1, f2 => val2, f4 => val4, f3 => var3 ); p ( val1, val2, f4 => open, f3 => var3 ); p ( val1, val2, var3 );

  15. Chamada de procedimento concorrente procedure p ( signal s1, s2 : in bit; val1 : in integer ) is begin null; end procedure p; call_proc : process is begin p ( s1, s2, val1 ); wait on s1, s2; end process call_proc; call_proc : p ( s1, s2, val1 );

  16. Funções function limit ( value, min, max : integer ) return integer is begin if value > max then return max; elsif value < min then return min; else return value; end if; end function limit; new_temperature := limit ( current_temperature + increment, 10, 100 ); new_motor_speed := old_motor_speed + scale_factor * limit ( error, -10, +10 );

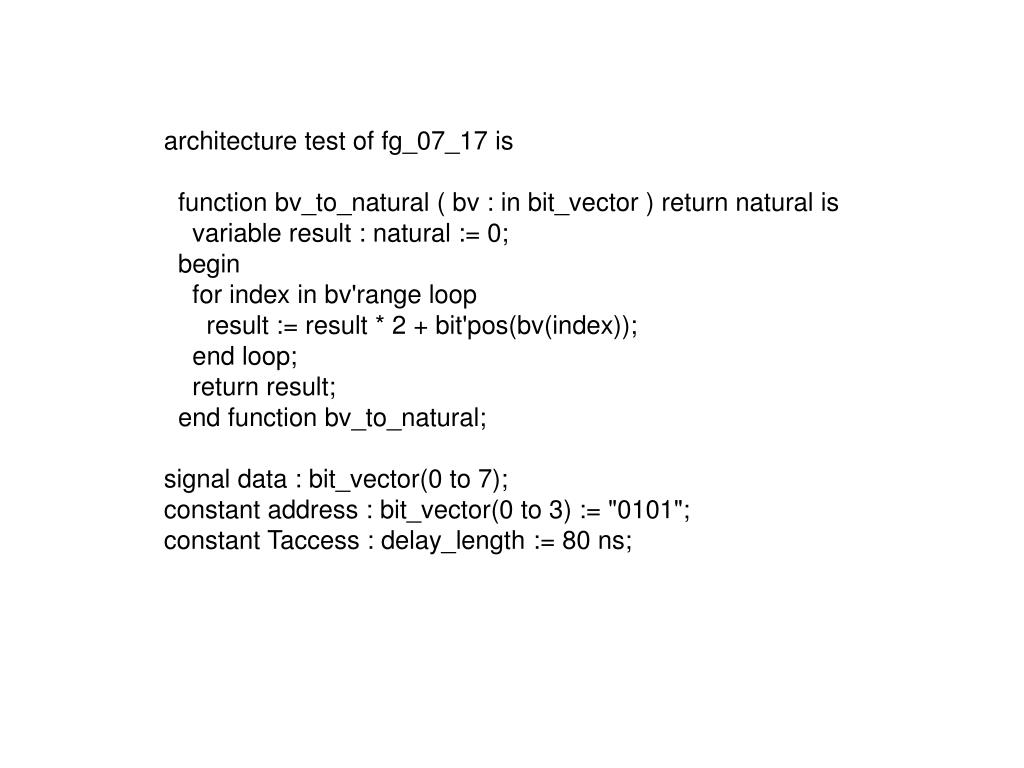

  17. architecture test of fg_07_17 is function bv_to_natural ( bv : in bit_vector ) return natural is variable result : natural := 0; begin for index in bv'range loop result := result * 2 + bit'pos(bv(index)); end loop; return result; end function bv_to_natural; signal data : bit_vector(0 to 7); constant address : bit_vector(0 to 3) := "0101"; constant Taccess : delay_length := 80 ns;

  18. begin tester : process is constant rom_size : natural := 8; constant word_size : natural := 8; type rom_array is array (natural range 0 to rom_size-1) of bit_vector(0 to word_size-1); variable rom_data : rom_array; begin rom_data := (X"00", X"01", X"02", X"03", X"04", X"05", X"06", X"07"); data <= rom_data ( bv_to_natural(address) ) after Taccess; wait; end process tester; end architecture test;

  19. Funções puras e impuras network_driver : process is constant seq_modulo : natural := 2**5; subtype seq_number is natural range 0 to seq_modulo-1; variable next_seq_number : seq_number := 0; . . . impure function generate_seq_number return seq_number is variable number : seq_number; begin number := next_seq_number; next_seq_number := (next_seq_number + 1) mod seq_modulo; return number; end function generate_seq_number; begin -- network_driver . . . new_header := pkt_header'( dest => target_host_id, src => my_host_id, pkt_type => control_pkt, seq => generate_seq_number ); . . . end process network_driver;

  20. Overloading procedure increment ( a : inout integer; n : in integer := 1 ) is . . .; procedure increment ( a : inout bit_vector; n : in bit_vector := B"1" ) is . . .; procedure increment ( a : inout bit_vector; n : in integer := 1 ) is . . . variable count_int : integer := 2; variable count_bv : bit_vector (15 downto 0) := X"0002"; increment ( count_int, 2 ); increment ( count_int ); increment ( count_bv, X"0002"); increment ( count_bv, 1 ); increment ( count_bv ); -- erro

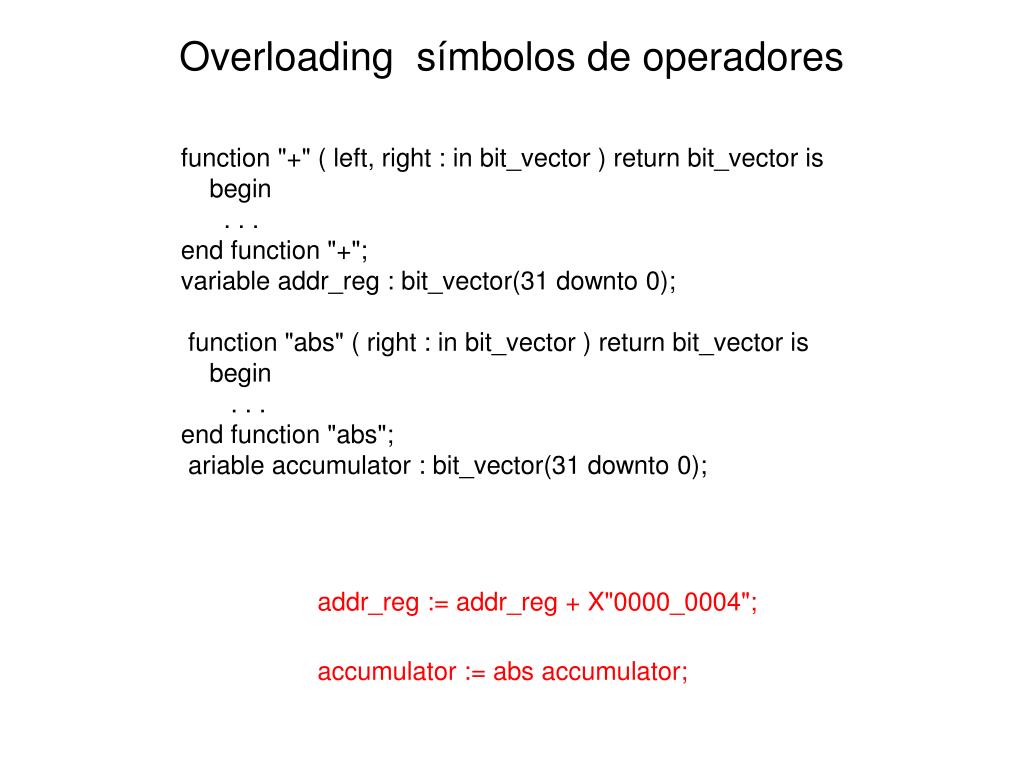

  21. Overloading símbolos de operadores function "+" ( left, right : in bit_vector ) return bit_vector is begin . . . end function "+"; variable addr_reg : bit_vector(31 downto 0); function "abs" ( right : in bit_vector ) return bit_vector is begin . . . end function "abs"; ariable accumulator : bit_vector(31 downto 0); addr_reg := addr_reg + X"0000_0004"; accumulator := abs accumulator;

  22. ALIASES package alu_types is constant data_width : positive := 32; end package alu_types; package io_types is constant data_width : positive := 32; end package io_types; library ieee; use ieee.std_logic_1164.all; use work.alu_types.all, work.io_types.all; architecture structural of controller_system is alias alu_data_width is work.alu_types.data_width; alias io_data_width is work.io_types.data_width; signal alu_in1, alu_in2, alu_result : std_logic_vector(0 to alu_data_width - 1); signal io_data : std_logic_vector(0 to io_data_width - 1);

  23. type register_array is array (0 to 15) of bit_vector(31 downto 0); type register_set is record general_purpose_registers : register_array; program_counter : bit_vector(31 downto 0); program_status : bit_vector(31 downto 0); end record; variable CPU_registers : register_set; alias PSW is CPU_registers.program_status; alias PC is CPU_registers.program_counter; alias GPR is CPU_registers.general_purpose_registers; alias SP : bit_vector(31 downto 0) is CPU_registers.general_purpose_registers(15); alias interrupt_level is PSW(30 downto 26);

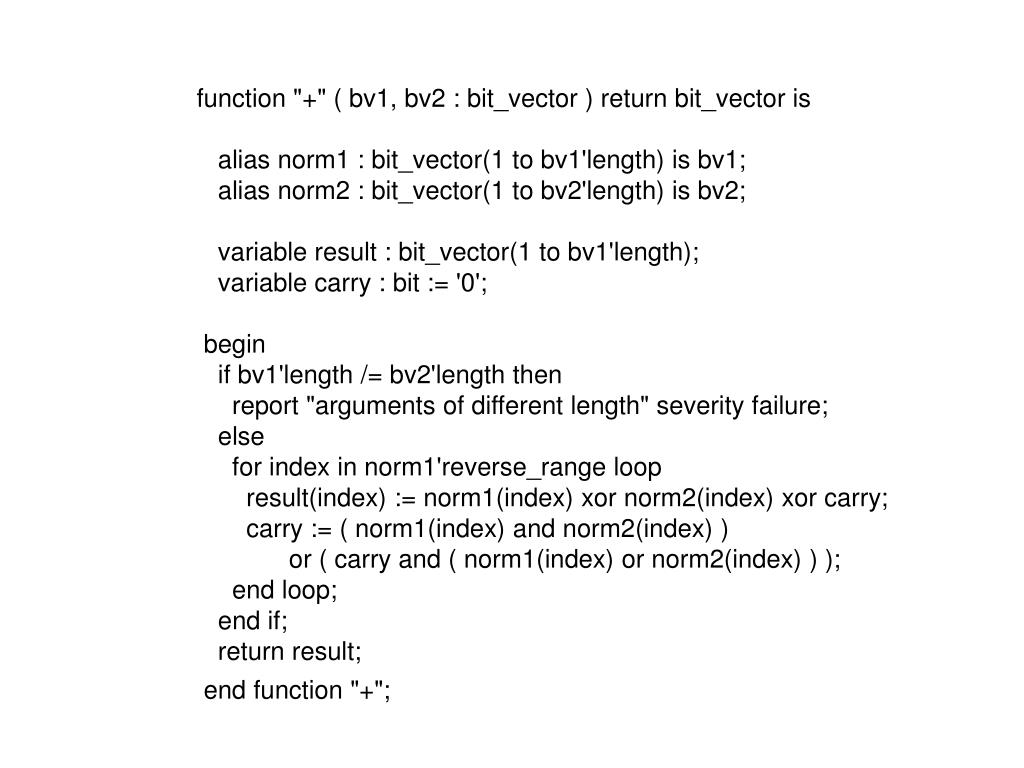

  24. function "+" ( bv1, bv2 : bit_vector ) return bit_vector is alias norm1 : bit_vector(1 to bv1'length) is bv1; alias norm2 : bit_vector(1 to bv2'length) is bv2; variable result : bit_vector(1 to bv1'length); variable carry : bit := '0'; begin if bv1'length /= bv2'length then report "arguments of different length" severity failure; else for index in norm1'reverse_range loop result(index) := norm1(index) xor norm2(index) xor carry; carry := ( norm1(index) and norm2(index) ) or ( carry and ( norm1(index) or norm2(index) ) ); end loop; end if; return result; end function "+";

  25. Resolved Signals Resolved Signals - Usados para modelar sinais multiply-driven Na prática os sinais podem ter múltiplas fontes e devem ser modelados como tal Em VHDL a declaração de resolved signal deve incluir a função de resolução que será usada para determinar o valor do sinal

  26. Funções de Resolução Funções de resolução são usadas para descrever o comportamento do sinal quando submetido às diversas combinações possíveis dos sinais fontes. Exemplo: Type my_type is (X, Z, 0, 1); Type my_type_vector is array (natural range <>) of my_type; function resolve_my_type (a: my_type_vector) return my_type is variable temp: my_type := Z; begin for i in a´range loop case temp is when Z => case a(i) is when X => temp := X; when Z => temp := Z; when 0 => temp := 0; when 1 => temp := 1; end case; when X => temp := X; when 0 => case a(i) is when X => temp := X; when Z => temp := 0; when 0 => temp := 0; when 1 => temp := X; end case; ........ return temp; end tesolv_my_type;

  27. Funções de Resolução entity fg_11_01 is end entity fg_11_01; architecture test of fg_11_01 is type tri_state_logic is ('0', '1', 'Z'); type tri_state_logic_array is array (integer range <>) of tri_state_logic; function resolve_tri_state_logic ( values : in tri_state_logic_array ) return tri_state_logic is variable result : tri_state_logic := 'Z'; begin for index in values'range loop if values(index) /= 'Z' then result := values(index); end if; end loop; return result; end function resolve_tri_state_logic; signal s1 : resolve_tri_state_logic tri_state_logic; subtype resolved_logic is resolve_tri_state_logic tri_state_logic; signal s2, s3 : resolved_logic; begin source_1 : s1 <= 'Z', '0' after 10 ns, 'Z' after 20 ns, '1' after 30 ns, 'Z' after 40 ns, '1' after 200 ns, 'Z' after 220ns; source_2 : s1 <= 'Z', '0' after 110 ns, 'Z' after 120 ns, '1' after 130 ns, 'Z' after 140 ns, '1' after 200 ns, '0' after 210 ns, 'Z' after 220 ns; end architecture test;

  28. package MVL4 is type MVL4_ulogic is ('X', '0', '1', 'Z'); -- unresolved logic type type MVL4_ulogic_vector is array (natural range <>) of MVL4_ulogic; function resolve_MVL4 ( contribution : MVL4_ulogic_vector ) return MVL4_ulogic; subtype MVL4_logic is resolve_MVL4 MVL4_ulogic; type MVL4_logic_vector is array (natural range <>) of MVL4_logic; end package MVL4; package body MVL4 is type table is array (MVL4_ulogic, MVL4_ulogic) of MVL4_ulogic; constant resolution_table : table := -- 'X' '0' '1' 'Z' -- ------------------ ( ( 'X', 'X', 'X', 'X' ), -- 'X' ( 'X', '0', 'X', '0' ), -- '0' ( 'X', 'X', '1', '1' ), -- '1' ( 'X', '0', '1', 'Z' ) ); -- 'Z' function resolve_MVL4 ( contribution : MVL4_ulogic_vector ) return MVL4_ulogic is variable result : MVL4_ulogic := 'Z'; begin for index in contribution'range loop result := resolution_table(result, contribution(index)); end loop; return result; end function resolve_MVL4; end package body MVL4;

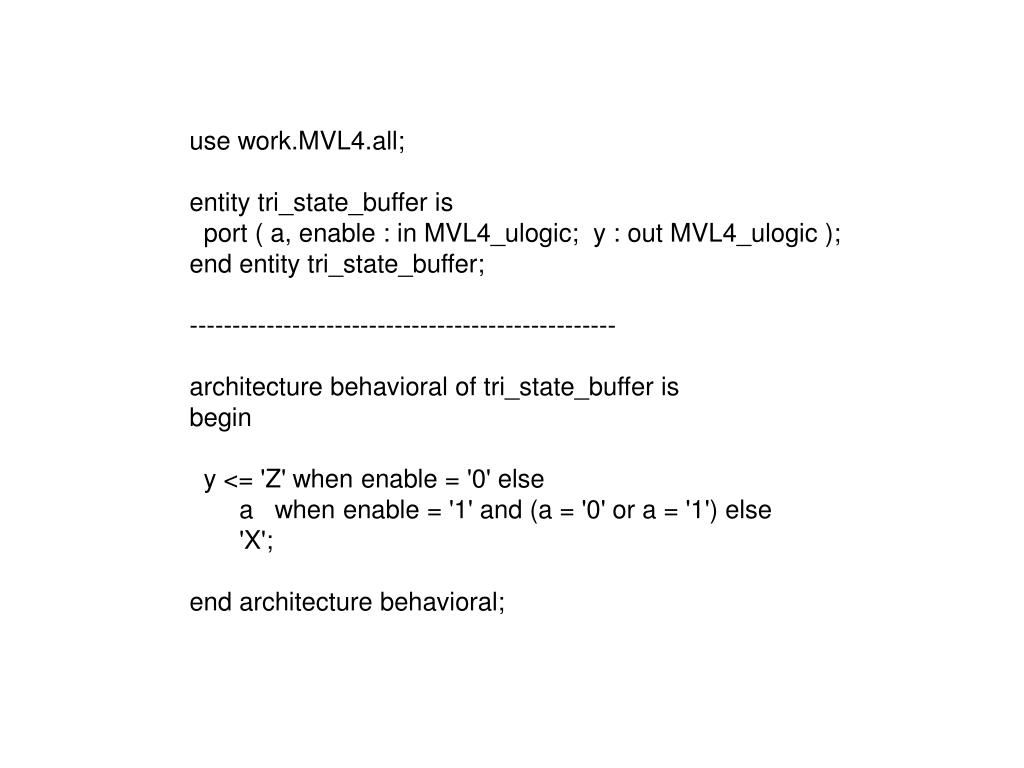

  29. use work.MVL4.all; entity tri_state_buffer is port ( a, enable : in MVL4_ulogic; y : out MVL4_ulogic ); end entity tri_state_buffer; -------------------------------------------------- architecture behavioral of tri_state_buffer is begin y <= 'Z' when enable = '0' else a when enable = '1' and (a = '0' or a = '1') else 'X'; end architecture behavioral;

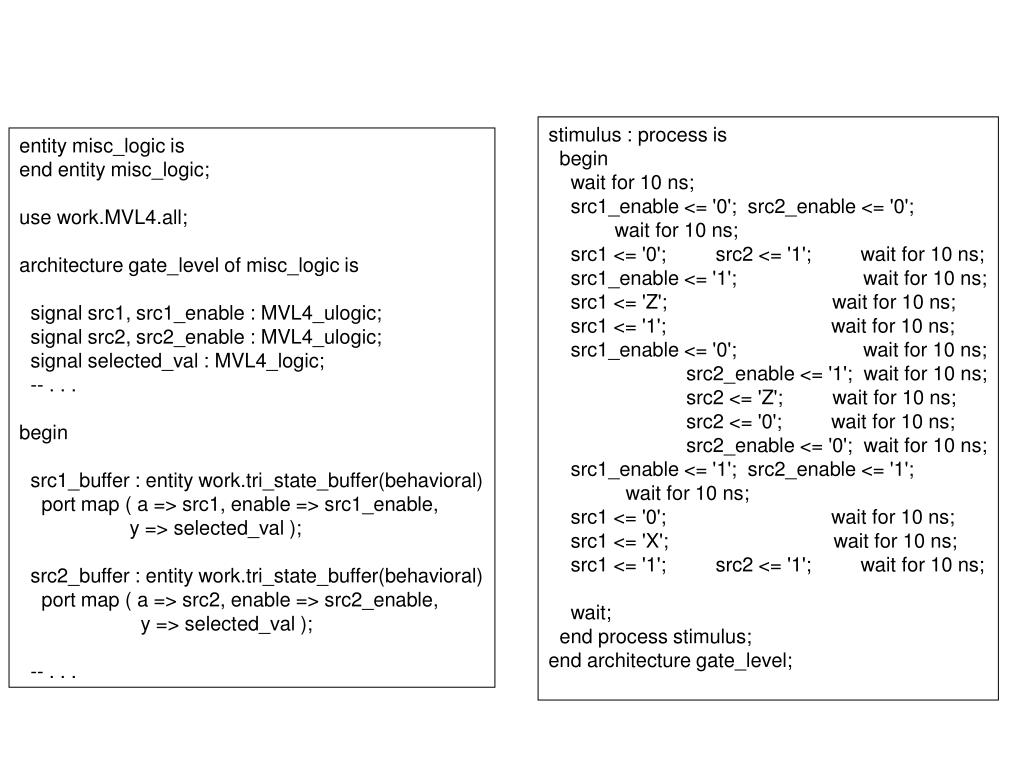

  30. stimulus : process is begin wait for 10 ns; src1_enable <= '0'; src2_enable <= '0'; wait for 10 ns; src1 <= '0'; src2 <= '1'; wait for 10 ns; src1_enable <= '1'; wait for 10 ns; src1 <= 'Z'; wait for 10 ns; src1 <= '1'; wait for 10 ns; src1_enable <= '0'; wait for 10 ns; src2_enable <= '1'; wait for 10 ns; src2 <= 'Z'; wait for 10 ns; src2 <= '0'; wait for 10 ns; src2_enable <= '0'; wait for 10 ns; src1_enable <= '1'; src2_enable <= '1'; wait for 10 ns; src1 <= '0'; wait for 10 ns; src1 <= 'X'; wait for 10 ns; src1 <= '1'; src2 <= '1'; wait for 10 ns; wait; end process stimulus; end architecture gate_level; entity misc_logic is end entity misc_logic; use work.MVL4.all; architecture gate_level of misc_logic is signal src1, src1_enable : MVL4_ulogic; signal src2, src2_enable : MVL4_ulogic; signal selected_val : MVL4_logic; -- . . . begin src1_buffer : entity work.tri_state_buffer(behavioral) port map ( a => src1, enable => src1_enable, y => selected_val ); src2_buffer : entity work.tri_state_buffer(behavioral) port map ( a => src2, enable => src2_enable, y => selected_val ); -- . . .

  31. package body words is type table is array (X01Z, X01Z) of X01Z; constant resolution_table : table := -- 'X' '0' '1' 'Z' -- ------------------ ( ( 'X', 'X', 'X', 'X' ), -- 'X' ( 'X', '0', 'X', '0' ), -- '0' ( 'X', 'X', '1', '1' ), -- '1' ( 'X', '0', '1', 'Z' ) ); -- 'Z' function resolve_word ( contribution : uword_vector ) return uword is variable result : uword := (others => 'Z'); begin for index in contribution'range loop for element in uword'range loop result(element) := resolution_table( result(element), contribution(index)(element) ); end loop; end loop; return result; end function resolve_word; end package body words; package words is type X01Z is ('X', '0', '1', 'Z'); type uword is array (0 to 31) of X01Z; type uword_vector is array (natural range <>) of uword; function resolve_word ( contribution : uword_vector ) return uword; subtype word is resolve_word uword; -- not in book type ubyte is array (0 to 7) of X01Z; -- end not in book end package words;

  32. use work.words.all; entity cpu is port ( address : out uword; data : inout uword; other_port : in X01Z := 'Z' ); end entity cpu; architecture behavioral of cpu is begin end architecture behavioral; entity memory is port ( address : in uword; data : inout uword; other_port : in X01Z := 'Z' ); end entity memory; architecture behavioral of memory is begin end architecture behavioral; entity ROM is port ( a : in uword; d : out ubyte; other_port : in X01Z := 'Z' ); end entity ROM; architecture behavioral of ROM is begin end architecture behavioral; entity computer_system is end entity computer_system; architecture top_level of computer_system is use work.words.all; signal address : uword; signal data : word; begin the_cpu : entity work.cpu(behavioral) port map ( address, data, open ); the_memory : entity work.memory(behavioral) port map ( address, data, open ); end architecture top_level;

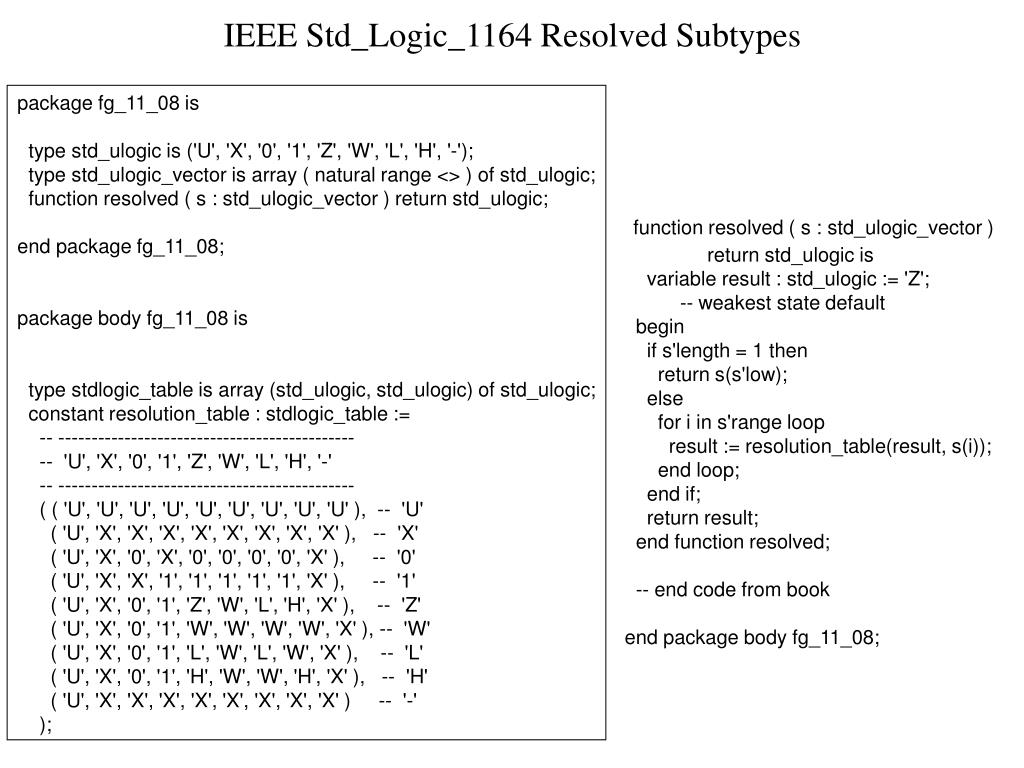

  33. IEEE Std_Logic_1164 Resolved Subtypes package fg_11_08 is type std_ulogic is ('U', 'X', '0', '1', 'Z', 'W', 'L', 'H', '-'); type std_ulogic_vector is array ( natural range <> ) of std_ulogic; function resolved ( s : std_ulogic_vector ) return std_ulogic; end package fg_11_08; package body fg_11_08 is type stdlogic_table is array (std_ulogic, std_ulogic) of std_ulogic; constant resolution_table : stdlogic_table := -- --------------------------------------------- -- 'U', 'X', '0', '1', 'Z', 'W', 'L', 'H', '-' -- --------------------------------------------- ( ( 'U', 'U', 'U', 'U', 'U', 'U', 'U', 'U', 'U' ), -- 'U' ( 'U', 'X', 'X', 'X', 'X', 'X', 'X', 'X', 'X' ), -- 'X' ( 'U', 'X', '0', 'X', '0', '0', '0', '0', 'X' ), -- '0' ( 'U', 'X', 'X', '1', '1', '1', '1', '1', 'X' ), -- '1' ( 'U', 'X', '0', '1', 'Z', 'W', 'L', 'H', 'X' ), -- 'Z' ( 'U', 'X', '0', '1', 'W', 'W', 'W', 'W', 'X' ), -- 'W' ( 'U', 'X', '0', '1', 'L', 'W', 'L', 'W', 'X' ), -- 'L' ( 'U', 'X', '0', '1', 'H', 'W', 'W', 'H', 'X' ), -- 'H' ( 'U', 'X', 'X', 'X', 'X', 'X', 'X', 'X', 'X' ) -- '-' ); function resolved ( s : std_ulogic_vector ) return std_ulogic is variable result : std_ulogic := 'Z'; -- weakest state default begin if s'length = 1 then return s(s'low); else for i in s'range loop result := resolution_table(result, s(i)); end loop; end if; return result; end function resolved; -- end code from book end package body fg_11_08;
