Spp spacecraft emulator sce introduction

SPP Spacecraft Emulator (SCE) Introduction

Geff Ottman

[email protected]

443-778-6205

Feb. 25, 2013

Updated on 3/1/13 after first-round of Instrument Telecons. Updates are in red text.


Agenda

Agenda

  • Staffing

  • SPP Spacecraft Block Diagram

  • Review Chart Presentation “Solar Probe GSEOS Presentation-mods_1.ppt”

    • APL Internal Link: \\davis\Project\Solar Probe Plus\Instruments\SC_Emulators\Presentations\Solar Probe GSEOS Presentation-mods_1.ppt

  • RBSP Mini-Emulator Overview

  • RBSP Full-Emulator Functionality

  • SPP Emulator Updates

  • Emulator Test Support

  • SPP Emulator Deliverables

  • RBSP Lessons Learned

  • Conclusion


Sce staffing

SCE Staffing

Sam Sawada, SPP Emulator Lead, [email protected]

Mike Furrow, SPP Mission Systems Software Lead, [email protected]

Martha Kusterer, SPP SOC Lead, [email protected]

Thomas Hauck, GSEOS, [email protected]

Harry Eaton, Embedded SW

Doug Wenstrand, FPGA Design

Geff Ottman, Engineering Support, [email protected]


Spp spacecraft block diagram

SPP Spacecraft Block Diagram


Spp instrument d ata interfaces

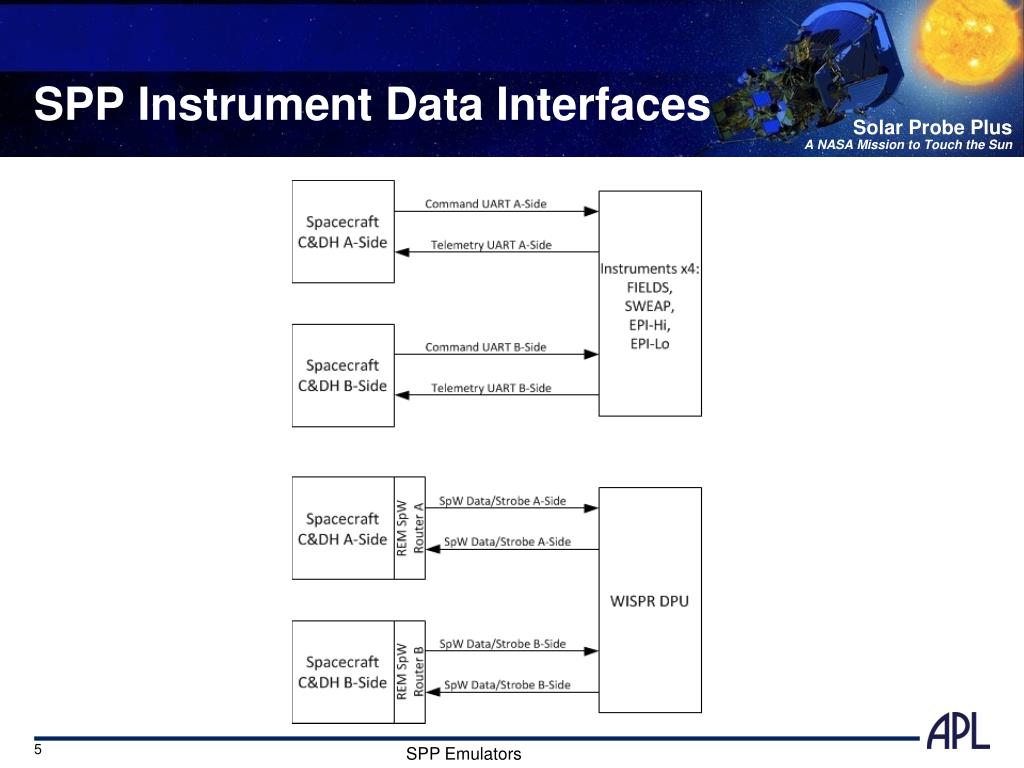

SPP Instrument Data Interfaces


Spp gseos presentation

SPP GSEOS Presentation

  • APL Internal Link: \\davis\Project\Solar Probe Plus\Instruments\SC_Emulators\Presentations\Solar Probe GSEOS Presentation-mods_1.ppt


Sce mini emulator

SCE Mini-Emulator

Provides Instrument Data Interfaces only

GSEOS Interface is fully compliant

Non-flight use only


Sce full emulator

SCE Full-Emulator

Provides Instrument Data, Power and Temperature Interfaces

GSEOS Interface is fully compliant

Designed for use with Flight hardware


Spp sc emulator updates

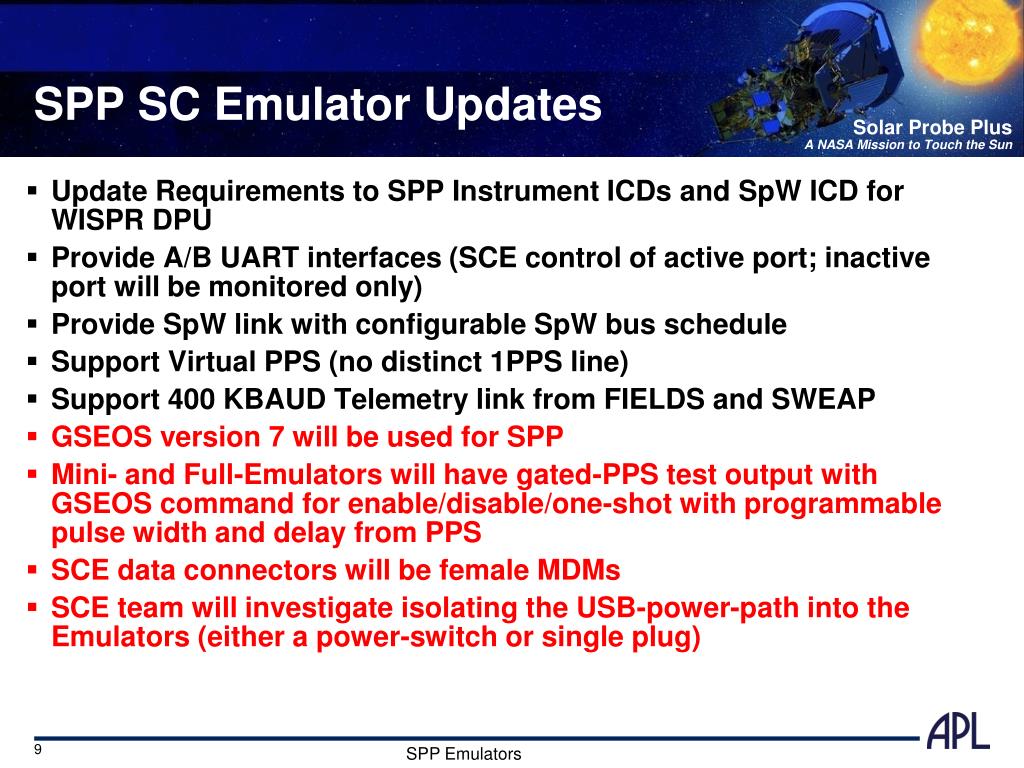

SPP SC Emulator Updates

Update Requirements to SPP Instrument ICDs and SpWICD for WISPR DPU

Provide A/B UART interfaces (SCE control of active port; inactive port will be monitored only)

Provide SpW link with configurable SpW bus schedule

Support Virtual PPS (no distinct 1PPS line)

Support 400 KBAUD Telemetry link from FIELDS and SWEAP

GSEOS version 7 will be used for SPP

Mini- and Full-Emulators will have gated-PPS test output with GSEOS command for enable/disable/one-shot with programmable pulse width and delay from PPS

SCE data connectors will be female MDMs

SCE team will investigate isolating the USB-power-path into the Emulators (either a power-switch or single plug)


Emulator team test support

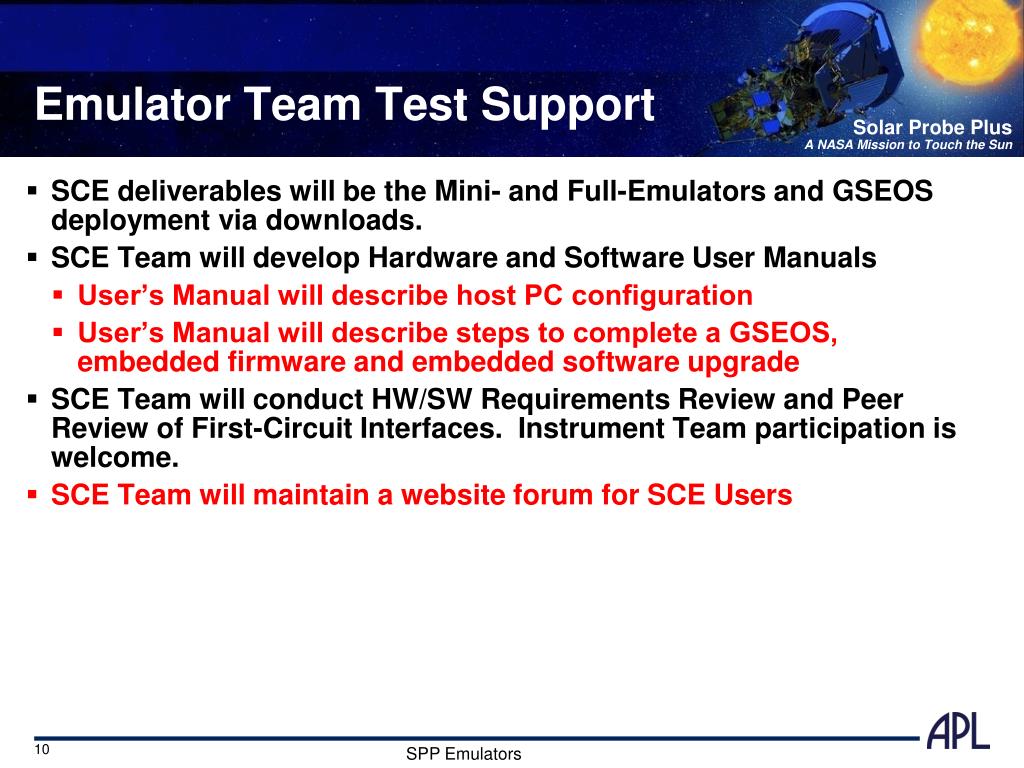

Emulator Team Test Support

  • SCE deliverables will be the Mini- and Full-Emulators and GSEOS deployment via downloads.

  • SCE Team will develop Hardware and Software User Manuals

    • User’s Manual will describe host PC configuration

    • User’s Manual will describe steps to complete a GSEOS, embedded firmware and embedded software upgrade

  • SCE Team will conduct HW/SW Requirements Review and Peer Review of First-Circuit Interfaces. Instrument Team participation is welcome.

  • SCE Team will maintain a website forum for SCE Users


Instrument team test support

Instrument Team Test Support

  • Instrument Teams will provide:

    • Host PC to run GSEOS

      • The Mini-Emulator will be designed and tested for compatibility to 64-bit Windows 7 (32-bit Windows 7 would be OK with the proper Opal Kelly drivers and minor GSEOS configs)

      • The Full Emulator will offer additional flexibility as requested

      • GSEOS support of SOC operations will offer additional flexibility as requested

      • SCE will use an Opal Kelly XEM6010, the PC will need to have driver version 4.x installed (current designing to 4.2.5)

    • Harnessing

    • Flight-rated power supply for use with flight-unit testing using the Full-Emulator

    • As needed for HW development , test and debug: Detailed analysis and compliance GSE (O’scopes, logic analyzers, SpW/UART protocol analyzers, EMI/EMC and EDTRD-specific testing)


Emulator deliverables

Emulator Deliverables

Mini-Emulator earliest delivery is in June 2013

Full-Emulator earliest delivery is in April 2014

Emulator Schedule updates will be via the Project IMS

Requests for changes to emulator quantities should be sent through the applicable APL Instrument Manager.

Emulator spares will be held at APL and maintained by the Project Office. Coordination of spares will be through Patrick Hill.


Rbsp lesson learned

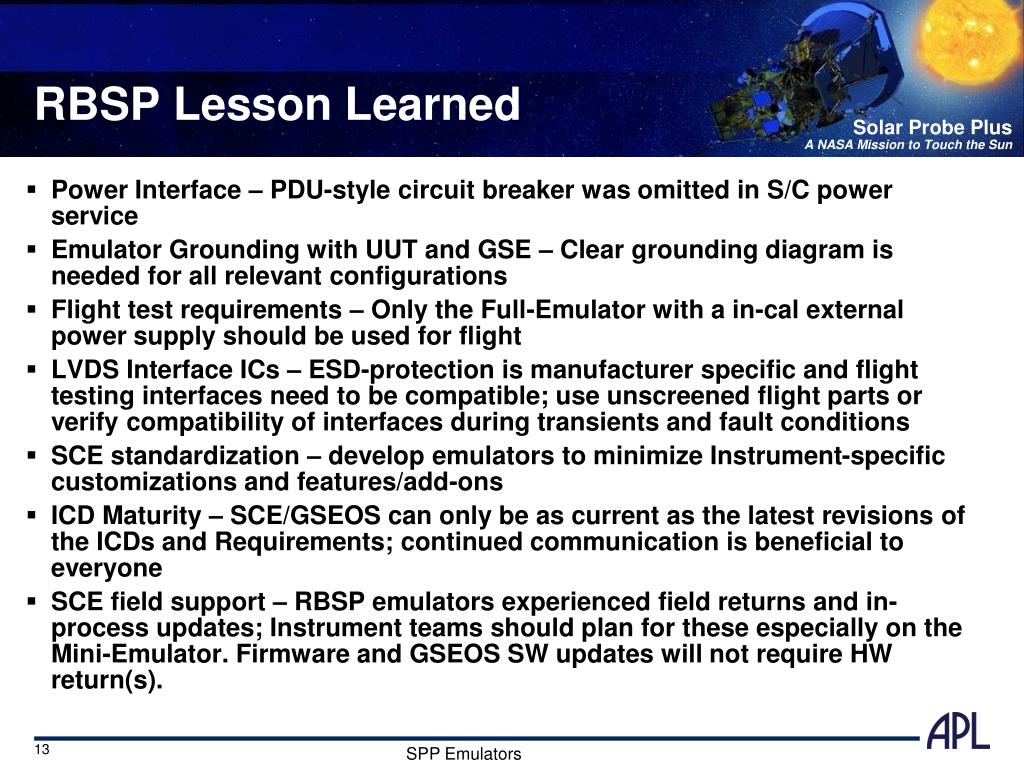

RBSP Lesson Learned

Power Interface – PDU-style circuit breaker was omitted in S/C power service

Emulator Grounding with UUT and GSE – Clear grounding diagram is needed for all relevant configurations

Flight test requirements – Only the Full-Emulator with a in-cal external power supply should be used for flight

LVDS Interface ICs – ESD-protection is manufacturer specific and flight testing interfaces need to be compatible; use unscreened flight parts or verify compatibility of interfaces during transients and fault conditions

SCE standardization – develop emulators to minimize Instrument-specific customizations and features/add-ons

ICD Maturity – SCE/GSEOS can only be as current as the latest revisions of the ICDs and Requirements; continued communication is beneficial to everyone

SCE field support – RBSP emulators experienced field returns and in-process updates; Instrument teams should plan for these especially on the Mini-Emulator. Firmware and GSEOS SW updates will not require HW return(s).


Conclusion

Conclusion

  • Instrument concerns

  • Instrument-specific requirements

    • Required power services

    • Required RTDs

  • Questions?
