VDM to Java. Learning Outcomes. At the end of this lecture you should be able to:. Evaluate the suitability of Java for the implementation of VDM specifications; Translate simple VDM-SL types into Java types; Translate a VDM specification into a Java class;

Download Presentation

VDM to Java

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Vdm to java

VDM to Java

Learning Outcomes

At the end of this lecture you should be able to:

  • Evaluate the suitability of Java for the implementation of VDM specifications;

  • Translate simple VDM-SL types into Java types;

  • Translate a VDM specification into a Java class;

  • Incorporate run-time assertions into Java implementations.


Vdm to java

The choice of Java as a programming language

1. Java is object-oriented

2. Java is portable

3. Java is robust

4. Java is high level


Vdm to java

INFORMAL SPECIFICATION

(UML class diagram)

FORMAL SPECIFICATION

(VDM specification)

IMPLEMENTATION

(Java class)

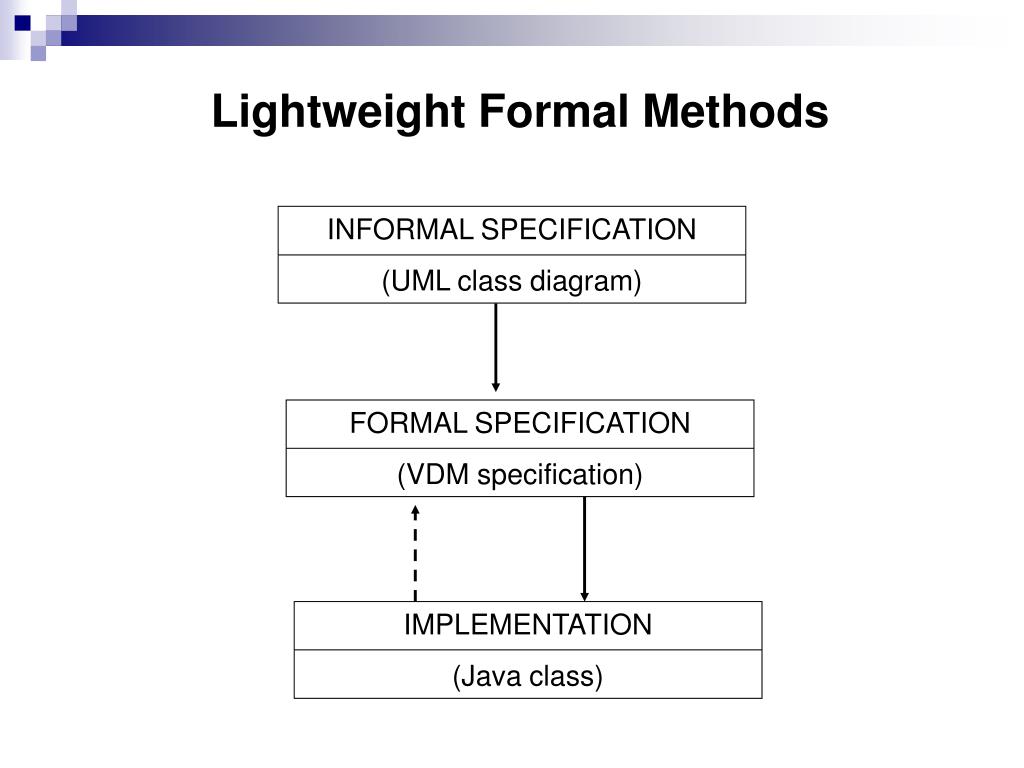

Lightweight Formal Methods


Vdm to java

From VDM-SL types to Java types

int

int

1

int

double

boolean

Char

char


Vdm to java

Implementing the IncubatorMonitor specification

values

MAX :  = 10

MIN :  = -10

state IncubatorMonitor of

temp : 

inv mk-IncubatorMonitor(t) MINt MAX

init mk-IncubatorMonitor(t) t = 5

end

operations

increment()

ext wrtemp : 

pre temp < MAX

post temp = + 1

-- more operations here

Java

class IncubatorMonitor

{

// code goes here

}

VDM-SL


Vdm to java

Translating a 'values' clause into Java

values

MAX :  = 10

MIN :  = -10

public

static

final

int MAX = 10;

int MIN = -10;

public

static

final


Vdm to java

Translating a 'state' clause into Java

state IncubatorMonitor of

temp : 

private

int temp;


Vdm to java

Translating an 'invariant' into Java

public boolean inv()

{

return

(MIN <= temp && temp <= MAX);

}

inv mk-IncubatorMonitor(t)

MIN t  MAX


Vdm to java

implements InvariantCheck


Vdm to java

Using the conjunction and disjunction operators in Java

VDM-SL expression:

Java

x  y > 1  y  0

y!= 0 && x/y > 1

x/y > 1 && y!= 0

undefined  false

undefined  false

false undefined

false

undefined

false


Vdm to java

x > y y + x > 1

VDM.implies(x > y, y +x > 1)


Vdm to java

Translating the 'initialization' clause into Java

The initialization clause of the VDM specification defines valid initial values for attributes of the corresponding class;

A constructor is the mechanism used to initialise class attributes in Java;

public IncubatorMonitor()

{

temp = 5;

}

init mk-IncubatorMonitor(t)

t = 5

VDM.invTest(this);


Vdm to java

increment()

extwrtemp : 

pretemp < MAX

posttemp = + 1

Translation of the increment operation

public void increment()

{

temp = temp + 1;

}

VDM.preTest(temp < MAX);

VDM.invTest(this);


Vdm to java

decrement()

extwrtemp : 

pretemp > MIN

posttemp = - 1

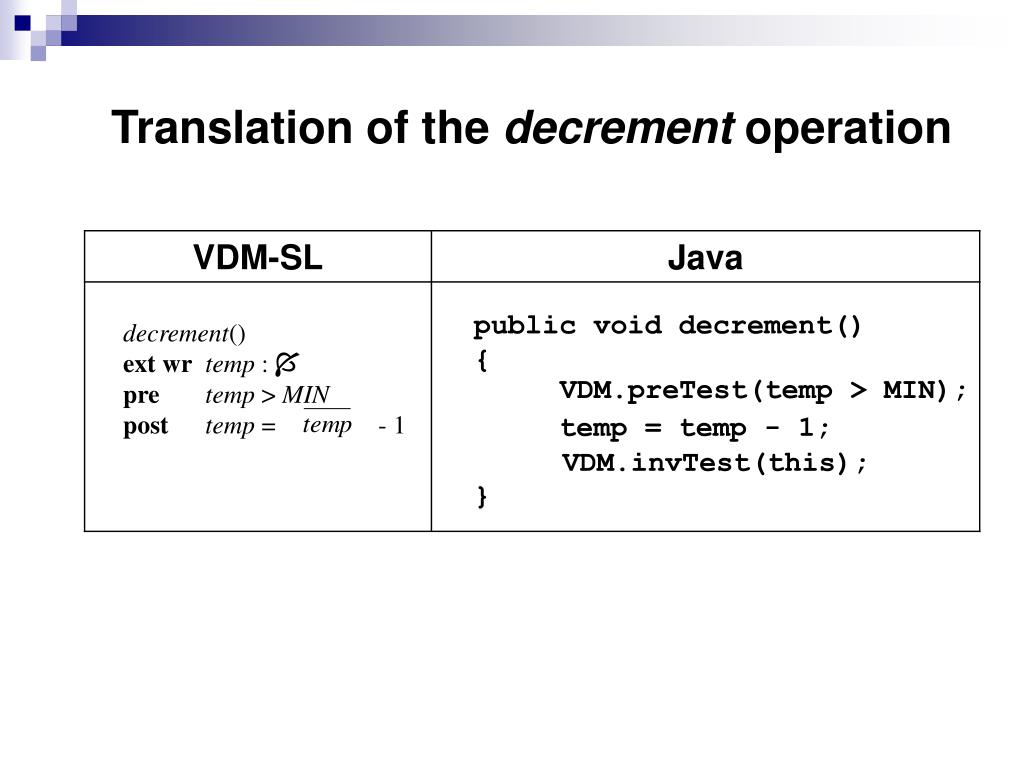

Translation of the decrement operation

public void decrement()

{

temp = temp - 1;

}

VDM.preTest(temp > MIN);

VDM.invTest(this);


Vdm to java

The getTemp operation

getTemp() currentTemp : 

extrdtemp : 

pretrue

postcurrentTemp = temp

public int getTemp()

{

return temp;

}


Vdm to java

class IncubatorMonitor implements InvariantCheck

{

// constants

public static final int MAX = 10;

public static final int MIN = -10;

// attributes

private int temp;

public boolean inv() // invariant

{

return (MIN <= temp && temp <= MAX);

}

public IncubatorMonitor() // initialisation

{

temp = 5;

}

// operations

}
