Planmeca ProMax 3D ProFace

1. Planmeca ProMax 3D ProFace

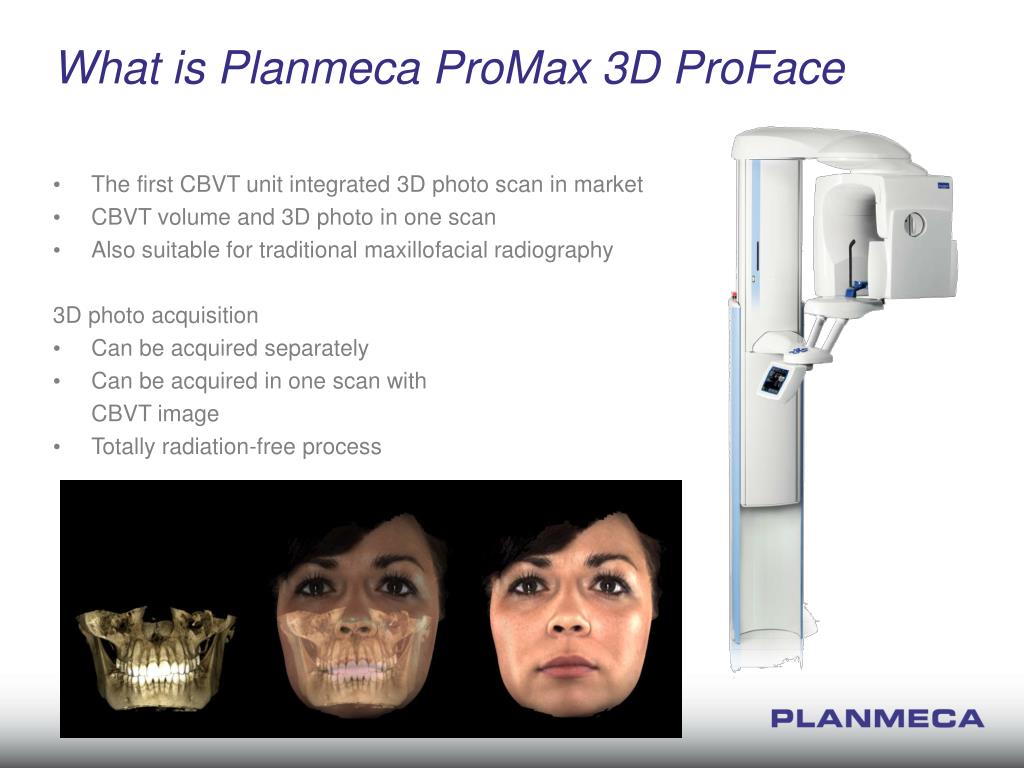

2. What is Planmeca ProMax 3D ProFace • The first CBVT unit integrated 3D photo scan in market • CBVT volume and 3D photo in one scan • Also suitable for traditional maxillofacial radiography • 3D photo acquisition • Can be acquired separately • Can be acquired in one scan with CBVT image • Totally radiation-free process

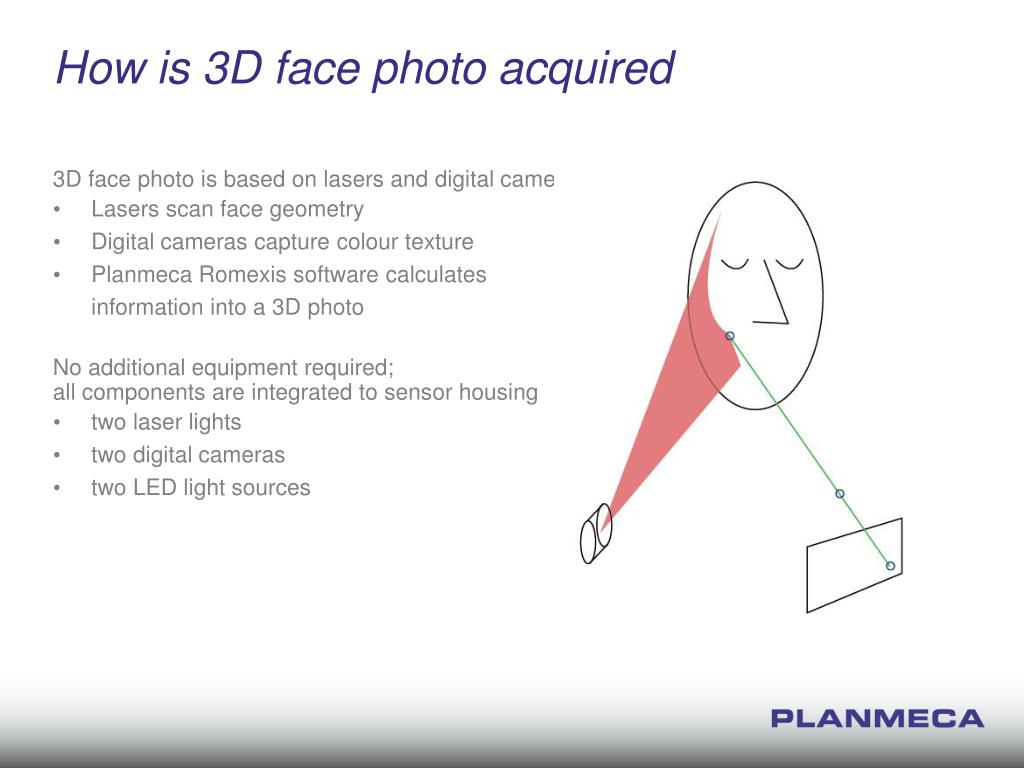

3. How is 3D face photo acquired • 3D face photo is based on lasers and digital cameras • Lasers scan face geometry • Digital cameras capture colour texture • Planmeca Romexis software calculates information into a 3D photo • No additional equipment required; • all components are integrated to sensor housing • two laser lights • two digital cameras • two LED light sources

4. Advantages of 3D photo • Visualises soft tissue in relation to dentin with same facial expression • Captures structure and colour texture • Acquired in 100% radiation-free process • Provides photorealistic documentation • Allows for measuring the patient anatomy • Clinical applications for 3D photo • Orthodontics and maxillofacial surgery • Operation planning • Follow-up without radiation • Before and after comparisons • Patient education

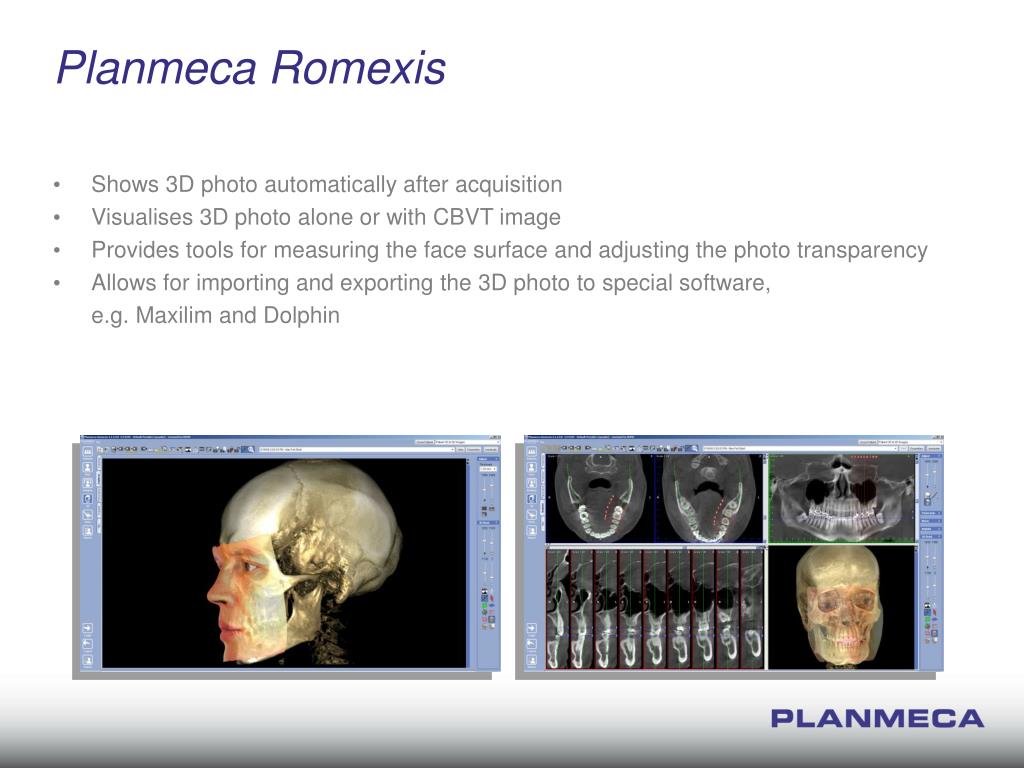

5. Planmeca Romexis • Shows 3D photo automatically after acquisition • Visualises 3D photo alone or with CBVT image • Provides tools for measuring the face surface and adjusting the photo transparency • Allows for importing and exporting the 3D photo to special software, e.g. Maxilim and Dolphin

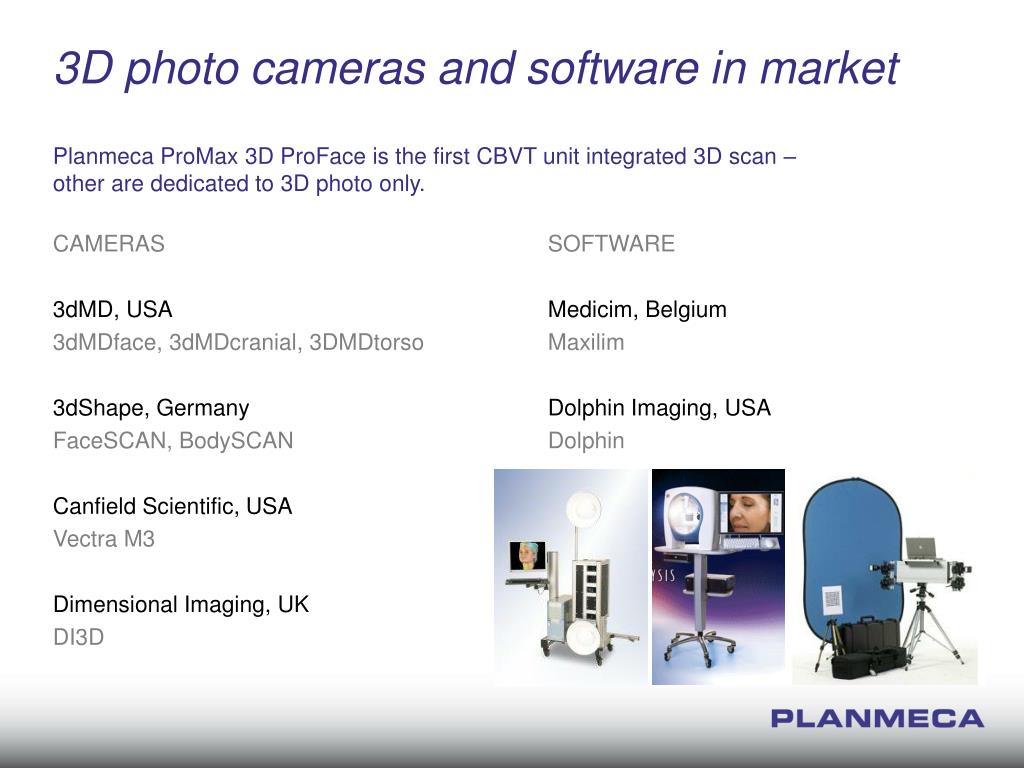

6. 3D photo cameras and software in market Planmeca ProMax 3D ProFace is the first CBVT unit integrated 3D scan – other are dedicated to 3D photo only. • CAMERAS • 3dMD, USA • 3dMDface, 3dMDcranial, 3DMDtorso • 3dShape, Germany • FaceSCAN, BodySCAN • Canfield Scientific, USA • Vectra M3 • Dimensional Imaging, UK • DI3D • SOFTWARE • Medicim, Belgium • Maxilim • Dolphin Imaging, USA • Dolphin

7. Planmeca 3D ProFace
