  1. Deliverable D4Transactional Engine Francisco Pérez, Marta Patiño, Ricardo Jiménez Distributed Systems Laboratory Universidad Politécnica de Madrid (UPM) Lsd

  2. Goal • This deliverable aims to provide support for advanced transaction models. • We have adopted the Java Activity Service specification to provide this support. 4th Adapt Workshop, 11-12th Dec. 2003, Bologna (Italy)

  3. Overall Architecture • The Java Activity Service is structured in two components: • The activity service itself. • One or more high level services. • The activity service is a kind of low level general-purpose engine for registering events. • A high level service implements a particular advanced transaction model. 4th Adapt Workshop, 11-12th Dec. 2003, Bologna (Italy)

  4. Overall Architecture • Users only access high level services (HLSs). • The Java activity service only specifies the interface between HLSs and the activity service. • HLS functionality is not constrained in any other way. 4th Adapt Workshop, 11-12th Dec. 2003, Bologna (Italy)

  5. TxnMng UserActivity ActivityMng UserHLS ServiceMng UserTxn Application Actions JTA Activity Service Client App. Begin/End Activity Action invocations HLS Begin/End Activity AddAction BroadcastSignal Suspend/Resume Suspend/Resume GetSignalSet Begin/End Txn AS 4th Adapt Workshop, 11-12th Dec. 2003, Bologna (Italy)

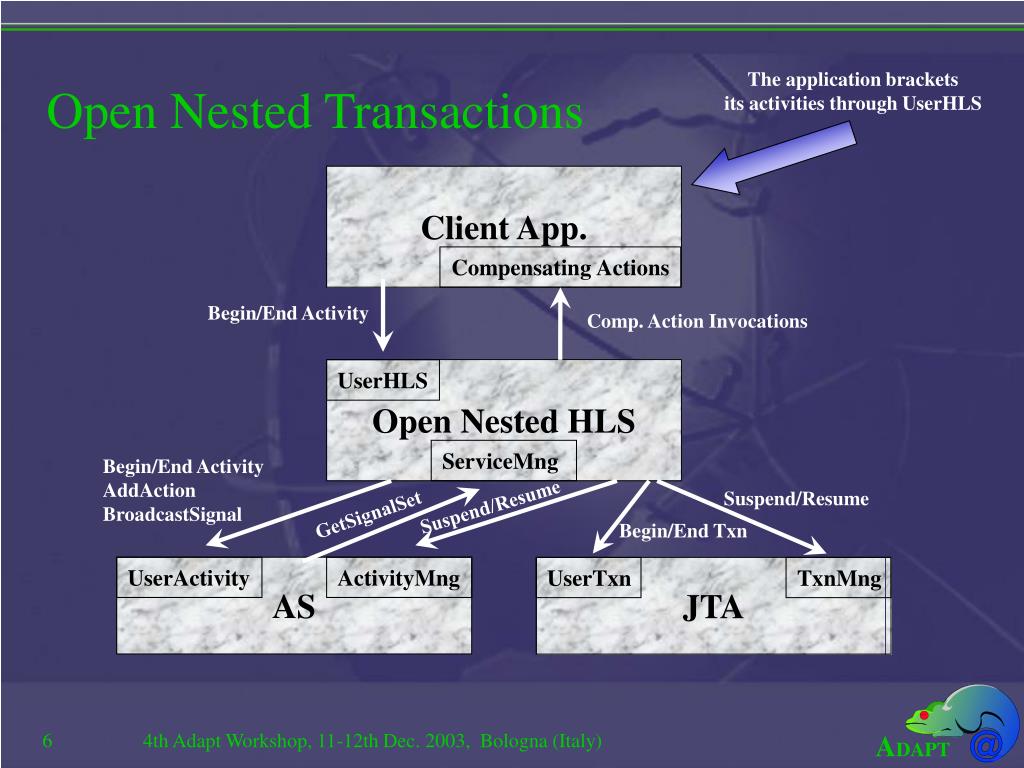

  6. The application brackets its activities through UserHLS UserHLS UserActivity ActivityMng Compensating Actions ServiceMng UserTxn TxnMng JTA Open Nested Transactions Client App. Begin/End Activity Comp. Action Invocations Open Nested HLS Begin/End Activity AddAction BroadcastSignal Suspend/Resume Suspend/Resume GetSignalSet Begin/End Txn AS 4th Adapt Workshop, 11-12th Dec. 2003, Bologna (Italy)

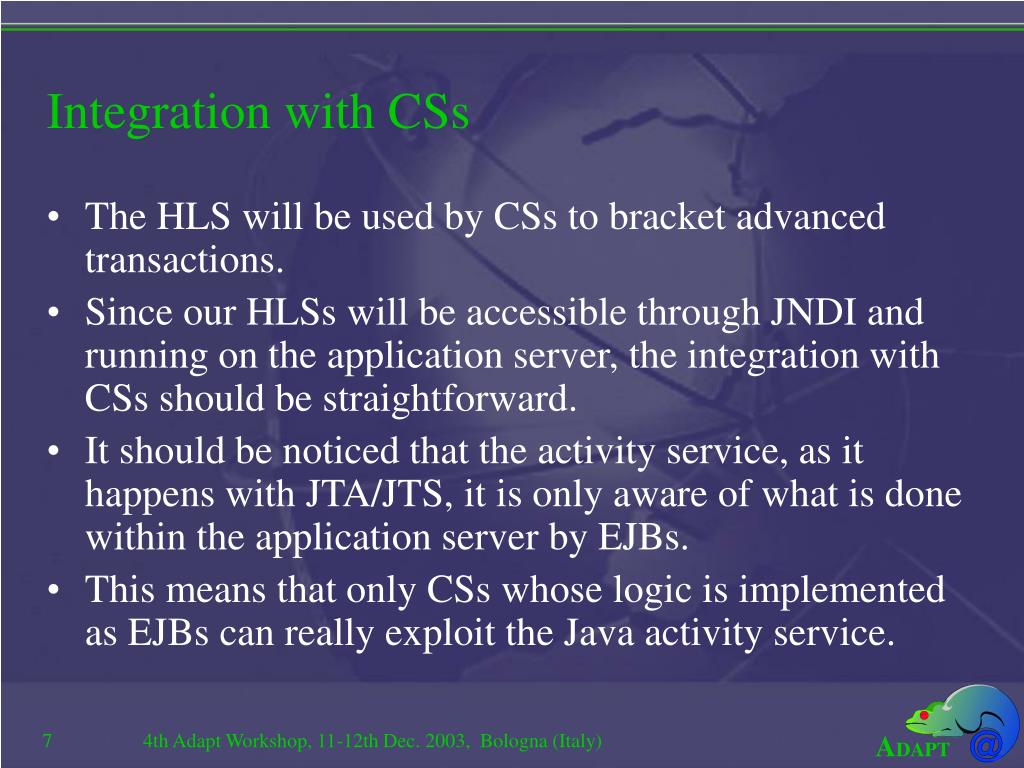

  7. Integration with CSs • The HLS will be used by CSs to bracket advanced transactions. • Since our HLSs will be accessible through JNDI and running on the application server, the integration with CSs should be straightforward. • It should be noticed that the activity service, as it happens with JTA/JTS, it is only aware of what is done within the application server by EJBs. • This means that only CSs whose logic is implemented as EJBs can really exploit the Java activity service. 4th Adapt Workshop, 11-12th Dec. 2003, Bologna (Italy)

  8. What will be delivered • A basic implementation of the Java Activity Service: • No context propagation. • No context groups. • Implemented as an mbean in JBoss. • As suggested by Maartens, an implementation of a concrete advanced transaction model: • A high level service implementing the open nested transactions. • Implemented as an mbean in JBoss. • Based on a JTA and the Java activity service. 4th Adapt Workshop, 11-12th Dec. 2003, Bologna (Italy)

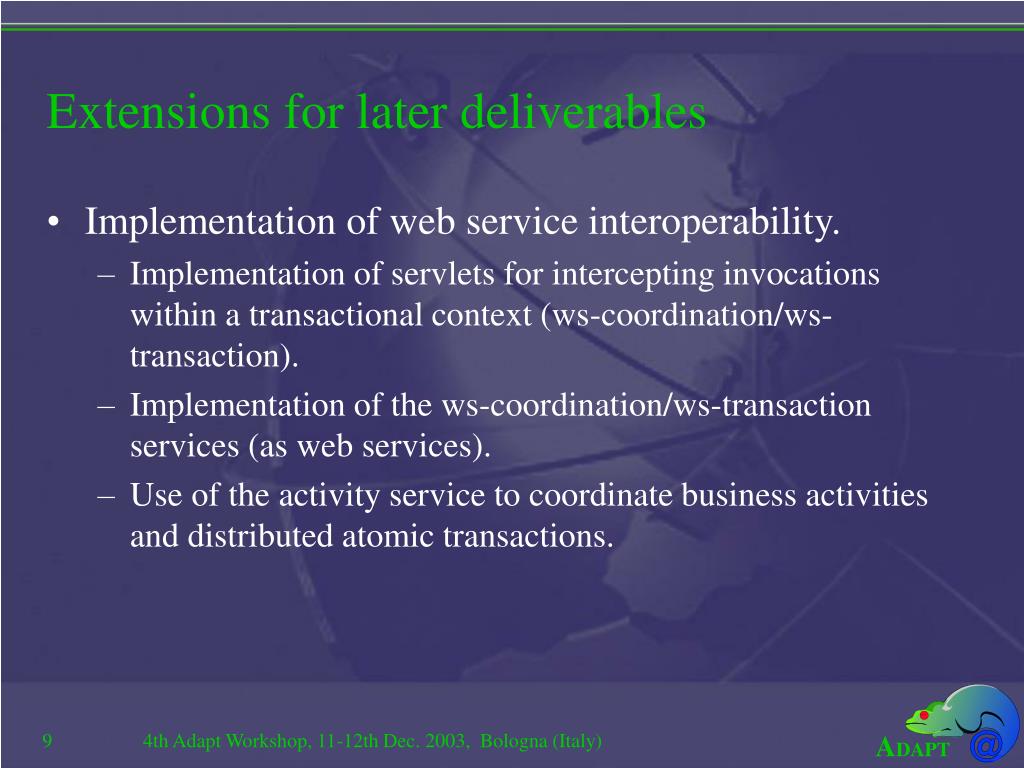

  9. Extensions for later deliverables • Implementation of web service interoperability. • Implementation of servlets for intercepting invocations within a transactional context (ws-coordination/ws-transaction). • Implementation of the ws-coordination/ws-transaction services (as web services). • Use of the activity service to coordinate business activities and distributed atomic transactions. 4th Adapt Workshop, 11-12th Dec. 2003, Bologna (Italy)

  10. Extensions for later deliverables • Completion of the full activity service specification: • Context propagation. • Context groups. • Implementation of a generic high level service: • The vision is that it will be customizable in a declarative way. 4th Adapt Workshop, 11-12th Dec. 2003, Bologna (Italy)
