  1. A Plantwide Control Procedure Applied to the HDA Process Antonio Araújo and Sigurd Skogestad Department of Chemical Engineering Norwegian University of Science and Technology (NTNU) Trondheim, Norway November, 2006

  2. Outline • General procedure plantwide control • HDA process • Active constraints • Self-optimizing variables • Maximum throughput mode • Regulatory control • Dynamic simulations • comparison with Luyben

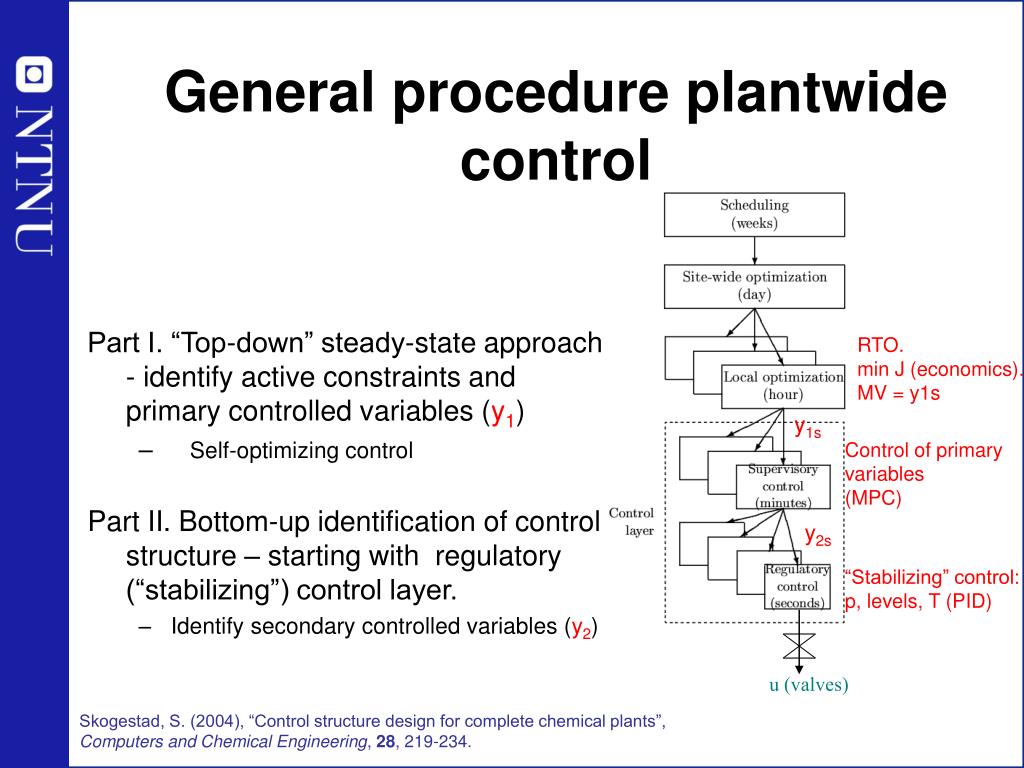

  3. u (valves) General procedure plantwide control Part I. “Top-down” steady-state approach - identify active constraints and primary controlled variables (y1) • Self-optimizing control Part II. Bottom-up identification of control structure – starting with regulatory (“stabilizing”) control layer. • Identify secondary controlled variables (y2) RTO. min J (economics). MV = y1s y1s Control of primary variables (MPC) y2s “Stabilizing” control: p, levels, T (PID) • Skogestad, S. (2004), “Control structure design for complete chemical plants”, • Computers and Chemical Engineering, 28, 219-234.

  4. Part I. Top-down steady-state approach Step 1. IDENTIFY DEGREES OF FREEDOM Need later to choose a CV (y1) for each Step 2. OPERATIONAL OBJECTIVES Optimal operation: Minimize cost J J = cost feeds – value products – cost energy subject to satisfying constraints Step 3. WHAT TO CONTROL? (primary CV’s c=y1) What should we control (y1)? • Active constraints • “Self-optimizing” variables These are “magic” variables which when kept at constant setpoints give indirect optimal operation by controlling some “magic” variables at • Maximum gain rule: Look for “sensitive” variables with a large scaled steady-state gain Step 4. PRODUCTION RATE y1s

  5. u (valves) Part II. Bottom-up control structure design Step 5. REGULATORY CONTROL LAYER (PID) • Main objectives • “Stabilize” = Avoid “drift” • Control on fast time scale • Identify secondary controlled variables (y2) • flow, pressures, levels, selected temperatures • and pair with inputs (u2) Step 6. SUPERVISORY CONTROL LAYER • Decentralization or MPC? Step 7. OPTIMIZATION LAYER (RTO) • Can we do without it? y2 = ?

  6. Two main modes of optimal operation for chemical plants Depending on marked conditions: Mode I: Given throughput When: Given feed or product rate Optimal operation: Max. efficiency Mode II: Maximum throughput (feed available). When: High product prices and available feed Optimal operation: max. flow in bottleneck 1. Desired: Same or similar control structure in both cases 2. Operation/control: Traditionally: Focus on mode I But: Mode II is where the company may make extra money!

  7. Purge (CH4 + H2) Compressor H2 + CH4 Quench Toluene Mixer FEHE Furnace PFR Separator Cooler CH4 Toluene Benzene Toluene Column Stabilizer Benzene Column Diphenyl HDA process Toluene + H2 = Benzenje + CH4 2 Benzene = Diphenyl + H2 • References for HDA: • McKetta (1977) ; • Douglas (1988) • Wolff (1994) • Luyben (2005) • ++....

  8. 5 Purge (H2 + CH4) 3 Compressor 1 Furnace H2 + CH4 Quencher Toluene Mixer FEHE Reactor 6 4 2 Cooler 7 12 10 8 Separator Benzene CH4 Toluene Toluene Column Benzene Column Stabilizer Diphenyl 13 11 9 Step 1 - Steady-state degrees of freedom NEED TO FIND 13 CONTROLLED VARIABLES (y1)

  9. Step 2 - Definition of optimal operation • The following profit is to be maximized: -J = pbenDben + Σ(pv,iFv,i) – ptolFtol – pgasFgas – pfuelQfuel – pcwQcw – ppowerWpower - psteamQsteam • Constraints during operation: • Production rate: Dben≥ 265 lbmol/h. • Hydrogen excess in reactor inlet: Fhyd / (Fben + Ftol + Fdiph) ≥ 5. • Reactor inlet pressure: Preactor,in ≤ 500 psia. • Reactor inlet temperature: Treactor,in ≥ 1150 °F. • Reactor outlet temperature: Treactor,out ≤ 1300 °F. • Quencher outlet temperature: Tquencher,out ≤ 1150 °F. • Product purity: xDben ≥ 0.9997. • Separator inlet temperature: 95 °F ≤ Tseparator ≤ 105 °F. • Compressor power: WS ≤ 545 hp • Furnace heat duty: Qfur ≤ 24 MBtu • Cooler heat duty: Qcool ≤ 33 MBtu • + Distillation heat duties (condensers and reboilers).

  10. Disturbances • Typical disturbances : • Feeds • Utilities • Constraints • Caused by: implementation error or change

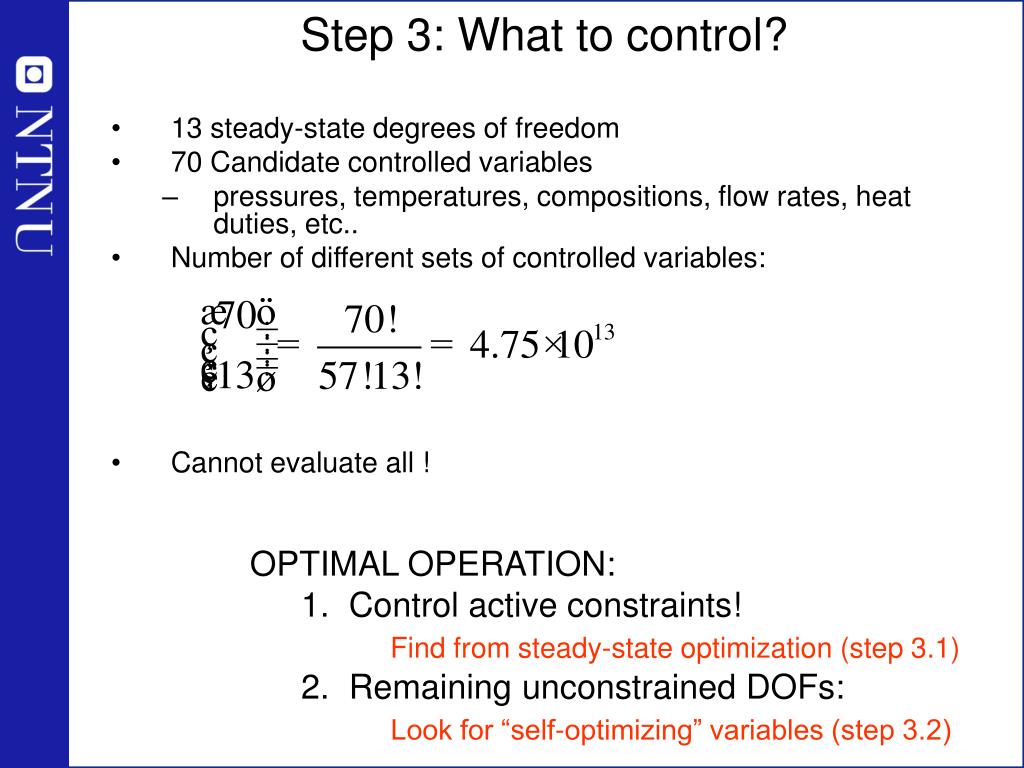

  11. Step 3: What to control? • 13 steady-state degrees of freedom • 70 Candidate controlled variables • pressures, temperatures, compositions, flow rates, heat duties, etc.. • Number of different sets of controlled variables: • Cannot evaluate all ! • OPTIMAL OPERATION: • Control active constraints! • Find from steady-state optimization (step 3.1) • Remaining unconstrained DOFs: • Look for “self-optimizing” variables (step 3.2)

  12. Operation with given feedMode I

  13. Step 3.1 – Optimization distillation • Distillation train: • Optimized separately using detailed models • Generally: Most valuable product at its constraint • Other compositions: Trade-off between recovery and energy • Results:

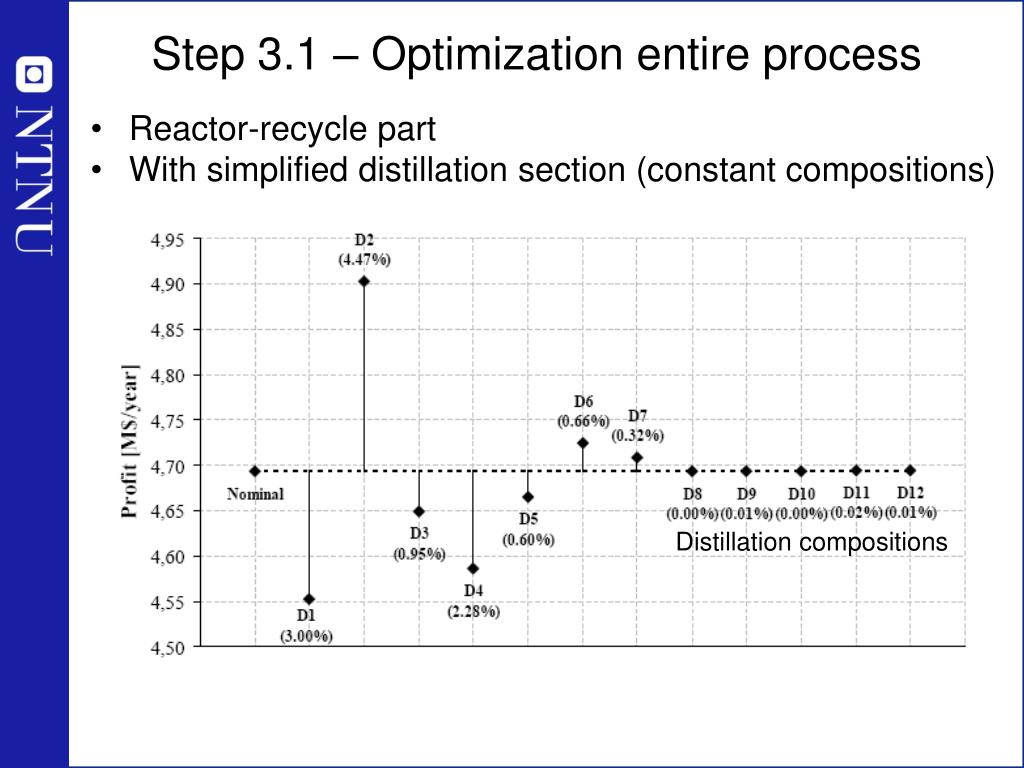

  14. Step 3.1 – Optimization entire process • Reactor-recycle part • With simplified distillation section (constant compositions) Distillation compositions

  15. Purge (H2 + CH4) Compressor 5 Furnace 4 H2 + CH4 Quencher Toluene Mixer FEHE Reactor 2 1 Cooler 3 8 6 10 Separator 4 Benzene CH4 Toluene Toluene Column Benzene Column Stabilizer Diphenyl Step 3.1 – Optimization: Active Constraints • Max. Toluene feed rate • Min. H2/aromatics ratio • Min. Separator temperature • Min. quencher temperature • Max. Reactor pressure • Max. impurity product • + 5 distillation purities 11 9 7

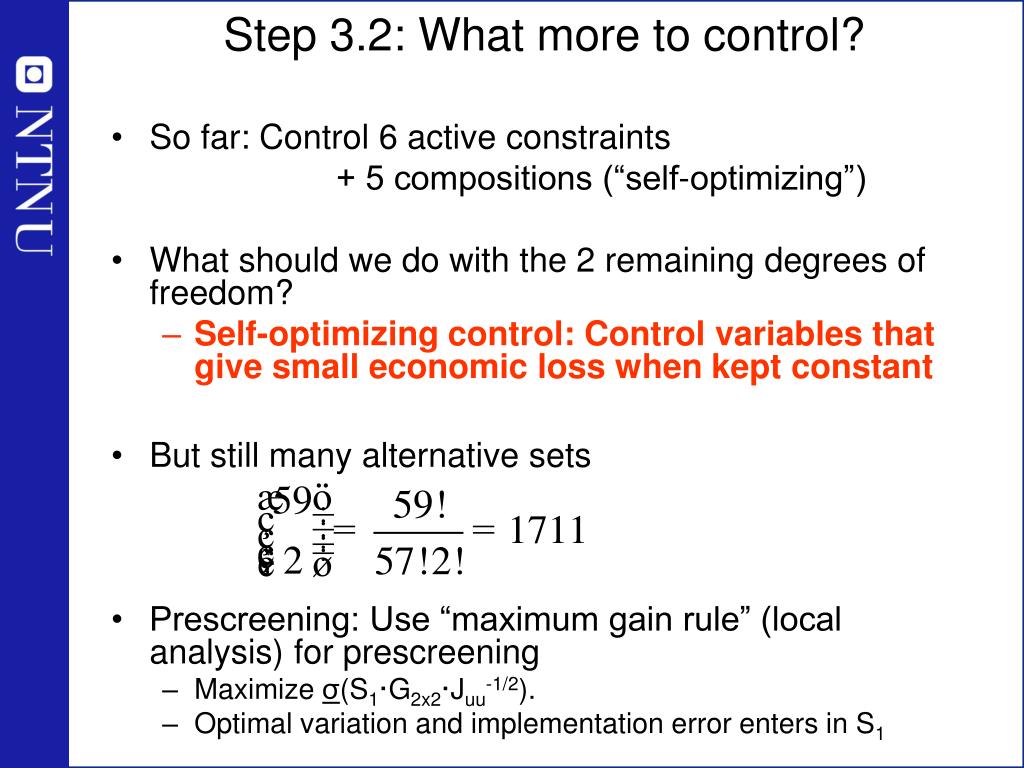

  16. Step 3.2: What more to control? • So far: Control 6 active constraints + 5 compositions (“self-optimizing”) • What should we do with the 2 remaining degrees of freedom? • Self-optimizing control: Control variables that give small economic loss when kept constant • But still many alternative sets • Prescreening: Use “maximum gain rule” (local analysis) for prescreening • Maximize σ(S1·G2x2·Juu-1/2). • Optimal variation and implementation error enters in S1

  17. Step 3.2 – “Maximum gain rule” • Linear model • All measurements: σ(S1Gfull·Juu-1/2) = 6.34·10-3 • Best set of two measurements involves two compositions: c1 c2

  18. Step 3 - Final selection in mode I Purge (H2 + CH4) Compressor c2 c1 5 Furnace 4 H2 + CH4 Quencher Toluene Mixer FEHE Reactor 2 1 Cooler 3 8 6 10 Separator 4 Benzene CH4 Toluene Toluene Column Benzene Column Stabilizer Diphenyl 11 9 7

  19. Step 3: What to control in Mode II ?Available feed and good product pricesMaximum throughput

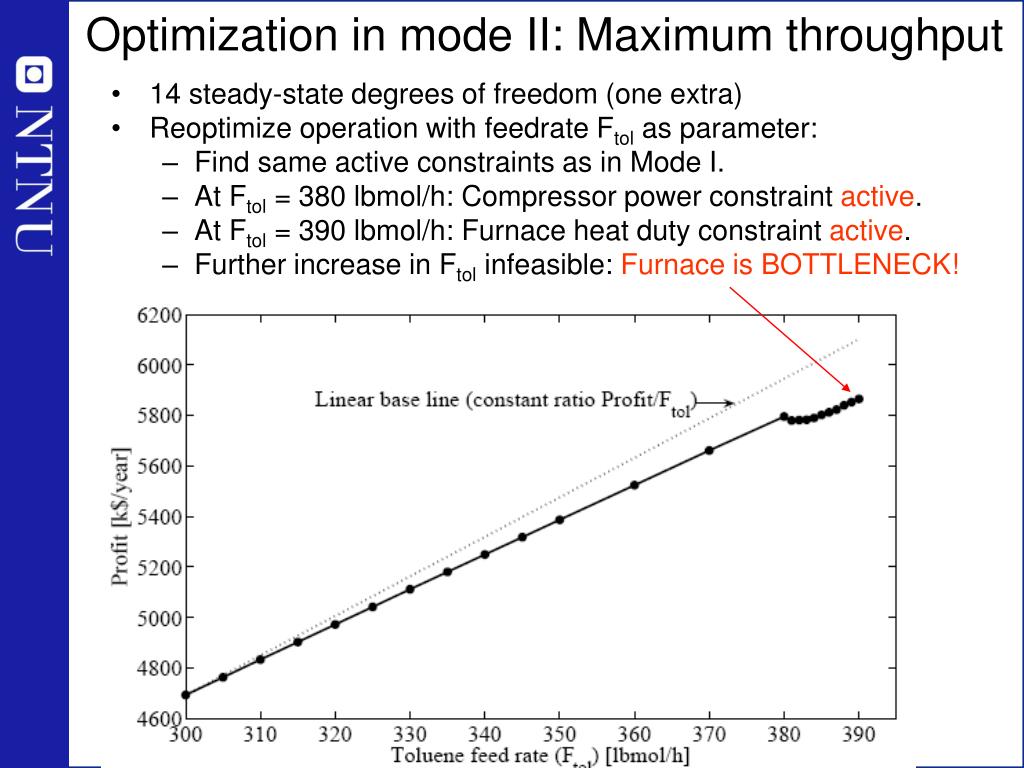

  20. Optimization in mode II: Maximum throughput • 14 steady-state degrees of freedom (one extra) • Reoptimize operation with feedrate Ftol as parameter: • Find same active constraints as in Mode I. • At Ftol = 380 lbmol/h: Compressor power constraint active. • At Ftol = 390 lbmol/h: Furnace heat duty constraint active. • Further increase in Ftol infeasible: Furnace is BOTTLENECK!

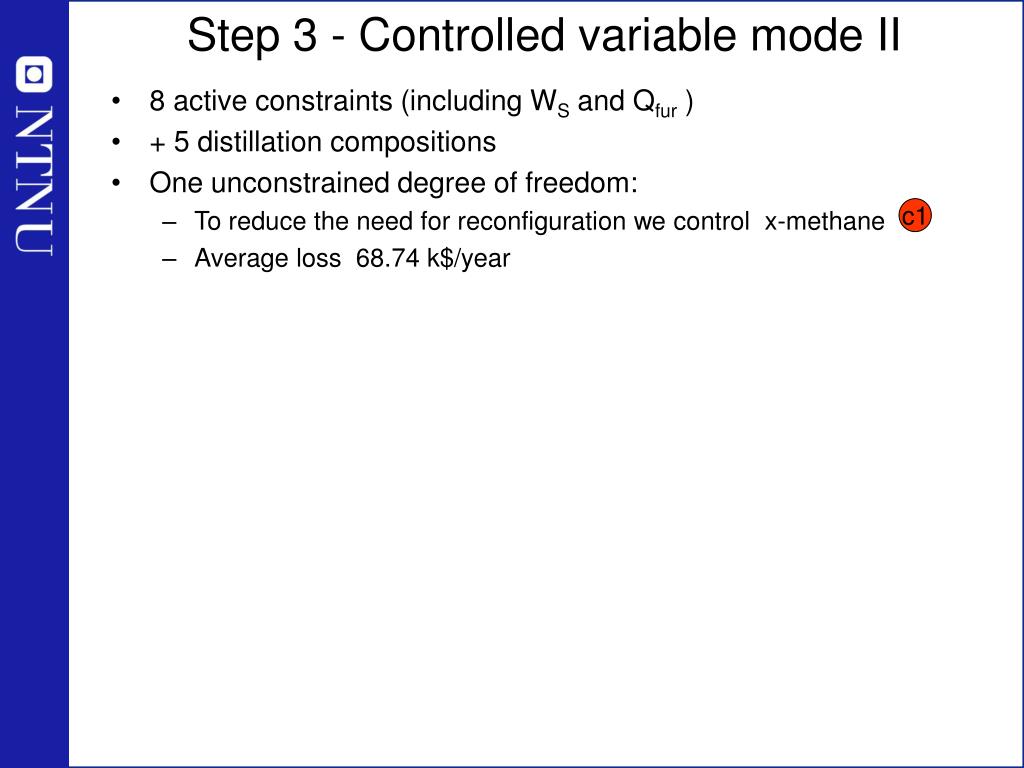

  21. Step 3 - Controlled variable mode II c1 • 8 active constraints (including WS and Qfur ) • + 5 distillation compositions • One unconstrained degree of freedom: • To reduce the need for reconfiguration we control x-methane • Average loss 68.74 k$/year

  22. Step 4 – Throughput manipulator c1 • Mode I: Toluene feedrate (given) • Mode II: Optimal throughput manipulator is furnace duty (bottleneck) • Minimizes back-off • But furnace duty is used to stabilize reactor • So use toluene feedrate also in mode II

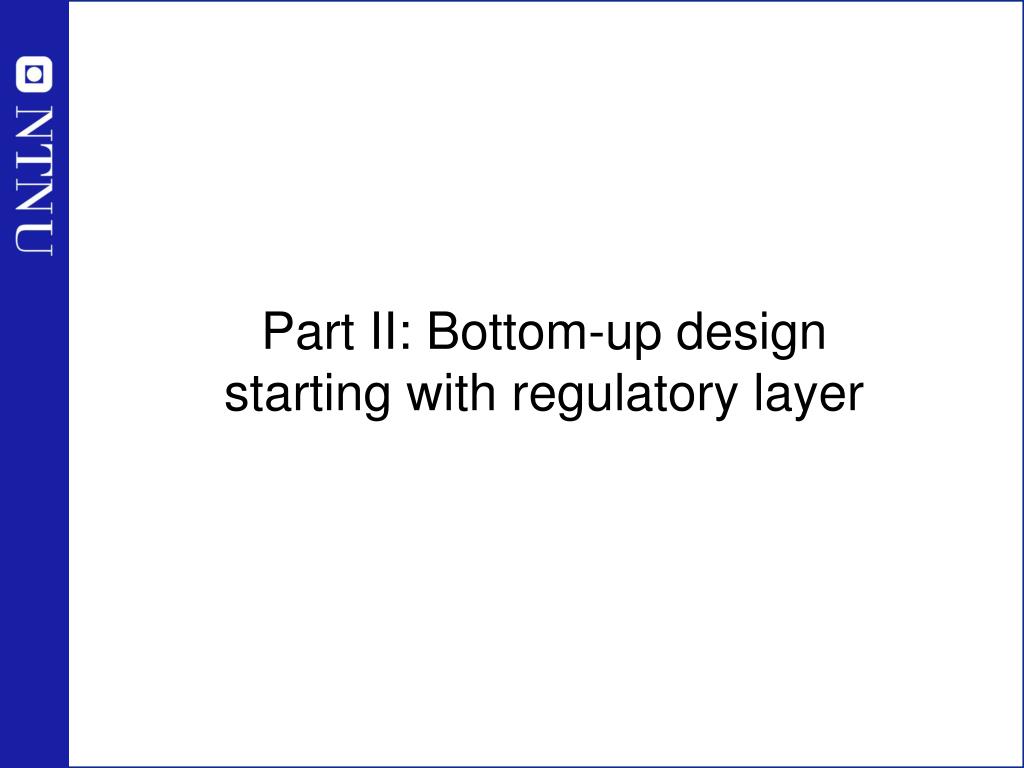

  23. Part II: Bottom-up designstarting with regulatory layer

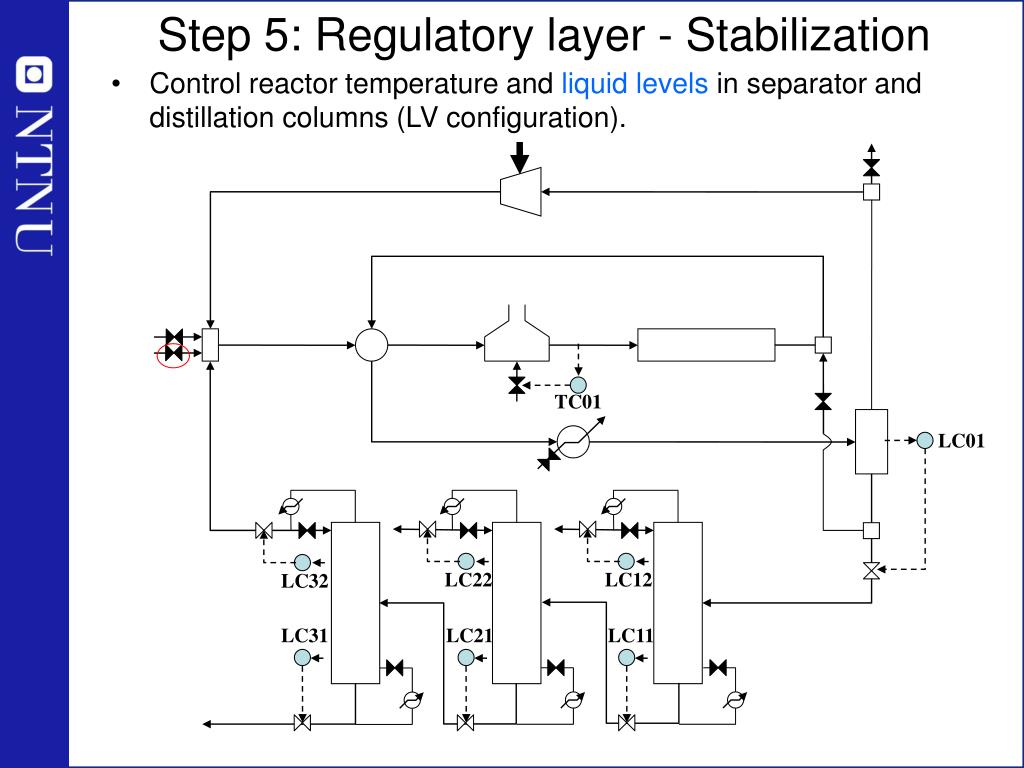

  24. Step 5: Regulatory layer - Stabilization • Control reactor temperature and liquid levels in separator and distillation columns (LV configuration). TC01 LC01 LC22 LC12 LC32 LC31 LC21 LC11

  25. Regulatory layer - Avoiding drift I: Pressure control PC01 TC01 LC01 PC33 PC22 PC11 LC22 LC12 LC32 LC31 LC21 LC11

  26. Regulatory layer - Avoiding drift II: Temperature control TC03 PC01 TC02 TC01 LC01 PC33 PC22 PC11 TC11 #3 #5 LC22 LC12 LC32 TC33 TC22 #20 LC31 LC21 LC11

  27. Regulatory layer - Avoiding drift III: Flow control FC02 TC03 PC01 TC02 TC01 FC01 LC01 PC33 PC22 PC11 TC11 #3 #5 LC22 LC12 LC32 TC33 TC22 #20 LC31 LC21 LC11

  28. Step 6: Supervisory layer – Mode I Decentralized control (PID-loops) seems sufficient FC02 CC01 TC03 PC01 RC01 CC02 TC02 TC01 FC01 LC01 CC22 CC12 PC33 PC22 PC11 TC11 #3 #5 LC22 LC12 LC32 TC33 TC22 #20 CC32 LC31 LC21 LC11 CC11 CC31 CC21

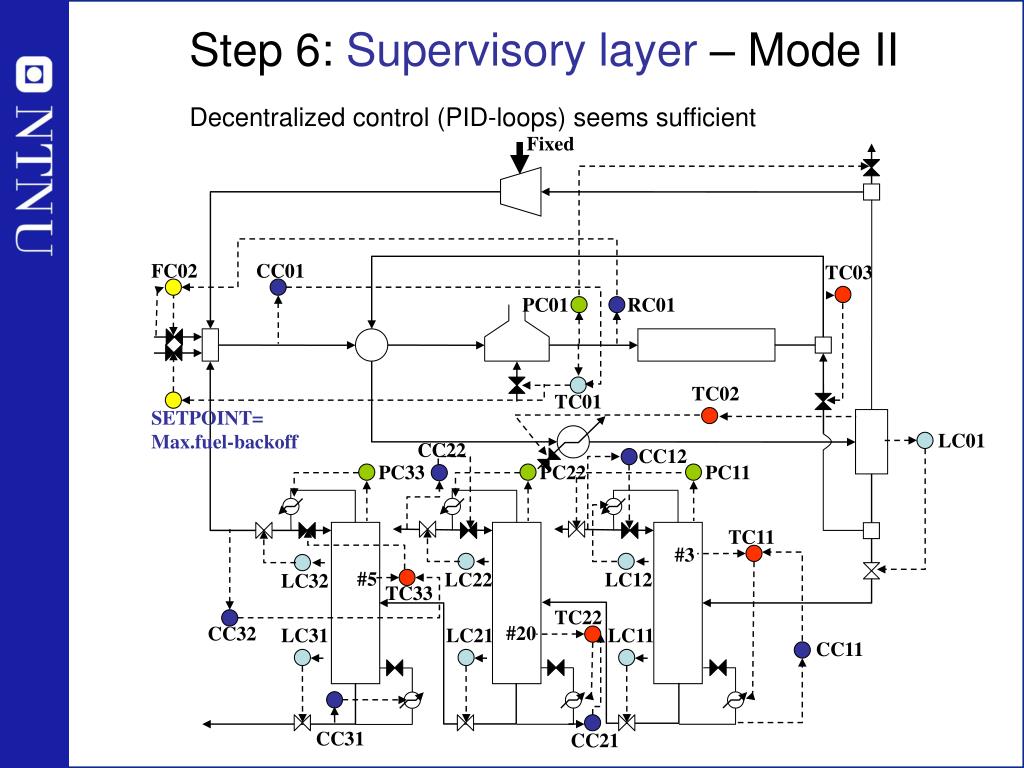

  29. Step 6: Supervisory layer – Mode II Decentralized control (PID-loops) seems sufficient Fixed FC02 CC01 TC03 PC01 RC01 TC02 TC01 SETPOINT= Max.fuel-backoff LC01 CC22 CC12 PC33 PC22 PC11 TC11 #3 #5 LC22 LC12 LC32 TC33 TC22 #20 CC32 LC31 LC21 LC11 CC11 CC31 CC21

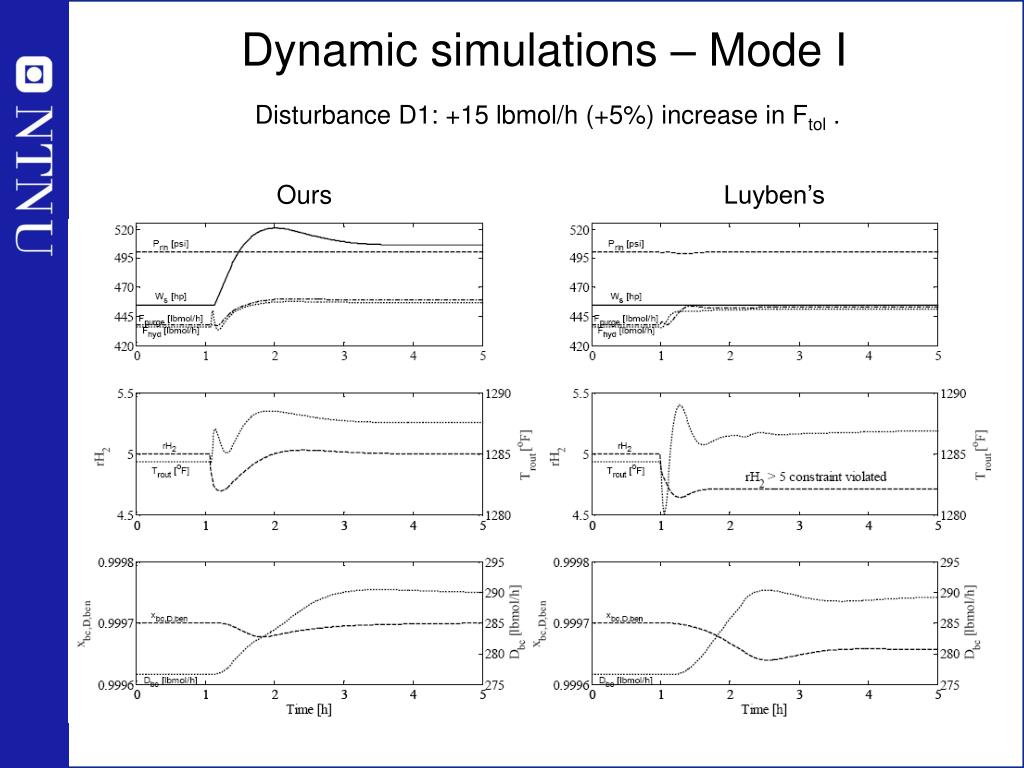

  30. Dynamic simulations – Mode I Disturbance D1: +15 lbmol/h (+5%) increase in Ftol . Ours Luyben’s

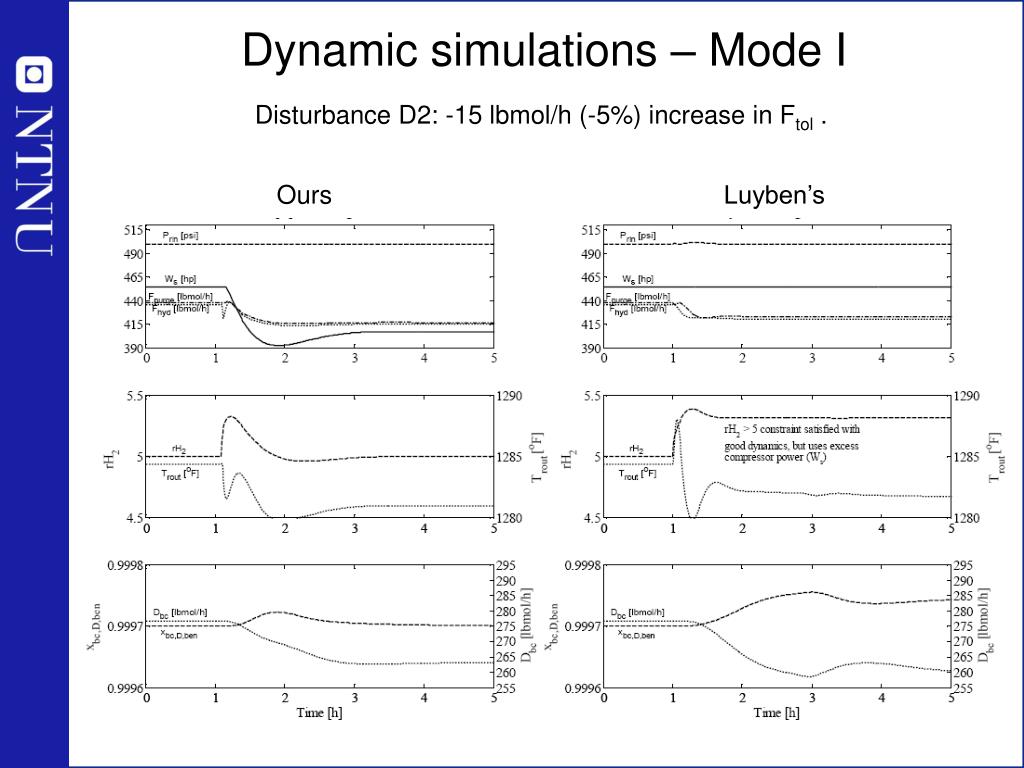

  31. Dynamic simulations – Mode I Disturbance D2: -15 lbmol/h (-5%) increase in Ftol . Ours Luyben’s

  32. Dynamic simulations – Mode I Disturbance D3: +0.05 increase in xmet. Ours Luyben’s

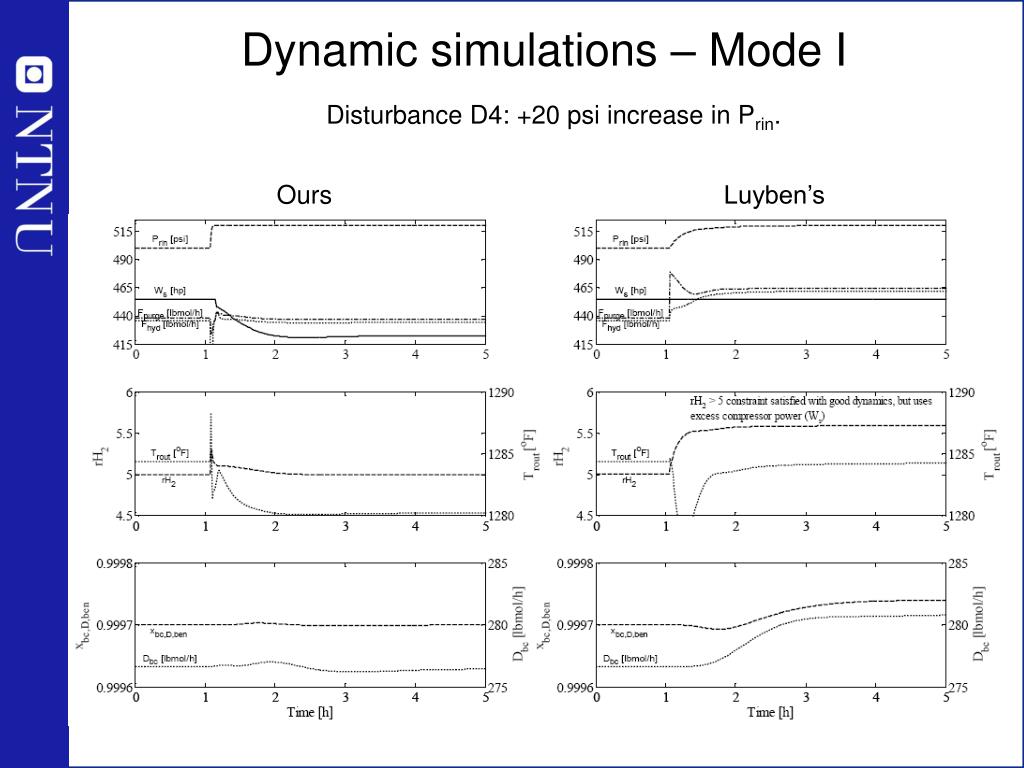

  33. Dynamic simulations – Mode I Disturbance D4: +20 psi increase in Prin. Ours Luyben’s

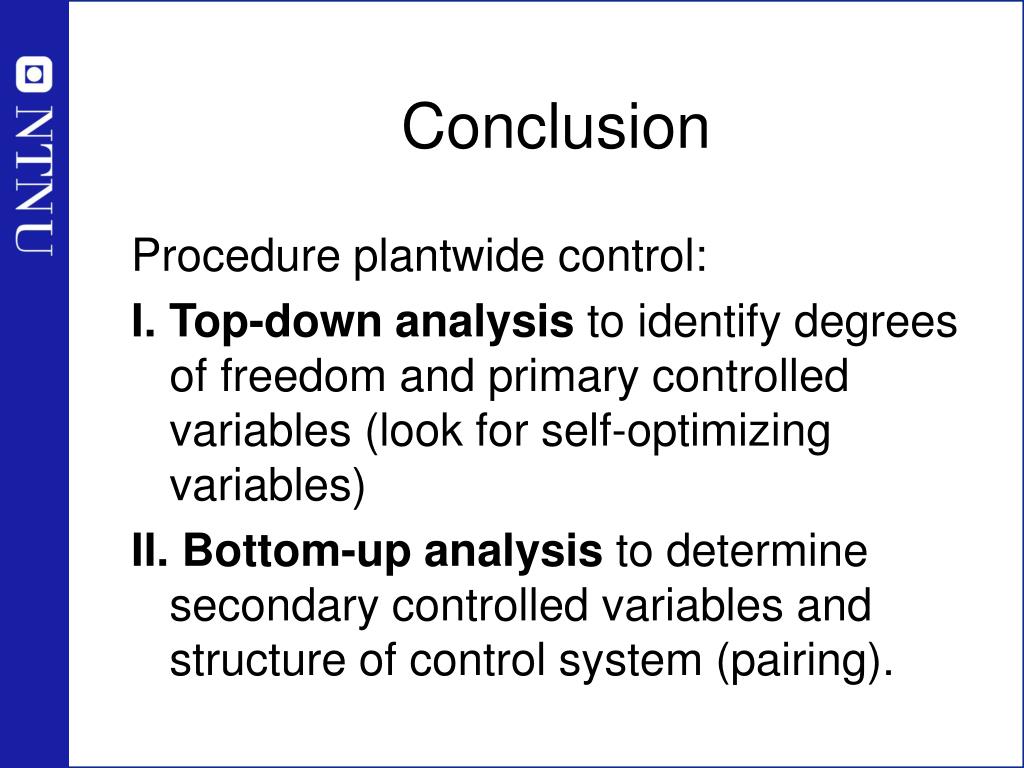

  34. Conclusion Procedure plantwide control: I. Top-down analysis to identify degrees of freedom and primary controlled variables (look for self-optimizing variables) II. Bottom-up analysis to determine secondary controlled variables and structure of control system (pairing).
