Presentation Transcript
Signal processors l.jpg

Signal Processors

Devices that change some characteristic of a sound.


Analog processors l.jpg
Analog Processors

  • ANALOG PROCESSORS DIRECTLY MODIFY SIGNALS AS THEY ENTER THE DEVICE


Digital processors l.jpg
Digital Processors

  • DIGITAL PROCESSORS (DSPs) CONVERT THE INCOMING SIGNAL INTO BINARY LANGUAGE AND ARE THEN PROCESSED BY MATHEMATICALLY RECALCULATING THE DIGITAL CODE ACCORDING TO A ALGORITHM


4 basic categories of processors l.jpg
4 Basic Categories of Processors

  • SPECTRUM PROCESSORS

  • TIME PROCESSORS

  • AMPLITUDE PROCESSORS

  • NOISE PROCESSORS


Spectrum processors l.jpg
SPECTRUM PROCESSORS

  • AFFECT THE SPECTRAL BALANCE (FREQUENCY/AMPLITUDE RESPONSE PATTERN )

  • CHANGE TIMBRE

  • EXAMPLES: Equalizers and Filters


Time processors l.jpg
TIME PROCESSORS

  • AFFECT THE TIME BETWEEN A SIGNAL AND ITS REPETITIONS

  • CHANGE ACOUSTIC ENVIRONMENT

  • EXAMPLES: Reverbs and Delays


Amplitude processors l.jpg
AMPLITUDE PROCESSORS

  • AFFECT THE DYNAMIC RANGE

  • CHANGE THE ACOUSTIC ENVELOPE

  • EXAMPLES: Compressors, Limiters, and Noise Gates


Noise processors l.jpg
NOISE PROCESSORS

  • REDUCE ANALOG TAPE HISS

  • EXAMPLES: Dolby and dBx


Equalization eq l.jpg
EQUALIZATION (EQ)

  • PROCESS OF ALTERING THE FREQUENCY/AMPLITUDE RESPONSE PATTERN BY BOOSTING OR ATTENUATING SELECTED FREQUENCIES

  • THE MOST COMMON FORM OF SIGNAL PROCESSING

  • EQUALIZERS ENABLE US TO EXERCISE TONAL OR TIMBRAL CONTROL OVER A SOUND

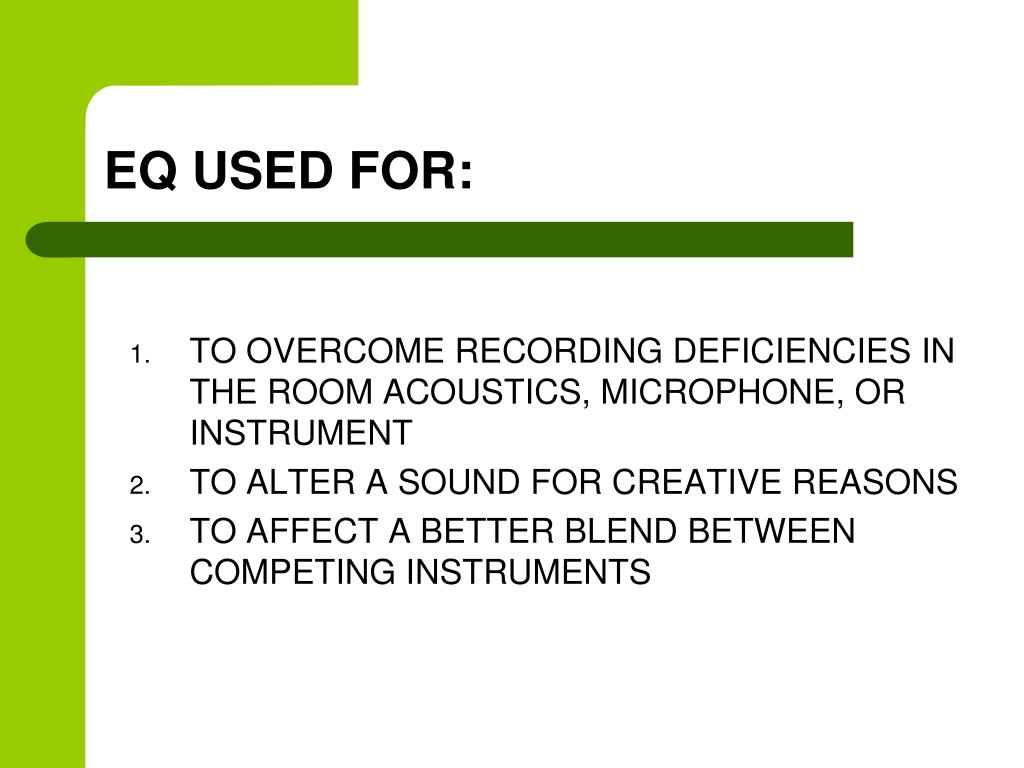

Eq used for l.jpg
EQ USED FOR:

  • TO OVERCOME RECORDING DEFICIENCIES IN THE ROOM ACOUSTICS, MICROPHONE, OR INSTRUMENT

  • TO ALTER A SOUND FOR CREATIVE REASONS

  • TO AFFECT A BETTER BLEND BETWEEN COMPETING INSTRUMENTS


Bell curve eq l.jpg
BELL CURVE EQ

  • THE EFFECT OF EQ TO FREQUENCIES ADJACENT TO A TARGET FREQUENCY, ALSO CALLED A PEAKING CURVE EQ.

BANDWIDTH: THE RANGE OF FREQUENCIES AFFECTED BY EQ ON EACH SIDE OF THE CENTER FREQUENCY


Quality factor q l.jpg
QUALITY FACTOR (Q)

  • REFERS TO THE WIDTH OF THE AFFECTED BAND

  • HIGH Q VALUE = NARROW BANDWIDTH

  • LOW Q = WIDE BANDWIDTH


Shelving eq l.jpg
SHELVING EQ

  • SIMILAR TO BELL CURVE EQ EXCEPT THAT THE CURVE GENTLY FLATTENS OUT INTO A STRAIGHT LINE


Equalizers l.jpg
EQUALIZERS

  • FIXED FREQUENCY (OR SELECTABLE FREQUENCY) HAS A SET NUMBER OF FREQUENCIES THAT CAN BE MODIFIED AND HAS A SET BANDWIDTH

  • PARAMETRIC HAS A "SWEEP-ABLE" OR CONTINUOUS FREQUENCY SELECT AND A BANDWIDTH THAT IS VARIABLE

  • GRAPHIC EQUALIZER IS A FIXED FREQUENCY EQUALIZER WITH FADER CONTROLS FOR EASY VISUAL INSPECTION


Filters l.jpg
FILTERS

  • DIFFER FROM EQUALIZERS IN TWO BASIC WAYS

    1. THEY ONLY ATTENUATE (CUT)

    2. THEIR EFFECT IS MUCH MORE DRASTIC


High pass filter l.jpg
HIGH PASS FILTER

  • HIGH PASS FILTERS ATTENUATE ALL FREQUENCIES BELOW A GIVEN FREQUENCY

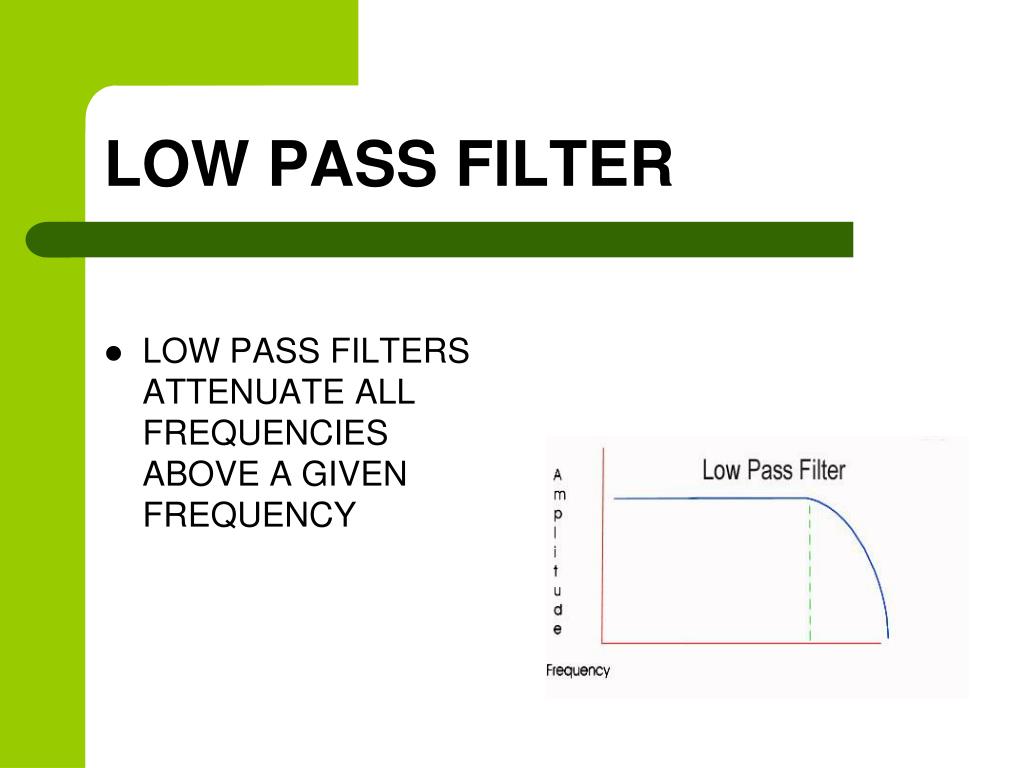

Low pass filter l.jpg
LOW PASS FILTER

  • LOW PASS FILTERS ATTENUATE ALL FREQUENCIES ABOVE A GIVEN FREQUENCY


Band pass filter l.jpg
BAND PASS FILTER

  • BAND PASS FILTERS ATTENUATE ALL FREQUENCIES ABOVE AND BELOW TWO GIVEN FREQUENCIES


Notch filter l.jpg
NOTCH FILTER

  • NOTCH FILTERS ATTENUATE A VERY NARROW BANDWIDTH BETWEEN TWO FREQUENCIES


Reverberation l.jpg
REVERBERATION

  • SUCCESSIVELY REPEATING DELAYS CREATING CLOSELY SPACED ECHOES IS CALLED REVERBERATION OR REVERB

  • REVERB UNIT: A DEVICE THAT ARTIFICIALLY REPRODUCES THE SOUND CHARACTERISTICS OF DIFFERENT ACOUSTIC ENVIRONMENTS


Reverb units l.jpg
REVERB UNITS

  • ACOUSTIC ECHO CHAMBER

  • SPRING REVERB

  • PLATE REVERB

  • DIGITAL REVERB


Reverb terms l.jpg
REVERB TERMS

  • DELAY: THE TIME BETWEEN REFLECTIONS OF SOUND

  • PRE-DELAY: THE TIME BETWEEN THE ORIGINAL SOUND AND ITS FIRST REPETITION

  • REVERB DECAY TIME: TIME IT TAKES SOUND TO DECREASE 60 dB


Delay units l.jpg
DELAY UNITS

  • ANALOG DELAY USES PHYSICAL MEANS TO HOLD BACK A SIGNAL

  • DIGITAL DELAY SIMPLY CONVERTS SIGNAL (A/D CONVERTER), APPLIES A REVERB ALGORITHM AND THEN CONVERTS BACK TO ANALOG (D/A CONVERTER)


Compressors l.jpg
COMPRESSORS

  • AN AMPLIFIER WHOSE OUTPUT HAS A SMALLER DYNAMIC RANGE THAN ITS INPUT

  • ALSO CALL A LEVELING AMPLIFIER

  • IT CONTROLS THE DYNAMIC RANGE


Limiters l.jpg
LIMITERS

  • A COMPRESSOR WHOSE COMPRESSION RATIO EXCEEDS 11:1

  • A COMPRESSOR WHOSE OUTPUT STAYS BELOW A PRE-SET LEVEL


Uses of compressor limiters l.jpg
USES OF COMPRESSOR/LIMITERS

1. SMOOTH THE DYNAMIC RANGE

2. IMPROVE SPEECH INTELLIGIBILITY

3. IMPROVE S/N RATIO

4. CREATE THE EFFECT OF LOWERING AMPLITUDE


Expander l.jpg
EXPANDER

  • INCREASES THE DYNAMIC RANGE


Noise gates l.jpg
NOISE GATES

  • A DYNAMIC PROCESSOR THAT ALLOWS A SIGNAL TO PASS AT A PREDETERMINED POINT (THRESHOLD) BUT BLOCKS THOSE OF LESS AMPLITUDE

  • WORKS LIKE AN ON-OFF SWITCH FOR A MICROPHONE

  • DO NOT CONFUSE WITH NOISE PROCESSORS


Noise processors29 l.jpg
NOISE PROCESSORS

  • ONLY TASK IS TO REDUCE ANALOG TAPE HISS

  • USES A UNIQUE DEVICE CALLED A COMPANDER WHICH IS A COMBINATION COMPRESSOR AND EXPANDER
