Message passing

Message Passing

Akos Ledeczi

EECE 354, Fall 2012

Vanderbilt University


Message queues

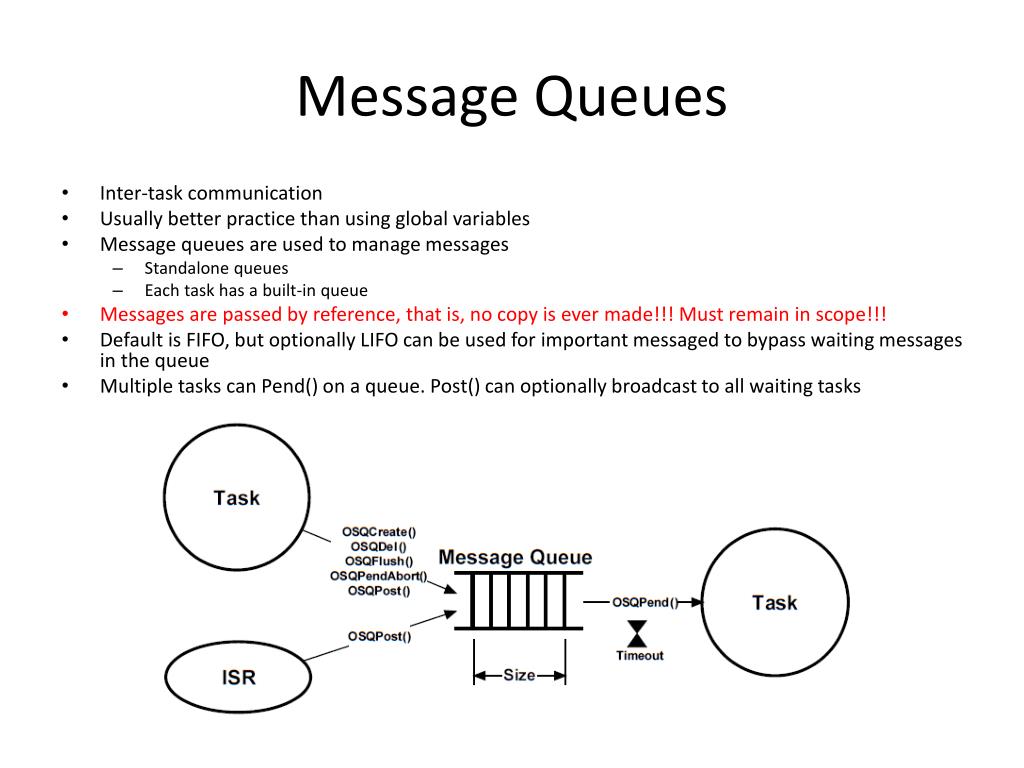

Message Queues

  • Inter-task communication

  • Usually better practice than using global variables

  • Message queues are used to manage messages

    • Standalone queues

    • Each task has a built-in queue

  • Messages are passed by reference, that is, no copy is ever made!!! Must remain in scope!!!

  • Default is FIFO, but optionally LIFO can be used for important messaged to bypass waiting messages in the queue

  • Multiple tasks can Pend() on a queue. Post() can optionally broadcast to all waiting tasks


Bilateral rendezvous
Bilateral Rendezvous

  • Using tasks queues in this case

  • Just like semaphores, but can pass data as well


Flow control
Flow Control

  • Message producer may produce faster than consumer can consume

  • To prevent overflowing the message queue, a semaphore helps manage the resource

  • Using a task semaphore and a task queue in this case


Clients and servers

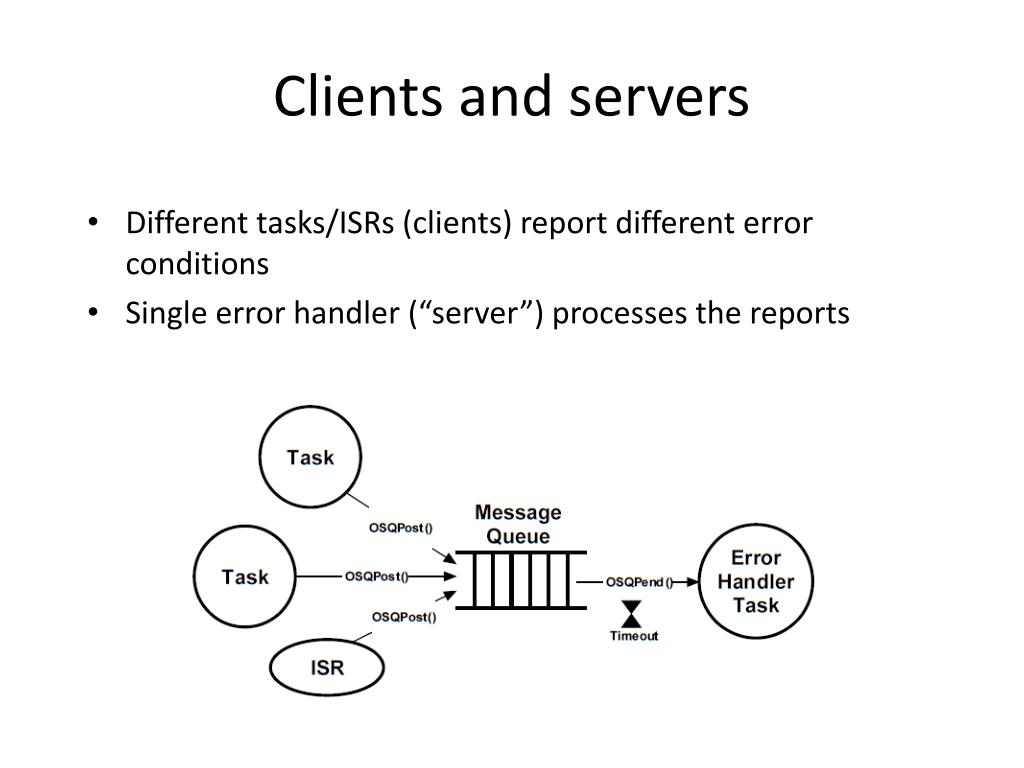

Clients and servers

  • Different tasks/ISRs (clients) report different error conditions

  • Single error handler (“server”) processes the reports


Example

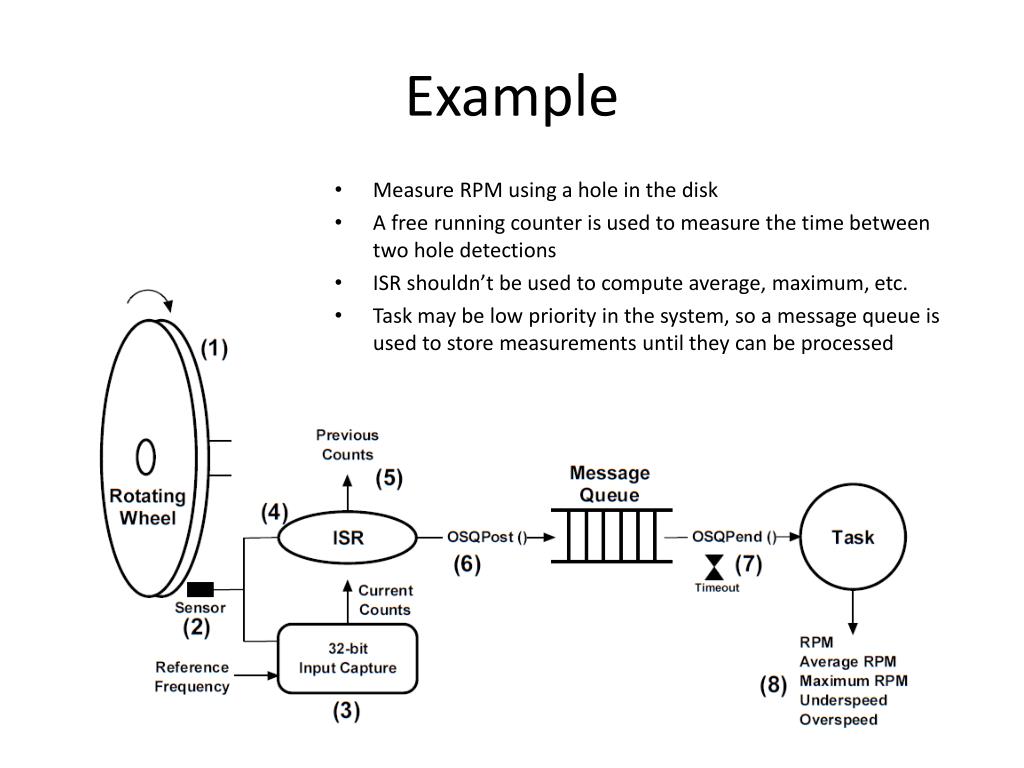

Example

  • Measure RPM using a hole in the disk

  • A free running counter is used to measure the time between two hole detections

  • ISR shouldn’t be used to compute average, maximum, etc.

  • Task may be low priority in the system, so a message queue is used to store measurements until they can be processed


Usage

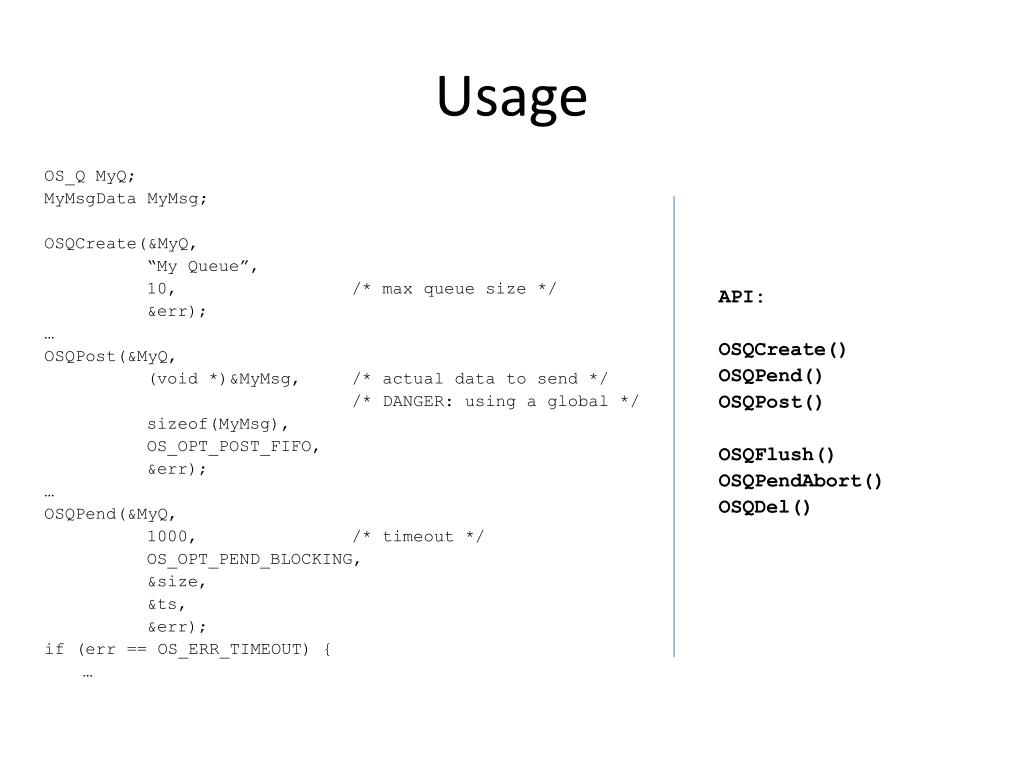

Usage

OS_Q MyQ;

MyMsgDataMyMsg;

OSQCreate(&MyQ,

“My Queue”,

10, /* max queue size */

&err);

OSQPost(&MyQ,

(void *)&MyMsg, /* actual data to send */

/* DANGER: using a global */

sizeof(MyMsg),

OS_OPT_POST_FIFO,

&err);

OSQPend(&MyQ,

1000, /* timeout */

OS_OPT_PEND_BLOCKING,

&size,

&ts,

&err);

if (err == OS_ERR_TIMEOUT) {

API:

OSQCreate()

OSQPend()

OSQPost()

OSQFlush()

OSQPendAbort()

OSQDel()
