Ad hoc network

Ad hoc Network

江崎研究室 修士1年

中島 亮


What is ad hoc network

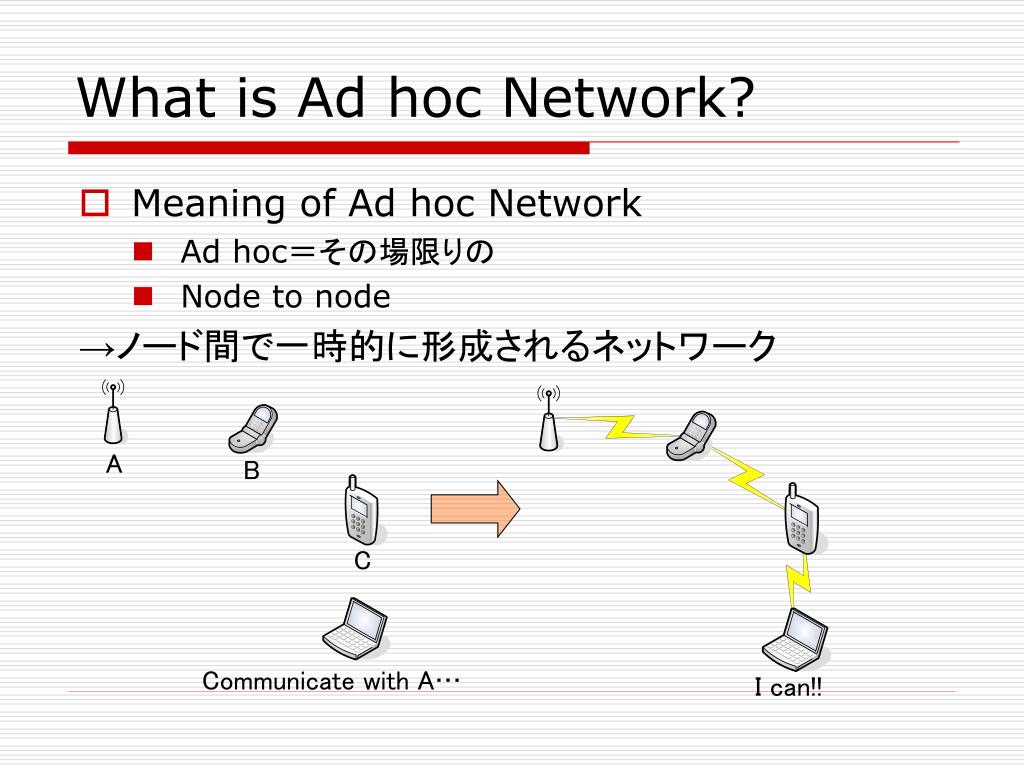

What is Ad hoc Network?

  • Meaning of Ad hoc Network

    • Ad hoc=その場限りの

    • Node to node

      →ノード間で一時的に形成されるネットワーク


Use of ad hoc network

Use of Ad hoc Network

  • Sensor network

    • IC chip

    • Weather sensor

    • Sensor for scout

  • Mobile network

    • Cellular phone

    • Note PC

    • PDA

      →movable and weak computationand battery power

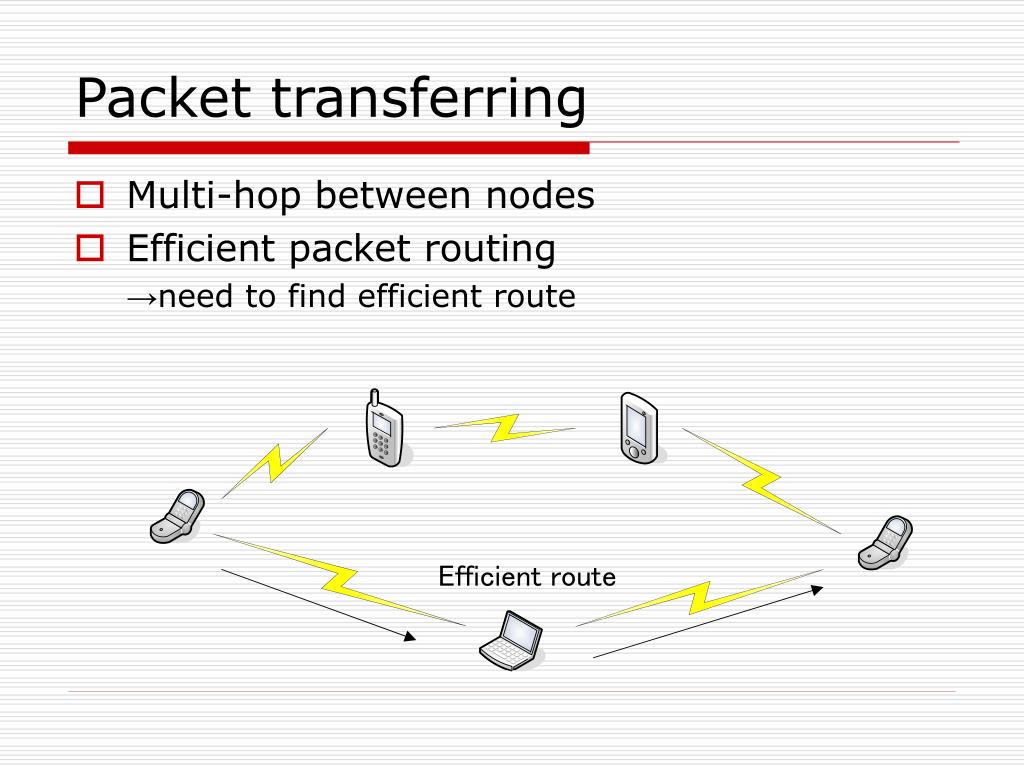

Packet transferring

Packet transferring

  • Multi-hop between nodes

  • Efficient packet routing

    →need to find efficient route


Multi hop transferring

Multi-hop transferring

  • Getting routing information

    • Pro-active

      • Making routing table beforehand

      • Smaller lookup delay but more communication

        Ex.OLSR, TBRPF

    • Re-active

      • Look up route when needed

      • Bigger delay but fewer communication

        Ex.DSR, AODV


Ad hoc network

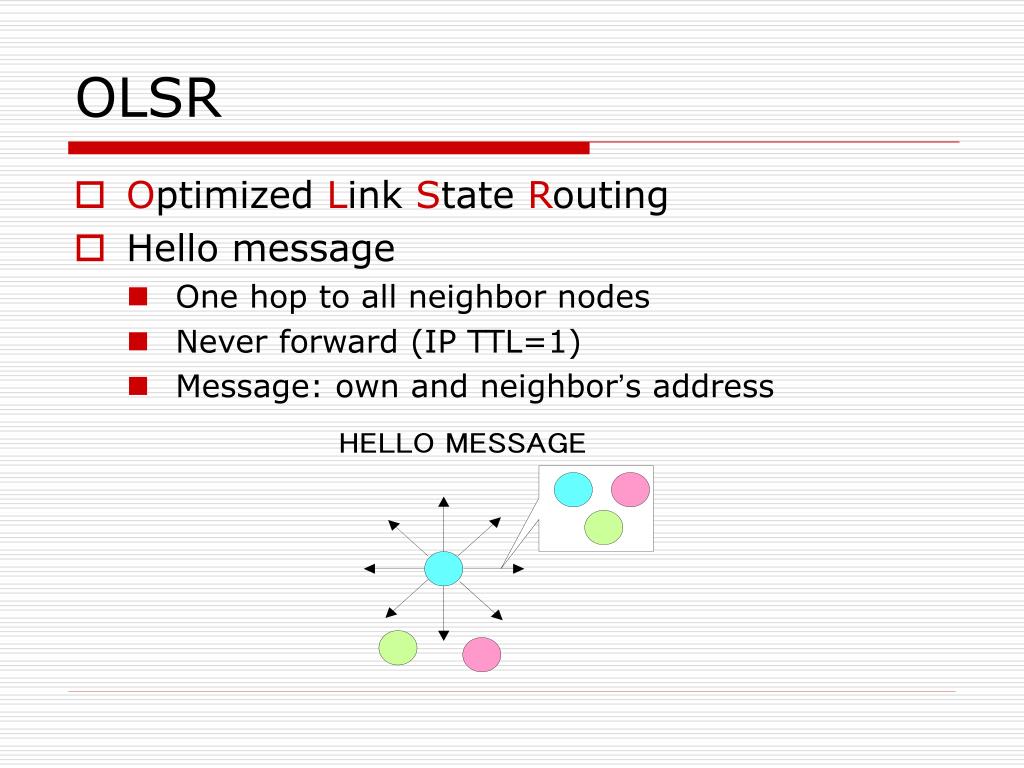

OLSR

  • Optimized Link State Routing

  • Hello message

    • One hop to all neighbor nodes

    • Never forward (IP TTL=1)

    • Message: own and neighbor’s address


Feature of olsr

Feature of OLSR

  • MPR( Multi-Point Relay )

    • Smallest set of 1 hop nodes that can join all 2 hop neighbor nodes

    • Efficient flooding

Pink object in right picture is MPR


Getting topology

Getting topology

  • TC( topology control ) message

    • All nodes selected as MPR MUST send

    • Contain links between MPR and the node which select the node as MPR

    • Broadcast to all nodes

    • Each nodes calculate topology and route from this TC message and HELLO message


Ad hoc network

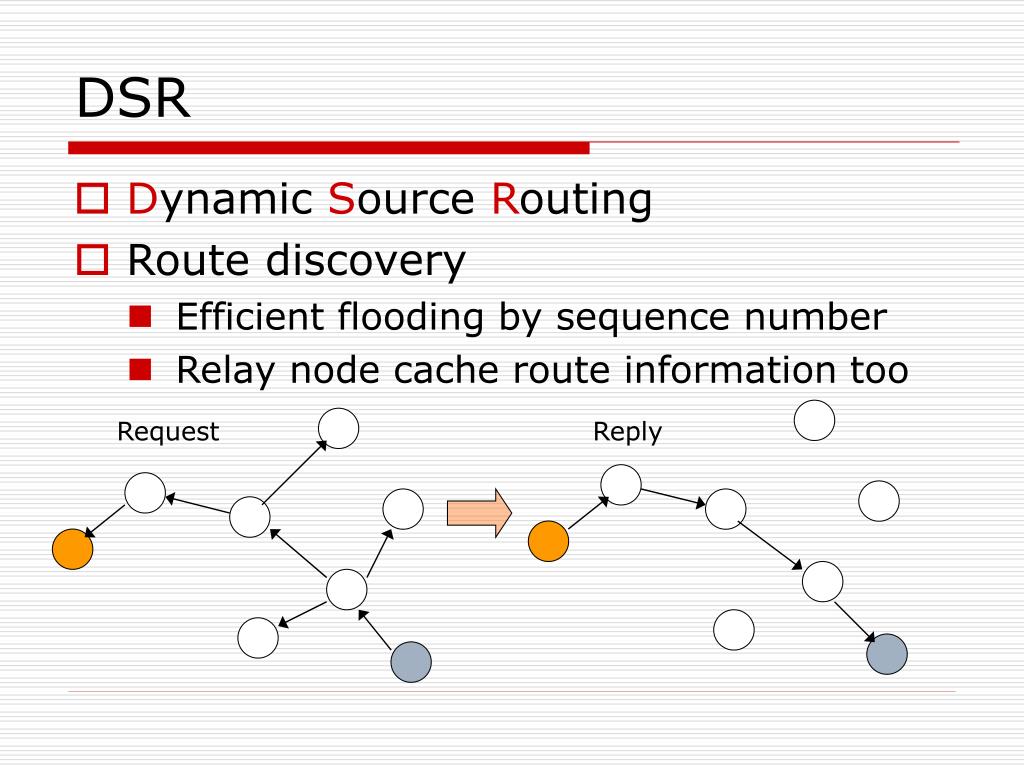

DSR

  • Dynamic Source Routing

  • Route discovery

    • Efficient flooding by sequence number

    • Relay node cache route information too

Request

Reply


Feature of dsr

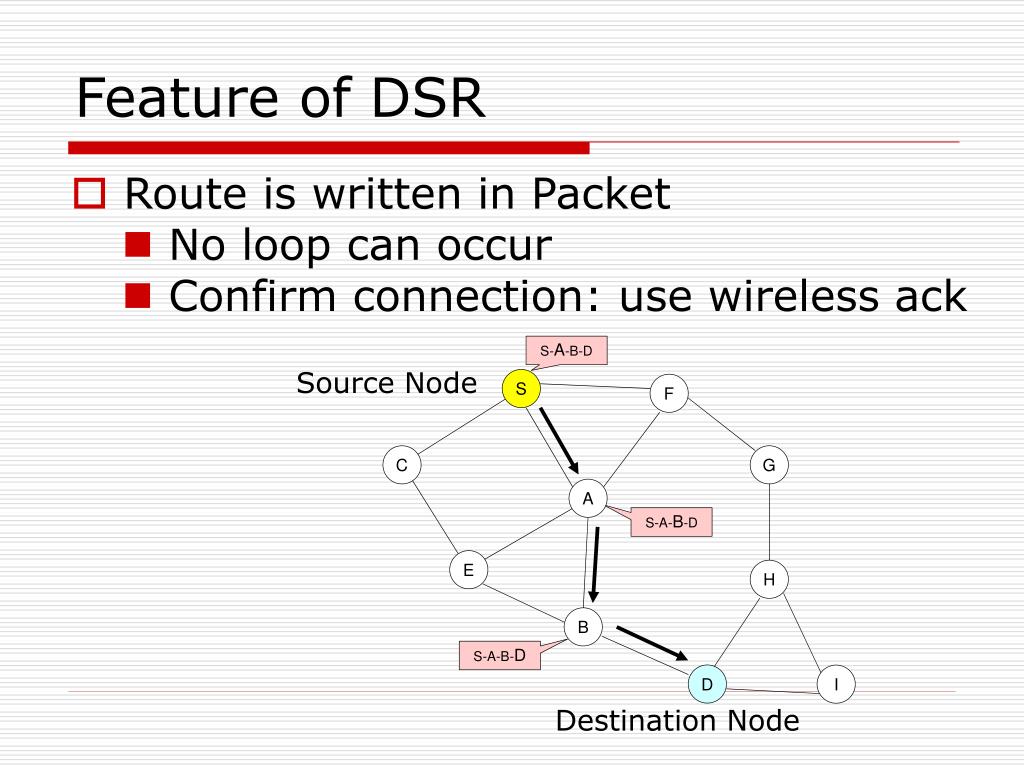

Feature of DSR

  • Route is written in Packet

    • No loop can occur

    • Confirm connection: use wireless ack

Source Node

Destination Node


Ad hoc network

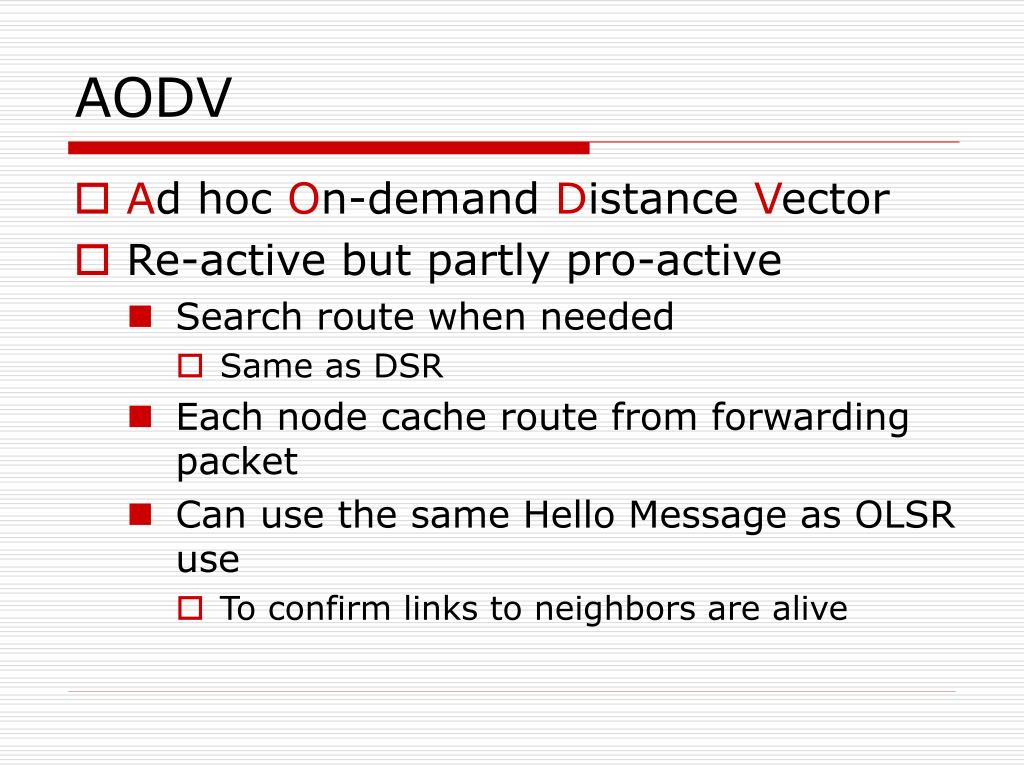

AODV

  • Ad hoc On-demand Distance Vector

  • Re-active but partly pro-active

    • Search route when needed

      • Same as DSR

    • Each node cache route from forwarding packet

    • Can use the same Hello Message as OLSR use

      • To confirm links to neighbors are alive


Feature of aodv

Feature of AODV

  • Distance Vector (DV)

    • Routing table

      • Destination node’s address

      • Hop number to Destination node

      • Next node to Destination node

    • Smaller packet

      • Route is not in the packet

    • Smaller routing table

      • Each node know only next hop node

Distance

Vector

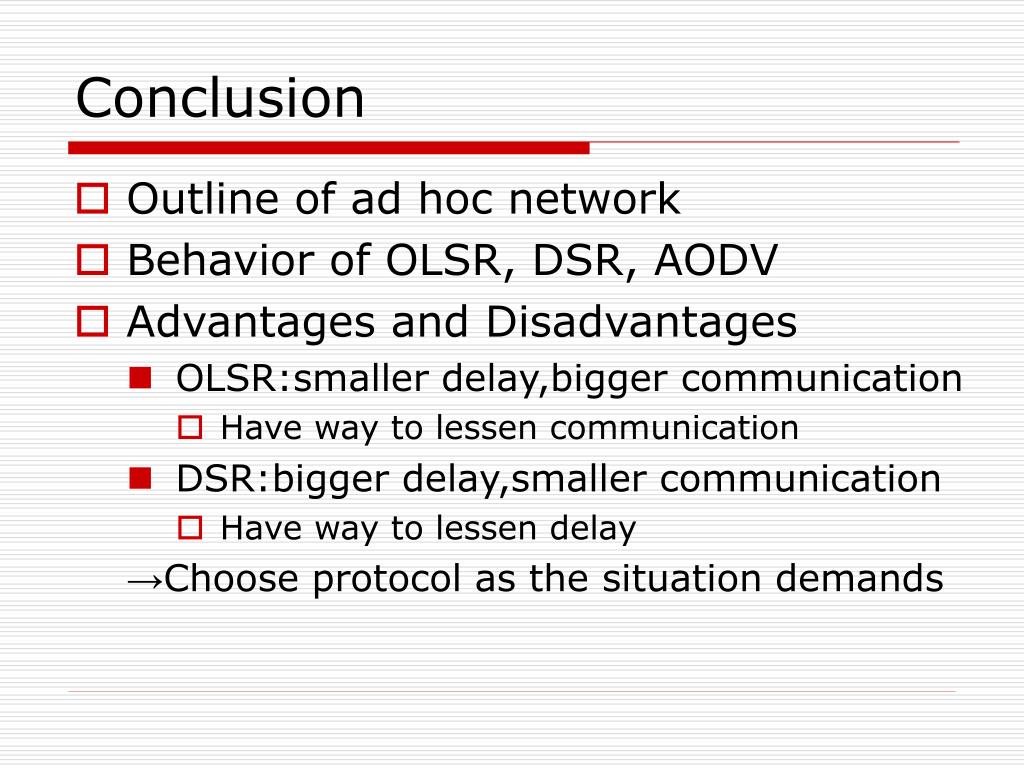

Conclusion

Conclusion

  • Outline of ad hoc network

  • Behavior of OLSR, DSR, AODV

  • Advantages and Disadvantages

    • OLSR:smaller delay,bigger communication

      • Have way to lessen communication

    • DSR:bigger delay,smaller communication

      • Have way to lessen delay

        →Choose protocol as the situation demands
