  1. Global Digital Format RegistryAn Update July 2006

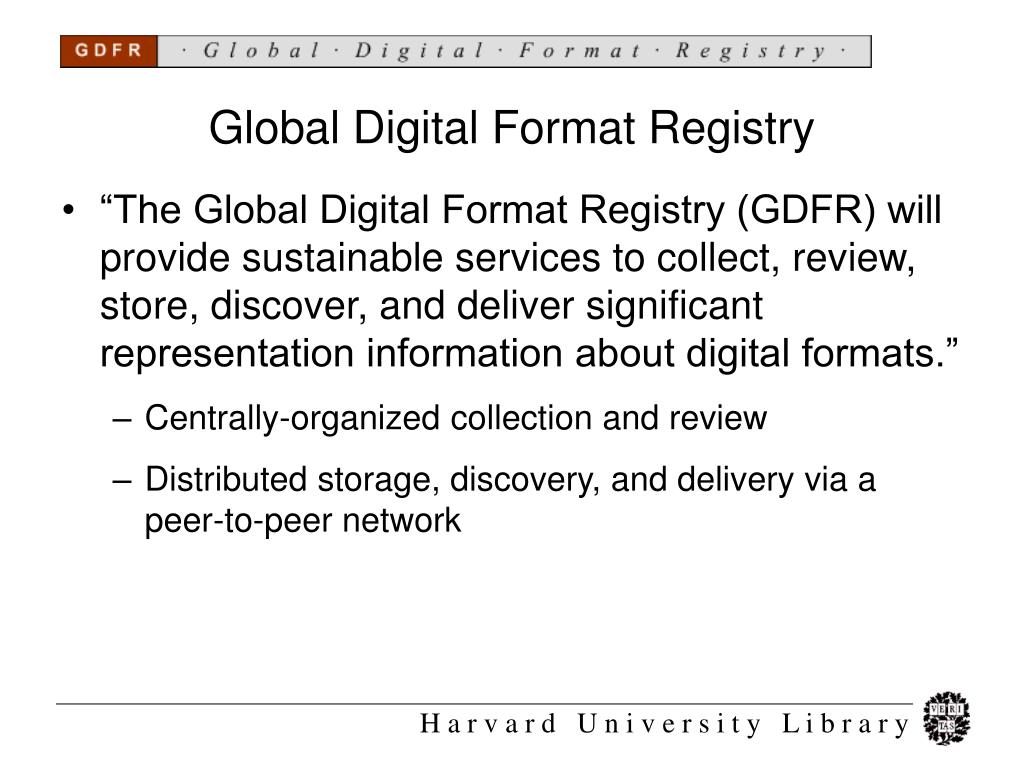

  2. Global Digital Format Registry • “The Global Digital Format Registry (GDFR) will provide sustainable services to collect, review, store, discover, and deliver significant representation information about digital formats.” • Centrally-organized collection and review • Distributed storage, discovery, and delivery via a peer-to-peer network

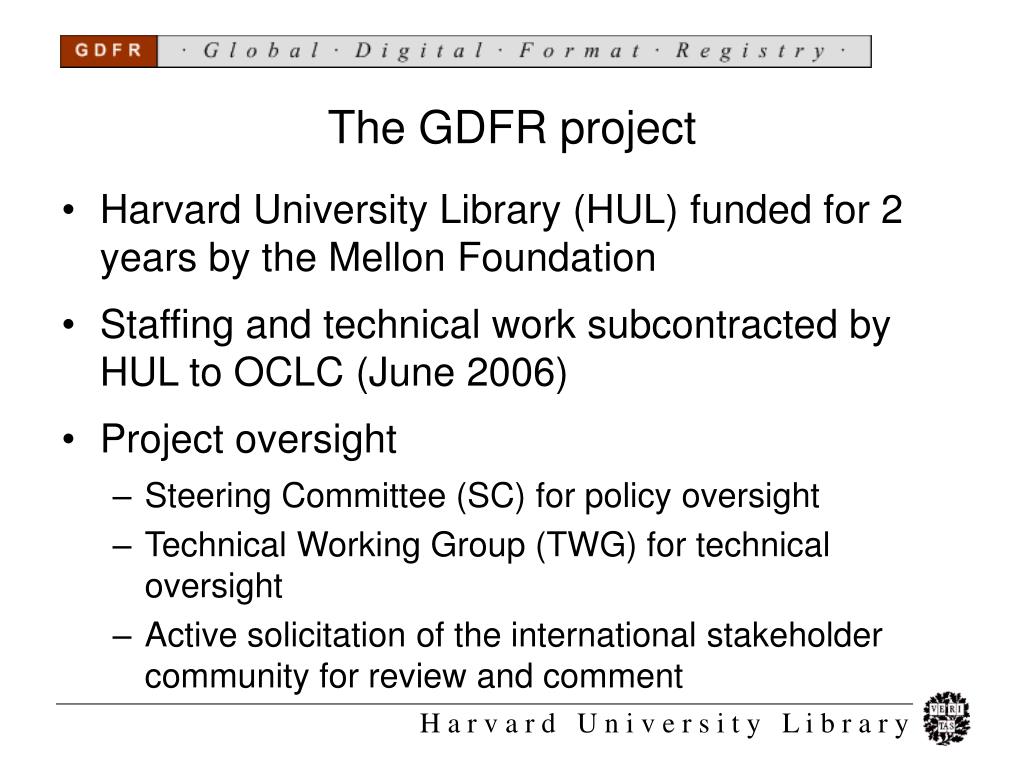

  3. The GDFR project • Harvard University Library (HUL) funded for 2 years by the Mellon Foundation • Staffing and technical work subcontracted by HUL to OCLC (June 2006) • Project oversight • Steering Committee (SC) for policy oversight • Technical Working Group (TWG) for technical oversight • Active solicitation of the international stakeholder community for review and comment

  4. Deliverables • Functional requirements • Technical specifications • Implementation plan (technology platform) • Inter-nodal protocol • Reference software implementation for nodes • Released under LGPL • Editorial process • Initial population • Succession plan

  5. Schedule • Month 1 Staffing, establish public web site • Months 2-6 Consultation, design, prototyping Public discussion planned for DLF Fall Forum, Boston, November 2006 • Months 7-12 Protocol, node implementation • Months 13-18 Initial population, inter-nodal testing • Months 19-24 Integration testing

  6. What is a format? • “A serialization of an abstract information model” • A set of syntactic and semantic rules for mapping from an information model to a byte stream (and, in most instances, for mapping back) • Encompasses the nominal sense of “file format” as well as a range of conceptual models from the micro to the macro level • IEEE 754 floating point number … File system

  7. GDFR network • Peer-to-peer network communicating over a common protocol • Structured delegation for distribution • DNS analogy • “Root” node • Top-level nodes • Distribution classes • Local data • Unvetted data • Vetted data

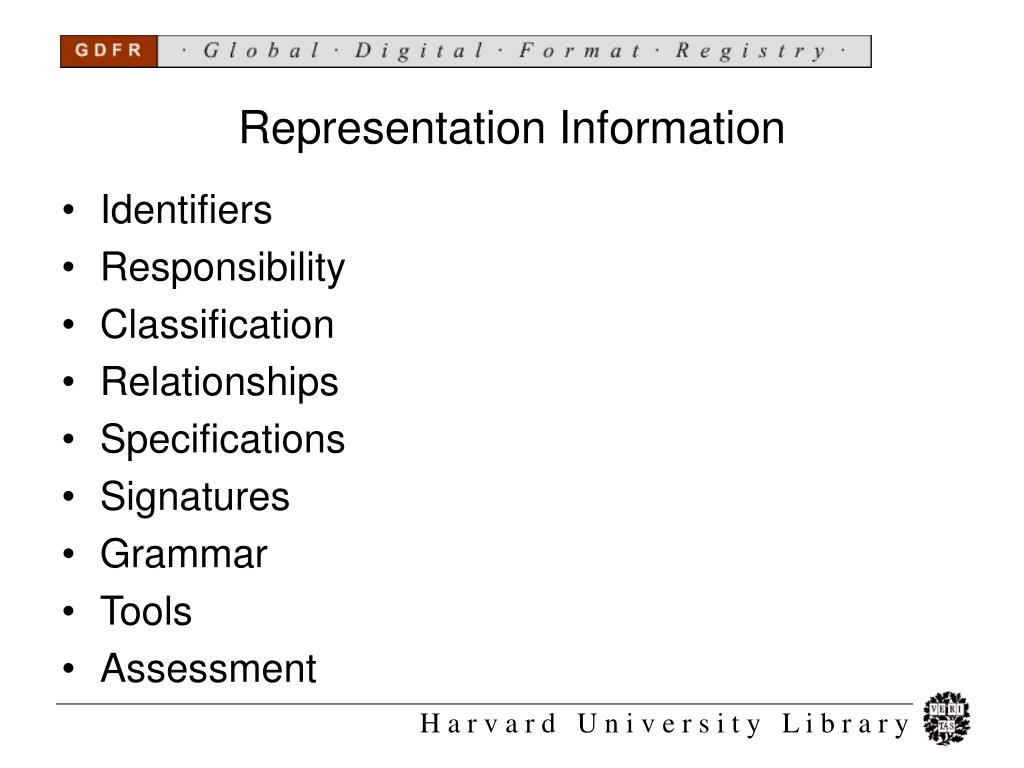

  8. Representation Information • Identifiers • Responsibility • Classification • Relationships • Specifications • Signatures • Grammar • Tools • Assessment

  9. Identifiers • Canonical and alias identifiers in a variety of naming systems • Common usage “TIFF” • MIME “image/tiff” • PRONOM PUID “fmt/10” • LC FDD “fdd000022” • Canonical GDFR-defined identifier in the “info” URI scheme

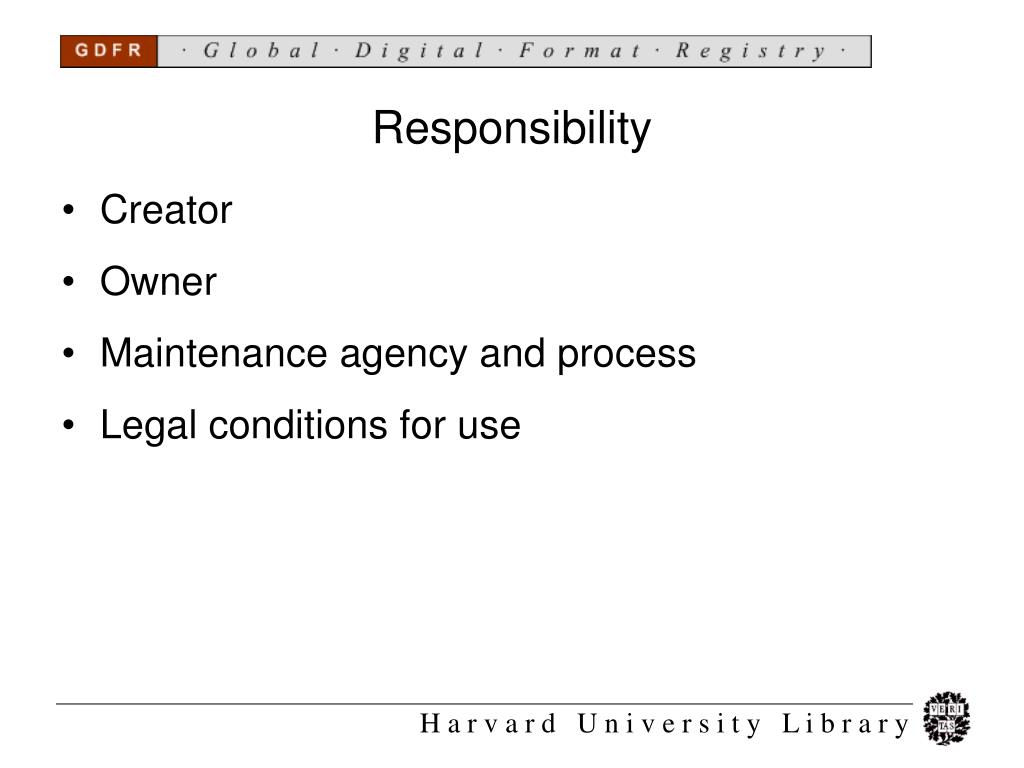

  10. Responsibility • Creator • Owner • Maintenance agency and process • Legal conditions for use

  11. Classification Ontological CLASSES, abstract families, concrete formats, and relationships BYTESTREAM IMAGE STILL RASTER GIF GIF87a GIF89a is-new-version-of GIF87a JPEG ISO 10918-1 JFIF is-subtype-of ISO 10918-1 TIFF TIFF 4.0 TIFF 5.0 is-new-version-of TIFF 4.0 TIFF 6.0 is-new-version-of TIFF 5.0 TIFF/IT is-subtype-of TIFF 6.0 TIFF/IT/CT is-subtype-of TIFF/IT TIFF/IT/CT/P1 is-subtype-of TIFF/IT/CT

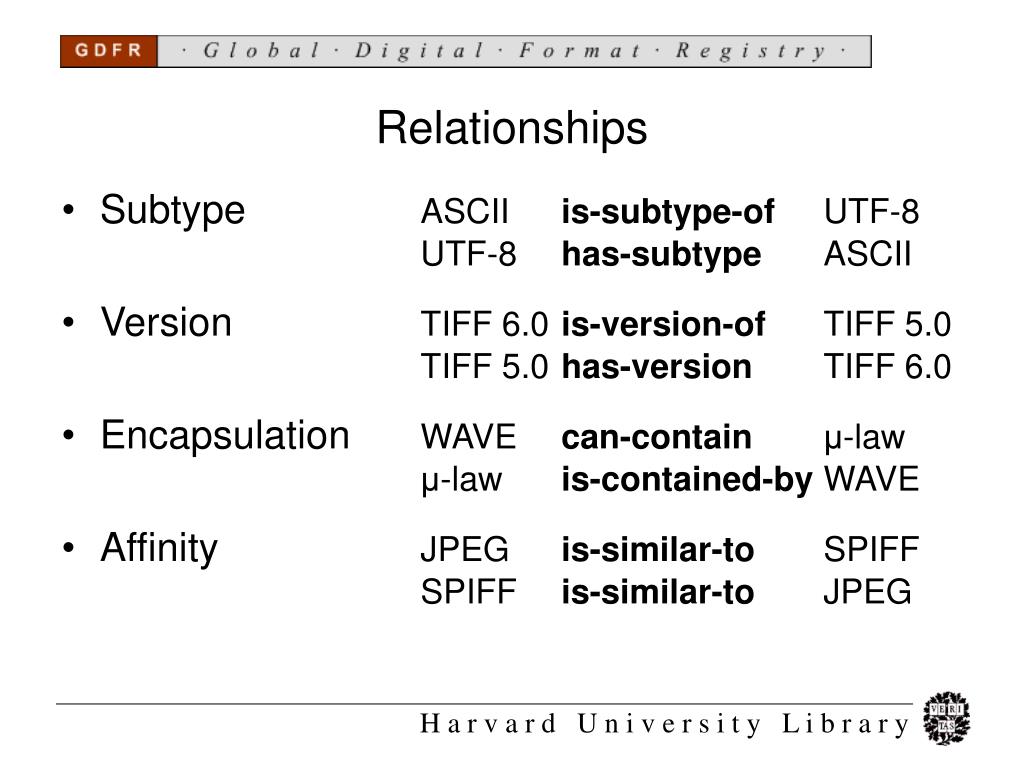

  12. Relationships • Subtype ASCII is-subtype-ofUTF-8 UTF-8 has-subtype ASCII • Version TIFF 6.0 is-version-ofTIFF 5.0 TIFF 5.0 has-version TIFF 6.0 • Encapsulation WAVE can-containμ-law μ-law is-contained-by WAVE • Affinity JPEG is-similar-to SPIFF SPIFF is-similar-to JPEG

  13. Specifications • Bibliographic citation, including descriptive (e.g. ISBN) and actionable (e.g. (URI) identifiers • IP considerations probably prohibit the free distribution of specification documents

  14. Signatures • External • Generally indicative • File extension(s) • Internal • Generally dispositive • Magic number • Other well-defined internal syntactic structures

  15. Grammar • Formal notation of a format • Typed to permit multiple parallel formulations, e.g. BNF, ABNF, BSDL, DFDL, EAST • May be feasible only for relatively simple formats

  16. Tools • Services, systems, and tools using formats as inputs or outputs • Described in terms of some functional taxonomy, e.g. edit, transform, render

  17. Assessment • Format-specific risk assessment • Typed to permit multiple parallel formulations • LC Sustainability/Quality & Functionality (SQF) • OCLC INFORM • DSTC PANIC • Cornell Virtual Remote Control (VRC)

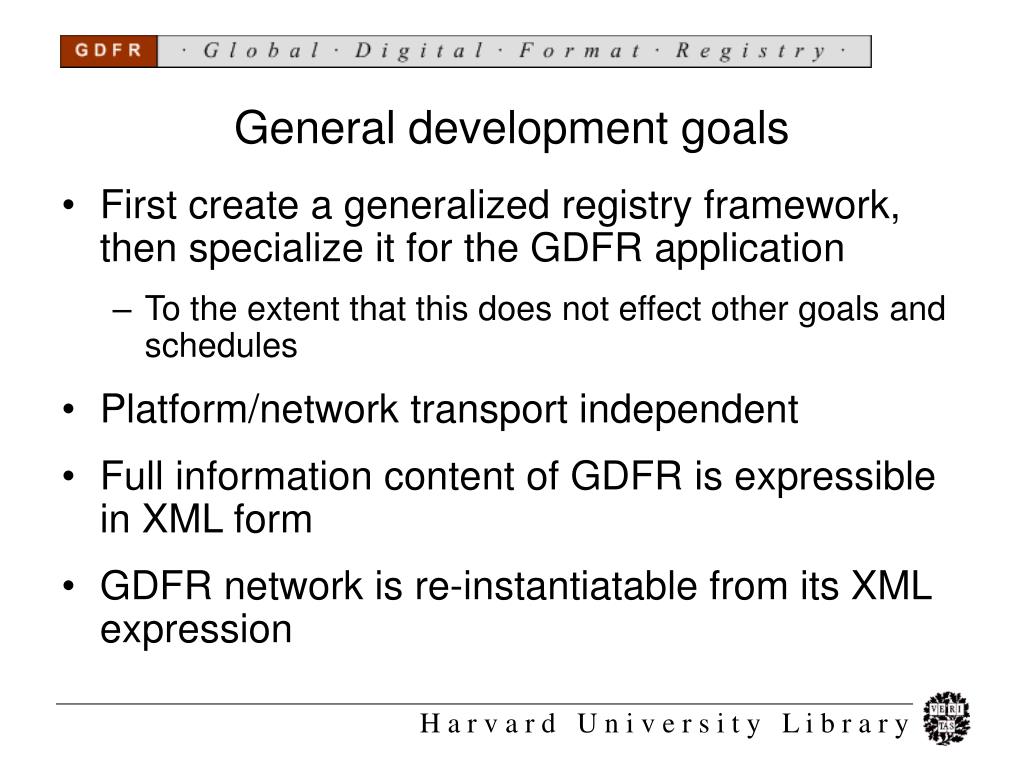

  18. General development goals • First create a generalized registry framework, then specialize it for the GDFR application • To the extent that this does not effect other goals and schedules • Platform/network transport independent • Full information content of GDFR is expressible in XML form • GDFR network is re-instantiatable from its XML expression

  19. Related Work • PRONOM www.nationalarchives.gov.uk/pronom/ • Representation Information Registry/Repository dev.dcc.ac.uk/twiki/bin/view/Main/DCCRegRepV04 • LC Digital Formats Web www.digitalpreservation.gov/formats/ • NARA GDFR governance investigation
